INSTRUMENTS, CONTROLS and DISPLAYS24 - B r i e fl y p r e s s i n g b u t t o n 1 alternates
between the total and trip distance
d i s p l a y s .
To reset the trip recorder to zero,
w h e n i t i s d i s p l a y e d p r e s s b u t t o n 1
u n t i l z e r o s a p p e a r .
T o t a l d i s t a n c e r e c o r d e r
W i t h t h e l i g h t s o n , p r e s s t h e b u t t o n
to vary the intensity of the lighting of
t h e i n s t r u m e n t s a n d c o n t r o l s . W h e n
t h e l i g h t i n g r e a c h e s t h e m i n i m u m ( o r
m a x i m u m ) s e t t i n g , r e l e a s e t h e b u t t o n
then press it again to increase (or re-
d u c e ) t h e b r i g h t n e s s .
As soon as the lighting is of the re-
q u i r e d b r i g h t n e s s , r e l e a s e t h e b u t t o n .
LIGHTING RHEOSTAT CLOCK
B u t t o n 1 : h o u r a d j u s t m e n t
B u t t o n 2 : m i n u t e a d j u s t m e n t
P r e s s a n d h o l d t h e b u t t o n f o r r a p i d
a d v a n c e .
Page 22 of 114
25INSTRUMENTS, CONTROLS and DISPLAYS-
DISPLAY A
This displays the following information:
- the time,
- the date,
- t h e a u d i o s y s t e m d i s p l a y s ,
- a d o o r c h e c k ( e . g . : ' ' l e f t f r o n t d o o r open''),
- w a r n i n g m e s s a g e s ( e . g . ' ' r e m o t e c o n t r o l b a t t e r y fl a t ' ' ) o r i n f o r m a t i o n
m e s s a g e s ( e . g . ' ' e c o n o m y m o d e
a c t i v e ' ' ) , d i s p l a y e d t e m p o r a r i l y . A d j u s t i n g t h e p a r a m e t e r s d i s p l a y A
P r e s s a n d h o l d b u t t o n
A for two sec-
onds to access the settings; the data
fl a s h e s , i n d i c a t i n g i t i s r e a d y t o b e
m o d i fi e d .
T h e n , e a c h p r e s s o f b u t t o n A scrolls
t h r o u g h t h e v a r i o u s d a t a i n t h e f o l l o w -
ing order:
- l a n g u a g e o f i n f o r m a t i o n d i s p l a y e d ,
- h o u r s ( 1 2 t h e n 2 4 h o u r m o d e ) ,
- m i n u t e s ,
- year,
- month,
- d a y .
P r e s s i n g b u t t o n B a l t e r s t h e v a l u e o f
t h e p a r a m e t e r s e l e c t e d . P r e s s a n d
h o l d f o r r a p i d a d v a n c e ( r e t u r n t o s t a r t
a f t e r t h e l a s t p o s s i b l e v a l u e ) .
After 7 seconds with no action, the
s t a n d a r d d i s p l a y r e t u r n s ; t h e m o d i fi e d
d a t a i s n o w r e c o r d e d .
Page 23 of 114
AUDIO EQUIPMENT26 -

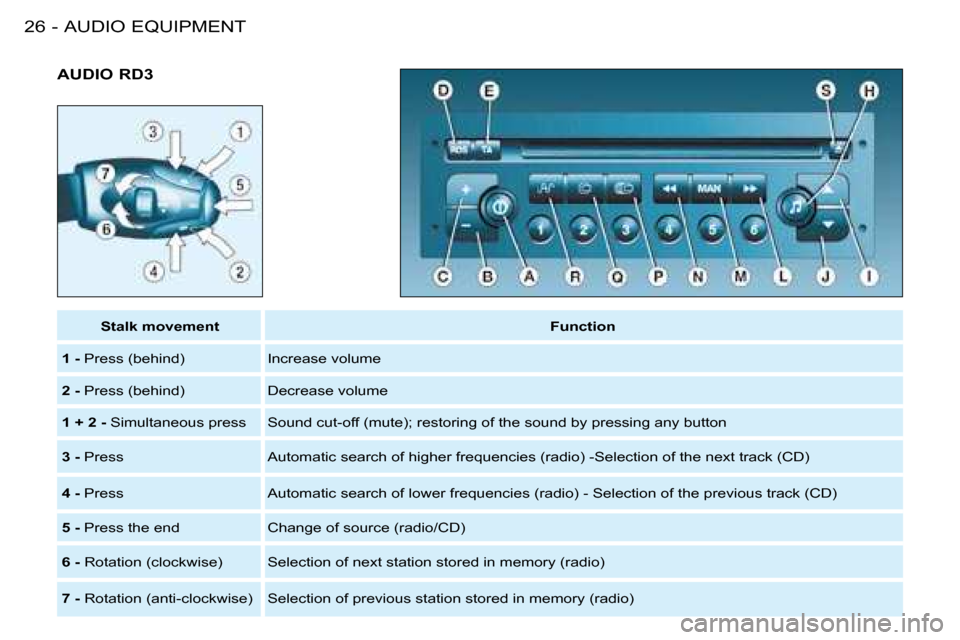

AUDIO RD3
Stalk movementFunction
1 - Press (behind) Increase volume
2 - Press (behind) Decrease volume
1 + 2 - Simultaneous press Sound cut-off (mute); restoring of the sound by pressing any button
3 - Press Automatic search of higher frequencies (radio) -Selection of the next track (CD)
4 - Press Automatic search of lower frequencies (radio) - Selection of the previous track (CD)
5 - Press the end Change of source (radio/CD)
6 - Rotation (clockwise) Selection of next station stored in memory (rad io)
7 - Rotation (anti-clockwise) Selection of previous station stored i n memory (radio)
Page 24 of 114
27AUDIO EQUIPMENT-

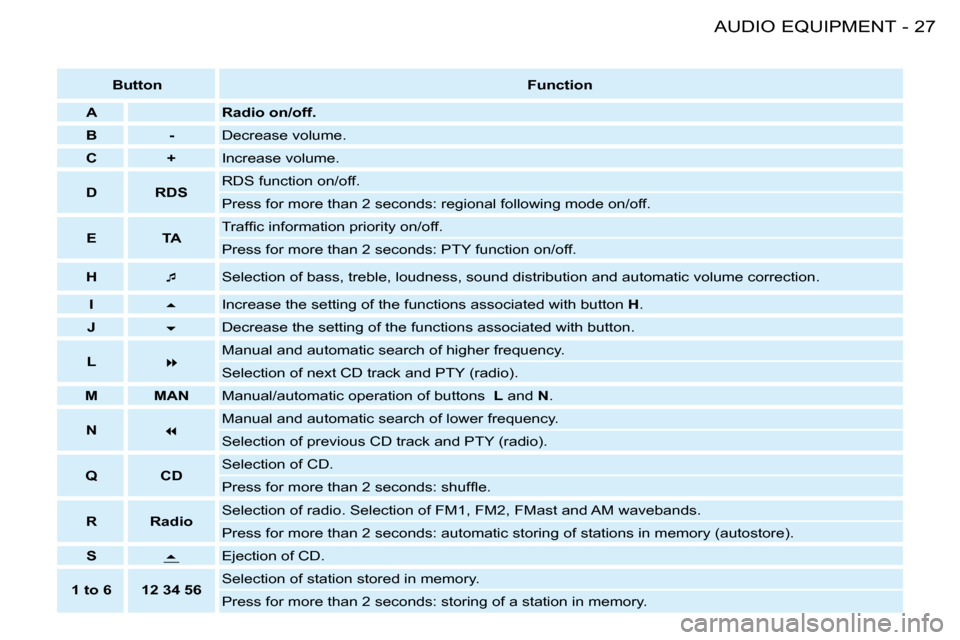

Button Function
A Radio on/off.
B - Decrease volume.
C + Increase volume.
D RDS RDS function on/off.
Press for more than 2 seconds: regional following mode on/off.
E TA T r a f fi c i n f o r m a t i o n p r i o r i t y o n / o f f .
Press for more than 2 seconds: PTY function on/off.
H Selection of bass, treble, loudness, sound distribution and a
utomatic volume correction.
I Increase the setting of the functions associated with button
H .
J Decrease the setting of the functions associated with button
.
L Manual and automatic search of higher frequency.
Selection of next CD track and PTY (radio).
M MAN Manual/automatic operation of buttons L and N.
N Manual and automatic search of lower frequency.
Selection of previous CD track and PTY (radio).
Q CD Selection of CD.
P r e s s f o r m o r e t h a n 2 s e c o n d s : s h u f fl e .
R Radio Selection of radio. Selection of FM1, FM2, FMast and AM waveban
ds.
Press for more than 2 seconds: automatic storing of stations in memory (autostore).
S
Ejection of CD.
1 to 6 12 34 56 Selection of station stored in memory.
Press for more than 2 seconds: storing of a station in memory.
Page 25 of 114
AUDIO EQUIPMENT28 - GENERAL FUNCTIONS AUDIO SETTINGS
Adjusting the loudness
This function automatically empha-sises bass and treble tones. Press button I or J to switch the function on or off.
On/off
With the ignition key in the accessories or ignition position, press button A to switch the set on or off.
The set can operate for 30 minutes without the vehicle ignition being switched on.
Anti-theft system
The audio system is coded in such a way that it can operate only on your v e h i c l e . I t w o u l d n o t f u n c t i o n i f fi t t e d to another vehicle.
The anti-theft system is automatic and requires no action on your part.
ADJUSTING THE VOLUME
Adjusting the bass
Adjusting the treble
When "TREB" is displayed, press button I or J to vary the setting.
- "TREB -9" for a minimum treble setting,
- "TREB 0" for a normal setting,
- "TREB +9" for a maximum treble setting.
Press button H several times in succession to access the bass(BASS) , treble (TREB) , loudness (LOUD) , fader (FAD) , balance (BAL) and automatic volume correction.
Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing button H a f t e r c o n fi g u r a t i o n o f t h e a u t o m a t i c volume correction.
Note: bass and treble settings are s p e c i fi c t o e a c h s o u r c e . I t i s p o s s i -ble to set them differently for radio, cassette (RB3) , CD (RD3) and CD changer.
When "BASS" is dis-played, press button Ior J to vary the setting.
- "BASS -9" for a minimum bass setting,
- "BASS 0" for a normal setting,
- "BASS +9" for a maximum bass setting.
Press button C to in-crease the volume, or button B to decrease it.
Continuous pressure on buttons C and B allows a gradual adjustment of the volume.
Page 26 of 114
29AUDIO EQUIPMENT-
RADIO
Adjusting the front/rear sound distribution (Fader)
When "FAD" is displayed, press but-ton I or J .
Button I increases the volume in the front.
Button J increases the volume in the rear.
Adjusting the right/left sound distribution (Balance)
When "BAL" is displayed, press but-ton I or J .
Button I increases the volume on the right-hand side.
Button J increases the volume on the left-hand side.
Automatic volume correction
This function enables the volume to be automatically adjusted depending on the level of noise produced by the speed of the vehicle.
Press buttons I or J to switch the function on or off.
Selecting radio mode
Press button R . Notes on radio reception
Your car radio is subject to pheno-mena which do not affect domestic radio sets. Both AM (MW/LW) and FM reception are subject to various forms o f i n t e r f e r e n c e . T h i s i s n o r e fl e c t i o n o n the quality of the equipment, but is due to the nature of the signals and the way in which they are transmitted.
On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.
On FM, interference may be the re-sult of increasing distance from the t r a n s m i t t e r , d e fl e c t i o n o f t h e s i g n a l s b y obstacles (mountains, hills, buildings, etc.), or of being in an area which is not covered by a transmitter.
Selecting a waveband
B r i e fl y p r e s s b u t t o n R to select the FM1, FM2, FMast and AM wave-bands.
Page 27 of 114
29AUDIO EQUIPMENT-
RADIO
Adjusting the front/rear sound distribution (Fader)
When "FAD" is displayed, press but-ton I or J .
Button I increases the volume in the front.
Button J increases the volume in the rear.
Adjusting the right/left sound distribution (Balance)
When "BAL" is displayed, press but-ton I or J .
Button I increases the volume on the right-hand side.
Button J increases the volume on the left-hand side.
Automatic volume correction
This function enables the volume to be automatically adjusted depending on the level of noise produced by the speed of the vehicle.
Press buttons I or J to switch the function on or off.
Selecting radio mode
Press button R . Notes on radio reception
Your car radio is subject to pheno-mena which do not affect domestic radio sets. Both AM (MW/LW) and FM reception are subject to various forms o f i n t e r f e r e n c e . T h i s i s n o r e fl e c t i o n o n the quality of the equipment, but is due to the nature of the signals and the way in which they are transmitted.
On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.
On FM, interference may be the re-sult of increasing distance from the t r a n s m i t t e r , d e fl e c t i o n o f t h e s i g n a l s b y obstacles (mountains, hills, buildings, etc.), or of being in an area which is not covered by a transmitter.
Selecting a waveband
B r i e fl y p r e s s b u t t o n R to select the FM1, FM2, FMast and AM wave-bands.
Page 28 of 114
AUDIO EQUIPMENT30 -
B r i e fl y p r e s s b u t t o n L or N to search for the station immediately above or below. By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency.
T h e s c r o l l i n g s t o p s a t t h e fi r s t s t a -tion found as soon as the button is released.
If the TA t r a f fi c i n f o r m a t i o n p r o -gramme is selected, only stations broadcasting this type of programme are selected.
S e a r c h i n g f o r a s t a t i o n o c c u r s fi r s t i n "LO" sensitivity (selection of the most powerful transmitters) during scan-ning of the waveband, then in "DX"sensitivity (selection of the weakest and most distant transmitters).
To make a direct search in "DX" sen-sitivity, press button L or N twice.
Manual station search
Press the "MAN" button.
B r i e fl y p r e s s b u t t o n L or N to in-crease or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency.
T h e s c r o l l i n g s t o p s a t t h e fi r s t s t a -tion found as soon as the button is released.
Pressing the "MAN" button again returns you to automatic station search.
Manual storing of stations in the memory
Select the station required.
Press one of the buttons "1" to "6"for more than two seconds.
The sound stops then becomes audible a g a i n , c o n fi r m i n g t h a t t h e s t a t i o n h a s been stored in the memory.
Automatic station search Automatic storing of FM stations in the memory (autostore)
Press and hold but-ton R for more than two seconds.
Your radio automatically stores the 6 stations with the strongest signal in FM . These stations are stored in the FMast waveband.
I f i t i s n o t p o s s i b l e t o fi n d 6 s t a t i o n s , the remaining memories are empty.
Recalling stations stored in the memory
F o r e a c h w a v e b a n d , b r i e fl y p r e s s buttons "1" to "6" to recall the cor-responding station.
Page 29 of 114
31AUDIO EQUIPMENT-
RDS
T r a f fi c i n f o r m a t i o n p r o g r a m m e Regional following mode (REG)
RDS station following
The display indicates the name of the station selected. The radio is conti-nually searching for the station which has the best reception and which is transmitting the same programme.
Press the "TA" button to switch the function on or off.
The multi-function display will show:
- "TA" if the function is selected,
- "(TA)" if the function is selected but not available.
A n y t r a f fi c i n f o r m a t i o n fl a s h w i l l b e given priority, whatever source you are listening to (radio, cassette, CD or CD changer).
If you wish to interrupt a message, press the "TA" button; this switches the function off.
B r i e fl y p r e s s t h e "RDS" button to switch the function on or off.
The multi-function display will show:
- "RDS" if the function is selected.
- "(RDS)" if the function is selected but not available.
When they are part of a network, certain stations broadcast re-gional programmes in the various areas they serve. With re-gional following mode you can keep listening to the same programme.
Press the "RDS" button for more than two seconds to switch the REGfunction on or off.
Using the RDS (Radio Data System) function on FM
Radio Data System allows you to continue listening to the same sta-tion, whatever frequency it is using for the region you are going through.
N o t e : t h e v o l u m e o f t r a f fi c i n f o r m a -tion announcements is indepen-dent of the volume of normal radio listening. You can adjust it using the volume button. The setting will be stored and will be used when the next messages are broadcast.
Page 30 of 114
AUDIO EQUIPMENT32 -
EON system
This connects stations which are part of the same network. It enables the b r o a d c a s t o f t r a f fi c i n f o r m a t i o n , b y a station that is part of the same net-work as the station to which you are listening.
This service is available when you have selected the TA t r a f fi c i n f o r m a t i o n p r o -TAgramme or the PTY function. PTY
PTY function
This allows you to listen to stations broad- c a s t i n g a s p e c i fi c t y p e o f p r o g r a m m e (news, culture, sport, rock, etc.).
To search for a PTY programme: PTY
With FM selected, press the "TA" but-ton for more than two seconds to switch this function on or off.
- select the PTY function, PTY
- b r i e fl y p r e s s b u t t o n L or N to scroll down the list of the various types of programmes offered.
- when the programme of your choice is displayed, keep button L or N pressed for more than two seconds to carry out an automatic search (after an automatic search the PTY function is switched off). PTY
In PTY mode the different types of PTYprogrammes can be stored in the memory. To do this, press the prese-lection buttons "1" to "6" for more t h a n t w o s e c o n d s . B r i e fl y p r e s s t h e corresponding button to recall the type of programme stored in the memory.
