FAMILIARISATION14 -
FRONT FITTINGS
1. Storage compartments in the doors.
A. Bottle holder.
B. Can holder.
C. Storage compartment.
2. Overhead storage.
3. Map reading light.
4. Courtesy light.
5. Sun visors.
6. Glove box.
7. Lighter.
8. Removable ashtray.
9. Storage drawer (passenger).
65
Page 12 of 114
15FAMILIARISATION-
REAR LAYOUT
S t o w i n g r i n g s
For greater safety, always en-
sure that the loads transported
a r e s e c u r e d fi r m l y .
67
1. Load space cover.
2. High load retaining net.
3. Stowing rings.
4. Side door storage compartment.
5. Trays between the front and rear
seats.
6. Seat back storage pockets.
68
Page 13 of 114
FAMILIARISATION16 - This operation must be carried out
with t h e e n g i n e s w i t c h e d o f f .
Insert the key then turn it to the
left.
Remove the cap.
A label indicates which type of fuel to
use.
W h e n y o u fi l l y o u r t a n k , d o n o t c o n t i n u e
after the third cut-off of the pump. This
could cause engine malfunctions.
The capacity of the tank is approxi-
mately 55 litres for petrol engines
and 60 litres for Diesel engines. From the time this light comes on,
you have enough fuel left to cover
approximately 30 miles (50 km) .
Note: the right-hand sliding side door
cannot be opened while the fuel tank
cap is removed.
Outside the vehicle: Lift the control,
raise the bonnet and secure the strut
to keep the bonnet open.
OPENING THE BONNET
Inside the vehicle: Pull the control
on the left-hand side, under the fascia
panel.
L o w f u e l l e v e l
w a r n i n g l i g h t
58
58
FILLING WITH FUEL
Page 14 of 114
INSTRUMENTS, CONTROLS and DISPLAYS18 -

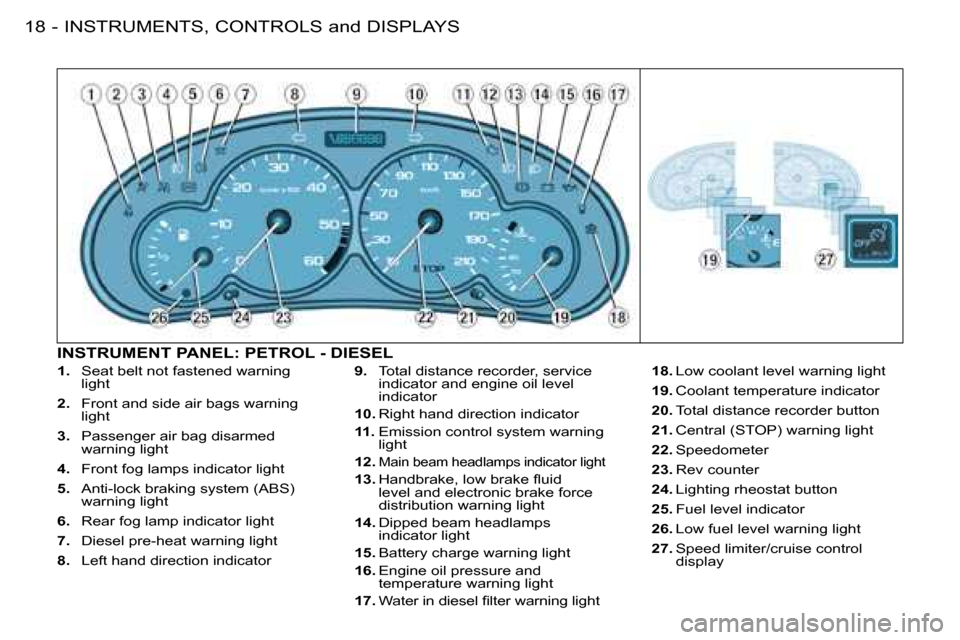

1. Seat belt not fastened warning
light
2. Front and side air bags warning
light
3. Passenger air bag disarmed
warning light
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)
warning light
6. Rear fog lamp indicator light
7. Diesel pre-heat warning light
8. Left hand direction indicator
9. Total distance recorder, service
indicator and engine oil level
indicator
10. Right hand direction indicator
11. Emission control system warning
light
12.
Main beam headlamps indicator light
13. H a n d b r a k e , l o w b r a k e fl u i d
level and electronic brake force
d i s t r i b u t i o n w a r n i n g l i g h t
14. Dipped beam headlamps
indicator light
15. Battery charge warning light
16. E n g i n e o i l p r e s s u r e a n d
t e m p e r a t u r e w a r n i n g l i g h t
17. W a t e r i n d i e s e l fi l t e r w a r n i n g l i g h t
18. Low coolant level warning light
19. C o o l a n t t e m p e r a t u r e i n d i c a t o r
20. T o t a l d i s t a n c e r e c o r d e r b u t t o n
21. Central (STOP) warning light
22. Speedometer
23. R e v c o u n t e r
24. L i g h t i n g r h e o s t a t b u t t o n
25. F u e l l e v e l i n d i c a t o r
26. L o w f u e l l e v e l w a r n i n g l i g h t
27. S p e e d l i m i t e r / c r u i s e c o n t r o l
display
INSTRUMENT PANEL: PETROL - DIESEL
Page 15 of 114
19INSTRUMENTS, CONTROLS and DISPLAYS-
INSTRUMENTS AND CONTROLS
A permanently lit warning light or
o n e fl a s h i n g , w i t h t h e e n g i n e r u n -
n i n g , i n d i c a t e s a n o p e r a t i n g f a u l t
o f t h e u n i t c o n c e r n e d . T h e i l l u m i -
n a t i o n o f c e r t a i n w a r n i n g l i g h t s
m a y b e a c c o m p a n i e d b y a n a u d i -
b l e s i g n a l a n d a m e s s a g e o n t h e
d i s p l a y . D o n o t i g n o r e t h i s w a r n -
i n g : c o n s u l t a CITROËN d e a l e r a s
s o o n a s p o s s i b l e .
I f t h e c e n t r a l S T O P w a r n i n g l i g h t
c o m e s o n w h e n y o u a r e d r i v i n g ,
s t o p y o u r v e h i c l e i m m e d i a t e l y ,
w h e r e i t i s s a f e t o d o s o .
Central (STOP)
warning light
Linked to the warning
lights:
- ' ' e n g i n e o i l p r e s s u r e a n d t e m p e r a - t u r e ' ' ,
- ''low coolant level'',
- 'handbrake'',
- ' ' l o w b r a k e fl u i d l e v e l ' ' ,
- ' ' e l e c t r o n i c b r a k e f o r c e d i s t r i b u t i o n s y s t e m f a u l t ' ' .
L i n k e d w i t h t h e " c o o l a n t t e m p e r a t u r e "
i n d i c a t o r .
Y o u m u s t s t o p i f t h e l i g h t fl a s h e s
w i t h t h e e n g i n e r u n n i n g .
C o n s u l t a C I T R O Ë N d e a l e r . E n g i n e o i l p r e s s u r e
a n d t e m p e r a t u r e
warning light
Linked to the central (STOP) warning
l i g h t .
Y o u m u s t s t o p .
This warning light indicates one of
the following:
- i n s u f fi c i e n t o i l p r e s s u r e i n d i c a t e d by the message " O i l p r e s s u r e
i n s u f fi c i e n t " o n t h e d i s p l a y .
- a l a c k o f o i l i n t h e l u b r i c a t i o n c i r c u i t . T o p u p t h e l e v e l .
- a n o i l t e m p e r a t u r e w h i c h i s t o o h i g h . T o l o w e r t h e o i l t e m p e r a t u r e , r e d u c e
y o u r s p e e d .
Lighting of the warning light is ac-
c o m p a n i e d b y a n a u d i b l e s i g n a l .
C o n s u l t a C I T R O Ë N d e a l e r .
L o w e n g i n e c o o l a n t
l e v e l w a r n i n g l i g h t
Linked to the central (STOP) warn-
i n g l i g h t .
This comes on for a few seconds
w h e n t h e i g n i t i o n i s s w i t c h e d o n .
Lighting of this warning light is ac-
c o m p a n i e d b y a n a u d i b l e s i g n a l a n d
the message " T o p u p e n g i n e fl u i d
l e v e l " o n t h e d i s p l a y .
Y o u m u s t s t o p .
Wait for the engine to cool before
t o p p i n g u p t h e l e v e l .
T h e c o o l i n g c i r c u i t i s p r e s s u r i s e d . H a n d b r a k e , l o w
b r a k e f l u i d l e v e l a n d
E l e c t r o n i c B r a k e F o r c e
D i s t r i b u t i o n s y s t e m
f a u l t w a r n i n g l i g h t
Linked to the central (STOP) warning
l i g h t .
This comes on each time the ignition
i s s w i t c h e d o n .
Lighting of this warning light is ac-
c o m p a n i e d b y a n a u d i b l e s i g n a l a n d
a message on the display indicating
t h e c a u s e o f t h e w a r n i n g :
- " H a n d b r a k e o n " , if the handbrake
i s a p p l i e d o r n o t f u l l y r e l e a s e d .
- " B r a k e fl u i d l e v e l l o w " if there is
a n e x c e s s i v e d r o p i n b r a k e fl u i d
level (if the warning light remains
on even when the handbrake is
r e l e a s e d ) .
- " B r a k i n g f a u l t " is displayed
together with the ABS warning
l i g h t , i n d i c a t i n g a m a l f u n c t i o n
of the Electronic Brake Force
D i s t r i b u t i o n s y s t e m . Y o u m u s t
s t o p .
C o n s u l t a C I T R O Ë N d e a l e r .
In the event of breakdown and to
pre-
v e n t a n y r i s k o f b u r n s , u n s c r e w t h e
c a p b y t w o t u r n s t o a l l o w t h e p r e s s u r e
t o d r o p .
W h e n t h e p r e s s u r e h a s d r o p p e d , r e -
m o v e t h e c a p a n d t o p u p t h e l e v e l .
C o n s u l t a C I T R O Ë N d e a l e r .
Page 16 of 114
INSTRUMENTS, CONTROLS and DISPLAYS20 - B a t t e r y c h a r g e w a r n i n g
light
This comes on for a few sec-
onds when the ignition is
s w i t c h e d o n . L i g h t i n g o f t h i s w a r n i n g
l i g h t , w h e n t h e e n g i n e i s r u n n i n g , a c -
c o m p a n i e d b y a n a u d i b l e s i g n a l a n d
the message " B a t t e r y c h a r g e f a u l t "
on the display, indicates one of the
following:
- f a u l t y o p e r a t i o n o f t h e c h a r g i n g c i r c u i t ,
- slack battery or starter terminals,
- a c u t o r s l a c k a l t e r n a t o r b e l t ,
- a n a l t e r n a t o r f a i l u r e .
C o n s u l t a C I T R O Ë N d e a l e r . E m i s s i o n c o n t r o l
s y s t e m w a r n i n g l i g h t
This comes on for a few sec-
onds each time the ignition is
s w i t c h e d o n .
I f i t c o m e s o n w i t h t h e e n g i n e r u n n i n g ,
a c c o m p a n i e d b y a n a u d i b l e s i g n a l
and the message on the display:
- " A n t i p o l l u t i o n f a u l t " , this
i n d i c a t e s a f a i l u r e o f t h e e m i s s i o n
control system
- " C a t a l y t i c c o n v e r t e r f a u l t " , this
i n d i c a t e s a m a l f u n c t i o n o f t h e
i n j e c t i o n o r i g n i t i o n s y s t e m . T h e r e
is a risk of damage to the catalytic
c o n v e r t e r ( p e t r o l e n g i n e o n l y ) .
C o n s u l t a C I T R O Ë N d e a l e r .
D i e s e l e n g i n e p r e - h e a t
warning light
W a i t u n t i l t h e w a r n i n g l i g h t
g o e s o u t b e f o r e s t a r t i n g t h e
e n g i n e .
I f t h e t e m p e r a t u r e i s h i g h e n o u g h ,
the warning light comes on for less
t h a n o n e s e c o n d . Y o u c a n s t a r t t h e
e n g i n e w i t h o u t w a i t i n g . L o w f u e l l e v e l
warning light
This comes on for a few
seconds when the igni-
t i o n i s s w i t c h e d o n .
When the ignition is on, it is accom-
p a n i e d b y a n a u d i b l e s i g n a l a n d t h e
message " F u e l l e v e l l o w " on the
d i s p l a y .
I f i t fl a s h e s w i t h t h e f u e l g a u g e n e e d l e
in the lowest position, when the igni-
t i o n i s o n , t h i s i n d i c a t e s a m a l f u n c t i o n
o f t h e f u e l g a u g e .
W h e n t h i s w a r n i n g l i g h t fi r s t c o m e s
o n , y o u h a v e e n o u g h f u e l l e f t t o d r i v e
a p p r o x i m a t e l y 3 0 m i l e s ( 5 0 k m ) .
Capacity of the tank:
- approximately 55 litres for petrol engines,
- approximately 60 litres for Diesel e n g i n e s .
W a t e r i n d i e s e l f i l t e r
i n d i c a t o r *
There is a risk of damage to the
i n j e c t i o n s y s t e m .
C o n s u l t a C I T R O Ë N d e a l e r a s s o o n
a s p o s s i b l e .
A n t i - l o c k b r a k i n g
s y s t e m ( A B S ) w a r n i n g
light
This comes on for a few seconds each
t i m e t h e i g n i t i o n i s s w i t c h e d o n .
If the warning light remains on or
comes on above 8 mph (12 km/h),
t h i s i n d i c a t e s a n A B S m a l f u n c t i o n .
However, the vehicle retains conven-
t i o n a l s e r v o - a s s i s t e d b r a k i n g .
Lighting of this warning light, accom-
p a n i e d b y a n a u d i b l e s i g n a l a n d t h e
message " A B S f a u l t " on the display,
i n d i c a t e s a n A B S f a u l t .
C o n s u l t a C I T R O Ë N d e a l e r .
* A c c o r d i n g t o c o u n t r y .
Page 17 of 114
21INSTRUMENTS, CONTROLS and DISPLAYS-
S e a t b e l t n o t f a s t e n e d
w a r n i n g l i g h t *
When the ignition is switched
on, this indicator light comes
on if the driver has not fastened his
s e a t b e l t .
Above 12 mph (20 km/h), the warn-
i n g l i g h t fl a s h e s f o r t w o m i n u t e s .
O n c e t h e t w o m i n u t e s h a v e e l a p s e d ,
t h e w a r n i n g l i g h t r e m a i n s o n u n t i l t h e
d r i v e r f a s t e n s h i s s e a t b e l t . C o o l a n t t e m p e r a t u r e i n d i c a t o r
- needle in zone (A) , the tempera-
t u r e i s c o r r e c t ,
- needle in zone ( B ) , the tempera-
t u r e i s t o o h i g h . T h e c e n t r a l STOP
w a r n i n g l i g h t fl a s h e s , a c c o m p a -
n i e d b y a n a u d i b l e s i g n a l a n d t h e
message " E n g i n e c o o l a n t t e m p .
too high" o n t h e d i s p l a y .
Y o u m u s t s t o p .
C o n s u l t a C I T R O Ë N d e a l e r .
* A c c o r d i n g t o c o u n t r y . P a s s e n g e r a i r b a g
d i s a r m e d w a r n i n g
l i g h t *
Lighting of this warning light is accom-
panied by the message " P a s s e n g e r
a i r b a g d e a c t i v a t e d " o n t h e d i s p l a y .
If the passenger air bag is disarmed,
the warning light comes on when the
ignition is switched on and it remains
o n .
A l w a y s c o n s u l t a C I T R O Ë N d e a l e r i f
t h e w a r n i n g l i g h t fl a s h e s . F r o n t a n d s i d e a i r b a g s
warning light
This comes on for a few sec-
onds when the ignition is
s w i t c h e d o n .
W i t h t h e e n g i n e r u n n i n g , i l l u m i n a t i o n
of this warning light accompanied by
a n a u d i b l e s i g n a l a n d t h e m e s s a g e
" A i r b a g f a u l t " o n t h e m u l t i f u n c t i o n
d i s p l a y , i n d i c a t e s a f a u l t i n t h e a i r
b a g s .
C o n s u l t a C I T R O Ë N d e a l e r .
Page 18 of 114
21INSTRUMENTS, CONTROLS and DISPLAYS-
S e a t b e l t n o t f a s t e n e d
w a r n i n g l i g h t *
When the ignition is switched
on, this indicator light comes
on if the driver has not fastened his
s e a t b e l t .
Above 12 mph (20 km/h), the warn-
i n g l i g h t fl a s h e s f o r t w o m i n u t e s .
O n c e t h e t w o m i n u t e s h a v e e l a p s e d ,
t h e w a r n i n g l i g h t r e m a i n s o n u n t i l t h e
d r i v e r f a s t e n s h i s s e a t b e l t . C o o l a n t t e m p e r a t u r e i n d i c a t o r
- needle in zone (A) , the tempera-
t u r e i s c o r r e c t ,
- needle in zone ( B ) , the tempera-
t u r e i s t o o h i g h . T h e c e n t r a l STOP
w a r n i n g l i g h t fl a s h e s , a c c o m p a -
n i e d b y a n a u d i b l e s i g n a l a n d t h e
message " E n g i n e c o o l a n t t e m p .
too high" o n t h e d i s p l a y .
Y o u m u s t s t o p .
C o n s u l t a C I T R O Ë N d e a l e r .
* A c c o r d i n g t o c o u n t r y . P a s s e n g e r a i r b a g
d i s a r m e d w a r n i n g
l i g h t *
Lighting of this warning light is accom-
panied by the message " P a s s e n g e r
a i r b a g d e a c t i v a t e d " o n t h e d i s p l a y .
If the passenger air bag is disarmed,
the warning light comes on when the
ignition is switched on and it remains
o n .
A l w a y s c o n s u l t a C I T R O Ë N d e a l e r i f
t h e w a r n i n g l i g h t fl a s h e s . F r o n t a n d s i d e a i r b a g s
warning light
This comes on for a few sec-
onds when the ignition is
s w i t c h e d o n .
W i t h t h e e n g i n e r u n n i n g , i l l u m i n a t i o n
of this warning light accompanied by
a n a u d i b l e s i g n a l a n d t h e m e s s a g e
" A i r b a g f a u l t " o n t h e m u l t i f u n c t i o n
d i s p l a y , i n d i c a t e s a f a u l t i n t h e a i r
b a g s .
C o n s u l t a C I T R O Ë N d e a l e r .
Page 19 of 114
INSTRUMENTS, CONTROLS and DISPLAYS22 - S e r v i c e i n d i c a t o r
T h i s i s a v i s u a l r e m i n d e r o f w h e n t h e
n e x t s e r v i c e i s d u e . T h i s s e r v i c e i s t o
b e c a r r i e d o u t a c c o r d i n g t o t h e m a n u -
f a c t u r e r ' s s e r v i c i n g s c h e d u l e . 5 seconds after the ignition is
switched on, the total distance re-
c o r d e r r e s u m e s n o r m a l o p e r a t i o n a n d
the display shows the total or trip dis-
t a n c e s .
T h e d i s t a n c e r e m a i n i n g b e f o r e t h e n e x t
s e r v i c e i s l e s s t h a n 5 0 0 m i l e s ( 1 , 0 0 0 k m ) .
Example: 400 miles (900 km) remain
b e f o r e t h e n e x t s e r v i c e i s d u e .
When switching on the ignition and
for 5 seconds, the display shows:
5 seconds after the ignition is
switched on, the total distance re-
c o r d e r r e s u m e s n o r m a l o p e r a t i o n
a n d t h e s y m b o l r e m a i n s l i t .
T h i s i n d i c a t e s t h a t a s e r v i c e s h o u l d
b e c a r r i e d o u t s h o r t l y . T h e d i s p l a y
s h o w s t h e t o t a l o r t r i p d i s t a n c e s . T h e s e r v i c e i s o v e r d u e .
Each time the ignition is switched on
and for 5 seconds, the symbol and
t h e e x c e s s d i s t a n c e fl a s h .
Example: t h e s e r v i c e i s o v e r d u e b y
3 0 0 m i l e s / k m . T h e s e r v i c e s h o u l d b e
c a r r i e d o u t v e r y s h o r t l y .
When the ignition is switched on and
for 5 seconds, the display shows:
5 seconds after the ignition is
switched on, the total distance re-
c o r d e r r e s u m e s n o r m a l o p e r a t i o n a n d
t h e s y m b o l r e m a i n s l i t . T h e d i s p l a y
s h o w s t h e t o t a l o r t r i p d i s t a n c e s .
Note: the spanner lights if the two-year
i n t e r v a l h a s b e e n e x c e e d e d .
INSTRUMENT PANEL DISPLAY
After switching on the ignition, three
f u n c t i o n s a r e s h o w n i n s u c c e s s i o n :
- service indicator,
- engine oil level indicator,
- total distance recorder/total and t r i p d i s t a n c e s .
Note
: the total and trip distances are
displayed for 30 seconds when the
ignition is switched off, on opening
the driver's door, as well as on lock-
i n g a n d u n l o c k i n g t h e v e h i c l e .
Example: 4,800 miles/km remain be-
f o r e t h e n e x t s e r v i c e i s d u e . W h e n t h e
ignition comes on and for 5 seconds
the display shows:
Operation
As soon as the ignition is switched
on and for 5 seconds, the spanner
s y m b o l i s i n g ' ' s e r v i c e o p e r a t i o n ' ' i s l i t .
The trip recorder display shows the
d i s t a n c e r e m a i n i n g ( i n r o u n d fi g u r e s )
b e f o r e t h e n e x t s e r v i c e .
Page 20 of 114
23INSTRUMENTS, CONTROLS and DISPLAYS-
E n g i n e o i l l e v e l i n d i c a t o r
When the ignition is switched on,
the engine oil level is indicated for
approximately 10 seconds, after the
s e r v i c e i n f o r m a t i o n .
F l a s h i n g o f t h e s i x s q u a r e s a n d d i s -
p l a y i n g o f " m a x " i n d i c a t e a s u r p l u s o f
o i l w h i c h c o u l d d a m a g e t h e e n g i n e .
I f t h e s u r p l u s o f o i l i s c o n fi r m e d b y
a c h e c k u s i n g t h e d i p s t i c k , c o n t a c t a
C I T R O Ë N d e a l e r w i t h o u t d e l a y .
Y o u r C I T R O Ë N d e a l e r c a r r i e s o u t
t h i s o p e r a t i o n a f t e r e a c h s e r v i c e .
T h e r e s e t p r o c e d u r e i s a s f o l l o w s :
- S w i t c h o f f t h e i g n i t i o n .
- P r e s s a n d h o l d b u t t o n
1 .
- S w i t c h o n t h e i g n i t i o n .
T h e d i s p l a y b e g i n s a 1 0 s e c o n d c o u n t -
d o w n .
-
K e e p b u t t o n 1 p r e s s e d f o r 1 0 s e c o n d s .
The display shows [=0] and the spanner
d i s a p p e a r s .
Flashing of the six segments and dis-
playing of "min" indicate a lack of oil
w h i c h c o u l d d a m a g e t h e e n g i n e .
I f t h e l a c k o f o i l i s c o n fi r m e d b y a
c h e c k u s i n g t h e d i p s t i c k , i t i s e s s e n t i a l
t h a t t h e l e v e l i s t o p p e d u p . Flashing of the six segments indi-
c a t e s a m a l f u n c t i o n o f t h e o i l l e v e l
i n d i c a t o r .
T h e r e i s a r i s k o f d a m a g e t o t h e e n g i n e .
C o n s u l t a C I T R O Ë N d e a l e r .
T h e l e v e l r e a d o n t h e d i p s t i c k o r o n
t h e i n d i c a t o r w i l l o n l y b e c o r r e c t i f
t h e v e h i c l e i s o n l e v e l g r o u n d a n d
t h e e n g i n e h a s b e e n o f f f o r m o r e
t h a n 1 5 m i n u t e s .
R e s e t t i n g t h e s e r v i c e i n d i c a t o r
S u r p l u s o f o i l
L a c k o f o i l O i l l e v e l i n d i c a t o r f a u l t
