43SEATS-

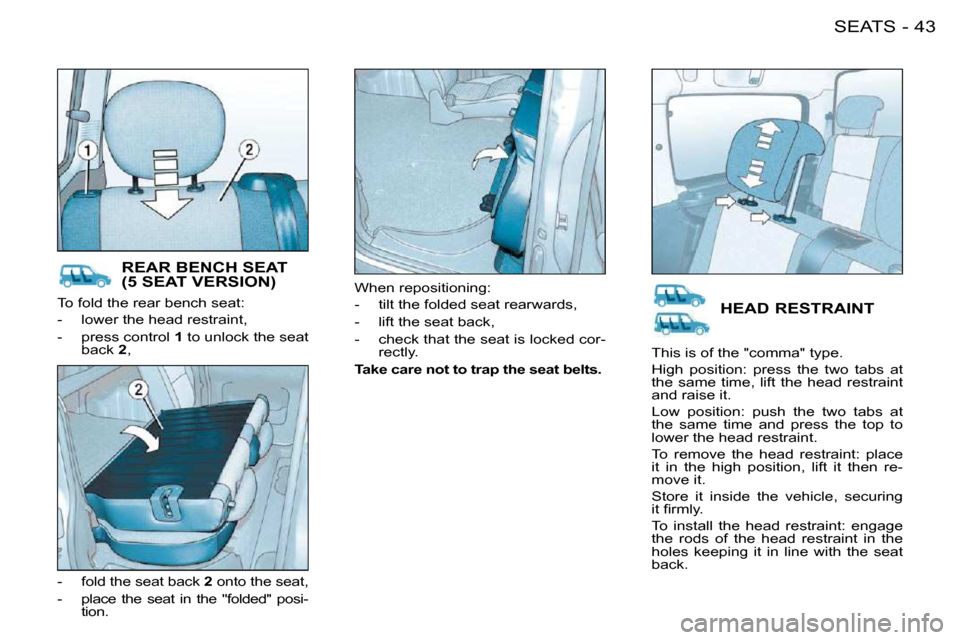

To fold the rear bench seat:
- lower the head restraint,
- press control 1 to unlock the seat
back 2 ,
- fold the seat back 2 onto the seat,
- place the seat in the "folded" posi- tion. When repositioning:
- tilt the folded seat rearwards,
- lift the seat back,
- check that the seat is locked cor-
rectly.
Take care not to trap the seat belts.
REAR BENCH SEAT(5 SEAT VERSION)
HEAD RESTRAINT
This is of the "comma" type.
High position: press the two tabs at
the same time, lift the head restraint
and raise it.
Low position: push the two tabs at
the same time and press the top to
lower the head restraint.
To remove the head restraint: place
it in the high position, lift it then re-
move it.
Store it inside the vehicle, securing
i t fi r m l y .
To install the head restraint: engage
the rods of the head restraint in the
holes keeping it in line with the seat
back.
Page 42 of 123
SEATS44-
REAR BENCH SEATS (7 SEAT VERSION)
The bench seats of row 2 and row 3
are independent and adjustable.

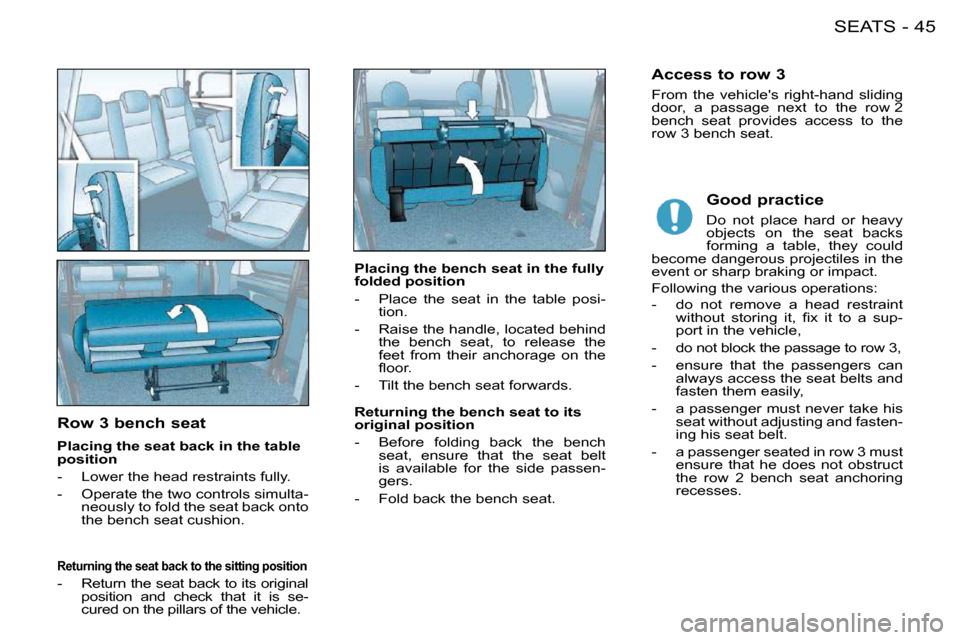

Row 2 bench seat
Placing the bench seat in the
table position
- Lower the head restraints fully.
- Operate the control to fold the seat back onto the bench seat
cushion.
Returning the seat back to
the sitting position
- Return the seat back to its original position and check that it is se-
cured on the pillar of the vehicle. Placing the bench seat in the fully
folded position
- Place the seat in the table posi-
tion.
- Pull the handle, located behind the bench seat, to release the
feet from their anchorage on the
fl o o r .
- Tilt the bench seat forwards.
Returning the bench seat to its original position
Before folding the bench seat,
ensure that:
- in row 3, no passenger's foot is at one of the bench seat anchor-
a g e s o n t h e fl o o r ,
- the seat belt is available for the side passenger.
- fold back the bench seat.
Page 43 of 123
45SEATS-

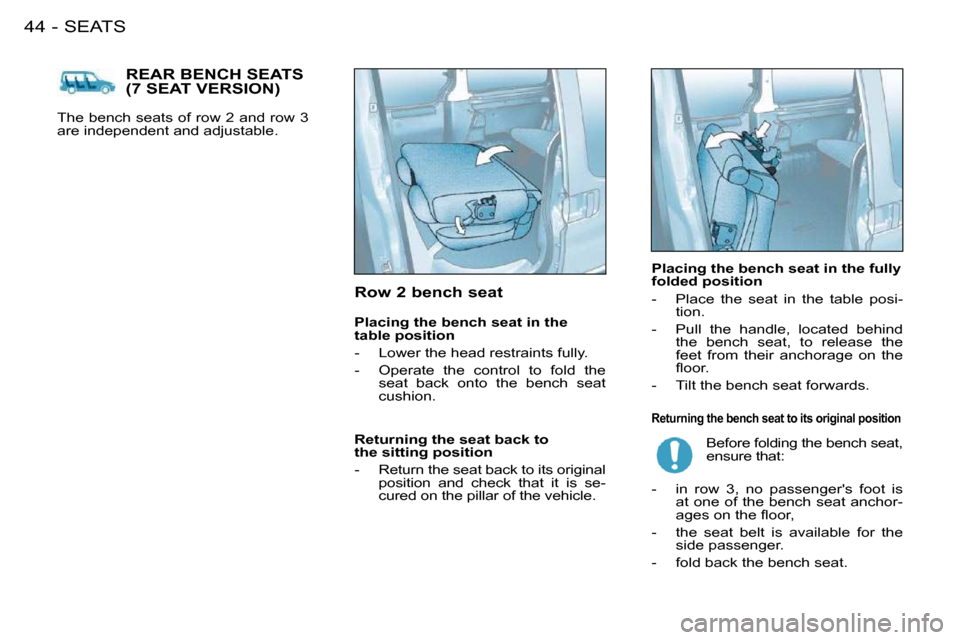

Row 3 bench seat
Placing the seat back in the table
position
- Lower the head restraints fully.
- Operate the two controls simulta-neously to fold the seat back onto
the bench seat cushion.
Returning the seat back to the sitting position
- Return the seat back to its original position and check that it is se-
cured on the pillars of the vehicle. Placing the bench seat in the fully
folded position
- Place the seat in the table posi-
tion.
- Raise the handle, located behind the bench seat, to release the
feet from their anchorage on the
fl o o r .
- Tilt the bench seat forwards.
Returning the bench seat to its
original position
- Before folding back the bench seat, ensure that the seat belt
is available for the side passen-
gers.
- Fold back the bench seat.
Access to row 3
From the vehicle's right-hand sliding
door, a passage next to the row 2
bench seat provides access to the
row 3 bench seat.
Good practice
Do not place hard or heavy
objects on the seat backs
forming a table, they could
become dangerous projectiles in the
event or sharp braking or impact.
Following the various operations:
- do not remove a head restraint w i t h o u t s t o r i n g i t , fi x i t t o a s u p -
port in the vehicle,
- do not block the passage to row 3,
- ensure that the passengers can always access the seat belts and
fasten them easily,
- a passenger must never take his seat without adjusting and fasten-
ing his seat belt.
- a passenger seated in row 3 must ensure that he does not obstruct
the row 2 bench seat anchoring
recesses.
Page 44 of 123
SEATS46-
GENERAL POINTS RELATING TO CHILD SEATS
Although one of CITROËN's main
criteria when designing your vehicle,
the safety of your children also de-
pends on you.
For maximum safety, please follow
these precautions:
- all children under the age of 12
o r l e s s t h a n o n e m e t r e fi f t y t a l l
must travel in approved child
seats suited to their weight ,
o n s e a t s fi t t e d w i t h a s e a t b e l t o r
ISOFIX mountings * .
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position in the front.
SEAT BELT
"Forwards-facing"
When a "forwards-facing" child seat
is installed on the front passenger
seat , adjust the vehicle's seat to the
intermediate longitudinal position
with the seat back upright and leave
the passenger air bag armed.
* The rules for transporting chil- d r e n a r e s p e c i fi c t o e a c h c o u n t r y .
Consult the current legislation in
your country. Intermediate longitudinal
position
"Rearwards-facing"

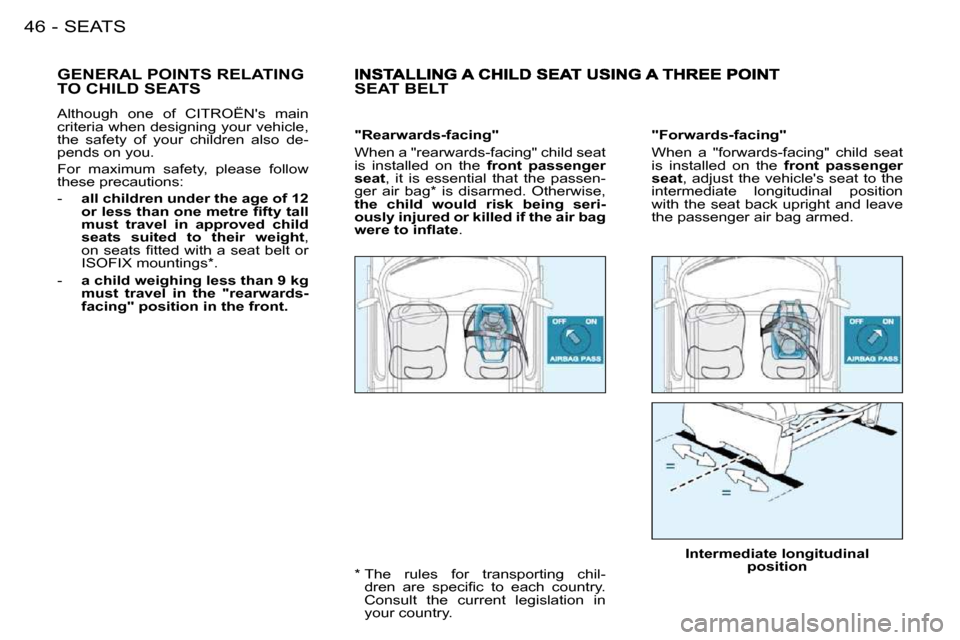

When a "rearwards-facing" child seat
is installed on the
front passenger
seat , it is essential that the passen-
ger air bag * is disarmed. Otherwise,
the child would risk being seri-
ously injured or killed if the air bag
w e r e t o i n fl a t e .
Page 45 of 123
51SEATS-
ADVICE ON CHILD SEATS
The incorrect installation of a
child seat in a vehicle com-
promises the child's protection in the
event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body to
a minimum, even for short journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking. Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Disarm the passenger air bag when
a "rear facing" child seat is installed
on the front seat. Otherwise, the child
would risk being seriously injured or
k i l l e d i f t h e a i r b a g w e r e t o i n fl a t e .
As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
CITROËN recommends the use of
a b o o s t e r s e a t w h i c h h a s a b a c k , fi t -
ted with a seat belt guide at shoulder
level. To prevent accidental
opening of the doors, use
the "Child lock".
Take care not to open the
rear windows by more than
one third.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
Page 46 of 123
47SEATS-
CHILD SEATS RECOMMENDED BY CITROËN

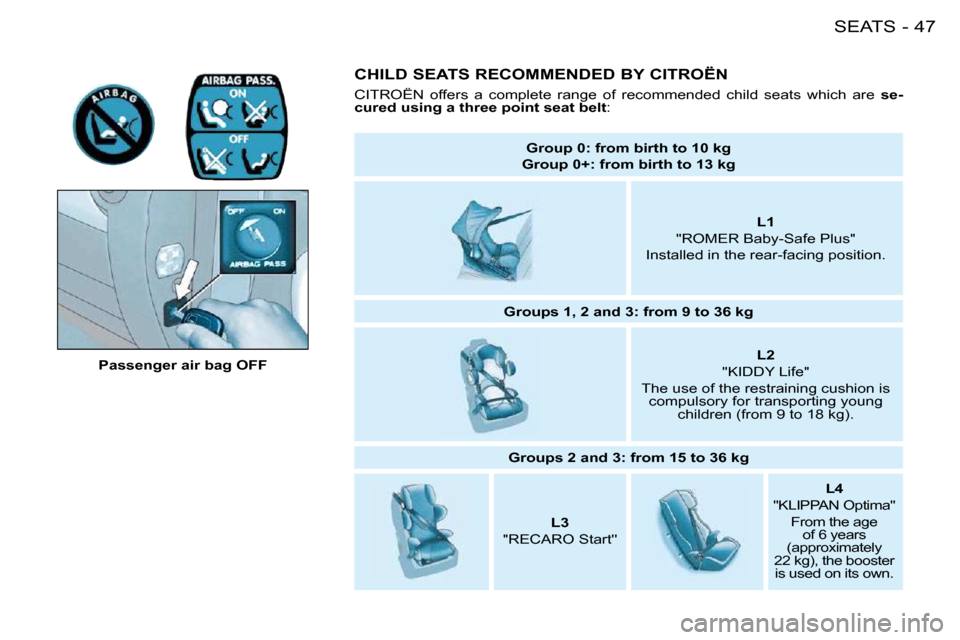

CITROËN offers a complete range of recommended child seats which are se-
cured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
The use of the restraining cushion is compulsory for transporting young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''
L4
"KLIPPAN Optima" From the age of 6 years
(approximately
22 kg), the booster is used on its own.
Passenger air bag OFF
Page 47 of 123
SEATS48-
INSTALLING CHILD SEATS SECURED USING THE SEAT BELT

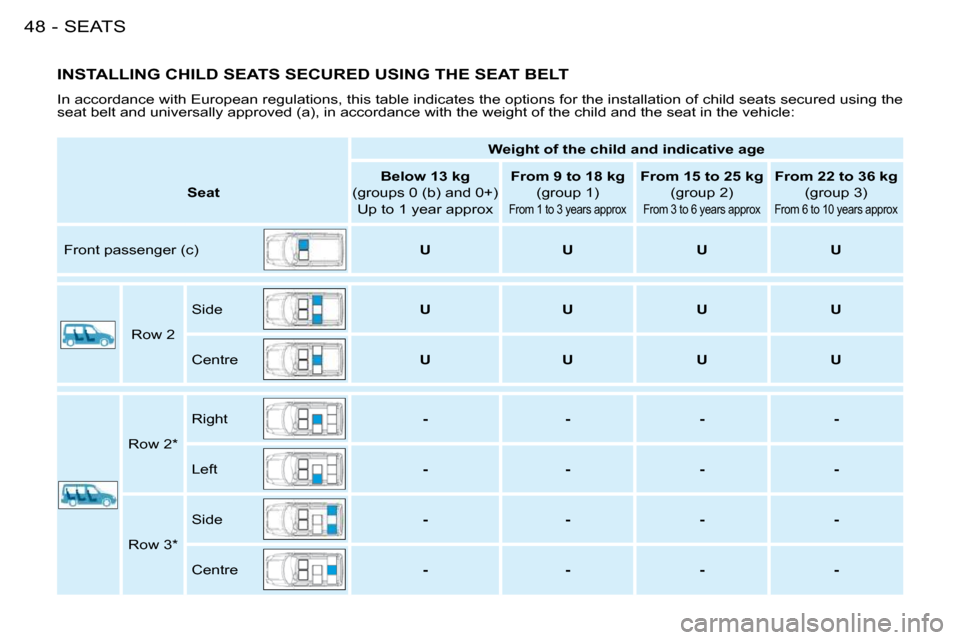

In accordance with European regulations, this table indicates the options for the installation of child seats secured using the
seat belt and universally approved (a), in accordance with the w eight of the child and the seat in the vehicle:
Weight of the child and indicative age
Seat
Below 13 kg
(groups 0 (b) and 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years approx
From 15 to 25 kg
(group 2)
From 3 to 6 years approx
From 22 to 36 kg
(group 3)
From 6 to 10 years approx
Front passenger (c) U U U U
Row 2 Side
U U U U
Centre U U U U
Row 2 * Right
- - - -
Left - - - -
Row 3 * Side
- - - -
Centre - - - -
Page 48 of 123
51SEATS-
ADVICE ON CHILD SEATS
The incorrect installation of a
child seat in a vehicle com-
promises the child's protection in the
event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body to
a minimum, even for short journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking. Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Disarm the passenger air bag when
a "rear facing" child seat is installed
on the front seat. Otherwise, the child
would risk being seriously injured or
k i l l e d i f t h e a i r b a g w e r e t o i n fl a t e .
As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
CITROËN recommends the use of
a b o o s t e r s e a t w h i c h h a s a b a c k , fi t -
ted with a seat belt guide at shoulder
level. To prevent accidental
opening of the doors, use
the "Child lock".
Take care not to open the
rear windows by more than
one third.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
