Citroen BERLINGO MULTISPACE RHD 2017 2.G Owner's Manual

199
Berlingo2VP_en_Chap09_Caract-technique_ed02-2016Berlingo2VP_en_Chap09_Caract-technique_ed02-2016
Diesel Engines / Weights
5-seatEngine Gearbox Engine oil
capacity with filter
replacement (litres) Unbraked trailer (kg)
Recommended nose
weight (kg)
1.6 HDi 75 hp 5-speed manual -600 70
1.6 HDi 75 hp FAP 5-speed manual -715 70
BlueHDi 75 hp Euro
65-speed manual
-720 70
1.6 HDi 90 hp 5-speed manual 3.75735 70
1.6 HDi 92 hp FAP 5-speed manual 3.75715 70
1.6 e-HDi 92 hp FAP 5-speed manual 3.75690 70
1.6 BlueHDi 100 hp Euro 6 5-speed manual
3.75600 70
1.6 BlueHDi 100 hp S&S 5-speed manual
3.75600
70
6-speed electronic 60070
1.6 HDi 115 hp FAP 5-speed manual 3.75735 70
1.6 BlueHDi 120 hp Euro 6 6-speed manual
3.75600 70
FA P :


particle   filter.
e-HDi :
  model   equipped   with   Stop   &   Start.
TECHNICAL DATA
9
Weights

200
Berlingo2VP_en_Chap09_Caract-technique_ed02-2016Berlingo2VP_en_Chap09_Caract-technique_ed02-2016
7-seatEngine Gearbox Engine oil
capacity with filter
replacement (litres) Unbraked trailer (kg)
Recommended nose
weight (kg)
1.6 HDi 92 hp FAP 5-speed manual 3.75750 70
1.6 BlueHDi 100 hp Euro 6 5-speed manual
3.75600 70
1.6 BlueHDi 100 hp Euro 6 S&S 5-speed manual
3.75600 70
1.6 HDi 115 hp FAP 5-speed manual 3.75750 70
1.6 BlueHDi 120 hp Euro 6 6-speed manual
3.75600 70
FA P :


particle   filter.
e-HDi :
  model   equipped   with   Stop   &   Start.
Weights

201
Berlingo2VP_en_Chap09_Caract-technique_ed02-2016Berlingo2VP_en_Chap09_Caract-technique_ed02-2016

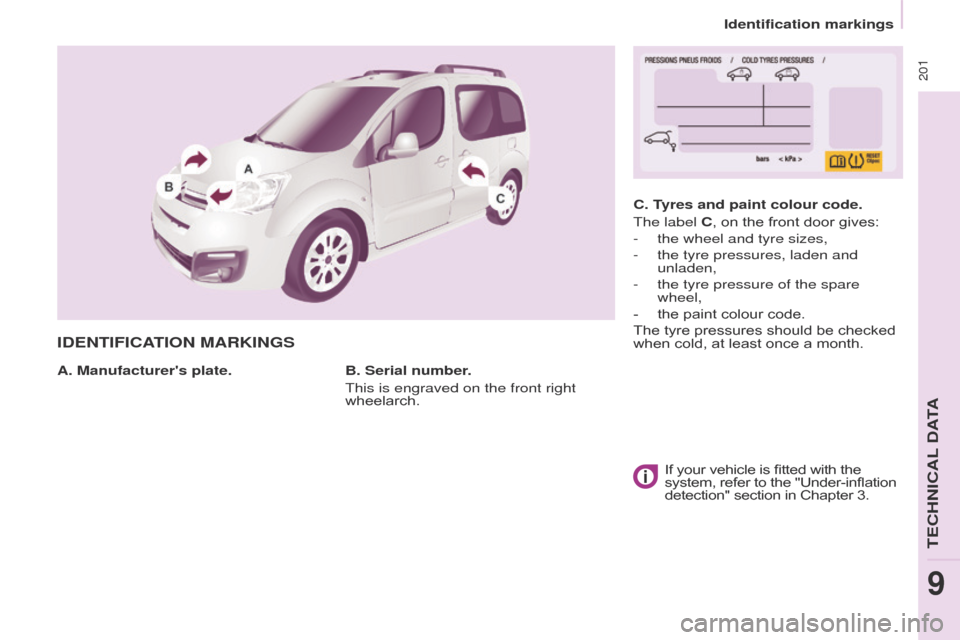

IDENTIFICATION MARKINGS
A. Manufacturer's plate.C. Tyres and paint colour code.
The label C,
  on   the   front   door   gives:
-
the wheel and tyre sizes,
-

the tyre pressures, laden and
unladen,
-

the tyre pressure of the spare
wheel,
-

the
  paint   colour   code.
The   tyre   pressures   should   be   checked
when

  cold,   at   least   once   a   month.
B. Serial number.
This is engraved on the front right
wheelarch.
If
  your   vehicle   is   fitted   with   the
 system,

  refer   to   the   "Under-inflation
 detection"

  section   in   Chapter   3.
TECHNICAL DATA
9
Identification markings

202
Berlingo2VP_en_Chap09_Caract-technique_ed02-2016Berlingo2VP_en_Chap09_Caract-technique_ed02-2016

203
Berlingo2VP_en_Chap10a_SMEGplus_ed02-2016
7-inch touch screen tablet
GPS satellite navigation - Multimedia audio - Bluetooth® telephone
Contents
First steps
2 04
Steering mounted controls
20

6
Menus
 2

07
Navigation


208
Navigation - Guidance
2

16
Traffic
 2

20
Radio Media

2
22
Radio

2
28
DAB (Digital Audio Broadcasting) radio

2
30
Media
2

32
Settings


234
Connected services
2

42
MirrorLink
TM 2 42
CarPlay® 246
T
elephone
2
48
Frequently
  asked   questions
2
56
The system is protected in such a way that it will only operate in
your

vehicle. As a safety measure, the driver should only carry out operations
which

require

prolonged

attention   while   the   vehicle   is   stationary.
The display of an energy economy mode message signals that
electrical

systems

operating

are   going   into   standby.
Refer

to

the

energy

economy   mode   section.
Audio and Telematics
TECHNOLOGY on BOARD
10

204
Berlingo2VP_en_Chap10a_SMEGplus_ed02-2016
First steps
Use the buttons above the touch screen tablet
for access to the menu carousel, then press the
virtual  buttons   in   the   touch   screen   tablet.
Each menu is displayed in one or two pages
(primary
  page   and   secondary   page).
Secondary page
Primary page In very hot conditions, the system may
go into stand-by (screen and sound
completely off) for a minimum period of
5
 m

inutes.
Audio and Telematics

205
Berlingo2VP_en_Chap10a_SMEGplus_ed02-2016
Volume adjustment (each s ource i s i ndependent, inc
luding traffic announcements (TA) and
navigation
 i

nstructions).
Mute the sound by pressing simultaneously on
the
  volume   increase   and   reduce   buttons.
Unmute the sound by pressing one of the
two volume
  buttons.
Press Menu
to display the menu
carousel.
Increase
  volume.
Reduce
  volume.
Selecting the audio source (depending on
version):
-

"

FM"

/

"DAB"*

/

"AM"*

stations.
-

"

USB"

memory

stick.
-

S

martphone

via

MirrorLink
TM or CarPlay®.
- T
elephone connected by Bluetooth®* and
Bluetooth® audio streaming*.
-
M
edia player connected to the auxiliary
socket

( jack,   cable   not   supplied).
*
  Depending   on   equipment.
Short-cuts:

using   the   touch   buttons   in   the   upper
b

and of the touch screen tablet, it is possible to
go directly to the selection of the audio source
or the list of stations (or titles, depending on the
s o u r c e).
The screen is of the "resistive" type, it
is necessary to press firmly, particularly
for  "flick"   gestures   (scrolling   through   a
l

ist,   moving   the   map...).   A   simple   wipe
w

ill   not   be   enough.   Pressing   with   more
t

han   one   finger   is   not   recognised.
The screen can be used when wearing
gloves.   This   technology   allows   use   at
a

ll
 t
emperatures.
In very high temperatures, the volume
may   be   limited   to   protect   the   system.
T

he   return   to   normal   takes   place   when
t

he temperature in the passenger
compartment   drops.
To clean the screen, use a soft
non-abrasive cloth (spectacles cloth)
without   any   additional   product.
Do
  not   use   pointed   objects   on   the
sc

reen.
Do not touch the screen with wet
hands.
Audio and Telematics
TECHNOLOGY on BOARD
10

206
Berlingo2VP_en_Chap10a_SMEGplus_ed02-2016
Steering mounted controls
Radio: select the previous/next preset s tation.
Media:
  select   a   genre   /   artist   /   folder
f

rom   the   list.
Select
  the   previous/next   entry   in
a m

enu.
Decrease
  volume.
Radio:
  automatic   search   for   a   higher
f

requency.
Media:
  Select   next   track.
Media,
  press   and   hold:   fast   for ward.
Jump
  in   the   list. Mute:
  cut   the   sound   by   pressing
t

he volume increase and decrease
buttons
 s

imultaneously.
Restore the sound by pressing one of
the
  two   volume   buttons.
Radio:
  automatic   search   for   a   lower  f
requency.
Media:
  select   previous   track.
Media,
  press   and   hold:   fast   back.
Jump
  in   the   list.
Change
  the   audio   source.
Confirm
  a   selection.
Call/end
  call   on   the   telephone.
Press
  for   more   than   2   seconds:
a

ccess   to   the   telephone   menu. Increase
  volume.
Audio and Telematics

 207
Berlingo2VP_en_Chap10a_SMEGplus_ed02-2016
Menus
Settings
Radio Media
Navigation
Driving
Connected services Telephone
Adjust the settings for sound (balance, a
mbience,   ...),   colour   schemes   and   the   display
(

language,   units,   date,   time,   ...).
Select an audio source, a radio station, display
photographs.
Enter navigation settings and choose a
destination.
Access
  to   the   trip   computer.
Activate, deactivate or enter settings for certain
vehicle
  functions.
Operate certain applications on your
smartphone

via

MirrorLink
TM or CarPlay®. Connect a telephone by Bluetooth
®.
Access to the CarPlay® function after
connection

of

your

smartphone   by   USB   cable.
(Depending on equipment)
(Depending on equipment)
Audio and Telematics
TECHNOLOGY on BOARD
10

208
Berlingo2VP_en_Chap10a_SMEGplus_ed02-2016
Level 1Level 2Level 3
Navigation
NavigationRoute settings
Audio and Telematics
