Citroen BERLINGO MULTISPACE RHD 2017 2.G Owner's Manual

179
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
REMOVABLE SNOW SCREEN
(
BLANKING COVER )
According to country, the removable
snow screen is installed on the lower
part of the front bumper to prevent the
accumulation of snow at the radiator
cooling
  fan.
Fitting Removal
- Offer up the snow screen facing its
centring pin A   on   the   front   bumper.
-

Put it in place by pressing at each
clip

B   located   in   the   four   corners.
Do not forget to remove the
snow screen when the exterior
temperature is higher than 10°C
(no


risk

of

snowfall)

and

when

towing. -

Pass a screwdriver into the hole
located
  near   each   of   the   clips.
-

Use the screwdriver as a lever to
unclip the four clips

B   in   turn.
QUICK HELP
8
Snow screen

180
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
SNOW CHAINS
In wintry conditions, snow chains
improve traction as well as the
behaviour  of   the   vehicle   when   braking.
 The

  snow   chains   must   be   fitted
only

  to   the   driving   wheels.
They

must

  never   be   fitted   to   "space-
saver"
  type   spare   wheels.
 T

ake   account   of   the   legislation   in
force in your country on the use
of snow chains and the maximum
running

  speed   authorised.Advice on installation
F

If
  you   have   to   fit   the   chains   during
a

  journey,   stop   the   vehicle   on   a   flat
surface

  on   the   side   of   the   road.
F

Apply
  the   parking   brake   and
position

  any   wheel   chocks   to
prevent

  movement   of   your   vehicle.
F

Fit the chains following the
instructions provided by the
manufacturer

.
F

Move of
f gently and drive for a
few moments, without exceeding
30
  mph   (50   km/h).
F

Stop
  your   vehicle   and   check   that
the snow chains are correctly
tightened.It is recommended that before you
leave,

  you   practise   fitting   the   snow
chains

  on   a   level   and   dry   surface.
Use only the chains designed to be
fitted
  to   the   type   of   wheel   fitted   to   your
vehicle:
For more information on snow chains,
contact a CITROËN dealer or a
qualified

  workshop.
Original
tyre size Maximum
  link
size.
195/65

  R159 mm
195/70
  R15
205/65
  R15
215/55
  R16
215/50
  R17Avoid driving with chains on roads
that have been cleared of snow,
to avoid damaging your vehicle's tyres
and
  the   road   surface.   If   your   vehicle
is

  fitted   with   alloy   wheels,   check   that
no

  part   of   the   chain   or   its   fixings   is   in
contact

  with   the   wheel   rim.
Snow chains

181
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
CHANGING A BULB
Type A
All  glass   bulb:   pull   gently
as

  it   is   fitted   by   pressure.
Type C
Halogen
  bulb:   release   the
retaining spring from its
housing. T
ype B
Bayonet
  bulb:   press
on the bulb then turn it
anticlockwise.
T

ypes of bulb
Various

types
  of   bulb   are   fitted   to   your
vehicle.
T

o

remove

them:
Type D
Light-emitting diode
(LED):
  for   replacement
of the daytime running
lamps, contact a
CITROËN dealer or a
qualified

  workshop.
QUICK HELP
8
Changing a bulb

182
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
2. Sidelamps
Type A, W5W - 5W
-
Remove the cover by pullin
g the
flexible
  rubber   tab.
-

Remove
  the   bulb   holder   fitted   by
pressure

  by   pulling   the   connector.
-

Change
  the   bulb.
-

Ensure
  that   the   cover   is   refitted
correctly all round to assure correct
sealing.
Front lamps
1. Dipped / Main beam headlamps
T ype C, H4 - 55W
-

Remove the centre cover by pullin
g
the
  flexible   rubber   tab.
-

Disconnect
  the   electrical   connector.
-

Release
  the   retaining   tab.
-

Change
  the   bulb   taking   care
to align the metal part with the
grooves

  on   the   lamp.
-

Reposition
  the   retaining   tab.
-

Ensure
  that   the   cover   is   refitted
correctly all round to assure correct
sealing.
High pressure washing Open


the

bonnet.

T

o

access

the

bulbs,

reach


behind

the

headlamp

unit.
Carry out the operations in reverse
order

to

refit

each

bulb

and

check

that

the


bonnet

is

closed

securely.
Halogen bulbs must be changed
with

the

headlamp

off.

Wait

a

few

minutes


(risk

of

serious

burns).

Do not touch the bulb directly with your
fingers,


use

lint-free

cloths.
It is normal for condensation to form
inside

the

headlamps.

Regular

use

of
 the

vehicle

eliminates

this

misting.
The bulbs must be changed with
the ignition off or with the battery
disconnected.

Wait

approximately

3


minutes after changing the bulb
before

reconnecting

the

battery.
Check

that

the

lamps

operate

correctly

after


each

operation.
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lamps and their
edges to avoid damaging their coating
and

seals.
Changing a bulb

183
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
3. Direction indicators
Type B, PY21W - 21W (amber)
-
Remove the cover by pullin
g the
flexible
  rubber   tab.
-

T
urn the bulb holder a quarter turn
anticlockwise.
-

Remove the bulb by pressing it
lightly

  while   turning   it   anticlockwise.
-

Change
  the   bulb.
-

Ensure
  that   the   cover   is   refitted
correctly all round to assure correct
sealing. 4. Front foglamps
T

ype C, H1 - 55W
-

Remove the three clips and the
screw securing the wheel arch liner

,
located
  below   the   bumper.
-

Move
  the   wheel   arch   liner   upwards.
-

Disconnect the bulb holder
connector by pressing the tab at
the

  top.-

Remove the bulb holder by
squeezing the two clips (at top and
bottom)

  using   a   finger   and   thumb.
-

Replace the module (bulb holder
and

  bulb).
-

Carry out the operations in reverse
order

  to   fit   the   module   and   refit   the
wheel

  arch   liner.
QUICK HELP
8
Changing a bulb

184
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
Side repeater
Type A, WY5W - 5W (amber)
-
Push the repeater towards the rear
and disengage it by pullin

g the
front.
-

Contact a CITROËN dealer to
obtain a new repeater which is a
sealed

  component.
-

T
o   refit,   engage   the   repeater
towards the rear and bring it
towards

  the   front.
Courtesy lamps
Type A, 12V5W - 5W
-
Unclip the lens by sliding a
screwdriver in the slots on each
side

  of   the   courtesy   lamp.
-

Pull
  the   bulb   out   and   change   it.
-

Clip the lens in its housing and
ensure

  that   it   is   secured   correctly.
Front / Rear
Changing a bulb

185
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
Rear lamps
This procedure requires the use of
the spanner supplied with the tools for
changing  a   wheel.
When
  refitting,   take   care   to
reposition the tabs and the wiring
correctly to avoid trapping the
wiring.
After changing the rear direction
indicator bulb, the reinitialisation time is
above

  2   minutes.
-
Move aside the 4 tabs then extract
the
  bulb   holder.
-

Remove the faulty bulb by
pressing it lightly while turning it
anticlockwise.
-


Change
  the   bulb.
When
  removing   the   lamp   unit:
-

with tailgate, pull the lamp unit
towards the centre of the vehicle,
-


with hinged doors, pull the lamp
unit

  towards   you.
For more information on bulbs, refer to
the

"Types

of

bulb".
1.

Brake lamps / sidelamps


T

ype B,

P21/5W

-

21/5W
2.

Direction indicators


T

ype B, PY21W - 21W (amber)
3.

Reversing lamps


T

ype B, P21W - 21W
4.

Foglamps


T

ype B, P21W - 21W
High pressure jet washing When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the other lamps
and their edges to avoid damaging
their

coating

and

seals. Chapter 9, "Changing a wheel"
section.
-

Identify the failed bulb, then open
the

  rear   doors   to   180°.
Chapter
  3,   "Access"   section.
-

Remove
  the   two   fixing   bolts   using
the

  spanner   provided.
-

Pull
  the   lamp   unit   from   the   outside.
-

Holding the lamp, disconnect the
electrical

  connector.
QUICK HELP
8
Changing a bulb

186
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016

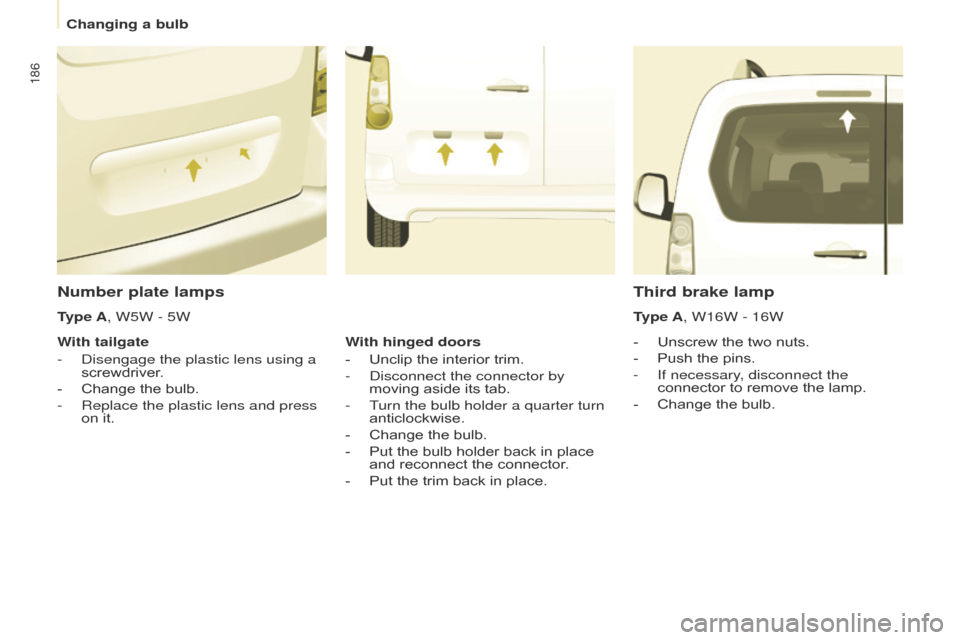

Number plate lamps
- Unscrew  the   two   nuts.
-
Push
  the   pins.
-

If necessary
, disconnect the
connector
  to   remove   the   lamp.
-

Change
  the   bulb.
Third brake lamp
Type A, W16W - 16W
Type A, W5W - 5W
With tailgate
-

Disengage the plastic lens using a
screwdriver

.
-

Change


the

bulb.
-

Replace the plastic lens and press
on


it. With hinged doors
-

Unclip


the

interior

trim.
-

Disconnect the connector by
moving


aside

its

tab.
-

T

urn the bulb holder a quarter turn
anticlockwise.
-

Change


the

bulb.
-

Put


the

bulb

holder

back

in

place

and


reconnect

the

connector.
-

Put


the

trim

back

in

place.
Changing a bulb

187
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
CHANGING A FUSE
The fuseboxes are located:
-
in the lower dashboard on the left-
hand side (behind the cover),
-


under
  the   bonnet   (near   the   battery).
The information given concerns only
those fuses which can be changed by
the user using the tweezer, located
behind the dashboard storage
compartment
  on   the   right-hand   side.
For

  any   other   work,   visit   a   CITROËN
dealer

  or   a   qualified   workshop.
Removing and fitting a fuse
Always replace a failed fuse with a
fuse of the same rating.
Motor

trade

technicians:

for

complete information on the fuses
and relays, refer to the "Repair
Manual" diagrams via the dealer
network.
CITROËN will not accept responsibility
for the cost incurred in repairing
your vehicle or for rectifying the
malfunctions resulting from the
installation of accessories not
supplied and not recommended by the
CITROËN


network

and

not

installed

in accordance with its instructions,
in particular when the combined
consumption of all of the additional
equipment connected exceeds
10 millia

mperes. Before replacing a fuse, the cause of
the
  incident   must   be   identified   and
rectified.
●


Use
  the   tweezer.
QUICK HELP
8
Changing a fuse

188
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
Dashboard fuses
Tilt the cover to gain access to the
fuses.Fuses
F Amperes
A Allocation
1 15 Rear wiper
2 - Not used
3 5 Airbag
4 10 Air
  conditioning,   diagnostic   socket,   mirror   control,
headlamp beam
5 30 Electric windows
6 30 Locks
7 5Rear courtesy lamp, front map reading lamp, roof
console
8 20 Audio

  equipment,   screen,   tyre   under-inflation
detection, alarm and siren
9 30 Front

  and   rear   12V   socket
10 15 Central column 11 15 Low current ignition switch
12 15 Rain and sunshine sensor, airbag
13 5 Instrument panel
14 15 Parking
  sensors,   digital   air   conditioning   controls,
hands-free

  phone   kit
15 30 Locks
16 - Not used
17 40Rear
  screen/mirrors   demist/defrost
Changing a fuse
