Changing sidelamp bulbs (3)
)
Unscrew the cover H
.
)
Disconnect the connector.
)
Turn the bulb holder I
a quarter of a
turn and remove it.
)
Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.
)
Unscrew the cover F
.
)
Disconnect the connector.
)
Turn the bulb G
to the left and re-
move it.
To r efi t, carry out these operations in
reverse order.
Changing dipped beam headlamp
bulbs (2)
Changing main beam headlamp
bulbs (4)
)
Unscrew the cover J
.
)
Disconnect the connector.
)
Move aside the spring K
to release
the bulb and remove it.
To r efi t, carry out these operations in
reverse order.
Page 142 of 244
IX
PRACTICAL INFORMATION
140
Changing integrated direction
indicator side repeaters
Changing foglamp bulbs (5)
)
Push the repeater A
towards the
rear and detach it.
)
Unclip the repeater.
)
Disconnect the repeater connector
and change the repeater.
To r efi t, carry out these operations in
reverse order.
To obtain repeaters, contact a CITROËN
dealer or a qualifi ed workshop.
)
Turn the wheel fully out for easy
access to the fl ap A
located in the
wheelarch.
)
Using a screwdriver, remove the four
clips B
located in the wheelarch.
Page 143 of 244
IX
PRACTICAL INFORMATION
141
)
Using a screwdriver, remove the
three clips C
located below the
bumper.
)
Lift the access fl ap D
located in the
wheelarch and slide it downwards.
)
Disconnect the connector E
.
)
Turn the bulb F
to the left and remove it.
To r efi t, carry out these operations in
reverse order.
Page 144 of 244
IX
PRACTICAL INFORMATION
142
Rear lamps
1.
Third brake lamp (LEDs).
2.
Brake lamps/Sidelamps
(21/5 - W21W - 5 W).
3.
Direction indicators
(WY21W - 21 W).
4.
Reversing lamps (W21W - 21 W).
5.
Number plate lamps
(W5W - 5W).
6.
Foglamps
(W21W - 21 W).
Changing brake lamp/sidelamp and
direction indicator bulbs
These two bulbs are changed from out-
side with the tailgate open:
)
Open the tailgate (refer to the "Access"
section),
)
Remove the two lamp fi xing bolts A
,
)
Extract the lamp unit from outside,
)
Turn the pin C
to the left and remove it.
)
Pull the bulb D
out and change it.
To r efi t, carry out these operations in
reverse order.
)
Turn the pin B
to the left and remove it.
)
Pull the bulb out and change it. When refi tting the lamp unit, align the
two pins E
with the openings on the ve-
hicle. Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifi cation
and colour.
Changing the third brake lamp
(LEDs)
All work on the LED lamps must be
carried out by a CITROËN dealer or a
qualifi ed workshop.
Page 145 of 244
IX
PRACTICAL INFORMATION
143
Changing reversing lamp bulbs
)
Open the tailgate (refer to the "Ac-
cess" section),
)
From the inside of the tailgate, in-
sert a screwdriver in the opening on
the cover A
to use it as a lever to
open the cover.
Changing number plate lamp bulbs
)
Open the tailgate (refer to the "Ac-
cess" section) to gain access to the
number plate lamps D
,
)
Remove the lamp unit D
while
pressing it to the left.
)
Turn the pin B
to the left and remove it.
)
Pull the bulb C
out and change it.
To r efi t, carry out these operations in
reverse order.
)
Insert a thin screwdriver in the open-
ing on the lens to press the tab E
.
)
Remove the lens.
)
Pull the bulb out and change it.
To r efi t, carry out these operations in
reverse order.
)
To r efi t the lamp unit, insert the end of
the tab F
fi rst, then align the tab G
.
Page 146 of 244
IX
PRACTICAL INFORMATION
144

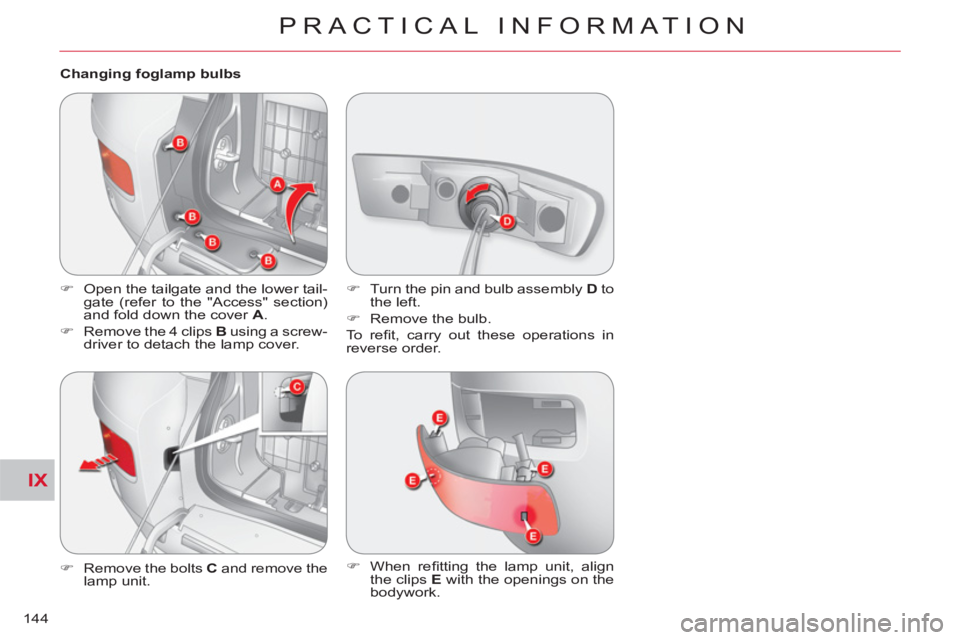

Changing foglamp bulbs
)
Open the tailgate and the lower tail-
gate (refer to the "Access" section)
and fold down the cover A
.
)
Remove the 4 clips B
using a screw-
driver to detach the lamp cover.
)
Remove the bolts C
and remove the
lamp unit.
)
Turn the pin and bulb assembly D
to
the left.
)
Remove the bulb.
To r efi t, carry out these operations in
reverse order.
)
When refi tting the lamp unit, align
the clips E
with the openings on the
bodywork.
Page 147 of 244
IX
PRACTICAL INFORMATION
145
INTERIOR LAMP BULBS
Front and rear courtes
y lamps
)
Insert a screwdriver to remove the courtesy lamp cover.
)
Remove the bulb while pressing the tab A
.
To refi t the cover, align the hooks on the holes located in the body of the vehicle.
Glove box lamp
)
Turn the pin B
anticlockwise and re-
move it.
)
Remove the bulb.
Low level lamp
)
Insert a screwdriver to remove the
lamp cover.
)
Remove the bulb.
Page 148 of 244
IX
!
PRACTICAL INFORMATION
146
CHANGING A FUSE
Changing a fuse
Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.
)
Identify the failed fuse by checking
the condition of its fi lament.
Access to the tools
The extraction tweezer is installed in
the engine compartment fusebox.
To gain access to it:
)
Open the bonnet (refer to the "Ac-
cess" section),
)
Press on the hook A
and release
the catch,
)
Remove the cover completely,
)
Remove the tweezer B
.
Good Failed
)
Use the special tweezer to extract
the fuse from its location.
)
Always replace the faulty fuse with
a fuse of the same rating.
)
Check that the number marked on
the box, the rating marked on the
top of the fuse and the tables below
all agree.
The spare fuses are located on the
engine compartment fusebox cover. Your vehicle’s electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories in your ve-
hicle, contact a CITROËN dealer or a
qualifi ed workshop.
CITROËN will not accept re-
sponsibility for the cost incurred
in repairing your vehicle or for
rectifying the malfunctions resulting
from the installation of accessories
not supplied and not recommended
by CITROËN and not installed in ac-
cordance with its instructions, in par-
ticular when the consumption of all of
the additional equipment connected
exceeds 10 milliamperes.
Page 149 of 244
IX
PRACTICAL INFORMATION
147

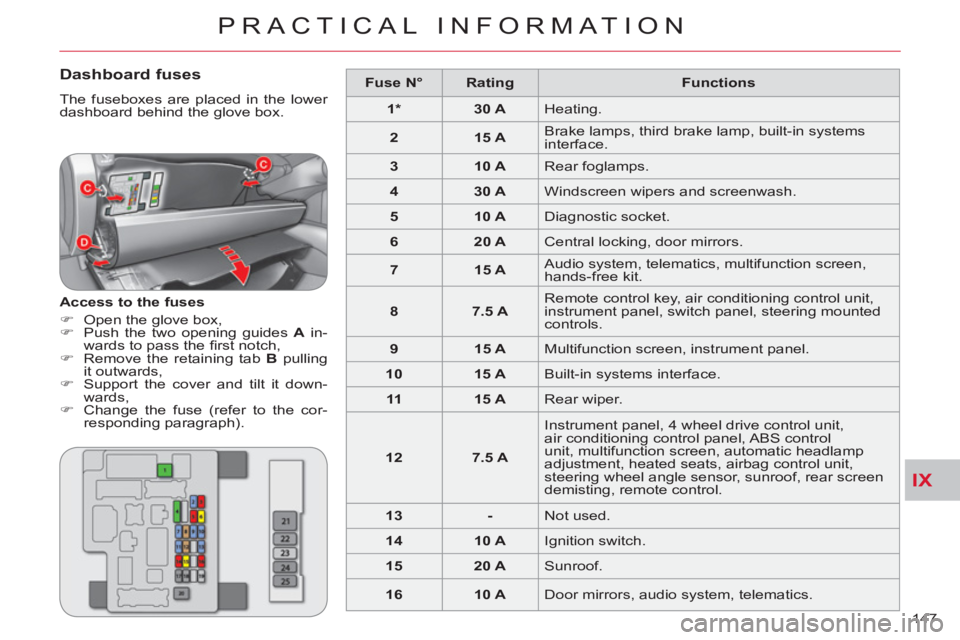

Dashboard fuses
The fuseboxes are placed in the lower
dashboard behind the glove box.
Access to the fuses
)
Open the glove box,
)
Push the two opening guides A
in-
wards to pass the fi rst notch,
)
Remove the retaining tab B
pulling
it outwards,
)
Support the cover and tilt it down-
wards,
)
Change the fuse (refer to the cor-
responding paragraph).
Fuse N°
Rating
Functions
1*
30 A
Heating.
2
15 A
Brake lamps, third brake lamp, built-in systems
interface.
3
10 A
Rear foglamps.
4
30 A
Windscreen wipers and screenwash.
5
10 A
Diagnostic socket.
6
20 A
Central locking, door mirrors.
7
15 A
Audio system, telematics, multifunction screen,
hands-free kit.
8
7.5 A
Remote control key, air conditioning control unit,
instrument panel, switch panel, steering mounted
controls.
9
15 A
Multifunction screen, instrument panel.
10
15 A
Built-in systems interface.
11
15 A
Rear wiper.
12
7.5 A
Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction screen, automatic headlamp
adjustment, heated seats, airbag control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.
13
-
Not used.
14
10 A
Ignition switch.
15
20 A
Sunroof.
16
10 A
Door mirrors, audio system, telematics.
Page 150 of 244
IX
!
PRACTICAL INFORMATION
148
Access to the fuses
)
Open the glove box,
)
Push the two opening guides A
in-
wards to pass the fi rst notch,
)
Remove the retaining tab B
pulling
it outwards,
)
Support the cover and tilt it down-
wards,
)
Change the fuse (refer to the cor-
responding paragraph).
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried
out by a CITROËN dealer or a qualifi ed workshop.
Fuse N°
Rating
Functions
17
10 A
4 wheel drive control unit.
18
7.5 A
Reversing lamps, parking sensors control unit,
reversing camera, airbag control unit.
19
15 A
Accessory socket.
20*
30 A
Electric window controls.
21
*
30 A
Rear screen demisting.
22
7.5 A
Heated door mirrors.
23
-
Not used.
24
25 A
Driver’s electric seat, footwell lighting, rear bench
seat release.
25
30 A
Heated seats.
