Page 165 of 217
XI
169
A U D I O a n d T E L E M A T I C S
MP3/TAG ID3 CD
Playing the beginning of each track Press the "SCAN" button to
s t a r t p l a y b a c k o f t h e fi r s t t e n
seconds of each track on
the disc. "SCAN" appears
on the screen and the corresponding
t r a c k n u m b e r fl a s h e s .
To exit this mode, press this button again. The CD player and the CD changer
are compatible with the playing of MP3
fi l e s .
These must be recorded in ISO 9660
Level 1/Level 2, Joliet or Romeo for-
mat on CD ROMs, CD-Rs or CD-RWs.
The CDs can contain a maximum of
2 5 5 fi l e s a n d 1 0 0 f o l d e r s o n 1 6 l e v e l s .
The Tag ID3 version 1 can be displayed
w h i l e p l a y i n g M P 3 fi l e s .
In the case of compact discs contain-
i n g b o t h C D - D A a n d M P 3 fi l e s , p l a y
automatically begins with the CD-DA
fi l e s .
To switch play between the two types
o f fi l e , p r e s s t h e " C D " b u t t o n f o r m o r e
than two seconds until an audible
signal is heard.
While using these compact discs, the
"Repeat", Random play" and "Play-
ing of the beginning of the tracks"
f u n c t i o n s a r e o n l y a p p l i e d t o fi l e s o f
the same format.
Selecting an MP3 folder Turn the "FOLDER" dial
respectively to the right to
select a folder in ascending
order or to the left to select a
folder in descending order.
Press the "DISP" button
several times in succession;
the CD-Text information ap-
pears in the following order:
DISC NAME/TRACK NAME/NORMAL
DISPLAY MODE.
CD-TEXT DISPLAY
If the information exceeds
12 characters, press the
"PAGE" button to see the
rest.
In the absence of CD-Text information
to be displayed, "NOTITLE" appears on
the display.
The CD player and the CD changer are
compatible with the displaying of CD-
Text information.
On CD-R/RWs, the quality of the
playback sound depends on the en-
coding software, the burning device
and the burning speed used.
Page 166 of 217
XI
170
A U D I O a n d T E L E M A T I C S
When play begins, "READING" appears
on the display then disappears to make
way for the folder number, the track
number, the playing time and "MP3".
Playing the beginning of each track
Press the "SCAN" button
t o s t a r t p l a y i n g t h e fi r s t t e n
seconds of each track in all
of the folders. "SCAN" ap-
pears in the screen and the correspond-
i n g t r a c k n u m b e r fl a s h e s .
To exit this mode, press this button again.
MP3/Tag ID3 display
Press the "DISP" button sev-
eral times in succession; the
MP3 information appears in
the following order:
FOLDER NAME/TRACK NAME/NORMAL
DISPLAY MODE.
If the information exceeds
12 characters, press the
"PAGE" button to see the
rest.
In the absence of MP3 or Tag ID3 in-
formation to be displayed, "NOTITLE"
appears in the screen.
Press the "DISP" button for
more than two seconds to
activate the Tag ID3 infor-
mation. "TAG" appears in
the screen.
Press the "DISP" button several times
in succession; the Tag ID3 information
appears in the following order:
ALBUM NAME/TRACK NAME/ARTIST
NAME/NORMAL DISPLAY MODE. To deactivate this information, press
the "DISP" button again for more than
two seconds.
Repeating the tracks in a folder
Press the "RPT" button for
more than two seconds to
repeat the playing of the
tracks contained in the cur-
rent folder. "D-RPT" appears in the
screen.
To exit this mode, press this button again.
Random playing of a folder
Press the "RDM" button to
start random playing of the
tracks in the current folder.
"RDM" appears in the screen.
To exit this mode, press this button again.
Random playing of a disc
Press the "RDM" button for
more than two seconds to
start random playing of the
tracks in all of the folders.
"D-RDM" appears in the
screen.
To exit this mode, press this button again. On CD-R/RWs, the quality of the
playing sound depends on the en-
coding software, the burning device
and the burning speed used.
D e p e n d i n g o n t h e fl o w c h a r t o f t h e
M P 3 f o l d e r s a n d fi l e s o n t h e d i s c ,
play may not begin immediately.
Page 167 of 217
XI
171
A U D I O a n d T E L E M A T I C S
Selecting changer mode
If the changer already con-
tains a disc, press the "CD"
button.
"CD", the disc and track
numbers and the playing time appear
in the screen.
After inserting at least one disc, printed
face upwards, the changer starts auto-
matically.
Ejecting a disc
P r e s s t h i s b u t t o n b r i e fl y t o
remove the current disc
from the changer. Once ejected, if the compact disc is
n o t r e m o v e d w i t h i n fi f t e e n s e c o n d s i t
is re-loaded into the changer.
Loading a disc
Press the "LOAD" button
b r i e fl y . " W A I T " a p p e a r s o n
the display.
When the changer is ready,
the indicator lamp on the "LOAD" button
comes on and "LOAD DISC N° (1-6)"
appears in the screen.
If several slots are empty, select one
using one of the "DISC" buttons.
The CD changer can hold up to 6 CDs.
Insert circular compact discs only.
8 cm compact discs cannot be
played by the changer.
Loading all of the discs Ejecting all of the discs
Press this button for more
than two seconds. The cur-
rent disc is ejected.
Once this disc has been
removed, the next disc is ejected auto-
matically in its turn.
Repeat these steps until unloading is
complete.
Selecting a disc
Press one of the "DISC" but-
tons several times in suc-
cession until you reach the
disc required. The symbol of
the disc selected appears on
the display.
See also "CD-Text display" and "MP3/
Tag ID3 CD".
Press the "LOAD" button for
more than two seconds.
The changer selects an
empty slot number from the
lowest to the highest and switches to
waiting for loading mode.
"LOAD DISC N° (1-6)" appears on the
display; insert the disc in the corre-
sponding slot.
The changer automatically selects the
next empty slot number and returns to
waiting for loading mode.
Repeat these steps until loading is
complete. Play begins with the last disc
inserted.
CD CHANGER
Page 168 of 217
XI
172
A U D I O a n d T E L E M A T I C S
Playing of the beginning of each track Press the "SCAN" button
t o s t a r t p l a y o f t h e fi r s t t e n
seconds of each track on
the disc. "SCAN" appears in
the screen and the corresponding track
n u m b e r fl a s h e s .
To exit this mode, press this button again.
On CD-R/RWs, the playback sound
quality depends on the encoding
software, the burning device and the
burning speed used.
Random playing on all of the discs Press the "RDM" button for
more than two seconds to
start random playing of the
tracks on all of the discs.
"D-RDM" appears in the screen.
To exit this mode, press this button again.
Fast search
Press and hold button " "
or " " to carry out a fast
backwards or forwards
search respectively.
Play begins when the button is released.
Selecting a track
Press button " " or " " to
select the previous track or
next track respectively.
Repeating a track Press the "RPT" button to
repeat the playing of the
current track. "RPT" ap-
pears on the display.
To exit this mode, press this button again. Random playing of a disc
Press the "RDM" button to
start random playing of the
tracks on the disc. "RDM"
appears in the screen.
To exit this mode, press this button again. Repeating a disc
Press the "RPT" button for
more than two seconds to
repeat the playing of the
tracks of the current disc.
"D-RPT" appears in the screen.
To exit this mode, press this button again. Audio CD
Page 170 of 217
XI
!
174
A U D I O a n d T E L E M A T I C S
AUDIO: selection of Audio-video
(FM, CD, music server, ...) or
Navigation (map) display.
VOL: adjustment of audio-video
volume.
OPEN: tilts the screen and permits access to the CD/DVD. A second press closes the screen. SCALE: changing the scale of the
map.
E N T : c o n fi r m s t h e c h o i c e o f t h e
item selected on the screen.
F o r c e r t a i n o p e r a t i o n s , c o n fi r m a -
tion is given by contact with the
touch screen.
Scrolling the map displayed or
selection of an item.
For safety reasons, the driver
must only carry out operations
which require prolonged atten-
tion with the vehicle stationary.
AUDIO-TELEMATIC SYSTEM
Changing the audio-video source
(FM, CD, music server, ...).
Mute on/off.
Next or previous selection for:
- a radio station,
- an audio track (CD),
- a chapter (DVD).
M o v e a fi n g e r o v e r t h e s c r e e n t o o p e r a t e
the system.
Use the buttons offered on the screen.
POWER: audio system on/off
(only).
Setting the audio volume.
Page 171 of 217
XI
175
A U D I O a n d T E L E M A T I C S
DESCRIPTION OF THE CONTROLS - MENUS
MODE: Audio-video menu for:
- radio,
- audio, MP3 or WMA CD,
- music server,
- DVD.
MENU: Navigation-guidance menu
for selecting:
- a destination,
- a point of interest (POI),
- an advanced search by POI,
-
one of the 20 previous destinations,
- an address stored in the address book,
- the return home,
- certain navigation settings,
- a route demonstration. NAVI: display of the current location
on the
map .
SET:
Settings menu for:
- switching off the display,
- selecting the sound setting,
- selecting the picture quality,
- selecting the language, the time zone or the units,
- selecting the size of the DVD picture,
- selecting the guidance voice, the screen colour schemes or
display of the audio-video icon,
- setting certain equipment avail- able in your vehicle. INFO:
Information menu for the
consultation or setting of certain
parameters of your vehicle.
Page 172 of 217
XI
176
A U D I O a n d T E L E M A T I C S
NAVIGATION-GUIDANCE
What is the navigation system and
the GPS?
The satellite navigation system guides
the driver to the destination that he has
set in accordance with a chosen route.
Initially, it searches for the destination
required by the user, then it calculates
t h e r o u t e a n d fi n a l l y i t p r o v i d e s t h e v i -
sual and audible guidance instructions. What precautions should be
observed in order to make best use
of the system?
Do not place anything on or near the
GPS aerial.
Do not use any digital communication
equipment (personal computers, etc.)
near the GPS aerial.
D o n o t a f fi x a n y r e fl e c t i v e fi l m s o r fi l m s
containing carbon to the windows.
The GPS (Global Position-
ing System) consists of
several satellites distribut-
ed around the earth. They
continuously transmit digi-
tal signals which travel at the speed of
light, on 2 different frequencies.
At any given time, the system receives
its position in relation to the satellites
detected and the time of transmission
of the signal.
This enables the telematic unit to cal-
culate its position and therefore that of
the vehicle.
A repositioning process using the map
database stored on the hard disk allows
the vehicle to be positioned on the road
network, so improving the accuracy of
the vehicle location function. What is a point of interest
(POI)?
Up to 40 different icons may
be displayed (refer to the
section "Points of interest
icon").
T h e y a r e c l a s s i fi e d i n
5 g r o u p s a n d i d e n t i fi e d b y o n e c o l o u r
for each group:
- S h o p s , fi n a n c e a n d b u s i n e s s e s (Green),
- Vehicles and travel (Dark blue),
- Restaurants (Orange),
- Public places and emergency ser- vices (Brown),
- Entertainment and attractions (Blue).
GPS
The system's measurements may be
inaccurate if the vehicle is:
- in a tunnel or underground car park,
- underneath a two-level motorway,
- in an area with several very high buildings,
- surrounded by closely planted trees.
Depending on the vehicle's situation
and the reception of the GPS informa-
tion, the displayed information may dis-
appear from the screen temporarily. A point of interest (POI) is
represented by an icon on
the map, it represents an
airport, a station, a town
hall, ...
Page 173 of 217
XI
177
A U D I O a n d T E L E M A T I C S
A. Manoeuvre icon: indicates whether
the driver should turn left or right at
the next junction indicated by the
guidance and the distance to this
junction.
B. Guidance route: indicates the route
to the destination.
C. Vehicle marker: indicates the posi-
tion of the vehicle while driving.
D. T M C i c o n : d i s p l a y s t r a f fi c i n f o r -
m a t i o n s u c h a s t r a f fi c j a m s , r o a d
works, etc.
When the icon is touched, detailed TMC information can be viewed.
E. Orientation mark: indicates the ori-
entation of the map displayed.
F. Map scale: indicates the scale of
the map displayed.
G. Name of the street: indicates the
name of the current street.
H. Direction frame: displays the num-
ber of the next road or the name
of the next street which the driver
should turn into.
I. Destination/intermediate destina-
tion icon: indicates the direction
of the destination or intermediate
destination.
Two-map display.
Single map display. Information displayed on the map during navigation
J. Destination/intermediate destination
information: indicates the distance
and the time remaining until the des-
tination or intermediate destination is
reached.
K. Press for access to the Route
Menu in order to:
K1 - change the route in favour of an- other making a detour through a
s p e c i fi e d r e g i o n ,
K2 - change the position of the desti- nation, add an intermediate des-
tination and change the route
calculation conditions,
K3 -
display a route by various methods,
K4 - delete a route created,
K5 - search for points of interest (POI) around the current location.
K1K2K3
K4K5
K
H
E
F
BCA
D
G
I
J
Page 176 of 217
XI
180
A U D I O a n d T E L E M A T I C S
Navigation settings and information (1/2) G - Select the settings of functions linked with the navigation to:
G1 - set the screen display parameters such as:
- display 1 or 2 maps,
- display or do not display the POIs on the map, display selected
icons,
- change the colours of the map,
- display or do not display the name of the current street.
- display or do not display the ad- dress of the current street.
G2 - set route conditions, such as,
- a v o i d i n g t r a f fi c p r o b l e m s ,
- avoiding selected areas,
- avoiding roads at a certain time.
G3 - set the route guidance mode and the displaying of the results of the
route search,
G4 - save, change or delete a location in the address book,
G 5 - d i s p l a y a n d s e l e c t t h e t r a f fi c i n - f o r m a t i o n s u c h a s t r a f fi c j a m s o r
road works by selecting dynamic
guidance.
GH
G1G2G3
G4G5
Page 178 of 217
XI
182
A U D I O a n d T E L E M A T I C S

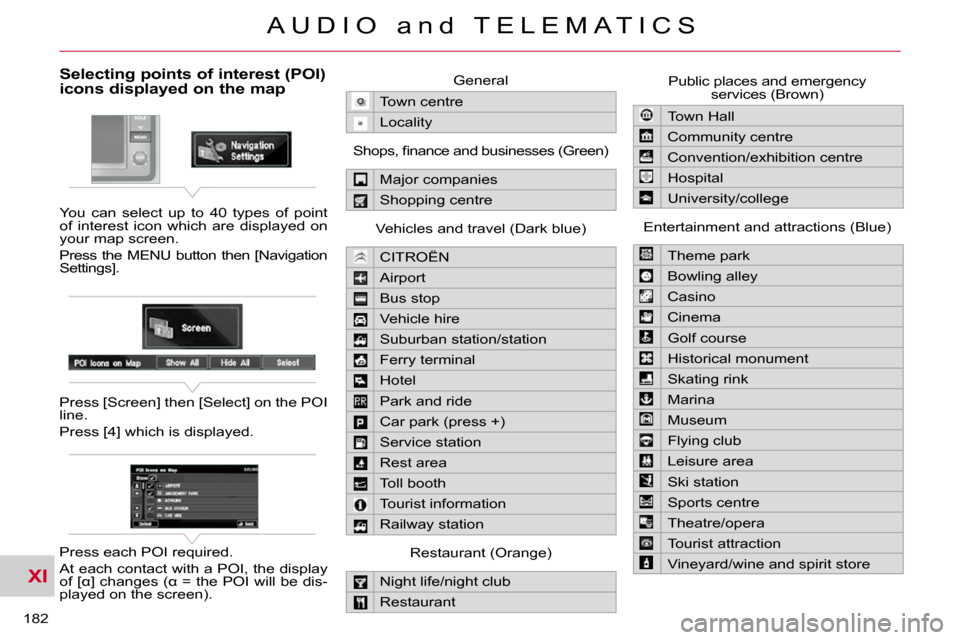

Selecting points of interest (POI) icons displayed on the map
You can select up to 40 types of point
of interest icon which are displayed on
your map screen.
Press the MENU button then [Navigation
Settings].
Press [Screen] then [Select] on the POI
line.
Press [4] which is displayed.
Press each POI required.
At each contact with a POI, the display
o f [K ] c h a n g e s (K = t h e P O I w i l l b e d i s -
played on the screen). General
Town centre
Locality
S h o p s , fi n a n c e a n d b u s i n e s s e s ( G r e e n ) Major companies
Shopping centre
Vehicles and travel (Dark blue) CITROËN
Airport
Bus stop
Vehicle hire
Suburban station/station
Ferry terminal
Hotel
Park and ride
Car park (press +)
Service station
Rest area
Toll booth
Tourist information
Railway station
Restaurant (Orange)
Night life/night club
Restaurant Public places and emergency
services (Brown)
Town Hall
Community centre
Convention/exhibition centre
Hospital
University/college
Entertainment and attractions (Blue)
Theme park
Bowling alley
Casino
Cinema
Golf course
Historical monument
Skating rink
Marina
Museum
Flying club
Leisure area
Ski station
Sports centre
Theatre/opera
Tourist attraction
Vineyard/wine and spirit store
