79 Practical information

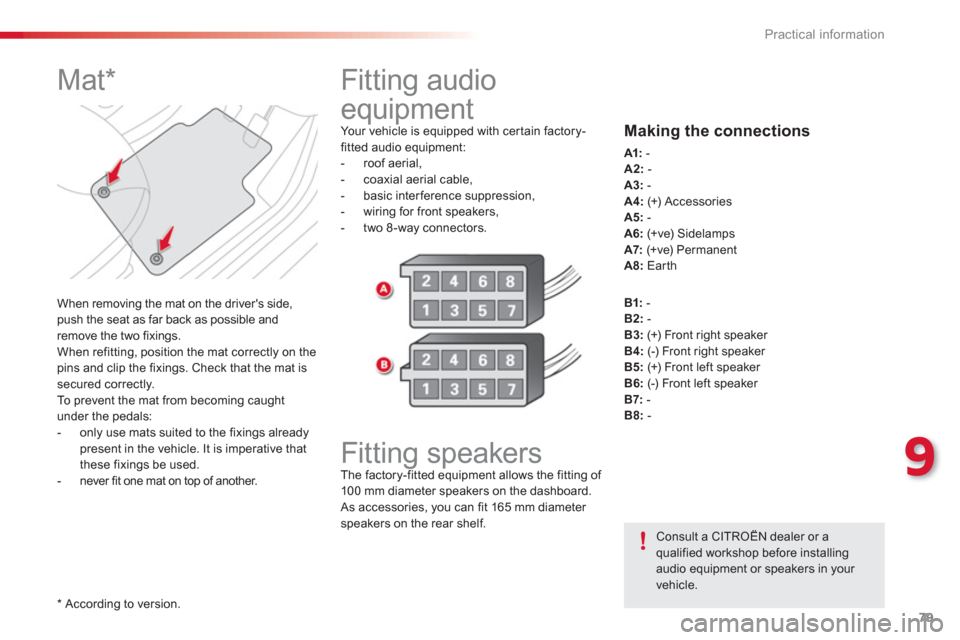

Fitting audio
equipment
Your vehicle is equipped with cer tain factory-fitted audio equipment:
- roof aerial,
- coaxial aerial cable,
- basic inter ference suppression,
- wirin
g for front speakers,
- two 8-way connectors.






Fitting speakers The factory-fitted equipment allows the fitting of
100 mm diameter speakers on the dashboard.
As accessories, you can fit 165 mm diameter
speakers on the rear shelf.


Making the connections
A1:
-
A2: -A3:-A4:(+) Accessories A5:-A6:
(+ve) Sidelamps
A7:
(+ve) Permanent
A8:Earth
When removin
g the mat on the driver's side, push the seat as far back as possible and
remove the two fixings.
When refitting, position the mat correctly on thepins and clip the fixings. Check that the mat issecured correctly.
To prevent the mat from becoming caught
under the pedals:


- only use mats suited to the fixings already present in the vehicle. It is imperative that
these fixings be used.

- never fit one mat on top of another.

* Accordin
g to version.B1
:-B2:

-B3:(+) Front right speaker
B4: (-) Front right speaker
B5: (+) Front left speaker
B6:(-) Front left speaker B7:-B8:-





Mat *
Consult a CITROËN dealer or aqualified workshop before installing audio equipment or speakers in your vehicle.

80Practical information

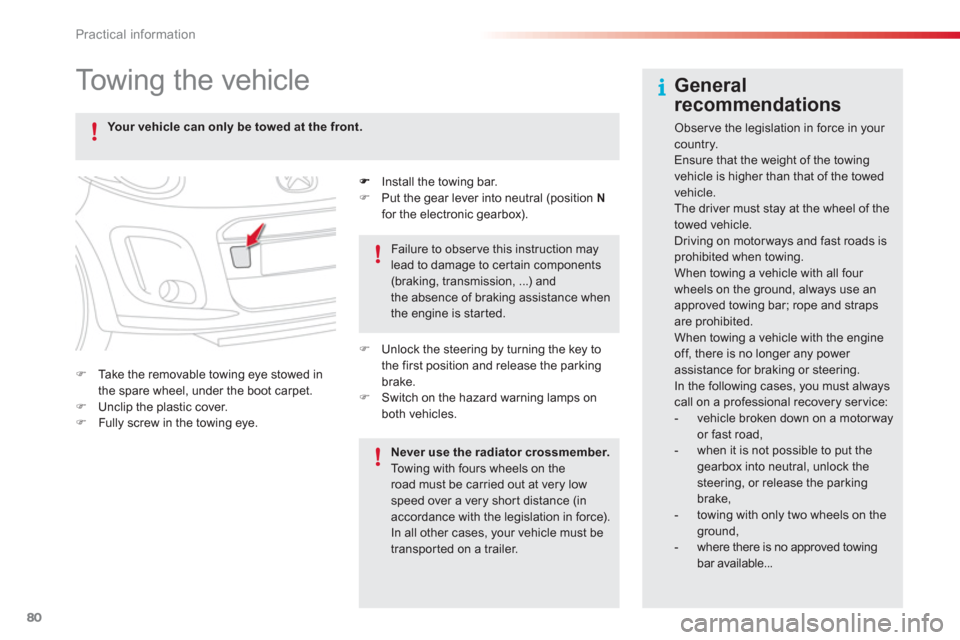

Towing the vehicle

Install the towing bar. )
Put the gear lever into neutral (position Nfor the electronic gearbox).
)Take the removable towing eye stowed in
the spare wheel, under the boot carpet.
)Unclip the plastic cover. )Fully screw in the towing eye.

General
recommendations
Observe the legislation in force in your country.Ensure that the weight of the towing vehicle is higher than that of the towedvehicle.The driver must stay at the wheel of thetowed vehicle. Driving on motorways and fast roads is prohibited when towing.When towing a vehicle with all four wheels on the ground, always use an approved towing bar; rope and straps are prohibited. When towing a vehicle with the engine off, there is no longer any power assistance for braking or steering.In the following cases, you must always call on a professional recovery service:- vehicle broken down on a motor way
or fast road,- when it is not possible to put the gearbox into neutral, unlock thesteering, or release the parkingbrake,- towing with only two wheels on theground, - where there is no approved towingbar available...

Your vehicle can only be towed at the front.
Never use the radiator crossmember.
To w i ng with fours wheels on theroad must be carried out at very low speed over a very shor t distance (in accordance with the legislation in force).
In all other cases, your vehicle must betranspor ted on a trailer.

Failure to obser ve this instruction maylead to damage to cer tain components (braking, transmission, ...) andthe absence of braking assistance whenthe engine is started.
)
Unlock the steering by turning the key to
the first position and release the parkingbrake. ) Switch on the hazard warning lamps onboth vehicles.

9
81 Practical information

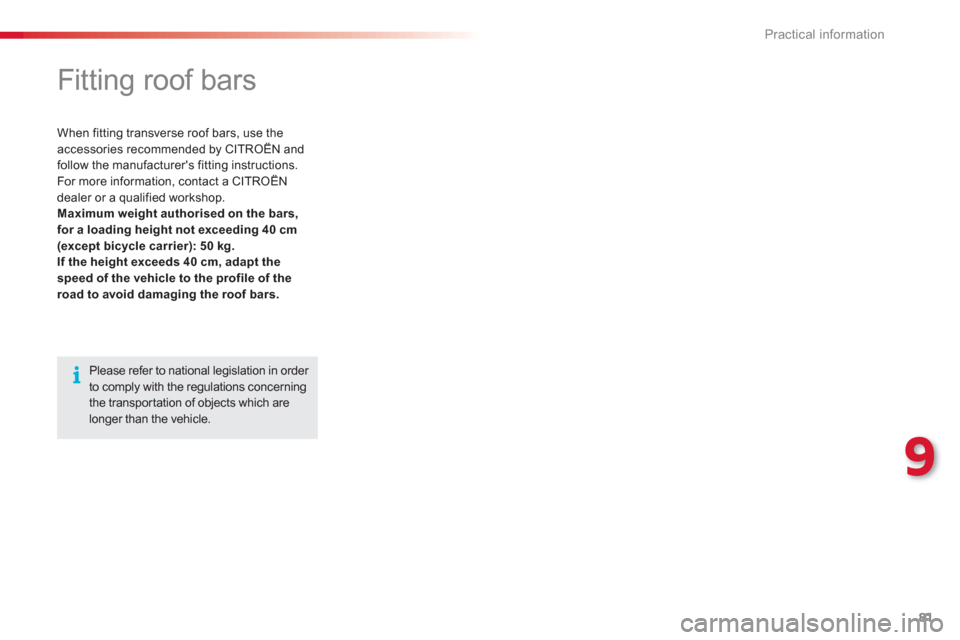

Fitting roof bars
Please refer to national legislation in order to comply with the regulations concerning the transportation of objects which are longer than the vehicle.
When
fitting transverse roof bars, use the
accessories recommended by CITROËN and
follow the manufacturer's fitting instructions.
For more information, contact a CITROËN
dealer or a qualified workshop.
Maximum wei
ght authorised on the bars,for a loading height not exceeding 40 cm (except bicycle carrier): 50 kg.If the height exceeds 40 cm, adapt the
speed of the vehicle to the profile of the
road to avoid damaging the roof bars.

82Practical information




Accessories A wide range of accessories and genuine par ts
is available from the CITROËN dealer network.
These accessories and par ts have been tested
and approved for reliability and safety.
The
y are all adapted to your vehicle and
benefit from CITROËN's recommendation and
warranty.

Installation of radio communication transmitters

Before installing any after-market radiocommunication transmitter, you can contact
a CITROËN dealer for the specification of
transmitters which can be fitted (frequency, maximum power, aerial position, specific
installation requirements), in line with theVehicle Electromagnetic Compatibility Directive (2004/10 4/EC).

*

France only.
"Comfort":front and rear parking sensors,portable ashtray, glove box lid, insulatedmodule, centre armrest, portable reading lamp,
door deflectors, sun blinds, ...
"Transport solutions":boot liner, transverse roof bars, bicycle carrier, ski carrier, rigid and flexible roof boxes, boot carpet, boot dividers,
boot net, ...
Y
ou can obtain "Van" conversion kits to converta private vehicle to a van * .
"Styling":14 inch wheel trims, 14 and15 inch alloy wheels, spoiler, "aluminium"
interior styling kit, aluminium look and carbon
fibre look mirror shells, aluminium look and carbon fibre look sill finishers, chromed exhaust
tailpipe, leather steering wheel, aluminium
look and carbon fibre look rear diffuser, stylingstickers, door sill protectors, aluminium gear
knob... "Securit
y and safety":anti-theft alarm,
wheel security bolts, snow chains and wheelnon-slip covers, high visibility vest, warningtriangle, breathalyzer, child seats, first aid kit,fire extinguisher, foglamp kit, animal seat belt,
animal cage, ...
"Protection"
: mats, seat covers, front and rear
mud flaps, side protection rubbing strip, boot
sill protectors, vehicle cover, translucent front
an
d rear bumper protectors, rear seat cover, boot cover, ...
To prevent the mat from becoming caught under the pedals:


- ensure that the mat is positioned andsecured correctly,

- never fit one mat on top of another.

"Multimedia"
: semi-integral navigation systems,
portable satellite navigation system, USB Box,
audio systems, speakers, rear parcel shelf with
speakers, Bluetooth hands-free system, portable
hands-free kit for a smar t phone, speed camera
detectors, video pack
(DVD player + 2 screens),
auxiliary cable for audio equipment, iPod dock, Hi-Fi module, mobile phone charger compatible
with iPhone, head-up display, rear multi-media
suppor t, Wi-Fi On board, ...

Depending on the legislation in force in the country, it may be compulsoryto have a high visibility safety vest, warning triangle and spare bulbs and fuses available in the vehicle. The fitting of electrical equipmentor accessories which are notrecommended by CITROËN may result
in a failure of your vehicle's electronic system and excessive electrical consumption.Please note this precaution. Youare advised to contact a CITROËN representative to be shown the rangeof recommended equipment andaccessories.

10
83 Checks
TOTAL & CITROËN

84Checks








Opening the bonnet



On the outside : lift the safety catch B
andraise the bonnet.


Bonnet stay

Secure the stay to hold the bonnet open.


To c l o s e

Before closing the bonnet, return the stay to itshousing.
Lower the bonnet and release it at the end of itstravel. Check that the bonnet is fully closed. On the insid
e : pull the release lever A , locatedunder the dashboard.

10
85 Checks

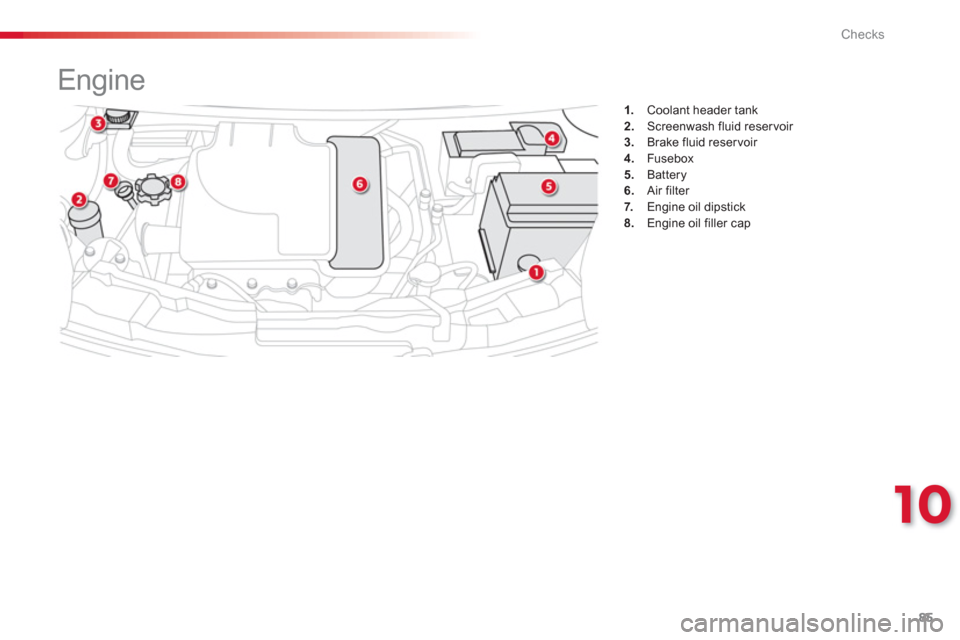

1. Coolant header tank2.Screenwash fluid reservoir 3.Brake fluid reservoir 4.Fusebox
5.Battery6. Air filter 7.Engine oil dipstick8.
Engine oil filler cap












Engine

86Checks

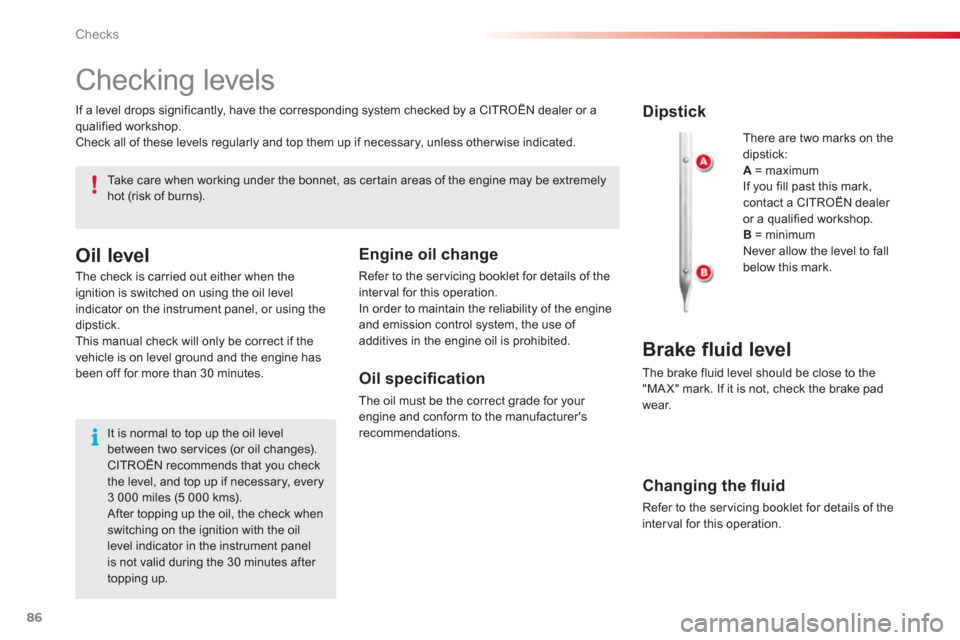

Checking levels
There are two marks on thedipstick:A= maximum
If you fill past this mark, contact a CITROËN dealer or a qualified workshop. B= minimum
Never allow the level to fallbelow this mark.
Dipstick
Brake fluid level

The brake fluid level should be close to the
"MA X" mark. If it is not, check the brake pad
w
ear. If a level drops si
gnificantly, have the corresponding system checked by a CITROËN dealer or a
qualified workshop.
Check all of these levels re
gularly and top them up if necessary, unless other wise indicated.
Take care when working under the bonnet, as certain areas of the engine may be extremely hot (risk of burns).
Oil level
The check is carried out either when the ignition is switched on using the oil level indicator on the instrument panel, or using the
dipstick.
This manual check will only be correct if the
vehicle is on level ground and the engine has
been off for more than 30 minutes.
It is normal to top up the oil level between two ser vices (or oil changes). CITROËN recommends that you checkthe level, and top up if necessary, every 3 000 miles (5 000 kms). After topping up the oil, the check whenswitching on the ignition with the oillevel indicator in the instrument panelis not valid during the 30 minutes after topping up.


Engine oil change

Refer to the servicing booklet for details of the
interval for this operation.
In order to maintain the reliabilit
y of the engine
and emission control system, the use of
additives in the engine oil is prohibited.

Oil specifi cation

The oil must be the correct grade for your engine and conform to the manufacturer'srecommendations.



Changing the fl uid

Refer to the servicing booklet for details of the
interval for this operation.

10
87 Checks

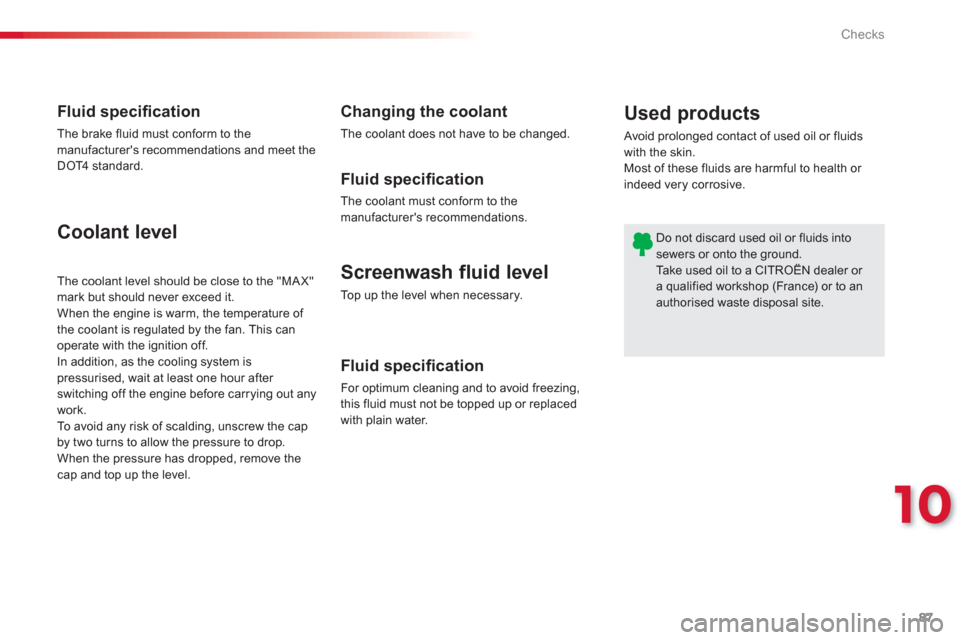

Screenwash fluid level
Top up the level when necessary.
Coolant level
Fluid specifi cation
For optimum cleaning and to avoid freezing,
this fluid must not be topped up or replaced
with plain water.



Fluid specifi cation

The brake fluid must conform to themanufacturer's recommendations and meet the
D
OT4 standard.


The coolant level should be close to the "MAX" mark but should never exceed it.
When the engine is warm, the temperature of
the coolant is regulated by the fan. This can
operate with the ignition off.
In addition, as the cooling system is pressurised, wait at least one hour after switching off the engine before carrying out anywork.
To avoid any risk of scalding, unscrew the cap by two turns to allow the pressure to drop.
When the pressure has dropped, remove thecap and top up the level.
Changing the coolant
The coolant does not have to be changed.
Fluid specifi cation
The coolant must conform to the
manufacturer's recommendations.









Used products
Avoid prolonged contact of used oil or fluids
with the skin.
M
ost of these fluids are harmful to health or indeed very corrosive.
Do not discard used oil or fluids intosewers or onto the ground.Take used oil to a CITROËN dealer or a qualified workshop (France) or to an authorised waste disposal site.

88Checks

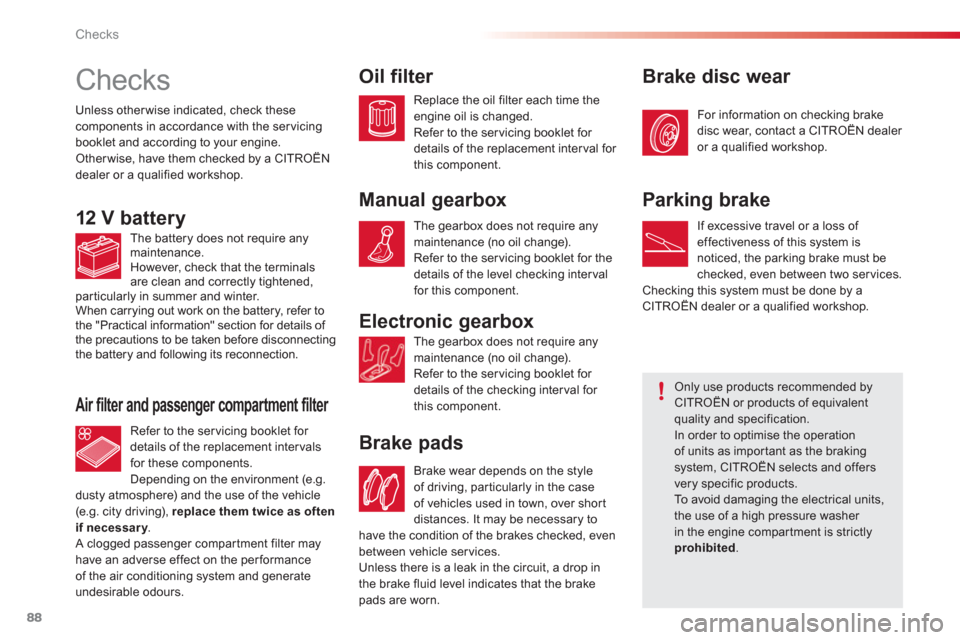

Checks
Electronic gearbox















Brake pads
Unless other wise indicated, check thesecomponents in accordance with the servicingbooklet and according to your engine.
Other wise, have them checked by a CITROËN
dealer or a qualified workshop.
12 V battery
Oil filter
Manual gearbox
Only use products recommended byCITROËN or products of equivalent quality and specification.
In order to optimise the operation of units as impor tant as the brakingsystem, CITROËN selects and offers very specific products. To avoid damaging the electrical units, the use of a high pressure washer in the engine compar tment is strictlyprohibited.
Air filter and passenger compartment filter

Brake disc wear
Parkin
g brake
The battery does not require any
maintenance.
However, check that the terminals
are clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery, refer to
the "Practical information" section for details of
the precautions to be taken before disconnecting
the battery and following its reconnection.

Re
fer to the ser vicing booklet for
details of the replacement intervals
for these components.
Dependin
g on the environment (e.g.
dusty atmosphere) and the use of the vehicle (e.g. city driving), replace them twice as often if necessary.y A clogged passenger compar tment filter mayhave an adverse effect on the performance
of the air conditioning system and generate undesirable odours.
Replace the oil
filter each time theengine oil is changed.
Refer to the ser vicing booklet for
details of the replacement inter val for
this component.
The gearbox does not require any maintenance (no oil change).
Refer to the ser vicing booklet for the
details of the level checking intervalfor this component.
The
gearbox does not require any maintenance (no oil change).
Refer to the servicing booklet for
details of the checking inter val for
this component.
Brake wear depends on the st
yle
of driving, par ticularly in the case
of vehicles used in town, over shor t
distances. It ma
y be necessary to
have the condition of the brakes checked
, even between vehicle services.
Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake pads are worn. For information on checkin
g brake
disc wear, contact a CITROËN dealer
or a qualified workshop.

I
f excessive travel or a loss of effectiveness of this system is
noticed, the parking brake must be checked, even between two services.
Checking this system must be done by a CITROËN dealer or a qualified workshop.
