Citroen C2 DAG 2008 1.G Owner's Manual

B
ADC
I
FE
G
H
126
VI

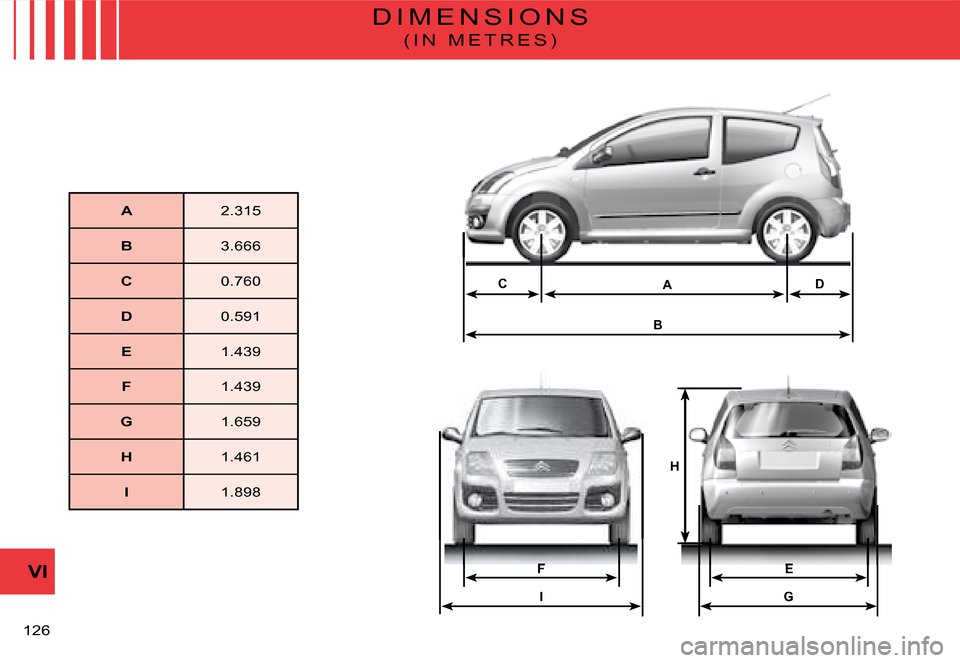

D I M E N S I O N S
( I N M E T R E S )
A2.315
B3.666
C0.760
D0.591
E1.439
F1.439
G1.659
H1.461
I1.898

A
H
D
C
G
E
FB
127
VI

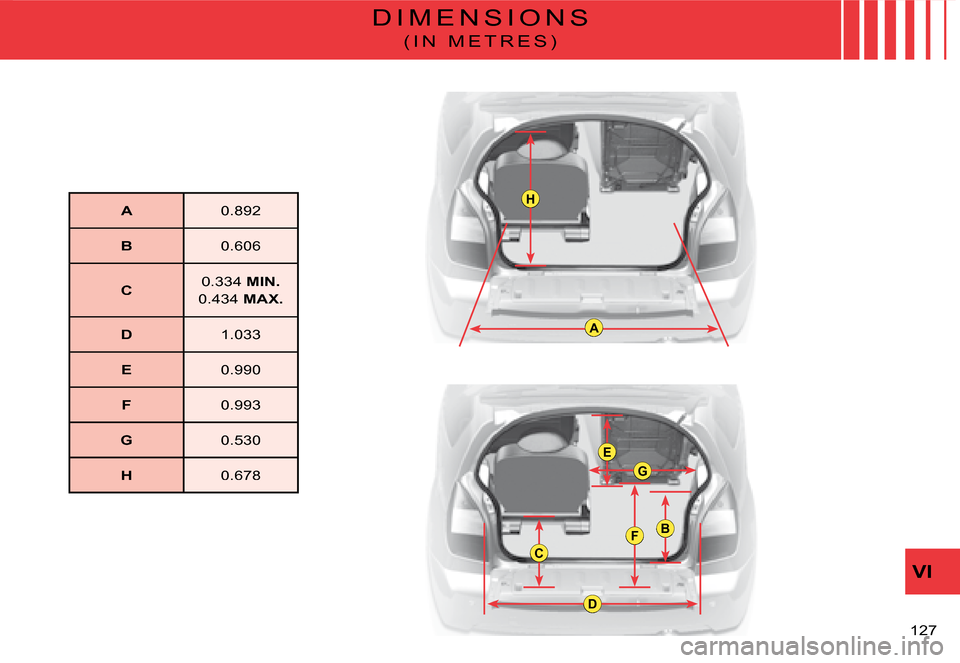

D I M E N S I O N S
( I N M E T R E S )
A0.892
B0.606
C0.334 MIN.
0.434 MAX.
D1.033
E0.990
F0.993
G0.530
H0.678

A
A
D
B
C
128
VI

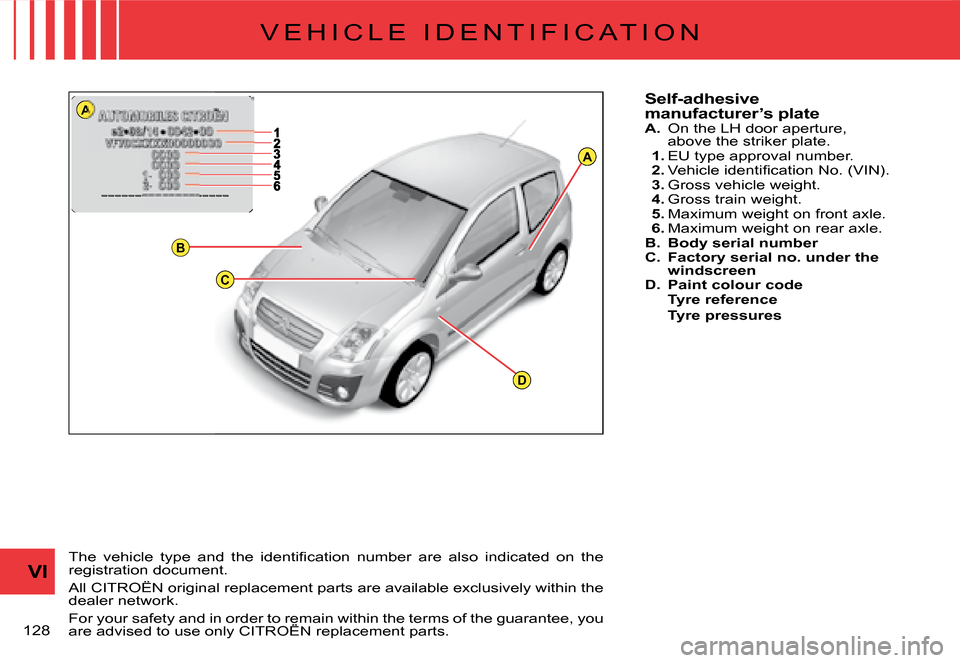

V E H I C L E I D E N T I F I C A T I O N
Self-adhesive manufacturer’s plateA. On the LH door aperture, above the striker plate.1. EU type approval number.2. Vehicle identifi cation No. (VIN).3. Gross vehicle weight.4. Gross train weight.5. Maximum weight on front axle.6. Maximum weight on rear axle.B. Body serial numberC. Factory serial no. under the windscreenD. Paint colour codeTyre referenceTyre pressures
The vehicle type and the identifi cation number are also indicated on the registration document.
All CITROËN original replacement parts are available exclusively w ithin the dealer network.
For your safety and in order to remain within the terms of the guarantee, you are advised to use only CITROËN replacement parts.For your safety and in order to remain within the terms of order to remain

ABCDEFGHIJK
NPMROQL
1
4
6
2
3
5S

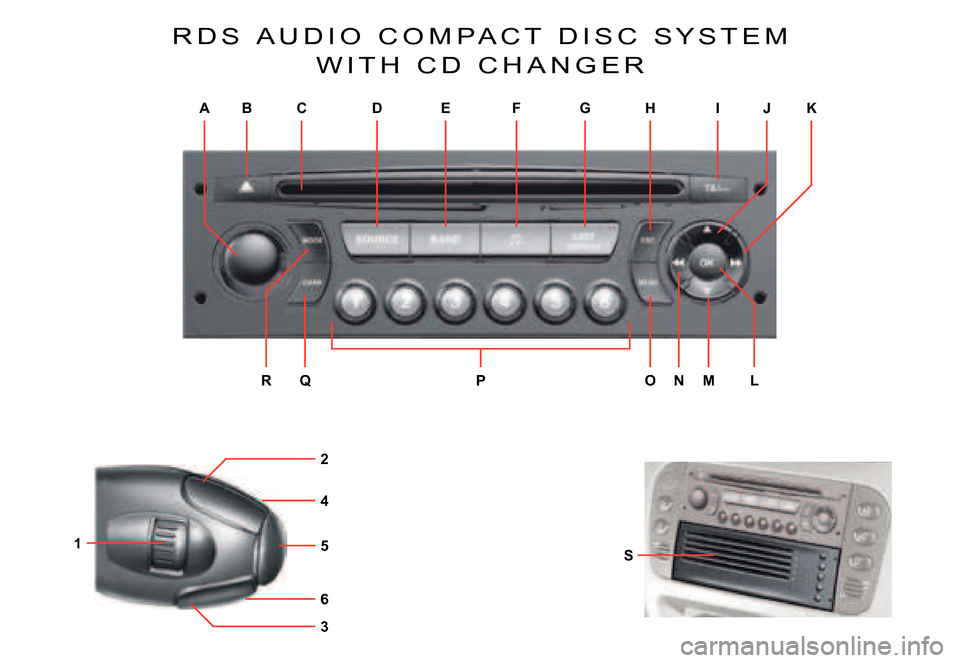

R D S A U D I O C O M P A C T D I S C S Y S T E M
W I T H C D C H A N G E R

2

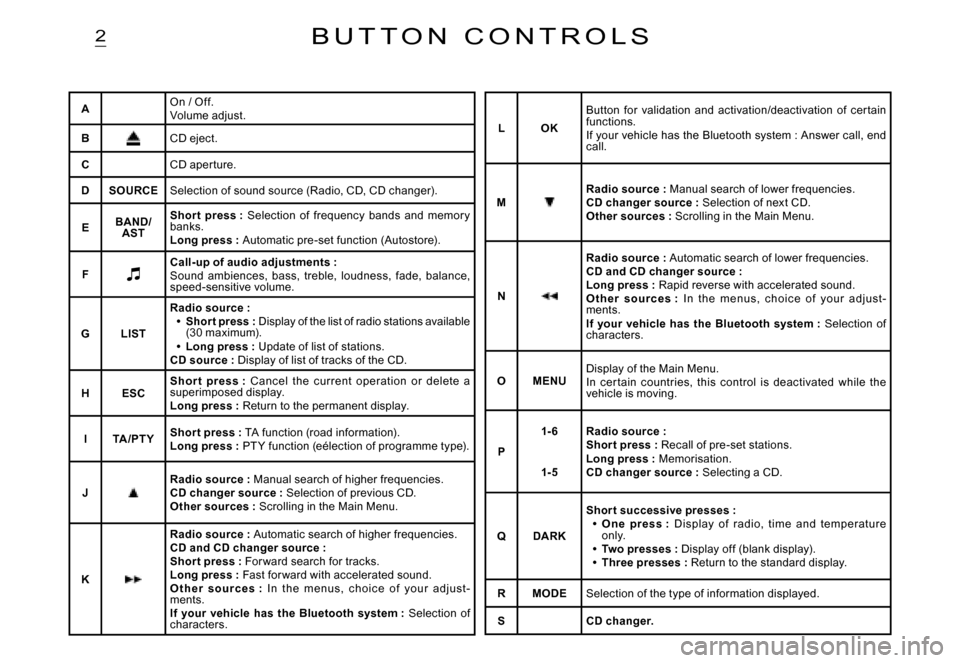

AOn / Off.Volume adjust.
BCD eject.
CCD aper ture.
DSOURCESelection of sound source (Radio, CD, CD changer).
EBAND/AST
Shor t press : Selection of frequency bands and memor y banks.Long press : Automatic pre-set function (Autostore).
FCall-up of audio adjustments :Sound ambiences, bass, treble, loudness, fade, balance, speed-sensitive volume.
GLIST
Radio source :Short press : Display of the list of radio stations available (30 maximum).Long press : Update of list of stations.CD source : Display of list of tracks of the CD.

ABCDEFGHIJK
NPMROQL
1
4
6
2
3
5S
R D S A U D I O C O M P A C T D I S C S Y S T E M
W I T H C D C H A N G E R

3
1
Radio source :Scrolling of pre-set stations.Within a menu, selection of a choice.CD changer source :Selection of CD.

4

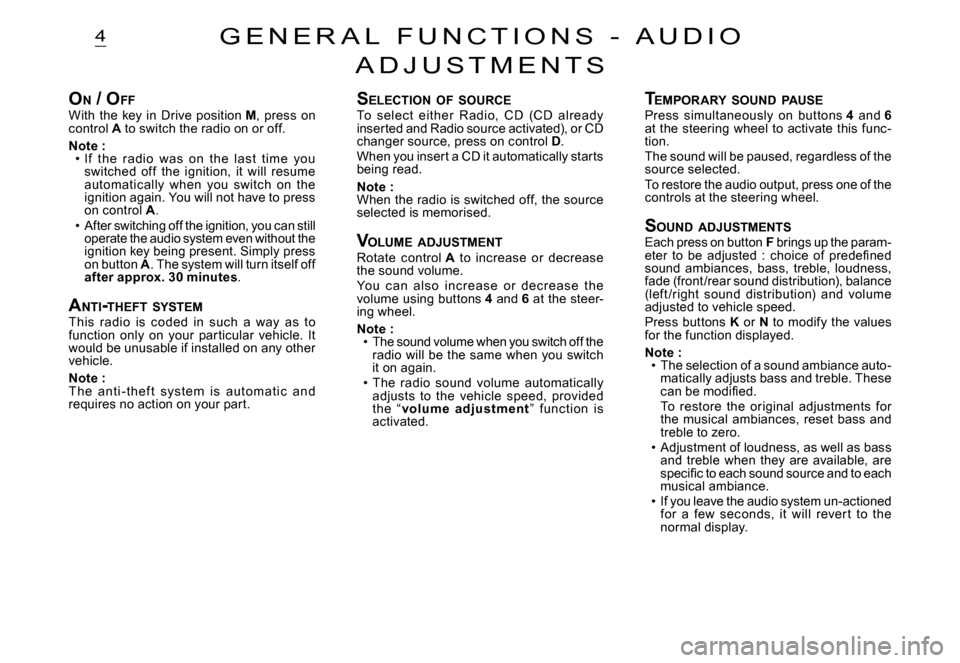

ON / O FFWith the key in Drive position M, press on control A to switch the radio on or off.
Note :If the radio was on the last time you switched of f the ignition, it will resume automatically when you switch on the ignition again. You will not have to press on control A.After switching off the ignition, you can still operate the audio system even without the ignition key being present. Simply press on button A. The system will turn itself off after approx.30minutes.
ANTI -THEFT SYSTEMThis radio is c oded in such a way as to function only on your par ticular vehicle. It would be unusable if installed on any other vehicle.
Note :T he ant i - t hef t system i s auto m at i c an d requires no action on your part.

5

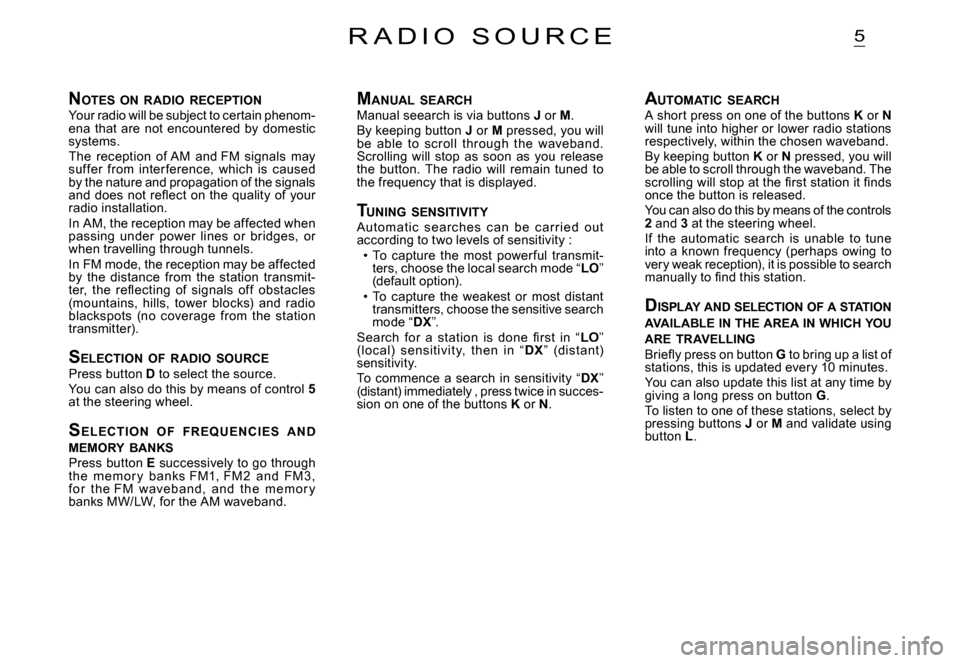

NOTES ON RADIO RECEPTIONYour radio will be subject to certain phenom-ena that are not encountered by domestic systems.The reception of AM and FM signals may suf fer from inter ference, which is caused by the nature and propagation of the signals and does not refl ect on the quality of your radio installation.In AM, the reception may be affected when passing under power lines or bridges, or when travelling through tunnels.In FM mode, the reception may be affected by the distance from the station transmit-ter, the refl ecting of signals of f obstacles (mountains, hills, tower blocks) and radio blackspots (no coverage from the station transmitter).
S ELECTION OF RADIO SOURCEPress button D to select the source.You can also do this by means of control 5at the steering wheel.
S E L EC T I O N O F FR EQ U E N C I E S A N D MEMORY BANKSPress button E successively to go through the memor y banks FM1, FM 2 and FM 3, fo r t he FM waveband, and t he m em o r y banks MW/LW, for the AM waveband.
R A D I O S O U R C E
M ANUAL SEARCHManual seearch is via buttons J or M.By keeping button J or M pressed, you will be able to scroll through the waveband. Scrolling will stop as soon as you release the button. The radio will remain tuned to the frequency that is displayed.
T UNING SENSITIVITYAutomat ic searc hes c an be c ar r ied out according to two levels of sensitivity :To capture the most power ful transmit-ters, choose the local search mode “LO” (default option).To capture the weakest or most distant transmitters, choose the sensitive search mode “DX”.Search for a station is done fi rst in “LO” (loc al) sensitivit y, then in “DX” (dist ant) sensitivity.To commence a search in sensitivity “DX” (distant) immediately , press twice in succes-sion on one of the buttons K or N.

6

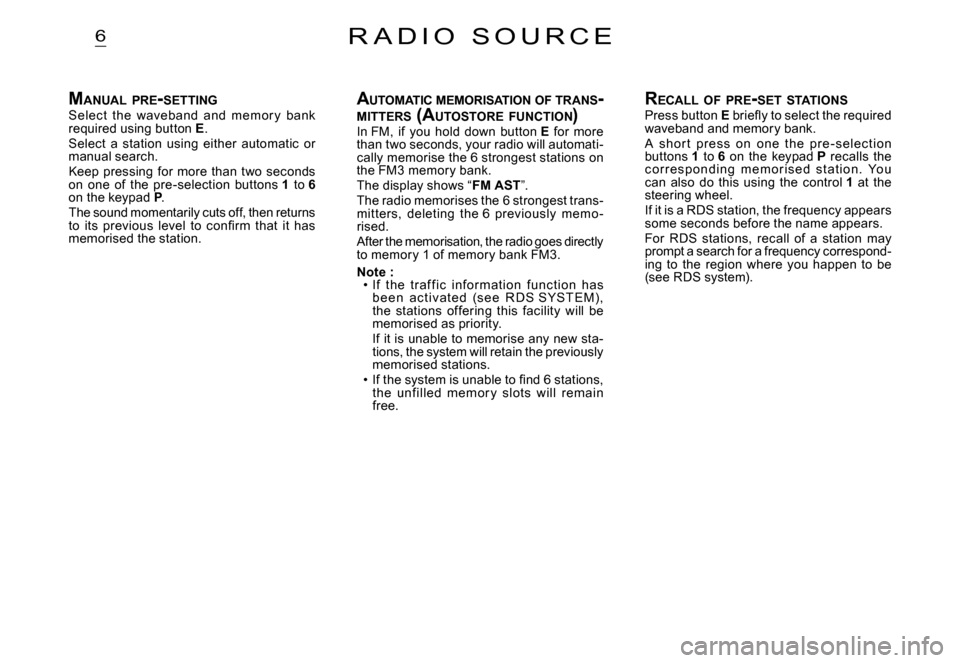

MANUAL PRE -SETTINGSelect the waveband and memor y bank required using button E.Select a station using either automatic or manual search.Keep pressing for more than two seconds on one of the pre-selection buttons 1 to 6on the keypad P.The sound momentarily cuts off, then returns to its previous level to confi rm that it has memorised the station.
R A D I O S O U R C E
A UTOMATIC MEMORISATION OF TRANS -MITTERS (AUTOSTORE FUNCTION )In FM, if you hold down button E for more than two seconds, your radio will automati-cally memorise the 6 strongest stations on the FM3 memory bank.The display shows “FM AST”.The radio memorises the 6 strongest trans-mit ters, deleting the 6 previously memo -rised.After the memorisation, the radio goes directly to memory 1 of memory bank FM3.
Note :If the traf f ic infor mation f unc tion has b e e n a c t i vat e d (s e e R D S SYST E M), the stations of fering this facility will be memorised as priority.If it is unable to memorise any new sta-tions, the system will retain the previously memorised stations.If the system is unable to fi nd 6 stations, the unf illed memor y slots will remain free.
