1 1 6
V
C H A N G I N G B U L B S

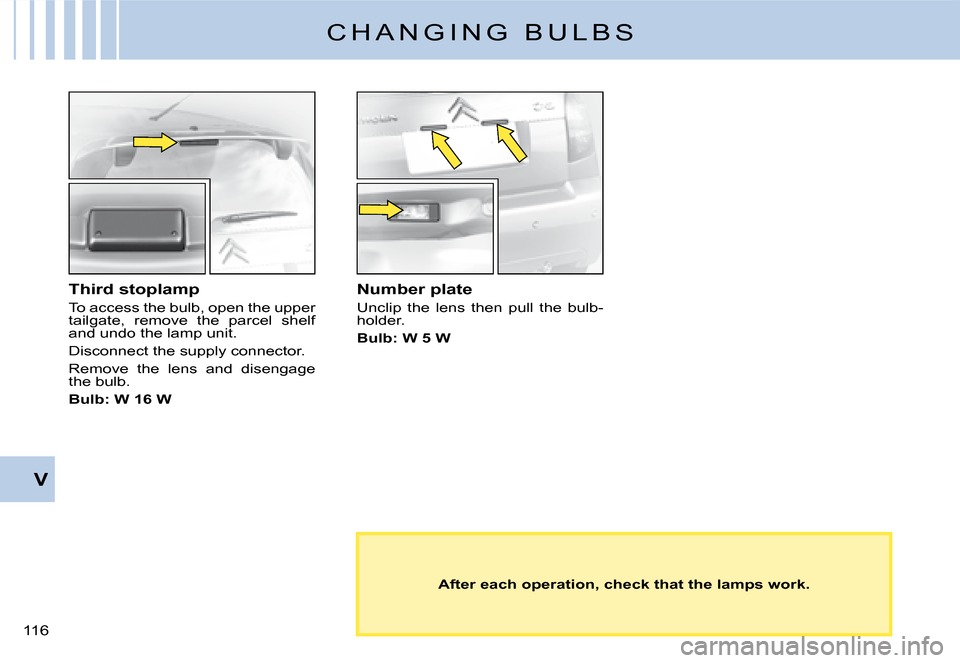

Third stoplamp
To access the bulb, open the upper tailgate, remove the parcel shelf and undo the lamp unit.
Disconnect the supply connector.
Remove the lens and disengage the bulb.
Bulb: W 16 W
Number plate
Unclip the lens then pull the bulb- holder.
Bulb: W 5 W
After each operation, check that the lamps work.
Page 102 of 178
A
1 1 7
V

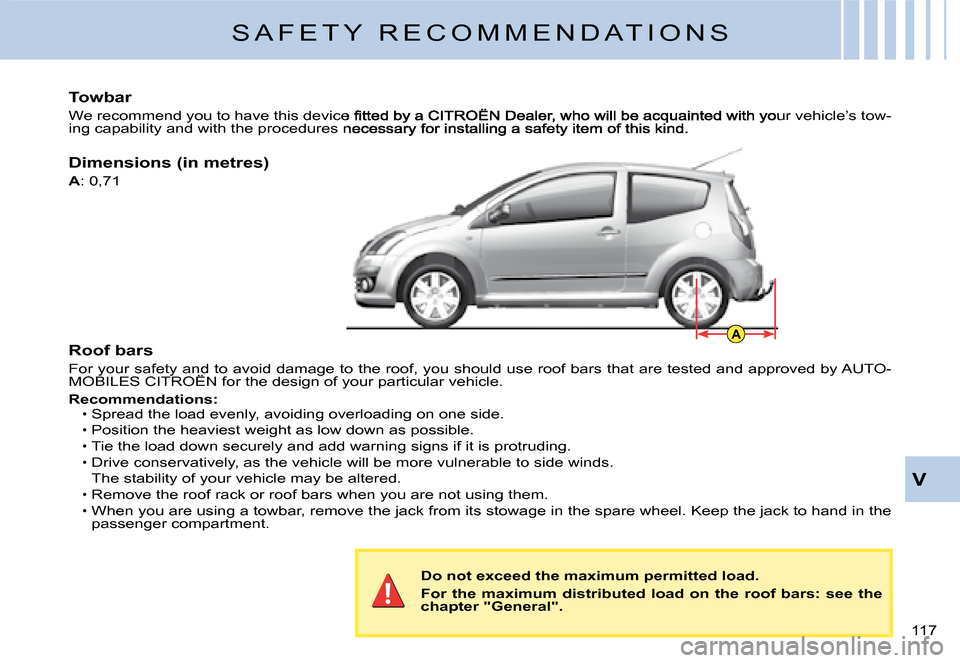

Roof bars
For your safety and to avoid damage to the roof, you should use roof bars that are tested and approved by AUTO-MOBILES CITROËN for the design of your particular vehicle.For your safety and to avoid damage to the roof, you should use safety and
Recommendations:Spread the load evenly, avoiding overloading on one side.Position the heaviest weight as low down as possible.
Tie the load down securely and add warning signs if it is protruding.
Drive conservatively, as the vehicle will be more vulnerable to si de winds.The stability of your vehicle may be altered.
Remove the roof rack or roof bars when you are not using them.
When you are using a towbar, remove the jack from its stowage i n the spare wheel. Keep the jack to hand in the passenger compartment.
Page 103 of 178
4
3
52
1
1 1 8
V
C H A N G I N G A W H E E L
Never get underneath the vehicle if it is supported only by the jack.
When changing a wheel, it is essential to park the vehicle safely on level and stable ground.

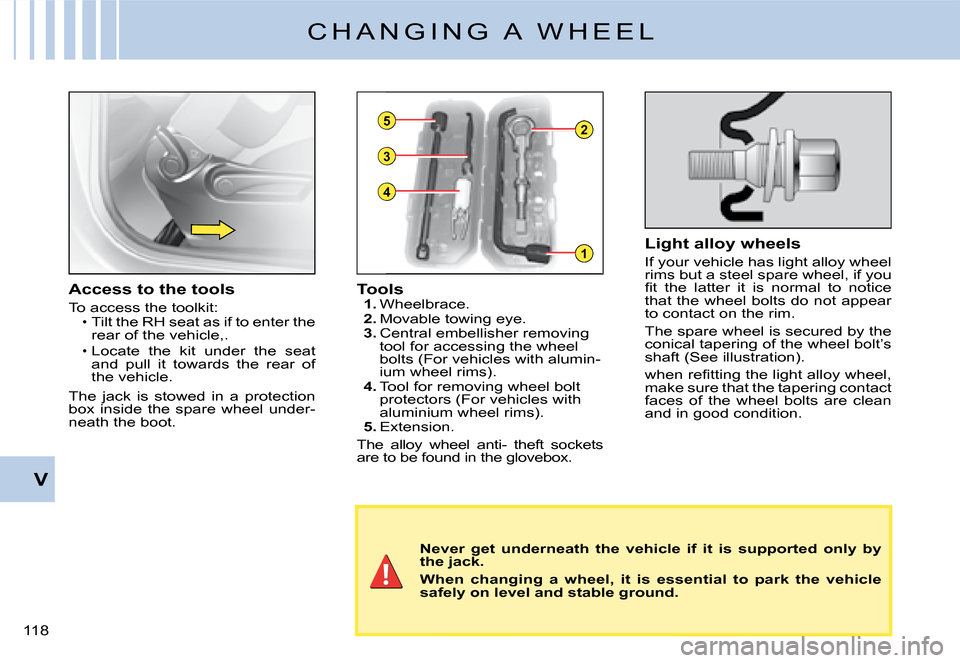

Access to the tools
To access the toolkit:Tilt the RH seat as if to enter the rear of the vehicle,.
Locate the kit under the seat and pull it towards the rear of the vehicle.
The jack is stowed in a protection box inside the spare wheel under-neath the boot.
Page 104 of 178
A
119
V
C H A N G I N G A W H E E L
T h e j a c k i s s p e c i fi c t o y o u r v e h i c l e , d o n o t u s e i t f o r a n y o t h e r purposes.
With a spare wheel, drive cautiously.

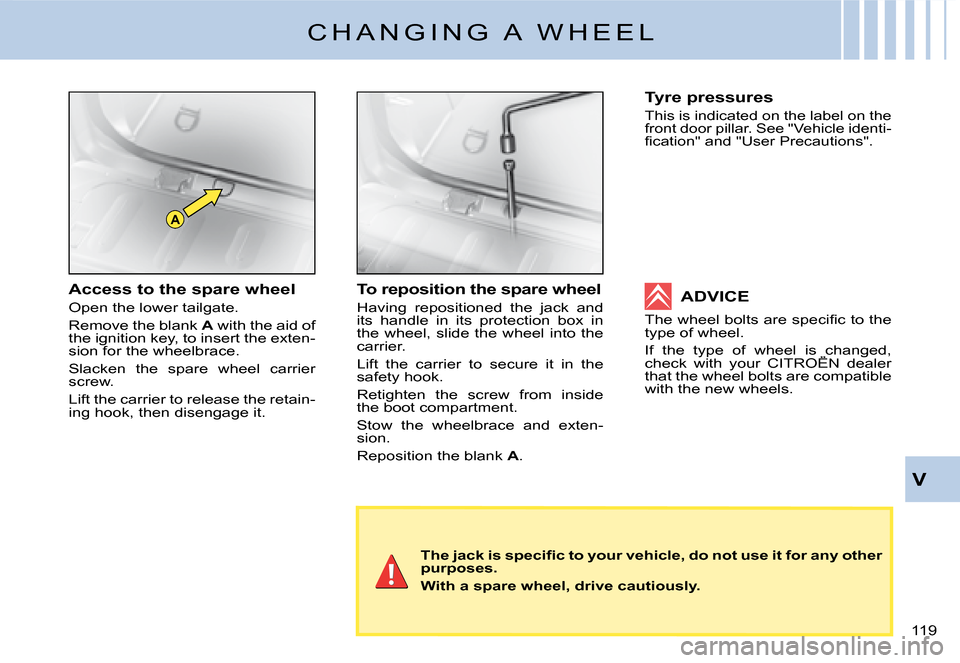

Access to the spare wheel
Open the lower tailgate.
Remove the blank A with the aid of the ignition key, to insert the exten-sion for the wheelbrace.
Slacken the spare wheel carrier screw.
Lift the carrier to release the retain-ing hook, then disengage it.
To reposition the spare wheel
Having repositioned the jack and its handle in its protection box in the wheel, slide the wheel into the carrier.
Lift the carrier to secure it in the safety hook.
Retighten the screw from inside the boot compartment.
Stow the wheelbrace and exten-sion.
Reposition the blank A.
Tyre pressures
This is indicated on the label on the f r o n t d o o r p i l l a r . S e e " V e h i c l e i d e n t i - fi c a t i o n " a n d " U s e r P r e c a u t i o n s " .
ADVICE
T h e w h e e l b o l t s a r e s p e c i fi c t o t h e type of wheel.
If the type of wheel is changed, check with your CITROËN dealer If the type of wheel is changed, wheel is changed,
that the wheel bolts are compatible with the new wheels.
Page 105 of 178
1 2 0
V
C H A N G I N G A W H E E L

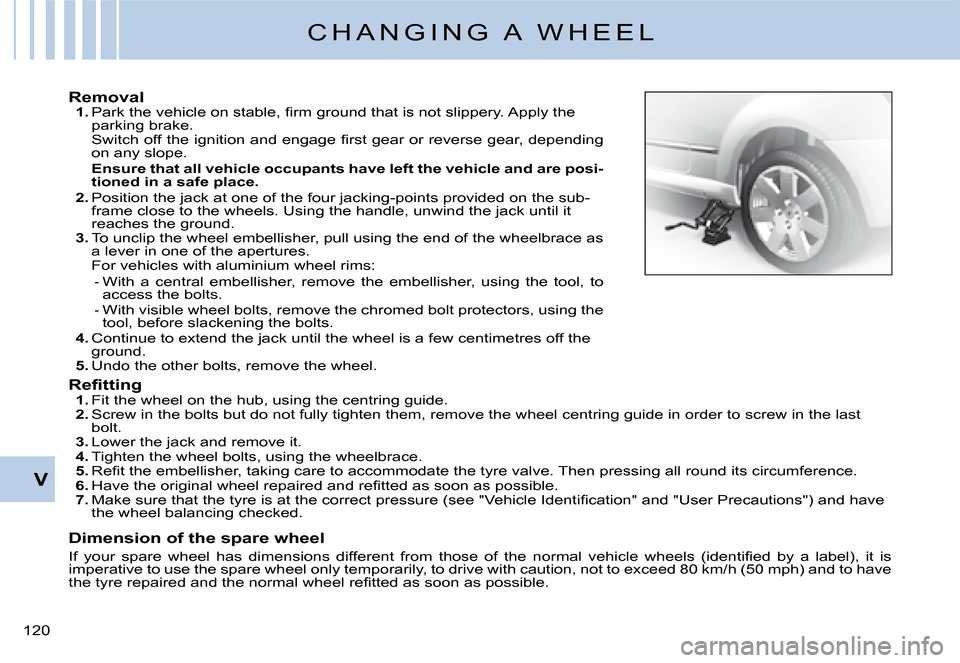

Removal1. P a r k t h e v e h i c l e o n s t a b l e , fi r m g r o u n d t h a t i s n o t s l i p p e r y . A p p l y t h e parking brake. S w i t c h o f f t h e i g n i t i o n a n d e n g a g e fi r s t g e a r o r r e v e r s e g e a r , d e p e n d i n g on any slope.Ensure that all vehicle occupants have left the vehicle an d are posi-tioned in a safe place.
2. Position the jack at one of the four jacking-points provided on the sub-frame close to the wheels. Using the handle, unwind the jack until it reaches the ground.3. To unclip the wheel embellisher, pull using the end of the wheelbrace as a lever in one of the apertures.For vehicles with aluminium wheel rims:
With a central embellisher, remove the embellisher, using the tool, to access the bolts.With visible wheel bolts, remove the chromed bolt protectors, usi ng the tool, before slackening the bolts.4. Continue to extend the jack until the wheel is a few centimetres off the ground.5. Undo the other bolts, remove the wheel.
-
-
R e fi t t i n g1. Fit the wheel on the hub, using the centring guide.2. Screw in the bolts but do not fully tighten them, remove the wheel centring guide in order to screw in the last bolt.3. Lower the jack and remove it.4. Tighten the wheel bolts, using the wheelbrace.5. R e fi t t h e e m b e l l i s h e r , t a k i n g c a r e t o a c c o m m o d a t e t h e t y r e v a l v e . T h e n p r e s s i n g a l l r o u n d i t s c i r c u m f e r e n c e .6. H a v e t h e o r i g i n a l w h e e l r e p a i r e d a n d r e fi t t e d a s s o o n a s p o s s i b l e .7. M a k e s u r e t h a t t h e t y r e i s a t t h e c o r r e c t p r e s s u r e ( s e e " V e h i c l e I d e n t i fi c a t i o n " a n d " U s e r P r e c a u t i o n s " ) a n d h a v e the wheel balancing checked.
Dimension of the spare wheel
I f y o u r s p a r e w h e e l h a s d i m e n s i o n s d i f f e r e n t f r o m t h o s e o f t h e n o r m a l v e h i c l e w h e e l s ( i d e n t i fi e d b y a l a b e l ) , i t i s i m p e r a t i v e t o u s e t h e s p a r e w h e e l o n l y t e m p o r a r i l y , t o d r i v e w i t h c a u t i o n , n o t t o e x c e e d 8 0 k m / h ( 5 0 m p h ) a n d t o h a v e t h e t y r e r e p a i r e d a n d t h e n o r m a l w h e e l r e fi t t e d a s s o o n a s p o s s i b l e .
Page 106 of 178
1 2 1
V
Because the aerosol is pressurised, do not expose it to temperatures higher than 50 °C.
After provisionally repairing a tyre using the repair aerosol, you are advised not to drive at over 80 km/h.
If your vehicle has no spare wheel, a repair aerosol is to be found in the boot.

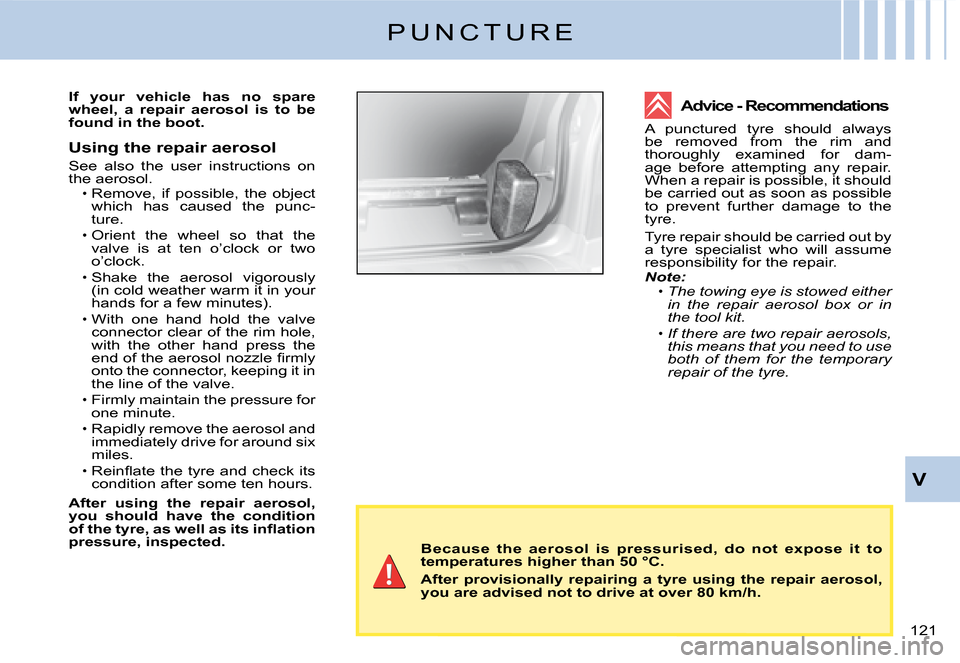

Using the repair aerosol
See also the user instructions on the aerosol.Remove, if possible, the object which has caused the punc-ture.
Orient the wheel so that the valve is at ten o’clock or two o’clock.Shake the aerosol vigorously (in cold weather warm it in your hands for a few minutes).
With one hand hold the valve connector clear of the rim hole, with the other hand press the e n d o f t h e a e r o s o l n o z z l e fi r m l y onto the connector, keeping it in the line of the valve.Firmly maintain the pressure for one minute.
Rapidly remove the aerosol and immediately drive for around six miles.
R e i n fl a t e t h e t y r e a n d c h e c k i t s condition after some ten hours.
After using the repair aerosol, you should have the condition o f t h e t y r e , a s w e l l a s i t s i n fl a t i o n pressure, inspected.
Page 107 of 178
1 2 2
V
T O W I N G – L I F T I N G
Towing with wheels on the ground
T o w i n g e y e fi x i n g s a r e l o c a t e d a t t h e f r o n t a n d a t t h e r e a r o f t h e v e h i c l e .
To access them:Carefully lift the access cover.
Release it by pressing on the lower part.
A lug keeps the cover attached to the bumper, so that it do es not become lost.
The ignition key must be in position M to retain steering.
Use a bar with attachments to the towing eyes as above.
Vehicles with manual gearbox (diesel models)
For vehicles with a manual gearbox, the gear lever must be in "n eutral", otherwise some components in the braking system could become damaged and impair braking assistance the next time the engine is started.
Page 108 of 178
1 2 3
VI
F U E L C O N S U M P T I O N
( I N L I T R E S / 1 0 0 K M ( M I L E S P E R G A L L O N ) )
T h e s e c o n s u m p t i o n fi g u r e s a r e e s t a b l i s h e d a c c o r d i n g t o D i r e c t i v e 8 0 / 1 2 6 8 / C E E . F u e l c o n s u m p t i o n c a n v a r y d e p e n d - i n g o n s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , v e h i c l e l o a d , h o w t h e v e h i c l e h a s b e e n m a i n t a i n e d a n d on use of accessories.
Engine type1.1i61 hp1.4i75 hp1.4i75 hp1.4i 16V90 hp1.6i 16V110 hp1.6i 16V125 hpHDi 70HDi 701.6 HDi 110 hp FAP
SaloonEntrepriseBVMBVMBVMPBVMP
Stop & StartBVMPBVMBVMBVMPBVM
UrbanCO2 emissions (g/km)
7 . 5 ( 3 7 . 7 ) 1 7 8
7 . 9 ( 3 5 . 8 )190
7 . 5 ( 3 7 . 7 ) 1 8 1
6 . 8 ( 4 1 . 5 ) 1 6 2
8 . 3 ( 3 4 . 0 )199
9 . 3 ( 3 0 . 4 ) 2 2 3
5 . 3 ( 5 3 . 3 ) 1 4 1
4 . 9 ( 5 7 . 6 ) 1 3 0
5 . 7 ( 4 9 . 6 )151
Extra urbanCO2 emissions (g/km)
4 . 8 ( 5 8 . 9 ) 1 1 4
4 . 9 ( 5 7 . 6 ) 1 1 7
4 . 8 ( 5 8 . 9 ) 1 1 6
4 . 8 ( 5 8 . 9 ) 1 1 6
5 . 2 ( 5 4 . 3 ) 1 2 4
5 . 4 ( 5 2 . 3 ) 1 2 9
3 . 7 ( 7 6 . 3 ) 9 6
3 . 8 ( 7 4 . 3 )99
3 . 7 ( 7 6 . 3 ) 9 8
CombinedCO2 emissions (g/km)
5 . 8 ( 4 8 . 7 ) 1 3 8
6 . 0 ( 4 7 . 1 ) 1 4 3
5 . 8 ( 4 8 . 7 ) 1 3 8
5 . 6 ( 5 0 . 4 ) 1 3 3
6 . 3 ( 4 4 . 8 )151
6 . 9 ( 4 0 . 9 ) 1 6 3
4 . 3 ( 6 5 . 7 ) 1 1 3
4 . 2 ( 6 7 . 3 )111
4 . 4 ( 6 4 . 2 )119
T h e f u e l c o n s u m p t i o n fi g u r e s q u o t e d a r e c o r r e c t at time of going to press.
BVM: Manual gearbox.
BVMP: Electronic Gearbox System.
FAP: D i e s e l p a r t i c u l a t e fi l t e r s y s t e m .
Page 109 of 178
1 2 4
VI
G E N E R A L

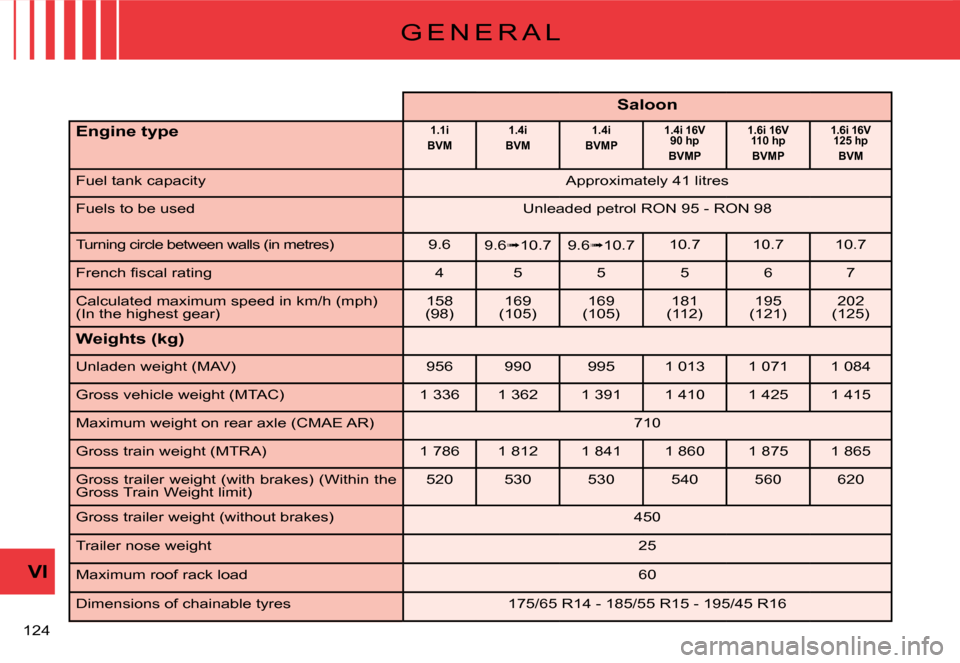

Saloon
Engine type1.1iBVM1.4iBVM1.4iBVMP1.4i 16V90 hpBVMP
1.6i 16V110 hpBVMP
1.6i 16V125 hpBVM
Fuel tank capacity A p p r o x i m a t e l y 4 1 l i t r e s
Fuels to be used U n l e a d e d p e t r o l R O N 9 5 - R O N 9 8
Turning circle between walls (in metres) 9 . 6 9 . 6 1 0 . 7 9 . 6 1 0 . 7 1 0 . 7 1 0 . 7 1 0 . 7
F r e n c h fi s c a l r a t i n g 4555 6 7
Calculated maximum speed in km/h (mph)(In the highest gear) 1 5 8 ( 9 8 ) 1 6 9(105) 1 6 9(105) 1 8 1 ( 1 1 2 )195 ( 1 2 1 ) 2 0 2 ( 1 2 5 )
Weights (kg)
U n l a d e n w e i g h t ( M A V ) 9 5 6990995 1 0 1 3 1 0 7 1 1 0 8 4
Gross vehicle weight (MTAC) 1 3 3 6 1 3 6 2 1 3 9 1 1 4 1 0 1 4 2 5 1 4 1 5
Maximum weight on rear axle (CMAE AR) 7 1 0
Gross train weight (MTRA) 1 7 8 6 1 8 1 2 1 8 4 1 1 8 6 0 1 8 7 5 1 8 6 5
Gross trailer weight (with brakes) (Within the Gross Train Weight limit) 5 2 0 5 3 0 5 3 0 5 4 0 5 6 0 6 2 0
Gross trailer weight (without brakes) 4 5 0
Trailer nose weight 2 5
Maximum roof rack load 6 0
Dimensions of chainable tyres 1 7 5 / 6 5 R 1 4 - 1 8 5 / 5 5 R 1 5 - 1 9 5 / 4 5 R 1 6
Page 110 of 178
1 2 5
VI
G E N E R A L

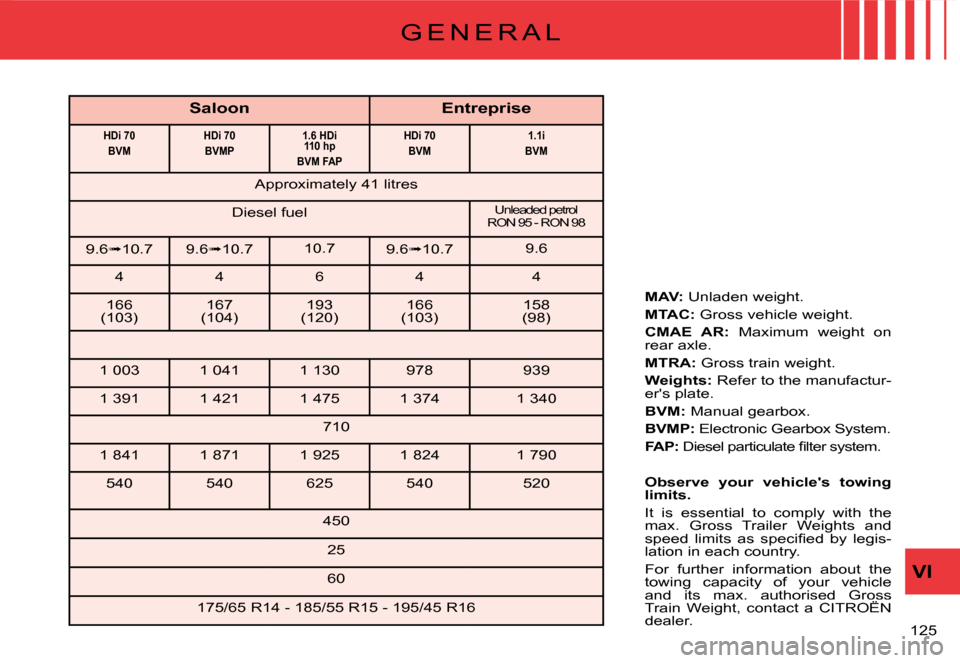

SaloonEntreprise
HDi 70BVMHDi 70BVMP1.6 HDi 110 hpBVM FAP
HDi 70BVM1.1iBVM
A p p r o x i m a t e l y 4 1 l i t r e s
Diesel fuelUnleaded petrol R O N 9 5 - R O N 9 8
9 . 6 1 0 . 7 9 . 6 1 0 . 7 1 0 . 7 9 . 6 1 0 . 7 9 . 6
4 4 6 4 4
1 6 6 ( 1 0 3 ) 1 6 7 ( 1 0 4 ) 1 9 3 ( 1 2 0 ) 1 6 6 ( 1 0 3 ) 1 5 8 ( 9 8 )
1 0 0 3 1 0 4 1 1 1 3 0 9 7 8 9 3 9
1 3 9 1 1 4 2 1 1 4 7 5 1 3 7 4 1 3 4 0
7 1 0
1 8 4 1 1 8 7 1 1 9 2 5 1 8 2 4 1 7 9 0
5 4 0 5 4 0 6 2 5 5 4 0 5 2 0
4 5 0
2 5
6 0
1 7 5 / 6 5 R 1 4 - 1 8 5 / 5 5 R 1 5 - 1 9 5 / 4 5 R 1 6
MAV: Unladen weight.
MTAC: Gross vehicle weight.
CMAE AR: Maximum weight on rear axle.
MTRA: Gross train weight.
Weights: Refer to the manufactur-er's plate.
BVM: Manual gearbox.
BVMP: Electronic Gearbox System.
FAP: D i e s e l p a r t i c u l a t e fi l t e r s y s t e m .
Observe your vehicle's towing limits.
It is essential to comply with the max. Gross Trailer Weights and s p e e d l i m i t s a s s p e c i fi e d b y l e g i s -lation in each country.
For further information about the towing capacity of your vehicle and its max. authorised Gross Train Weight, contact a CITROËN dealer.
