1 0 7
IV
F U S E S
Fuseboxes
There are two fuse boxes, one below the dashboard and one under the bonnet.
Dashboard fuses
To access the fuses under the dashboard, detach the cover by slidi ng your fi n g e r s i n t h e s p a c e b e t w e e n t h e b o t t o m o f t h e d a s h b o a r d a n d t h e s t e e r i n g wheel.
Replacing a fuse
Before replacing a fuse, you should ascertain the cause of the fault and have it remedied. The numbers of the fuses are indicated on the fusebox.
GoodBad
Pliers AReplace the fuse that has blown with one of the same rating (same colour).
Use the special pliers A stowed on the cover close to the fuseboxes, this includes a compartment for replacement fuses.
Page 92 of 178
1 0 8
IV

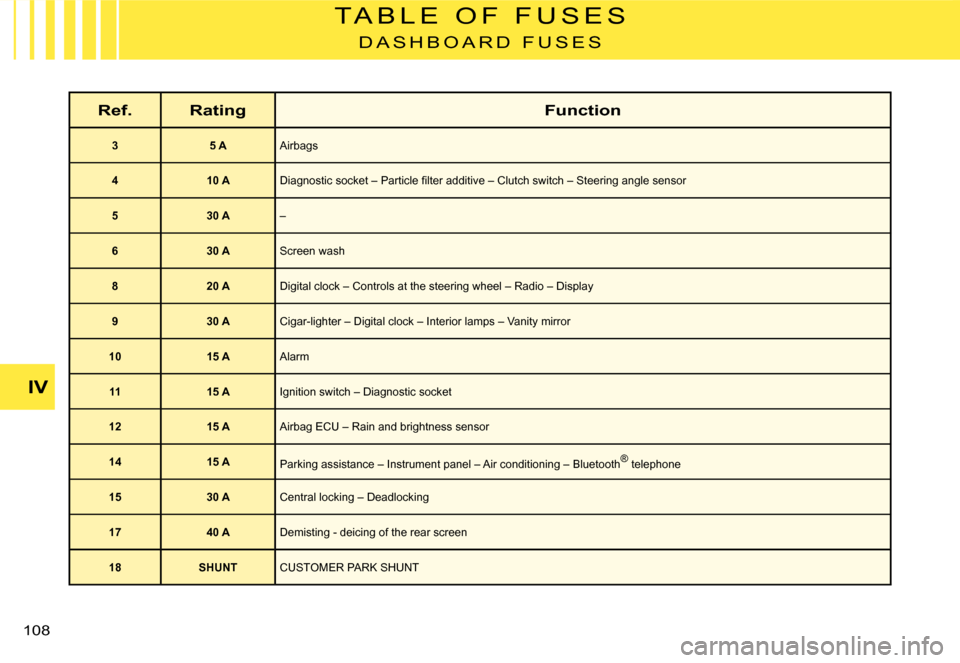

T A B L E O F F U S E S
D A S H B O A R D F U S E S
Ref.RatingFunction
35 AAirbags
410 A D i a g n o s t i c s o c k e t – P a r t i c l e fi l t e r a d d i t i v e – C l u t c h s w i t c h – S t e e r i n g a n g l e s e n s o r
530 A–
630 AScreen wash
820 ADigital clock – Controls at the steering wheel – Radio – Display
930 A C i g a r - l i g h t e r – D i g i t a l c l o c k – I n t e r i o r l a m p s – V a n i t y m i r r o r
1015 AAlarm
1115 AIgnition switch – Diagnostic socket
1215 AAirbag ECU – Rain and brightness sensor
1415 AParking assistance – Instrument panel – Air conditioning – Blueto oth® telephone®
1530 A Central locking – Deadlocking
1740 ADemisting - deicing of the rear screen
18SHUNTCUSTOMER PARK SHUNT
Page 93 of 178
109
IV
F U S E S
Any action on the MAXI fuses (that give extra protection) (in grey in the diagrams), located in the fuseboxes, should be left to a CITROËN dealer.grey in the diagrams), lthe dia
Fusebox
To access the fusebox located in the engine compartment, remove the battery cover and detach the lid.
After a repair, take care to reclose the cover.
Fuses under the bonnet
Page 94 of 178
110

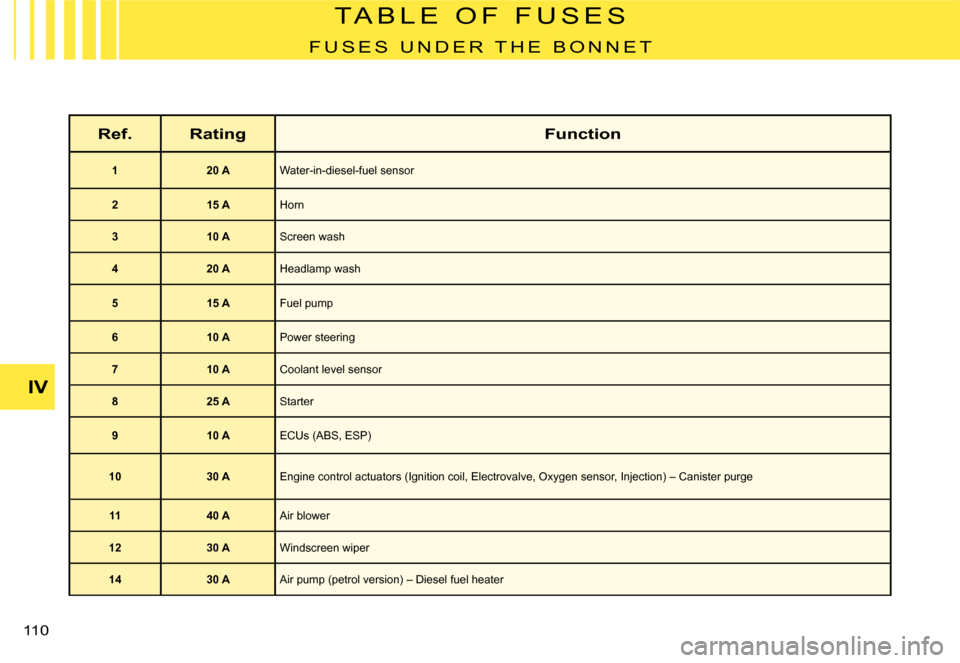

T A B L E O F F U S E S
F U S E S U N D E R T H E B O N N E T
Ref.RatingFunction
120 AWater-in-diesel-fuel sensor
215 AHorn
310 AScreen wash
420 AHeadlamp wash
515 AFuel pump
610 APower steering
710 ACoolant level sensor
825 AStarter
910 AECUs (ABS, ESP)
1030 AEngine control actuators (Ignition coil, Electrovalve, Oxygen sensor, Injection) – Canister purge
1140 AAir blower
1230 AWindscreen wiper
1430 AAir pump (petrol version) – Diesel fuel heater
IV
Page 95 of 178
111
V

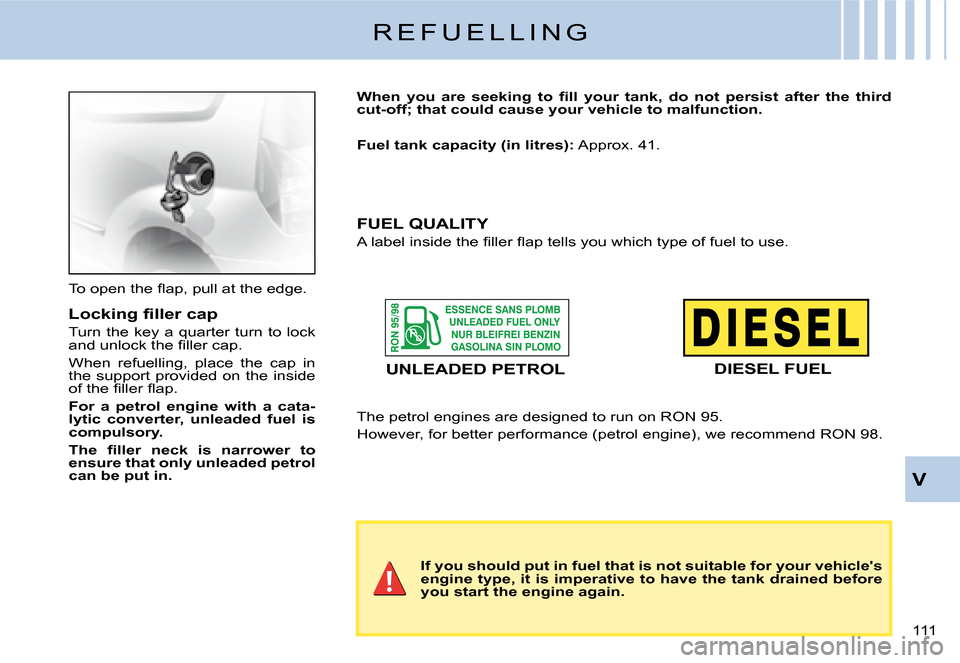

R E F U E L L I N G
T o o p e n t h e fl a p , p u l l a t t h e e d g e .
L o c k i n g fi l l e r c a p
Turn the key a quarter turn to lock a n d u n l o c k t h e fi l l e r c a p .
When refuelling, place the cap in the support provided on the inside o f t h e fi l l e r fl a p .
For a petrol engine with a cata-lytic converter, unleaded fuel is compulsory.
T h e fi l l e r n e c k i s n a r r o w e r t o ensure that only unleaded petrol can be put in.
W h e n y o u a r e s e e k i n g t o fi l l y o u r t a n k , d o n o t p e r s i s t a f t e r t h e t h i r d cut-off; that could cause your vehicle to malfunction.
Fuel tank capacity (in litres): A p p r o x . 4 1 .
If you should put in fuel that is not suitable for your vehicle's engine type, it is imperative to have the tank drained be fore you start the engine again.
FUEL QUALITY
A l a b e l i n s i d e t h e fi l l e r fl a p t e l l s y o u w h i c h t y p e o f f u e l t o u s e .
UNLEADED PETROLDIESEL FUEL
The petrol engines are designed to run on RON 95.
H o w e v e r , f o r b e t t e r p e r f o r m a n c e ( p e t r o l e n g i n e ) , w e r e c o m m e n d R O N 9 8 .
Page 96 of 178
1
23
A
4
1 1 2
V

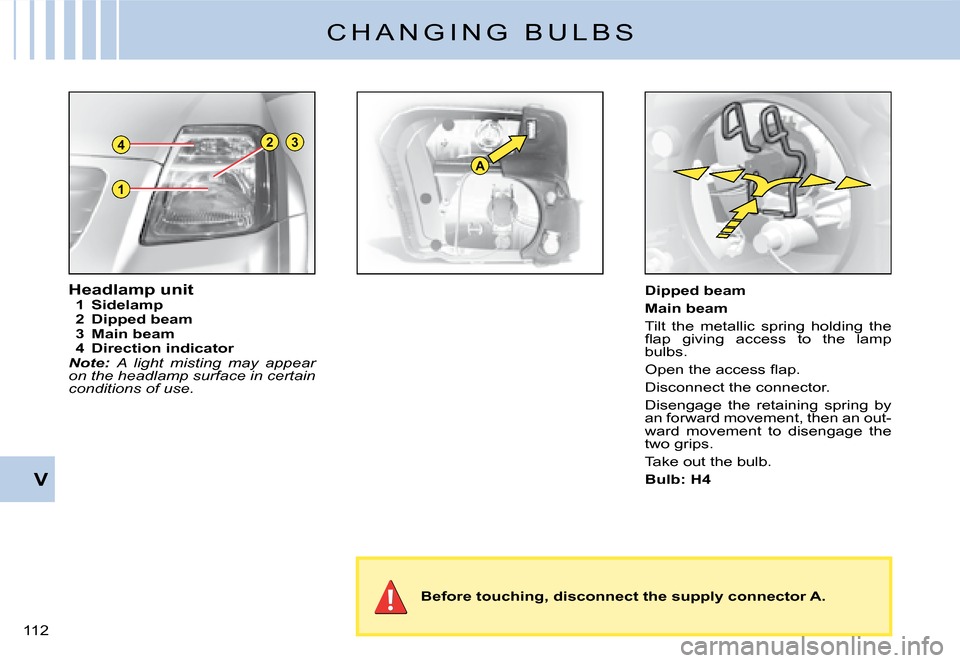

C H A N G I N G B U L B S
Headlamp unit1 Sidelamp2 Dipped beam3 Main beam4 Direction indicatorNote: A light misting may appear on the headlamp surface in certain conditions of use.
Dipped beam
Main beam
Tilt the metallic spring holding the fl a p g i v i n g a c c e s s t o t h e l a m p bulbs.
O p e n t h e a c c e s s fl a p .
Disconnect the connector.
Disengage the retaining spring by an forward movement, then an out-ward movement to disengage the two grips.
Take out the bulb.
Bulb: H4
Before touching, disconnect the supply connector A.
Page 97 of 178
A
1 1 3
V
C H A N G I N G B U L B S
Front direction indicator
Rotate the bulb- holder a quarter turn and pull.
Take out the bulb.
Bulb: PY 21 W (yellow)
Sidelamp
O p e n t h e a c c e s s fl a p .
Pull on the bulb- holder to disen-gage the bulb.
Bulb: W 5
Side repeater direction indicator
To change the direction indicator side repeater, push it forwards or rearwards to detach it, then pull it towards you.
Hold the cable and disconnect it.
Contact a CITROËN dealer.
Before touching, disconnect the supply connector A.
Page 98 of 178
1 1 4
V
C H A N G I N G B U L B S
Interior lamp
Unclip the transparent cover of the interior lamp to reach the bulb.
Bulb: W 5 W
Spotlamps
Unclip the transparent cover of the interior lamp to reach the bulb.
Bulb: W 5 W
Boot lamp
Unclip the lens unit to access the bulb.
Bulb: W 5 W

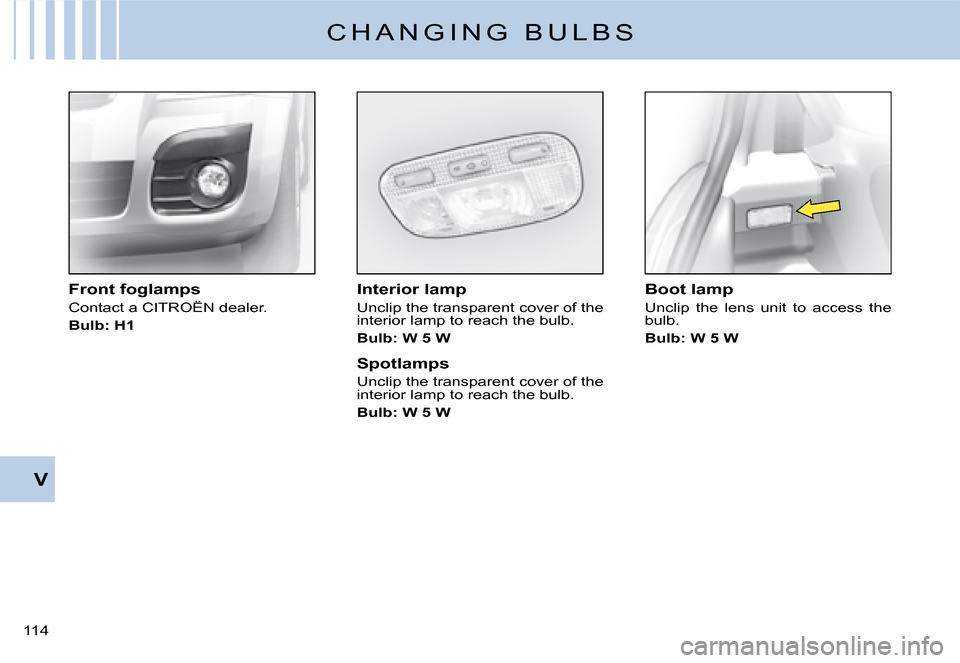

Front foglamps
Contact a CITROËN dealer.
Bulb: H1
Page 99 of 178
1 1 4
V
C H A N G I N G B U L B S
Interior lamp
Unclip the transparent cover of the interior lamp to reach the bulb.
Bulb: W 5 W
Spotlamps
Unclip the transparent cover of the interior lamp to reach the bulb.
Bulb: W 5 W
Boot lamp
Unclip the lens unit to access the bulb.
Bulb: W 5 W
Front foglamps
Contact a CITROËN dealer.
Bulb: H1
Page 100 of 178
A
1
2
3
4
115
V

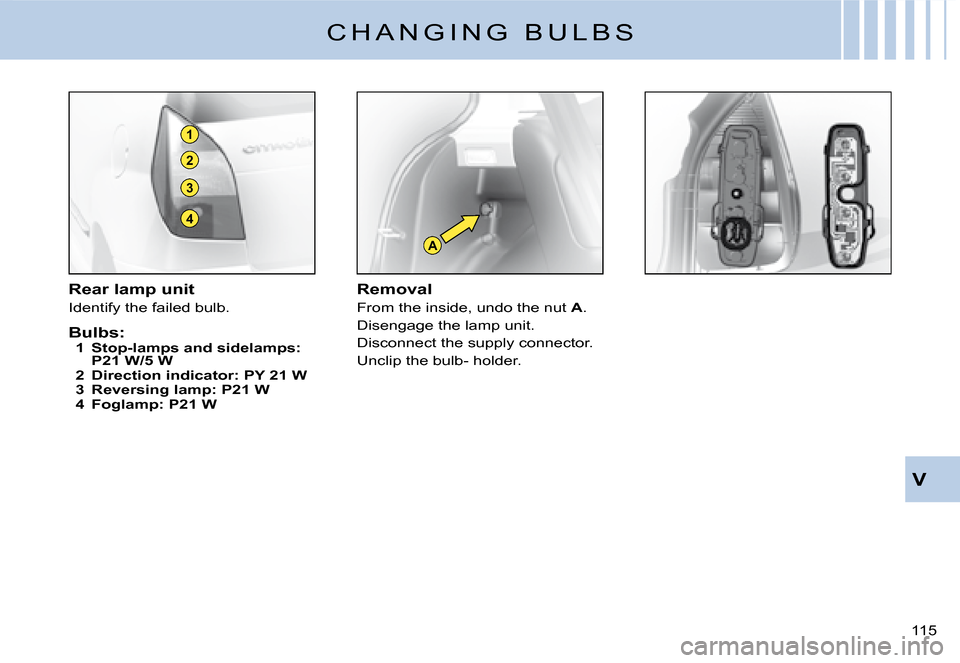

Rear lamp unit
Identify the failed bulb.
Bulbs:1 Stop-lamps and sidelamps: P21 W/5 W2 Direction indicator: PY 21 W3 Reversing lamp: P21 W4 Foglamp: P21 W
Removal
From the inside, undo the nut A.
Disengage the lamp unit.
Disconnect the supply connector.
Unclip the bulb- holder.
C H A N G I N G B U L B S
