Changing main beam headlampbulbs
)Remove the protective cover by pulling on
the tab. )Disconnect the bulb connector. )Spread the springs to release the bulb.)Remove the bulb and change it.
To r e f i t , c a r ry out these operations in reverseorder.
Changing sidelamp bulbs
)
Remove the protective cover by pulling on
the tab.) Pull the bulb holder pressing on the tabs on both sides. )
Pull the bulb and change it.
To r efit, carry out these operations in reverse order.

Practical information
160
Changing integrated directionindicator side repeaters
)Insert a screwdriver towards the centre of
the repeater between the repeater and the base of the door mirror.)Tilt the screwdriver to extract the repeater and remove it.)Disconnect the repeater connector. )Replace the module.
To r efit, carry out these operations in reverse order.
Contact a CITRO

11
Practical information
161
Rear lamps
1.Brake / sidelamps (P21/5W).2.Direction indicators (PY21W amber).3. Foglamp, right-hand side (PR21W red)Reversing lamp, left-hand side (P21W).
Changing bulbs
These four bulbs are changed from inside the boot: ) spread the four tabs and remove the bulb holder,
)
turn the bulb a quar ter of a turn and change it.
To r efit, carry out these operations in reverseorder.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.
) open the boot,)
remove the access flap from the
corresponding side trim panel, )
unscrew the butterfly nut securing the lamp unit, )
unclip the lamp unit connector,)
extract the lamp unit carefully pulling in its
middle towards the outside,
Amber or red bulbs, such as thosefor the direction indicators and rear foglamp, must be replaced by bulbs of the same rating and colour. The lamps on the tailgate are dummyunits. They are there for aestheticpurposes only.

Practical information
162
bulbs (W5W)
)Insert a thin screwdriver into one of theouter holes of the lens.)Push it outwards to unclip.
)Remove the lens.)Pull the bulb out and change it.
Third brake lamp (4 W5W bulbs)
) Open the boot. )
Remove the plugs A
on the inner panel.)
Push on the centre of the lamp using
tw
o screwdrivers to lever it outwards.) Disconnect the connector and if necessary
the screenwash pipe from the lamp.) Turn the bulb holder for the faulty bulb a quar ter of a turn. )
Pull out the bulb and change it.
To r e f i t , c a r ry out these operations in reverseorder.

11
Practical information
163

Interior lamp (1 / W5W)


Side readin
g lamps (2 / W5W)
Central storage lamp (W5W)Boot lamp (W5W)


Unclip the cover of the interior lamp 1with a
thin screwdriver, close to the button, to access
the faulty bulb.

Unclip the cover of the readin
g lamp 2with asmall screwdriver at the switch end for access
to the faulty bulb.
Unclip the unit b
y pushing it from the rear.

Glove box lamps (W5W)
Unclip the lamp to access the bulb. Unclip the lamp to access the bulb.

Practical information
164

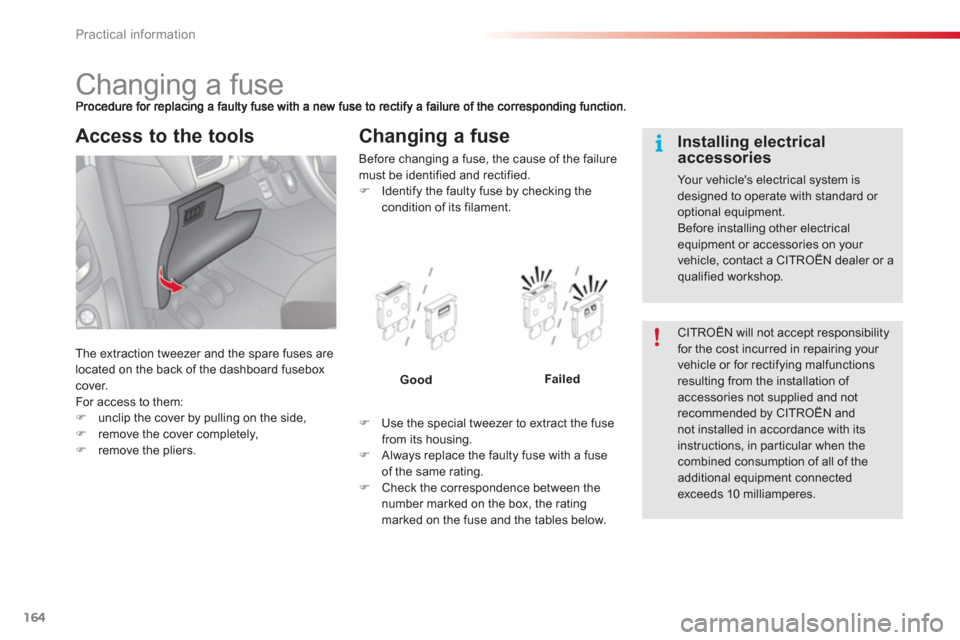

Changing a fuse
The extraction tweezer and the spare fuses are
located on the back of the dashboard fuseboxcover.
For access to them:)unclip the cover by pulling on the side, )remove the cover completely,)remove the pliers.

Changing a fuse

Before changing a fuse, the cause of the failure
must be identified and rectified. ) Identify the faulty fuse by checking thecondition of its filament.
)
Use the special tweezer to extract the fuse from its housing.)
Always replace the faulty fuse with a fuse of the same rating.)
Check the correspondence between the
number marked on the box, the rating
marked on the fuse and the tables below.
GoodFailed
CITROËN will not accept responsibilityfor the cost incurred in repairing your vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and notrecommended by CITROËN andnot installed in accordance with its instructions, in par ticular when thecombined consumption of all of the additional equipment connectedexceeds 10 milliamperes.



Installing electricalaccessories
Your vehicle's electrical system isdesigned to operate with standard or optional equipment.
Before installing other electrical equipment or accessories on your vehicle, contact a CITROËN dealer or aqualified workshop.
Access to the tools

11
Practical information
165

Dashboard fusebox

The fusebox is located in the lower dashboard(left-hand side).


Access to the fuses
)Refer to the paragraph "Access to the
tools".

Fuse tables
Fuse N°RatingFunctions
FH3
65 A Tr a i l e r r e l ay unit.
FH37
- Not used.
FH3
820 A Hi-Fi amplifier.
FH39 20
A Heated seats.
FH40 40 ATr a i l e r r e l a
y unit.
Fuse N°RatingFunctions
F1- Not used.
F
2- Not used.
F
35 A Airbags and pretensioners control unit.
F410 A Air conditioning, clutch switch, electrochrome mirror, par ticle
filter pump (Diesel), diagnostic socket, air flow sensor (Diesel).
F530 AElectric windows panel, passenger's electric window control,
front electric window motor.
F
630 ARear electric windows motors and driver's electric window motor.
F75 ACourtesy lamp, glove box lighting, side reading lamps.

Practical information
166
Fuse N°RatingFunctions
F8
20 A
Multifunction screen, audio system, navigation and audio system, instrument panel with clock, alarm control unit, alarm siren, audio system (after-market), 12 V socket, portable
navigation carrier power supply.
F
930 A Multifunction screen, audio s
ystem, navigation and audio system, instrument panel with clock, alarm control unit, alarm siren, audio system (after-market), 12 V socket, portable
navigation carrier power supply, locking.
F1
015 A Steering mounted controls.
F1
115 A
Ignition, diagnostic socket, automatic gearbox control unit.
F12 15 A
Rain
/ sunshine sensor, trailer relay unit, driving school module.
F13 5
A Main stop switch, engine relay unit, gear lever for electronicgearbox.
F1415 A Parking sensors control unit, airbag control unit, instrument
panel, digital air conditioning, USB Box, HiFi amplifier,
reversing camera.
F1
530 A Locking.
F1
6- Not used.
F17
40 A Rear screen and door mirrors demisting/defrosting.
S
H- PA RC shunt.

11
Practical information
167

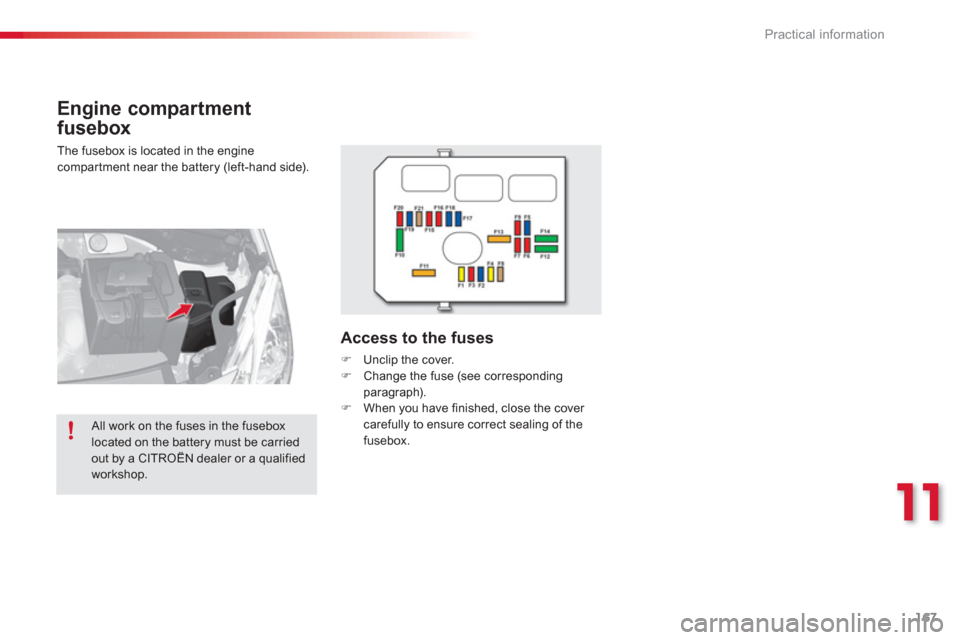

Engine compartment
fusebox

The fusebox is located in the enginecompartment near the battery (left-hand side).
Access to the fuses
)
Unclip the cover. )
Change the fuse (see correspondingparagraph). )
When you have finished, close the cover carefully to ensure correct sealing of the
fusebox.
All work on the fuses in the fusebox
located on the battery must be carriedout by a CITRO

Practical information
168
Fuse table
Fuse N°RatingFunctions
F120 AEngine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump (Diesel).
F
215 AHorn.
F
310 AFront / rear wash-wipe.
F420 ADaytime running lamps, LED daytime running lamps.
F
515 ADiesel heater (Diesel), par ticle filter additive pump (Diesel), air
flow sensor (Diesel), fuel pump (1.1i and 1.4i), blow-by heater and electrovalves (VTi).
F
610 A ABS/ESP control unit, secondary brake lamp switch.
F710 AElectric power steering, automatic gearbox.
F
825 AStarter motor control.
F9
10 ASwitching and protection unit (Diesel).
F10
30 AFuel heater (Diesel), blow-by heater (1.1i, 1.4i and Diesel),fuel pump (VTi), injectors and ignition coils (petrol), electronic
thermostat and canister purge electrovalve (1.1i and 1.4i).
F1
140 AHeater blower.
