Page 101 of 207
8
SAFETY
TRAJECTORY CONTROL
SYSTEMS
Anti-skid regulation (ASR) and
electronic stability programme
(ESP)
The anti-skid regulation (also known as
T r a c t i o n C o n t r o l ) o p t i m i s e s t r a c t i o n t o
p r e v e n t s k i d d i n g o f t h e w h e e l s , b y a c t -
ing on the brakes of the driving wheels
and on the engine.
T h e e l e c t r o n i c s t a b i l i t y p r o g r a m m e a c t s
on the brake of one or more wheels and
o n t h e e n g i n e t o k e e p t h e v e h i c l e o n t h e
trajectory required by the driver.
Activation
These systems are activated automati-
cally each time the vehicle is started.
T h e y c o m e i n t o o p e r a t i o n i n t h e e v e n t
o f a g r i p o r t r a j e c t o r y p r o b l e m . T h i s i s i n d i c a t e d b y fl a s h i n g o f
t h i s w a r n i n g l a m p o n t h e i n s t r u -
m e n t p a n e l . Deactivation
I n e x c e p t i o n a l c o n d i t i o n s ( s t a r t i n g a v e -
hicle which is bogged down, stuck in
snow, on soft ground...), it may be ad-
visable to deactivate the ASR and ESP
systems, so that the wheels can move
f r e e l y a n d r e g a i n g r i p .
Press the "ESP OFF" button, located
on the left below the steering wheel.
I f t h i s w a r n i n g l a m p c o m e s o n i n
t h e i n s t r u m e n t p a n e l a n d t h e i n -
d i c a t o r l a m p o n t h e b u t t o n c o m e s
on, this indicates that the ASR and
ESP systems are deactivated.
Reactivation
These systems are reactivated automat-
ically each time the ignition is switched
b a c k o n o r f r o m 3 0 m p h ( 5 0 k m / h ) .
Press the "ESP OFF" button again
to reactivate them manually. Operating fault
I f t h i s w a r n i n g l a m p c o m e s o n ,
a c c o m p a n i e d b y a n a u d i b l e s i g -
nal and a message on the mul-
tifunction screen, this indicates
a malfunction of these systems.
Have the systems checked by a
CITROËN dealer.
T h e E S P / A S R s y s t e m s o f f e r e x -
c e p t i o n a l s a f e t y i n n o r m a l d r i v i n g ,
but this should not encourage the
driver to take extra risks or drive at
h i g h s p e e d .
The correct functioning of these
s y s t e m s d e p e n d s o n o b s e r v a -
tion of the manufacturer's rec-
ommendations regarding the
wheels (tyres and rims), the brak-
i n g c o m p o n e n t s , t h e e l e c t r o n i c
c o m p o n e n t s a n d t h e C I T R O Ë N
a s s e m b l y a n d o p e r a t i o n p r o c e -
dures.
A f t e r a n i m p a c t , h a v e t h e s e s y s -
tems checked by a CITROËN
dealer.
Page 102 of 207
8
SAFETY

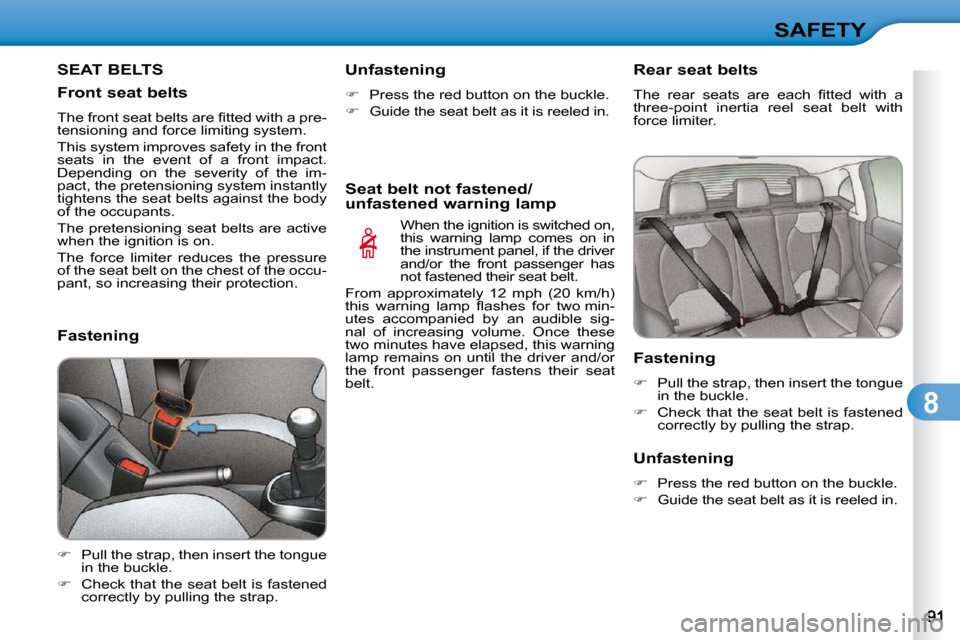

SEAT BELTS
Front seat belts
T h e f r o n t s e a t b e l t s a r e fi t t e d w i t h a p r e -
tensioning and force limiting system.
T h i s s y s t e m i m p r o v e s s a f e t y i n t h e f r o n t
s e a t s i n t h e e v e n t o f a f r o n t i m p a c t .
D e p e n d i n g o n t h e s e v e r i t y o f t h e i m -
p a c t , t h e p r e t e n s i o n i n g s y s t e m i n s t a n t l y
tightens the seat belts against the body
o f t h e o c c u p a n t s .
T h e p r e t e n s i o n i n g s e a t b e l t s a r e a c t i v e
when the ignition is on.
T h e f o r c e l i m i t e r r e d u c e s t h e p r e s s u r e
of the seat belt on the chest of the occu-
p a n t , s o i n c r e a s i n g t h e i r p r o t e c t i o n .
Fastening
P u l l t h e s t r a p , t h e n i n s e r t t h e t o n g u e
in the buckle.
Check that the seat belt is fastened
c o r r e c t l y b y p u l l i n g t h e s t r a p . Unfastening
Press the red button on the buckle.
Guide the seat belt as it is reeled in.
Seat belt not fastened/
unfastened warning lamp When the ignition is switched on,
t h i s w a r n i n g l a m p c o m e s o n i n
t h e i n s t r u m e n t p a n e l , i f t h e d r i v e r
a n d / o r t h e f r o n t p a s s e n g e r h a s
not fastened their seat belt.
F r o m a p p r o x i m a t e l y 1 2 m p h ( 2 0 k m / h )
t h i s w a r n i n g l a m p fl a s h e s f o r t w o m i n -
u t e s a c c o m p a n i e d b y a n a u d i b l e s i g -
nal of increasing volume. Once these
t w o m i n u t e s h a v e e l a p s e d , t h i s w a r n i n g
l a m p r e m a i n s o n u n t i l t h e d r i v e r a n d / o r
t h e f r o n t p a s s e n g e r f a s t e n s t h e i r s e a t
belt. Rear seat belts
T h e r e a r s e a t s a r e e a c h fi t t e d w i t h a
t h r e e - p o i n t i n e r t i a r e e l s e a t b e l t w i t h
force limiter.
Fastening
P u l l t h e s t r a p , t h e n i n s e r t t h e t o n g u e
in the buckle.
Check that the seat belt is fastened
c o r r e c t l y b y p u l l i n g t h e s t r a p .
Unfastening
Press the red button on the buckle.
Guide the seat belt as it is reeled in.
Page 103 of 207
8
SAFETY

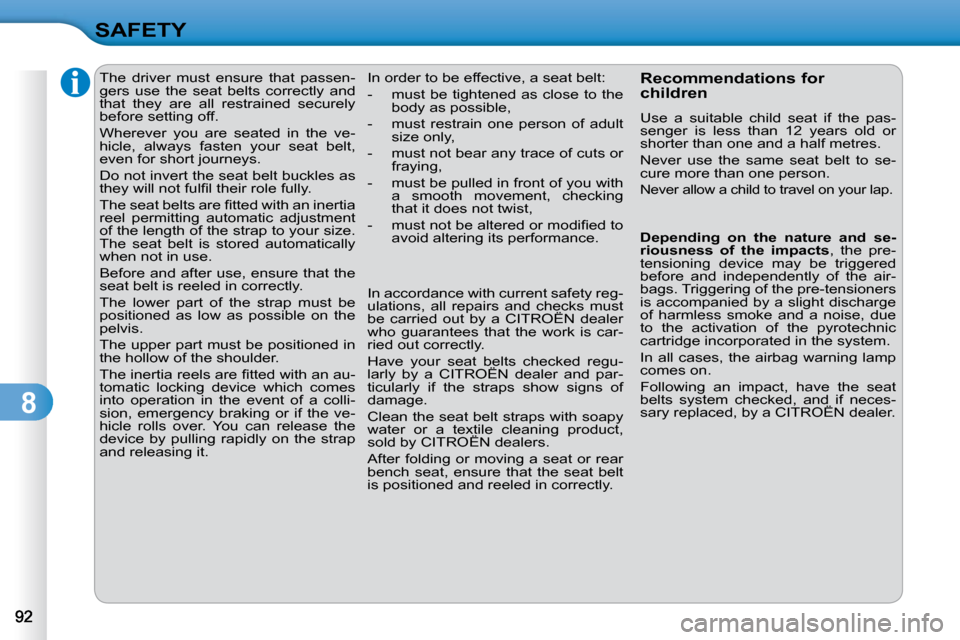

T h e d r i v e r m u s t e n s u r e t h a t p a s s e n -
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n e r t i a
r e e l p e r m i t t i n g a u t o m a t i c a d j u s t m e n t
o f t h e l e n g t h o f t h e s t r a p t o y o u r s i z e .
The seat belt is stored automatically
when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
T h e l o w e r p a r t o f t h e s t r a p m u s t b e
p o s i t i o n e d a s l o w a s p o s s i b l e o n t h e
p e l v i s .
T h e u p p e r p a r t m u s t b e p o s i t i o n e d i n
the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n a u -
tomatic locking device which comes
i n t o o p e r a t i o n i n t h e e v e n t o f a c o l l i -
sion, emergency braking or if the ve-
hicle rolls over. You can release the
d e v i c e b y p u l l i n g r a p i d l y o n t h e s t r a p
and releasing it. Recommendations for
children
U s e a s u i t a b l e c h i l d s e a t i f t h e p a s -
s e n g e r i s l e s s t h a n 1 2 y e a r s o l d o r
shorter than one and a half metres.
Never use the same seat belt to se-
c u r e m o r e t h a n o n e p e r s o n .
N e v e r a l l o w a c h i l d t o t r a v e l o n y o u r l a p .
In order to be effective, a seat belt:
- must be tightened as close to the
b o d y a s p o s s i b l e ,
- m u s t r e s t r a i n o n e p e r s o n o f a d u l t s i z e o n l y ,
- must not bear any trace of cuts or fraying,
- m u s t b e p u l l e d i n f r o n t o f y o u w i t h a smooth movement, checking
that it does not twist,
- m u s t n o t b e a l t e r e d o r m o d i fi e d t o a v o i d a l t e r i n g i t s p e r f o r m a n c e .
In accordance with current safety reg-
u l a t i o n s , a l l r e p a i r s a n d c h e c k s m u s t
be carried out by a CITROËN dealer
who guarantees that the work is car-
ried out correctly.
Have your seat belts checked regu-
l a r l y b y a C I T R O Ë N d e a l e r a n d p a r -
t i c u l a r l y i f t h e s t r a p s s h o w s i g n s o f
damage.
C l e a n t h e s e a t b e l t s t r a p s w i t h s o a p y
w a t e r o r a t e x t i l e c l e a n i n g p r o d u c t ,
sold by CITROËN dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
i s p o s i t i o n e d a n d r e e l e d i n c o r r e c t l y .
Depending on the nature and se-
riousness of the impacts , t h e p r e -
tensioning device may be triggered
b e f o r e a n d i n d e p e n d e n t l y o f t h e a i r -
b a g s . T r i g g e r i n g o f t h e p r e - t e n s i o n e r s
i s a c c o m p a n i e d b y a s l i g h t d i s c h a r g e
of harmless smoke and a noise, due
t o t h e a c t i v a t i o n o f t h e p y r o t e c h n i c
c a r t r i d g e i n c o r p o r a t e d i n t h e s y s t e m .
I n a l l c a s e s , t h e a i r b a g w a r n i n g l a m p
comes on.
F o l l o w i n g a n i m p a c t , h a v e t h e s e a t
belts system checked, and if neces-
s a r y r e p l a c e d , b y a C I T R O Ë N d e a l e r .
Page 104 of 207
8
SAFETY

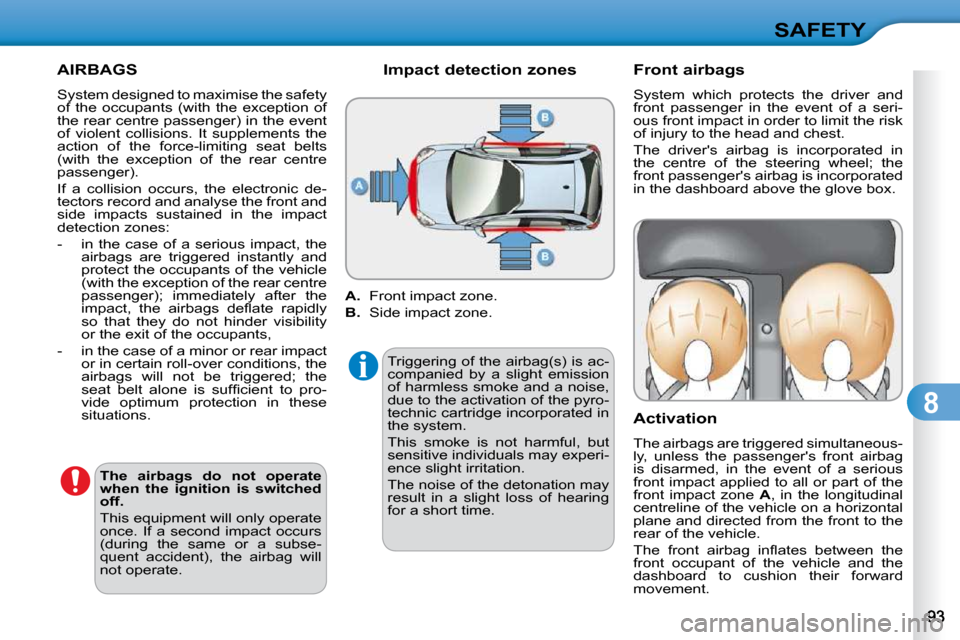

AIRBAGS
System designed to maximise the safety
o f t h e o c c u p a n t s ( w i t h t h e e x c e p t i o n o f
t h e r e a r c e n t r e p a s s e n g e r ) i n t h e e v e n t
o f v i o l e n t c o l l i s i o n s . I t s u p p l e m e n t s t h e
action of the force-limiting seat belts
( w i t h t h e e x c e p t i o n o f t h e r e a r c e n t r e
p a s s e n g e r ) .
If a collision occurs, the electronic de-
tectors record and analyse the front and
s i d e i m p a c t s s u s t a i n e d i n t h e i m p a c t
d e t e c t i o n z o n e s :
- i n t h e c a s e o f a s e r i o u s i m p a c t , t h e airbags are triggered instantly and
p r o t e c t t h e o c c u p a n t s o f t h e v e h i c l e
( w i t h t h e e x c e p t i o n o f t h e r e a r c e n t r e
p a s s e n g e r ) ; i m m e d i a t e l y a f t e r t h e
i m p a c t , t h e a i r b a g s d e fl a t e r a p i d l y
so that they do not hinder visibility
o r t h e e x i t o f t h e o c c u p a n t s ,
- i n t h e c a s e o f a m i n o r o r r e a r i m p a c t or in certain roll-over conditions, the
a i r b a g s w i l l n o t b e t r i g g e r e d ; t h e
s e a t b e l t a l o n e i s s u f fi c i e n t t o p r o -
v i d e o p t i m u m p r o t e c t i o n i n t h e s e
situations.
The airbags do not operate
when the ignition is switched
off.
T h i s e q u i p m e n t w i l l o n l y o p e r a t e
o n c e . I f a s e c o n d i m p a c t o c c u r s
(during the same or a subse-
quent accident), the airbag will
n o t o p e r a t e . Impact detection zones
A. F r o n t i m p a c t z o n e .
B. S i d e i m p a c t z o n e .
Triggering of the airbag(s) is ac-
c o m p a n i e d b y a s l i g h t e m i s s i o n
of harmless smoke and a noise,
d u e t o t h e a c t i v a t i o n o f t h e p y r o -
t e c h n i c c a r t r i d g e i n c o r p o r a t e d i n
the system.
This smoke is not harmful, but
s e n s i t i v e i n d i v i d u a l s m a y e x p e r i -
ence slight irritation.
The noise of the detonation may
result in a slight loss of hearing
for a short time. Front airbags
S y s t e m w h i c h p r o t e c t s t h e d r i v e r a n d
f r o n t p a s s e n g e r i n t h e e v e n t o f a s e r i -
o u s f r o n t i m p a c t i n o r d e r t o l i m i t t h e r i s k
of injury to the head and chest.
T h e d r i v e r ' s a i r b a g i s i n c o r p o r a t e d i n
t h e c e n t r e o f t h e s t e e r i n g w h e e l ; t h e
f r o n t p a s s e n g e r ' s a i r b a g i s i n c o r p o r a t e d
in the dashboard above the glove box.
Activation
The airbags are triggered simultaneous-
l y , u n l e s s t h e p a s s e n g e r ' s f r o n t a i r b a g
is disarmed, in the event of a serious
f r o n t i m p a c t a p p l i e d t o a l l o r p a r t o f t h e
f r o n t i m p a c t z o n e
A , in the longitudinal
c e n t r e l i n e o f t h e v e h i c l e o n a h o r i z o n t a l
p l a n e a n d d i r e c t e d f r o m t h e f r o n t t o t h e
rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e
f r o n t o c c u p a n t o f t h e v e h i c l e a n d t h e
dashboard to cushion their forward
movement.
Page 105 of 207
8
SAFETY

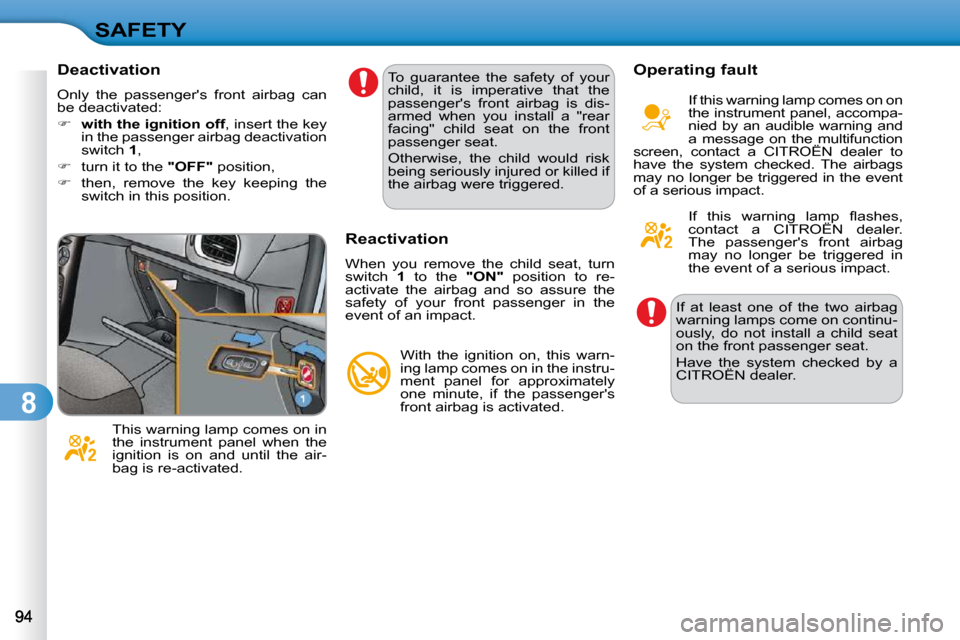

Deactivation
O n l y t h e p a s s e n g e r ' s f r o n t a i r b a g c a n
be deactivated:
with the ignition off , insert the key
i n t h e p a s s e n g e r a i r b a g d e a c t i v a t i o n
switch 1 ,
turn it to the "OFF" p o s i t i o n ,
t h e n , r e m o v e t h e k e y k e e p i n g t h e
s w i t c h i n t h i s p o s i t i o n .
T h i s w a r n i n g l a m p c o m e s o n i n
t h e i n s t r u m e n t p a n e l w h e n t h e
ignition is on and until the air-
bag is re-activated. To guarantee the safety of your
c h i l d , i t i s i m p e r a t i v e t h a t t h e
p a s s e n g e r ' s f r o n t a i r b a g i s d i s -
armed when you install a "rear
facing" child seat on the front
p a s s e n g e r s e a t .
Otherwise, the child would risk
being seriously injured or killed if
the airbag were triggered.
Reactivation
When you remove the child seat, turn
switch 1 to the "ON" p o s i t i o n t o r e -
activate the airbag and so assure the
s a f e t y o f y o u r f r o n t p a s s e n g e r i n t h e
e v e n t o f a n i m p a c t .
With the ignition on, this warn-
i n g l a m p c o m e s o n i n t h e i n s t r u -
m e n t p a n e l f o r a p p r o x i m a t e l y
o n e m i n u t e , i f t h e p a s s e n g e r ' s
front airbag is activated. Operating fault
I f t h i s w a r n i n g l a m p c o m e s o n o n
t h e i n s t r u m e n t p a n e l , a c c o m p a -
nied by an audible warning and
a message on the multifunction
screen, contact a CITROËN dealer to
have the system checked. The airbags
may no longer be triggered in the event
o f a s e r i o u s i m p a c t .
I f t h i s w a r n i n g l a m p fl a s h e s ,
contact a CITROËN dealer.
T h e p a s s e n g e r ' s f r o n t a i r b a g
may no longer be triggered in
t h e e v e n t o f a s e r i o u s i m p a c t .
If at least one of the two airbag
w a r n i n g l a m p s c o m e o n c o n t i n u -
ously, do not install a child seat
o n t h e f r o n t p a s s e n g e r s e a t .
Have the system checked by a
CITROËN dealer.
Page 106 of 207
8
SAFETY For the airbags to be fully
effective, observe the
following safety rules:
S i t i n a n o r m a l u p r i g h t p o s i t i o n .
Wear a correctly adjusted seat belt.
Do not leave anything between the
o c c u p a n t s a n d t h e a i r b a g s ( a c h i l d ,
p e t , o b j e c t . . . ) . T h i s c o u l d h a m p e r t h e
o p e r a t i o n o f t h e a i r b a g s o r i n j u r e t h e
o c c u p a n t s .
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system is strict-
ly forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e C I T R O Ë N
network.
E v e n i f a l l o f t h e p r e c a u t i o n s m e n -
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few millisec-
o n d s ) t h e n d e fl a t e s w i t h i n t h e s a m e
t i m e d i s c h a r g i n g t h e h o t g a s v i a o p e n -
i n g s p r o v i d e d f o r t h i s p u r p o s e . Front airbags
D o n o t d r i v e h o l d i n g t h e s t e e r i n g w h e e l b y i t s s p o k e s o r r e s t i
n g y o u r h a n d s o n
t h e c e n t r e p a r t o f t h e w h e e l .
P a s s e n g e r s m u s t n o t p l a c e t h e i r f e e t o n t h e d a s h b o a r d .
I f p o s s i b l e , d o n o t s m o k e a s d e p l o y m e n t o f t h e a i r b a g s c a n c a u s e b u r n s o r
t h e r i s k o f i n j u r y f r o m a c i g a r e t t e o r p i p e .
N e v e r r e m o v e o r p i e r c e t h e s t e e r i n g w h e e l o r h i t i t v i o l e n t l y .
Side airbags
U s e o n l y a p p r o v e d c o v e r s o n t h e s e a t s . T h e s e w i l l n o t h i n d e r i n fl a t i o n o f t h e
side airbags. Consult a CITROËN dealer.
D o n o t fi x o r a p p l y a n y t h i n g t o t h e s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y t o t h e
chest or arms if the side air bag is triggered.
D o n o t s i t w i t h t h e u p p e r p a r t o f t h e b o d y a n y n e a r e r t o t h e d o o r t h a n n e c e s -
sary.
Curtain airbags
D o n o t fi x o r a p p l y a n y t h i n g t o t h e r o o f . T h i s c o u l d c a u s e i n j u r y t o t h e h e a d i f
the curtain airbag is triggered.
D o n o t r e m o v e t h e g r a b h a n d l e s i n s t a l l e d o n t h e r o o f , t h e y p l a y a p a r t i n
securing the curtain airbags.
Page 107 of 207
8
SAFETY

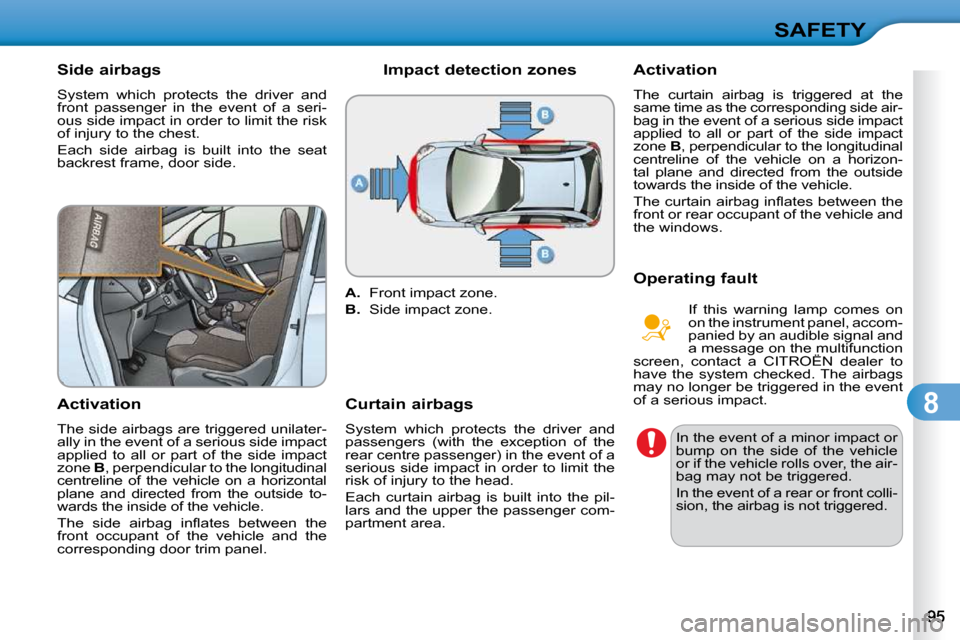

Side airbags
S y s t e m w h i c h p r o t e c t s t h e d r i v e r a n d
f r o n t p a s s e n g e r i n t h e e v e n t o f a s e r i -
o u s s i d e i m p a c t i n o r d e r t o l i m i t t h e r i s k
of injury to the chest.
Each side airbag is built into the seat
backrest frame, door side.
Activation
The side airbags are triggered unilater-
a l l y i n t h e e v e n t o f a s e r i o u s s i d e i m p a c t
a p p l i e d t o a l l o r p a r t o f t h e s i d e i m p a c t
z o n e B , p e r p e n d i c u l a r t o t h e l o n g i t u d i n a l
c e n t r e l i n e o f t h e v e h i c l e o n a h o r i z o n t a l
p l a n e a n d d i r e c t e d f r o m t h e o u t s i d e t o -
wards the inside of the vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
f r o n t o c c u p a n t o f t h e v e h i c l e a n d t h e
c o r r e s p o n d i n g d o o r t r i m p a n e l . Impact detection zones
A. F r o n t i m p a c t z o n e .
B. S i d e i m p a c t z o n e .
Curtain airbags
S y s t e m w h i c h p r o t e c t s t h e d r i v e r a n d
p a s s e n g e r s ( w i t h t h e e x c e p t i o n o f t h e
r e a r c e n t r e p a s s e n g e r ) i n t h e e v e n t o f a
s e r i o u s s i d e i m p a c t i n o r d e r t o l i m i t t h e
risk of injury to the head.
E a c h c u r t a i n a i r b a g i s b u i l t i n t o t h e p i l -
l a r s a n d t h e u p p e r t h e p a s s e n g e r c o m -
p a r t m e n t a r e a . Activation
The curtain airbag is triggered at the
s a m e t i m e a s t h e c o r r e s p o n d i n g s i d e a i r -
b a g i n t h e e v e n t o f a s e r i o u s s i d e i m p a c t
a p p l i e d t o a l l o r p a r t o f t h e s i d e i m p a c t
z o n e
B , p e r p e n d i c u l a r t o t h e l o n g i t u d i n a l
c e n t r e l i n e o f t h e v e h i c l e o n a h o r i z o n -
t a l p l a n e a n d d i r e c t e d f r o m t h e o u t s i d e
towards the inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n t h e
f r o n t o r r e a r o c c u p a n t o f t h e v e h i c l e a n d
the windows.
Operating fault
I f t h i s w a r n i n g l a m p c o m e s o n
o n t h e i n s t r u m e n t p a n e l , a c c o m -
p a n i e d b y a n a u d i b l e s i g n a l a n d
a message on the multifunction
screen, contact a CITROËN dealer to
have the system checked. The airbags
may no longer be triggered in the event
o f a s e r i o u s i m p a c t .
I n t h e e v e n t o f a m i n o r i m p a c t o r
b u m p o n t h e s i d e o f t h e v e h i c l e
or if the vehicle rolls over, the air-
bag may not be triggered.
In the event of a rear or front colli-
sion, the airbag is not triggered.
Page 108 of 207
8

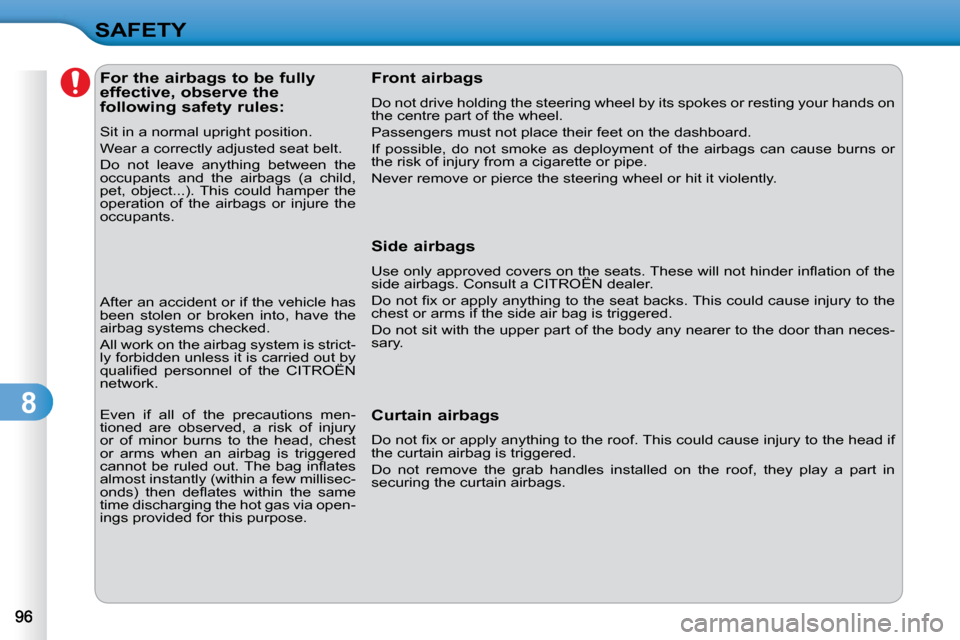

SAFETY For the airbags to be fully
effective, observe the
following safety rules:
S i t i n a n o r m a l u p r i g h t p o s i t i o n .
Wear a correctly adjusted seat belt.
Do not leave anything between the
o c c u p a n t s a n d t h e a i r b a g s ( a c h i l d ,
p e t , o b j e c t . . . ) . T h i s c o u l d h a m p e r t h e
o p e r a t i o n o f t h e a i r b a g s o r i n j u r e t h e
o c c u p a n t s .
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system is strict-
ly forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e C I T R O Ë N
network.
E v e n i f a l l o f t h e p r e c a u t i o n s m e n -
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few millisec-
o n d s ) t h e n d e fl a t e s w i t h i n t h e s a m e
t i m e d i s c h a r g i n g t h e h o t g a s v i a o p e n -
i n g s p r o v i d e d f o r t h i s p u r p o s e . Front airbags
D o n o t d r i v e h o l d i n g t h e s t e e r i n g w h e e l b y i t s s p o k e s o r r e s t i
n g y o u r h a n d s o n
t h e c e n t r e p a r t o f t h e w h e e l .
P a s s e n g e r s m u s t n o t p l a c e t h e i r f e e t o n t h e d a s h b o a r d .
I f p o s s i b l e , d o n o t s m o k e a s d e p l o y m e n t o f t h e a i r b a g s c a n c a u s e b u r n s o r
t h e r i s k o f i n j u r y f r o m a c i g a r e t t e o r p i p e .
N e v e r r e m o v e o r p i e r c e t h e s t e e r i n g w h e e l o r h i t i t v i o l e n t l y .
Side airbags
U s e o n l y a p p r o v e d c o v e r s o n t h e s e a t s . T h e s e w i l l n o t h i n d e r i n fl a t i o n o f t h e
side airbags. Consult a CITROËN dealer.
D o n o t fi x o r a p p l y a n y t h i n g t o t h e s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y t o t h e
chest or arms if the side air bag is triggered.
D o n o t s i t w i t h t h e u p p e r p a r t o f t h e b o d y a n y n e a r e r t o t h e d o o r t h a n n e c e s -
sary.
Curtain airbags
D o n o t fi x o r a p p l y a n y t h i n g t o t h e r o o f . T h i s c o u l d c a u s e i n j u r y t o t h e h e a d i f
the curtain airbag is triggered.
D o n o t r e m o v e t h e g r a b h a n d l e s i n s t a l l e d o n t h e r o o f , t h e y p l a y a p a r t i n
securing the curtain airbags.
Page 109 of 207
9
DRIVING

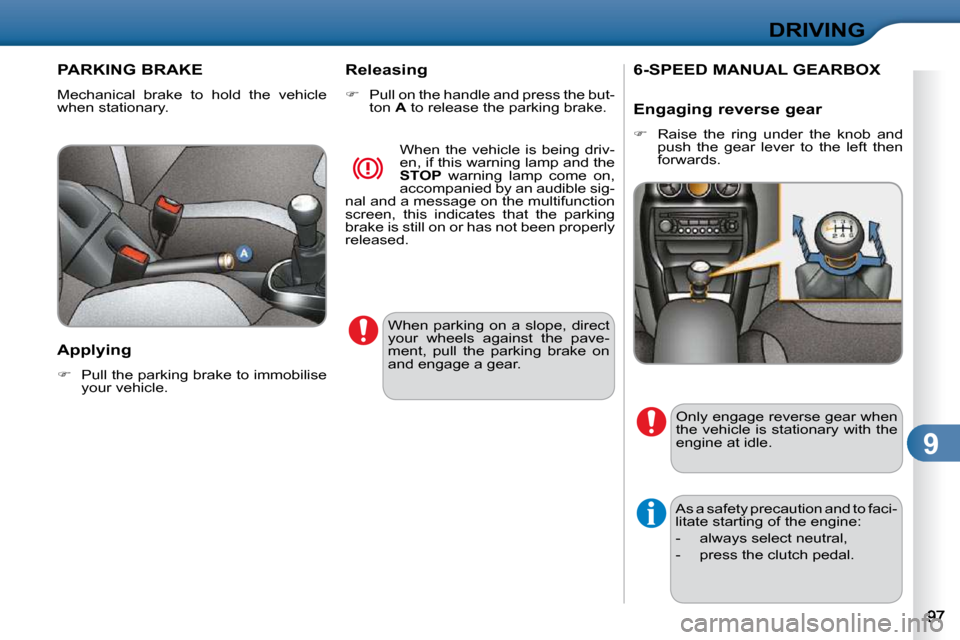

PARKING BRAKE
Mechanical brake to hold the vehicle
when stationary. When parking on a slope, direct
your wheels against the pave-
ment, pull the parking brake on
and engage a gear.
Applying
Pull the parking brake to immobilise
your vehicle. Releasing
Pull on the handle and press the but-
ton A to release the parking brake.
When the vehicle is being driv-
en, if this warning lamp and the
STOP warning lamp come on,
accompanied by an audible sig-
nal and a message on the multifunction
screen, this indicates that the parking
brake is still on or has not been properly
released.
6-SPEED MANUAL GEARBOX
Engaging reverse gear
Raise the ring under the knob and
push the gear lever to the left then
forwards.
As a safety precaution and to faci-
litate starting of the engine:
- always select neutral,
- press the clutch pedal. Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Page 110 of 207
9
DRIVING
GEAR CHANGE INDICATOR *
System which reduces fuel consumption
by advising the driver to change up on
v e h i c l e s fi t t e d w i t h a m a n u a l g e a r b o x .
Operation
The system intervenes only when driving
economically.
Depending on the driving situation and
your vehicle's equipment, the system
may advise you to skip one or more
gears. You can follow this instruc-
tion without engaging the intermediate
gears.
The gear engagement recommenda-
tions must not be considered compulso-
r y . I n f a c t , t h e c o n fi g u r a t i o n o f t h e r o a d ,
t h e a m o u n t o f t r a f fi c a n d s a f e t y r e m a i n
determining factors when choosing the
best gear. Therefore, the driver remains
responsible for deciding whether or not to
follow the advice given by the system.
This function cannot be deactivated. In the case of driving which makes
particular demands on the per-
f o r m a n c e o f t h e e n g i n e ( fi r m p r e s -
sure on the accelerator pedal, for
e x a m p l e , w h e n o v e r t a k i n g . . . ) , t h e
system will not recommend a gear
change.
The system never suggests:
- e n g a g i n g fi r s t g e a r ,
- engaging reverse gear,
- engaging a lower gear.
- You press the accelerator pedal
moderately.
E x a m p l e :
- You are in third gear.
- The system may suggest that you engage a higher gear, if appropriate.
* According to engine. The information appears in the form of an
arrow on the instrument panel display.
Depending on your vehicle's equipment,
this arrow may be accompanied by the
recommended gear.
