1
INSTRUMENTS and CONTROLS
A few definitions… Range
(miles or km)
This indicates the distance which can
still be travelled with the fuel remain-
ing in the tank in relation to the average
consumption over the last few miles
(kilometres) travelled. Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption
during the last few seconds.
Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption
since the last trip computer zero reset. Distance travelled
(miles or km)
This indicates the distance travelled
since the last trip computer zero reset.
Average speed
(mph or km/h)
This is the average speed calculated
since the last trip computer zero reset
(ignition on).
T h i s fi g u r e m a y v a r y f o l l o w i n g a
change in the style of driving or
t h e r e l i e f , r e s u l t i n g i n a s i g n i fi -
cant change in the current con-
sumption.
If dashes are displayed continu-
ously while driving in place of
the digits, contact a CITROËN
dealer. This function is only displayed
from 20 mph (30 km/h).
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km). Distance remaining to
destination
(miles or km)
This is the distance remaining to be
t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t c a n
be entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Page 32 of 207
1
INSTRUMENTS and CONTROLS

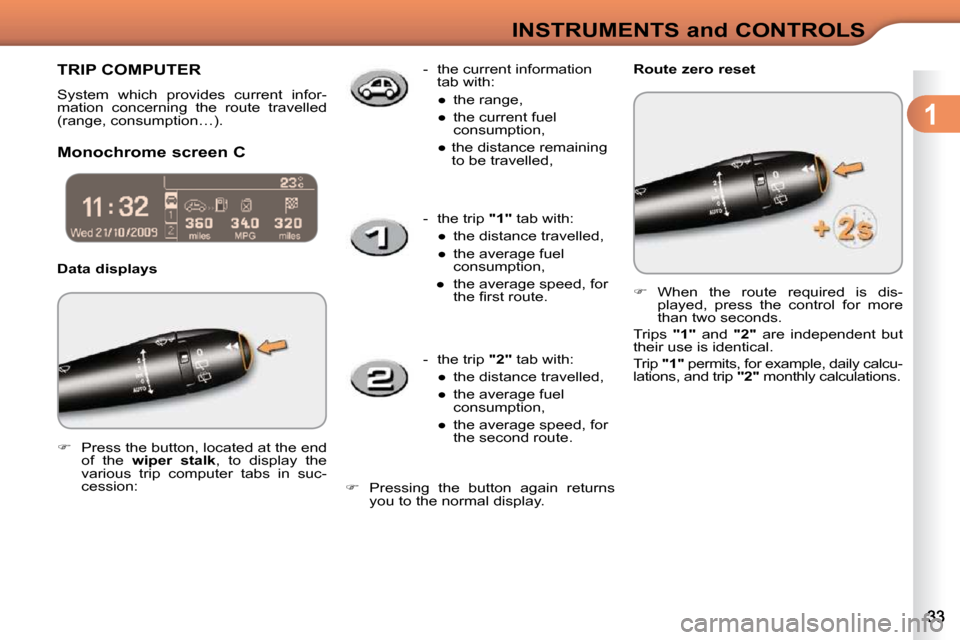

TRIP COMPUTER
System which provides current infor-
mation concerning the route travelled
(range, consumption…).
Monochrome screen C Data displays Route zero reset
Press the button, located at the end
of the wiper
stalk , to display the
various trip computer tabs in suc-
cession:
When the route required is dis-
played, press the control for more
than two seconds.
Trips "1" and "2" are independent but
their use is identical.
Trip "1" permits, for example, daily calcu-
lations, and trip "2" monthly calculations.
- the current information
tab with:
Page 33 of 207
1
INSTRUMENTS and CONTROLS
A few definitions… Range
(miles or km)
This indicates the distance which can
still be travelled with the fuel remain-
ing in the tank in relation to the average
consumption over the last few miles
(kilometres) travelled. Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption
during the last few seconds.
Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption
since the last trip computer zero reset. Distance travelled
(miles or km)
This indicates the distance travelled
since the last trip computer zero reset.
Average speed
(mph or km/h)
This is the average speed calculated
since the last trip computer zero reset
(ignition on).
T h i s fi g u r e m a y v a r y f o l l o w i n g a
change in the style of driving or
t h e r e l i e f , r e s u l t i n g i n a s i g n i fi -
cant change in the current con-
sumption.
If dashes are displayed continu-
ously while driving in place of
the digits, contact a CITROËN
dealer. This function is only displayed
from 20 mph (30 km/h).
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km). Distance remaining to
destination
(miles or km)
This is the distance remaining to be
t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t c a n
be entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Page 34 of 207
2
MULTIFUNCTION SCREENS
MONOCHROME SCREEN A
Displays on the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e ( t h i s fl a s h e s i f there is a risk of ice),
- status of the doors and boot,
- audio sources (radio, CD...),
- trip computer (refer to the "Instruments and Controls" section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC" button. Controls
From the control panel of your Audio
system, you can:
press the "MENU" button to gain
access to the general menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (date, audio
source...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. General menu
Press the "MENU" button to gain
access to the general menu , then
press the " " or " " buttons to
scroll through the various menus:
- radio-CD,
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- languages,
- units.
Press the "OK" button to select the
menu required.
Radio-CD
With the Audio system switched on, once
the "Radio-CD" menu has been selected
you can activate or deactivate the func-
tions linked with use of the radio (RDS,
R E G ) , o r t h e C D ( i n t r o s c a n , s h u f fl e , C D
repeat).
For further details concerning the
"Radio-CD" application, refer to the
Audio system part of the "Audio and
Telematics" section.
Page 35 of 207
2
MULTIFUNCTION SCREENS
Vehicle configuration
O n c e t h e " V e h i c l e C o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section),
- parking assistance (refer to the "Driving" section).
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not active,
faulty). Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Once you have selected a setting,
press the " " or " " buttons to
change its value.
Press the " " or " " buttons to
switch respectively to the previous
or next setting.
Press the "OK" button to save the
change and return to the normal
display or press the "ESC" button
to cancel. Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
Once the fuel consumption units
have been set to mpg, the infor-
mation in the instrument panel
screen on speed and distance
will also be in mph and miles.
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
by the driver of the multifunction
screen must only be done when
stationary.
Page 36 of 207
2
MULTIFUNCTION SCREENS
MONOCHROME SCREEN C
Displays on the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e ( t h i s fl a s h e s i f there is a risk of ice),
- status of doors and boot,
- audio sources (radio, CD, USB port, jack socket etc.),
- trip computer (refer to the "Instruments and controls" section).
Warning messages (E.g. "Emisions
control system faulty") or information
messages (E.g.: Automatic headlamps
active") may appear temporarily. These
can be cleared by pressing the "ESC"
button. Controls
From your Audio system control panel,
you can:
press the "MENU" button to gain
access to the general menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. General menu
Press the "MENU" button to gain
access to the general menu :
- audio functions,
- the trip computer,
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
- telephone (hands-free kit).
Press the " " or " " buttons to se-
l e c t t h e m e n u r e q u i r e d , t h e n c o n fi r m
by pressing the "OK" button.
"Audio functions" menu
With the Audio system switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
R a d i o T e x t ) , t h e C D ( i n t r o s c a n , s h u f fl e ,
CD repeat) or the MP3 player (USB
port/jack socket).
For further details on the "Audio functions"
application, refer to the Audio system part
of the "Audio and Telematics" section.
Page 37 of 207
2
MULTIFUNCTION SCREENS
"Trip computer" menu
Once this menu has been selected, you
can consult information concerning the
status of the vehicle (warnings log, status
of functions, etc.)
Alert log
This summarises the active warning
messages, displaying them in succes-
sion on the multifunction screen. "Personalisation-
Configuration" menu
Define the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment:
- wiper linked to reverse gear (refer to the "Visibility" section),
- "guide-me-home" lighting ,
- parking assistance (refer to the "Driving" section).
In the "
Trip computer
" menu, select
one of the following applications:
Press the "MENU" button to gain
access to the general menu .
Press the arrows, then the "OK"
button to select the "
Trip computer
"
menu.
Once this menu has been selected, you
can gain access to the following func-
tions:
- d e fi n e t h e v e h i c l e p a r a m e t e r s ,
- d i s p l a y c o n fi g u r a t i o n ,
- selection of the language.
Status of functions
This summarises the status (active or
inactive) of the vehicle's functions.
Enter distance to destination
This allows you to enter an approximate
d i s t a n c e u n t i l y o u r fi n a l d e s t i n a t i o n .
Page 38 of 207
2
MULTIFUNCTION SCREENS
Example: setting of the duration of the
"guide-me-home" lighting
Press the " " or " " buttons, then
the "OK" button to select the menu
required.
Press the " " or " " buttons,
then the "OK" button to select the
"Guide-me-home lighting" line.
Press the " " or " " buttons to
set the value required (15, 30 or
60 seconds), then press the "OK"
b u t t o n t o c o n fi r m .
Press the " " or " " buttons, then
the "OK" button to select the "OK"
b o x a n d c o n fi r m o r p r e s s t h e "ESC"
button to cancel.
Language selection
Once this menu has been selected,
you can change the language used
by the display (Deutsch, English,
Espanol, Français, Italiano, Nederlands,
Portugues, Portugues-Brasil, Türkçe
). "Telephone" Menu
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
by the driver of the multifunction
screen must only be done when
stationary.

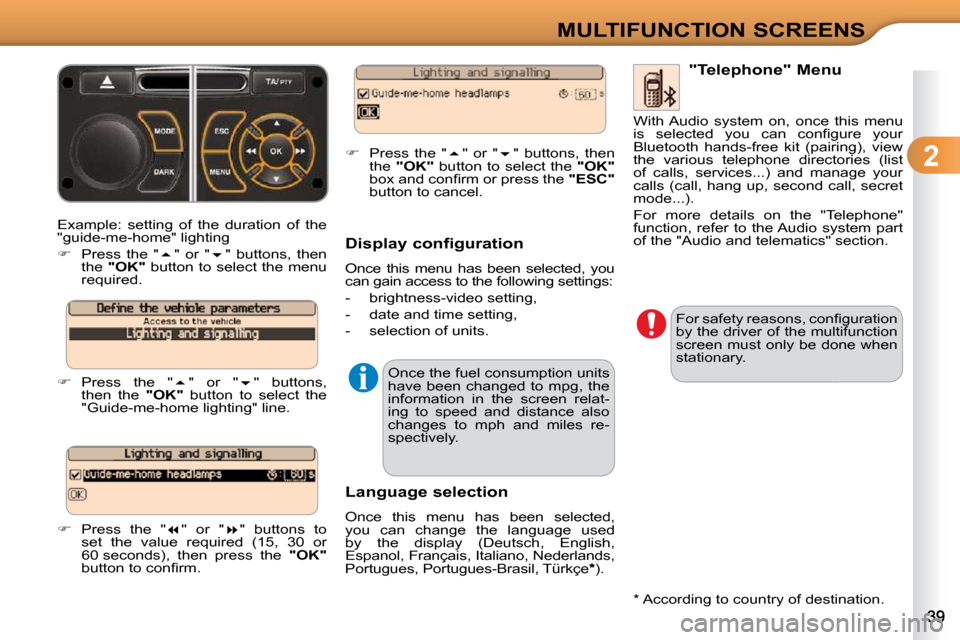

Display configuration
Once this menu has been selected, you
can gain access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of units.
Once the fuel consumption units
have been changed to mpg, the
information in the screen relat-
ing to speed and distance also
changes to mph and miles re-
spectively. With Audio system on, once this menu
i s s e l e c t e d y o u c a n c o n fi g u r e y o u r
Bluetooth hands-free kit (pairing), view
the various telephone directories (list
of calls, services...) and manage your
calls (call, hang up, second call, secret
mode...).
For more details on the "Telephone"
function, refer to the Audio system part
of the "Audio and telematics" section.
* According to country of destination.
Page 39 of 207
2
MULTIFUNCTION SCREENS
16/9 COLOUR SCREEN (WITH MYWAY)
Displays on the screen
It displays the following information auto-
matically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis- p l a y e d fl a s h e s i f t h e r e i s a r i s k o f
ice),
- check of the doors,
- warning and vehicle function status messages, displayed temporarily,
- audio functions,
- satellite navigation system information. Controls
MyWay To select one of the applica-
tions, at the control panel:
press the dedicated "RADIO" ,
"MUSIC" , "NAV" , "TRAFFIC" , "SETUP" or "PHONE" button for access to
the corresponding menu,
turn the dial to move the selection,
p r e s s t h e d i a l t o c o n fi r m t h e s e l e c -
tion,
or
press the "ESC" button to abandon
the current operation and return to
the previous display.
For further information on these ap-
plications, refer to the "Audio and
T e l e m a t i c s " s e c t i o n o r t o t h e s p e c i fi c
user guide given to you with the other
owner's documents. "SETUP" menu
Press the "SETUP" button to gain
access to the "SETUP" menu. This
allows you to select from the follow-
ing functions:
- "System language",
- "Date and time",
- "Display",
- "Vehicle",
- "Units",
- "System".
Page 40 of 207
2
MULTIFUNCTION SCREENS
* According to country.

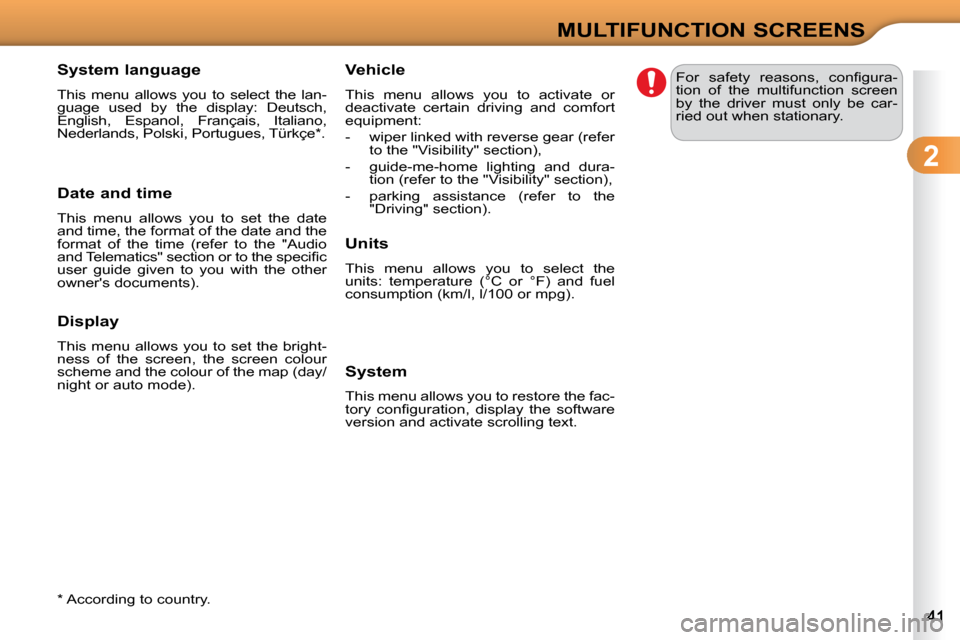

System language
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues, Türkçe * .
Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the "Audio
a n d T e l e m a t i c s " s e c t i o n o r t o t h e s p e c i fi c
user guide given to you with the other
owner's documents).
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Vehicle
This menu allows you to activate or
deactivate certain driving and comfort
equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- guide-me-home lighting and dura- tion (refer to the "Visibility" section),
- parking assistance (refer to the "Driving" section).
Units
This menu allows you to select the
units: temperature (°C or °F) and fuel
consumption (km/l, l/100 or mpg).
System
This menu allows you to restore the fac-
t o r y c o n fi g u r a t i o n , d i s p l a y t h e s o f t w a r e
version and activate scrolling text. F o r s a f e t y r e a s o n s , c o n fi g u r a -
tion of the multifunction screen
by the driver must only be car-
ried out when stationary.
