Page 61 of 207
4
ACCESS

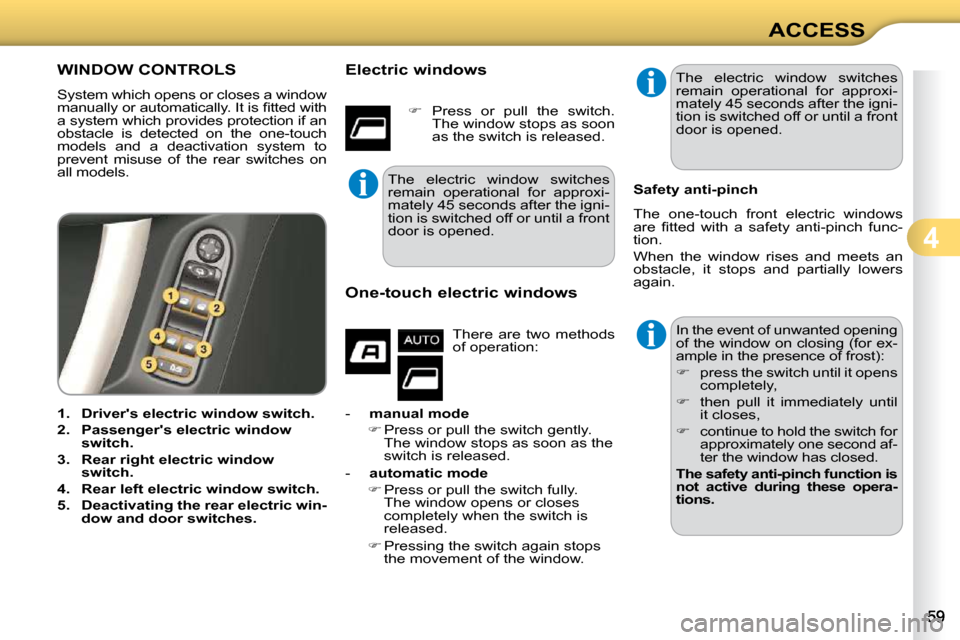

WINDOW CONTROLS
System which opens or closes a window
m a n u a l l y o r a u t o m a t i c a l l y . I t i s fi t t e d w i t h
a system which provides protection if an
obstacle is detected on the one-touch
models and a deactivation system to
prevent misuse of the rear switches on
all models.
1. Driver's electric window switch.
2. Passenger's electric window
switch.
3. Rear right electric window
switch.
4. Rear left electric window switch.
5. Deactivating
the rear electric win-
dow and door switches. Electric windows
Press or pull the switch.
The window stops as soon
as the switch is released.
The electric window switches
remain operational for approxi-
mately 45 seconds after the igni-
tion is switched off or until a front
door is opened.
One-touch electric windows There are two methods
of operation:
- manual mode
Press or pull the switch gently.
The window stops as soon as the
switch is released.
- automatic mode
Press or pull the switch fully.
The window opens or closes
completely when the switch is
released.
Pressing the switch again stops
the movement of the window. The electric window switches
remain operational for approxi-
mately 45 seconds after the igni-
tion is switched off or until a front
door is opened.
Safety anti-pinch
The one-touch front electric windows
a r e fi t t e d w i t h a s a f e t y a n t i - p i n c h f u n c -
tion.
When the window rises and meets an
obstacle, it stops and partially lowers
again. In the event of unwanted opening
of the window on closing (for ex-
ample in the presence of frost):
press the switch until it opens
completely,
then pull it immediately until
it closes,
continue to hold the switch for
approximately one second af-
ter the window has closed.
The safety anti-pinch function is
not active during these opera-
tions.
Page 62 of 207
4
ACCESS

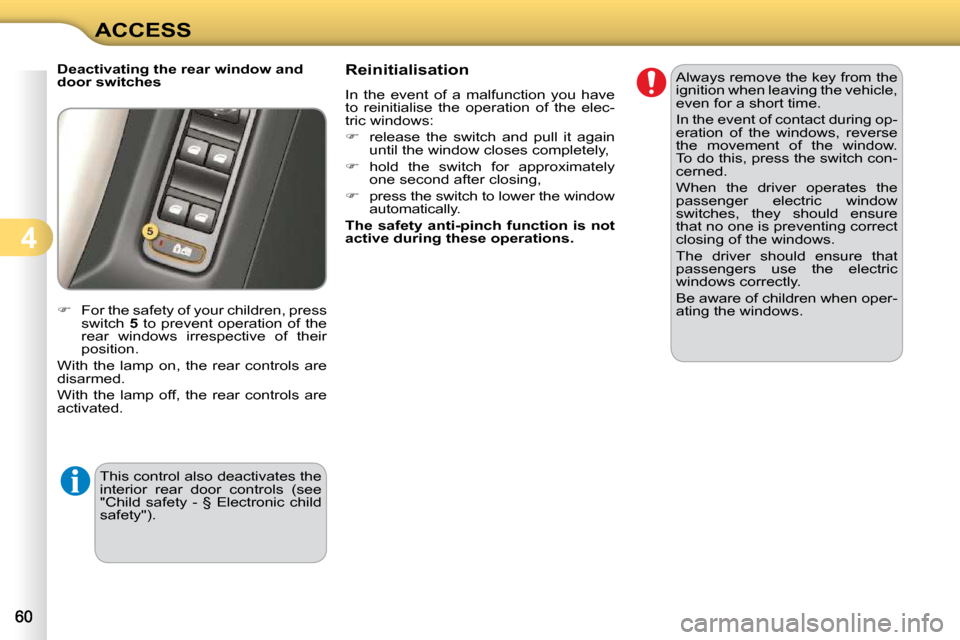

Deactivating the rear window and
door switches
For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
With the lamp on, the rear controls are
disarmed.
With the lamp off, the rear controls are
activated.
This control also deactivates the
interior rear door controls (see
"Child safety - § Electronic child
safety"). Reinitialisation
In the event of a malfunction you have
to reinitialise the operation of the elec-
tric windows:
release the switch and pull it again
until the window closes completely,
hold the switch for approximately
one second after closing,
press the switch to lower the window
automatically.
The safety anti-pinch function is not
active during these operations. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during op-
eration of the windows, reverse
the movement of the window.
To do this, press the switch con-
cerned.
When the driver operates the
passenger electric window
switches, they should ensure
that no one is preventing correct
closing of the windows.
The driver should ensure that
passengers use the electric
windows correctly.
Be aware of children when oper-
ating the windows.
Page 63 of 207
4
ACCESS

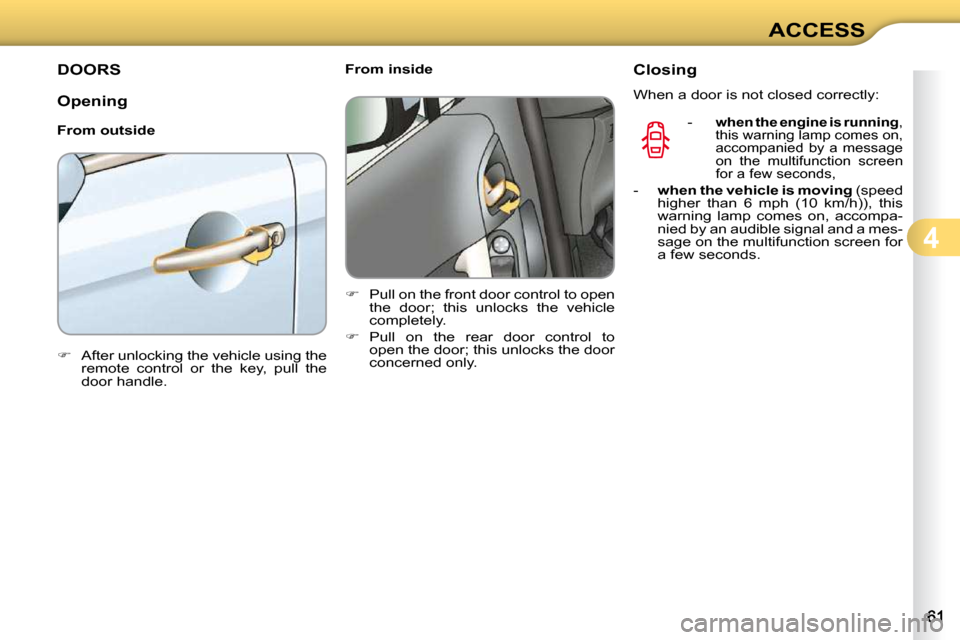

DOORS
Opening
From outside
After unlocking the vehicle using the
remote control or the key, pull the
door handle. From inside
Pull on the front door control to open
the door; this unlocks the vehicle
completely.
Pull on the rear door control to
open the door; this unlocks the door
concerned only. Closing
When a door is not closed correctly:
-
when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
higher than 6 mph (10 km/h)), this
warning lamp comes on, accompa-
nied by an audible signal and a mes-
sage on the multifunction screen for
a few seconds.
Page 64 of 207
4
ACCESS
Manual centralised control
System which provides full manual
locking or unlocking of the doors from
the inside.
Locking
Press button A to lock the vehicle.
The red indicator lamp on the button
comes on.
If one of the doors is open, cen-
tral locking from the inside does
not take place.
Unlocking
Press button A again to unlock the
vehicle.
The red indicator lamp on the button
switches off. If the vehicle is locked from the
outside, the red indicator lamp
fl a s h e s a n d b u t t o n
A is inactive.
In this case, use the remote
control or the key to unlock
the vehicle.
Automatic centralised control
System which provides full automatic
locking or unlocking of the doors and
the boot while driving.
You can activate or deactivate this function.
Locking
When the speed exceeds 6 mph
(10 km/h), the doors and the boot lock
automatically. If one of the doors is open, the
automatic central locking does
not take place.
If the boot is open, the automatic
central locking of the doors is ac-
tive.
Unlocking
Above 6 mph (10 km/h), press but-
ton A to unlock the doors and the
boot temporarily. Activation
Press button A for more than
two seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n t h e
multifunction screen, accompanied by
an audible signal.
Deactivation
Press button A again for more than
two seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n t h e
multifunction screen, accompanied by
an audible signal.
Page 65 of 207
4
ACCESS
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the cen-
tral locking.
Locking the driver's door
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn .
Unlocking the front and rear
passenger doors
Pull the interior door opening control.
BOOT
Opening
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
Closing
Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly:
- when the engine is run-
ning , this warning lamp
comes on, accompanied
by a message on the mul-
tifunction screen for a few
seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds. Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking
Fold back the rear benchseat to
gain access to the lock from inside
the boot.
Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Page 66 of 207
4
ACCESS
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the cen-
tral locking.
Locking the driver's door
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn .
Unlocking the front and rear
passenger doors
Pull the interior door opening control.
BOOT
Opening
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
Closing
Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly:
- when the engine is run-
ning , this warning lamp
comes on, accompanied
by a message on the mul-
tifunction screen for a few
seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds. Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking
Fold back the rear benchseat to
gain access to the lock from inside
the boot.
Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Page 67 of 207
4
ACCESS The key cannot be removed from
t h e l o c k u n t i l t h e c a p i s r e fi t t e d .
O p e n i n g t h e fi l l e r c a p m a y c r e a t e
a noise a caused by an inrush of
air. This vacuum is entirely nor-
mal, resulting from the sealing of
the fuel system.

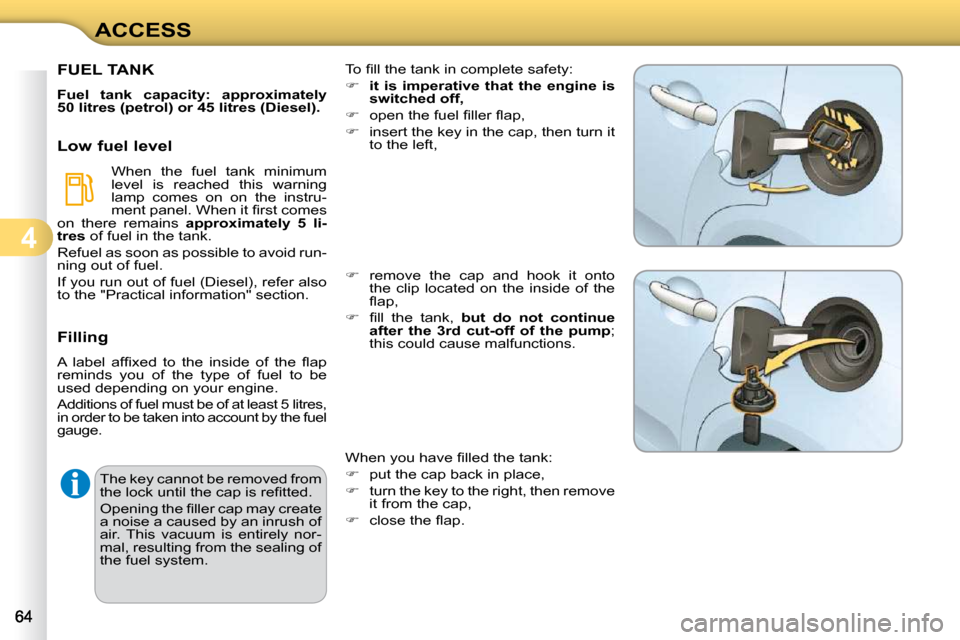

FUEL TANK
Fuel tank capacity: approximately
50 litres (petrol) or 45 litres (Diesel).
Low fuel level When the fuel tank minimum
level is reached this warning
lamp comes on on the instru-
m e n t p a n e l . W h e n i t fi r s t c o m e s
on there remains approximately 5 li-
tres of fuel in the tank.
Refuel as soon as possible to avoid run-
ning out of fuel.
If you run out of fuel (Diesel), refer also
to the "Practical information" section.
Filling
A l a b e l a f fi x e d t o t h e i n s i d e o f t h e fl a p
reminds you of the type of fuel to be
used depending on your engine.
Additions of fuel must be of at least 5 litres,
in order to be taken into account by the fuel
gauge. T o fi l l t h e t a n k i n c o m p l e t e s a f e t y :
it is imperative that the engine is
switched off,
o p e n t h e f u e l fi l l e r fl a p ,
insert the key in the cap, then turn it
to the left,
remove the cap and hook it onto
the clip located on the inside of the
fl a p ,
fi l l t h e t a n k , but do not continue
after the 3rd cut-off of the pump ;
this could cause malfunctions.
W h e n y o u h a v e fi l l e d t h e t a n k :
put the cap back in place,
turn the key to the right, then remove
it from the cap,
c l o s e t h e fl a p .
Page 68 of 207
5
VISIBILITY
LIGHTING CONTROLS
System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.
Main lighting
The various front and rear lamps of the
vehicle are designed to adapt the driver's
visibility progressively according to cli-
matic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see without dazzling other drivers,
- main beam headlamps to see clearly when the road is clear.
Additional lighting
O t h e r l a m p s a r e i n s t a l l e d t o f u l fi l t h e
requirements of particular conditions of
visibility:
- a rear foglamp,
- front foglamps.
Programming
Various automatic lighting control
modes are also available according to
the following options:
- guide-me-home lighting,
- automatic lighting. Model without AUTO lighting
Model with AUTO lighting lamps off,
automatic switching on
of the lamps,
sidelamps only,
dipped headlamps or
main beam headlamps.
B. Stalk for switching headlamps by
pulling: dipped headlamps/main
beam headlamps.
In the lamps off and sidelamps modes, the
driver can switch on the main beam head-
l a m p s t e m p o r a r i l y ( " h e a d l a m p fl a s h " ) b y
maintaining a pull on the stalk.
Displays
Lighting of the corresponding indicator
l a m p o n t h e i n s t r u m e n t p a n e l c o n fi r m s
the selective switching on of the lighting
selected.
Depending on the version, the instrument
panel may have permanent back-lighting.
In this case, illumination of the instrument
panel is not linked to the exterior lighting.
Manual controls
The lighting commands are issued di-
rectly by the driver by means of the
ring
A and the stalk B .
A. Main lighting mode selection ring,
with:
Page 69 of 207
5
VISIBILITY
C. fog lamps selection ring.
The fog lamps operate with the dipped
and main beam headlamps.
rear foglamp
Turn the ring C forwards once to
switch on the front foglamps and
twice for the rear foglamp.
Turn the ring C rearwards once to
switch off the rear foglamp and twice
for the front foglamps.
When the lighting is switched off auto-
m a t i c a l l y ( w i t h A U T O m o d e l ) o r w h e n
the dipped headlamps are switched off
manually, the foglamps and sidelamps
will remain on.
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.
Model with rear foglamp only
To switch on the foglamp, turn the
ring C forwards.
When the lighting is switched off auto-
m a t i c a l l y ( w i t h A U T O m o d e l ) , t h e f o -
glamp and the dipped headlamps will
remain on.
To switch off all of the lighting, turn
the ring C rearwards.
Model with front foglamps and a rear foglamp front and rear foglamps In good or rainy weather, by both
day and night, the front foglamps
and the rear foglamp are pro-
hibited. In these situations, the
power of their beams may daz-
zle other drivers.
Do not forget to switch off the
front foglamps and the rear fo-
glamp when they are no longer
necessary.
Lighting on buzzer
When the ignition is switched
off, all of the lamps switch off
automatically, unless "guide-me-
home lighting" is activated.
If the lighting is switched on manu-
ally after switching off the ignition,
there is an audible signal when a
front door is opened to warn the
driver that they have forgotten to
switch off the vehicle's lighting,
with the ignition off.
Page 70 of 207
5
VISIBILITY
* According to country.
Daytime running lamps *
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n -
ning lamps, the dipped beams come on
when the vehicle is started.
Manual guide-me-home lighting
Temporarily keeping the dipped head-
lamps on after the vehicle's ignition has
been switched off makes the driver's
exit easier when the light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e h e a d -
lamps using the lighting stalk B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s
the function off again.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. Automatic lighting
The sidelamps and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
when a low level of external light is de-
tected or in certain cases of activation
of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic lighting is accompanied
by a message on the multifunction
screen.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompanied
by a message on the multifunction
screen.
This warning lamp comes on on
the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
c o n d i t i o n i n g c o n t r o l p a n e l , e t c . ) a r e n o t
lit, except on switching to the automatic
lighting mode or when the lighting is
switched on manually.
This function can be activated/deacti-
vated by a CITROËN dealer.
