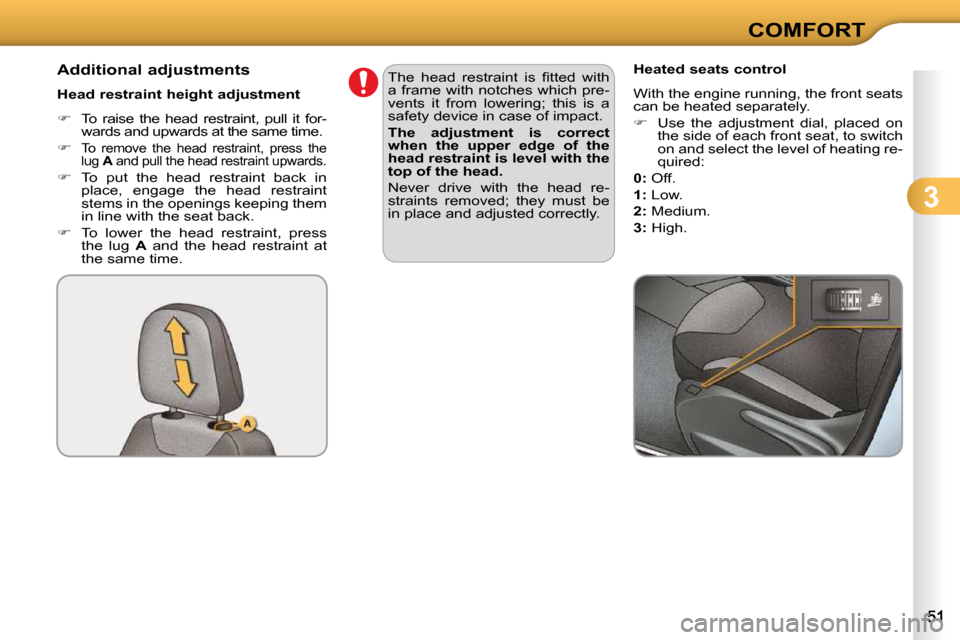

Page 51 of 207
3
COMFORT
Additional adjustments
Head restraint height adjustment
To raise the head restraint, pull it for-
wards and upwards at the same time.
To remove the head restraint, press the
lug A and pull the head restraint upwards.
To put the head restraint back in
place, engage the head restraint
stems in the openings keeping them
in line with the seat back.
To lower the head restraint, press
the lug A and the head restraint at
the same time. Heated seats control
With the engine running, the front seats
can be heated separately.
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0
: Off.
1
: Low.
2
: Medium.
3
: High.
T h e h e a d r e s t r a i n t i s fi t t e d w i t h
a frame with notches which pre-
vents it from lowering; this is a
safety device in case of impact.
The adjustment is correct
when the upper edge of the
head restraint is level with the
top of the head.
Never drive with the head re-
straints removed; they must be
in place and adjusted correctly.
Page 52 of 207
3
COMFORT
REAR SEATS
B e n c h s e a t w i t h fi x e d o n e - p i e c e c u s h -
ion and split backrest (left hand 2/3,
right hand 1/3) which can be folded in-
dividually to adapt the load space in the
boot.
Rear head restraints
These have a high position (comfort)
and a low position (rear visibility). Folding the backrest
Move the corresponding front seat
forward if necessary.
Check that the seat belt is positioned
correctly on the side of the seat back.
Place the head restraints in the low
position.
Repositioning the seat backrest
When repositioning the rear seat back-
rest:
Straighten the seat back 2 and se-
cure it.
Check that the red indicator, located next
to the control 1 , is no longer visisble.
They can also be removed.
To remove a head restraint:
release the backrest using control 1 ,
tilt the backrest 2 slightly forwards,
pull the head restraint upwards to
the stop,
then, press the lug A .
When repositioning the seat
backrest, take care not to trap
the seat belts.
Never drive with the head re-
straints removed; they must be
in place and correctly adjusted.
Pull control 1 forwards to release
the seat back 2 .
Fold the seat back 2 on to the cushion.

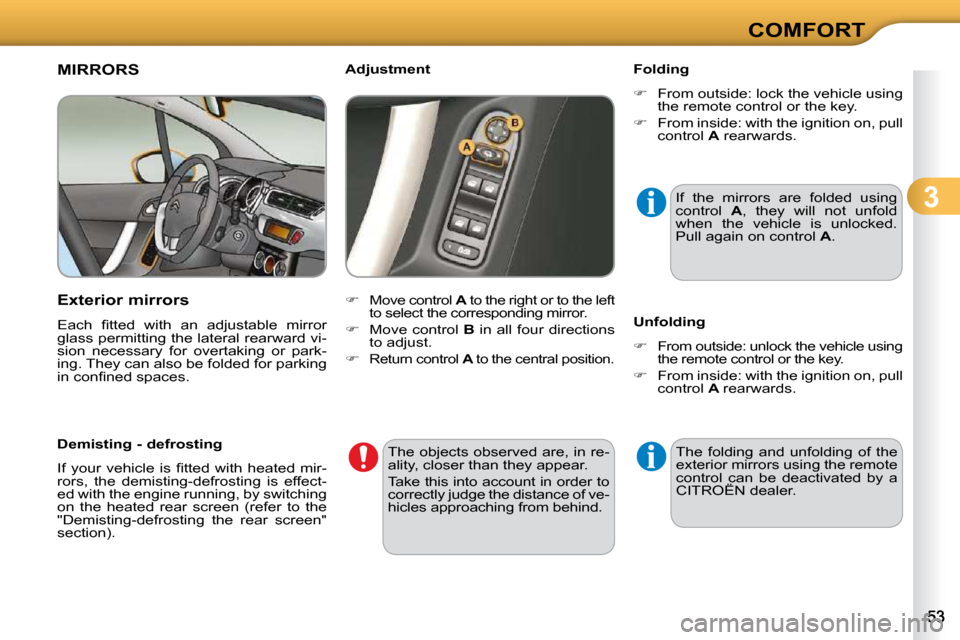

Page 53 of 207
3
COMFORT
MIRRORS
Exterior mirrors
E a c h fi t t e d w i t h a n a d j u s t a b l e m i r r o r
glass permitting the lateral rearward vi-
sion necessary for overtaking or park-
ing. They can also be folded for parking
i n c o n fi n e d s p a c e s .
Move control A to the right or to the left
to select the corresponding mirror.
Move control B in all four directions
to adjust.
Return control A to the central position.
Adjustment Folding
From outside: lock the vehicle using
the remote control or the key.
From inside: with the ignition on, pull
control A rearwards.
Unfolding
From outside: unlock the vehicle using
the remote control or the key.
From inside: with the ignition on, pull
control A rearwards.
If the mirrors are folded using
control
A , they will not unfold
when the vehicle is unlocked.
Pull again on control A .
The folding and unfolding of the
exterior mirrors using the remote
control can be deactivated by a
CITROËN dealer.
The objects observed are, in re-
ality, closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.
Demisting - defrosting
I f y o u r v e h i c l e i s fi t t e d w i t h h e a t e d m i r -
rors, the demisting-defrosting is effect-
ed with the engine running, by switching
on the heated rear screen (refer to the
" D e m i s t i n g - d e f r o s t i n g t h e r e a r s c r e e n "
section).

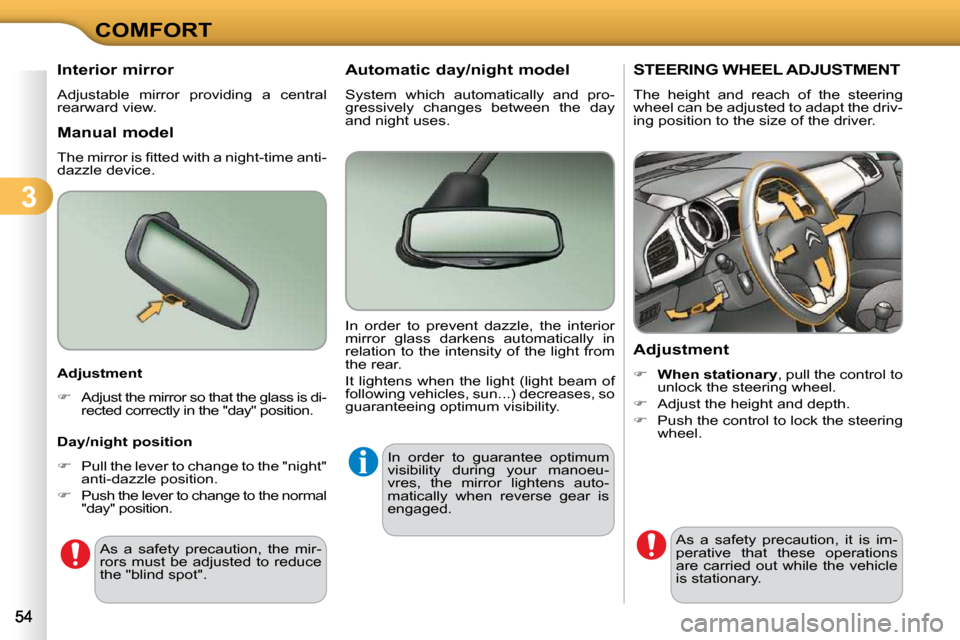

Page 54 of 207
3
COMFORT
STEERING WHEEL ADJUSTMENT
The height and reach of the steering
wheel can be adjusted to adapt the driv-
ing position to the size of the driver.
Adjustment
When stationary , pull the control to
unlock the steering wheel.
Adjust the height and depth.
Push the control to lock the steering
wheel.
As a safety precaution, it is im-
perative that these operations
are carried out while the vehicle
is stationary.
Interior mirror
Adjustable mirror providing a central
rearward view.
Adjustment
Adjust the mirror so that the glass is di-
r e c t e d c o r r e c t l y i n t h e " d a y " p o s i t i o n .
Day/night position
P u l l t h e l e v e r t o c h a n g e t o t h e " n i g h t "
anti-dazzle position.
Push the lever to change to the normal
" d a y " p o s i t i o n . Automatic day/night model
System which automatically and pro-
gressively changes between the day
and night uses.
In order to prevent dazzle, the interior
mirror glass darkens automatically in
relation to the intensity of the light from
the rear.
It lightens when the light (light beam of
following vehicles, sun...) decreases, so
guaranteeing optimum visibility.
In order to guarantee optimum
visibility during your manoeu-
vres, the mirror lightens auto-
matically when reverse gear is
engaged.
As a safety precaution, the mir-
rors must be adjusted to reduce
t h e " b l i n d s p o t " .
Manual model
T h e m i r r o r i s fi t t e d w i t h a n i g h t - t i m e a n t i -
dazzle device.
Page 55 of 207
4
ACCESS
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Unlocking the vehicle
Unfolding the key
First press button A to unfold the
key.
Unlocking using the remote control
Press the open padlock to
unlock the vehicle. Unlocking using the key
Turn the key to the left in the driver's
door lock to unlock the vehicle.
Locking the vehicle
Locking using the remote control
Press the closed padlock
to lock the vehicle.
Locking using the key
Turn the key to the right in the driver's
door lock to lock the vehicle com-
pletely. If one of the doors or the boot
is still open, the central locking
does not take place.
When the vehicle is locked, if it
is unlocked inadvertently, it will
relock automatically after thirty
seconds unless a door or the
boot is open.
The folding and unfolding of the
exterior mirrors using the remote
control can be deactivated by a
CITROËN dealer.
L o c k i n g i s c o n fi r m e d b y fi x e d l i g h t i n g o f
the direction indicators for approximately
two seconds.
According to version, the exterior mir-
rors fold at the same time.
U n l o c k i n g i s c o n fi r m e d b y r a p i d fl a s h i n g
of the direction indicators for approxi-
mately two seconds.
According to version, the exterior mir-
rors unfold at the same time.
Folding the key
First press button A to fold the key.

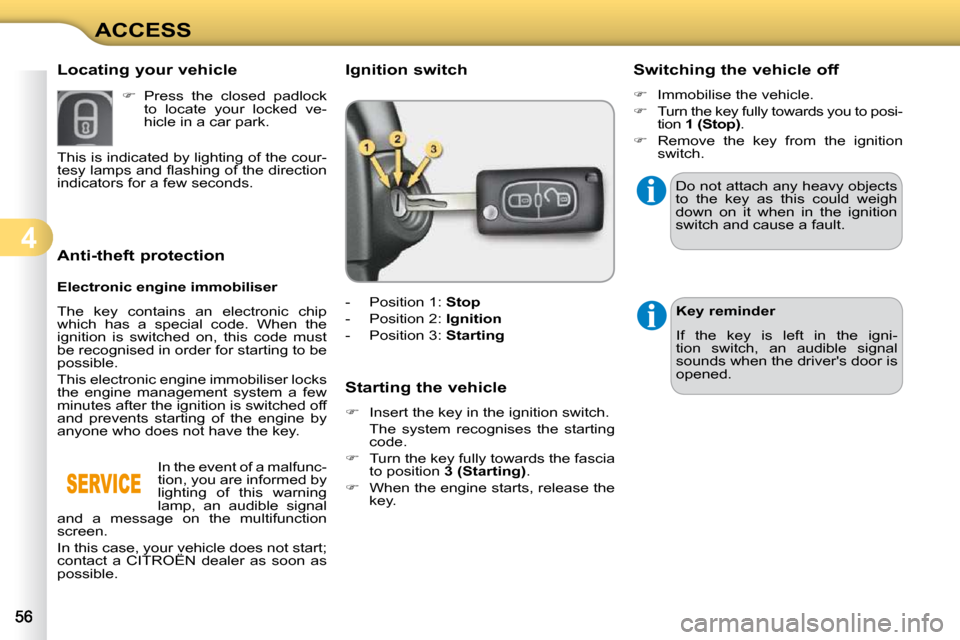

Page 56 of 207
4
ACCESS
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key. In the event of a malfunc-
tion, you are informed by
lighting of this warning
lamp, an audible signal
and a message on the multifunction
screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible. Ignition switch
- Position 1:
Stop
- Position 2: Ignition
- Position 3: Starting
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the fascia
to position 3 (Starting) .
When the engine starts, release the
key. Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to posi-
tion 1 (Stop) .
Remove the key from the ignition
switch.
Do not attach any heavy objects
to the key as this could weigh
down on it when in the ignition
switch and cause a fault.
Key reminder
If the key is left in the igni-
tion switch, an audible signal
sounds when the driver's door is
opened.
Locating your vehicle
Press the closed padlock
to locate your locked ve-
hicle in a car park.
This is indicated by lighting of the cour-
t e s y l a m p s a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds.

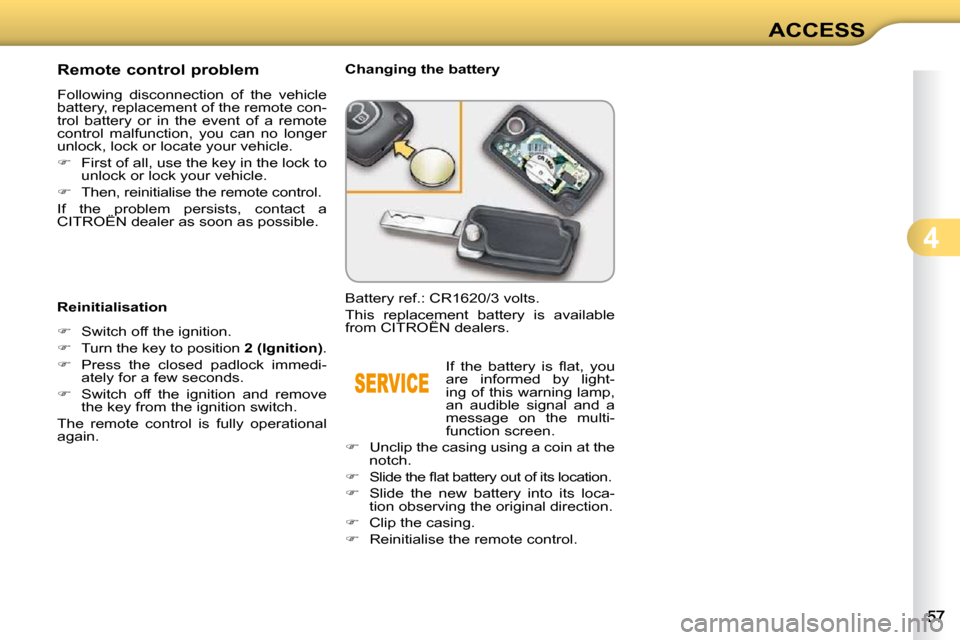

Page 57 of 207
4
ACCESS
Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a
CITROËN dealer as soon as possible.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Ignition) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. Changing the battery
Battery ref.: CR1620/3 volts.
This replacement battery is available
from CITROËN dealers.
I f t h e b a t t e r y i s fl a t , y o u
are informed by light-
ing of this warning lamp,
an audible signal and a
message on the multi-
function screen.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o c a t i o n .
Slide the new battery into its loca-
tion observing the original direction.
Clip the casing.
Reinitialise the remote control.

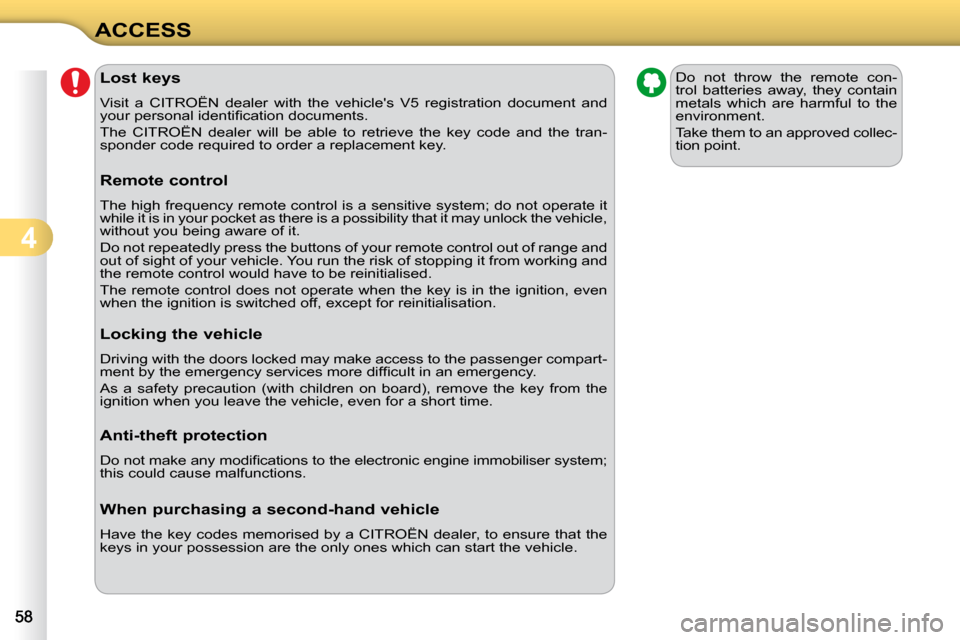

Page 58 of 207
4
ACCESS Lost keys
Visit a CITROËN dealer with the vehicle's V5 registration do cument and
y o u r p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to retrieve the key code a nd the tran-
sponder code required to order a replacement key. Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibilit y that it may unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and
the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the
ignition when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure tha t the
keys in your possession are the only ones which can start the vehicle .
Page 59 of 207
4
ACCESS
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key. In the event of a malfunc-
tion, you are informed by
lighting of this warning
lamp, an audible signal
and a message on the multifunction
screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible. Ignition switch
- Position 1:
Stop
- Position 2: Ignition
- Position 3: Starting
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the fascia
to position 3 (Starting) .
When the engine starts, release the
key. Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to posi-
tion 1 (Stop) .
Remove the key from the ignition
switch.
Do not attach any heavy objects
to the key as this could weigh
down on it when in the ignition
switch and cause a fault.
Key reminder
If the key is left in the igni-
tion switch, an audible signal
sounds when the driver's door is
opened.
Locating your vehicle
Press the closed padlock
to locate your locked ve-
hicle in a car park.
This is indicated by lighting of the cour-
t e s y l a m p s a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds.
Page 60 of 207
4
ACCESS Lost keys
Visit a CITROËN dealer with the vehicle's V5 registration do cument and
y o u r p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to retrieve the key code a nd the tran-
sponder code required to order a replacement key. Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibilit y that it may unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and
the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the
ignition when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure tha t the
keys in your possession are the only ones which can start the vehicle .
