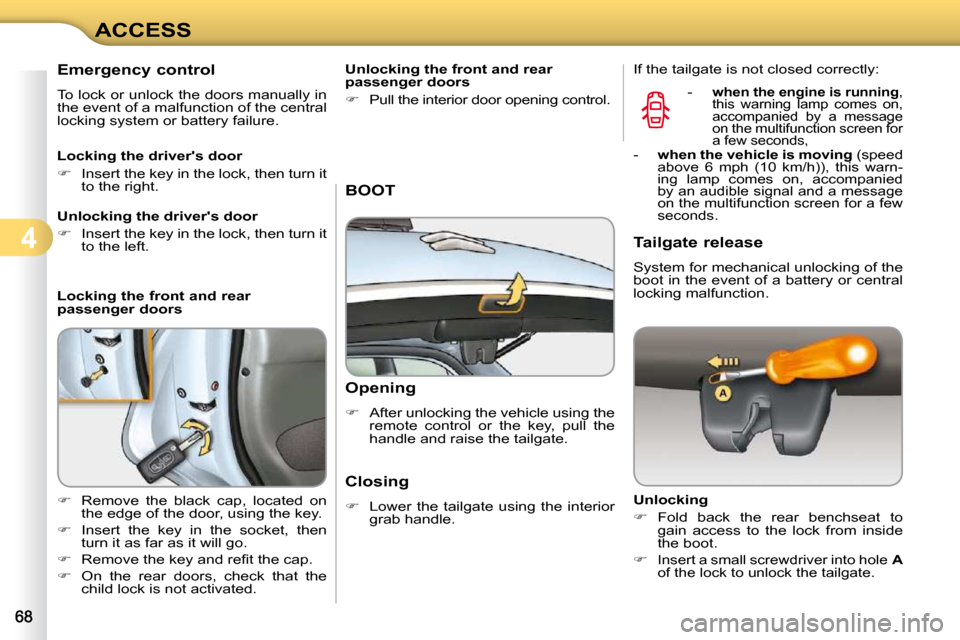

Page 71 of 235
4
ACCESS
Emergency control
To lock or unlock the doors manually in
the event of a malfunction of the central
locking system or battery failure.
Locking the driver's door
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Remove the black cap, located on
the edge of the door, using the key.
Insert the key in the socket, then
turn it as far as it will go.
R e m o v e t h e k e y a n d r e fi t t h e c a p .
On the rear doors, check that the
child lock is not activated. Unlocking the front and rear
passenger doors
Pull the interior door opening control.
BOOT
Opening
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
Closing
Lower the tailgate using the interior
grab handle. -
when the engine is running
,
this warning lamp comes on,
accompanied by a message
on the multifunction screen for
a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds.
Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking
Fold back the rear benchseat to
gain access to the lock from inside
the boot.
Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
If the tailgate is not closed correctly:
Page 72 of 235
4
ACCESS
Emergency control
To lock or unlock the doors manually in
the event of a malfunction of the central
locking system or battery failure.
Locking the driver's door
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Remove the black cap, located on
the edge of the door, using the key.
Insert the key in the socket, then
turn it as far as it will go.
R e m o v e t h e k e y a n d r e fi t t h e c a p .
On the rear doors, check that the
child lock is not activated. Unlocking the front and rear
passenger doors
Pull the interior door opening control.
BOOT
Opening
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
Closing
Lower the tailgate using the interior
grab handle. -
when the engine is running
,
this warning lamp comes on,
accompanied by a message
on the multifunction screen for
a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds.
Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking
Fold back the rear benchseat to
gain access to the lock from inside
the boot.
Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
If the tailgate is not closed correctly:
Page 73 of 235
4
ACCESS
The key cannot be removed from
t h e l o c k u n t i l t h e c a p i s r e fi t t e d .
O p e n i n g t h e fi l l e r c a p m a y c r e -
ate a noise caused by an inrush
of air. This vacuum is entirely
normal, resulting from the seal-
ing of the fuel system.
FUEL TANK
Fuel tank capacity: approximately
50 litres (petrol) or 48 litres (Diesel).
Low fuel level
When the fuel tank minimum
level is reached this warning
lamp comes on on the instru-
m e n t p a n e l . W h e n i t fi r s t c o m e s
on there remains approximately 5 litres
of fuel in the tank.
You must refuel as soon as possible to
avoid running out of fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section.
Filling
A l a b e l a f fi x e d t o t h e i n s i d e o f t h e fl a p
reminds you of the type of fuel to be
used depending on your engine.
Additions of fuel must be of at least
5 litres, in order to be taken into account
by the fuel gauge. T o fi l l t h e t a n k s a f e l y :
the engine must be switched off,
o p e n t h e f u e l fi l l e r fl a p ,
insert the key in the cap, then turn it
to the left,
remove the cap and hook it onto
the clip located on the inside of the
fl a p ,
fi l l t h e t a n k , but do not continue
after the 3rd cut-off of the pump ;
this could cause malfunctions.
W h e n y o u h a v e fi l l e d t h e t a n k :
put the cap back in place,
turn the key to the right, then remove
it from the cap,
c l o s e t h e fl a p .
With Stop & Start, never refuel
with the system in STOP mode;
you must switch off the ignition
with the key.
Page 74 of 235
4
ACCESS
Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
e t h a n o l ) a r e r e s e r v e d e x c l u s i v e l y f o r
vehicles marketed for the use of this type
o f f u e l ( B i o F l e x v e h i c l e s ) . T h e q u a l i t y o f
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type). Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
d a r d E N 5 9 0 m i x e d w i t h a b i o f u e l w h i c h
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in
certain Diesel engines; however, this
use is subject to strict application of the
special servicing conditions. Contact a
C I T R O Ë N d e a l e r o r a q u a l i fi e d w o r k -
shop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).
M e c h a n i c a l d e v i c e w h i c h p r e v e n t s fi l l i n g
the tank of a Diesel vehicle with petrol. It
avoids the risk of engine damage that can
r e s u l t f r o m fi l l i n g w i t h t h e w r o n g f u e l .
L o c a t e d i n t h e fi l l e r n e c k , t h e m i s f u e l
prevention device appears when the
fi l l e r c a p i s r e m o v e d .
MISFUEL PREVENTION
Operation
W h e n a p e t r o l fi l l e r n o z z l e i s i n t r o d u c e d
i n t o t h e f u e l fi l l e r n e c k o f y o u r D i e s e l
vehicle, it comes into contact with the
fl a p . T h e s y s t e m r e m a i n s c l o s e d a n d
p r e v e n t s fi l l i n g .
Do not persist but introduce a Diesel
t y p e fi l l e r n o z z l e .
I t i s s t i l l p o s s i b l e t o u s e a f u e l c a n t o fi l l
the reservoir.
I n o r d e r t o e n s u r e a g o o d fl o w o f f u e l ,
do not place the nozzle of the fuel can in
d i r e c t c o n t a c t w i t h t h e fl a p o f t h e m i s f u e l
prevention device.
This equipment will become available
during the year.
Page 75 of 235
4
ACCESS
Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
e t h a n o l ) a r e r e s e r v e d e x c l u s i v e l y f o r
vehicles marketed for the use of this type
o f f u e l ( B i o F l e x v e h i c l e s ) . T h e q u a l i t y o f
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type). Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
d a r d E N 5 9 0 m i x e d w i t h a b i o f u e l w h i c h
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in
certain Diesel engines; however, this
use is subject to strict application of the
special servicing conditions. Contact a
C I T R O Ë N d e a l e r o r a q u a l i fi e d w o r k -
shop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).
M e c h a n i c a l d e v i c e w h i c h p r e v e n t s fi l l i n g
the tank of a Diesel vehicle with petrol. It
avoids the risk of engine damage that can
r e s u l t f r o m fi l l i n g w i t h t h e w r o n g f u e l .
L o c a t e d i n t h e fi l l e r n e c k , t h e m i s f u e l
prevention device appears when the
fi l l e r c a p i s r e m o v e d .
MISFUEL PREVENTION
Operation
W h e n a p e t r o l fi l l e r n o z z l e i s i n t r o d u c e d
i n t o t h e f u e l fi l l e r n e c k o f y o u r D i e s e l
vehicle, it comes into contact with the
fl a p . T h e s y s t e m r e m a i n s c l o s e d a n d
p r e v e n t s fi l l i n g .
Do not persist but introduce a Diesel
t y p e fi l l e r n o z z l e .
I t i s s t i l l p o s s i b l e t o u s e a f u e l c a n t o fi l l
the reservoir.
I n o r d e r t o e n s u r e a g o o d fl o w o f f u e l ,
do not place the nozzle of the fuel can in
d i r e c t c o n t a c t w i t h t h e fl a p o f t h e m i s f u e l
prevention device.
This equipment will become available
during the year.
Page 76 of 235
5
VISIBILITY
LIGHTING CONTROLS
System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.
Main lighting
The various front and rear lamps of
the vehicle are designed to adapt the
driver's visibility progressively accord-
ing to climatic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see without dazzling other drivers,
- main beam headlamps to see clearly when the road is clear.
Additional lighting
O t h e r l a m p s a r e i n s t a l l e d t o f u l fi l t h e
requirements of particular conditions of
visibility:
- a rear foglamp to be seen from afar,
- front foglamps for even better forward vision.
Programming
Various automatic lighting control modes
are also available according to the fol-
lowing options:
- guide-me-home lighting,
- automatic illumination of headlamps. Model without AUTO lighting
Model with AUTO lighting
Lamps off.
Automatic illumination of
headlamps.
Sidelamps only.
Dipped or main beam
headlamps.
B. Stalk for switching the headlamp
beam: pull the stalk to switch between
dipped and main beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl a s h " ) b y m a i n t a i n i n g a p u l l o n t h e s t a l k .
Displays
Lighting of the corresponding indicator
l a m p o n t h e i n s t r u m e n t p a n e l c o n fi r m s t h e
switching on of the lighting selected.
Depending on version, the instrument
panel may have permanent back-light-
ing. Illumination of the instrument panel is
therefore not linked to the exterior lighting.
Manual controls
The lighting commands are issued
directly by the driver by means of the
ring
A and the stalk B .
A. Main lighting mode selection ring:
turn it to position the symbol re-
quired facing the mark.
Page 77 of 235
5
VISIBILITY
C. Foglamp selection ring.
The foglamps operate with the dipped
and main beam headlamps.
Rear foglamp
Rotate and release the ring C :
f o r w a r d s a fi r s t t i m e t o s w i t c h o n t h e
front foglamps.
forwards a second time to switch on
the rear foglamp,
r e a r w a r d s a fi r s t t i m e t o s w i t c h o f f
the rear foglamp
rearwards a second time to switch
of the front fog lamps.
Model with rear foglamp only
To switch on the foglamp, turn the
ring C forwards.
When the lighting is switched off auto-
m a t i c a l l y ( w i t h A U T O m o d e l ) , t h e f o g l a m p
and the dipped beam headlamps will
remain on.
To switch off all of the lighting, turn
the ring C rearwards.
Model with front foglamps and a rear foglamp Front and rear foglamps In good or rainy weather, by both
day and night, the front foglamps
and the rear foglamp are pro-
hibited. In these situations, the
power of their beams may daz-
zle other drivers.
Do not forget to switch off the
front foglamps and the rear fo-
glamp when they are no longer
necessary.
Lighting on audible warning
When the ignition is switched
off, all of the lamps switch off
automatically, unless guide-me-
home lighting is activated.
If the lighting is switched on manu-
ally after switching off the ignition,
there is an audible signal when a
front door is opened to warn the
driver that they have forgotten to
switch off the vehicle's lighting,
with the ignition off.
When the lighting is switched off auto-
m a t i c a l l y ( w i t h A U T O m o d e l ) o r w h e n
the dipped headlamps are switched off
manually, the foglamps and sidelamps
will remain on.
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.
Page 78 of 235
5
VISIBILITY
* According to country.
Daytime running lamps *
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n -
ning lamps, the dipped beams come on
when the vehicle is started.
Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's igni-
tion has been switched off makes the
driver's exit easier when the light is
poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting stalk.
A f u r t h e r " h e a d l a m p fl a s h " s w i t c h e s
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. Automatic illumination of
headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic illumination of head-
lamps is accompanied by a message
in the multifunction screen.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompa-
nied by a message in the multifunction
screen.
This warning lamp comes on in
the instrument panel.
The instruments and controls (instru-
ment panel, multifunction screen, air
c o n d i t i o n i n g c o n t r o l p a n e l , e t c . ) a r e n o t
illuminated, except on switching to the
automatic lighting mode or when the
lighting is switched on manually.
This function can be activated/deacti-
vated by a CITROËN dealer. In some weather conditions (e.g.
l o w t e m p e r a t u r e o r h u m i d i t y ) ,
the presence of misting on the
internal surface of the glass of
the headlamps and rear lamps
is normal; it disappears after the
lamps have been on for a few
minutes.
Page 79 of 235
5
VISIBILITY To avoid causing a nuisance to other
road users, the height of the headlam-
ps should be adjusted in relation to the
load in the vehicle.
0
.
Driver only or driver + front passenger.
- . Intermediate setting
1. 5 people.
- . 5 people + load in the boot.
2. Driver only + maximum authorised
load in the boot.
T h i s p o s i t i o n i s s u f fi c i e n t t o a v o i d c a u s -
ing dazzle.
Higher settings may limit the spread of
light from the headlamps.
The initial setting is position "0" .
HEADLAMP ADJUSTMENT Coupling with the automatic
"Guide-me-home" lighting
Association with the automatic illumi-
nation of headlamps provides "guide-
me-home" lighting with the following
additional options:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehi-
cle parameters in the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ( e x c e p t
in the case of the monochrome
screen A, for which the duration is
s e t : 6 0 s e c o n d s ) ,
- automatic activation of "guide-me- home" lighting when automatic
illumination of headlamps is in op-
eration.
Operating fault In fog or snow, the sunshine sen-
s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.
In the event of a fault with
the sunshine sensor, the
lighting come on, this warn-
ing lamp is displayed in the instrument
panel and/or a message appears in the
multifunction screen, accompanied by
an audible signal.
C o n t a c t a C I T R O Ë N d e a l e r o r a q u a l i fi e d
workshop.
Page 80 of 235
5
VISIBILITY
* According to country.
Daytime running lamps *
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n -
ning lamps, the dipped beams come on
when the vehicle is started.
Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's igni-
tion has been switched off makes the
driver's exit easier when the light is
poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting stalk.
A f u r t h e r " h e a d l a m p fl a s h " s w i t c h e s
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. Automatic illumination of
headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic illumination of head-
lamps is accompanied by a message
in the multifunction screen.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompa-
nied by a message in the multifunction
screen.
This warning lamp comes on in
the instrument panel.
The instruments and controls (instru-
ment panel, multifunction screen, air
c o n d i t i o n i n g c o n t r o l p a n e l , e t c . ) a r e n o t
illuminated, except on switching to the
automatic lighting mode or when the
lighting is switched on manually.
This function can be activated/deacti-
vated by a CITROËN dealer. In some weather conditions (e.g.
l o w t e m p e r a t u r e o r h u m i d i t y ) ,
the presence of misting on the
internal surface of the glass of
the headlamps and rear lamps
is normal; it disappears after the
lamps have been on for a few
minutes.
