VISIBILITY To avoid causing a nuisance to other
road users, the height of the headlam-
ps should be adjusted in relation to the
load in the vehicle.
0
.
Driver only or driver + front passenger.
- . Intermediate setting
1. 5 people.
- . 5 people + load in the boot.
2. Driver only + maximum authorised
load in the boot.
T h i s p o s i t i o n i s s u f fi c i e n t t o a v o i d c a u s -
ing dazzle.
Higher settings may limit the spread of
light from the headlamps.
The initial setting is position "0" .
HEADLAMP ADJUSTMENT Coupling with the automatic
"Guide-me-home" lighting
Association with the automatic illumi-
nation of headlamps provides "guide-
me-home" lighting with the following
additional options:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehi-
cle parameters in the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ( e x c e p t
in the case of the monochrome
screen A, for which the duration is
s e t : 6 0 s e c o n d s ) ,
- automatic activation of "guide-me- home" lighting when automatic
illumination of headlamps is in op-
eration.
Operating fault In fog or snow, the sunshine sen-
s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.
In the event of a fault with
the sunshine sensor, the
lighting come on, this warn-
ing lamp is displayed in the instrument
panel and/or a message appears in the
multifunction screen, accompanied by
an audible signal.
C o n t a c t a C I T R O Ë N d e a l e r o r a q u a l i fi e d
workshop.
Page 82 of 235
5
VISIBILITY To avoid causing a nuisance to other
road users, the height of the headlam-
ps should be adjusted in relation to the
load in the vehicle.
0
.
Driver only or driver + front passenger.
- . Intermediate setting
1. 5 people.
- . 5 people + load in the boot.
2. Driver only + maximum authorised
load in the boot.
T h i s p o s i t i o n i s s u f fi c i e n t t o a v o i d c a u s -
ing dazzle.
Higher settings may limit the spread of
light from the headlamps.
The initial setting is position "0" .
HEADLAMP ADJUSTMENT Coupling with the automatic
"Guide-me-home" lighting
Association with the automatic illumi-
nation of headlamps provides "guide-
me-home" lighting with the following
additional options:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehi-
cle parameters in the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ( e x c e p t
in the case of the monochrome
screen A, for which the duration is
s e t : 6 0 s e c o n d s ) ,
- automatic activation of "guide-me- home" lighting when automatic
illumination of headlamps is in op-
eration.
Operating fault In fog or snow, the sunshine sen-
s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.
In the event of a fault with
the sunshine sensor, the
lighting come on, this warn-
ing lamp is displayed in the instrument
panel and/or a message appears in the
multifunction screen, accompanied by
an audible signal.
C o n t a c t a C I T R O Ë N d e a l e r o r a q u a l i fi e d
workshop.
Page 83 of 235
5
VISIBILITY

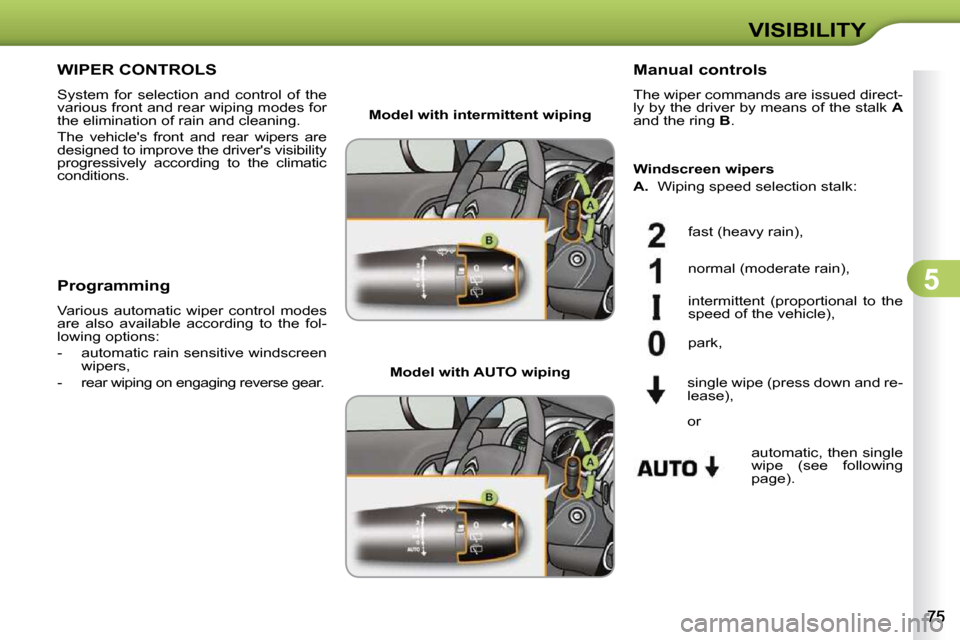

WIPER CONTROLS
System for selection and control of the
various front and rear wiping modes for
the elimination of rain and cleaning.
The vehicle's front and rear wipers are
designed to improve the driver's visibility
progressively according to the climatic
conditions.
Programming
Various automatic wiper control modes
are also available according to the fol-
lowing options:
- automatic rain sensitive windscreen wipers,
- rear wiping on engaging reverse gear. Model with intermittent wiping
Model with AUTO wiping Manual controls
The wiper commands are issued direct-
ly by the driver by means of the stalk
A
and the ring B .
Windscreen wipers
A. Wiping speed selection stalk:
single wipe (press down and re-
l e a s e ) ,
or f a s t ( h e a v y r a i n ) ,
n o r m a l ( m o d e r a t e r a i n ) ,
intermittent (proportional to the
s p e e d o f t h e v e h i c l e ) ,
park,
automatic, then single
wipe (see following
p a g e ) .
Page 84 of 235
5
VISIBILITY

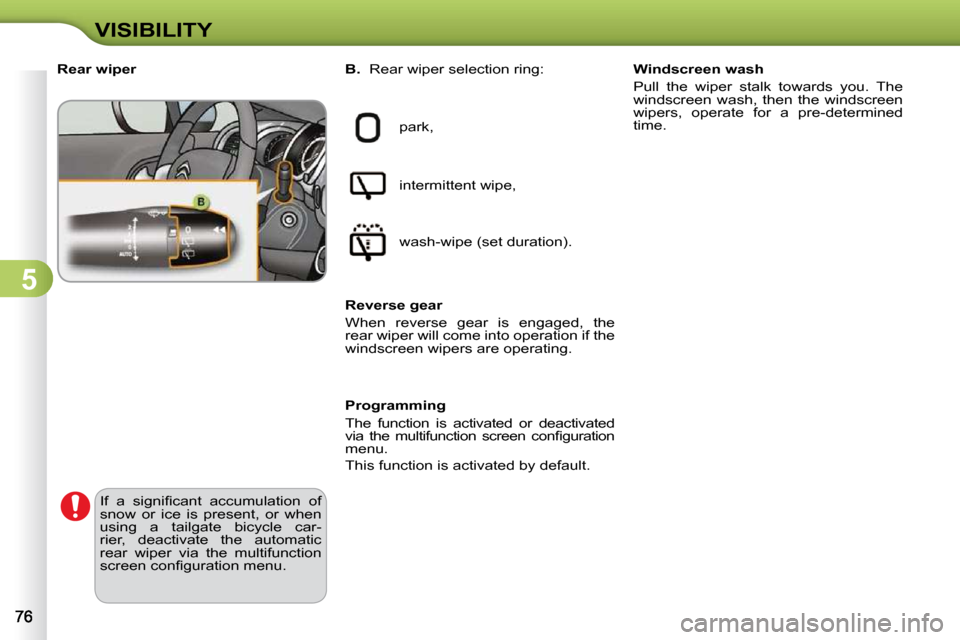

Rear wiper
park,
intermittent wipe,
w a s h - w i p e ( s e t d u r a t i o n ) .
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if the
windscreen wipers are operating.
Programming
The function is activated or deactivated
v i a t h e m u l t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu.
This function is activated by default. Windscreen wash
Pull the wiper stalk towards you. The
windscreen wash, then the windscreen
wipers, operate for a pre-determined
time.
B. Rear wiper selection ring:
I f a s i g n i fi c a n t a c c u m u l a t i o n o f
snow or ice is present, or when
using a tailgate bicycle car-
rier, deactivate the automatic
rear wiper via the multifunction
s c r e e n c o n fi g u r a t i o n m e n u .
Page 85 of 235
5
VISIBILITY
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind
t h e r e a r v i e w m i r r o r ) , a d a p t i n g t h e i r s p e e d
to the intensity of the rainfall.
Activation
Switching off Operating fault
If an automatic wiping fault occurs,
the wipers will operate in intermittent
mode.
Have it checked by a CITROËN dealer
o r a q u a l i fi e d w o r k s h o p . Vertical windscreen wiper
position
To retain the effectiveness of the
" fl a t - b l a d e " w i p e r b l a d e s , i t i s a d -
visable to:
- handle them with care,
- clean them regularly using soapy water,
- not use them to hold a sheet of cardboard against the
windscreen,
- r e p l a c e t h e m a t t h e fi r s t s i g n s of wear.
Do not cover the rain sensor,
linked with the sunshine sensor
and located in the centre of the
windscreen behind the rear view
mirror.
Switch off the automatic wiping
when using an automatic car
wash.
In winter, it is advisable to wait
until the windscreen is complete-
ly clear of ice before activating
the automatic wiping.
The automatic wiping must be re-
activated if the ignition has been
off for more than one minute, by
pushing stalk
A downwards.
This position allows the wiper blades to
be lifted for winter parking, cleaning or re-
placement without damaging the bonnet.
In the minute following switching off of
the ignition, any action on the wiper
stalk positions the wipers vertically.
To park the wipers after this has been
done, switch on the ignition and operate
the wiper stalk.
This is controlled manually by the driv-
er by pushing stalk
A to the "AUTO"
position.
This is controlled manually by the driver
by moving stalk A upwards, returning it
to position "0" . It is accompanied by the indica-
tor lamp in the instrument panel
going off and a message in the
multifunction screen.
It is accompanied by the illumina-
tion of this indicator lamp in the
instrument panel and a message
in the multifunction screen.
Page 86 of 235
5
VISIBILITY
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind
t h e r e a r v i e w m i r r o r ) , a d a p t i n g t h e i r s p e e d
to the intensity of the rainfall.
Activation
Switching off Operating fault
If an automatic wiping fault occurs,
the wipers will operate in intermittent
mode.
Have it checked by a CITROËN dealer
o r a q u a l i fi e d w o r k s h o p . Vertical windscreen wiper
position
To retain the effectiveness of the
" fl a t - b l a d e " w i p e r b l a d e s , i t i s a d -
visable to:
- handle them with care,
- clean them regularly using soapy water,
- not use them to hold a sheet of cardboard against the
windscreen,
- r e p l a c e t h e m a t t h e fi r s t s i g n s of wear.
Do not cover the rain sensor,
linked with the sunshine sensor
and located in the centre of the
windscreen behind the rear view
mirror.
Switch off the automatic wiping
when using an automatic car
wash.
In winter, it is advisable to wait
until the windscreen is complete-
ly clear of ice before activating
the automatic wiping.
The automatic wiping must be re-
activated if the ignition has been
off for more than one minute, by
pushing stalk
A downwards.
This position allows the wiper blades to
be lifted for winter parking, cleaning or re-
placement without damaging the bonnet.
In the minute following switching off of
the ignition, any action on the wiper
stalk positions the wipers vertically.
To park the wipers after this has been
done, switch on the ignition and operate
the wiper stalk.
This is controlled manually by the driv-
er by pushing stalk
A to the "AUTO"
position.
This is controlled manually by the driver
by moving stalk A upwards, returning it
to position "0" . It is accompanied by the indica-
tor lamp in the instrument panel
going off and a message in the
multifunction screen.
It is accompanied by the illumina-
tion of this indicator lamp in the
instrument panel and a message
in the multifunction screen.
Page 87 of 235
5
VISIBILITY

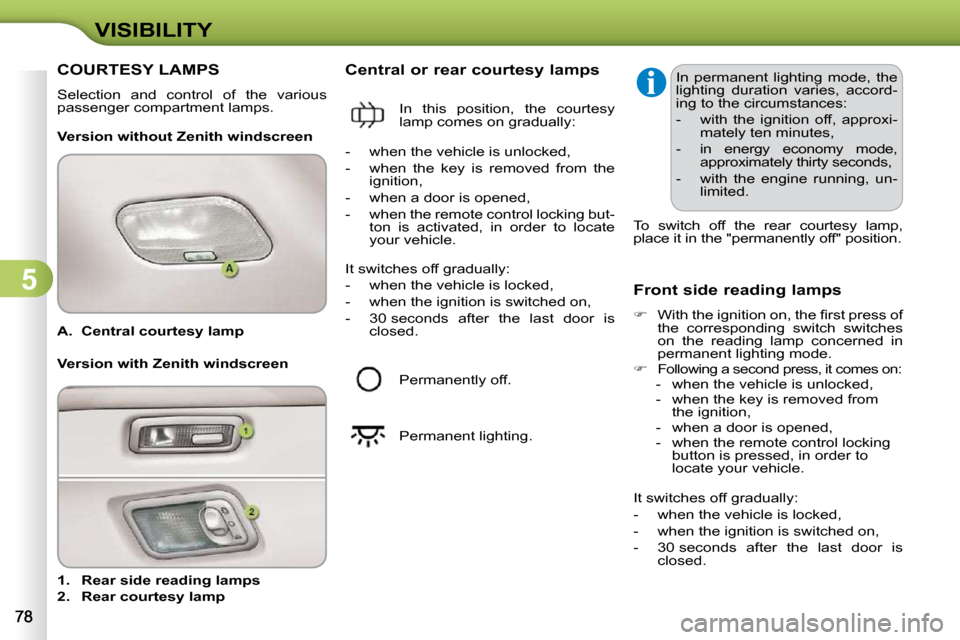

A. Central courtesy lamp
1. Rear side reading lamps
2. Rear courtesy lamp Central or rear courtesy lamps
Version without Zenith windscreen
Front side reading lamps
W i t h t h e i g n i t i o n o n , t h e fi r s t p r e s s o f
the corresponding switch switches
on the reading lamp concerned in
permanent lighting mode.
Following a second press, it comes on: - when the vehicle is unlocked,
- when the key is removed from
the ignition,
- when a door is opened,
- when the remote control locking button is pressed, in order to
locate your vehicle. In permanent lighting mode, the
lighting duration varies, accord-
ing to the circumstances:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, approximately thirty seconds,
- with the engine running, un- limited.
Version with Zenith windscreen In this position, the courtesy
lamp comes on gradually:
- when the vehicle is unlocked,
- when the key is removed from the ignition,
- when a door is opened,
- when the remote control locking but- ton is activated, in order to locate
your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
Permanently off.
Permanent lighting.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
To switch off the rear courtesy lamp,
place it in the "permanently off" position.
COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.
Page 88 of 235
5
VISIBILITY

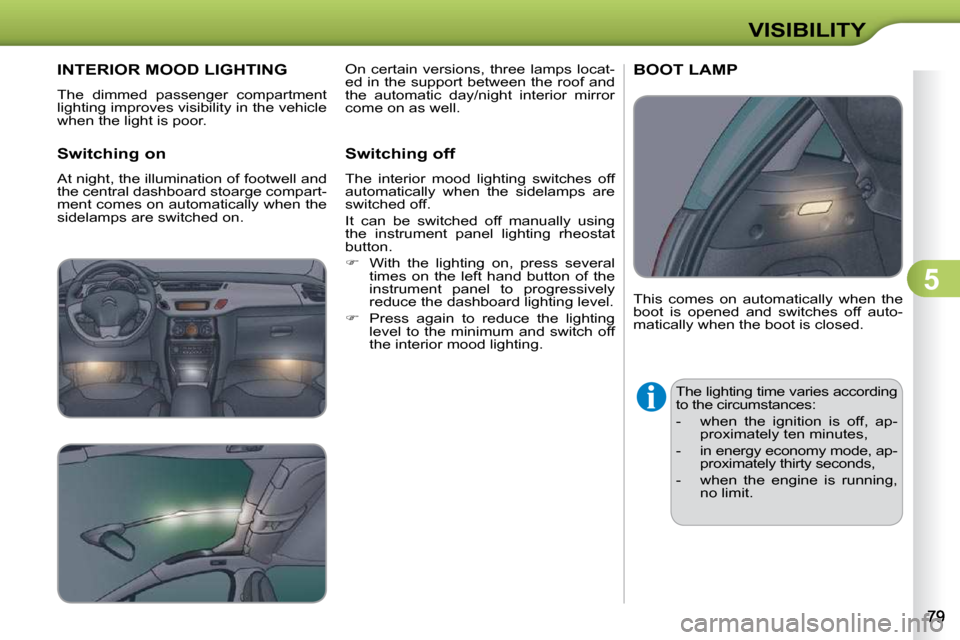

INTERIOR MOOD LIGHTING
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
Switching on
At night, the illumination of footwell and
the central dashboard stoarge compart-
ment comes on automatically when the
sidelamps are switched on. Switching off
The interior mood lighting switches off
automatically when the sidelamps are
switched off.
It can be switched off manually using
the instrument panel lighting rheostat
button.
With the lighting on, press several
times on the left hand button of the
instrument panel to progressively
reduce the dashboard lighting level.
Press again to reduce the lighting
level to the minimum and switch off
the interior mood lighting. This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
BOOT LAMP
The lighting time varies according
to the circumstances:
- when the ignition is off, ap-
proximately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- when the engine is running, no limit.
On certain versions, three lamps locat-
ed in the support between the roof and
the automatic day/night interior mirror
come on as well.
Page 89 of 235
6
FITTINGS

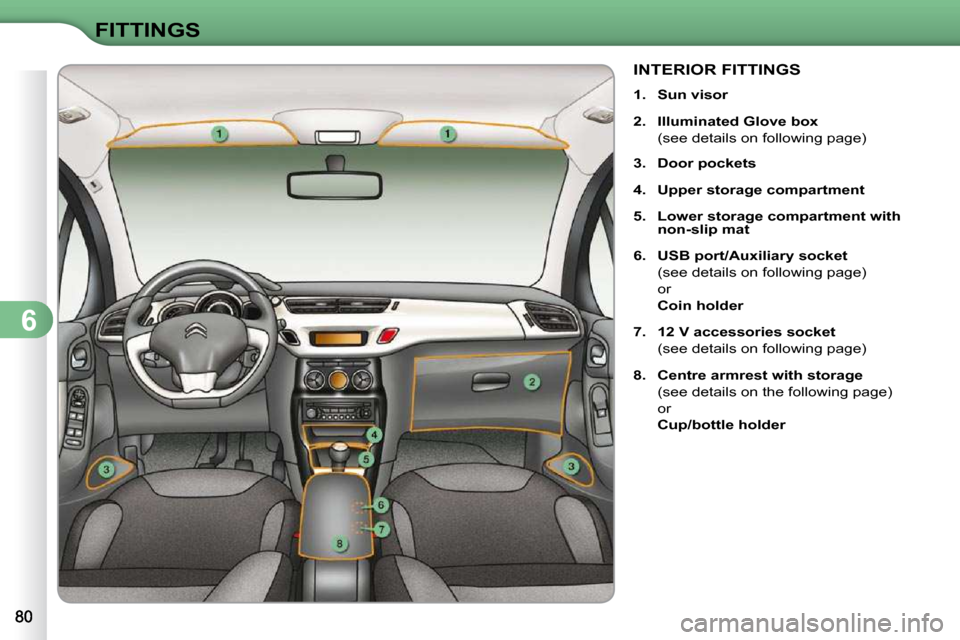

INTERIOR FITTINGS
1. Sun visor
2. Illuminated
Glove box
(see details on following page)
3. Door
pockets
4. Upper storage compartment
5. Lower storage compartment with
non-slip mat
6. USB port
/
Auxiliary socket
(see details on following page)
or
Coin holder
7. 12 V accessories socket
(see details on following page)
8. Centre armrest with storage
(see details on the following page)
or
Cup/bottle holder
Page 90 of 235
6
FITTINGS

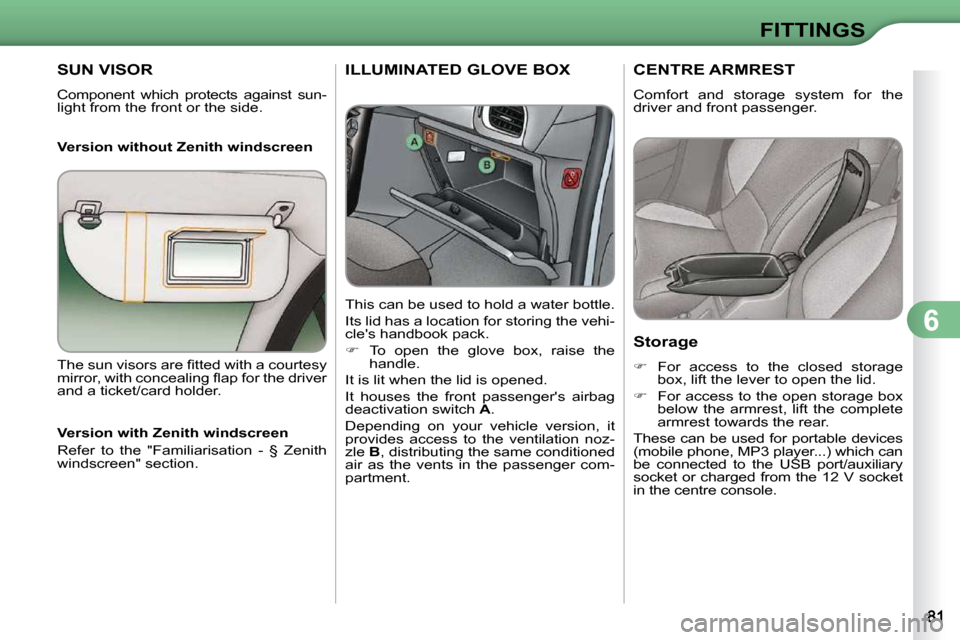

SUN VISOR
Component which protects against sun-
light from the front or the side.
Version without Zenith windscreen
ILLUMINATED GLOVE BOX
This can be used to hold a water bottle.
Its lid has a location for storing the vehi-
cle's handbook pack.
To open the glove box, raise the
handle.
It is lit when the lid is opened.
It houses the front passenger's airbag
deactivation switch A .
Depending on your vehicle version, it
provides access to the ventilation noz-
zle B , distributing the same conditioned
air as the vents in the passenger com-
partment.
CENTRE ARMREST
Comfort and storage system for the
driver and front passenger.
Storage
For access to the closed storage
box, lift the lever to open the lid.
For access to the open storage box
below the armrest, lift the complete
armrest towards the rear.
These can be used for portable devices
(mobile phone, MP3 player...) which can
be connected to the USB port/auxiliary
socket or charged from the 12 V socket
in the centre console.
Version with Zenith windscreen
Refer to the "Familiarisation - § Zenith
windscreen" section.
T h e s u n v i s o r s a r e fi t t e d w i t h a c o u r t e s y
m i r r o r , w i t h c o n c e a l i n g fl a p f o r t h e d r i v e r
and a ticket/card holder.
