Citroen C3 PICASSO 2008.5 1.G Owner's Manual

148
03
1
2
3
5
6
4
NAVIGATION - GUIDANCE
SELECTING A DESTINATION
Press the NAV button again or select the NAVIGATION MENU function and press the dial to confi rm.
Select the DESTINATION INPUT function and press the dial to confi rm.
Press the NAV button.
Select the letters of the town one by one confi rming each time by pressing the dial.
Once the country has been selected, turn the dial and select the town function. Press the dial to confi rm.
NAVIGATION MENU
DESTINATION INPUT
Insert the SD card in the front panel reader and leave it there to use the Navigation functions. The navigation SD card data must not be changed. The map data updates are available from CITROËN de alers.
A pre-set list (by entering the fi rst few letters) of the towns in the A pre-set list (by entering the fi rst few letters) of the towns in the country selected can be accessed via the LIST butto n ontton on the virtual keypad.
Select the NEW DESTINATION INPUT function and press the dial to confi rm.
NEW DESTINATION INPUT
The list of the last 20 destinations appears under the NAVIGATION The list of the last 20 destinations appears under the NAVIGATION MENU function.

149
7
8
9
10
During guidance, pressing the end of the lights stalk repeats the last spoken guidance instruction.
Repeat steps 5 to 7 for the STREET and N° functions.
Turn the dial and select OK. Press the dial to confi rm.
Select the SAVE TO ADDRESS BOOK function to record the Select the SAVE TO ADDRESS BOOK function to record the address entered in a directory fi le. Press the dial to confi rm the address entered in a directory fi le. Press the dial to confi rm the selection. The system permits the recording of up to 4 000 co ntact fi les. The system permits the recording of up to 4 000 contact fi les.
To speed up the process, the post code can be ente redtered directly after selecting the POST CODE function. Use the virtual keypad to enter the letters and digits.
Select the route type: FAST ROUTE, SHORT ROUTE or OPTIMISED ROUTE and press the dial to confi rm.
Then select START ROUTE GUIDANCE and the press the dial to confi rm.
You can zoom in/zoom out on the map using the dial . It is possible to scroll the map or select its orientation viaion via the short-cut menu of the FULL SCREEN MAP. Press the dial the n select cut menu of the FULL SCREEN MAP. Press the dial then select MAP SETTINGS or ZOOM/SCROLL and confi rm.
It is also possible to select a destination FROM ADDRESS BOOK or It is also possible to select a destination FROM ADDRESS BOOK or FROM LAST DESTINATIONS.
FROM ADDRESS BOOKFROM LAST DESTINATIONS
START ROUTE GUIDANCE

150
03
4
3
2
1
7
6
5
NAVIGATION - GUIDANCE
ROUTE OPTIONS
Select the ROUTE DYNAMICS function. This function provides access to the TRAFFIC INDEPENDENT or SEMI-DYNAMIC options.
Select the AVOIDANCE CRITERIA function. This function provides access to the AVOID options (motorways, toll roads, ferries).
Turn the dial and select the RECALCULATE function to take into account the route options selected. Press the dial to confi rm.
Press the NAV button.
Press the NAV button again or select the NAVIGATION MENU function and press the dial to confi rm.
Select the ROUTE TYPE function and press the dial to confi rm. This function allows you to change the route type.
Select the ROUTE OPTIONS function and press the dial to confi rm.
NAVIGATION MENU
ROUTE OPTIONS
ROUTE TYPE
ROUTE DYNAMICS
AVOIDANCE CRITERIA
RECALCULATE
The route selected by the system depends directly
on the route options. Changing these options may change the route comple tely.

151
7
6
5
4
3
2
1

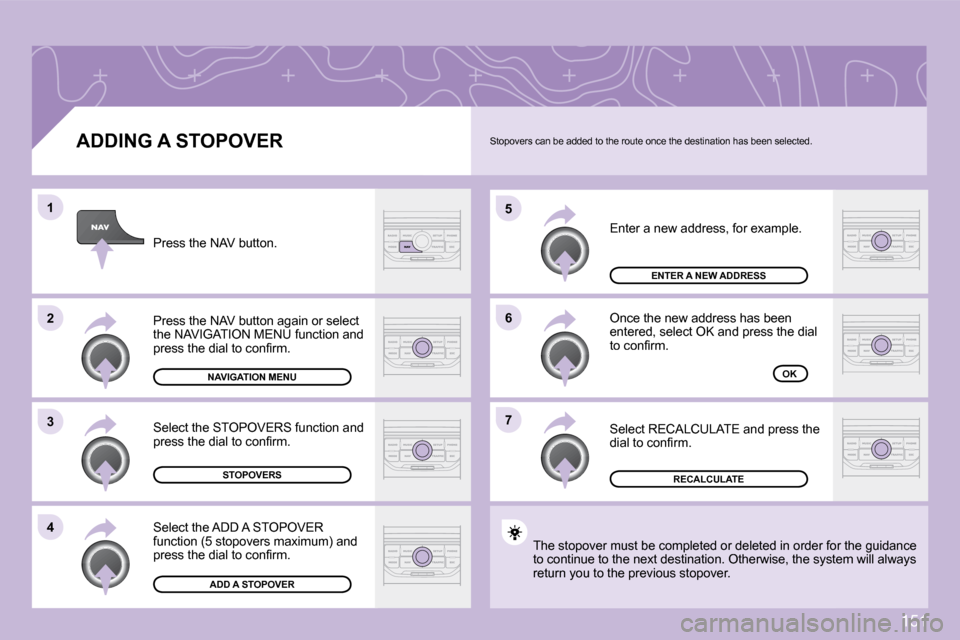

ADDING A STOPOVER
Enter a new address, for example.
Once the new address has been entered, select OK and press the dial to confi rm.
Select RECALCULATE and press the dial to confi rm.
Press the NAV button.
Press the NAV button again or select the NAVIGATION MENU function and press the dial to confi rm.
Select the ADD A STOPOVER function (5 stopovers maximum) and press the dial to confi rm.
Select the STOPOVERS function and press the dial to confi rm.
NAVIGATION MENU
STOPOVERS
ADD A STOPOVER
ENTER A NEW ADDRESS
OK
The stopover must be completed or deleted in order
for the guidance The stopover must be completed or deleted in order for the guidance to continue to the next destination. Otherwise, the syste system will always return you to the previous stopover.
Stopovers can be added to the route once the destination has been selected.
RECALCULATE

152
03
8
6
7
4
3
5
2
1
NAVIGATION - GUIDANCE
SEARCHING FOR POINTS OF INTEREST
Press the NAV button.
Press the NAV button again or select the NAVIGATION MENU function and press the dial to confi rm.
Select the POI NEARBY function to search for POIs around the vehicle.
Select the SEARCH POINTS OF INTEREST function and press the dial to confi rm.
NAVIGATION MENU
SEARCH POINTS OF INTEREST
POI NEARBY
Select the POI IN CITY function to search for POIs in the city required. Select the country then enter the name of the city using the virtual keypad.
Select the POI NEAR ROUTE function to search for POIs near the route.
Select the POI IN COUNTRY function to search for POIs in the country required.
Select the POI NEAR DESTINATION function to search for POIs near the point of arrival of the route.
POI NEAR DESTINATION
POI IN COUNTRY
POI NEAR ROUTE
A list of cities present in the country selected c
an be accbe accessed via the LIST button on the virtual keypad.
POI IN CITY
The points of interest (POIs) indicate all of the service locations in the vicinity (hotels, various businesses, airports...).

153
03 NAVIGATION - GUIDANCE
List of POIs * according to availability in the country

154
03
5
4
6
3
2
1

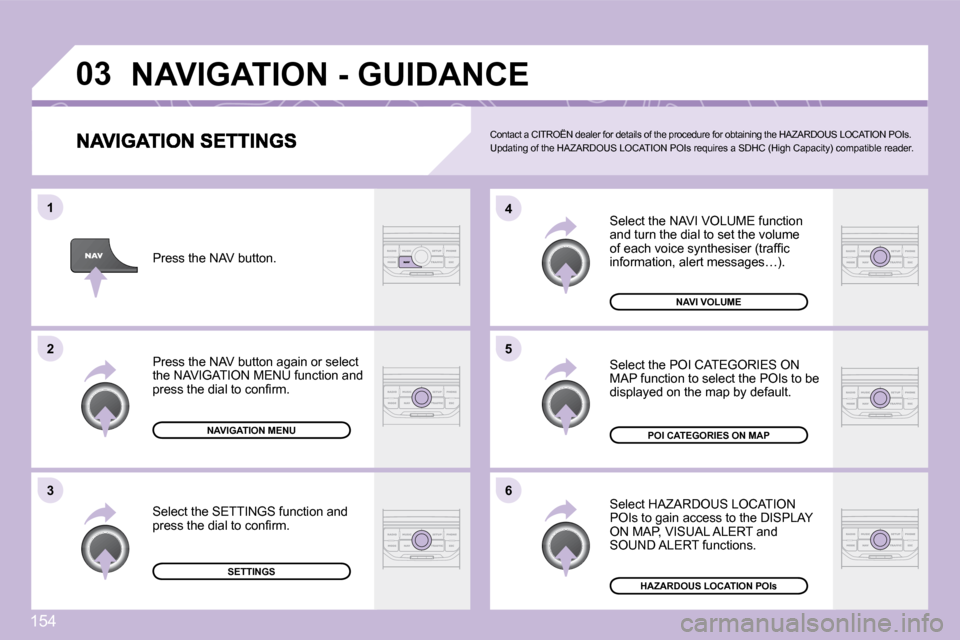

Select the NAVI VOLUME function and turn the dial to set the volume of each voice synthesiser (traffi c information, alert messages…).
Select HAZARDOUS LOCATION POIs to gain access to the DISPLAY ON MAP, VISUAL ALERT and SOUND ALERT functions.
Select the POI CATEGORIES ON MAP function to select the POIs to be displayed on the map by default.
NAVI VOLUME
Press the NAV button.
Press the NAV button again or select the NAVIGATION MENU function and press the dial to confi rm.
Select the SETTINGS function and press the dial to confi rm.
NAVIGATION MENU
SETTINGS
POI CATEGORIES ON MAP
HAZARDOUS LOCATION POIs
NAVIGATION - GUIDANCE
Contact a CITROËN dealer for details of the proced
ure for obtaining the HAZARDOUS LOCATION POIs. Updating of the HAZARDOUS LOCATION POIs requires a SDHC (High Capacity) compatible reader.

155
04
2
1
3
4 5

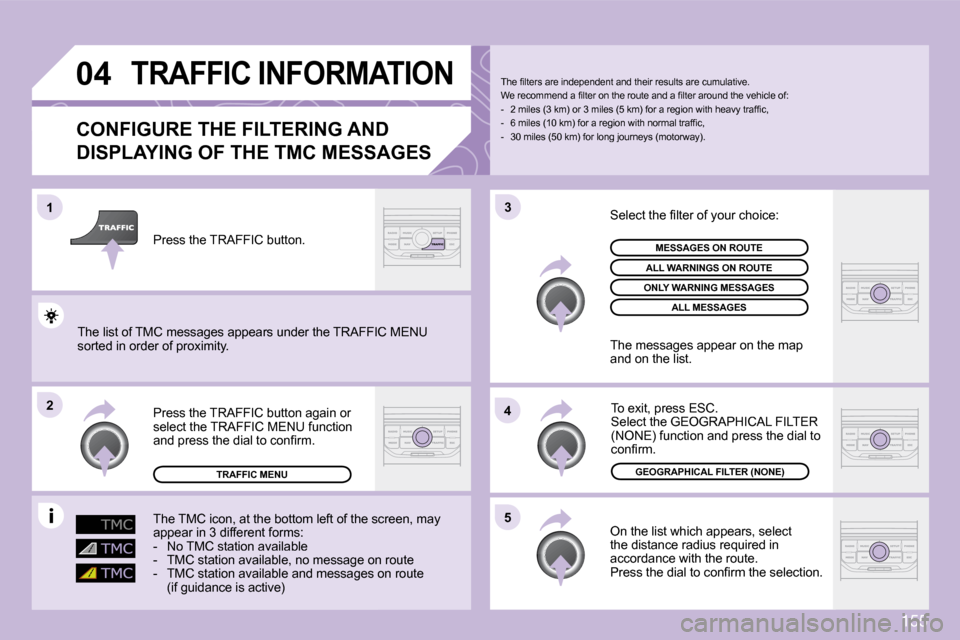

TRAFFIC INFORMATION
CONFIGURE THE FILTERING AND
DISPLAYING OF THE TMC MESSAGES
On the list which appears, select the distance radius required in accordance with the route. Press the dial to confi rm the selection.
Press the TRAFFIC button again or select the TRAFFIC MENU function and press the dial to confi rm.
GEOGRAPHICAL FILTER (NONE)
Press the TRAFFIC button.
The fi lters are independent and their results are cumulative. We recommend a fi lter on the route and a fi lter ar ound the vehicle of: - 2 miles (3 km) or 3 miles (5 km) for a region with heavy traffi c, - 6 miles (10 km) for a region with normal traffi c, - 30 miles (50 km) for long journeys (motorway).
To exit, press ESC. Select the GEOGRAPHICAL FILTER (NONE) function and press the dial to confi rm.
The list of TMC messages appears under the TRAFFIC MENU The list of TMC messages appears under the TRAFFIC MENU sorted in order of proximity.
Select the fi lter of your choice:
MESSAGES ON ROUTE
ALL WARNINGS ON ROUTE
ONLY WARNING MESSAGES
ALL MESSAGES
The messages appear on the map and on the list.
TRAFFIC MENU
The TMC icon, at the bottom left of the scthe screen, may appear in 3 different forms: - No TMC station available - TMC station available, no message on route - TMC station available, no message on route - TMC station available and messages on route - TMC station available and messages on route (if guidance is active)

156
05
3
2
1
1
SELECTING A STATION
When the current radio station is displayed on the screen, press the dial.
The radio source short-cuts menu appears and provi
desovides access to the following short-cuts:
Select the function required and press the dial to confi rm to gain access to the corresponding settings.
TRAFFIC INFO (TA)
The RDS, if displayed, allows you to continue listening to the same The RDS, if displayed, allows you to continue listening to the same station by means of the frequency following. Howeve r, in certain station by means of the frequency following. However, in certain conditions, this RDS station cannot be followed throughout the entire conditions, this RDS station cannot be followed throughout the entire country as radio stations do not cover 100 % of the terrie territory. This explains the loss of reception of the station during a journey. explains the loss of reception of the station during a journey.
The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS following mode. Thi s phenomenon is a normal result of the way in which radio waves are transmitted and does n ot in any way indicate a failure of the audio equipment.
RDS - REGIONAL MODE - TRAFFIC INFO
Press the RADIO button to display the list of stations received locally sorted in alphabetical order. Select the station required by turning the dial and press to confi rm.
While listening to the radio, press one of the buttons to select the previous or next station on the list.
Press one of the buttons on the numeric keypad for more than Press one of the buttons on the numeric keypad for more than 2 seconds to store the current station. Press the button on the numeric keypad to recall the stored radio Press the button on the numeric keypad to recall the stored radio station.
RDS
RADIO TEXT
REGIONAL MODE
AM
RADIO
A long press of one of the buttons starts the automatic search for a station with a lower or higher frequency.

157
06 MUSIC MEDIA PLAYERS
CD, MP3/WMA SD CARD
INFORMATION AND ADVICE
If the GPS is used, the navigation SD card must remain in the system's reader. In this case, it is not possible to play an SD card containing MP3 fi les.
In order to be able to play a recorded CDR or CDRW , wRW, when recording it is preferable to select the ISO 9660 level 1, 2 or Joliet recording it is preferable to select the ISO 9660 level 1, 2 or Joliet standard. If the disc is recorded in another format it may not be playbe played correctly. It is recommended that the same recording standard is always used It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible (4x maximum) for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality. In the particular case of a multi-session CD, the Joliet standard is In the particular case of a multi-session CD, the Joliet standard is recommended.
The audio equipment will only play audio fi les wit h the extension The audio equipment will only play audio fi les with the extension ".mp3" with a speed of between 8 Kbps and 320 Kbps and the ".mp3" with a speed of between 8 Kbps and 320 Kbps and the extension ".wma" with a speed of between 5 Kbps and 384 Kbps. extension ".wma" with a speed of between 5 Kbps and 384 Kbps. It also supports the VBR (Variable Bit Rate) mode. No other type of fi le (.mp4, m3u...) can be played.
The MP3 format, an abbreviation of MPEG 1,2 & 2.5 Audio Layer 3 The MP3 format, an abbreviation of MPEG 1,2 & 2.5 Audio Layer 3 and the WMA format, an abbreviation of Windows Medi Media Audio and the property of Microsoft, are audio compression standastandards which permit the recording of several tens of music fi les on a single disc. permit the recording of several tens of music fi les on a single disc.
It is advisable to restrict fi le names to 20 characters, without using It is advisable to restrict fi le names to 20 characters, without using special characters (e.g.: " " ? ; ù) to avoid any p laying and displaying special characters (e.g.: " " ? ; ù) to avoid any playing and displaying problems.
During play, exit the SD Card source before removi ng the SD card During play, exit the SD Card source before removing the SD card from its reader.
To avoid any risk of theft, remove the SD card when youen you leave your vehicle with the roof down.
