Citroen C3 PICASSO 2013 1.G Owner's Manual

9
Driving
139
Programming
)Turn dial 1 to the "CRUISE"
position:
the cruise control mode is selectedbut is not switched on (PAUSE).

Exceeding the programmed speed

Intentional or unintentional exceeding of the programmed speed
results in flashing of this speed in the screen.
Return to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically cancels theflashing of the speed.

Return to normal driving
)Turn dial 1to the "0"
position: the cruise control mode is
deselected. The display returns to the distance recorder.



Operating fault

In the event of a cruise control malfunction,
the speed is cleared resulting in flashing of the dashes.
Have it checked by a CITROËN dealer or a
qualified workshop. )Set the programmed speed by accelerating to the required speed,
then press button 2or 3(e.g.: 70 mph (11 0 k m/h)).
)Switch off the cruise control by pressing button 4
: this is confirmed in the screen (PAUSE).
)Switch the cruise control back on by pressing button 4again.
You can then change the programmed speed using buttons 2 and 3:


- by + or - 1 mph (km/h) = shor t press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press.

When the cruise control is switched on,be careful if you maintain the pressure on one of the programmed speedchanging buttons: this may result in avery rapid change in the speed of your vehicle. Do not use the cruise control on slippery roads or in heavy traffic. On a steep descent, the cruise control will not be able to prevent the vehicle from exceeding the programmed speed.
To avoid any risk of jamming of the pedals:


- ensure that the mat is positioned correctly,

- never fit one mat on top of another.

Driving
140





Rear parking sensors System comprising four proximity sensors, located in the rear bumper.
This detects obstacles
(person, vehicle, tree, gate, etc.) behind the vehicle. However, itcannot detect obstacles located just below thebumper. Activation
The system is activated as soon as reverse gear is engaged, accompanied by an audiblesignal. The proximity information is given by:
- an audible signal, which becomes more
rapid as the vehicle approaches the
obstacle,
- a
graphic in the multifunction screen, with
blocks which become increasingly closer to
the vehicle (depending on version).
Detection zone

When the distance between the rear of thevehicle and the obstacle is less than thirtycentimetres, the audible signal becomescontinuous and the "Danger" symbol appears
in the multifunction screen.
On completion of the manoeuvre, when you exit
reverse gear, the system becomes inactive. An object, such as a stake, a roadworks cone or any other similar object may be detected at the beginning of themanoeuvre, but may no longer be detected when the vehicle comes close to it.
The parking sensors system cannot, in any circumstances, take the place of the vigilance and responsibility of thedriver.

9
Driving
141

Deactivation Reactivation

With the engine running, press button A
todeactivate the system permanently. Theindicator lamp in the button comes on.
The system will be deactivated automatically when towing a trailer or when a bicycle carrier is fitted (vehiclefitted with a towbar or bicycle carrier recommended by CITROËN).
In bad or wintry weather, ensure that the sensors are not covered with mud,frost or snow.
Press button Aagain to reactivate the system.
The indicator lamp in the button goes o
ff.
If there is an operating fault, when reverse gear is engaged, the ser vice warning lamp comes
on, accompanied by an audible signal (short
beep) and a message in the multifunction screen.

Driving
142

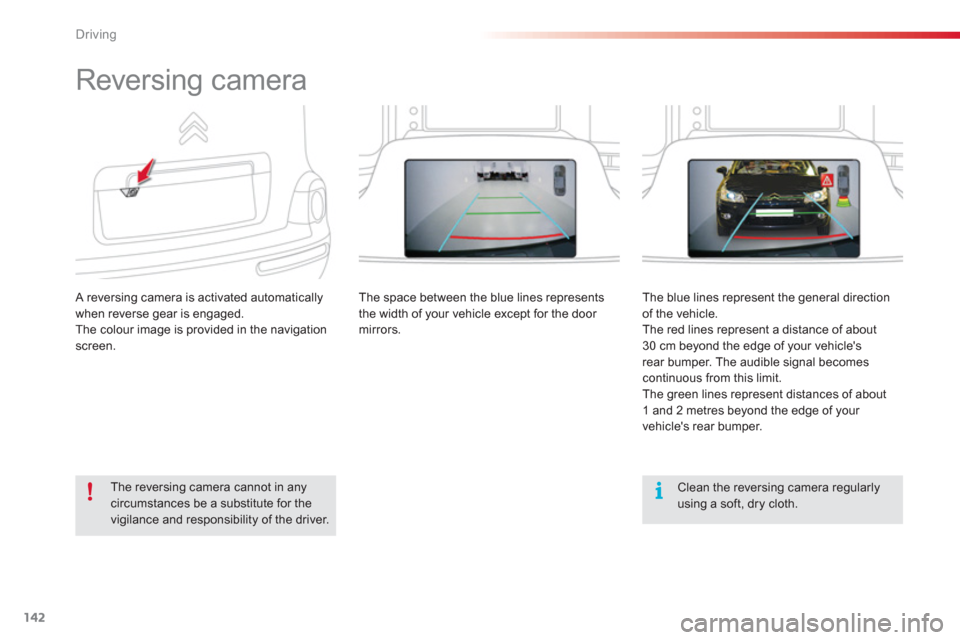

Reversing camera

A reversing camera is activated automatically
when reverse gear is engaged.The colour image is provided in the navigationscreen.
The space between the blue lines represents
the width of your vehicle except for the door
mirrors.
The blue lines represent the general direction of the vehicle.
The red lines represent a distance of about30 cm beyond the edge of your vehicle's
rear bumper. The audible signal becomes
continuous from this limit.
The green lines represent distances of about
1 and 2 metres beyond the edge of your
vehicle's rear bumper.


Clean the reversing camera regularlyusing a soft, dry cloth.



The reversing camera cannot in any circumstances be a substitute for thevigilance and responsibility of the driver.

10
Checks
143
TOTAL & CITROËN

Checks
144











Bonnet
)
Push the exterior safety catch B
to the leftand raise the bonnet.
)
Unclip the stay C
from its housing. )
Fix the stay in the notch to hold the bonnet open.


Closing
)Take the stay out of the support notch.)Clip the stay in its housing. )Lower the bonnet and release it at the end of its travel. )Pull on the bonnet to check that it is secured correctly.
)Open the front left door.)Pull the interior bonnet release lever A , located at the bottom of the door aper ture.
Opening
Before doing anything under the bonnet,
switch off the Stop & Star t system toavoid any risk of injury resulting from anautomatic change to START mode.

The location of the interior bonnetrelease lever prevents opening of the bonnet while the front left door is closed.

Do not open the bonnet in high winds.

When the engine is hot, handle theexterior safety catch and the bonnet stay with care (risk of burns).

10
Checks
145








Running out of fuel
(Diesel)
)Fill the fuel tank with at least five litres of
Diesel.)Open the bonnet. )Depending on version, unclip the cover togain access to the priming pump.)Squeeze and release the priming pump
until resistance is felt (could be from thefirst application) and fuel appears in the
transparent pipe with the green connector. )Operate the star ter until the engine star ts.)Depending on version, put the cover back
in position and clip it in place.)Close the bonnet.

If the engine does not star t at the firstattempt, do not try again. Operate the priming pump again, thenthe starter. I
f your vehicle is fitted with an HDI engine, the
fuel system must be primed if you run out of
fuel.
This system consists of a priming pump and a
transparent pipe under the bonnet.

Checks
146














Petrol engines
1.
Screenwash fluid reservoir.2.
Coolant header tank.3.Air filter.4.
Brake fluid reservoir.5.
Battery.
6.Fusebox.7. Engine oil dipstick. 8.Engine oil filler cap.
To avoid damaging the electrical units,the use of a high pressure washer in the engine compar tment is strictly prohibited .

10
Checks
147













Diesel engines
1.
Screenwash fluid reservoir. 2.Coolant header tank.3.Air filter.4.
Brake fluid reservoir.
5. Battery.
6.Fusebox.7. Engine oil dipstick.8.Engine oil filler cap.9.
Priming pump (on fuel filter).

Checks
148






Checking levels
Brake fluid level Oil level


The check is carried out either when
the ignition is switched on using theoil level indicator on the instrument
panel, or using the dipstick. Th
e brake fluid level should be close
to the "MA X" mark. If it is not, check
the brake pad wear.

Changing the fl uid

Refer to the ser vicing booklet for details of the
interval for this operation.

Engine oil change

Refer to the servicing booklet for details of the
interval for this operation.
In order to maintain the reliabilit
y of the engine
and emission control system, the use of
additives in the engine oil is prohibited.

Oil specifi cation

The oil must be the correct grade for your engine and conform to the manufacturer'srecommendations.


Fluid specifi cation

The brake fluid must conform to themanufacturer's recommendations and meet the
DOT3 or DOT4 standard.
If a level drops si
gnificantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.
Check all of these levels regularly, in line with the ser vicing booklet and the requirements of the warranty. Top them up if necessary, unless other wise indicated.

Ta k e c a r e w h e n w o r k i ng under the bonnet, as certain areas of the engine may be extremely
hot (risk of burns) and the cooling fan could star t at any time (even with the ignition off).
It is normal to top up the oil levelbetween two ser vices (or oil changes). CITROËN recommends that you check the level, and top up if necessary, every3 000 miles (5 000 kms). After topping up the oil, the check when switching on the ignition with the oil level indicator in the instrument panel is not valid during the 30 minutes after topping up. It will onl
y be correct if the vehicle is on level ground and the engine has been off for more
than 30 minutes.
