After changing a wheel
To store the punctured wheel in the
b o o t c o r r e c t l y , fi r s t r e m o v e t h e c e n -
t r a l c o v e r .
When using the "space-saving"
type spare wheel, do not exceed
5 0 m p h ( 8 0 k m / h ) .
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a CITROËN dealer
w i t h o u t d e l a y .
Have the punctured wheel repaired
and replace it on the vehicle as
s o o n a s p o s s i b l e .

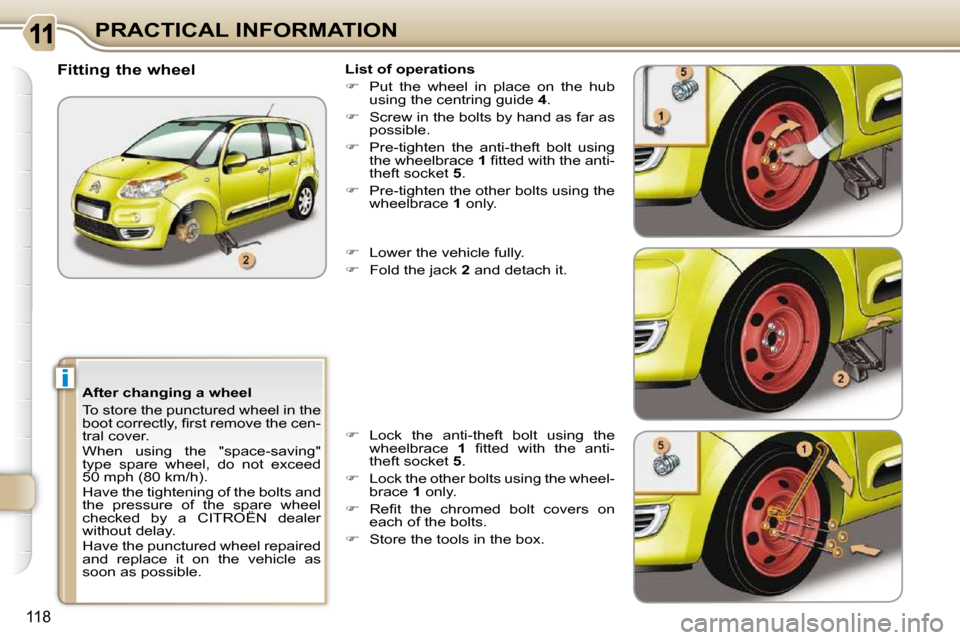

Fitting the wheel
List of operations
Put the wheel in place on the hub
using the centring guide 4 .
Screw in the bolts by hand as far as
p o s s i b l e .
Pre-tighten the anti-theft bolt using
the wheelbrace 1 fi t t e d w i t h t h e a n t i -
theft socket 5 .
Pre-tighten the other bolts using the
wheelbrace 1 o n l y .
L o w e r t h e v e h i c l e f u l l y .
Fold the jack 2 a n d d e t a c h i t .
Lock the anti-theft bolt using the
wheelbrace 1 fi t t e d w i t h t h e a n t i -
theft socket 5 .
Lock the other bolts using the wheel-
brace 1 o n l y .
R e fi t t h e c h r o m e d b o l t c o v e r s o n
e a c h o f t h e b o l t s .
S t o r e t h e t o o l s i n t h e b o x .
Page 132 of 207
i
!
i
!
i
119
PRACTICAL INFORMATION
CHANGING A BULB
Procedure for replacing a faulty bulb
with a new bulb
Front lights
1.
Direction indicators (H21 W amber).
2. Dipped headlamps (H7-55 W).
3. Main beam headlamps (H1-55 W).
4. Side lights (W 5 W).
5. Fog lamps (PSX24 W).
In certain climatic conditions (low
temperature, humidity), the pres-
ence of condensation on the in-
side of the headlamp and light
glass is normal ; it disappears
a few minutes after the lights are
s w i t c h e d o n .
Handle the bulbs using a dry
c l o t h .
T h e h e a d l a m p s a r e fi t t e d w i t h p o l y -
carbonate lenses, coated with a
protective varnish:
do not clean them with a dry
or abrasive cloth or using a
detergent or solvent product,
use a sponge and soapy water,
when using a high pressure
washer on stubborn dirt, do not
spend too long on the head-
lamps, lights and their sur-
rounds to avoid damaging their
v a r n i s h a n d t h e i r s e a l s .
Changing direction indicator bulbs Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
s p e c i fi c a t i o n s a n d c o l o u r .
R e m o v e t h e p l a s t i c p r o t e c t i v e c o v e r .
Pull the bulb-holder and replace the
b u l b .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
v e r s e o r d e r .
W h e n r e fi t t i n g , c l o s e t h e p l a s t i c
cover carefully to guarantee the
s e a l i n g o f t h e h e a d l a m p . If either of the direction indicator
w a r n i n g l i g h t s i s fl a s h i n g q u i c k l y ,
o n e o f t h e b u l b s i s f a u l t y .
Page 133 of 207
i
120
PRACTICAL INFORMATION Changing integrated direction
indicator side repeaters
Contact a CITROËN dealer to obtain re-
p l a c e m e n t r e p e a t e r s .
Insert a screwdriver on the edge of
t h e r e p e a t e r .
Tilt the screwdriver to extract the re-
p e a t e r a n d r e m o v e i t .
D i s c o n n e c t t h e r e p e a t e r c o n n e c t o r .
When removing:
- be careful not to damage the paint- work of your vehicle with the screw-
driver,
- do not allow the wire and the c o n n e c t o r t o s l i d e i n s i d e t h e w i n g .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
r e v e r s e o r d e r .
Changing main beam headlamp
bulbs
Remove the protective plastic cover
b y p u l l i n g o n t h e t a b .
D i s c o n n e c t t h e b u l b c o n n e c t o r .
Move the springs to release the
b u l b .
R e m o v e t h e b u l b a n d c h a n g e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
v e r s e o r d e r .
Changing side light bulbs
Remove the protective plastic cover
b y p u l l i n g o n t h e t a b .
P u l l t h e b u l b - h o l d e r .
R e m o v e t h e b u l b a n d r e p l a c e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
v e r s e o r d e r .
Changing dipped headlamp bulbs
Remove the protective plastic cover
b y p u l l i n g o n t h e t a b .
T u r n t h e b u l b - h o l d e r b y a q u a r t e r
t u r n .
R e m o v e t h e b u l b a n d c h a n g e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
r e v e r s e o r d e r .
I f y o u e x p e r i e n c e a n y d i f fi c u l t y
in replacing bulbs, contact your
C I T R O Ë N d e a l e r .
Page 134 of 207
i
121
PRACTICAL INFORMATION

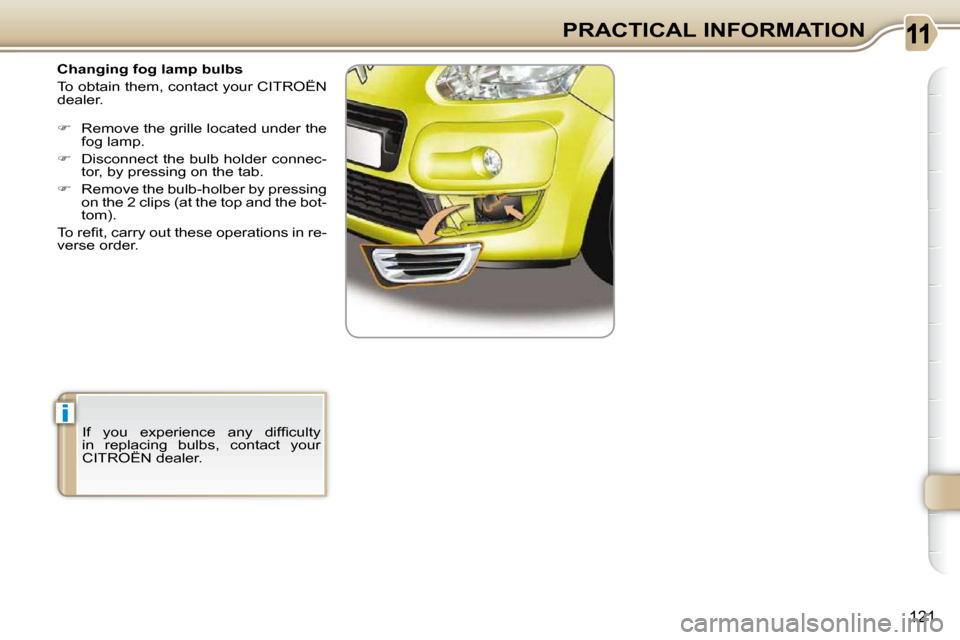

Changing fog lamp bulbs
To obtain them, contact your CITROËN
d e a l e r .
Remove the grille located under the
f o g l a m p .
D i s c o n n e c t t h e b u l b h o l d e r c o n n e c -
t o r , b y p r e s s i n g o n t h e t a b .
Remove the bulb-holber by pressing
on the 2 clips (at the top and the bot-
t o m ) .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
v e r s e o r d e r .
I f y o u e x p e r i e n c e a n y d i f fi c u l t y
in replacing bulbs, contact your
C I T R O Ë N d e a l e r .
Page 135 of 207
PRACTICAL INFORMATION

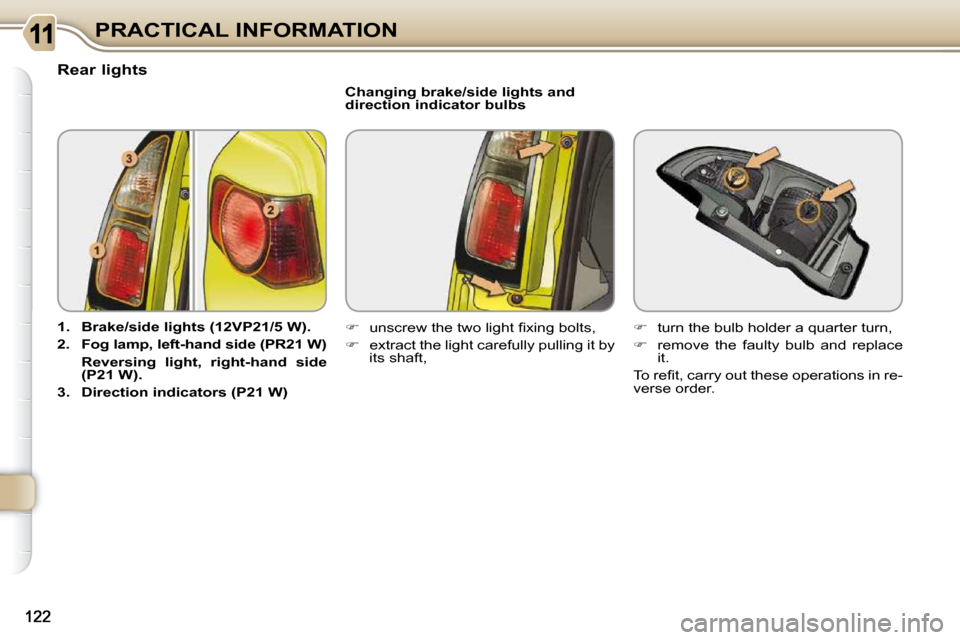

Rear lights
1. Brake/side lights (12VP21/5 W).
2. Fog lamp, left-hand side (PR21 W)
Reversing light, right-hand side
(P21 W).
3. Direction indicators (P21 W) Changing brake/side lights and
direction indicator bulbs
u n s c r e w t h e t w o l i g h t fi x i n g b o l t s ,
extract the light carefully pulling it by
its shaft,
t u r n t h e b u l b h o l d e r a q u a r t e r t u r n ,
remove the faulty bulb and replace
i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
v e r s e o r d e r .
Page 136 of 207
123
PRACTICAL INFORMATION
Changing fog/reversing light bulbs
open the boot,
press on the tabs using 2 screwdrivers,
disconnect the light connector,
t u r n t h e b u l b h o l d e r b y a q u a r t e r
turn,
r e m o v e t h e b u l b a n d r e p l a c e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
v e r s e o r d e r . Changing the third stop light bulbs
(4 x W 5 W bulbs)
open the boot,
remove the two plugs located on the
boot inner panel,
press on the body of the light with
2 screwdrivers to remove it from its
housing,
turn the corresponding bulb-holder
a q u a r t e r t u r n ,
p u l l t h e b u l b a n d r e p l a c e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
v e r s e o r d e r . Changing the number plate light
bulbs (W 5 W)
insert a thin screwdriver into one of
the lens' exterior holes,
p u s h i t o u t w a r d s t o u n c l i p .
r e m o v e t h e l e n s .
p u l l t h e b u l b a n d r e p l a c e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
v e r s e o r d e r .
Page 137 of 207
124
PRACTICAL INFORMATION

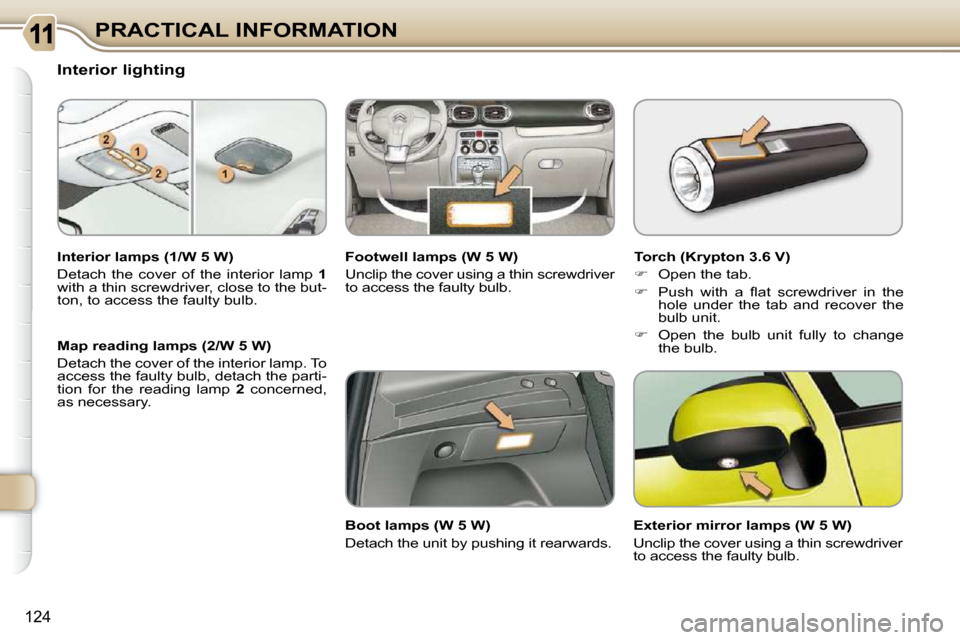

Interior lighting
Interior lamps (1/W 5 W)
D e t a c h t h e c o v e r o f t h e i n t e r i o r l a m p 1
with a thin screwdriver, close to the but-
t o n , t o a c c e s s t h e f a u l t y b u l b .
Map reading lamps (2/W 5 W)
D e t a c h t h e c o v e r o f t h e i n t e r i o r l a m p . T o
access the faulty bulb, detach the parti-
tion for the reading lamp 2 concerned,
a s n e c e s s a r y . Footwell lamps (W 5 W)
Unclip the cover using a thin screwdriver
t o a c c e s s t h e f a u l t y b u l b .
Boot lamps (W 5 W)
D e t a c h t h e u n i t b y p u s h i n g i t r e a r w a r d s . Torch (Krypton 3.6 V)
O p e n t h e t a b .
P u s h w i t h a fl a t s c r e w d r i v e r i n t h e
hole under the tab and recover the
b u l b u n i t .
Open the bulb unit fully to change
t h e b u l b .
Exterior mirror lamps (W 5 W)
Unclip the cover using a thin screwdriver
t o a c c e s s t h e f a u l t y b u l b .
Page 138 of 207
i
!
125
PRACTICAL INFORMATION CITROËN will not accept responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying malfunc-
tions resulting from the installation
of accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
a d d i t i o n a l e q u i p m e n t c o n n e c t e d e x -
c e e d s 1 0 m i l l i a m p e r e s .
Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard
o r o p t i o n a l e q u i p m e n t .
Before installing other electrical
e q u i p m e n t o r a c c e s s o r i e s o n y o u r
v e h i c l e , c o n t a c t a C I T R O Ë N d e a l e r .
CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
c o r r e s p o n d i n g f u n c t i o n .
Access to the tools
The extraction pliers and the spare fuse
storage compartment are installed on
t h e b a c k o f t h e f a s c i a f u s e b o x c o v e r .
To gain access to them:
unclip the cover by pulling on the
side,
remove the cover completely,
r e m o v e t h e p l i e r s . Changing a fuse
Before changing a fuse, the cause of
t h e f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i -
fi e d .
Identify the faulty fuse by checking
t h e c o n d i t i o n o f i t s fi l a m e n t .
Use the special pliers to extract the
f u s e f r o m i t s h o u s i n g .
Always replace the faulty fuse with a
f u s e o f t h e s a m e r a t i n g .
Check the correspondence between
the number etched on the box, the
rating etched on the fuse and the ta-
b l e s b e l o w .
Correct Incorrect
Page 139 of 207
126
PRACTICAL INFORMATION
Fascia fuses
The fuse box is placed in the lower sec-
t i o n o f t h e f a s c i a ( l e f t - h a n d s i d e ) .
Access to the fuses
refer to the paragraph "Access to
t h e t o o l s " . Fuse tables
Fuse N° Rating Functions
FH36 5 A T r a i l e r r e l a y u n i t .
FH37 15 A T r a i l e r a c c e s s o r i e s s o c k e t s u p p l y .
FH38 20 A N a v i g a t i o n .
FH39 20 A H e a t e d s e a t s .
FH40 30 A T r a i l e r r e l a y u n i t .
Fuse N° Rating Functions
F1 15 A R e a r w i p e r .
F2 - N o t u s e d .
F3 5 A A i r b a g s a n d p r e t e n s i o n e r s c o n t r o l u n i t .
F4 10 A Steering wheel angle sensor, air conditioning, clutch
s w i t c h , p a r t i c l e fi l t e r p u m p , d i a g n o s t i c s o c k e t , a i r -
fl o w m e t e r .
F5 30 A Electric windows panel, passenger's electric window
c o n t r o l , f r o n t e l e c t r i c w i n d o w s m o t o r .
F6 30 A Rear electric windows motor and driver's electric
w i n d o w m o t o r .
F7 5 A Courtesy and front map reading lights, glove box
l i g h t i n g , t o r c h , r e a r r e a d i n g l i g h t s .
Page 140 of 207
127
PRACTICAL INFORMATION
Fuse N° Rating Functions
F8 20 A M u l t i f u n c t i o n d i s p l a y , a u d i o s y s t e m , n a v i g a t i o n r a d i o .
F9 30 A A u d i o s y s t e m ( fi t t e d a s a n o p t i o n ) , 1 2 V s o c k e t ,
l i g h t e r .
F10 15 A S t e e r i n g w h e e l c o n t r o l s .
F11 15 A I g n i t i o n , d i a g n o s t i c s o c k e t .
F12 15 A R a i n / b r i g h t n e s s s e n s o r , t r a i l e r r e l a y u n i t .
F13 5 A M a i n s t o p s w i t c h , e n g i n e r e l a y u n i t .
F14 15 A Parking assistance control unit, seat belt unfastened
warning lamp, airbag control unit, instrument panel,
a i r c o n d i t i o n i n g , U S B B o x .
F15 30 A L o c k i n g .
F16 - N o t u s e d .
F17 40 A R e a r s c r e e n a n d e x t e r i o r m i r r o r s d e - i c i n g .
SH - P A R C s h u n t .
