MONITORING
Warning lamp is on Cause Action/Observations
Maximum
coolant
temperature fi x e d r e d .
The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before
topping up the level, if necessary.
If the problem persists, contact a CITROËN dealer.
Engine oil
pressure fi x e d . There is a fault with the
engine lubrication system. Stop as soon it is safe to do so.
Park, switch off the ignition and contact a
CITROËN dealer.
Battery
charge fi x e d . The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut alter-
nator belt, ...). The warning lamp should go off when the engine
is started.
If it does not switch off, contact a CITROËN deale
r.
Door(s) open fi x e d i f t h e
speed is
below 6 mph (10 km/h).
A door or the boot is still open. Close the door or boot.
fi x e d a n d
accompanied
by an audible signal if the speed is
above 6 mph (10 km/h).
Page 22 of 224
25
MONITORING
Warning lamp is on Cause Action/Observations
Airbags temporarily.
This lamp comes on for a
few seconds when you turn
on the ignition, then switches
off. This lamp should switch off when the engine is
started.
If it does not switch off, contact a CITROËN
dealer.
fi x e d . One of the airbag or seat
belt pretensioner systems
has a fault. Have it checked by a CITROËN dealer.
Front seat belt
not fastened/ unfastened fi x e d t h e n
fl a s h i n g
accompanied by an
increasing
audible signal. The driver and/or the front
passenger has not fastened
or has unfastened their seat
belt.
Pull the strap then insert the tongue in the buckl e.
Rear seat belt
not fastened/ unfastened fi x e d t h e n
fl a s h i n g
accompanied
by an audible signal.
One or more rear passengers have unfastened their seat
belt.
Power
steering fi x e d . The power steering has a
fault. Drive carefully at reduced speed.
Have it checked by a CITROËN dealer.
Page 23 of 224
26
MONITORING
Service indicator
System which informs the driver when the
next service is due, in accordance with
the manufacturer's servicing schedule.
The point at which the service is due is
calculated from the last indicator zero
reset. It is determined by two param-
eters:
- the distance travelled,
- the time elapsed since the last ser- vice.
A few seconds after the ignition is
switched on, the spanner goes off ; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances. Less than 600 miles (1 000 km)
remain before the next service is due
Example: 400 miles (900 km) remain
before the next service is due.
For a few seconds after the ignition is
switched on, the display indicates:
A few seconds after the ignition is switched
on, the distance recorder resumes its nor-
mal operation. The spanner remains on
to indicate that a service must be carried
out soon.
Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For a few seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
distance recorder display line indicates
the distance remaining before the next
service is due.
Example: 1 700 miles (2 800 km) re-
main before the next service is due.
For a few seconds after the ignition is
switched on, the display indicates:
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no
service information appears on the dis-
play.
Page 24 of 224
i
i
27
MONITORING
Following this operation, if you wish
to disconnect the battery, lock the
v e h i c l e a n d w a i t a t l e a s t fi v e m i n u t e s
for the zero reset to be taken into ac-
count.
Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:
switch off the ignition,
press and hold the trip distance re-
corder zero reset button,
switch on the ignition; the distance
recorder display begins a count-
down,
when the display indicates "=0" , re-
lease the button; the spanner disap-
pears.
The distance remaining may be
weighted by the time factor, de-
pending on the type of driving.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
Service overdue
For a few seconds after the ignition is
switched on,
t h e s p a n n e r fl a s h e s to in-
dicate that the service must be carried
out as soon as possible.
Example: the service is overdue by
180 miles (300 km).
For a few seconds after the ignition is
switched on, the display indicates:
A few seconds after the ignition is
switched on, the distance recorder re-
sumes its normal operation. The span-
ner remains on . Retrieving the service information
You can access the service information
at any time.
Press the trip distance recorder zero
reset button.
The service information is displayed for a few seconds, then disappears.
Page 25 of 224
i
28
MONITORING
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Engine oil level indicator
System which informs the driver whether
the engine oil level is correct or not.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct
Oil level low
Oil level indicator fault
Dipstick
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL" , linked with the service warning
lamp, accompanied by an audible sig-
nal and a message in the multifunction
screen.
I f t h e l o w o i l l e v e l i s c o n fi r m e d b y a
check using the dipstick, the level must
be topped up to prevent damage to the
engine. T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL
--" . Consult a CITROËN dealer.
Refer to the "Checks" section to locate
t h e d i p s t i c k a n d t h e o i l fi l l e r c a p o n y o u r
engine. There are 2 marks on the
dipstick:
- A = max; never exceed
this level (risk of damage
to the engine),
- B = min; top up the level
v i a t h e o i l fi l l e r c a p , u s i n g
the grade of oil suited to
your engine.
Page 26 of 224

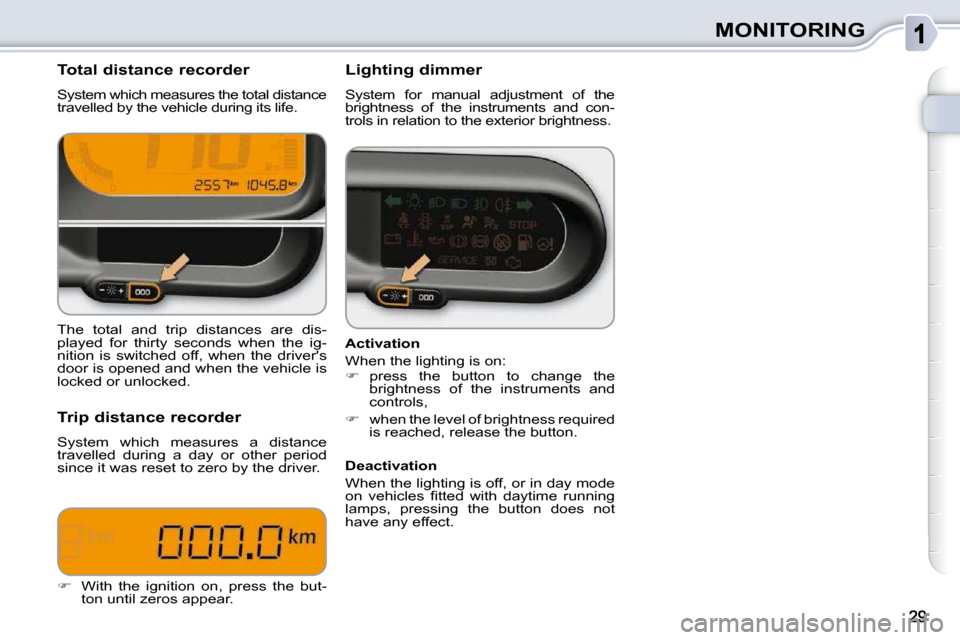

MONITORING
Total distance recorder
System which measures the total distance
travelled by the vehicle during its life. Lighting dimmer
System for manual adjustment of the
brightness of the instruments and con-
trols in relation to the exterior brightness.
The total and trip distances are dis-
played for thirty seconds when the ig-
nition is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
Trip distance recorder
System which measures a distance
travelled during a day or other period
since it was reset to zero by the driver.
With the ignition on, press the but-
ton until zeros appear. Activation
When the lighting is on:
press the button to change the
brightness of the instruments and
controls,
when the level of brightness required
is reached, release the button.
Deactivation
When the lighting is off, or in day mode
o n v e h i c l e s fi t t e d w i t h d a y t i m e r u n n i n g
lamps, pressing the button does not
have any effect.
Page 27 of 224
30
MULTIFUNCTION SCREENS
Displays on the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e ( t h i s fl a s h e s i f there is a risk of ice),
-
state of the openings (doors, boot, etc.),
- trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button.
MONOCHROME SCREEN A
(WITHOUT AUDIO EQUIPMENT)
Controls Main menu
There are three display control buttons:
- "ESC" to abandon the operation in
progress,
- "MENU" to scroll through the menus
or sub-menus,
- "OK" to select the menu or sub-
menu required.
Press the "MENU" button to scroll
through the various menus of the
main
menu :
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- language,
- units.
Press the "OK" button to select the
menu required.
Page 28 of 224
!
i
31
MULTIFUNCTION SCREENS
V e h i c l e c o n fi g u r a t i o n
Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active, not
active, faulty). L a n g u a g e
Once the "Language" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-Brasil,
Türkçe, Deutsch, English, Espanol).
D i s p l a y s e t t i n g s
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
Once you have selected a setting,
press the "OK" button to change its
value.
Wait for approximately ten seconds
without any action to allow the
changed data to be recorded or press
the "ESC" button to cancel.
The screen then returns to the normal
display.
O n c e t h e " V e h i c l e c o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section). Once the fuel consumption unit has
been changed to mpg, the informa-
tion relating to speed and distance
also changes to miles.
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when
stationary.
Page 29 of 224
32
MULTIFUNCTION SCREENS
MONOCHROME SCREEN A Controls
Displays on the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e ( t h i s fl a s h e s i f there is a risk of ice),
- state of the openings (doors, boot...),
- audio sources (radio, CD...),
- trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button. Main menu
Press the "MENU" button for access
to the main menu , then press the
" " or " " buttons to scroll through
the various menus:
- radio-CD,
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- language,
- units.
Press the "OK" button to select the
menu required.
From the audio equipment control panel,
you can:
press the "MENU" button for access
to the main menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. Radio-CD
With the audio equipment switched on,
once the "Radio-CD" menu has been
selected you can activate or deactivate
the functions linked with use of the
radio (RDS, REG) or the CD (introscan,
s h u f fl e , C D r e p e a t ) .
For more information on the "Radio-
CD" application, refer to the Audio sys-
tem part of the "Audio and Telematics"
section.
Page 30 of 224
!
i
33
MULTIFUNCTION SCREENS Once the fuel consumption unit has
been changed to mpg, the informa-
tion relating to speed and distance
also changes to miles.
D i s p l a y s e t t i n g s
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
L a n g u a g e
Once the "Language" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100km, mpg or
km/l).
Once you have selected a setting,
press the " " or " " buttons to
change its value.
Press the " " or " " buttons to
switch respectively to the previous
or next setting.
Press the "OK" button to record the
change and return to the normal dis-
play or press the "ESC" button to
cancel.
V e h i c l e c o n fi g u r a t i o n
Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active, not
active, faulty).
O n c e t h e " V e h i c l e C o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section).
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when
stationary.
