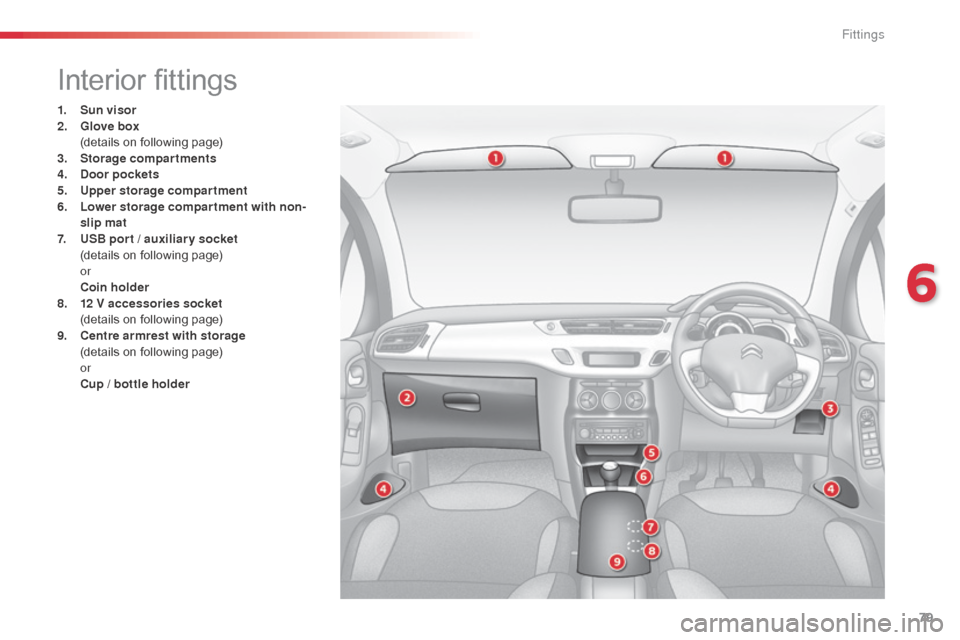

Interior fittings
1. Sun visor
2. Glove box
(

details on following page)
3.
S

torage compartments
4.
Doo

r pockets
5.
U

pper storage compartment
6.
L

ower storage compartment with non-
slip mat
7.
U

SB por t / auxiliar y socket
(

details on following page)


or


C
oin holder
8.
1

2 V accessories socket
(

details on following page)
9.
C

entre armrest with storage
(

details on following page)


or


C
up / bottle holder
6
Fittings

80
System comprising a panoramic tinted glass
area to increase lighting and vision in the cabin.
Fitted with a manual blind to improve thermal
comfort and sun visors to avoid dazzle.

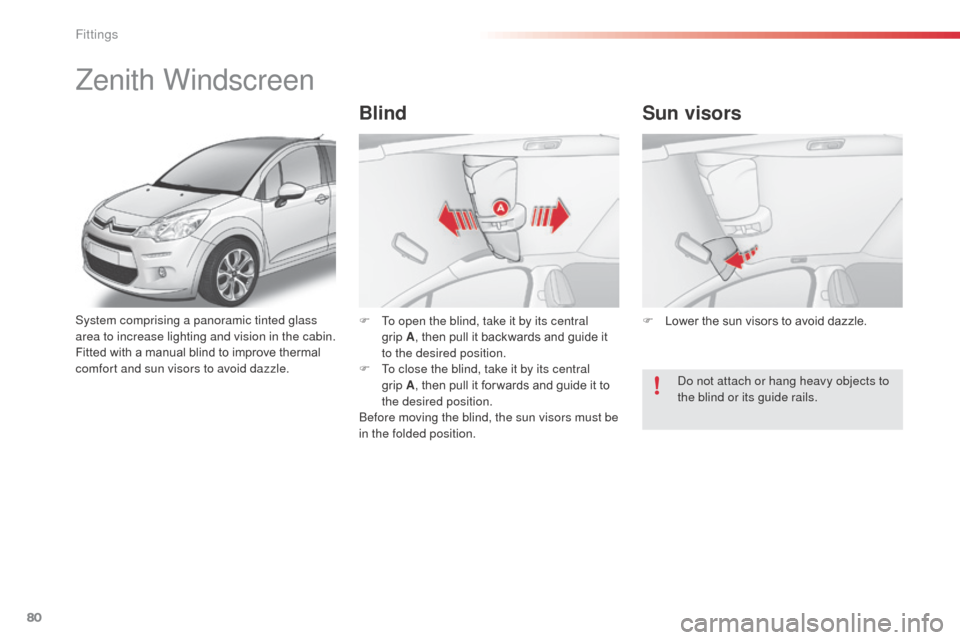

Zenith Windscreen
F To open the blind, take it by its central grip A, then pull it backwards and guide it
to the desired position.
F

T
o close the blind, take it by its central
grip
A, then pull it for wards and guide it to
the desired position.
be

fore moving the blind, the sun visors must be
in the folded position.
Blind
F Lower the sun visors to avoid dazzle.
Sun visors
do not attach or hang heavy objects to
the blind or its guide rails.
Fittings

81
Sun visorGlove box
F To open the glove box, raise the handle.
It houses the front passenger airbag
deactivation switch A.
It gives access to the dashboard fusebox (see
the "Practical information - § Changing a fuse"
section).
Centre armrestComfort and storage system for the driver and
front passenger.
F

F
or access to the closed storage box, lift
the lever to open the lid.
F

F
or access to the open storage box below
the armrest, lift the complete armrest
towards the rear.
These can be used for portable devices (mobile
phone, MP3 player...) which can be connected
to the US
b

port / auxiliary socket or charged
from the 12 V socket in the centre console.
Version with Zenith windscreen
Refer to the "Familiarisation - Zenith
windscreen" section.
Version without Zenith windscreen
The sun visors are fitted with a courtesy mirror,
with concealing flap for the driver and a ticket /
card holder. Component which protects against sunlight
from the front or the side.
Storage
6
Fittings

82
USb Player
The USb port is located in the "AUX " box on
the centre console.
It permits the connection of a portable device,
such as a digital audio player of the iPod
®
generation 5 and later type or USB memory
stick type.
It reads the audio file formats (mp3, ogg,
wma, wav...) which are transmitted to your
audio equipment and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio equipment
control panel and display them on the
multifunction screen.
For more information on the use of this
equipment, refer to the "
au

dio system" section.
12 V accessory
socket
F To connect a 12 V accessory (max power: 120 W), lift the cover and connect a
suitable adaptor.
auxiliary socket
The auxiliary socket is located in the " AUX" box
on the centre console.
It permits the connection of a portable device,
such as a digital audio player of the iPod
® type,
to listen to your music files using the vehicle's
speakers.
For more information on the use of this
equipment, refer to the "
au

dio system" or
"eMyWay" section. The management of the files is done
using your portable device.
When it is in use, the portable device
charges automatically.
Fittings

83
Storage drawer
The storage drawer is located under the
driver's seat.
Opening
F Raise the front of the drawer and pull it.
Removal
F Bring the drawer to the end of its travel.
F P ress the ends of the slides.
F

R
aise the drawer and pull it fully.
Refitting
F Engage the drawer in its slides.
F at t he end of its travel, press on the top of
the drawer to secure it.
Mats
Fitting
When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the
carpet.
Removal
To remove the mat on the driver's side:
F m ove the seat as far back as possible,
F

un
clip the fixings,
F

r
emove the mat.
Refitting
To refit the mat on the driver's side:
F p osition the mat correctly,
F

r
efit the fixings by pressing,
F

c
heck that the mat is secured correctly.
To avoid any risk of jamming of the
pedals:
-

o
nly use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
-

n
ever fit one mat on top of another.
The use of mats not approved by
CITROËN may inter fere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.
The mats approved by CITR
oËn

have
two fixings located below the seat.
do n

ot place heavy objects in the
drawer. Removable carpet protection.
6
Fittings

84
Boot fittings
1. Rear parcel shelf (
see following page for details)
2.
Hoo

ks
(

see following page for details)
3.
L

ocation for Hi-Fi amplifier
4.
S

towing rings
5.
S

torage box (version equipped with a
temporary puncture repair kit)
(

see following page for details)


or
T

ool box (version equipped with a spare
wheel)
(

refer to section "Practical Information - §
Changing a wheel")
Fittings

85

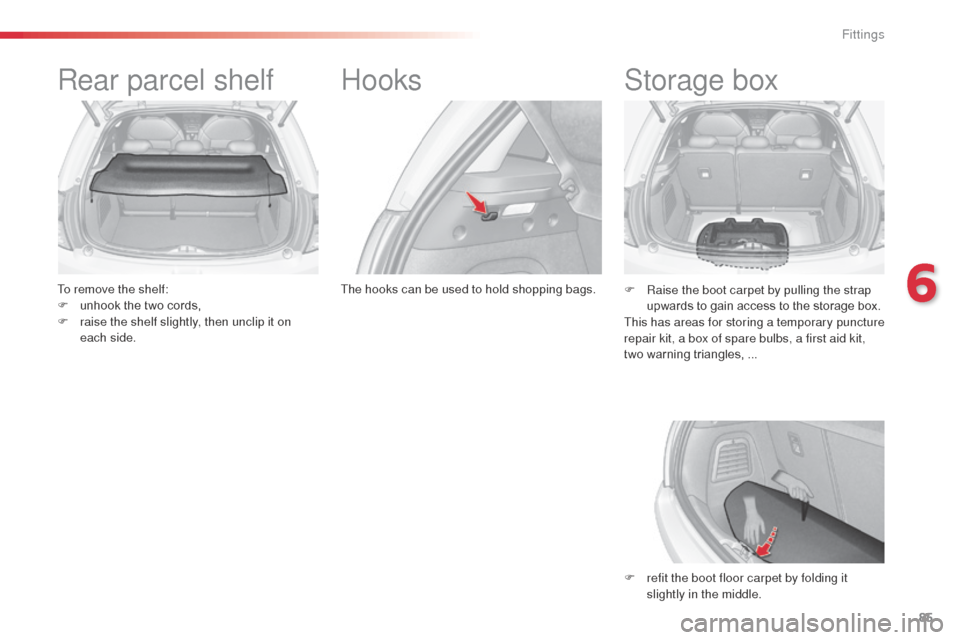

Rear parcel shelf
To remove the shelf:
F u nhook the two cords,
F

r
aise the shelf slightly, then unclip it on
each side.
Hooks
The hooks can be used to hold shopping bags.
Storage box
F Raise the boot carpet by pulling the strap upwards to gain access to the storage box.
This has areas for storing a temporary puncture
repair kit, a box of spare bulbs, a first aid kit,
two warning triangles, ...
F

r
efit the boot floor carpet by folding it
slightly in the middle.
6
Fittings

86
General points relating to child seats
Although one of CITROËN main criteria when designing your vehicle, the safety of your children
also depends on you.CITROËN recommends that children
should travel on the rear seats of your
vehicle:
-

"
rearward-facing" up to the age of 3,
-

"
forward-facing" over the age of 3.
*

T
he regulations on carrying children are
specific to each country. Refer to the
legislation in force in your country.
For maximum safety, please observe the
following recommendations:
-

i
n accordance with European regulations,
all children under the age of 12 or less
than one and a half metres tall must
travel in approved child seats suited to
their weight , on seats fitted with a seat
belt or IS
oF

IX mountings*,
-

s
tatistically, the safest seats in your
vehicle for carr ying children are the
rear seats,
-

a c
hild weighing less than 9 kg must
travel in the "rear ward facing" position
both in the front and in the rear.
Child safety

87

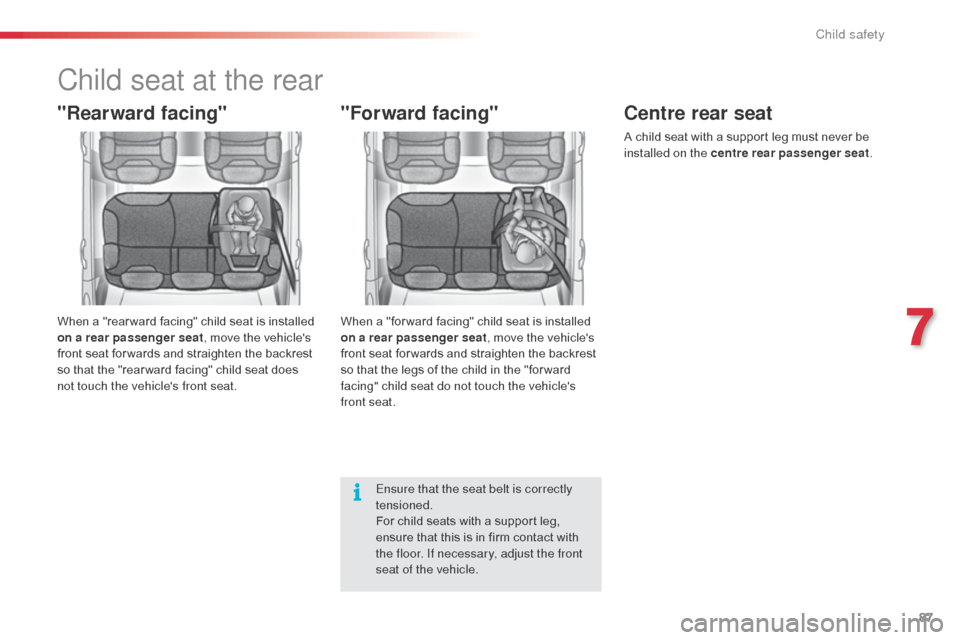

Child seat at the rear
"Rearward facing"
When a "rear ward facing" child seat is installed
on a rear passenger seat, move the vehicle's
front seat for wards and straighten the backrest
so that the "rear ward facing" child seat does
not touch the vehicle's front seat.
"Forward facing"
When a "for ward facing" child seat is installed
on a rear passenger seat , move the vehicle's
front seat for wards and straighten the backrest
so that the legs of the child in the "for ward
facing" child seat do not touch the vehicle's
front seat.
Ensure that the seat belt is correctly
tensioned.
For child seats with a support leg,
ensure that this is in firm contact with
the floor. If necessary, adjust the front
seat of the vehicle.
Centre rear seat
A child seat with a support leg must never be
installed on the centre rear passenger seat .
7
Child safety

88

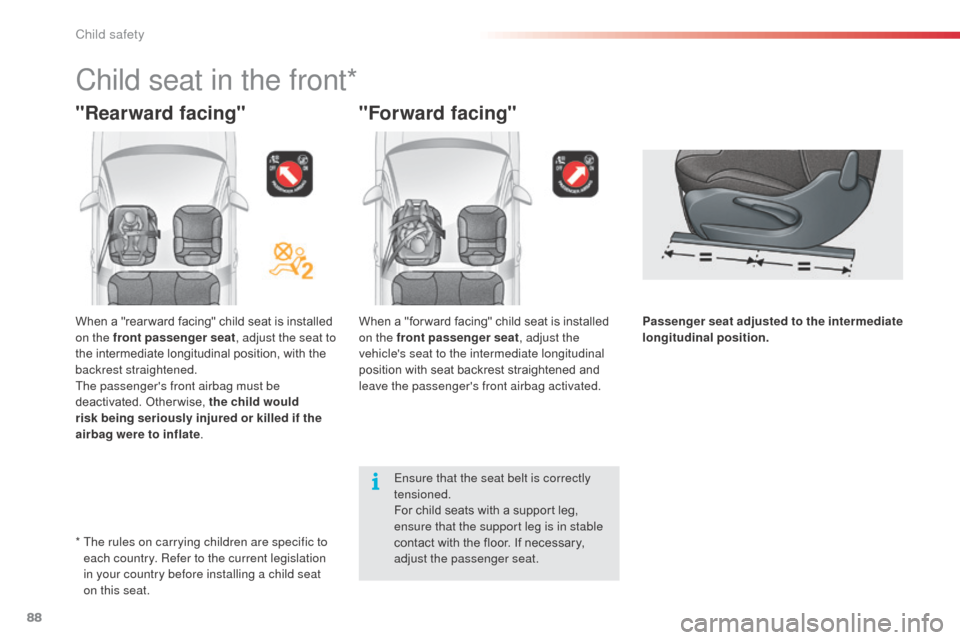

"Forward facing"
When a "for ward facing" child seat is installed
on the front passenger seat, adjust the
vehicle's seat to the intermediate longitudinal
position with seat backrest straightened and
leave the passenger's front airbag activated.
"Rearward facing"
When a "rear ward facing" child seat is installed
on the front passenger seat , adjust the seat to
the intermediate longitudinal position, with the
backrest straightened.
The passenger's front airbag must be
deactivated. Otherwise, the child would
risk being seriously injured or killed if the
airbag were to inflate . Passenger seat adjusted to the intermediate
longitudinal position.
Ensure that the seat belt is correctly
tensioned.
For child seats with a support leg,
ensure that the support leg is in stable
contact with the floor. If necessary,
adjust the passenger seat.
Child seat in the front*
* The rules on carrying children are specific to each country. Refer to the current legislation
in your country before installing a child seat
on this seat.
Child safety
