audio pre-equipment
Your vehicle is equipped with certain factory-
fitted audio equipment:
-
a d
ual-function aerial at the rear of the roof,
-

a c
oaxial aerial cable,
-
b

asic interference suppression,
-

c
abling for speakers in the front doors and
tweeters in the dashboard,
-

c
abling for speakers in the rear doors
-

a 4
0 -way connector.
be

fore installing a radio unit or
speakers in your vehicle, you can
contact a CITROËN dealer who will
give you the part number for a suitable
wiring harness.Fitting an audio unit
F Unclip the storage box on each side using a screwdriver and pull out.
You will then have access to an aerial coaxial
cable and a 40 -way connector.
Then refer to the instructions provided with
your audio unit.
Fitting speakers
It is possible to fit:
- 1 65 mm diameter speakers in the front
doors,
-

1
30 mm diameter speakers in the rear
doors,
-

2
2.5 mm diameter tweeters in the top of the
dashboard.
The audio unit is fitted in place of one of the
storage boxes located below the heating and
air conditioning control panel.
3
Comfort

60
Connector lines
a1(+) Right hand rear speaker
a2(

+) Right hand front speaker and tweeter
A3 (+) Left hand front speaker and tweeter
A4 (+) Left hand rear speaker
a

5 (-) Right hand rear speaker
a

6 (-) Right hand front speaker and tweeter
A7 (-) Left hand front speaker and tweeter
a

8 (-) Left hand rear speaker
a

9
no
t used
a

10
no
t used
a11no

t used
a

12 (+) Permanent
A13
no

t used
A14
no

t used
a

15 (+) Ignition switched (operation of the audio system only with the ignition on)
a

16 Earth Never use a separate wire to connect
the (+) of your audio equipment (risk of
discharging of the battery).
Comfort

61
"Comfort"
sun blinds, door deflectors, insulated module,
smoking kit, fragrance cartridges, front centre
armrest, moveable mirror, reading lamp,
front and rear parking sensors, cup holder,
coat hanger for head restraint, solar film for
windows, security film for windows... "Security and safety":

anti-theft alarm, wheel security bolts, stolen
vehicle tracking system, breathalyser, first aid
kit, warning triangle, high visibility vest, dog
guard, snow chains, non-slip covers, foglamps
kit, child seats and booster cushions, pet
transpor t protectors...
Conversion kits
You can obtain an "Enterprise" kit to convert a
trade vehicle to a private car and vice-versa.
"Style":
leather steering wheel, gear lever knobs,
front spoiler, rear diffuser, bumper trims, front
foglamp trims, parking brake lever trims,
aluminium footrest, alloy wheels, wheel trims,
chrome tailgate finisher, chrome tailpipe
finisher, chrome mirror shells, chrome door
handles ... "Transport solutions":
boot tray, boot carpet, boot net, boot
containers, transverse roof bars, bicycle
carrier, ski carrier, roof boxes, towbars, towbar
wiring harnesses...
accessoriesA wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts are all suitable for your vehicle and benefit from CITROËN's recommendation and warranty.
*

T
o avoid any risk of jamming of the pedals:
-

e
nsure that the mat is positioned and
secured correctly,
-

n
ever fit one mat on top of another.
"Protection":

mats*, mudflaps, seat covers, door sill
protectors, bumper protection strips, vehicle
protective cover, side protectors, boot mat, boot
liner...
If a towbar and wiring are fitted outside
the CITROËN
dealer network, this must
be done making use of the vehicle's
electrical pre-equipment and following
the manufacturer's recommendations.
3
Comfort

62
"Multimedia": b
luetooth® hands-free kit, support for b
luetooth® hands-free kit, audio systems with
steering controls inter face, portable satellite
navigation system, semi-integral portable
navigation system carrier, mapping updates
for integral navigation system,
d
Vd
player,
auxiliary cable for connecting a portable MP3
player, US
b

b
o
x, Hi-Fi module, speakers, Wi-Fi
on board, rear multimedia support, telephone/
smartphone support, 230 V socket, telephone
charge compatible with iPhone...
Installation of radio
communication transmitters
before installing any after-market radio
communication transmitter, you can
contact a CITR
oËn

dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility
Directive
(2004/104/EC).
de
pending on the legislation in force in
the country, certain safety equipment
may be compulsory: high visibility
safety vests, warning triangles,
breathalyzers, spare bulbs, spare fuses,
fire extinguisher, first aid kit, mud flaps
at the rear of the vehicle.
by g

oing to a CITR
oËn

dealer, you can also
obtain cleaning and maintenance products
(interior and exterior) - including ecological
products in the "TECH
n

a
T

URE" range -
products for topping up (screenwash fluid...),
touch up pens and paint aerosols for the exact
colour of your vehicle, recharges (cartridge for
the temporary puncture repair kit...), ... The fitting of electrical equipment or
accessories which are not recommended
by CITR
oËn

may result in a failure of
your vehicle's electronic system and
excessive electrical consumption.
Contact a CITR
oËn

dealer
for information on the range of
recommended equipment and
accessories.
Comfort

63
Remote control keySystem which permits central unlocking or locking of the vehicle using the door lock or from a distance. It is also used to locate and start the vehicle, as
well as providing protection against theft.
Unlocking the vehicle
Unfolding the key
F First press this button to unfold the key.
Unlocking using the remote
control
F Press the open padlock to unlock the vehicle.
Unlocking using the key
F Turn the key to the right in the driver's door lock to unlock the vehicle.
Locking the vehicle
Locking using the remote
control
F Press the closed padlock to lock the vehicle.
Locking using the key
F Turn the key to the left in the driver's door lock to lock the vehicle completely.
Locking is confirmed by fixed illumination
of the direction indicators for approximately
two
seconds.
ac

cording to version, the door mirrors fold at
the same time. Unlocking is confirmed by rapid flashing of
the direction indicators for approximately
two seconds.
ac

cording to version, the door mirrors unfold at
the same time. If one of the doors or the boot is still
open, the central locking does not take
place.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock itself
again automatically after thirty seconds
unless a door or the boot is opened.
The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a CITR
oËn
dealer or a
qualified workshop.
4
access

64

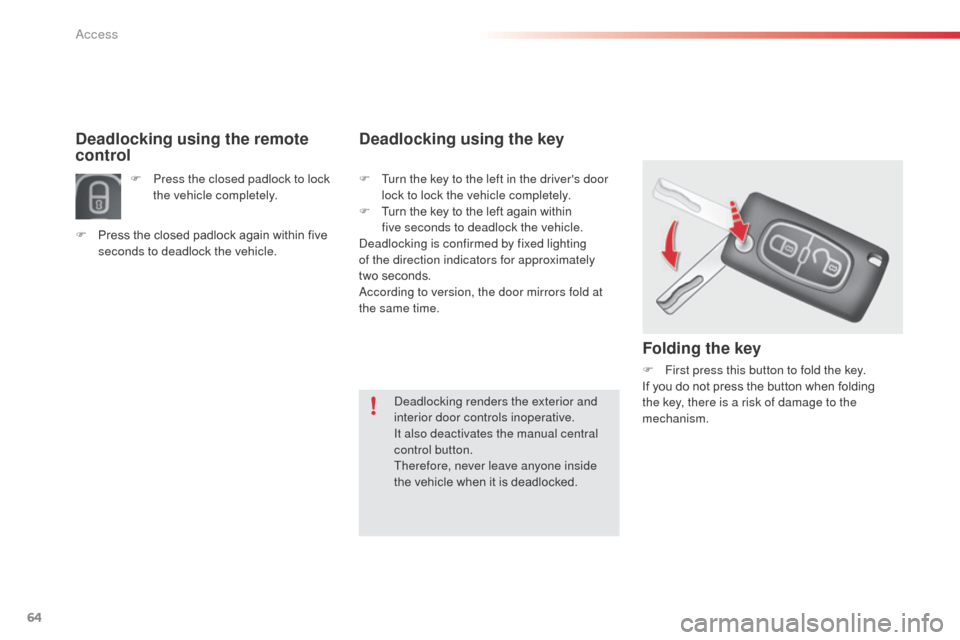

Deadlocking using the remote
control
F Press the closed padlock to lock the vehicle completely.
F

P

ress the closed padlock again within five
seconds to deadlock the vehicle.
Deadlocking using the key
F Turn the key to the left in the driver's door lock to lock the vehicle completely.
F

T
urn the key to the left again within
five


seconds to deadlock the vehicle.
de

adlocking is confirmed by fixed lighting
of the direction indicators for approximately
two
seconds.
ac

cording to version, the door mirrors fold at
the same time.
dea

dlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Folding the key
F First press this button to fold the key.
If you do not press the button when folding
the key, there is a risk of damage to the
mechanism.
Access

65
Remote control problem
Reinitialisation
F Switch off the ignition.
F T urn the key to position 2 (Ignition on) .
F

P
ress the closed padlock immediately for a
few seconds.
F

S
witch off the ignition and remove the key
from the ignition switch.
The remote control is fully operational again.
Changing the battery
Battery ref.: CR1620 / 3 volts.
If the battery is flat, you are informed
by illumination of this warning lamp,
an audible signal and a message.
F

U
nclip the casing using a coin at the notch.
F

S
lide the flat battery out of its location.
F

S
lide the new battery into its location
observing the original direction.
F

C
lip the casing.
F

R
einitialise the remote control.
Following disconnection of the vehicle battery,
replacement of the remote control battery or in
the event of a remote control fault you can no
longer unlock, lock or locate your vehicle.
F

F

irst of all, use the key in the lock to unlock
or lock your vehicle.
F

T

hen, reinitialise the remote control.
Locating your vehicle
F Press the closed padlock to
locate your locked vehicle in a
car park.
This is indicated by lighting of the courtesy
lamps and flashing of the direction indicators
for a few seconds.
If the problem persists, contact a CITR
oËn


dealer as soon as possible.
4
Access

66
Lost keys
Go to a CITROËN dealer with the vehicle's registration document, your personal
identification documents and if possible the key code label.
The CITROËN dealer will be able to look up the key code and the transponder code
required to order a new key.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
do n
ot repeatedly press the buttons of your remote control out of range and out of sight of
your vehicle. You run the risk of stopping it from working and the remote control would have
to be reinitialised.
No remote control can operate when the key is in the ignition switch, even when the ignition
is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the
emergency services more difficult in an emergency.
as a s

afety precaution, never leave children alone in the vehicle, except for a very short
period.
In all cases, it is essential to remove the key from the ignition switch when leaving
the


vehicle.
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could
cause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a CITRoËn dealer, to
ensure that only your keys can be used to open and start the vehicle. Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
Access

67
alarm
System which protects and provides a deterrent against the theft of your vehicle. It provides two types of protection, exterior and interior, as well as a
self-protection function.
do n
ot make any modifications to
the alarm system, this could cause
malfunctions. If an opening - door or boot - is not
closed fully, the vehicle is not locked,
but the exterior perimeter protection
will be activated after 45 seconds at
the same time as the interior volumetric
protection.
Exterior perimeter protection
The system detects opening of the vehicle.
The alarm is triggered if anyone tries to enter
the vehicle by forcing a door, the boot or the
bonnet.
Interior volumetric protection
The system detects any variation in the volume
in the passenger compartment.
The alarm is triggered if anyone breaks a
window or moves inside the vehicle.
If you wish to leave a pet in the vehicle or a
window partially open, deactivate the interior
volumetric protection.
Self-protection function
The system detects the putting out of service of
its components.
The alarm is triggered if anyone tries to put
the wires of the siren, the central control or the
battery out of service.
Locking the vehicle with

full alarm
Activation
F Switch off the ignition and get out of the
vehicle.
F

L
ock or deadlock the vehicle using the
locking button on the remote control.
The alarm is activated; the indicator lamp in
button A flashes once per second.
The exterior perimeter protection is activated,
5
seconds after the locking button on the
remote control is pressed.
The interior volumetric protection is activated,
45 seconds after the locking button on the
remote control is pressed.
Deactivation
F Unlock the vehicle using the unlocking button on the remote control.
The alarm is deactivated; the indicator lamp in
button A goes off.
4
access

68
Locking the vehicle
with exterior perimeter
protection only
Deactivation of the interior
volumetric protection
F Switch off the ignition.
F W ithin ten seconds, press button A until
the indicator lamp is on continuously.
F

G
et out of the vehicle.
F

L
ock or deadlock the vehicle without delay
using the locking button on the remote
control.
The exterior perimeter protection alone remains
activated; the indicator lamp in button A flashes
once per second. If the indicator lamp in button A flashes
rapidly, this indicates that the alarm was
triggered during your absence. When
the ignition is switched on, this flashing
stops immediately.
To avoid triggering the alarm when
washing your vehicle, lock it using the
key in the driver's door lock.
To be effective, this deactivation must
be carried out each time the ignition is
switched off.
Reactivation of the interior
volumetric protection
F Unlock the vehicle using the unlocking
button on the remote control.
F

R
elock the vehicle using the remote
control.
The alarm is activated again with both types
of protection; the indicator lamp in button A
flashes once per second.
Triggering of the alarm
This is indicated by sounding of the siren
and flashing of the direction indicators for
approximately thirty seconds.
af

ter it has been triggered, both types of
protection are again operational.
If the alarm is triggered ten times in
succession, the eleventh time will result in it
becoming inactive.
Failure of the remote control
F Unlock the vehicle using the key in the driver's door lock.
F

O
pen the door; the alarm is triggered.
F

S
witch on the ignition; the alarm stops.
Locking the vehicle without
activating the alarm
F Lock or deadlock the vehicle using the key in the driver's or passenger's door lock.
Malfunction
When the ignition is switched on, illumination of
the indicator lamp in button A for ten seconds
indicates malfunction with the siren.
Have it checked by a CITR
oËn

dealer or a
qualified workshop.
*
a
c
cording to country.
Automatic activation*
2 minutes after the last door or the boot is
closed, the alarm is activated automatically.
F
T
o avoid triggering the alarm on entering
the vehicle, first press the unlocking button
on the remote control.
Access
