79

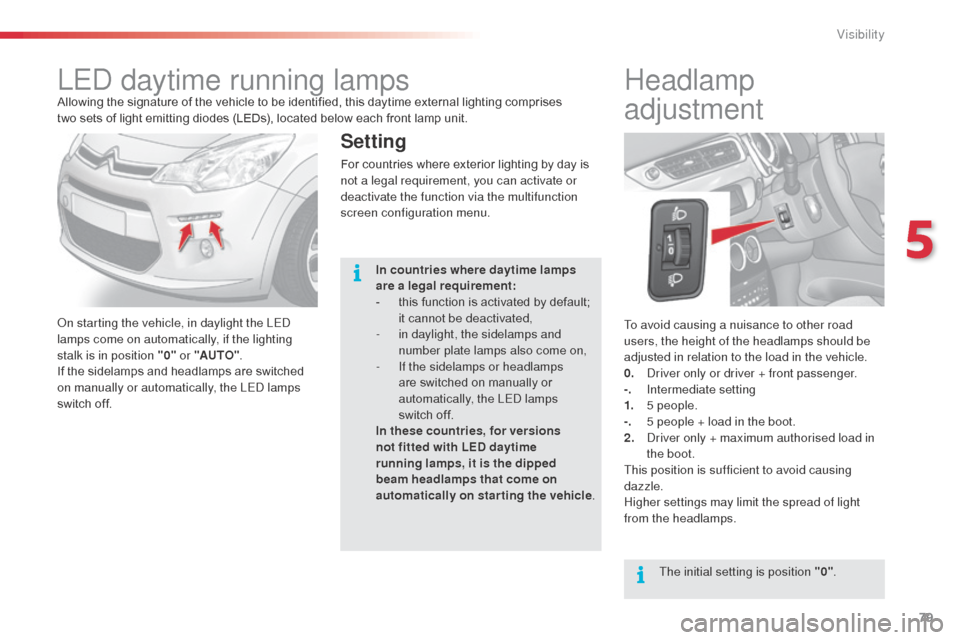

To avoid causing a nuisance to other road
users, the height of the headlamps should be
adjusted in relation to the load in the vehicle.
0. d
r
iver only or driver + front passenger.
-.

I
ntermediate setting
1.
5

people.
-.

5 p
eople + load in the boot.
2.


d
r
iver only + maximum authorised load in
the boot.
This position is sufficient to avoid causing
dazzle.
Higher settings may limit the spread of light
from the headlamps.
Headlamp
adjustment
The initial setting is position "0" .
LEd daytime running lampsAllowing the signature of the vehicle to be identified, this daytime external lighting comprises
two
sets of light emitting diodes (LEDs), located below each front lamp unit.
on s

tarting the vehicle, in daylight the LE
d

lamps come on automatically, if the lighting
stalk is in position "0" or "AUTO".
If the sidelamps and headlamps are switched
on manually or automatically, the LE
d

lamps
switch off.
Setting
For countries where exterior lighting by day is
not a legal requirement, you can activate or
deactivate the function via the multifunction
screen configuration menu.
In countries where daytime lamps
are a legal requirement:
-

t
his function is activated by default;
it cannot be deactivated,
-

i
n daylight, the sidelamps and
number plate lamps also come on,
-

I
f the sidelamps or headlamps
are switched on manually or
automatically, the LE
d

lamps
switch off.
In these countries, for versions
not fitted with LED daytime
running lamps, it is the dipped
beam headlamps that come on
automatically on starting the vehicle .
5
Visibility

80
Wiper controls
Programming
Various automatic wiper control modes are also
available according to the following options:
-
a
utomatic rain sensitive windscreen wipers,
-

r
ear wiping on engaging reverse gear.
Model with intermittent
wiping
Model with AUTO wipingThe vehicle's front and rear wipers are
designed to improve the driver's visibility
progressively according to the weather
conditions.Manual controls
Windscreen wipers
A. Wiping speed selection stalk.
Single wipe (press down and
release).
or Fast (heavy rain).
no
rmal (moderate rain).
Intermittent (proportional to the
speed of the vehicle).
of

f.Automatic, then single wipe
(see the corresponding
section).
The wiper commands are issued directly by the
driver by means of the stalk A and the ring B
.
Visibility

81

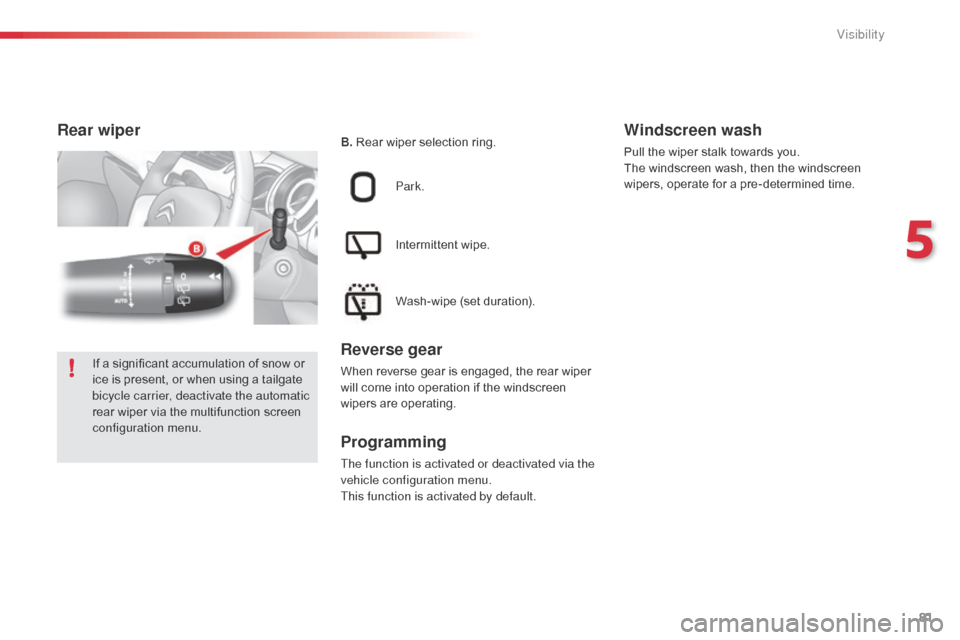

Rear wiper
Park.
Intermittent wipe.
Wash-wipe (set duration).
Reverse gear
When reverse gear is engaged, the rear wiper
will come into operation if the windscreen
wipers are operating.
Programming
The function is activated or deactivated via the
vehicle configuration menu.
This function is activated by default.
Windscreen wash
Pull the wiper stalk towards you.
The windscreen wash, then the windscreen
wipers, operate for a pre-determined time.
B.
Rear wiper selection ring.
If a significant accumulation of snow or
ice is present, or when using a tailgate
bicycle carrier, deactivate the automatic
rear wiper via the multifunction screen
configuration menu.
5
Visibility

82
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automatically,
without any action on the part of the driver, if
rain is detected (sensor behind the rear view
mirror), adapting their speed to the intensity of
the rainfall.
Activation
Switching offOperating fault
If an automatic wiping fault occurs, the wipers
will operate in intermittent mode.
Have it checked by a CITR
oËn

dealer or a
qualified workshop.
Vertical windscreen
wiper position
This position allows the wiper blades to be lifted
for winter parking, cleaning or replacement
without damaging the bonnet.
In the minute following switching off of the
ignition, any action on the wiper stalk positions
the wipers vertically.
To park the wipers after this has been done,
switch on the ignition and operate the wiper stalk.
This is controlled manually by the driver by
pushing stalk A to the "AUTO"
position.
This is controlled manually by the driver
by moving stalk A upwards, returning it to
position


"0" . It is accompanied by the indicator lamp
in the instrument panel going off and a
message in the multifunction screen.
It is accompanied by the illumination of this
indicator lamp in the instrument panel and
a message in the multifunction screen.
The automatic wiping must be
reactivated if the ignition has been off
for more than one minute, by pushing
stalk A downwards.
Do not cover the rain sensor, linked with
the sunshine sensor and located in the
centre of the windscreen behind the
rear view mirror.
Switch off the automatic wiping when
using an automatic car wash.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic wiping.
To retain the effectiveness of the flat
wiper blades, it is advisable to:
-

h
andle them with care,
-

c
lean them regularly using soapy
water,
-

n
ot use them to hold a sheet of
cardboard against the windscreen,
-

r
eplace them at the first signs of
w e a r.
Visibility

83

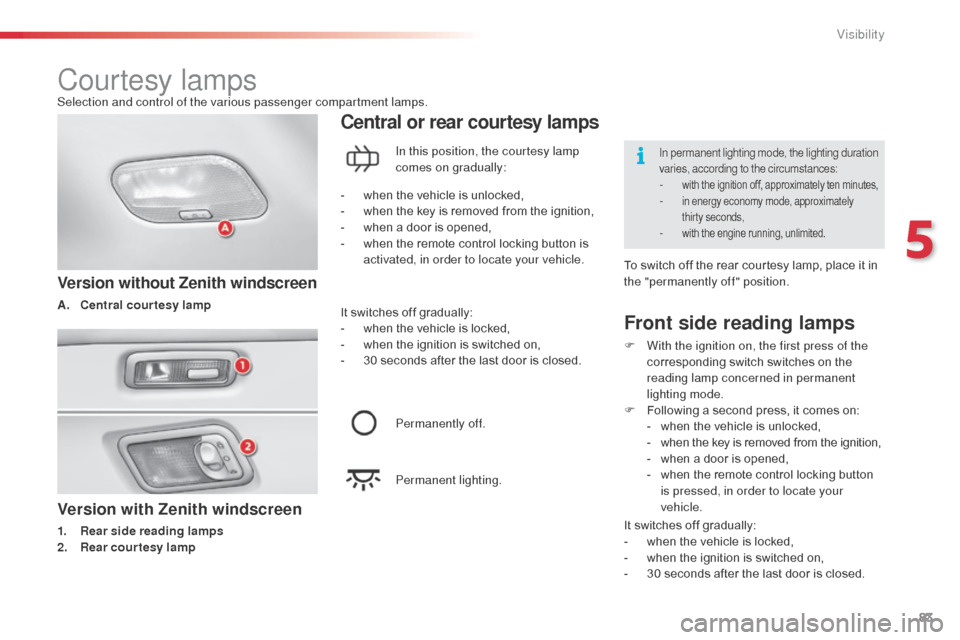

Version with Zenith windscreen
1. Rear side reading lamps
2. Rear courtesy lamp
Central or rear courtesy lamps
Version without Zenith windscreen
A. Central courtesy lamp
Front side reading lamps
F With the ignition on, the first press of the corresponding switch switches on the
reading lamp concerned in permanent
lighting mode.
F

F
ollowing a second press, it comes on:
-

w
hen the vehicle is unlocked,
-
w

hen the key is removed from the ignition,
-

w
hen a door is opened,
-

w
hen the remote control locking button
is pressed, in order to locate your
vehicle.
In this position, the courtesy lamp
comes on gradually:
-

w

hen the vehicle is unlocked,
-

w

hen the key is removed from the ignition,
-

w

hen a door is opened,
-

w

hen the remote control locking button is
activated, in order to locate your vehicle.
It switches off gradually:
-

w

hen the vehicle is locked,
-
w
hen the ignition is switched on,
-
3
0 seconds after the last door is closed.
Permanently off.
Permanent lighting. It switches off gradually:
-

w
hen the vehicle is locked,
-

w
hen the ignition is switched on,
-

3
0 seconds after the last door is closed.
To switch off the rear courtesy lamp, place it in
the "permanently off" position.
Courtesy lampsSelection and control of the various passenger compartment lamps.
In permanent lighting mode, the lighting duration
varies, according to the circumstances:
- with the ignition off, approximately ten minutes,- in energy economy mode, approximately
thirty
seconds,
- with the engine running, unlimited.
5
Visibility

84
Interior mood lighting
Switching on
at night, the illumination of the central
dashboard storage compartment comes
on automatically when the sidelamps are
switched on.
on c

ertain versions, three lamps located in the
support between the roof and the automatic
day/night interior mirror come on as well.
Switching off
The interior mood lighting switches off
automatically when the sidelamps are
switched
off.
It can be switched off manually using the
instrument panel lighting rheostat button.
F

W
ith the lighting on, press several times on
the left hand button of the instrument panel
to progressively reduce the dashboard
lighting level.
F

P
ress again to reduce the lighting level
to the minimum and switch off the interior
mood lighting. This comes on automatically when the boot is
opened and goes off automatically when the
boot is closed.
boot lamp
The dimmed passenger compartment lighting improves visibility in the vehicle when the light
i s
p o o r.
The lighting time varies according to
the


circumstances:
-

w
hen the ignition is off,
approximately ten minutes,
-

i
n energy economy mode,
approximately thirty seconds,
-
w

hen the engine is running, no limit.
Visibility

85

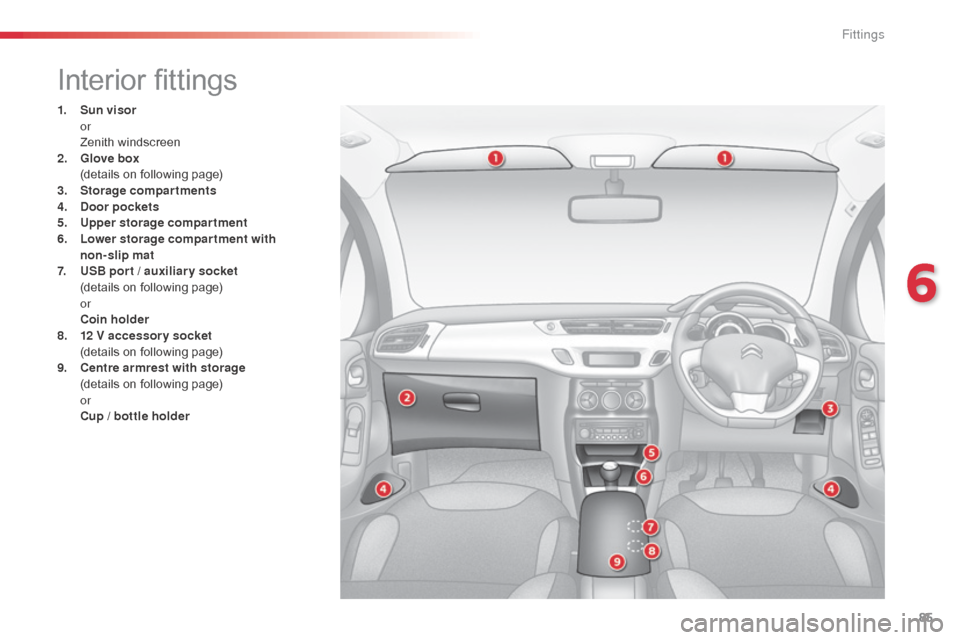

Interior fittings
1. Sun visor
or
Ze

nith windscreen
2.
G

love box
(

details on following page)
3.
S

torage compartments
4.
Doo

r pockets
5.
U

pper storage compartment
6.
L

ower storage compartment with
non-slip mat
7.
U

SB por t / auxiliar y socket
(

details on following page)


or


C
oin holder
8.
12

V accessory socket
(

details on following page)
9.
C

entre armrest with storage
(

details on following page)


or


C
up / bottle holder
6
Fittings

86
It has a manual blind to improve temperature
control in the passenger compartment and sun
visors to avoid dazzle.
Zenith Windscreen
Blind
F To open the blind, take it by its central grip A, then pull it backwards and guide it
to the desired position.
F

T
o close the blind, take it by its central
grip
A, then pull it for wards and guide it to
the desired position.
be

fore moving the blind, the sun visors must be
in the folded position.
Sun visors
F Lower the sun visors to avoid dazzle.
do n

ot attach or hang heavy objects to
the blind or its guide rails.
Fittings

87
Sun visorGlove box
F To open the glove box, raise the handle.
It houses the front passenger airbag
deactivation switch A.
It houses the dashboard fusebox (see the
"Changing a fuse" section).
Centre armrest
These can be used for portable devices (mobile
phone, MP3 player...) which can be connected
to the US
b

port / auxiliary socket or charged
from the 12 V socket in the centre console.
Version with Zenith windscreen
Refer to the corresponding section.
Version without Zenith windscreen
The sun visors are fitted with a vanity mirror,
with concealing flap for the driver and a ticket /
card holder.
Storage
F For access to the closed storage box, lift the lever to open the lid.
F

F
or access to the open storage box below
the armrest, lift the complete armrest
towards the rear.
6
Fittings

88
USB Player
The USb port is located in the "AUX " box on the
centre console.
It permits the connection of a portable device,
such as a digital audio player of the iPod
®
generation 5 and later type or USb
memory stick
type.
It reads the audio file formats (mp3, ogg, wma,
wav...) sent to your audio system and played via
the vehicle's speakers.
You can manage these files using the steering
mounted controls or the audio system control
panel and display them in the multifunction screen.
12 V accessory socket
F To connect a 12 V accessory (max power: 120 W), lift the cover and connect a
suitable adaptor.
Auxiliary socket
The socket is located in the " AUX" box on the
centre console.
It permits the connection of a portable device,
such as a digital audio player of the iPod
® type,
to listen to your music files using the vehicle's
speakers.
The management of the files is done
using your portable device.
When it is in use, the portable device
charges automatically.
For more information on the use of this
equipment, refer to the "
au

dio and telematics"
section.
For more information on the use of this
equipment, refer to the "
au

dio and telematics"
section. The connection of an electrical device
not approved by CITR
oËn, s

uch as a
US
b

charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays
in the screens.
Fittings
