Citroen C4 2008.5 1.G Owner's Manual

41
SOLUTION RESPONSE
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going through a car wash or into an underground car park).
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.

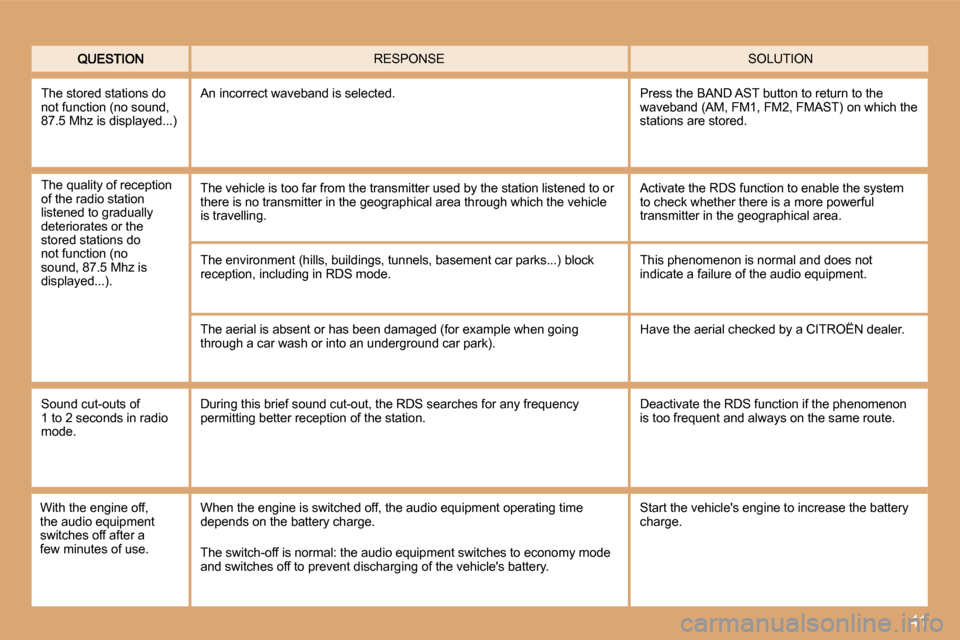

The stored stations do not function (no sound, 87.5 Mhz is displayed...)
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which the stations are stored.
Start the vehicle's engine to increase the battery charge.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.

42
QUESTION SOLUTION RESPONSE
The TRAFFIC INFO box is ticked. However, certain traffi c jams along the route are not indicated in real time.
On starting, it is several minutes before the system begins to receive the traffi c information. Wait until the traffi c information is being received correctly (displaying of the traffi c information symbols on the MAP).
In certain countries, only major routes (motorways , ...) are listed for the traffi c information.
The time taken to calculate a route sometimes seems longer than usual.
This phenomenon is normal. The system is dependent on the traffi c information available.
The performance of the system may slow down tempor arily if a CD is being copied onto the Jukebox at the same time as a route is being calculated.
Wait until the CD has been copied or stop the copying before starting the guidance function.
Does the emergency call function work without a SIM card?
No, European regulations impose the presence of a SIM card in orderto make an emergency call. Insert a valid SIM card in the slot on the system.
My SIM card is not recognised. The system accepts 3.3 V SIM cards, the old 5 V an d 1.8 V SIM cards are not recognised. Contact your telephone operator.
The altitude is not displayed. On starting, the initialisation of the GPS may take up to 3 minutes to receive more than 4 satellites correctly. Wait until the system has started up completely. Check that there is a GPS coverage of at least 4 satellites (long press on the MENU button, then select AUDIO/TELEPHONE DIAGNOSTICS, then GPS COVERAGE).
Depending on the geographical environment (tunnel, ...) or the weather, the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is dependent on the conditions of reception of the GPS signal.

43
QUESTION SOLUTION RESPONSE
The route is not calculated successfully. The exclusion criteria may confl ict with the current location (exclusion of toll roads on a motorway with tolls). Check the exclusion criteria.
There is a long wait after inserting a CD. When a new medium is inserted, the system reads a certain amount of data (folder, title, artist, etc.). This may take a few seconds. This phenomenon is normal.
I cannot connect my Bluetooth telephone. The telephone's Bluetooth function may be switched off or the equipment may not be visible. - Check that your telephone's Bluetooth function is switched on. - Check that your telephone is visible.

1
The MyWay is protected in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a CITROËN dealer for confi guration of operate in your vehicle. If it is to be installed in another le. If it i
the system.
Certain functions described in this handbook will become available during the course of the year.
MyWay
MULTIMEDIA AUDIO EQUIPMENT/BLUETOOTH TELEPHONE
GPS EUROPE BY SD CARD
CONTENTS

2

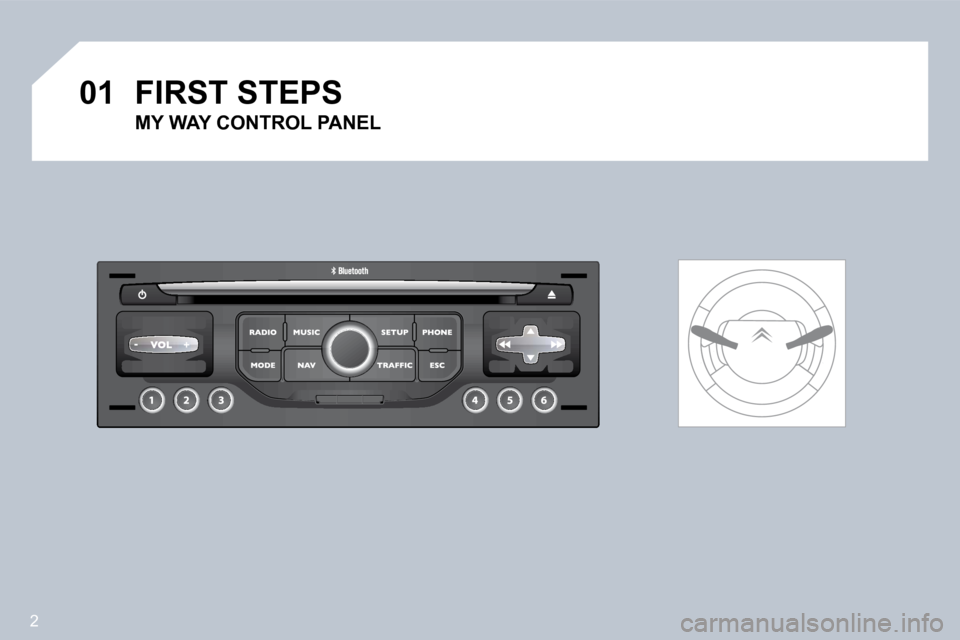

01FIRST STEPS
MY WAY CONTROL PANEL

3
1
5
10
2
346
13
11
9
1415
7812
1601
1. On/Off. CD/SD card pause, mute for the radio. Long press: reinitialisation of the system.
2. Volume adjustment.
3. Access to the RADIO menu. Displaying of the list o
f stations.
4. Access to the MUSIC menu. Displaying of the tracks .
3 - 4 Long press: access to the settings: front/rear and left/right balance, bass/treble, equalizer, loudness, automati c volume adjustment, initialise the settings.
5. Access to the SETUP menu. Long press: access to the GPS coverage and the demonstration mode.
6. Access to the PHONE menu. Displaying of the call l ist.
7. Access to the MODE menu. Selection of the successive displaying of: Radio, Map, NAV (if navigation is in progress), Telephone (if a conversation is in progress), Trip Computer. Long press: displaying of a black screen (DARK).
8. Access to the NAVIGATION menu. Displaying of the l ast destinations.
9. Access to the TRAFFIC menu. Displaying of the current traffi c alerts.
10. ESC: abandon the operation in progress.
11. CD eject.
12. Selection of the previous/next radio station from the list. Selection of the previous/next CD. Selection of the previous/next MP3 directory. Selection of the previous/next page of a list.
13. Selection of the previous/next radio station. Selection of the previous/next CD or MP3 track. Selection of the previous/next line of a list.
14. Buttons 1 to 6: Selection of the stored radio station. Selection of the CD in the CD changer. Long press: storing of the current radio station.
15. SD card reader.
16. Dial for selection on the display on the screen and according to the context of the menu. Short press: confi rmation.
FIRST STEPS
MY WAY CONTROL PANEL

4
02 GENERAL OPERATION
For a detailed global view of the menus available, refer to section 10.
Press the MODE button several times in succession to gain access to the following menus:
For maintenance of the display, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, without any addi tional product.
RADIO/MUSIC MEDIAPLAYERS
PHONE (If a conversation is in progress)
TRIP COMPUTER
FULL SCREEN MAP
NAVIGATION (If navigation is in progress)
SETUP: system language, date and time, display, vehicle parameters, units and system parameters, DEMONSTRATION MODE
TRAFFIC: TMC information and messages

5
02
1
2
3
3
2
1
1
1
3
2
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
1
1
2
1
2
2
2
2
2
2
2
1
1
1
1
1
1
GENERAL OPERATION
A press on the OK dial to permits access to short-cut menus according to the display on the screen.
TRIP COMPUTER:
ALERT LOG
STATUS OF FUNCTIONS
MUSIC MEDIA PLAYERS:
TA
PLAY OPTIONS
normal
random track
repeat folder
track intro
SELECT MUSIC
NAV:
ABORT GUIDANCE
REPEAT ADVICE
BLOCK ROAD
ROUTE INFO
show dest.
trip info
route type
avoidance criteria
satellites
zoom/scroll
VOICE ADVICE
ROUTE OPTIONS
RADIO:
IN FM MODE
TA
RDS
radiotext
regional prog. (REG)
AM
IN AM MODE
TA
refresh AM list
FM
MAP:
ABORT/RESUME GUIDANCE
SET DESTINATION
POIS NEARBY
POSITION INFO
MAP SETTINGS
ZOOM/SCROLL
PHONE:
END CALL
HOLD CALL
DIAL
DTMF TONES
PRIVATE MODE
MICRO OFF
DISPLAY ACCORDING TO THE CONTEXT

6
03
1
2
3
6
5
4
NAVIGATION - GUIDANCE
SELECTING A DESTINATION
Press the NAV button again or select the NAVIGATION MENU function and press the dial to confi rm.
Select the DESTINATION INPUT function and press the dial to confi rm.
Press the NAV button.
Select the letters of the town one by one confi rming each time by pressing the dial.
Once the country has been selected, turn the dial and select the town function. Press the dial to confi rm.
NAVIGATION MENU
DESTINATION INPUT
Insert the SD card in the front panel reader and leave it there to use the Navigation functions. The navigation SD card data must not be changed. The map data updates are available from CITROËN de alers.
A pre-set list (by entering the fi rst few letters) of the towns in the A pre-set list (by entering the fi rst few letters) of the towns in the country selected can be accessed via the LIST butto n ontton on the virtual keypad.
Select the NEW DESTINATION INPUT function and press the dial to confi rm.
NEW DESTINATION INPUT
The list of the last 20 destinations appears under the NAVIGATION The list of the last 20 destinations appears under the NAVIGATION MENU function.

7
7
8
10
9

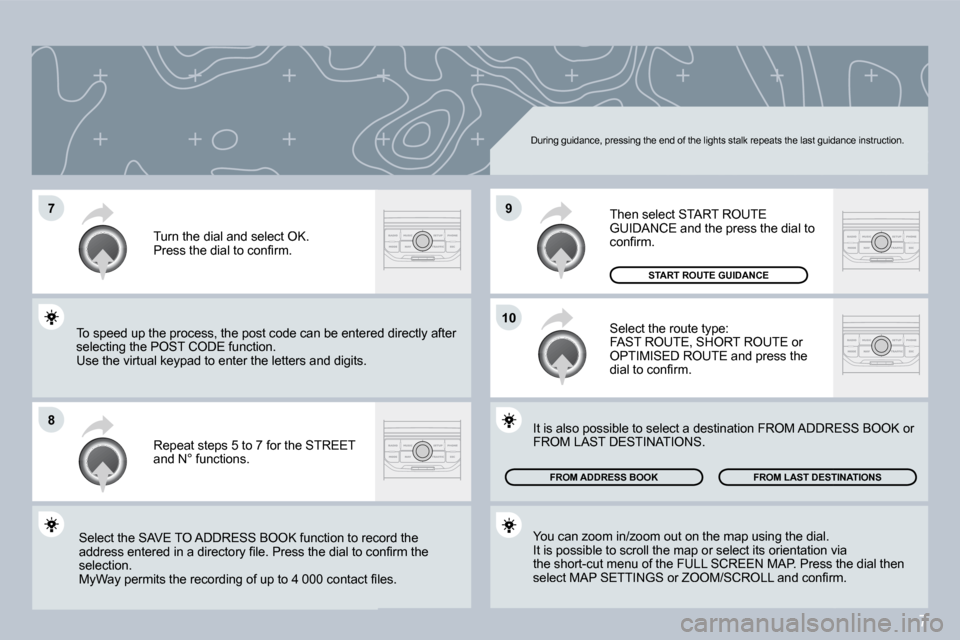

During guidance, pressing the end of the lights stalk repeats the last guidance instruction.
Repeat steps 5 to 7 for the STREET and N° functions.
Turn the dial and select OK. Press the dial to confi rm.
Select the SAVE TO ADDRESS BOOK function to record the Select the SAVE TO ADDRESS BOOK function to record the address entered in a directory fi le. Press the dial to confi rm the address entered in a directory fi le. Press the dial to confi rm the selection. MyWay permits the recording of up to 4 000 contact fi les. MyWay permits the recording of up to 4 000 contact fi les.
To speed up the process, the post code can be ente redtered directly after selecting the POST CODE function. Use the virtual keypad to enter the letters and digits.
Select the route type: FAST ROUTE, SHORT ROUTE or OPTIMISED ROUTE and press the dial to confi rm.
Then select START ROUTE GUIDANCE and the press the dial to confi rm.
You can zoom in/zoom out on the map using the dial . It is possible to scroll the map or select its orientation viaion viathe short-cut menu of the FULL SCREEN MAP. Press th e dial then the short-cut menu of the FULL SCREEN MAP. Press the dial then select MAP SETTINGS or ZOOM/SCROLL and confi rm. select MAP SETTINGS or ZOOM/SCROLL and confi rm.
It is also possible to select a destination FROM ADDRESS BOOK or It is also possible to select a destination FROM ADDRESS BOOK or FROM LAST DESTINATIONS.
FROM ADDRESS BOOKFROM LAST DESTINATIONS
START ROUTE GUIDANCE
