First press button A to fold the key.
Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the
c o u r t e s y l i g h t s a n d fl a s h i n g o f t h e d i -
rection indicators for a few seconds. Guide-me-home lighting
A press on button
B operates the
guide-me-home lighting (lighting of
the sidelamps and dipped beams for
approximately one minute).
A second press before the end of the
timing cancels the guide-me-home
lighting.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code
must be recognised in order for
starting to be possible.
This electronic engine immobiliser
locks the engine management sys-
tem a few minutes after the ignition
is switched off and prevents starting
of the engine by anyone who does
not have the key.
In the event of a mal-
function, you are in-
formed by lighting of
this warning lamp, an
audible signal and a message on
the multifunction screen.
In this case, your vehicle does not
start; contact a CITROËN dealer as
soon as possible.
Folding the key
Deadlocking using the key
Turn the key to the right in the
driver’s door lock to lock the
vehicle completely and hold it
in this position for more than
two seconds to close the win-
dows automatically in addition to
locking.
Turn the key to the right again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
According to version, the exterior
mirrors fold at the same time.
Deadlocking using the
remote control
Press the closed pad-
lock to lock the vehicle
completely or press the
closed padlock for more
than two seconds to
close the windows au-
tomatically in addition to
locking.
Press the closed padlock again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle. Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Page 62 of 282
58
IV
A C C E S S
STARTING
1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Drive position
Depending on the version of your
vehicle, the orange and red warning
lamps should also come on for a short
time.
3. "D": Starter
Release the key as soon the engine
has started.
I f t h e fi r s t a t t e m p t f a i l s , s w i t c h o f f t h e
ignition. Wait ten seconds then operate
the starter again. Steering lock
1. "
S": After removing the key, turn
the steering wheel to lock the steer-
ing. The key can only be removed in
position S .
2. "M": Ignition switched on, the
steering is unlocked (by turning the
key to position M , move the steering
wheel gently if necessary).
3. "D": Starter position.
Never turn the key to this position
when the engine is running.
Key in ignition buzzer
If you forget to remove the key from
the ignition, a buzzer sounds when
the driver’s door is opened.
DO NOT RUN THE ENGINE IN
AN ENCLOSED SPACE OR
WHERE THERE IS INSUFFICIENT
VENTILATION.
IT IS ESSENTIAL ALWAYS TO
KEEP THE ENGINE RUNNING
IN ORDER TO RETAIN BRAKING
AND STEERING ASSISTANCE .
NEVER REMOVE THE IGNITION
KEY BEFORE THE VEHICLE
HAS COME TO A COMPLETE
STOP.
Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds at
idle, this being the time required for
the turbocharger to return to a normal
speed.
Flicking the accelerator at the mo-
ment of switching off the ignition
could cause serious damage.
Page 63 of 282
59
IV
A C C E S S
Remote control problem
Following disconnection of the ve-
hicle battery, replacement of the re-
mote control battery or in the event
of a remote control malfunction, you
can no longer unlock, lock or locate
your vehicle.
First of all, use the key in the lock
to unlock or lock your vehicle.
Then, reinitialise the remote con-
trol.
If the problem persists, contact a
CITROËN dealer as soon as pos-
sible.
Reinitialisation
Switch off the ignition.
Turn the key to position 2
(Ignition
on
) .
Press the closed padlock imme-
diately for a few seconds.
Switch off the ignition and re-
move the key from the ignition
switch.
The remote control is fully opera-
tional again. Battery ref.: CR0523/3 volts.
This replacement battery is avail-
able from CITROËN dealers.
If the remote control
b a t t e r y i s fl a t , y o u a r e
informed by lighting
of this warning lamp,
an audible signal and a message on
the multifunction screen.
Unclip the casing using a coin at
the notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s
location.
Slide the new battery into its
location observing the original
direction.
Clip the casing together.
Reinitialise the remote control.
Changing the battery
Page 64 of 282
60
IV
A C C E S S
Lost keys
Visit a CITROËN dealer with the vehi-
cle’s V5 registration document and your
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a re-
placement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reinitialised. The
remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the electronic engine immobiliser
system; this could cause malfunc-
tions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
Page 65 of 282
57
IV
A C C E S S
First press button A to fold the key.
Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the
c o u r t e s y l i g h t s a n d fl a s h i n g o f t h e d i -
rection indicators for a few seconds. Guide-me-home lighting
A press on button
B operates the
guide-me-home lighting (lighting of
the sidelamps and dipped beams for
approximately one minute).
A second press before the end of the
timing cancels the guide-me-home
lighting.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code
must be recognised in order for
starting to be possible.
This electronic engine immobiliser
locks the engine management sys-
tem a few minutes after the ignition
is switched off and prevents starting
of the engine by anyone who does
not have the key.
In the event of a mal-
function, you are in-
formed by lighting of
this warning lamp, an
audible signal and a message on
the multifunction screen.
In this case, your vehicle does not
start; contact a CITROËN dealer as
soon as possible.
Folding the key
Deadlocking using the key
Turn the key to the right in the
driver’s door lock to lock the
vehicle completely and hold it
in this position for more than
two seconds to close the win-
dows automatically in addition to
locking.
Turn the key to the right again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
According to version, the exterior
mirrors fold at the same time.
Deadlocking using the
remote control
Press the closed pad-
lock to lock the vehicle
completely or press the
closed padlock for more
than two seconds to
close the windows au-
tomatically in addition to
locking.
Press the closed padlock again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle. Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Page 66 of 282
60
IV
A C C E S S
Lost keys
Visit a CITROËN dealer with the vehi-
cle’s V5 registration document and your
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a re-
placement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reinitialised. The
remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the electronic engine immobiliser
system; this could cause malfunc-
tions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
Page 67 of 282
58
IV
A C C E S S
STARTING
1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Drive position
Depending on the version of your
vehicle, the orange and red warning
lamps should also come on for a short
time.
3. "D": Starter
Release the key as soon the engine
has started.
I f t h e fi r s t a t t e m p t f a i l s , s w i t c h o f f t h e
ignition. Wait ten seconds then operate
the starter again. Steering lock
1. "
S": After removing the key, turn
the steering wheel to lock the steer-
ing. The key can only be removed in
position S .
2. "M": Ignition switched on, the
steering is unlocked (by turning the
key to position M , move the steering
wheel gently if necessary).
3. "D": Starter position.
Never turn the key to this position
when the engine is running.
Key in ignition buzzer
If you forget to remove the key from
the ignition, a buzzer sounds when
the driver’s door is opened.
DO NOT RUN THE ENGINE IN
AN ENCLOSED SPACE OR
WHERE THERE IS INSUFFICIENT
VENTILATION.
IT IS ESSENTIAL ALWAYS TO
KEEP THE ENGINE RUNNING
IN ORDER TO RETAIN BRAKING
AND STEERING ASSISTANCE .
NEVER REMOVE THE IGNITION
KEY BEFORE THE VEHICLE
HAS COME TO A COMPLETE
STOP.
Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds at
idle, this being the time required for
the turbocharger to return to a normal
speed.
Flicking the accelerator at the mo-
ment of switching off the ignition
could cause serious damage.
Page 68 of 282
61
IV
A C C E S S
ALARM
System which protects and provides a
deterrent against the theft of your vehi-
cle. It provides two types of protection,
exterior perimeter and interior volumet-
ric, as well as an anti-tamper function.
Exterior perimeter protection
The system detects opening of the
vehicle.
The alarm is triggered if anyone tries
to enter the vehicle by forcing a door,
the boot or the bonnet.
Interior volumetric protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone
breaks a window or moves inside
the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.
Anti-tamper function
The system detects the putting out
of service of its components.
The alarm is triggered if anyone
tries to put the siren wiring, the cen-
tral control unit or the battery out of
service.
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the alarm system, this could cause
malfunctions. Locking the vehicle with full
alarm
Activation
Switch off the ignition and get out
of the vehicle.
Lock or deadlock the vehicle
using the locking button on the
remote control.
The alarm is armed; the indicator
lamp on button A fl a s h e s o n c e p e r
second.
Deactivation
Unlock the vehicle using the
unlocking button on the remote
control.
The alarm is deactivated; the indica-
tor lamp on button A switches off. Locking the vehicle with
exterior protection alarm only

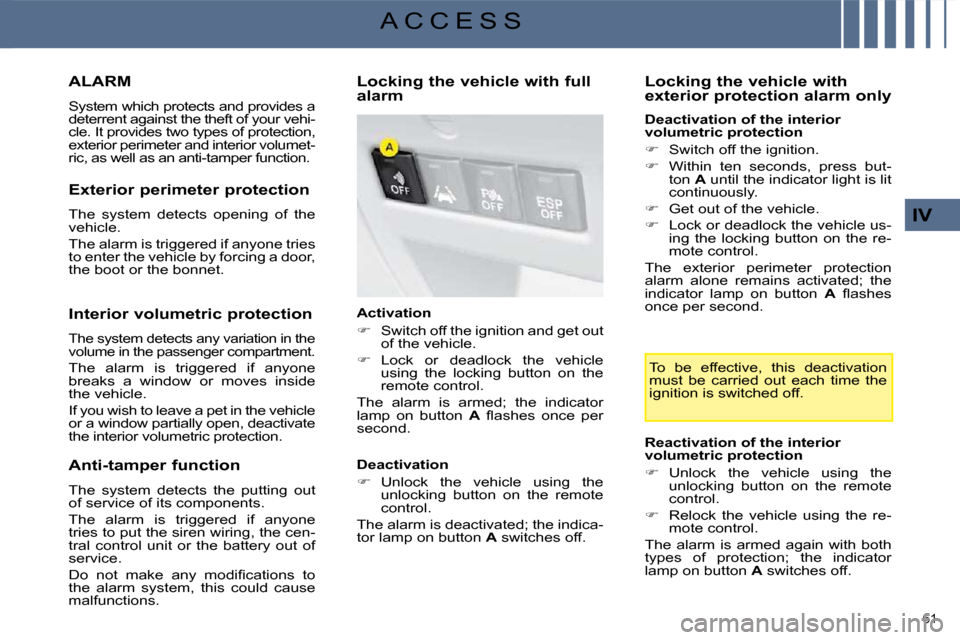

Deactivation of the interior
volumetric protection
Switch off the ignition.
Within ten seconds, press but-
ton A until the indicator light is lit
continuously.
Get out of the vehicle.
Lock or deadlock the vehicle us-
ing the locking button on the re-
mote control.
The exterior perimeter protection
alarm alone remains activated; the
indicator lamp on button A fl a s h e s
once per second.
To be effective, this deactivation
must be carried out each time the
ignition is switched off.
Reactivation of the interior
volumetric protection
Unlock the vehicle using the
unlocking button on the remote
control.
Relock the vehicle using the re-
mote control.
The alarm is armed again with both
types of protection; the indicator
lamp on button A switches off.
Page 69 of 282
62
IV
A C C E S S
Triggering
This is indicated by sounding of
t h e s i r e n a n d fl a s h i n g o f t h e d i r e c -
tion indicators for approximately
thirty seconds.
After it has been triggered, the alarm
is again operational.
If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive. If the indicator light on button A
fl a s h e s r a p i d l y , t h i s i n d i c a t e s t h a t
the alarm was triggered during
your absence. When the ignition is
s w i t c h e d o n , t h i s fl a s h i n g s t o p s i m -
mediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key.
Do not activate the alarm before
disconnecting the battery, other-
wise the siren will sound. Failure of the remote control
Unlock the vehicle using the key
in the driver’s door lock.
Open the door; the alarm is trig-
gered.
Switch on the ignition; the alarm
stops.
Locking the vehicle without
alarm
Lock or deadlock the vehicle us-
ing the key in the driver’s door
lock.
* According to country.
Malfunction
When the ignition is switched on,
lighting of the indicator lamp on but-
ton
A for ten seconds indicates a si-
ren fault.
Have it checked by a CITROËN
dealer. Automatic operation *
Depending on the legislation in force
in your country, one of these cases
may occur:
- 45 seconds after the vehicle is
locked using the remote control,
the alarm is armed, regardless of
the status of the doors and boot.
- 2 minutes after the last door or the boot is closed, the alarm is
armed.
To avoid triggering the alarm
o n e n t e r i n g t h e v e h i c l e , fi r s t
press the unlocking button on
the remote control.
Page 70 of 282
63
IV
A C C E S S

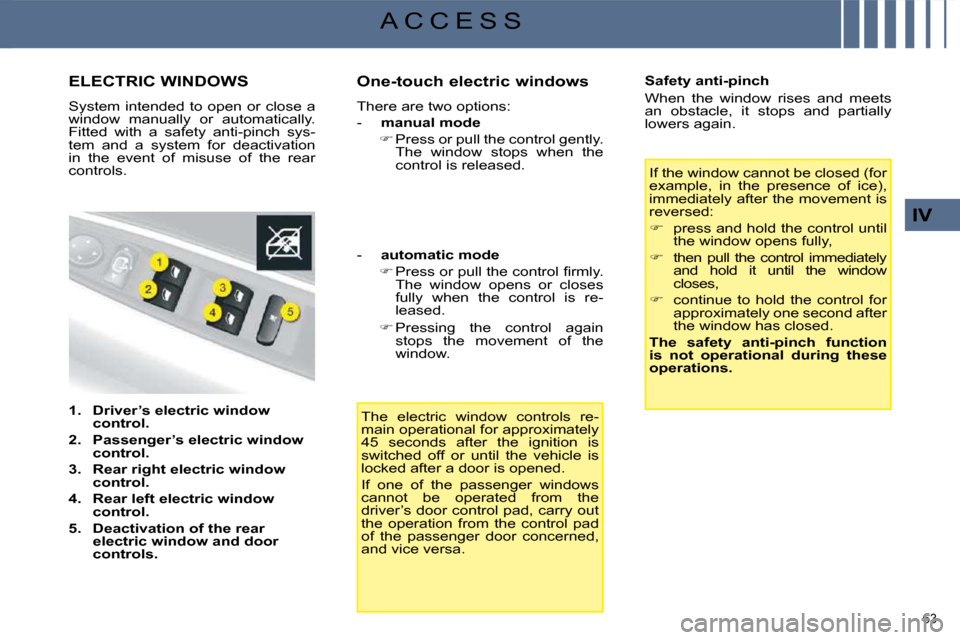

ELECTRIC WINDOWS
System intended to open or close a
window manually or automatically.
Fitted with a safety anti-pinch sys-
tem and a system for deactivation
in the event of misuse of the rear
controls.
1. Driver’s electric window
control.
2. Passenger’s electric window
control.
3. Rear right electric window
control.
4. Rear left electric window
control.
5. Deactivation of the rear
electric window and door
controls. One-touch electric windows
There are two options:
-
manual mode
Press or pull the control gently.
The window stops when the
control is released.
- automatic mode
P r e s s o r p u l l t h e c o n t r o l fi r m l y .
The window opens or closes
fully when the control is re-
leased.
Pressing the control again
stops the movement of the
window.
The electric window controls re-
main operational for approximately
45 seconds after the ignition is
switched off or until the vehicle is
locked after a door is opened.
If one of the passenger windows
cannot be operated from the
driver’s door control pad, carry out
the operation from the control pad
of the passenger door concerned,
and vice versa. Safety anti-pinch
When the window rises and meets
an obstacle, it stops and partially
lowers again.
If the window cannot be closed (for
example, in the presence of ice),
immediately after the movement is
reversed:
press and hold the control until
the window opens fully,
then pull the control immediately
and hold it until the window
closes,
continue to hold the control for
approximately one second after
the window has closed.
The safety
anti
-
pinch
function
is not operational during these
operations.
