Page 115 of 282
96
VIII
S A F E T Y

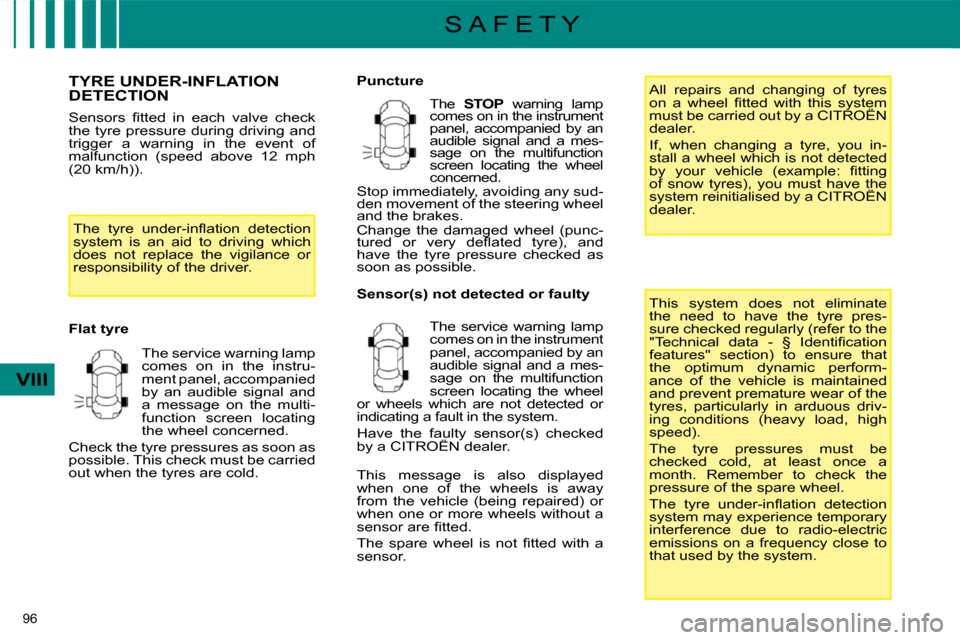

TYRE UNDER-INFLATION DETECTION
S e n s o r s fi t t e d i n e a c h v a l v e c h e c k
the tyre pressure during driving and
trigger a warning in the event of
malfunction (speed above 12 mph
(20 km/h)).
Flat tyre T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is an aid to driving which
does not replace the vigilance or
responsibility of the driver. Puncture
The service warning lamp
comes on in the instru-
ment panel, accompanied
by an audible signal and
a message on the multi-
function screen locating
the wheel concerned.
Check the tyre pressures as soon as
possible. This check must be carried
out when the tyres are cold. The
STOP warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction
screen locating the wheel
concerned.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
t u r e d o r v e r y d e fl a t e d t y r e ) , a n d
have the tyre pressure checked as
soon as possible.
Sensor(s) not detected or faulty
The service warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction
screen locating the wheel
or wheels which are not detected or
indicating a fault in the system.
Have the faulty sensor(s) checked
by a CITROËN dealer. All repairs and changing of tyres
o n a w h e e l fi t t e d w i t h t h i s s y s t e m
must be carried out by a CITROËN
dealer.
If, when changing a tyre, you in-
stall a wheel which is not detected
b y y o u r v e h i c l e ( e x a m p l e : fi t t i n g
of snow tyres), you must have the
system reinitialised by a CITROËN
dealer.
This system does not eliminate
the need to have the tyre pres-
sure checked regularly (refer to the
" T e c h n i c a l d a t a - § I d e n t i fi c a t i o n
features" section) to ensure that
the optimum dynamic perform-
ance of the vehicle is maintained
and prevent premature wear of the
tyres, particularly in arduous driv-
ing conditions (heavy load, high
speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
s y s t e m m a y e x p e r i e n c e t e m p o r a r y
interference due to radio-electric
emissions on a frequency close to
that used by the system.
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
s e n s o r a r e fi t t e d .
T h e s p a r e w h e e l i s n o t fi t t e d w i t h a
sensor.
Page 117 of 282
98
VIII
S A F E T Y

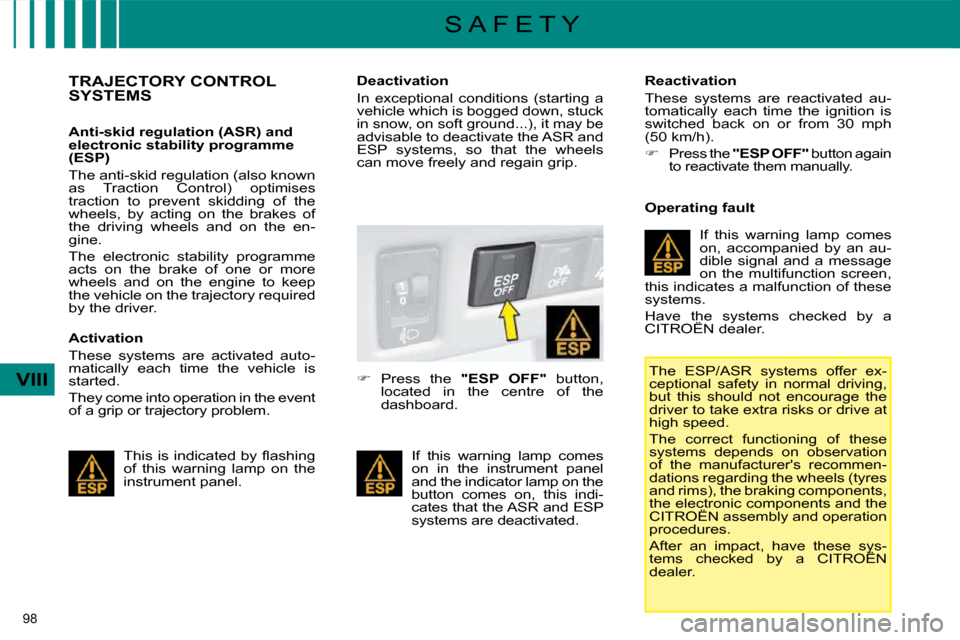

TRAJECTORY CONTROL SYSTEMS
Anti-skid regulation (ASR) and
electronic stability programme
(ESP)
The anti-skid regulation (also known
as Traction Control) optimises
traction to prevent skidding of the
wheels, by acting on the brakes of
the driving wheels and on the en-
gine.
The electronic stability programme
acts on the brake of one or more
wheels and on the engine to keep
the vehicle on the trajectory required
by the driver.
Activation
These systems are activated auto-
matically each time the vehicle is
started.
They come into operation in the event
of a grip or trajectory problem. T h i s i s i n d i c a t e d b y fl a s h i n g
of this warning lamp on the
instrument panel. Deactivation
I n e x c e p t i o n a l c o n d i t i o n s ( s t a r t i n g a
vehicle which is bogged down, stuck
in snow, on soft ground...), it may be
advisable to deactivate the ASR and
ESP systems, so that the wheels
can move freely and regain grip.
Press the "ESP OFF" button,
located in the centre of the
dashboard. Reactivation
These systems are reactivated au-
tomatically each time the ignition is
switched back on or from 30 mph
(50 km/h).
Press the "ESP OFF" button again
to reactivate them manually.
If this warning lamp comes
on in the instrument panel
and the indicator lamp on the
button comes on, this indi-
cates that the ASR and ESP
systems are deactivated. Operating fault
If this warning lamp comes
on, accompanied by an au-
dible signal and a message
on the multifunction screen,
this indicates a malfunction of these
systems.
Have the systems checked by a
CITROËN dealer.
T h e E S P / A S R s y s t e m s o f f e r e x -
ceptional safety in normal driving,
but this should not encourage the
d r i v e r t o t a k e e x t r a r i s k s o r d r i v e a t
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
CITROËN assembly and operation
procedures.
After an impact, have these sys-
tems checked by a CITROËN
dealer.
Page 154 of 282
133
X
C H E C K S

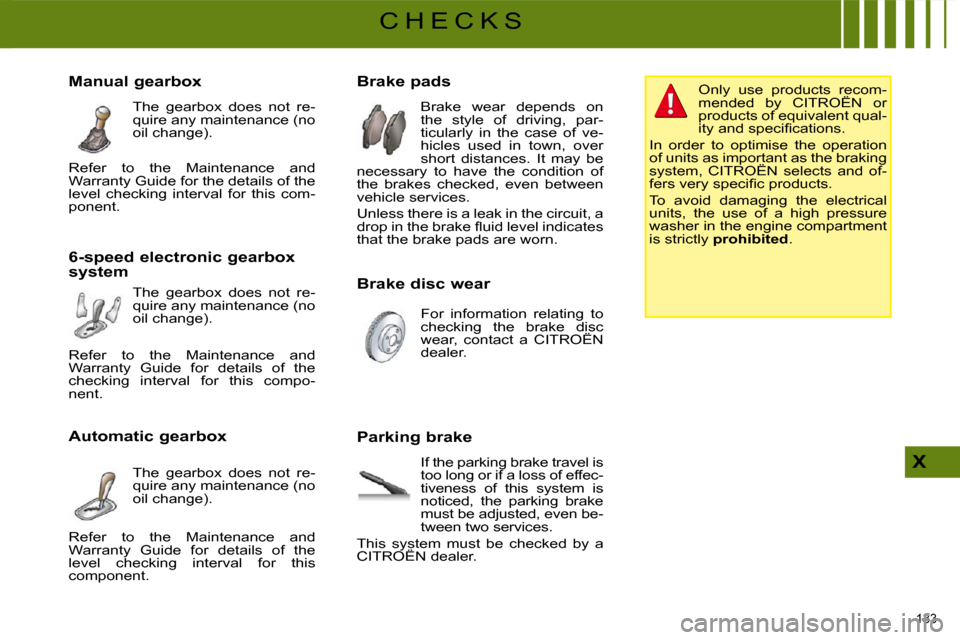

Brake pads Brake wear depends on
the style of driving, par-
ticularly in the case of ve-
hicles used in town, over
short distances. It may be
necessary to have the condition of
the brakes checked, even between
vehicle services.
Unless there is a leak in the circuit, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn.
Manual gearbox
The gearbox does not re-
quire any maintenance (no
oil change).
6 - s p e e d e l e c t r o n i c g e a r b o x
system The gearbox does not re-
quire any maintenance (no
oil change).
Automatic gearbox The gearbox does not re-
quire any maintenance (no
oil change). Brake disc wear
For information relating to
checking the brake disc
wear, contact a CITROËN
dealer.
Parking brake If the parking brake travel is
too long or if a loss of effec-
tiveness of this system is
noticed, the parking brake
must be adjusted, even be-
tween two services.
This system must be checked by a
CITROËN dealer. Only use products recom-
mended by CITROËN or
products of equivalent qual-
i t y a n d s p e c i fi c a t i o n s .
In order to optimise the operation
of units as important as the braking
system, CITROËN selects and of-
f e r s v e r y s p e c i fi c p r o d u c t s .
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited .
Refer to the Maintenance and
Warranty Guide for the details of the
level checking interval for this com-
ponent.
Refer to the Maintenance and
Warranty Guide for details of the
checking interval for this compo-
nent.
Refer to the Maintenance and
Warranty Guide for details of the
level checking interval for this
component.
Page 191 of 282
167
XII
T E C H N I C A L D A T A

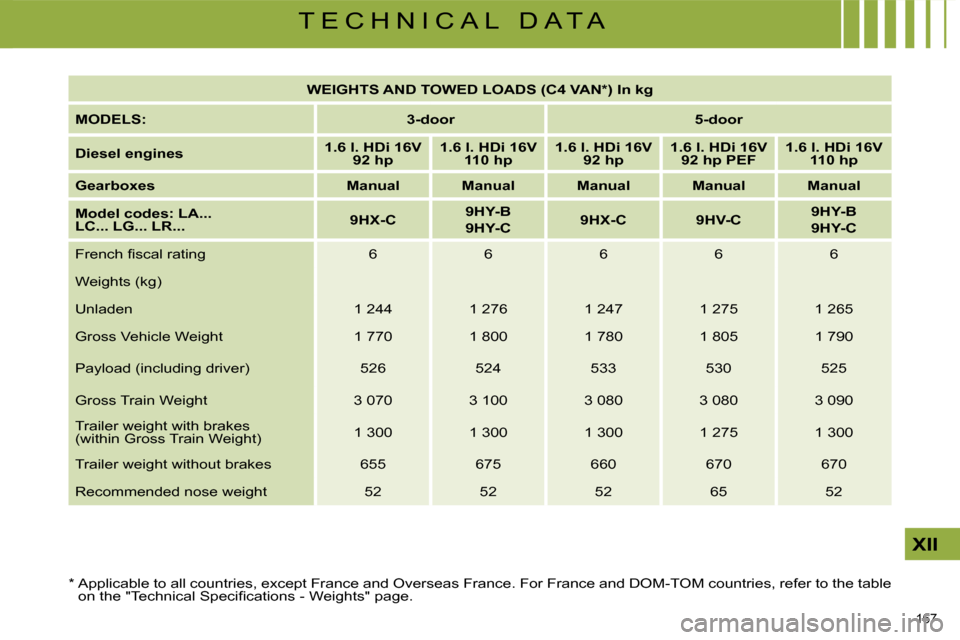

WEIGHTS AND TOWED LOADS (C4 VAN * ) In kg
MODELS:
3-door 5-door
Diesel engines
1.6 l. HDi 16V
92
hp
1.6 l. HDi 16V
110
hp
1.6 l. HDi 16V
92
hp
1.6 l. HDi 16V
92
hp
PEF
1.6 l. HDi 16V
110
hp
Gearboxes Manual Manual Manual Manual Manual
Model codes: LA...
LC... LG... LR...
9HX-C
9HY-B
9HY-C
9HX-C 9HV-C
9HY-B
9HY-C
F r e n c h fi s c a l r a t i n g 6 6 6 6 6
Weights (kg)
Unladen 1 244 1 276 1 247 1 275 1 26 5
Gross Vehicle Weight 1 770 1 800 1 780 1 80 5 1 790
Payload (including driver) 526 524 533 530 5 25
Gross Train Weight 3 070 3 100 3 080 3 080 3 090
Trailer weight with brakes
(within Gross Train Weight) 1 300 1 300 1 300 1 275 1 300
Trailer weight without brakes 655 675 660 67 0 670
Recommended nose weight 52 52 52 65 52
* Applicable to all countries, except France and Overseas F rance. For France and DOM-TOM countries, refer to the table
o n t h e " T e c h n i c a l S p e c i fi c a t i o n s - W e i g h t s " p a g e .
