Page 15 of 282
18
F A M I L I A R I S A T I O N
M O N I T O R I N G
Instrument panel with translucent bar
A. Speedometer.
B. Rev counter. Controls
C. Fuel gauge.
D. Lighting rheostat.
E. Warning lamps. Ignition on, the orange and red alert
warning lamps come on.
With the engine running, these same
warning lamps should go out.
If a warning lamp stays on, refer to the
relevant page.
Warning lamps
23
24
A. Deactivation of the ESP/ASR system.
98
B. Deactivation of the visual and audi-
ble parking assistance.
123
C. Deactivation of the lane departure
warning system.
121
D. Deactivation of the alarm volumetric
sensors.
61
Page 20 of 282
23
I
I N S T R U M E N T S a n d C O N T R O L S
INSTRUMENT PANEL WITH TRANSLUCENT SCREEN
The instrument panel groups all the driving and comfort information at the centre of the dashboard.
Central display
1. Rev counter
2. Cruise control or speed limiter
setting
3. Speedometer
4. Maintenance indicator when the
ignition is switched on, then total
mileage recorder
5. Trip mileage recorder
6. Fuel gauge
7. Engine oil level check
8. Coolant temperature Control buttons
A. Trip mileage recorder reset
B. Lighting rheostat
C. Display of alerts and Status of
functions
Page 21 of 282
24
I
I N S T R U M E N T S a n d C O N T R O L S
Indicator and warning lamps
When the ignition is switched on
The warning lamps come on for a
few seconds when the vehicle’s ig-
nition is switched on.
When the engine is started, these
warning lamps should switch off.
If they remain on, before moving off,
consult information on the warning
lamp concerned. Associated warnings
The switching on of certain warning
lamps may be accompanied by an
audible signal and a message on
the multifunction screen.
The warning lamps may come on
c o n t i n u o u s l y o r fl a s h .
Certain warning lamps may come
on in two different modes. Only by
relating the type of lighting to the
operation of the vehicle can it be
ascertained whether the situation
is normal or whether a fault has oc-
curred. Operation indicator lamps
If one of the following indicator
l a m p s c o m e s o n , t h i s c o n fi r m s t h a t
the corresponding system has come
into operation.
Front fog lamps.
Left-hand direction
indicator.
Sidelamps.
Main beam headlamps.
Dipped headlamps.
Right-hand direction
indicator.
Rear fog lamp.
Visual indicators informing the driver
that a system is in operation (opera-
tion or deactivation indicator lamps)
or of the occurrence of a fault (warn-
ing lamp).
Page 22 of 282
25
I
I N S T R U M E N T S a n d C O N T R O L S
"Foot on brake" T h e fl a s h i n g o f t h i s w a r n i n g
lamp on the display informs
you that you need to press
the brake pedal in order to
be able to start the engine on a ve-
hicle with the (6-speed) Electronic
Gearbox System, or to move out of
position P in the case of an automat-
ic gearbox.
I t m a y a l s o fl a s h t o p r o m p t y o u t o
brake when engaging reverse gear.
In the case of the Electronic Gearbox
S y s t e m , t h i s w a r n i n g l a m p fl a s h e s t o
indicate overheating of the clutch if
you use the accelerator excessively
to hold the vehicle on an uphill slope.
Use the brake pedal instead.
Electric child lock
If lit, the child lock is acti-
vated. This warning lamp is
displayed for a few seconds
after the function is activated. Deactivation warning lamps
If one of the following warning lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e
corresponding system has been
switched off intentionally.
Passenger’s air bag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started.
A s p e c i fi c b u t t o n , l o c a t e d i n t h e c e n -
tre of the dashboard, permits deac-
tivation of the system. This is con-
fi r m e d b y c o n t i n u o u s l i g h t i n g o f t h i s
warning lamp and of the indicator
lamp on the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically. Warning lamps
Diesel engine pre-heating
Wait until this goes off before oper-
ating the starter.
The passenger’s air bag
system is put into service
automatically when the ve-
hicle is started.
A s p e c i fi c c o n t r o l , l o c a t e d i n t h e g l o v e
box, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning lamp on the
instrument panel or a message on
the NaviDrive multifunction screen. When the engine is running or the
vehicle is moving, the lighting of
one of the following warning lamps
indicates the occurrence of a fault
requiring action on the part of the
driver.
Any fault resulting in the displaying
of a warning lamp must be investi-
gated further by reading the associ-
ated message on the multifunction
screen.
Should you encounter any prob-
lems, do not hesitate to contact a
CITROËN dealer.
Page 23 of 282
26
I
I N S T R U M E N T S a n d C O N T R O L S Maximum coolant temperature If this comes on, it indicates
that the temperature in the
cooling system is too high.
Stop the vehicle as soon as
it is safe to do so.
Low fuel level When the tank is full, all the
bars are lit.
If the fuel low warning lamp
comes on accompanied by
an audible signal and a message on
the multifunction screen, there are
approximately 7 litres of fuel remain-
ing in the tank and 2 or 3 bars are lit.
When the last bar goes out, there
are approximately 2 litres of fuel re-
maining in the tank.
Lighting is associated
with the lighting of an-
other warning lamp:
Service If this comes on, it indi-
cates the occurrence
of a problem in one
of the systems which
does not have a spe-
c i fi c w a r n i n g l a m p .
It is accompanied by a message on
the multifunction screen.
The warning lamp comes on tempo-
rarily in the case of minor faults.
In the case of major faults, the
warning lamp remains on until the
o p e r a t i n g f a u l t i s r e c t i fi e d . C o n t a c t
a CITROËN dealer as soon as
possible. Braking
If this comes on, it indicates
the occurrence of a fault in
one of the braking systems:
- s i g n i fi c a n t d r o p i n t h e fl u i d l e v e l in the circuit,
- electronic brake force distribu- tion (EBFD) faulty (simultane-
ous lighting of the ABS warning
lamp),
stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Dynamic stability control
(ESP/ASR)
The ESP/ASR system is put
into service automatically
when the vehicle is started.
Unless the system has been
deactivated, if this warning lamp
and the indicator lamp on the button
come on continuously, this indicates
the occurrence of a fault in the ESP/
ASR system or in the hill start as-
sistance. Engine autodiagnostics system
If this comes on, it indicates
the occurrence of a fault in
the engine management
system.
I f i t fl a s h e s , i t i n d i c a t e s t h e o c c u r -
rence of a fault in the emission con-
trol system.
Central alert
- punctured wheel,
- braking,
- coolant temperature,
stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Anti-lock braking system (ABS) If this comes on, it indicates
the occurrence of a fault in
the anti-lock braking system.
However, this does not prevent op-
eration of the vehicle’s servo-assist-
ed braking system.
Page 24 of 282

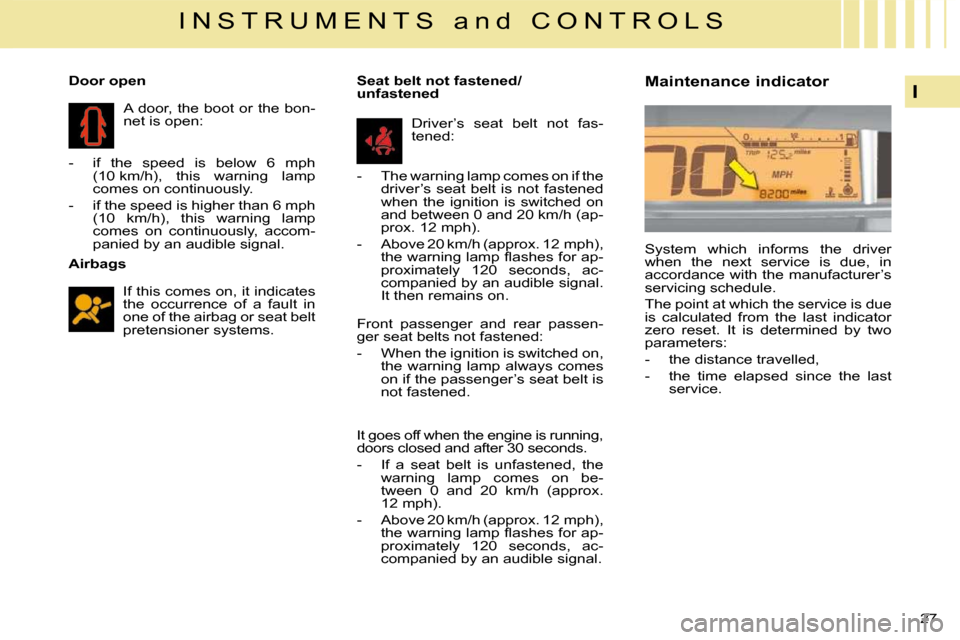

27
I
I N S T R U M E N T S a n d C O N T R O L S
Airbags If this comes on, it indicates
the occurrence of a fault in
one of the airbag or seat belt
pretensioner systems.
Door open
A door, the boot or the bon-
net is open:
- if the speed is below 6 mph (10 km/h), this warning lamp
comes on continuously.
- if the speed is higher than 6 mph (10 km/h), this warning lamp
comes on continuously, accom-
panied by an audible signal. Seat belt not fastened/
unfastened
Driver’s seat belt not fas-
tened:
- The warning lamp comes on if the driver’s seat belt is not fastened
when the ignition is switched on
and between 0 and 20 km/h (ap-
prox. 12 mph).
- Above 20 km/h (approx. 12 mph), t h e w a r n i n g l a m p fl a s h e s f o r a p -
proximately 120 seconds, ac-
companied by an audible signal.
It then remains on.
Front passenger and rear passen-
ger seat belts not fastened:
- When the ignition is switched on, the warning lamp always comes
on if the passenger’s seat belt is
not fastened.
It goes off when the engine is running,
doors closed and after 30 seconds.
- If a seat belt is unfastened, the warning lamp comes on be-
tween 0 and 20 km/h (approx.
12 mph).
- Above 20 km/h (approx. 12 mph), t h e w a r n i n g l a m p fl a s h e s f o r a p -
proximately 120 seconds, ac-
companied by an audible signal. Maintenance indicator
System which informs the driver
when the next service is due, in
accordance with the manufacturer’s
servicing schedule.
The point at which the service is due
is calculated from the last indicator
zero reset. It is determined by two
parameters:
- the distance travelled,
- the time elapsed since the last
service.
Page 25 of 282
24
I
I N S T R U M E N T S a n d C O N T R O L S
Indicator and warning lamps
When the ignition is switched on
The warning lamps come on for a
few seconds when the vehicle’s ig-
nition is switched on.
When the engine is started, these
warning lamps should switch off.
If they remain on, before moving off,
consult information on the warning
lamp concerned. Associated warnings
The switching on of certain warning
lamps may be accompanied by an
audible signal and a message on
the multifunction screen.
The warning lamps may come on
c o n t i n u o u s l y o r fl a s h .
Certain warning lamps may come
on in two different modes. Only by
relating the type of lighting to the
operation of the vehicle can it be
ascertained whether the situation
is normal or whether a fault has oc-
curred. Operation indicator lamps
If one of the following indicator
l a m p s c o m e s o n , t h i s c o n fi r m s t h a t
the corresponding system has come
into operation.
Front fog lamps.
Left-hand direction
indicator.
Sidelamps.
Main beam headlamps.
Dipped headlamps.
Right-hand direction
indicator.
Rear fog lamp.
Visual indicators informing the driver
that a system is in operation (opera-
tion or deactivation indicator lamps)
or of the occurrence of a fault (warn-
ing lamp).
Page 26 of 282
25
I
I N S T R U M E N T S a n d C O N T R O L S
"Foot on brake" T h e fl a s h i n g o f t h i s w a r n i n g
lamp on the display informs
you that you need to press
the brake pedal in order to
be able to start the engine on a ve-
hicle with the (6-speed) Electronic
Gearbox System, or to move out of
position P in the case of an automat-
ic gearbox.
I t m a y a l s o fl a s h t o p r o m p t y o u t o
brake when engaging reverse gear.
In the case of the Electronic Gearbox
S y s t e m , t h i s w a r n i n g l a m p fl a s h e s t o
indicate overheating of the clutch if
you use the accelerator excessively
to hold the vehicle on an uphill slope.
Use the brake pedal instead.
Electric child lock
If lit, the child lock is acti-
vated. This warning lamp is
displayed for a few seconds
after the function is activated. Deactivation warning lamps
If one of the following warning lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e
corresponding system has been
switched off intentionally.
Passenger’s air bag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started.
A s p e c i fi c b u t t o n , l o c a t e d i n t h e c e n -
tre of the dashboard, permits deac-
tivation of the system. This is con-
fi r m e d b y c o n t i n u o u s l i g h t i n g o f t h i s
warning lamp and of the indicator
lamp on the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically. Warning lamps
Diesel engine pre-heating
Wait until this goes off before oper-
ating the starter.
The passenger’s air bag
system is put into service
automatically when the ve-
hicle is started.
A s p e c i fi c c o n t r o l , l o c a t e d i n t h e g l o v e
box, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning lamp on the
instrument panel or a message on
the NaviDrive multifunction screen. When the engine is running or the
vehicle is moving, the lighting of
one of the following warning lamps
indicates the occurrence of a fault
requiring action on the part of the
driver.
Any fault resulting in the displaying
of a warning lamp must be investi-
gated further by reading the associ-
ated message on the multifunction
screen.
Should you encounter any prob-
lems, do not hesitate to contact a
CITROËN dealer.
Page 27 of 282
25
I
I N S T R U M E N T S a n d C O N T R O L S
"Foot on brake" T h e fl a s h i n g o f t h i s w a r n i n g
lamp on the display informs
you that you need to press
the brake pedal in order to
be able to start the engine on a ve-
hicle with the (6-speed) Electronic
Gearbox System, or to move out of
position P in the case of an automat-
ic gearbox.
I t m a y a l s o fl a s h t o p r o m p t y o u t o
brake when engaging reverse gear.
In the case of the Electronic Gearbox
S y s t e m , t h i s w a r n i n g l a m p fl a s h e s t o
indicate overheating of the clutch if
you use the accelerator excessively
to hold the vehicle on an uphill slope.
Use the brake pedal instead.
Electric child lock
If lit, the child lock is acti-
vated. This warning lamp is
displayed for a few seconds
after the function is activated. Deactivation warning lamps
If one of the following warning lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e
corresponding system has been
switched off intentionally.
Passenger’s air bag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started.
A s p e c i fi c b u t t o n , l o c a t e d i n t h e c e n -
tre of the dashboard, permits deac-
tivation of the system. This is con-
fi r m e d b y c o n t i n u o u s l i g h t i n g o f t h i s
warning lamp and of the indicator
lamp on the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically. Warning lamps
Diesel engine pre-heating
Wait until this goes off before oper-
ating the starter.
The passenger’s air bag
system is put into service
automatically when the ve-
hicle is started.
A s p e c i fi c c o n t r o l , l o c a t e d i n t h e g l o v e
box, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning lamp on the
instrument panel or a message on
the NaviDrive multifunction screen. When the engine is running or the
vehicle is moving, the lighting of
one of the following warning lamps
indicates the occurrence of a fault
requiring action on the part of the
driver.
Any fault resulting in the displaying
of a warning lamp must be investi-
gated further by reading the associ-
ated message on the multifunction
screen.
Should you encounter any prob-
lems, do not hesitate to contact a
CITROËN dealer.
Page 28 of 282
26
I
I N S T R U M E N T S a n d C O N T R O L S Maximum coolant temperature If this comes on, it indicates
that the temperature in the
cooling system is too high.
Stop the vehicle as soon as
it is safe to do so.
Low fuel level When the tank is full, all the
bars are lit.
If the fuel low warning lamp
comes on accompanied by
an audible signal and a message on
the multifunction screen, there are
approximately 7 litres of fuel remain-
ing in the tank and 2 or 3 bars are lit.
When the last bar goes out, there
are approximately 2 litres of fuel re-
maining in the tank.
Lighting is associated
with the lighting of an-
other warning lamp:
Service If this comes on, it indi-
cates the occurrence
of a problem in one
of the systems which
does not have a spe-
c i fi c w a r n i n g l a m p .
It is accompanied by a message on
the multifunction screen.
The warning lamp comes on tempo-
rarily in the case of minor faults.
In the case of major faults, the
warning lamp remains on until the
o p e r a t i n g f a u l t i s r e c t i fi e d . C o n t a c t
a CITROËN dealer as soon as
possible. Braking
If this comes on, it indicates
the occurrence of a fault in
one of the braking systems:
- s i g n i fi c a n t d r o p i n t h e fl u i d l e v e l in the circuit,
- electronic brake force distribu- tion (EBFD) faulty (simultane-
ous lighting of the ABS warning
lamp),
stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Dynamic stability control
(ESP/ASR)
The ESP/ASR system is put
into service automatically
when the vehicle is started.
Unless the system has been
deactivated, if this warning lamp
and the indicator lamp on the button
come on continuously, this indicates
the occurrence of a fault in the ESP/
ASR system or in the hill start as-
sistance. Engine autodiagnostics system
If this comes on, it indicates
the occurrence of a fault in
the engine management
system.
I f i t fl a s h e s , i t i n d i c a t e s t h e o c c u r -
rence of a fault in the emission con-
trol system.
Central alert
- punctured wheel,
- braking,
- coolant temperature,
stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Anti-lock braking system (ABS) If this comes on, it indicates
the occurrence of a fault in
the anti-lock braking system.
However, this does not prevent op-
eration of the vehicle’s servo-assist-
ed braking system.
