26
I
I N S T R U M E N T S a n d C O N T R O L S Maximum coolant temperature If this comes on, it indicates
that the temperature in the
cooling system is too high.
Stop the vehicle as soon as
it is safe to do so.
Low fuel level When the tank is full, all the
bars are lit.
If the fuel low warning lamp
comes on accompanied by
an audible signal and a message on
the multifunction screen, there are
approximately 7 litres of fuel remain-
ing in the tank and 2 or 3 bars are lit.
When the last bar goes out, there
are approximately 2 litres of fuel re-
maining in the tank.
Lighting is associated
with the lighting of an-
other warning lamp:
Service If this comes on, it indi-
cates the occurrence
of a problem in one
of the systems which
does not have a spe-
c i fi c w a r n i n g l a m p .
It is accompanied by a message on
the multifunction screen.
The warning lamp comes on tempo-
rarily in the case of minor faults.
In the case of major faults, the
warning lamp remains on until the
o p e r a t i n g f a u l t i s r e c t i fi e d . C o n t a c t
a CITROËN dealer as soon as
possible. Braking
If this comes on, it indicates
the occurrence of a fault in
one of the braking systems:
- s i g n i fi c a n t d r o p i n t h e fl u i d l e v e l in the circuit,
- electronic brake force distribu- tion (EBFD) faulty (simultane-
ous lighting of the ABS warning
lamp),
stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Dynamic stability control
(ESP/ASR)
The ESP/ASR system is put
into service automatically
when the vehicle is started.
Unless the system has been
deactivated, if this warning lamp
and the indicator lamp on the button
come on continuously, this indicates
the occurrence of a fault in the ESP/
ASR system or in the hill start as-
sistance. Engine autodiagnostics system
If this comes on, it indicates
the occurrence of a fault in
the engine management
system.
I f i t fl a s h e s , i t i n d i c a t e s t h e o c c u r -
rence of a fault in the emission con-
trol system.
Central alert
- punctured wheel,
- braking,
- coolant temperature,
stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Anti-lock braking system (ABS) If this comes on, it indicates
the occurrence of a fault in
the anti-lock braking system.
However, this does not prevent op-
eration of the vehicle’s servo-assist-
ed braking system.
Page 28 of 282
26
I
I N S T R U M E N T S a n d C O N T R O L S Maximum coolant temperature If this comes on, it indicates
that the temperature in the
cooling system is too high.
Stop the vehicle as soon as
it is safe to do so.
Low fuel level When the tank is full, all the
bars are lit.
If the fuel low warning lamp
comes on accompanied by
an audible signal and a message on
the multifunction screen, there are
approximately 7 litres of fuel remain-
ing in the tank and 2 or 3 bars are lit.
When the last bar goes out, there
are approximately 2 litres of fuel re-
maining in the tank.
Lighting is associated
with the lighting of an-
other warning lamp:
Service If this comes on, it indi-
cates the occurrence
of a problem in one
of the systems which
does not have a spe-
c i fi c w a r n i n g l a m p .
It is accompanied by a message on
the multifunction screen.
The warning lamp comes on tempo-
rarily in the case of minor faults.
In the case of major faults, the
warning lamp remains on until the
o p e r a t i n g f a u l t i s r e c t i fi e d . C o n t a c t
a CITROËN dealer as soon as
possible. Braking
If this comes on, it indicates
the occurrence of a fault in
one of the braking systems:
- s i g n i fi c a n t d r o p i n t h e fl u i d l e v e l in the circuit,
- electronic brake force distribu- tion (EBFD) faulty (simultane-
ous lighting of the ABS warning
lamp),
stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Dynamic stability control
(ESP/ASR)
The ESP/ASR system is put
into service automatically
when the vehicle is started.
Unless the system has been
deactivated, if this warning lamp
and the indicator lamp on the button
come on continuously, this indicates
the occurrence of a fault in the ESP/
ASR system or in the hill start as-
sistance. Engine autodiagnostics system
If this comes on, it indicates
the occurrence of a fault in
the engine management
system.
I f i t fl a s h e s , i t i n d i c a t e s t h e o c c u r -
rence of a fault in the emission con-
trol system.
Central alert
- punctured wheel,
- braking,
- coolant temperature,
stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Anti-lock braking system (ABS) If this comes on, it indicates
the occurrence of a fault in
the anti-lock braking system.
However, this does not prevent op-
eration of the vehicle’s servo-assist-
ed braking system.
Page 47 of 282
43
III
C O M F O R T
MANUAL AIR CONDITIONING

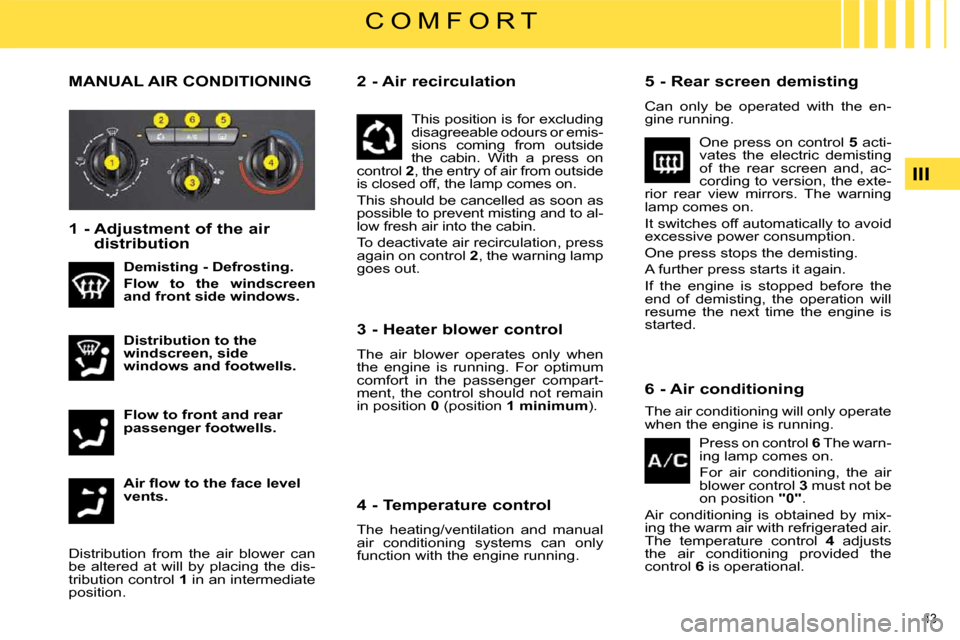

A i r fl o w t o t h e f a c e l e v e l
vents.
1 - A d j u s t m e n t o f t h e a i r
distribution
Demisting - Defrosting.
F l o w t o t h e w i n d s c r e e n
a n d f r o n t s i d e w i n d o w s .
D i s t r i b u t i o n t o t h e
w i n d s c r e e n , s i d e
w i n d o w s a n d f o o t w e l l s .
F l o w t o f r o n t a n d r e a r
p a s s e n g e r f o o t w e l l s .
Distribution from the air blower can
be altered at will by placing the dis-
tribution control 1 in an intermediate
position. 2 - Air recirculation
3 - H e a t e r b l o w e r c o n t r o l
The air blower operates only when
the engine is running. For optimum
comfort in the passenger compart-
ment, the control should not remain
in position
0 (position 1 minimum ).
4 - Temperature control
The heating/ventilation and manual
air conditioning systems can only
function with the engine running. This position is for excluding
disagreeable odours or emis-
sions coming from outside
the cabin. With a press on
control 2 , the entry of air from outside
is closed off, the lamp comes on.
This should be cancelled as soon as
possible to prevent misting and to al-
low fresh air into the cabin.
To deactivate air recirculation, press
again on control 2 , the warning lamp
goes out. 5 - Rear screen demisting
Can only be operated with the en-
gine running.
One press on control 5 acti-
vates the electric demisting
of the rear screen and, ac-
cording to version, the exte-
rior rear view mirrors. The warning
lamp comes on.
It switches off automatically to avoid
excessive power consumption.
One press stops the demisting.
A further press starts it again.
If the engine is stopped before the
end of demisting, the operation will
resume the next time the engine is
started.
6 - Air conditioning
The air conditioning will only operate
when the engine is running.
Press on control 6 The warn-
ing lamp comes on.
For air conditioning, the air
blower control 3 must not be
on position "0" .
Air conditioning is obtained by mix-
ing the warm air with refrigerated air.
The temperature control 4 adjusts
the air conditioning provided the
control 6 is operational.
Page 50 of 282
46
III
C O M F O R T
When you enter the vehicle, the
temperature inside the vehicle
may be much colder (or warmer)
than a comfortable temperature.
There is no point in modifying
the displayed temperature to
try to attain the desired level of
comfort. The system operates
automatically to compensate this
temperature discrepancy as rap-
idly as possible.
When starting the engine from
cold, in order to avoid distributing
too much cold air, the blower will
attain its optimum level gradually.
Manual
operation
of one or more
functions
Each of the functions 4 , 6 and 7 can
be adjusted manually.
Display of the "AUTO" function then
disappears.
Central and lateral air
vents.
Central and lateral air
vents and passenger
f o o t w e l l s .
P a s s e n g e r f o o t w e l l s .
T h e w i n d s c r e e n , f r o n t
s i d e w i n d o w s a n d
p a s s e n g e r f o o t w e l l s .
T h e w i n d s c r e e n a n d
f r o n t s i d e w i n d o w s .

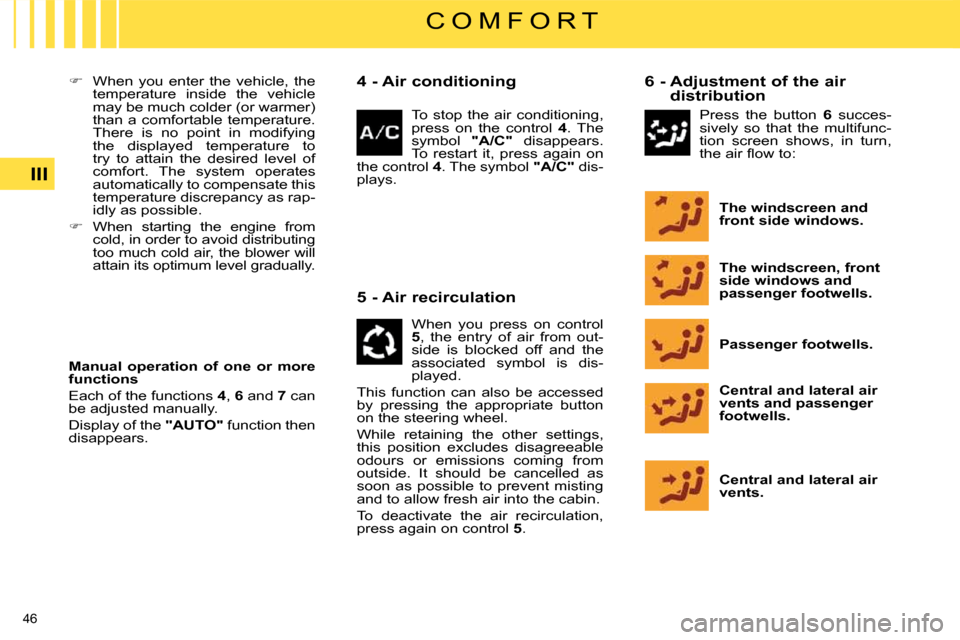

4 - Air conditioning
6 - A d j u s t m e n t o f t h e a i r
distribution
5 - Air recirculation To stop the air conditioning,
press on the control
4 . The
symbol "A/C" disappears.
To restart it, press again on
the control 4 . The symbol "A/C" dis-
plays.
When you press on control
5 , the entry of air from out-
side is blocked off and the
associated symbol is dis-
played.
This function can also be accessed
by pressing the appropriate button
on the steering wheel.
While retaining the other settings,
this position excludes disagreeable
odours or emissions coming from
outside. It should be cancelled as
soon as possible to prevent misting
and to allow fresh air into the cabin.
To deactivate the air recirculation,
press again on control 5 . Press the button
6 succes-
sively so that the multifunc-
tion screen shows, in turn,
t h e a i r fl o w t o :
Page 51 of 282
47
III
C O M F O R T

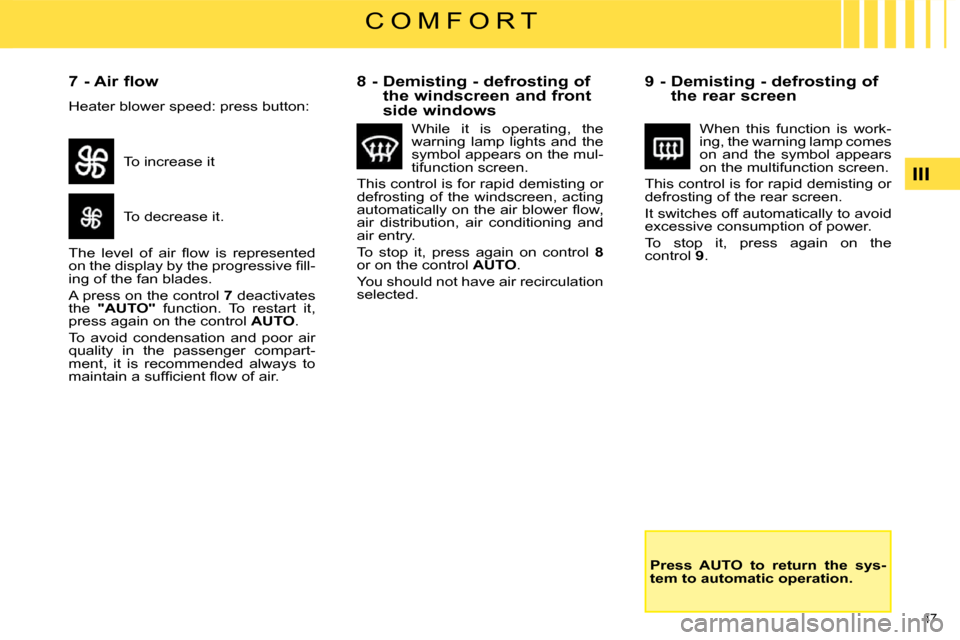

7 - A i r f l o w
Heater blower speed: press button: 9 - Demisting - defrosting of
t h e r e a r s c r e e n
To increase it
To decrease it.
T h e l e v e l o f a i r fl o w i s r e p r e s e n t e d
o n t h e d i s p l a y b y t h e p r o g r e s s i v e fi l l -
ing of the fan blades.
A press on the control 7 deactivates
the "AUTO" function. To restart it,
press again on the control AUTO .
To avoid condensation and poor air
quality in the passenger compart-
ment, it is recommended always to
m a i n t a i n a s u f fi c i e n t fl o w o f a i r . 8 - Demisting - defrosting of
t h e w i n d s c r e e n a n d f r o n t
s i d e w i n d o w s
While it is operating, the
warning lamp lights and the
symbol appears on the mul-
tifunction screen.
This control is for rapid demisting or
defrosting of the windscreen, acting
a u t o m a t i c a l l y o n t h e a i r b l o w e r fl o w ,
air distribution, air conditioning and
air entry.
To stop it, press again on control 8
or on the control AUTO .
You should not have air recirculation
selected. When this function is work-
ing, the warning lamp comes
on and the symbol appears
on the multifunction screen.
This control is for rapid demisting or
defrosting of the rear screen.
It switches off automatically to avoid
excessive consumption of power.
To stop it, press again on the
control 9 .
P r e s s A U T O t o r e t u r n t h e s y s -
tem to
automatic
operation
.
Page 62 of 282
58
IV
A C C E S S
STARTING

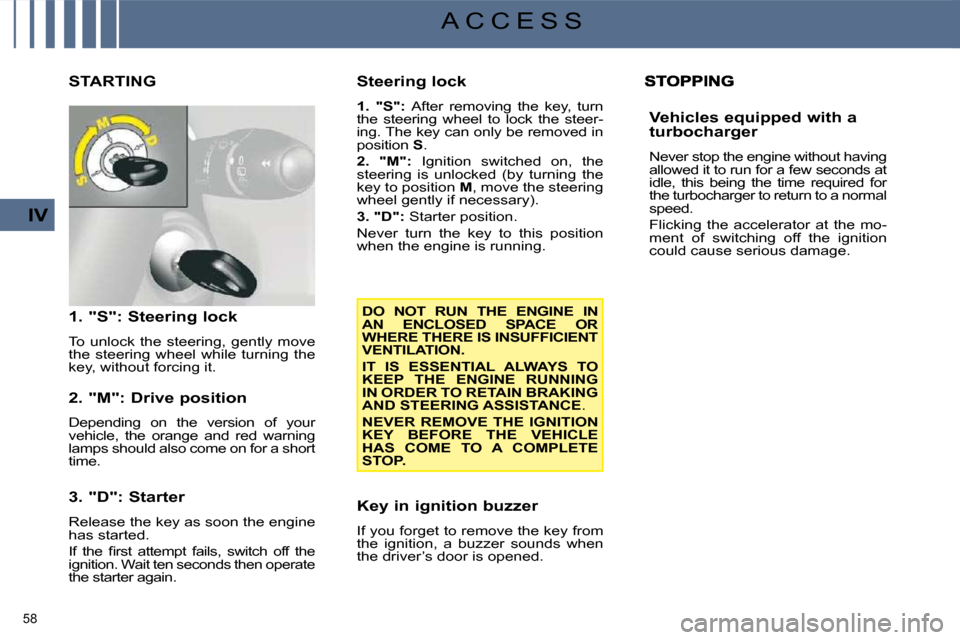

1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Drive position
Depending on the version of your
vehicle, the orange and red warning
lamps should also come on for a short
time.
3. "D": Starter
Release the key as soon the engine
has started.
I f t h e fi r s t a t t e m p t f a i l s , s w i t c h o f f t h e
ignition. Wait ten seconds then operate
the starter again. Steering lock
1. "
S": After removing the key, turn
the steering wheel to lock the steer-
ing. The key can only be removed in
position S .
2. "M": Ignition switched on, the
steering is unlocked (by turning the
key to position M , move the steering
wheel gently if necessary).
3. "D": Starter position.
Never turn the key to this position
when the engine is running.
Key in ignition buzzer
If you forget to remove the key from
the ignition, a buzzer sounds when
the driver’s door is opened.
DO NOT RUN THE ENGINE IN
AN ENCLOSED SPACE OR
WHERE THERE IS INSUFFICIENT
VENTILATION.
IT IS ESSENTIAL ALWAYS TO
KEEP THE ENGINE RUNNING
IN ORDER TO RETAIN BRAKING
AND STEERING ASSISTANCE .
NEVER REMOVE THE IGNITION
KEY BEFORE THE VEHICLE
HAS COME TO A COMPLETE
STOP.
Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds at
idle, this being the time required for
the turbocharger to return to a normal
speed.
Flicking the accelerator at the mo-
ment of switching off the ignition
could cause serious damage.
Page 64 of 282
60
IV
A C C E S S
Lost keys
Visit a CITROËN dealer with the vehi-
cle’s V5 registration document and your
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a re-
placement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reinitialised. The
remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the electronic engine immobiliser
system; this could cause malfunc-
tions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.

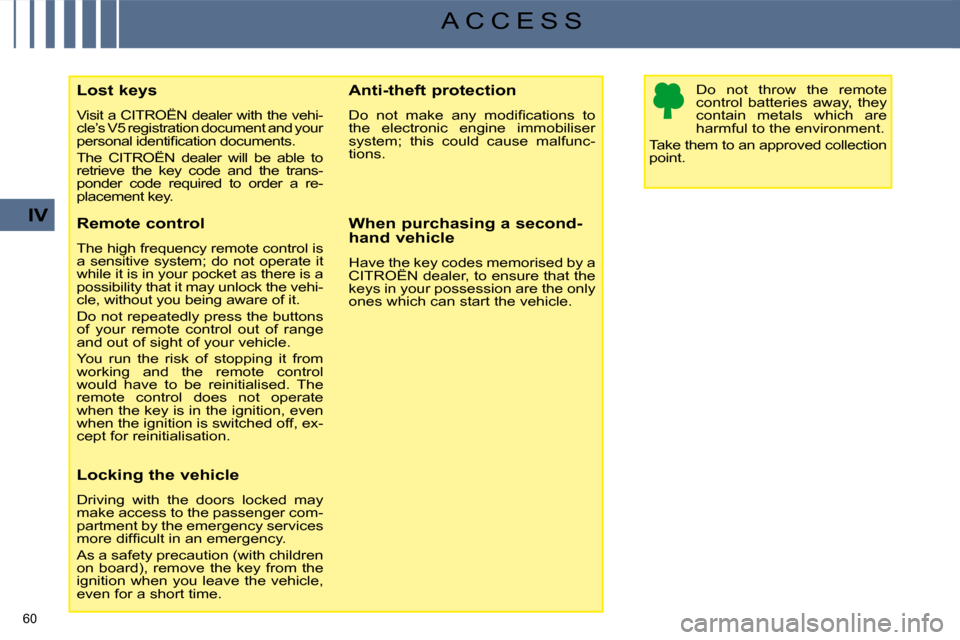

Page 66 of 282
60
IV
A C C E S S
Lost keys
Visit a CITROËN dealer with the vehi-
cle’s V5 registration document and your
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a re-
placement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reinitialised. The
remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the electronic engine immobiliser
system; this could cause malfunc-
tions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
Page 67 of 282
58
IV
A C C E S S
STARTING
1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Drive position
Depending on the version of your
vehicle, the orange and red warning
lamps should also come on for a short
time.
3. "D": Starter
Release the key as soon the engine
has started.
I f t h e fi r s t a t t e m p t f a i l s , s w i t c h o f f t h e
ignition. Wait ten seconds then operate
the starter again. Steering lock
1. "
S": After removing the key, turn
the steering wheel to lock the steer-
ing. The key can only be removed in
position S .
2. "M": Ignition switched on, the
steering is unlocked (by turning the
key to position M , move the steering
wheel gently if necessary).
3. "D": Starter position.
Never turn the key to this position
when the engine is running.
Key in ignition buzzer
If you forget to remove the key from
the ignition, a buzzer sounds when
the driver’s door is opened.
DO NOT RUN THE ENGINE IN
AN ENCLOSED SPACE OR
WHERE THERE IS INSUFFICIENT
VENTILATION.
IT IS ESSENTIAL ALWAYS TO
KEEP THE ENGINE RUNNING
IN ORDER TO RETAIN BRAKING
AND STEERING ASSISTANCE .
NEVER REMOVE THE IGNITION
KEY BEFORE THE VEHICLE
HAS COME TO A COMPLETE
STOP.
Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds at
idle, this being the time required for
the turbocharger to return to a normal
speed.
Flicking the accelerator at the mo-
ment of switching off the ignition
could cause serious damage.

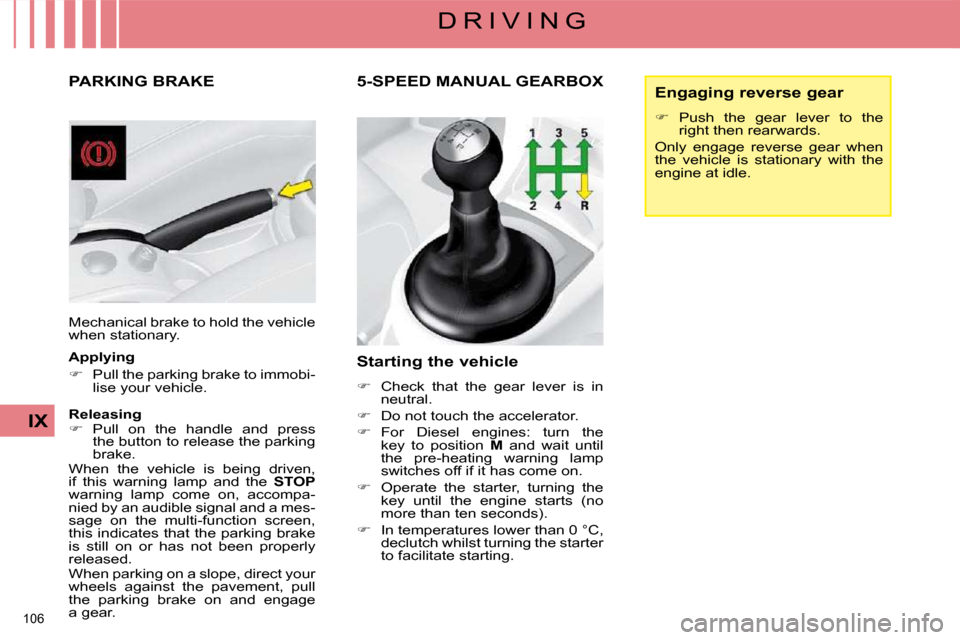

Page 126 of 282
106
IX
D R I V I N G
PARKING BRAKE
Mechanical brake to hold the vehicle
when stationary.
Applying
Pull the parking brake to immobi-
lise your vehicle.
Releasing
Pull on the handle and press
the button to release the parking
brake.
When the vehicle is being driven,
if this warning lamp and the STOP
warning lamp come on, accompa-
nied by an audible signal and a mes-
sage on the multi-function screen,
this indicates that the parking brake
is still on or has not been properly
released.
When parking on a slope, direct your
wheels against the pavement, pull
the parking brake on and engage
a gear.
5-SPEED MANUAL GEARBOX
Starting the vehicle
Check that the gear lever is in
neutral.
Do not touch the accelerator.
For Diesel engines: turn the
key to position M and wait until
the pre-heating warning lamp
switches off if it has come on.
Operate the starter, turning the
key until the engine starts (no
more than ten seconds).
In temperatures lower than 0 °C,
declutch whilst turning the starter
to facilitate starting. Engaging reverse gear
Push the gear lever to the
right then rearwards.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
