Page 151 of 279
146
XI
P R A C T I C A L I N F O R M A T I O N
Interior lighting
Interior lamp (1/W 5 W)
D e t a c h t h e c o v e r o f t h e i n t e r i o r l a m p
with a thin screwdriver, close to the
b u t t o n , t o a c c e s s t h e f a u l t y b u l b .
Map reading lamps (2/W 5 W)
D e t a c h t h e c o v e r o f t h e i n t e r i o r l a m p .
T o a c c e s s t h e f a u l t y b u l b , d e t a c h t h e
partition for the reading lamp con-
c e r n e d , a s n e c e s s a r y . Boot lamp (W 5 W)
D e t a c h t h e u n i t b y p u s h i n g i t r e a r -
w a r d s .
Sill lamps (W 5 W)
D e t a c h t h e l a m p t o a c c e s s t h e b u l b . Glove box lamp (W 5 W)
D e t a c h t h e l a m p t o a c c e s s t h e b u l b .
Page 152 of 279
147
XI
P R A C T I C A L I N F O R M A T I O N
CHANGING A FUSE
P r o c e d u r e f o r r e p l a c i n g a f a u l t y f u s e
w i t h a n e w f u s e t o r e c t i f y a f a i l u r e o f
t h e c o r r e s p o n d i n g f u n c t i o n .
There are two fuseboxes under the
dashboard, one fusebox in the en-
gine compartment and another on
t h e b a t t e r y .
Changing a fuse
Before replacing a fuse, it is essen-
t i a l t o fi n d t h e c a u s e o f t h e i n c i d e n t
a n d t o h a v e i t r e c t i fi e d . T h e f u s e
i d e n t i fi c a t i o n n u m b e r s a r e i n d i c a t e d
i n s i d e t h e f u s e b o x .
Replace a blown fuse with one of the
s a m e r a t i n g ( t h e s a m e c o l o u r ) . Use the special tool
A that is pro-
v i d e d i n t h e f u s e h o u s i n g fl a p , w h i c h
a l s o c o n t a i n s s p a r e f u s e s .
Correct Incorrect
Tool A
A c c e s s t o t h e fi r s t d a s h b o a r d
fusebox
Fuses under the dashboard
Your vehicle’s electrical
s y s t e m i s d e s i g n e d t o o p e r -
ate with either standard or
o p t i o n a l e q u i p m e n t .
Before installing electrical equipment
o r a c c e s s o r i e s o n y o u r v e h i c l e , c o n -
s u l t a C I T R O Ë N d e a l e r .
CITROËN declines all responsibil-
i t y f o r t h e c o n s e q u e n c e s a n d c o s t s
t h a t a r e c a u s e d b y f a u l t s o r r e p a i r s
o n y o u r v e h i c l e r e s u l t i n g f r o m t h e
installation of accessories that
are not supplied and/or not rec-
o m m e n d e d b y C I T R O Ë N a n d n o t
installed according to its instruc-
t i o n s , p a r t i c u l a r l y w h e n t h e e n e r g y
consumption of all of the additional
accessories connected exceeds
1 0 m i l l i a m p e r e s ( M a ) .
Page 153 of 279
148
XI
P R A C T I C A L I N F O R M A T I O N
Fuses under the dashboard Access to the fuses
O p e n t h e g l o v e b o x .
U n d o t h e s c r e w b y a q u a r t e r t u r n
a n d p i v o t t h e h o u s i n g .
Table of fuses
Fuse N° Rating
Functions
F1 15 A Rear screen wipe
F2 30 A C e n t r a l l o c k i n g - D e a d l o c k i n g
F3 5 A Airbags and pretensioners
F4 10 A D i a g n o s t i c s o c k e t - B r a k e s w i t c h - P h o t o c h r o m i c r e a r v i e w m i r r o r - E S P - C o o l
a n t l e v e l
s e n s o r - D i e s e l a d d i t i v e - C l u t c h p e d a l s w i t c h ( E S P , c r u i s e c o n t r o l a n d s p e e d l i m i t e r )
F5 30 A Front windows, Heated exterior rear view mirrors
F6 30 A Rear windows
F7 5 A Interior lighting
F8 20 A M u l t i f u n c t i o n s c r e e n , r a d i o , s t e e r i n g w h e e l c o n t r o
l s , D i s p l a y s - A l a r m - F r o n t 1 2 V s o c k e t -
T r a i l e r u n i t - D r i v i n g s c h o o l m o d u l e
F9 30 A Lighter - Rear 12 V socket
F10 15 A D e fl a t i o n d e t e c t i o n - A u t o m a t i c g e a r b o x - S T O P s w i t c h
F11 15 A I g n i t i o n s w i t c h - D i a g n o s t i c s o c k e t - P a r t i c l e fi l t e r
F12 15 A E l e c t r i c s e a t - L a n e d e p a r t u r e w a r n i n g s y s t e m - P a r k i n g a s s i s t a n c e
F13 5 A R a i n s e n s o r - B r i g h t n e s s s e n s o r - E l e c t r o n i c g e a r b o x s y s t e m ( 6 - s p e e d ) - E n g i n e r e l a y u n i t
F14 15 A Air conditioning - Instrument panel - Rev counter - Airbags and p
retensioners - Trailer unit -
Bluetooth ®
telephone
F15 30 A C e n t r a l l o c k i n g - D e a d l o c k i n g
F16 - SHUNT
F17 40 A Heated rear screen
Page 154 of 279
149
XI
P R A C T I C A L I N F O R M A T I O N Fuses in the engine
compartment Access to the fuses
D e t a c h a n d r e m o v e t h e c o v e r .
Access to the second dashboard
fusebox
After any operation on the fuses
in the fusebox, check that the
fusebox cover is put back cor-
rectly for their protection. Table of fuses
Fuse N° Rating Functions
F36 30 A H i - F i a m p l i fi e r
F37 30 A D r i v e r ’ s e l e c t r i c s e a t
F39 20 A Heated seats
A f t e r a n y o p e r a t i o n , c a r e f u l l y r e fi t
the cover. If the cover is not cor-
rectly positioned or not properly
closed, this could cause serious
problems on your vehicle. For
the same reason, take care not to
spill any liquid in the fusebox. All work on the maxi-fuses,
which are located in these
fuseboxes and which give
extra protection, must be carried
o u t b y C I T R O Ë N t e c h n i c i a n s .
Page 155 of 279
149
XI
P R A C T I C A L I N F O R M A T I O N Fuses in the engine
compartment Access to the fuses
D e t a c h a n d r e m o v e t h e c o v e r .
Access to the second dashboard
fusebox
After any operation on the fuses
in the fusebox, check that the
fusebox cover is put back cor-
rectly for their protection. Table of fuses
Fuse N° Rating Functions
F36 30 A H i - F i a m p l i fi e r
F37 30 A D r i v e r ’ s e l e c t r i c s e a t
F39 20 A Heated seats
A f t e r a n y o p e r a t i o n , c a r e f u l l y r e fi t
the cover. If the cover is not cor-
rectly positioned or not properly
closed, this could cause serious
problems on your vehicle. For
the same reason, take care not to
spill any liquid in the fusebox. All work on the maxi-fuses,
which are located in these
fuseboxes and which give
extra protection, must be carried
o u t b y C I T R O Ë N t e c h n i c i a n s .
Page 156 of 279
150
XI
P R A C T I C A L I N F O R M A T I O N
Table of fuses
Fuse N° Rating
Functions
F1 20 A E n g i n e m a n a g e m e n t c o n t r o l u n i t - C o o l i n g f a n
F2 15 A Horn
F3 10 A Front and rear screen wash
F4 20 A Headlamp wash
F5 15 A Fuel pump
F6 10 A A u t o m a t i c g e a r b o x - X e n o n h e a d l a m p s - D i r e c t i o n a l h e a d l a m p s - C a n i s t e r d i s c h a r g e e l e c t r o v a l v e
F7 10 A A B S c o n t r o l u n i t / E S P c o n t r o l u n i t - P o w e r s t e e r i n g
F8 25 A Starter motor
F9 10 A A d d i t i o n a l h e a t i n g u n i t ( D i e s e l ) - E n g i n e c o o l a n t l e v e l s w i t c h
F10 30 A E n g i n e e l e c t r o v a l v e - W a t e r i n d i e s e l s e n s o r - E n g
i n e m a n a g e m e n t c o n t r o l u n i t - I n j e c t o r s -
I g n i t i o n c o i l - O x y g e n s e n s o r - C a n i s t e r d i s c h a r g e e l e c t r o v a l v e ( 1 . 4 i 1 6 V a n d 1 . 6 i 1 6 V e n g i n e s )
F11 40 A Air blower - Air conditioning
F12 30 A Windscreen wipe
F13 40 A B u i l t - i n S y s t e m s I n t e r f a c e ( B S I )
F14 - Not used
F15 10 A Right-hand main beam
F16 10 A Left-hand main beam
F17 15 A Left-hand dipped beam
F18 15 A Right-hand dipped beam
F19 15 A E n g i n e m a n a g e m e n t c o n t r o l u n i t ( 1 . 4 i 1 6 V e t 1 . 6 i 1 6 V e n g i n e s )
F20 10 A E n g i n e e l e c t r o v a l v e
F21 5 A C o o l i n g f a n r e l a y - V a l v e t r o n i c
Page 157 of 279
151
XI
P R A C T I C A L I N F O R M A T I O N

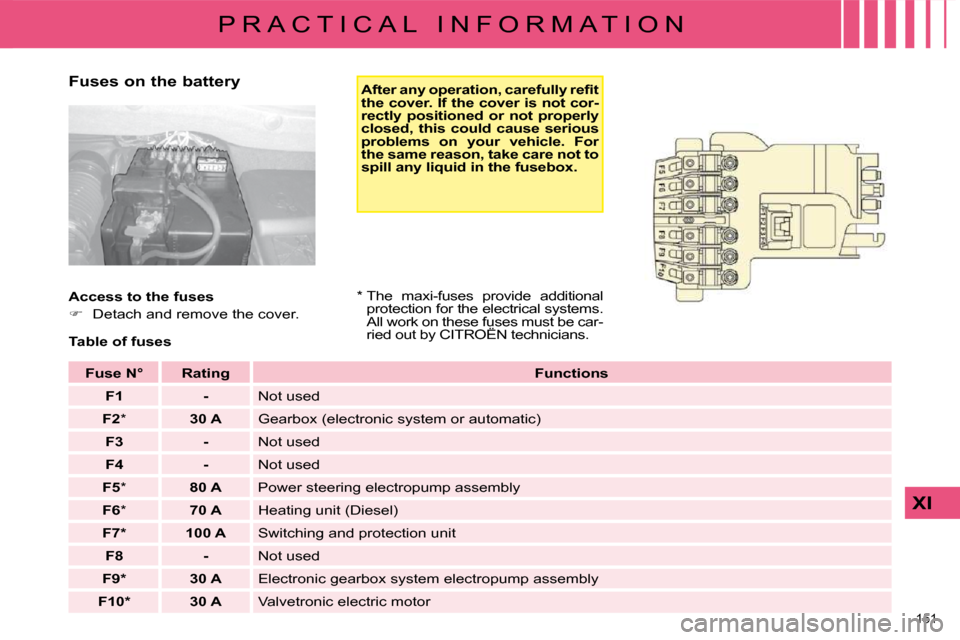

Fuses on the battery
A f t e r a n y o p e r a t i o n , c a r e f u l l y r e fi t
the cover. If the cover is not cor-
rectly positioned or not properly
closed, this could cause serious
problems on your vehicle. For
the same reason, take care not to
spill any liquid in the fusebox.
Table of fuses
Fuse N° Rating
Functions
F1 - Not used
F
2 * 30 A G e a r b o x ( e l e c t r o n i c s y s t e m o r a u t o m a t i c )
F3 - Not used
F4 - Not used
F5 * 80 A P o w e r s t e e r i n g e l e c t r o p u m p a s s e m b l y
F6 * 70 A H e a t i n g u n i t ( D i e s e l )
F7 * 100 A Switching and protection unit
F8 - Not used
F9 * 30 A E l e c t r o n i c g e a r b o x s y s t e m e l e c t r o p u m p a s s e m b l y
F10 *
30 A Valvetronic electric motor
Access to the fuses
D e t a c h a n d r e m o v e t h e c o v e r . * The maxi-fuses provide additional
p r o t e c t i o n f o r t h e e l e c t r i c a l s y s t e m s .
All work on these fuses must be car-
r i e d o u t b y C I T R O Ë N t e c h n i c i a n s .
Page 158 of 279
152
XI
P R A C T I C A L I N F O R M A T I O N
Table of maxi-fuses
Fuse N° Rating
Functions
MF1 * 30 A/50 A Cooling fan
MF2 * 30 A A B S / E S P p u m p s u p p l y
MF3 * 50 A A B S / E S P c o n t r o l u n i t
MF4 * 80 A B u i l t - i n s y s t e m s i n t e r f a c e
MF5 * 80 A B u i l t - i n s y s t e m s i n t e r f a c e
MF6 * 80 A Passenger compartment fuse box
MF7 * 20 A D i a g n o s t i c s o c k e t / P E F a d d i t i v e p u m p
MF8 * - Not used
Page 159 of 279
153
XI
P R A C T I C A L I N F O R M A T I O N

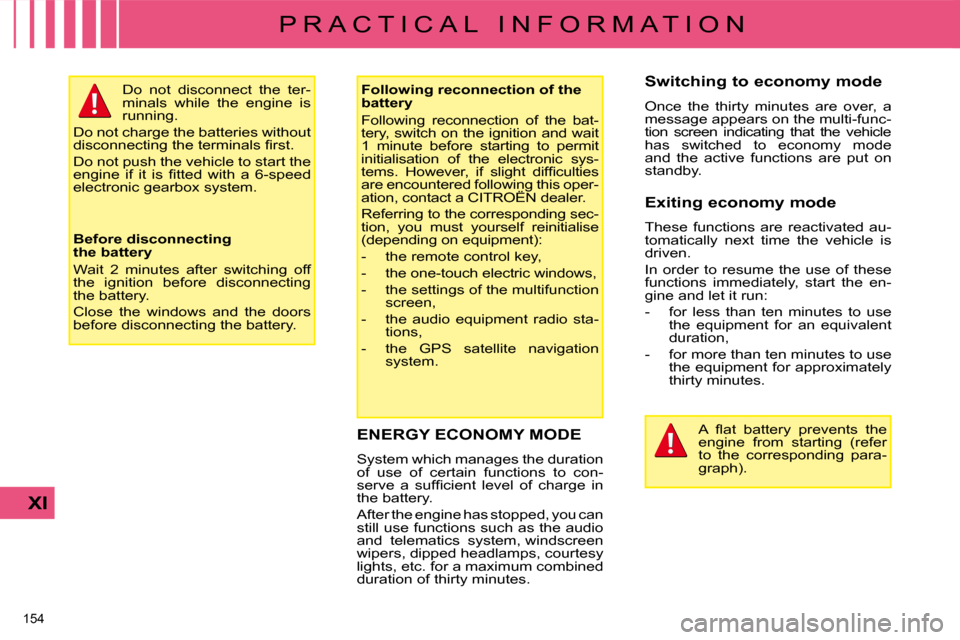

BATTERY
P r o c e d u r e f o r c h a r g i n g y o u r b a t t e r y
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n -
g i n e u s i n g a n o t h e r b a t t e r y .
Access to the battery
T h e b a t t e r y i s l o c a t e d u n d e r t h e b o n n e t .
To gain access to it:
open the bonnet using the inte-
rior lever, then the exterior lever,
secure the bonnet strut,
remove the plastic cover to gain
access to the two terminals,
unclip the fuse box to remove
t h e b a t t e r y , i f n e c e s s a r y . Charging the battery using a
battery charger
D i s c o n n e c t t h e b a t t e r y f r o m t h e
v e h i c l e .
Follow the instructions for use
p r o v i d e d b y t h e m a n u f a c t u r e r o f
t h e c h a r g e r .
Reconnect starting with the neg-
a t i v e t e r m i n a l ( - ) .
Check that the terminals and
c o n n e c t o r s a r e c l e a n . I f t h e y a r e
covered with sulphate (whitish or
greenish deposit), remove them
a n d c l e a n t h e m .
Starting using another
battery
The batteries contain harm-
ful substances such as sul-
p h u r i c a c i d a n d l e a d . T h e y
must be disposed of in accordance
with regulations and must not, in
a n y c i r c u m s t a n c e s , b e d i s c a r d e d
w i t h h o u s e h o l d w a s t e .
Take used remote control batteries
and vehicle batteries to a special
c o l l e c t i o n p o i n t .
It is advisable to disconnect the
b a t t e r y i f t h e v e h i c l e i s t o b e l e f t u n -
u s e d f o r m o r e t h a n o n e m o n t h .
Connect the red cable to the
p o s i t i v e t e r m i n a l ( + ) o f t h e fl a t
b a t t e r y A , then to the positive ter-
m i n a l ( + ) o f t h e s l a v e b a t t e r y B .
Connect one end of the green or
black cable to the negative ter-
m i n a l ( - ) o f t h e s l a v e b a t t e r y B .
Operate the starter, let the en-
g i n e r u n .
Wait until the engine returns to
i d l e a n d d i s c o n n e c t t h e c a b l e s .
Page 160 of 279
154
XI
P R A C T I C A L I N F O R M A T I O N
ENERGY ECONOMY MODE
S y s t e m w h i c h m a n a g e s t h e d u r a t i o n
of use of certain functions to con-
s e r v e a s u f fi c i e n t l e v e l o f c h a r g e i n
t h e b a t t e r y .
A f t e r t h e e n g i n e h a s s t o p p e d , y o u c a n
still use functions such as the audio
a n d t e l e m a t i c s s y s t e m , w i n d s c r e e n
w i p e r s , d i p p e d h e a d l a m p s , c o u r t e s y
l i g h t s , e t c . f o r a m a x i m u m c o m b i n e d
d u r a t i o n o f t h i r t y m i n u t e s . Switching to economy mode
O n c e t h e t h i r t y m i n u t e s a r e o v e r , a
message appears on the multi-func-
tion screen indicating that the vehicle
h a s s w i t c h e d t o e c o n o m y m o d e
and the active functions are put on
s t a n d b y .
Exiting economy mode
These functions are reactivated au-
t o m a t i c a l l y n e x t t i m e t h e v e h i c l e i s
d r i v e n .
In order to resume the use of these
f u n c t i o n s i m m e d i a t e l y , s t a r t t h e e n -
gine and let it run:
- for less than ten minutes to use
the equipment for an equivalent
duration,
- for more than ten minutes to use t h e e q u i p m e n t f o r a p p r o x i m a t e l y
t h i r t y m i n u t e s .
A fl a t b a t t e r y p r e v e n t s t h e
engine from starting (refer
to the corresponding para-
g r a p h ) .
Following reconnection of the
battery
Following reconnection of the bat-
t e r y , s w i t c h o n t h e i g n i t i o n a n d w a i t
1 minute before starting to permit
i n i t i a l i s a t i o n o f t h e e l e c t r o n i c s y s -
t e m s . H o w e v e r , i f s l i g h t d i f fi c u l t i e s
are encountered following this oper-
a t i o n , c o n t a c t a C I T R O Ë N d e a l e r .
Referring to the corresponding sec-
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e
(depending on equipment):
- t h e r e m o t e c o n t r o l k e y ,
- the one-touch electric windows,
- the settings of the multifunction
screen,
- the audio equipment radio sta- tions,
- the GPS satellite navigation s y s t e m .
D o n o t d i s c o n n e c t t h e t e r -
minals while the engine is
r u n n i n g .
D o n o t c h a r g e t h e b a t t e r i e s w i t h o u t
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
D o n o t p u s h t h e v e h i c l e t o s t a r t t h e
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
e l e c t r o n i c g e a r b o x s y s t e m .
Before disconnecting
the battery
Wait 2 minutes after switching off
the ignition before disconnecting
t h e b a t t e r y .
Close the windows and the doors
b e f o r e d i s c o n n e c t i n g t h e b a t t e r y .
