Citroen C4 2011 2.G Owner's Manual

249
7
8
06

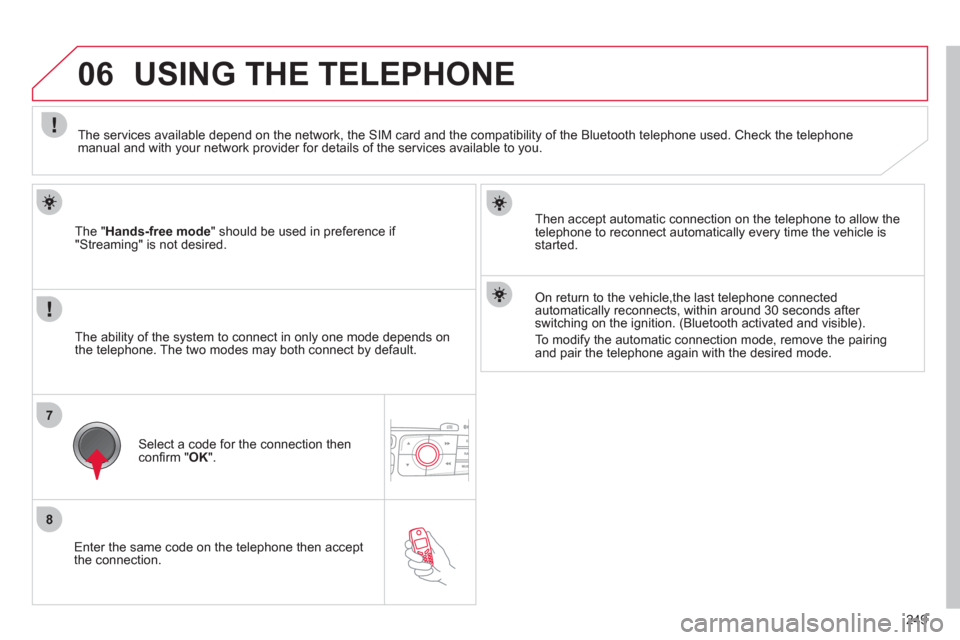

Enter the same code on the telephone then accept
the connection.
The "
Hands-free mode
" should be used in preference if
"Streaming" is not desired.
Then accept automatic connection on the telephone to allow the
telephone to reconnect automatically every time the vehicle is started.


USING THE TELEPHONE


The ability of the system to connect in only one mode depends on
the telephone. The two modes may both connect by default.
The services available depend on the network, the
SIM card and the compatibility of the Bluetooth telephone used. Check the telephone manual and with your network provider for details of the services available to you.
Select a code for the connection thenconfi rm "OK
".
On return to the vehicle,the last telephone connected
automatically reconnects, within around 30 seconds after switching on the ignition. (Bluetooth activated and visible).
To modi
fy the automatic connection mode, remove the pairingand pair the telephone again with the desired mode.

250
1
2a
2b
2c
2d
2e
06USING THE TELEPHONE

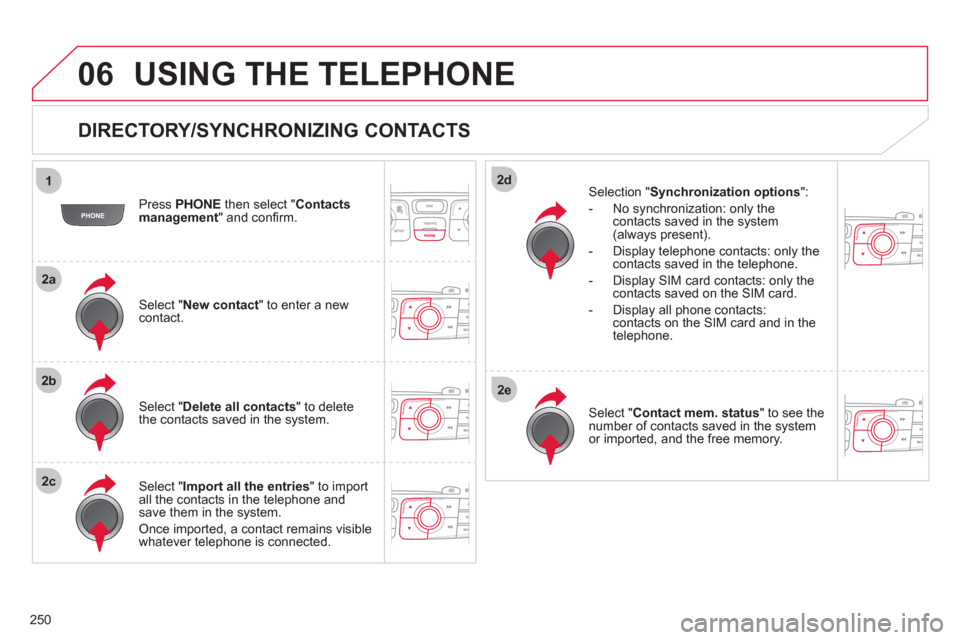

DIRECTORY/SYNCHRONIZING CONTACTS

Press PHONE
then select "
Contacts
management " and confi rm.

Select "New contact
" to enter a new contact.

Select "Delete all contacts" to delete
the contacts saved in the system.

Select "Import all the entries
" to import
all the contacts in the telephone andsave them in the system.

Once imported, a contact remains visible whatever telephone is connected.
Selection "Synchronization options":


- No s
ynchronization: only the contacts saved in the system (always present).

- Displa
y telephone contacts: only the contacts saved in the telephone.

- Displa
y SIM card contacts: only thecontacts saved on the SIM card.

- Display all phone contacts:
contacts on the SIM card and in thetelephone.


Select "Contact mem. status" to see thenumber of contacts saved in the systemor imported, and the free memory.

251
1
2
3
4
5
6
7
06

MANAGING CONTACTS
Press PHONEthen select "Directory of contacts" and confi rm.
Select the desired contact and confi rm.
Select " Import" to copy one contact to
the system.
Select " Call" to start the call.
Select " Open
" to view an external contact
or modify a contact saved in the system.
Select OK
or ESC
to exit this menu.

Select " Delete" to delete a contact savedin the system.
It is necessar
y to import an external contact to modify the record.
It will be saved in the system. It is not possible to modify or delete contacts in the telephone or the SIM card via the Bluetoothconnection.
USING THE TELEPHONE

252
1
2
2
3
1
3
4
06USING THE TELEPHONE

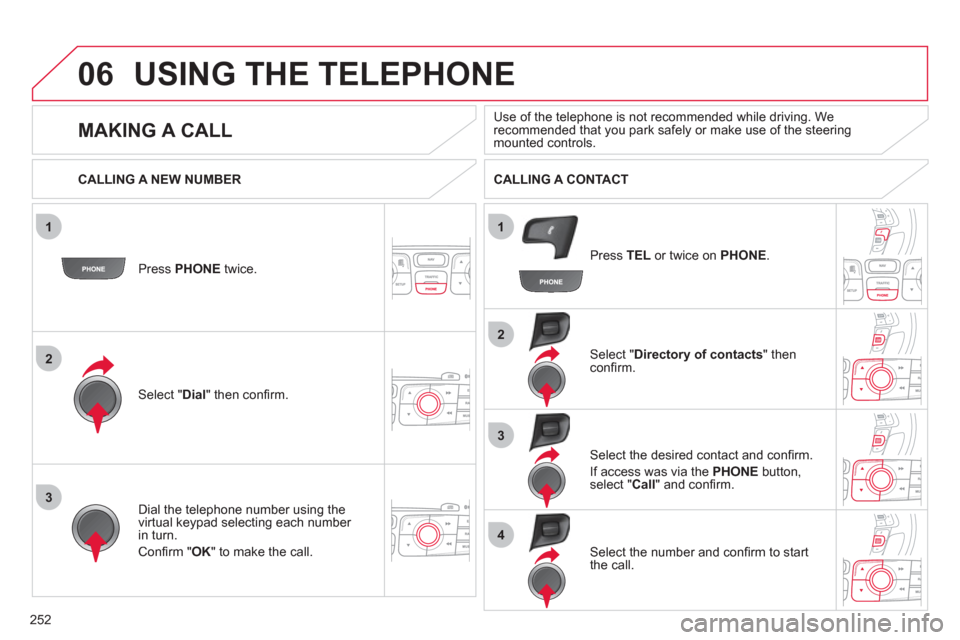

Press PHONEtwice.
Select " Dial" then confi rm.
Select " Directory of contacts" thenconfi rm.
Dial the telephone number using the
virtual keypad selecting each number in turn.
Confi rm " OK
" to make the call.

Press TELor twice on PHONE.


CALLING A NEW NUMBER CALLING A CONTACT
Select the desired contact and confi rm.
I
f access was via the PHONEbutton, select "Call" and confi rm.
Select the number and confi rm to start
the call.






MAKING A CALL
Use of the telephone is not recommended while driving. Werecommended that you park safely or make use of the steering mounted controls.

253
1
2
06
1
USING THE TELEPHONE


CALLING A RECENTLY ENTERED NUMBER
Pr
ess TEL, select "Call list" andconfi rm,
Select the desired number and confi rm.

To erase the calls lo
g, press PHONE
twice, select " Phone functions" and confi rm then select " Delete calls log" andconfi rm.


ENDING A CALL
Press PHONEthen select "OK" to end
the call.
Or make a long press on TELat the
steering mounted controls.
Or make two short presses on TELat
the steering mounted controls.
Or press the MODE
button, as many
times as necessary, until the telephone
screen is displayed.
press PHONE
to display the calls log.
or
Press "OK" to display the contextualmenu then select " Hang up" andconfi rm.

254
1
2
06USING THE TELEPHONE

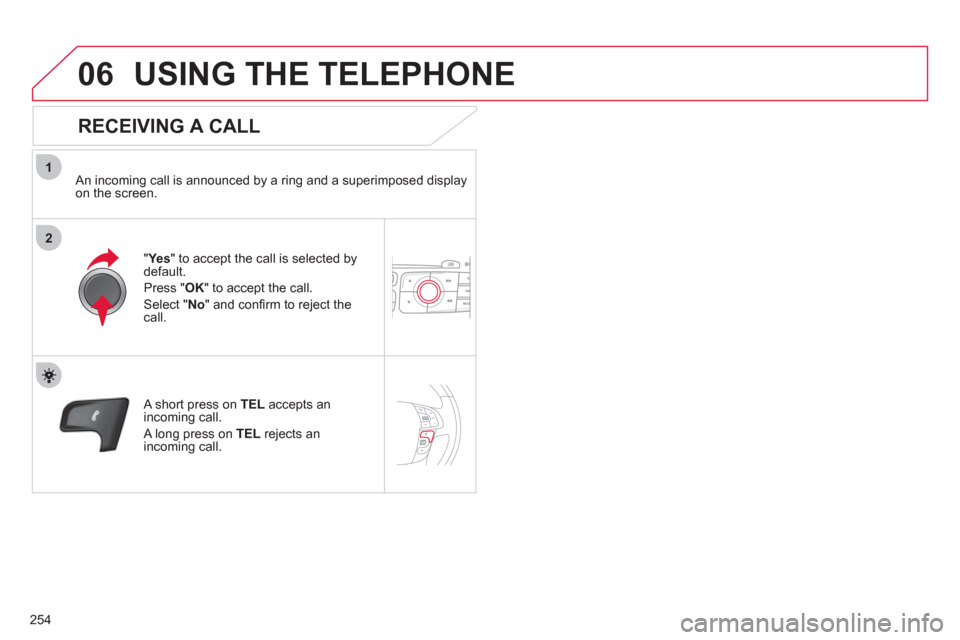

RECEIVING A CALL

An incoming call is announced by a ring and a superimposed displayon the screen.
"Ye
s
" to accept the call is selected bydefault.
Pr
ess " OK" to accept the call.
Select " No" and confi rm to reject the call.

A short press on TELaccepts an incoming call.

A long press on TEL
rejects anincoming call.

255
1
2a
2b
2c
2d
06USING THE TELEPHONE

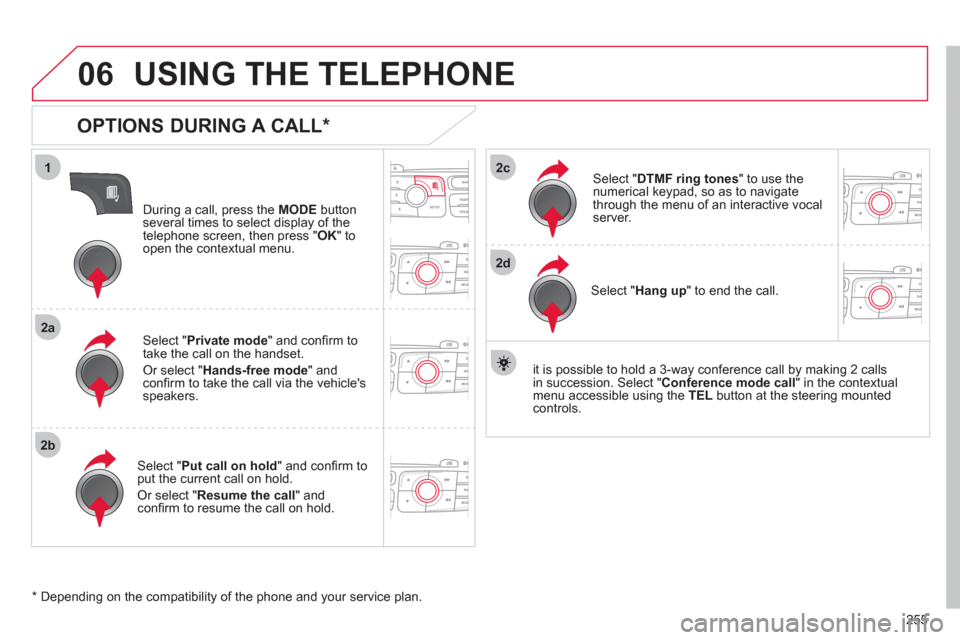

OPTIONS DURING A CALL *
During a call, press the MODE
button
several times to select display of the
telephone screen, then press " OK " to
open the contextual menu.
Select " Private mode
" and confi rm totake the call on the handset.
Or select " Hands-free mode" andconfi rm to take the call via the vehicle's
speakers.
Select " Put call on hold" and confi rm to put the current call on hold.
Or select " Resume the call" andconfi rm to resume the call on hold.
Select " DTMF ring tones
" to use thenumerical keypad, so as to navigate
through the menu of an interactive vocal server.

Select " Hang up " to end the call.
*
Depending on the compatibility of the phone and your service plan.it is possible to hold a 3-wa
y conference call by making 2 callsin succession. Select " Conferencemode call
" in the contextualmenu accessible using the TEL
button at the steering mounted controls.

256
1
2
3
1
2
3
4
5
06

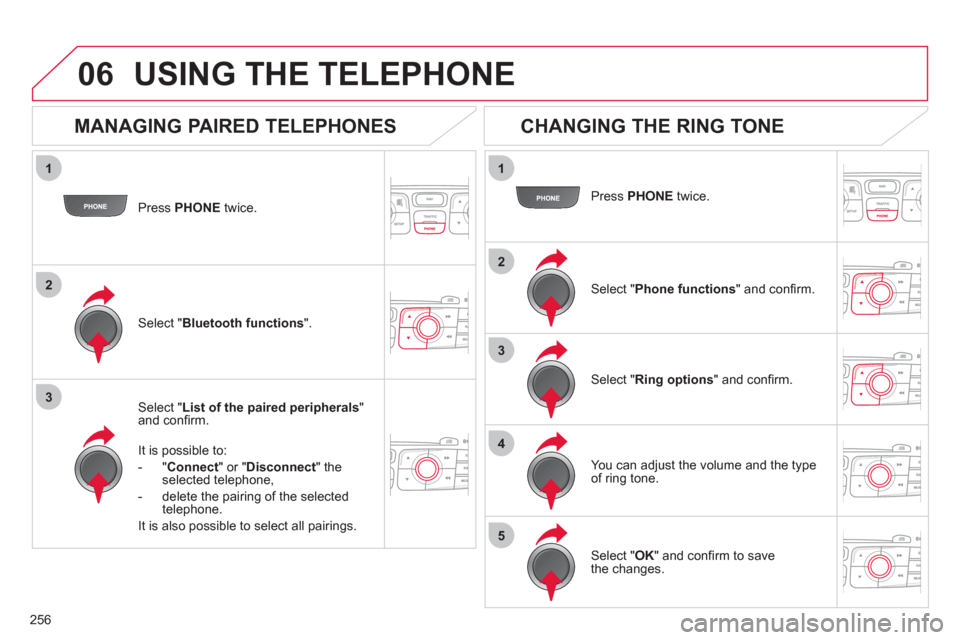

Press PHONE twice.
Select " List of the paired peripherals"and confi rm.
It is possible to:
-
"Connect" or " Disconnect " theselected telephone,
- delete the pairin
g of the selected
telephone.
It is also possible to select all pairin
gs.

USING THE TELEPHONE


MANAGING PAIRED TELEPHONES
CHANGING THE RING TONE
Press PHONEtwice.
Select " Phone functions
" and confi rm.
Select " Ring options" and confi rm.
You can ad
just the volume and the type
of ring tone.
Select " Bluetooth functions".
Select " OK
" and confi rm to save
the changes.

257

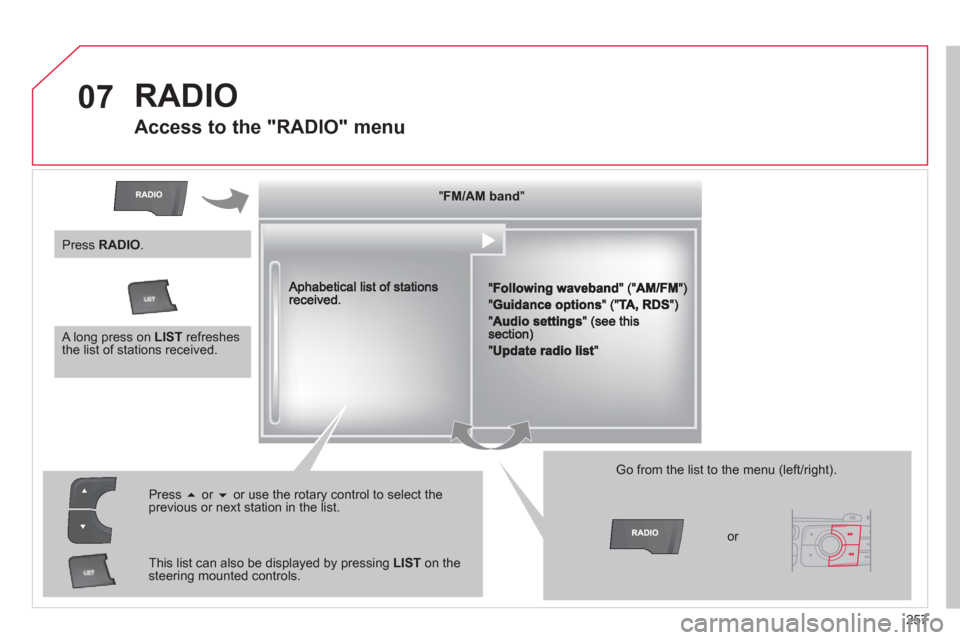

07 RADIO







Access to the "RADIO" menu
""""""""FM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM b dFM/AM b dFM/AM b dFM/AM b dFM/AM b d""""""""


Press
or
or use the rotary control to select theprevious or next station in the list.


This list can also be displayed by pressing LISTon thesteering mounted controls.

Go from the list to the menu (left/right).
or




A long press on LIST
refreshesthe list of stations received.
Press RADIO.

258
07
1a
1b
1c
1
2
RADIO
By alphabetical list
Pr
ess RADIOor LIST , select the station
of your choice and confi rm.
B
y automatic frequency search
Press or for the automatic searchfor a lower or higher radio frequency.
Or turn the thumb wheel on the steering
mounted control.
B
y manual frequency search
Pr
ess or to adjust the radiofrequency step by step.Pr
ess the button on the numericalkeypad to recall a preset station.
Or press then turn the thumb wheel at
the steering mounted controls.






SELECTING A STATION


The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS station tracking mode.
This phenomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a fault with the audio system.

PRESETTING A STATION


Press one of the buttons on thenumerical keypad for 2 seconds topreset the current station.
An audible si
gnal confi rms that thestation has been preset. The qualit
y of reception is represented by this symbol.
