12
219
*
Exceeding the maximum rear axle weight when the vehicle is towing imposes a speed limit of 50 mph (80 km/h), as defi ned
by point 2.7 of the European Directive.
**
Exceeding the gross vehicle weight when the vehicle is towing imposes a speed limit of 50 mph (80 km/h), as defi ned by
point 2.7 of the European Directive.
***
Maximum braked trailer within the GTW limit. Warning: towing using a lightly loaded towing vehicle may have an adverse
effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

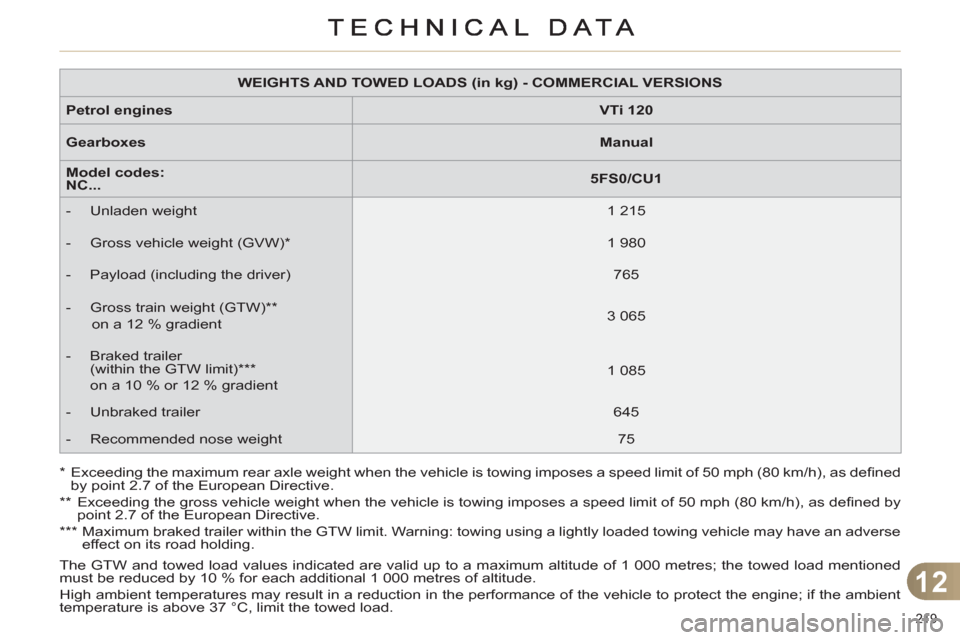

WEIGHTS AND TOWED LOADS (in kg) - COMMERCIAL VERSIONS
Petrol engines
VTi 120
Gearboxes
Manual
Model codes:
NC...
5FS0/CU1
- Unladen weight
1 215
- Gross vehicle weight (GVW) *
1 980
- Payload (including the driver)
765
- Gross train weight (GTW) **
on a 12 % gradient
3 065
- Braked trailer
(within the GTW limit) ***
on a 10 % or 12 % gradient
1 085
- Unbraked trailer
645
- Recommended nose weight
75
Page 222 of 324

12
TECHNICAL DATA
220
*
Exceeding the maximum rear axle weight when the vehicle is towing imposes a speed limit of 50 mph (80 km/h), as defi ned
by point 2.7 of the European Directive.
**
Exceeding the gross vehicle weight when the vehicle is towing imposes a speed limit of 50 mph (80 km/h), as defi ned by
point 2.7 of the European Directive.
***
Maximum braked trailer within the GTW limit. Warning: towing using a lightly loaded towing vehicle may have an adverse
effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
WEIGHTS AND TOWED LOADS (in kg) - COMMERCIAL VERSIONS
Diesel engines
HDi 90
PEF
HDi 110 PEF
HDi 150 PEF
Gearboxes
Manual
Manual
Electronic
gearbox system
Manual
Model codes:
NC...
9HP0/CU1
9HR8/CU1
9HR8/PCU1
9HR8/PSCU1
RHE8/CU1
- Unladen weight
1 215
1 285
1 300
1 330
- Gross vehicle weight (GVW) *
2 005
2 030
2 040
2 100
- Payload (including the driver)
790
745
740
770
- Gross train weight (GTW) **
on a 12 % gradient
2 890
3 110
3 125
3 385
- Braked trailer
(within the GTW limit) ***
on a 10 % or 12 % gradient
885
1 080
1 085
1 285
- Unbraked trailer
645
680
685
700
- Recommended nose weight
75
75
75
75
Page 223 of 324

12
221

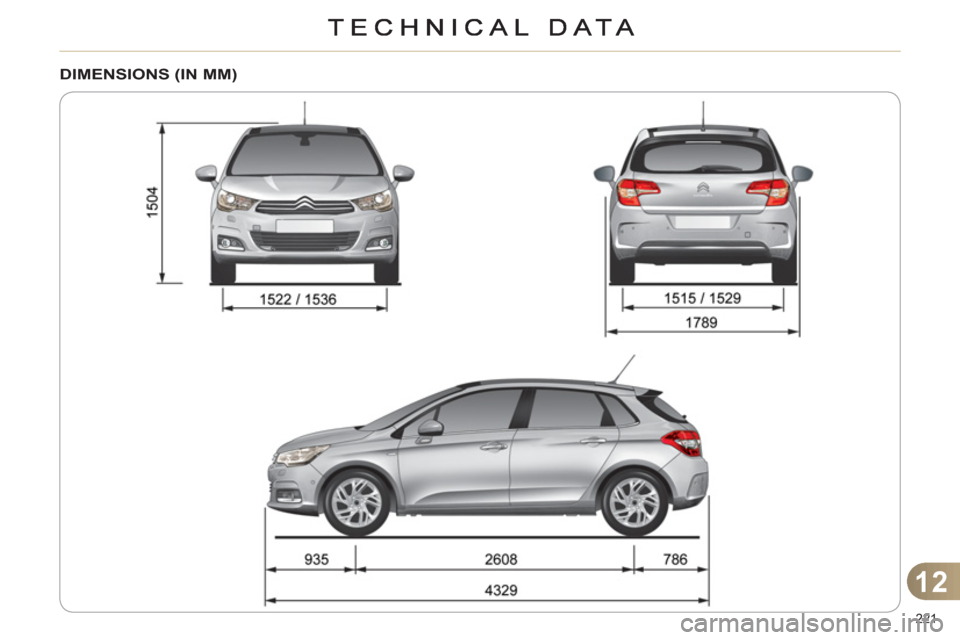

DIMENSIONS (IN MM)
Page 224 of 324

12
TECHNICAL DATA
222

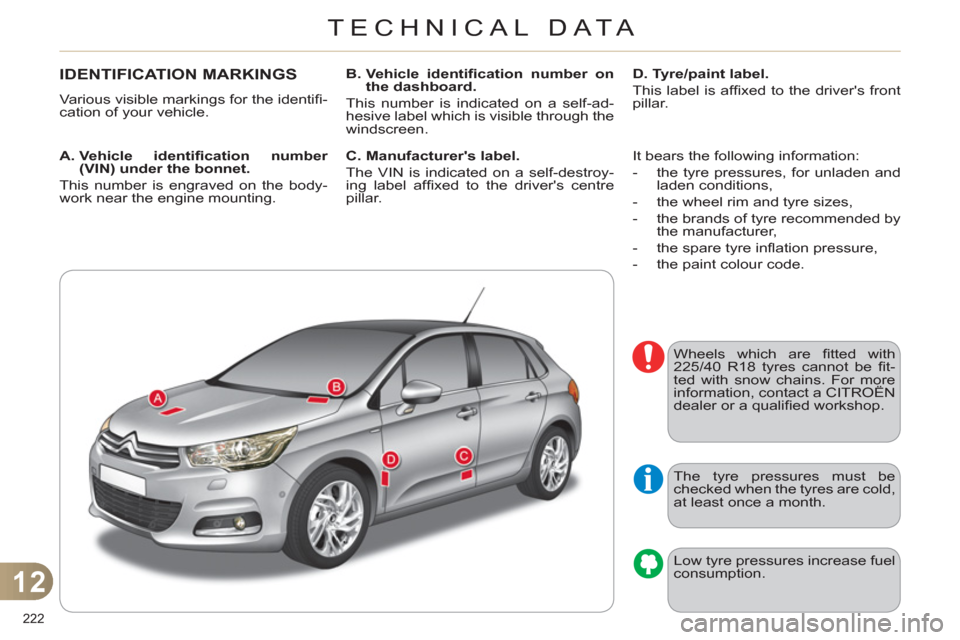

IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation of your vehicle.
A. Vehicle identifi cation number
(VIN) under the bonnet.
This number is engraved on the body-
work near the engine mounting.
B. Vehicle identifi cation number on
the dashboard.
This number is indicated on a self-ad-
hesive label which is visible through the
windscreen.
D. Tyre/paint label.
This label is affi xed to the driver's front
pillar.
The tyre pressures must be
checked when the tyres are cold,
at least once a month.
Low tyre pressures increase fuel
consumption.
C. Manufacturer's label.
The VIN is indicated on a self-destroy-
ing label affi xed to the driver's centre
pillar. It bears the following information:
- the tyre pressures, for unladen and
laden conditions,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by
the manufacturer,
- the spare tyre infl ation pressure,
- the paint colour code.
Wheels which are fi tted with
225/40 R18 tyres cannot be fi t-
ted with snow chains. For more
information, contact a CITROËN
dealer or a qualifi ed workshop.
Page 225 of 324

223
EMERGENCY OR ASSISTANCE CALL
Page 226 of 324

224
EMERGENCY OR ASSISTANCE CALL
EMERGENCY CALL
In an emergency, press this button for more than2 seconds. Flashing of the green indicator lamp and a voice message confi rm that the call has been made to the CITROËN Emergency team * .g
Pressing this button again immediately cancels the request. The green
indicator lamp goes off.
A press
(at any time) of more than 8 seconds on this button, cancels
the request.
ASSISTANCE CALL
When the ignition is switched on, the green
indicator lamp comes on for 3 seconds
indicating that the system is operating correctly.
If the orange indicator lamp fl ashes: there
is a system fault.
If the orange indicator lamp is on continuously:
the backup battery must be replaced.
In either case, contact a CITROÀN. Pressin
g this button again immediately cancels the request.
The cancellation is confi rmed b
y a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made *
.
OPERATION OF THE SYSTEM The green indicator lamp remains on (without fl ashing) whencommunication is established. It goes off at the end of communication.
This call is dealt with b
y the CITROÀN Emergency team which receiveslocating information from the vehicle and can send a detailed alert to theappropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directly by the emergency services (11 2) without the
vehicle location.
If an impact is detected b
y the airbag ECU, and independentlyof the deployment of any airbags, an emergency call is made
automatically.
* These services are sub
ject to conditions and availability.
Consult a CITROÀN dealer.
If
you purchased your vehicle outside the CITROÀN dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,confi guration is possible in the offi cial national language of your choice. If you benefi t from the CITROËN eTouch offer, you also have availableadditional services in your MyCITROËN personal space, via the CITROËN y,y
Internet website www.citroen.co.uk.
For technical reasons, particularl
y to improve the quality of telematic services for customers, the manufacturer reserves the right to carry out
updates to the vehicle's on-board telematic system.
Page 227 of 324

225
The system is protected in such a way that it will onlyoperate in your vehicle. If it is to be installed in another vehicle, contact a CITROËN dealer for confi guration of py
the system.

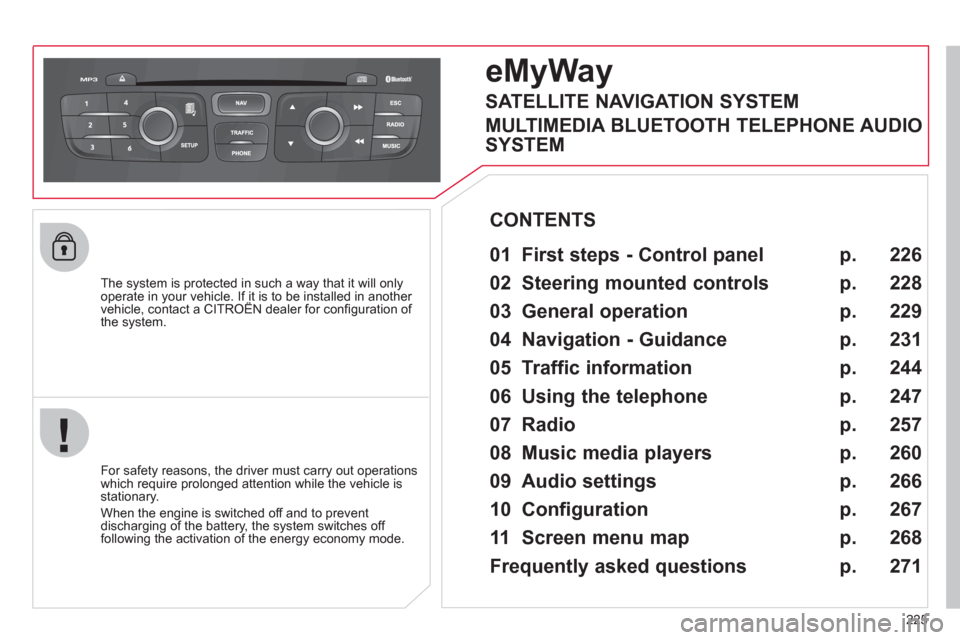

eMyWay
01 First steps - Control panel
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off following the activation of the energy economy mode.
CONTENTS
02 Steering mounted controls
03 General operation
04 Navigation - Guidance
05 Traffic information
06 Using the telephone
07 Radio
08 Music media players
09 Audio settings
10 Configuration
11 Screen menu map
Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p. 2
26
228
229
231
244
247
257
2
60
266
267
268
271
SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE AUDIO
SYSTEM
Page 228 of 324

226
1142
9
3
4
5
67
8
10
111213

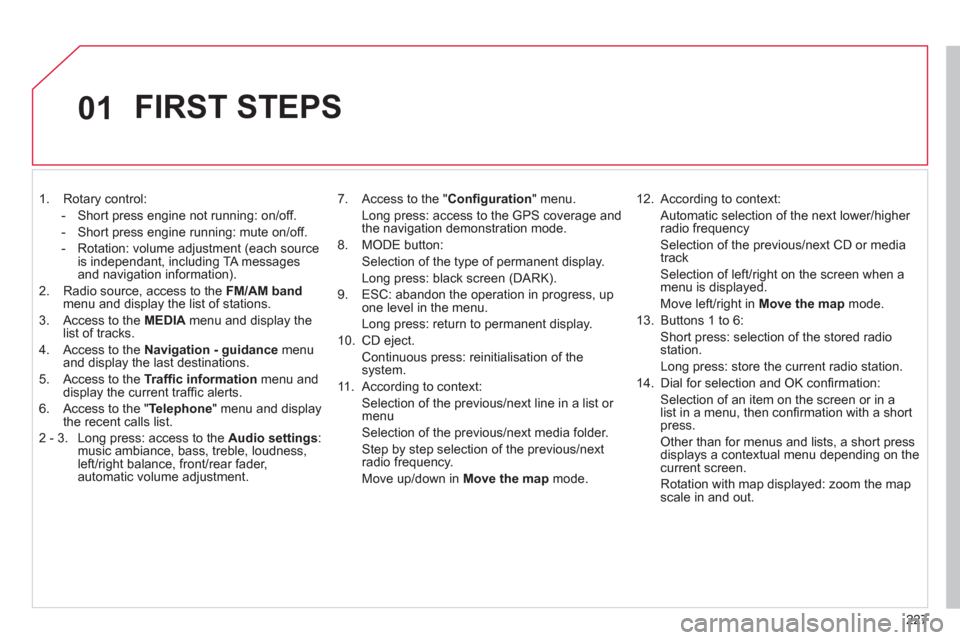

01 FIRST STEPS
CONTROL PANEL
Buttons 2, 3, 4, 5, 6 and 12: selection of left or right of the screen, when a Menu is displayed in the screen.
Page 229 of 324

227
01
1. Rotary control:
-
Short press engine not running: on/off.
-
Short press engine running: mute on/off.
- Rotation: volume ad
justment (each source
is independant, including TA messages and navigation information).
2. Radio source, access to the FM/AM band
menu and displa
y the list of stations.
3. Access to the MEDIAmenu and display the list of tracks.
4. A
ccess to the Navigation - guidance
menu and display the last destinations.
5. Access to the Traffi c informationmenu anddisplay the current traffi c alerts.
6. Access to the "Telephone
" menu and displaythe recent calls list.
2 - 3. Lon
g press: access to the Audio settings:music ambiance, bass, treble, loudness,left/right balance, front/rear fader, automatic volume adjustment. 7.
Access to the " Confi guration" menu.
Lon
g press: access to the GPS coverage and
the navigation demonstration mode.
8. MODE button:
Selection of the t
ype of permanent display.
Lon
g press: black screen (DARK).
9. ESC: abandon the operation in pro
gress, upone level in the menu.
Long press: return to permanent display.
10.
CD eject.
Continuous press: reinitialisation of thesystem.
11. Accordin
g to context:
Selection of the previous/next line in a list or
menu
Selection of the previous/next media folder.
Step by step selection of the previous/next
radio frequency.
Move up
/down in Move the map
mode.
12. Accordin
g to context:
Automatic selection o
f the next lower/higher radio frequency
Selection of the previous/next CD or media
track
Selection of left/ri
ght on the screen when a
menu is displayed.
Move left/ri
ght in Move the map mode.
1
3. Buttons 1 to 6:
Short press: selection of the stored radio station.
Lon
g press: store the current radio station.
14. Dial for selection and
OK confi rmation:
Selection of an item on the screen or in alist in a menu, then confi rmation with a shortpress.
Other than for menus and lists, a short press
displays a contextual menu depending on the
current screen.
Rotation with map displa
yed: zoom the mapscale in and out.
FIRST STEPS
Page 230 of 324

228

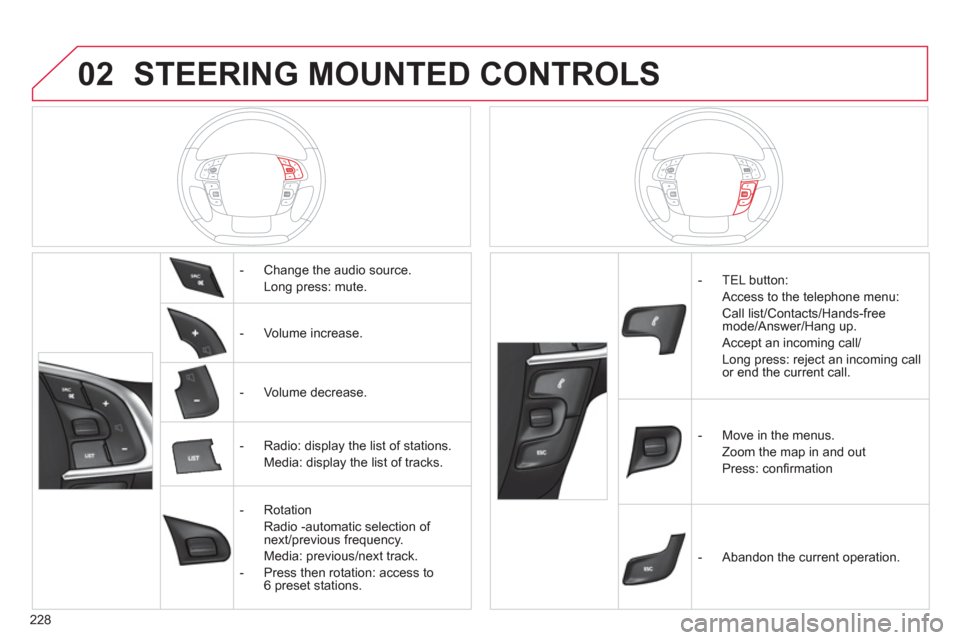

02 STEERING MOUNTED CONTROLS
- Change the audio source.
Long press: mute.
-
Volume increase.
- V
olume decrease.
- Radio: displa
y the list of stations.
Media: display the list o
f tracks.
-
Rotation
Radio -automatic selection of next/previous frequency.
Media: previous/next track.
- Pr
ess then rotation: access to6 preset stations.
- TEL button:
Access to the telephone menu:
Call list/Contacts/Hands-freemode/Answer/Hang up.
Accept an incoming call/
Long press: reject an incoming callor end the current call.
-
Move in the menus.
Zoom the map in and out
Pr
ess: confi rmation
-
Abandon the current operation.
