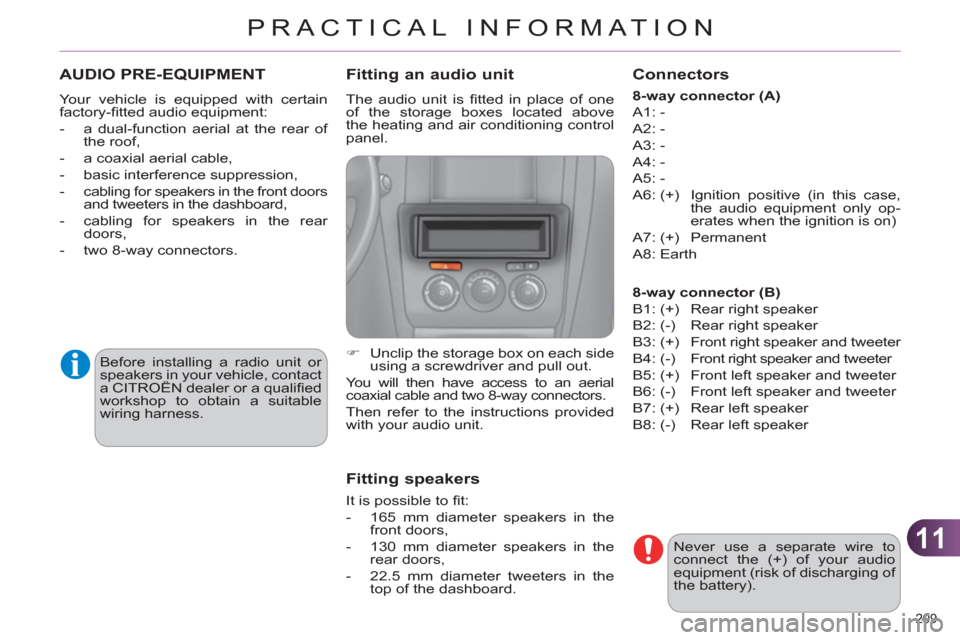

Page 211 of 324

11
PRACTICAL INFORMATION
209
AUDIO PRE-EQUIPMENT
Your vehicle is equipped with certain
factory-fi tted audio equipment:
- a dual-function aerial at the rear of
the roof,
- a coaxial aerial cable,
- basic interference suppression,
- cabling for speakers in the front doors
and tweeters in the dashboard,
- cabling for speakers in the rear
doors,
- two 8-way connectors.
Before installing a radio unit or
speakers in your vehicle, contact
a CITROËN dealer or a qualifi ed
workshop to obtain a suitable
wiring harness.
Never use a separate wire to
connect the (+) of your audio
equipment (risk of discharging of
the battery).
Fitting an audio unit
The audio unit is fi tted in place of one
of the storage boxes located above
the heating and air conditioning control
panel.
)
Unclip the storage box on each side
using a screwdriver and pull out.
You will then have access to an aerial
coaxial cable and two 8-way connectors.
Then refer to the instructions provided
with your audio unit.
Fitting speakers
It is possible to fi t:
- 165 mm diameter speakers in the
front doors,
- 130 mm diameter speakers in the
rear doors,
- 22.5 mm diameter tweeters in the
top of the dashboard.
Connectors
8-way connector (A)
A1: -
A2: -
A3: -
A4: -
A5: -
A6: (+) Ignition positive (in this case,
the audio equipment only op-
erates when the ignition is on)
A7: (+) Permanent
A8: Earth
8-way connector (B)
B1: (+) Rear right speaker
B2: (-) Rear right speaker
B3: (+) Front right speaker and tweeter
B4: (-) Front right speaker and tweeter
B5: (+) Front left speaker and tweeter
B6: (-) Front left speaker and tweeter
B7: (+) Rear left speaker
B8: (-) Rear left speaker
Page 212 of 324

11
210
ACCESSORIES
A wide range of accessories and genu-
ine parts is available from the CITROËN
dealer network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle and
benefi t from CITROËN's recommenda-
tion and warranty.
Conversion kits
You can obtain an "Enterprise" kit to
convert a trade vehicle to a private car
and vice-versa.
"Comfort":
door defl ectors, side window blinds,
rear screen blind, isotherm module,
coat hanger fi xed to head restraint,
moveable courtesy mirror, reading
lamp, mirror for caravan, speed limiter/
cruise control, parking sensors...
"Transport systems":
boot carpet, boot liner, boot net, boot
spacers, transverse roof bars, bicycle
carrier, ski carrier, roof boxes, towbars,
towbar wiring harnesses...
"Styling":
gear lever knobs, aluminium foot rest,
alloy wheels, wheel embellishers,
chrome exhaust tailpipe, chrome mirror
shells, chrome door aperture fi nishers,
tailgate lower chrome fi nisher...
*
To avoid any risk of jamming the pedals:
- ensure that mats are correctly posi-
tioned and secured,
- never fi t one mat on top of another.
"Security and safety":
anti-intrusion alarm, microwave sensor,
anti-tilt sensor, stolen vehicle tracking
system, child seats and booster cushions,
breathalyser, fi rst aid kit, fi re extinguisher,
warning triangle, high visibility vest, dog
guard, wheel security bolts, snow chains,
non-slip covers, front foglamp kit...
"Protection":
mats * , seat covers compatible with lateral
airbags, door sill protectors, mud fl aps,
door protective rubbing strips, bumper pro-
tection strips, vehicle cover...
If a towbar and wiring harness
are fi tted outside the CITROËN
dealer network, the installation
must be done using the vehicle's
electrical pre-equipment and in
line with the manufacturer's rec-
ommendations.

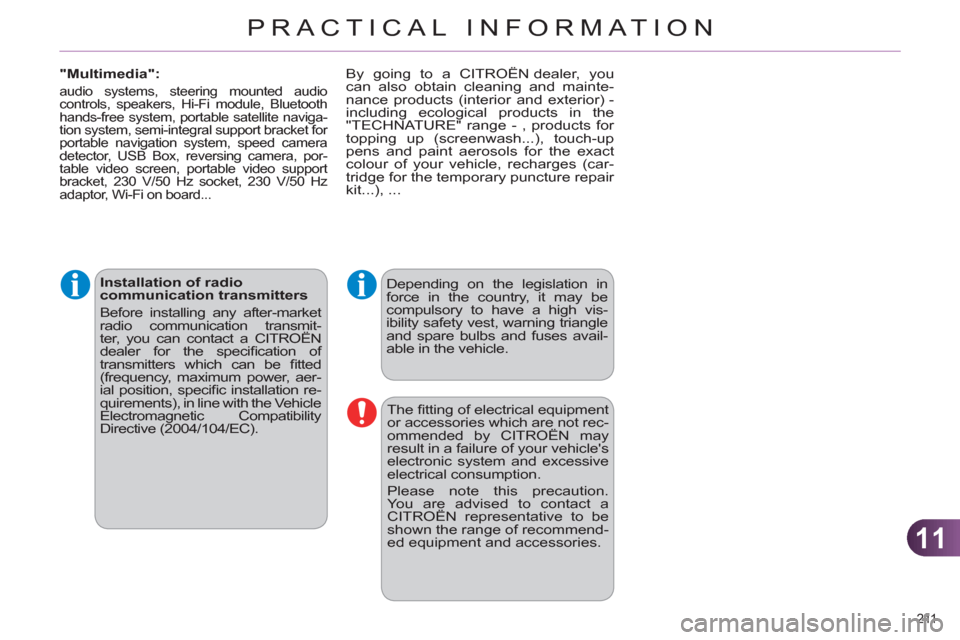

Page 213 of 324

11
PRACTICAL INFORMATION
211
Installation of radio
communication transmitters
Before installing any after-market
radio communication transmit-
ter, you can contact a CITROËN
dealer for the specifi cation of
transmitters which can be fi tted
(frequency, maximum power, aer-
ial position, specifi c installation re-
quirements), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC).
Depending on the legislation in
force in the country, it may be
compulsory to have a high vis-
ibility safety vest, warning triangle
and spare bulbs and fuses avail-
able in the vehicle.
The fi tting of electrical equipment
or accessories which are not rec-
ommended by CITROËN may
result in a failure of your vehicle's
electronic system and excessive
electrical consumption.
Please note this precaution.
You are advised to contact a
CITROËN representative to be
shown the range of recommend-
ed equipment and accessories.
"Multimedia":
audio systems, steering mounted audio
controls, speakers, Hi-Fi module, Bluetooth
hands-free system, portable satellite naviga-
tion system, semi-integral support bracket for
portable navigation system, speed camera
detector, USB Box, reversing camera, por-
table video screen, portable video support
bracket, 230 V/50 Hz socket, 230 V/50 Hz
adaptor, Wi-Fi on board...
By going to a CITROËN dealer, you
can also obtain cleaning and mainte-
nance products (interior and exterior) -
including ecological products in the
"TECHNATURE" range - , products for
topping up (screenwash...), touch-up
pens and paint aerosols for the exact
colour of your vehicle, recharges (car-
tridge for the temporary puncture repair
kit...), ...
Page 214 of 324

12
TECHNICAL DATA
212
MODELS:
ENGINES AND GEARBOXES
Model codes:
NC...
8FR0
5FS0
5FS9
PETROL ENGINES
VTi 95
VTi 120
Cubic capacity (cc)
1 397
1 598
Bore x stroke (mm)
77 x 75
77 x 85.8
Max power: EU standard (kW)
72
88
Max power engine speed (rpm)
6 000
6 000
Max torque: EU standard (Nm)
136
160
Max torque engine speed (rpm)
4 000
4 250
Fuel
Unleaded
Unleaded
Catalytic converter
yes
yes
GEARBOXES
Manual
(5-speed)
Manual
(5-speed)
Auto
(4-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
4.25
4.25
4.25
Page 215 of 324

12
TECHNICAL DATA
213
MODELS:
ENGINES AND GEARBOXES
Model codes:
NC...
NFU0
NFU9
5FV8/P
PETROL ENGINES
1.6 i 16V
THP 155
Cubic capacity (cc)
1 587
1 598
Bore x stroke (mm)
78.5 x 82
77 x 85.8
Max power: EU standard (kW)
80
115
Max power engine speed (rpm)
5 800
6 000
Max torque: EU standard (Nm)
147
240
Max torque engine speed (rpm)
4 000
1 400
Fuel
Unleaded
Unleaded
Catalytic converter
yes
yes
GEARBOXES
Manual
(5-speed)
Automatic
(4-speed)
Electronic gearbox system
(6-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
3.25
3.25
4.25
Page 216 of 324

12
TECHNICAL DATA
214
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
VTi 95
VTi 120
Gearboxes
Manual
Manual
Auto
Model codes:
NC...
8FR0
5FS0
5FS9
- Unladen weight
1 200
1 205
1 270
- Kerb weight
1 275
1 280
1 345
- Gross vehicle weight (GVW)
1 720
1 765
1 755
- Gross train weight (GTW)
on a 12 % gradient
2 920
3 065
3 055
- Braked trailer (within the GTW limit)
on a 12 % gradient
1 200
1 300
1 300
- Braked trailer * (with load transfer
within the GTW limit)
1 450
1 550
1 550
- Unbraked trailer
635
640
670
- Recommended nose weight
75
75
75
Page 217 of 324

12
TECHNICAL DATA
215
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 i 16V
THP 155
Gearboxes
Manual
Automatic
Manual
Model codes:
NC...
NFU0
NFU9
5FV8/P
- Unladen weight
1 205
1 265
1 275
- Kerb weight
1 280
1 340
1 350
- Gross vehicle weight (GVW)
1 730
1 765
1 805
- Maximum train weight (GTW)
on a 12 % gradient
2 530
2 565
3 205
- Braked trailer (within the GTW limit)
on a 12 % gradient
800
800
1 400
- Braked trailer * (with transfer of load
within the GTW limit)
1 050
1 050
1 560
- Unbraked trailer
640
670
675
- Recommended nose weight
75
75
75
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 218 of 324

12
TECHNICAL DATA
216
MODELS:
ENGINES AND GEARBOXES
Model codes:
NC...
9HJ0
9HP0
9HR8
9HR8/P
9HR8/PS
RHE8
DIESEL ENGINES
HDi 90
HDi 90 PEF
HDi 110 PEF
HDi 150 PEF
Cubic capacity (cc)
1 560
1 560
1 560
1 997
Bore x stroke (mm)
75 x 88.3
75 x 88.3
75 x 88.3
85 x 88
Max power: EU standard (kW)
68
68
82
110
Max power engine speed (rpm)
-
4 000
3 600
-
Max torque: EU standard (Nm)
230
230
270
340
Max torque engine speed (rpm)
-
1 750
1 750
-
Fuel
Diesel
Diesel
Diesel
Diesel
Catalytic converter
yes
yes
yes
Yes
Particle emissions fi lter (PEF)
-
yes
yes
Yes
GEARBOXES
Manual
(5-speed)
Manual
(5-speed)
Manual
(6-speed)
Electronic
gearbox system
(6-speed)
Manual
(6-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
3,75
3.75
3.75
3.75
-
.../S:
model fi tted with Stop & Start.
Page 219 of 324

12
TECHNICAL DATA
217
*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
HDi 90
HDi 90 PEF
HDi 110 PEF
HDi 150 PEF
Gearboxes
Manual
Manual
Manual
Electronic
gearbox system
Manual
Model codes:
NC...
9HJ0
9HP0
9HR8
9HR8/P
9HR8/PS
RHE8
- Unladen weight
1 205
1 205
1 275
1 290
1 320
- Kerb weight
1 280
1 280
1 350
1 365
1 395
- Gross vehicle weight (GVW)
1 745
1 790
1 810
1 825
1 885
- Gross train weight (GTW)
on a 12 % gradient
2 545
2 890
3 110
3 125
3 385
- Braked trailer (within GTW limit)
on 12 % gradient
800
1 100
1 300
1 300
1 500
- Braked trailer
* (with load transfer
with the GTW limit)
1 050
1 350
1 550
1 550
1 750
- Unbraked trailer
640
640
675
680
695
- Recommended nose weight
75
75
75
75
75
Page 220 of 324

12
TECHNICAL DATA
218
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
WEIGHTS AND TOWED LOADS (in kg) - C4 ENTERPRISE VERSIONS (2-seat)
Diesel
engines
HDi 90 P
EF
HDi 110 PEF
Gearboxes
Manual
Manual
Model codes:
NC...
9HP0
9HR8
- Unladen weight
1 200
1 270
- Gross vehicle weight (GVW)
1 745
1 810
- Payload (including the driver)
545
540
- Gross train weight (GTW)
on a 12 % gradient
2 845
3 110
- Braked trailer (within the GTW limit)
on a 12 % gradient
1 100
1 300
- Unbraked trailer
635
670
- Recommended nose weight
75
75
