Citroen C4 2012 2.G Owner's Manual

269
08
/
/
//
//
// +/


SELECTING A TRACK

MUSIC MEDIA PLAYERS


Previous track.

Next track.

Previous folder.

Next folder.

Fast forward.

Fast backward.

Pause: long press on SRC
.


LIST: List of USB or CD tracks
or folders

Up or down in the list.

Confi rm, next menu level.

Up one menu level.
Long press
Long press

270
1
2
1
2
08






AUDIO STREAMING


Streaming allows audio fi les on your telephone to be played via the
vehicle's speakers.

Connect the telephone: see "USING THE TELEPHONE".
Select " Audio
" or " All
" profi le.

If play does not start automatically, it may be necessary to start the
audio playback from the telephone.
Control is from the peripheral device or by using the audio system
buttons.

Once connected in streaming mode, the telephone is considered to be
a media source.
It is recommended that you activate " Repeat
" on the Bluetooth
peripheral.


MUSIC MEDIA PLAYERS


iPod/iPhone


Connect the iPod or iPhone to the USB port using a suitable cable
(not supplied).
Play starts automatically.

Control is via the audio system.

The classifi cations available are those of the portable device
connected (artists/albums/genres/playlists/audiobooks/podcasts).
The default classifi cation used is by artist. To modify the classifi cation
used, return to the fi rst level of the menu then select the desired
classifi cation (playlists for example) and confi rm to go down through
the menu to the desired track.

The version of software in the audio system may not be compatible
with the generation of your iPod
® or iPhone.
The list of devices compatible with software versions is available from
CITROËN dealers.

271
08
12
3
MUSIC MEDIA PLAYERS













USING THE AUXILIARY INPUT (AUX)
Cable not supplied

Connect the portable device (MP3 player…) to the auxiliary JACK
socket using an audio cable.
Press MUSIC
to display the " MEDIA
"
menu.

Select " Activate/Deactivate AUX input
"
and confi rm.
First adjust the volume of your portable
device (to a high level). Then adjust the
volume of your audio system.

Display and management of the controls are via the portable device.

272
09
1
2

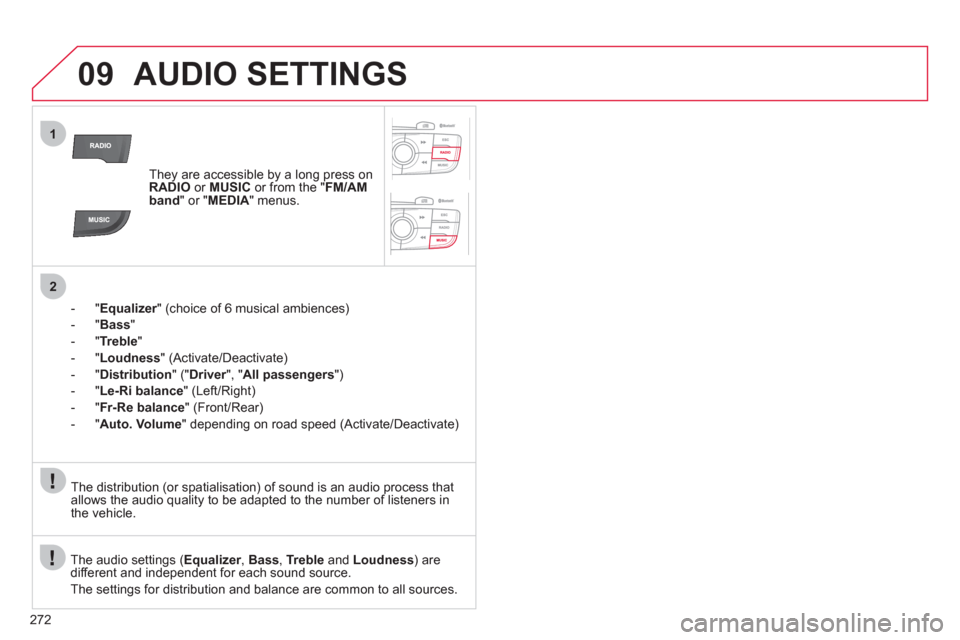

AUDIO SETTINGS



They are accessible by a long press on
RADIO
or MUSIC
or from the " FM/AM
band
" or " MEDIA
" menus.



- " Equalizer
" (choice of 6 musical ambiences)

- " Bass
"

- " Treble
"

- " Loudness
" (Activate/Deactivate)

- " Distribution
" (" Driver
", " All passengers
")

- " Le-Ri balance
" (Left/Right)

- " Fr-Re balance
" (Front/Rear)

- " Auto. Volume
" depending on road speed (Activate/Deactivate)


The audio settings ( Equalizer
, Bass
, Treble
and Loudness
) are
different and independent for each sound source.
The settings for distribution and balance are common to all sources.

The distribution (or spatialisation) of sound is an audio process that
allows the audio quality to be adapted to the number of listeners in
the vehicle.

273
10
1
2
3a
3b
1
2
3
4
CONFIGURATION


Press SETUP
to display the
" Confi guration
" menu.

Select " Adjust luminosity
" and confi rm
to adjust the screen brightness.
Press " OK
" to save the changes.
The settings for day and night are
independent.

Select " Choose colour
" and confi rm to
select the screen colour harmony and
the map presentation mode:


- day mode,

- night mode,

- automatic day/night mode,
according to whether the
headlamps are on.
























SETTING THE DATE AND TIME


Select " Set date and time
" and
confi rm.

Select the setting to adjust.
Confi rm by pressing OK
, then adjust
the setting and confi rm again to save
the modifi cation.
Select " Display confi guration
" and
confi rm.
Press SETUP
to display the
" Confi guration
" menu.

Select " Display confi guration
" and
confi rm.

Adjust the settings one by one.
Then select " OK
" on the screen and
confi rm to save the settings.



DISPLAY CONFIGURATION


Select " Synchronize the minutes with GPS
" so that setting the
minutes is done automatically by satellite reception.

274

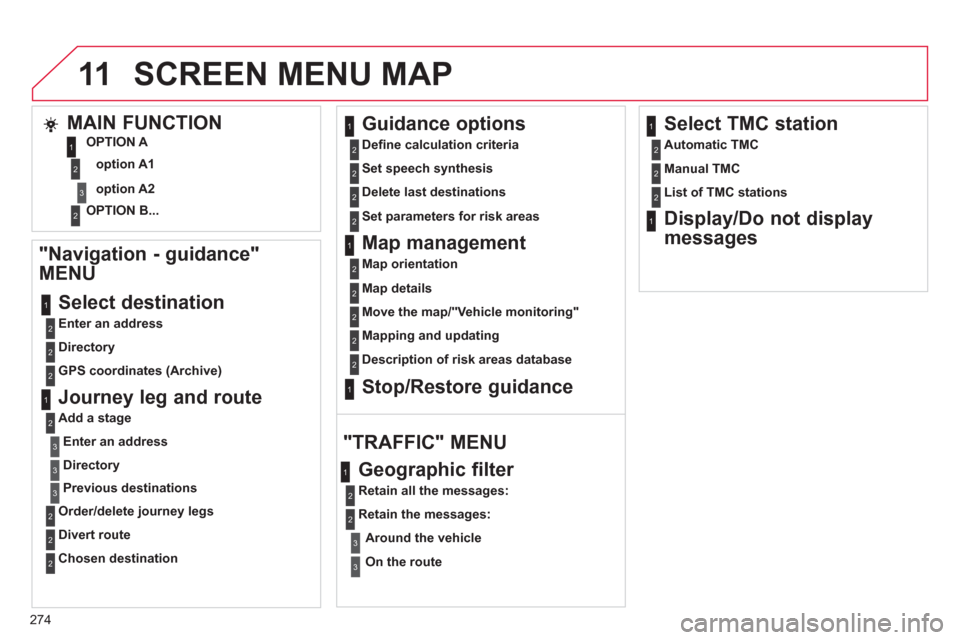

11

"Navigation - guidance"
MENU

Enter an address

Select destination


Directory

GPS coordinates (Archive)



Journey leg and route


Add a stage

Enter an address


Directory


Previous destinations



Order/delete journey legs

Divert route

Chosen destination



Guidance options


Defi ne calculation criteria

Set speech synthesis

Delete last destinations


Map management


Map orientation


Select TMC station


Automatic TMC

Manual TMC

List of TMC stations



Display/Do not display
messages

SCREEN MENU MAP










MAIN FUNCTION


option A1


option A2


OPTION A

OPTION B...


Map details

Move the map/"Vehicle monitoring"

Mapping and updating

Description of risk areas database



Stop/Restore guidance

"TRAFFIC" MENU
Geographic filter


Retain all the messages:

Retain the messages:

Around the vehicle


On the route





Set parameters for risk areas

1
3
3
2
3
1
1
1
2
2
2
1
2
3
2
2
2
2
1
2
2
2
2
2
2
2
2
2
2
2
1
1
2
2
3
3
12

275
11 SCREEN MENU MAP

Following waveband

Guidance options


Activate/Deactivate TA

Activate/Deactivate RDS


Dial

Directory of contacts

Bluetooth functions


List of the paired peripherals
Call

Open

Import


Phone MENU


Connect


Disconnect



"RADIO" MENU


Delete



Contacts management


New contact

Delete all contacts

Import all the entries

Synchronizing contacts

No synchronization


Display telephone contacts


Display SIM card contacts


Display all phone contacts



Contact mem. status



Phone functions


Ring options

Delete calls log


Delete


Delete all




Hang up


Peripherals search


Rename radiotelephone

1
2
2
1
2
2
2
1
1
2
3
3
1
2
2
2
2
1
2
3
3
3
3
2
2
2
1
3
3
1
2
2

276
11 SCREEN MENU MAP


"SETUP" MENU

Audio settings


Equalizer
Following media source

Eject USB support

Read mode


Normal

Random

Random on all media

Repetition



Audio settings (same
as RADIO)

Activate/Deactivate AUX
input


None


Classical


Jazz


Rock


Techno


Vocal



Bass

Treble

Loudness

Distribution

Driver


All passengers



Le-Ri balance

Fr-Re balance

Auto. Volume



Update radio list
"MEDIA" MENU
Display configuration


Choose colour

Harmony


Cartography

Day mode
Night mode
Auto Day/Night

Adjust luminosity

Set date and time



Voice synthesis


Guidance instructions volume


Select male voice/Select female voice

1
1
12
1
2
3
3
1
1
1
3
2
2
2
4
3
3
3
3
3
2
2
2
2
2
3
3
2
2
2
1
2
2
1
4
4
2
2

277
FREQUENTLY ASKED QUESTIONS


The following table groups together the answers to the most frequently asked questions concerning your audio system .



QUESTION



ANSWER



SOLUTION


The route calculation is not
successful. The guidance criteria may confl ict with the current location
(exclusion of toll roads on a toll motorway). Check the guidance criteria on the Navigation
Menu, "Guidance options" "Defi ne calculation
criteria".
The POIs do not appear. The POIs have not been selected. Select the POIs in the list of POIs.
The POIs have not been downloaded. Download the POIs from the
citroen.navigation.com website.
The speed camera audible
warning does not work. The audible warning is not active. Activate audible warnings in the Guidance
options menu, "Navigation - guidance", "Set
parameters for risk areas".
The system does not
suggest a detour around
an incident on the route. The guidance criteria do not take account of TMC messages. Select the "Traffi c info" function in the list of
guidance criteria.
I receive a speed camera
alert for a speed camera
which is not on my route. Other than guidance, the system announces all speed cameras
positioned in a cone located in front of the vehicle. It may provide an alert
for speed cameras located on nearby or parallel roads. Zoom in on the map to view the exact position of
the speed camera. Select "On the route" to no
longer receive alerts other than guidance or to
reduce the time for the announcement.
Certain traffi c jams along
the route are not indicated
in real time. On starting, it is several minutes before the system begins to receive the
traffi c information. Wait until the traffi c information is being received
correctly (display of the traffi c information icons
on the map).
The fi lters are too restrictive. Modify the "Geographic fi lter" settings.
In certain countries, only major routes (motorways...) are listed for the
traffi c information. This phenomenon is normal. The system is
dependent on the traffi c information available.

278
FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


The altitude is not
displayed. On starting, the initialisation of the GPS may take up to 3 minutes to
receive more than 4 satellites correctly. Wait until the system has started up completely.
Check that there is a GPS coverage of at least
4 satellites (long press on the SETUP button,
then select "GPS coverage").
Depending on the geographical environment (tunnel...) or the weather,
the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system
is dependent on the GPS signal reception
conditions.
I cannot connect my
Bluetooth telephone. The telephone's Bluetooth function may be switched off or the telephone
may not be visible.

- Check that your telephone's Bluetooth
function is switched on.

- Check in the telephone settings that it is
"visible to all".
The Bluetooth telephone is not compatible with the system. A list of compatible Bluetooth mobile telephones
is available from the dealer network.
The volume of the
telephone connected
in Bluetooth mode is
inaudible. The volume depends both on the system and on the telephone. Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary.
The ambient noise level has an infl uence on the quality of telephone
communication. Reduce the ambient noise level (close the windows,
reduce the booster fan speed, slow down, ...).
Some contacts are
duplicated in the list. The options for synchronizing contacts are synchronizing the contacts
on the SIM card, the contacts on the telephone, or both. When both
synchronizations are selected, some contacts may be duplicated. Select "Display SIM card contacts" or "Display
telephone contacts".
Contacts are not shown in
alphabetical order. Some telephones offer display options. Depending on the settings
chosen, contacts can be transferred in a specifi c order. Modify the display setting in the telephone
directory.
