Citroen C4 2012 2.G Owner's Manual

299

05
1
2
4
3

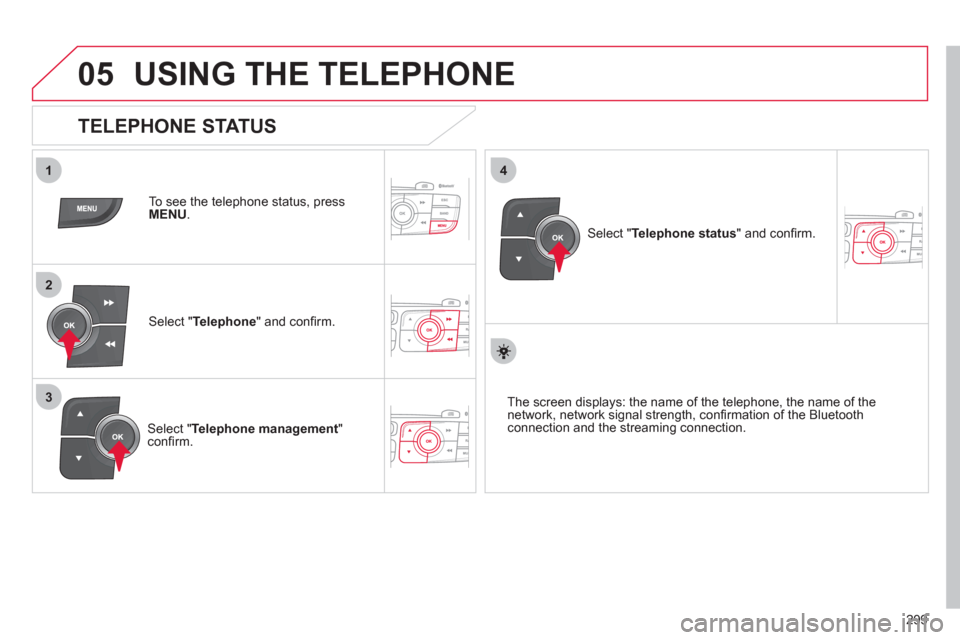

USING THE TELEPHONE


To see the telephone status, press
MENU
.

Select " Telephone
" and confi rm.

Select " Telephone management
"
confi rm.
Select " Telephone status
" and confi rm.







TELEPHONE STATUS


The screen displays: the name of the telephone, the name of the
network, network signal strength, confi rmation of the Bluetooth
connection and the streaming connection.

300


1
2
3
4
05
5
USING THE TELEPHONE

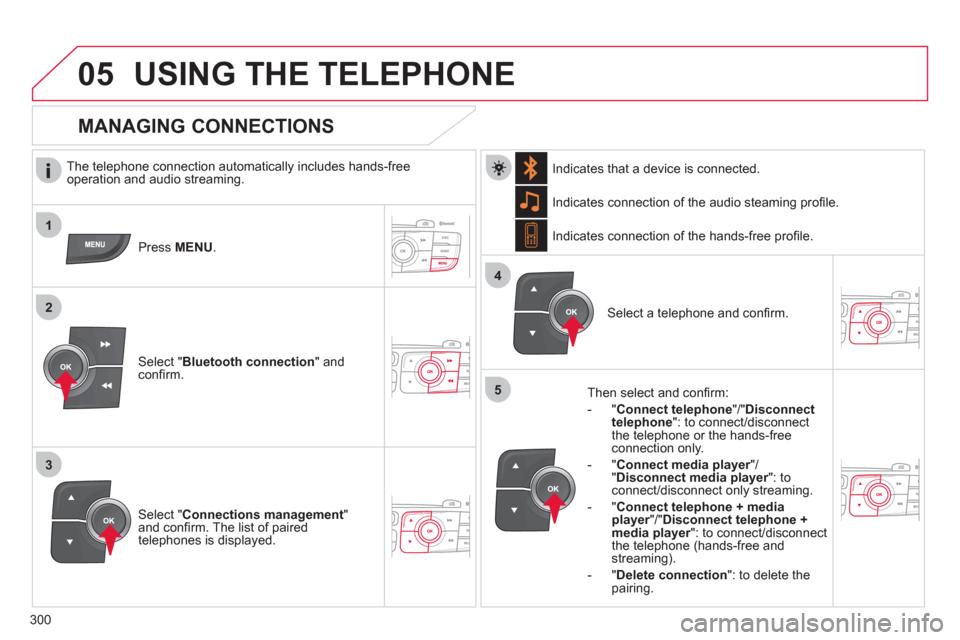

The telephone connection automatically includes hands-free
operation and audio streaming.

Press MENU
.

Select " Bluetooth connection
" and
confi rm. Indicates connection of the audio steaming profi le.


MANAGING CONNECTIONS


Select " Connections management
"
and confi rm. The list of paired
telephones is displayed.
Select a telephone and confi rm. Indicates connection of the hands-free profi le.

Then select and confi rm:


- " Connect telephone
"/" Disconnect
telephone
": to connect/disconnect
the telephone or the hands-free
connection only.

- " Connect media player
"/
" Disconnect media player
": to
connect/disconnect only streaming.

- " Connect telephone + media
player
"/" Disconnect telephone +
media player
": to connect/disconnect
the telephone (hands-free and
streaming).

- " Delete connection
": to delete the
pairing.


Indicates that a device is connected.

301


1
2
1
4
2
33
05 USING THE TELEPHONE


To display the " TELEPHONE
" menu:


- Make along press on SOURCE
.

- Or, press OK
to display the
contextual menu. Select " Call
" and
confi rm.

- Or, press MENU
, select
" Telephone
" and confi rm. Select
" Call
" and confi rm.


Select " Dial
" to enter a number and
confi rm.
Repeat the previous step 1
to display
the " TELEPHONE
" menu.

Select OK
and confi rm to start the
call.

Select " Calls list
" and confi rm.


MAKING A CALL - DIALLING


Select numbers one at a time using
the
and
buttons and confi rm.


MAKING A CALL - RECENTLY CALLED
NUMBERS *


Select the number and confi rm to
start the call.

The calls list includes calls sent and received in the vehicle using the
connected telephone.

*

Depending on the compatibility of the telephone.


Correction allows numbers to be deleted one at a time.

It is possible to make a call directly from the telephone; park the
vehicle fi rst as a safety measure.

302


1
2
1
4
2
3
05 USING THE TELEPHONE

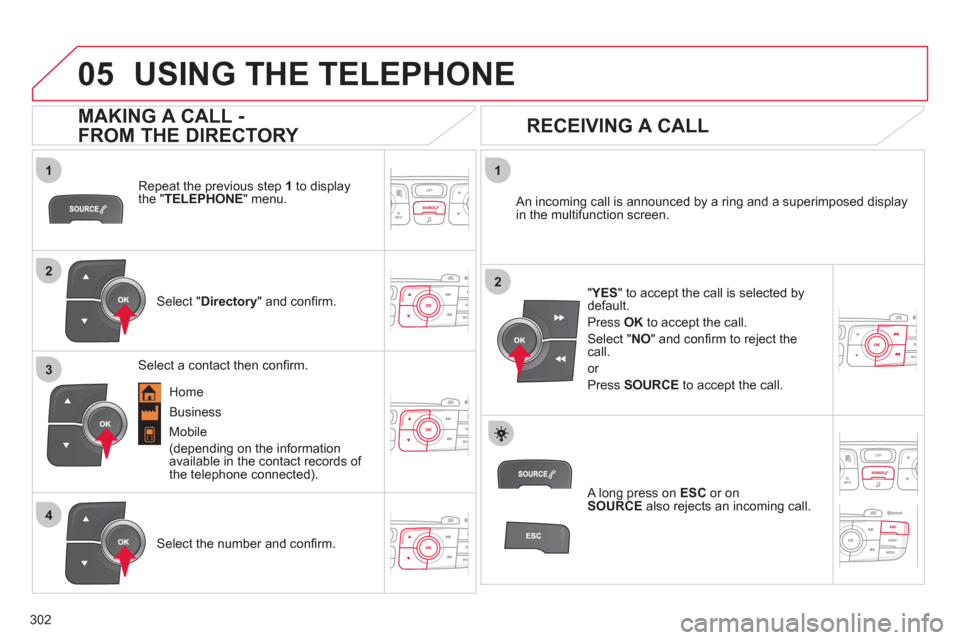

Repeat the previous step 1
to display
the " TELEPHONE
" menu.

Select " Directory
" and confi rm.
An incoming call is announced by a ring and a superimposed display
in the multifunction screen.
Mobile
(depending on the information
available in the contact records of
the telephone connected).
" YES
" to accept the call is selected by
default.
Press OK
to accept the call.
Select " NO
" and confi rm to reject the
call.
or
Press SOURCE
to accept the call.


MAKING A CALL -
FROM THE DIRECTORY

Select a contact then confi rm.


RECEIVING A CALL


Select the number and confi rm.

A long press on ESC
or on
SOURCE
also rejects an incoming call.
Business
Home

303

1
2a2c
2b
05 USING THE TELEPHONE

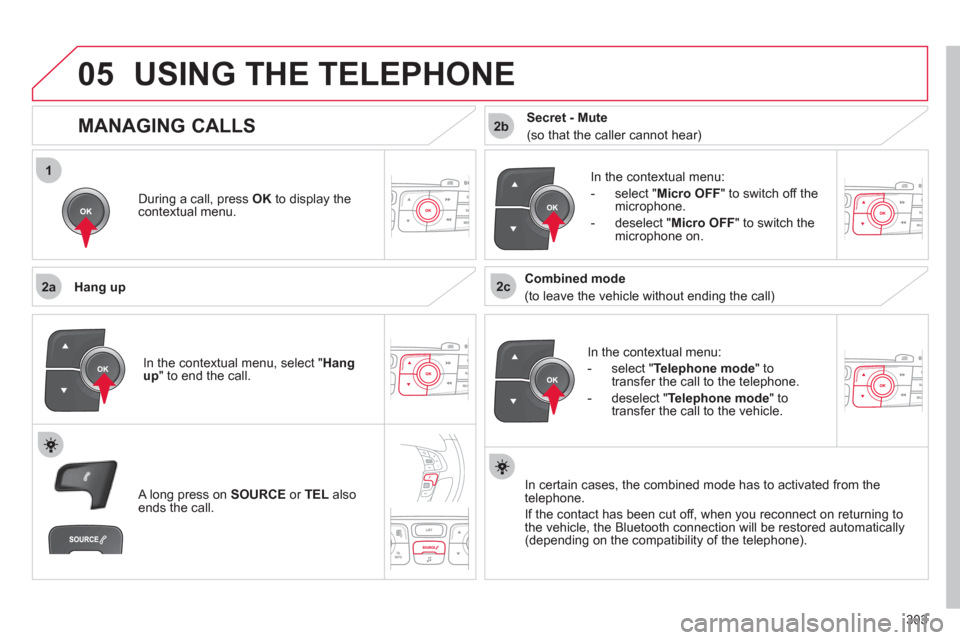

During a call, press OK
to display the
contextual menu.

Hang up

In the contextual menu:


- select " Telephone mode
" to
transfer the call to the telephone.

- deselect " Telephone mode
" to
transfer the call to the vehicle.

In the contextual menu:


- select " Micro OFF
" to switch off the
microphone.

- deselect " Micro OFF
" to switch the
microphone on.


In certain cases, the combined mode has to activated from the
telephone.
If the contact has been cut off, when you reconnect on returning to
the vehicle, the Bluetooth connection will be restored automatically
(depending on the compatibility of the telephone).


MANAGING CALLS


A long press on SOURCE
or TEL
also
ends the call. In the contextual menu, select " Hang
up
" to end the call.
Secret - Mute
(so that the caller cannot hear)

Combined mode
(to leave the vehicle without ending the call)

304

2e
2d
05 USING THE TELEPHONE

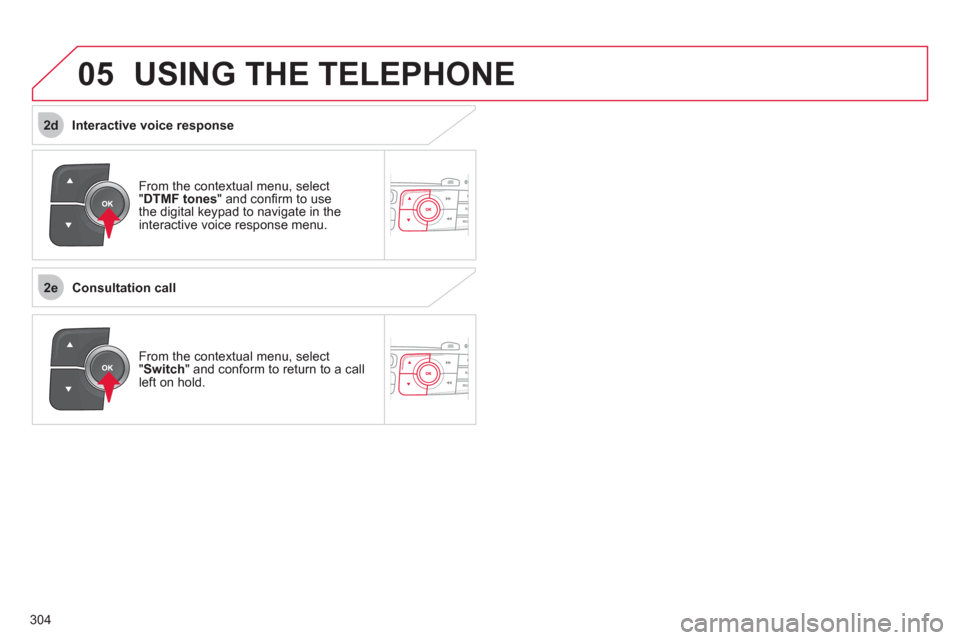

From the contextual menu, select
" DTMF tones
" and confi rm to use
the digital keypad to navigate in the
interactive voice response menu.
From the contextual menu, select
" Switch
" and conform to return to a call
left on hold.

Interactive voice response

Consultation call

305


2
3
1
05 USING THE TELEPHONE


DIRECTORY


The telephone directory is sent to the system, depending on the
compatibility of the telephone.
The directory is provisional and depends on the Bluetooth
connection.

Contacts imported from the telephone to the audio system directory
are saved in a permanent directory visible to all, whatever the
telephone connected.
To modify the contacts saved in the
system, press MENU
then select
" Telephone
" and confi rm.
Select " Directory management
" and
confi rm.
You can:


- " Consult an entry
",

- " Delete an entry
",

- " Delete all entries
".


Select " Directory
" to see the list of
contacts.

Make a long press on SOURCE
for
access to the directory
or press OK
, and
select " Call
" and confi rm.

306


1
06
2
3

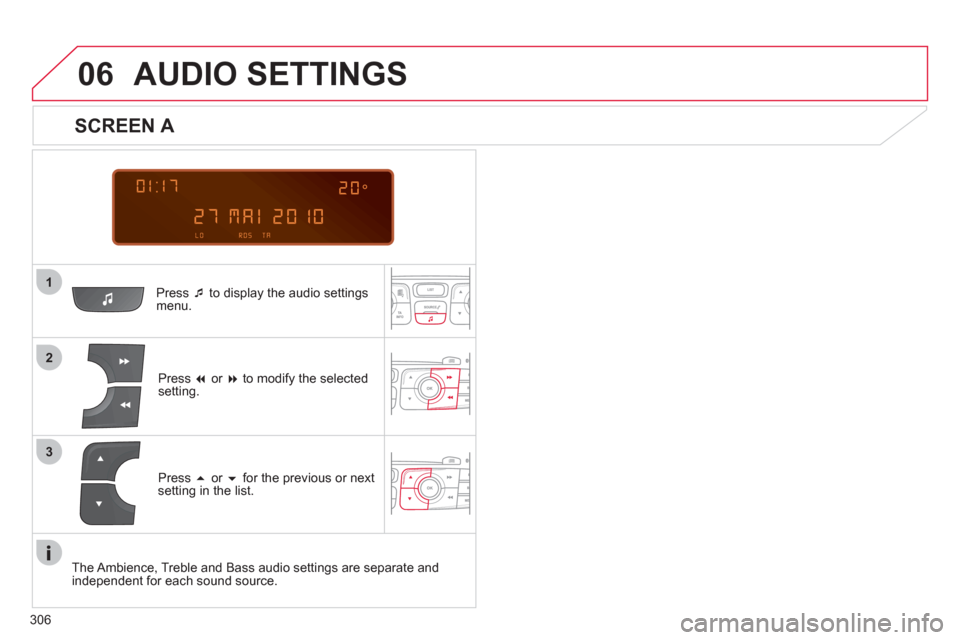

Press ‘
to display the audio settings
menu.

Press
or
to modify the selected
setting.

AUDIO SETTINGS


SCREEN A


Press
or
for the previous or next
setting in the list.

The Ambience, Treble and Bass audio settings are separate and
independent for each sound source.

307
1
2
06
3

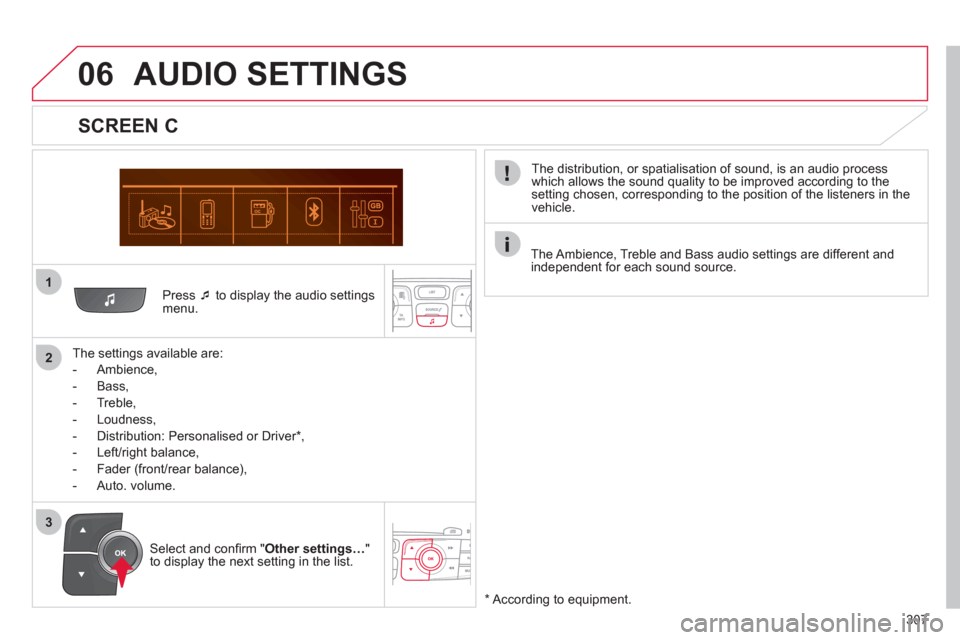

Press ‘
to display the audio settings
menu.

The settings available are:


- Ambience,

- Bass,

- Treble,

- Loudness,

- Distribution: Personalised or Driver * ,

- Left/right balance,

- Fader (front/rear balance),

- Auto. volume.



SCREEN C


The distribution, or spatialisation of sound, is an audio process
which allows the sound quality to be improved according to the
setting chosen, corresponding to the position of the listeners in the
vehicle.

AUDIO SETTINGS


*
According to equipment.
Select and confi rm " Other settings…
"
to display the next setting in the list.
The Ambience, Treble and Bass audio settings are different and
independent for each sound source.

308
5
63
4
07
2
1

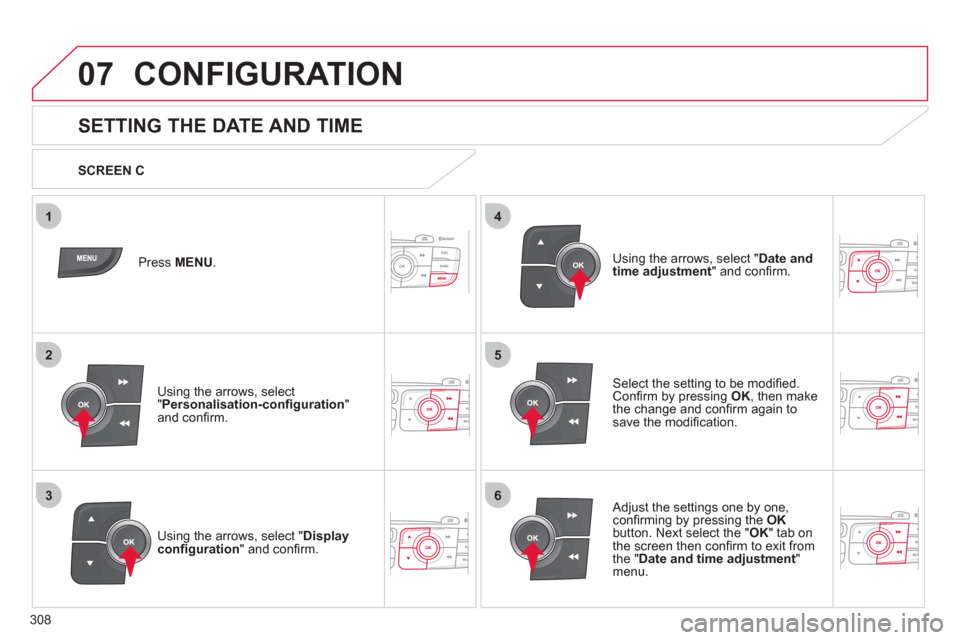

CONFIGURATION













SETTING THE DATE AND TIME


Select the setting to be modifi ed.
Confi rm by pressing OK
, then make
the change and confi rm again to
save the modifi cation.

Using the arrows, select " Display
confi guration
" and confi rm. Press MENU
.



Using the arrows, select
" Personalisation-confi guration
"
and confi rm.
SCREEN C

Using the arrows, select " Date and
time adjustment
" and confi rm.

Adjust the settings one by one,
confi rming by pressing the OK

button. Next select the " OK
" tab on
the screen then confi rm to exit from
the " Date and time adjustment
"
menu.
