display Citroen C4 2015 2.G Owners Manual

05
325
C4-2_en_Chap13b_SMEGplus_ed01-2015
C4-2_en_Chap13b_SMEGplus_ed01-2015

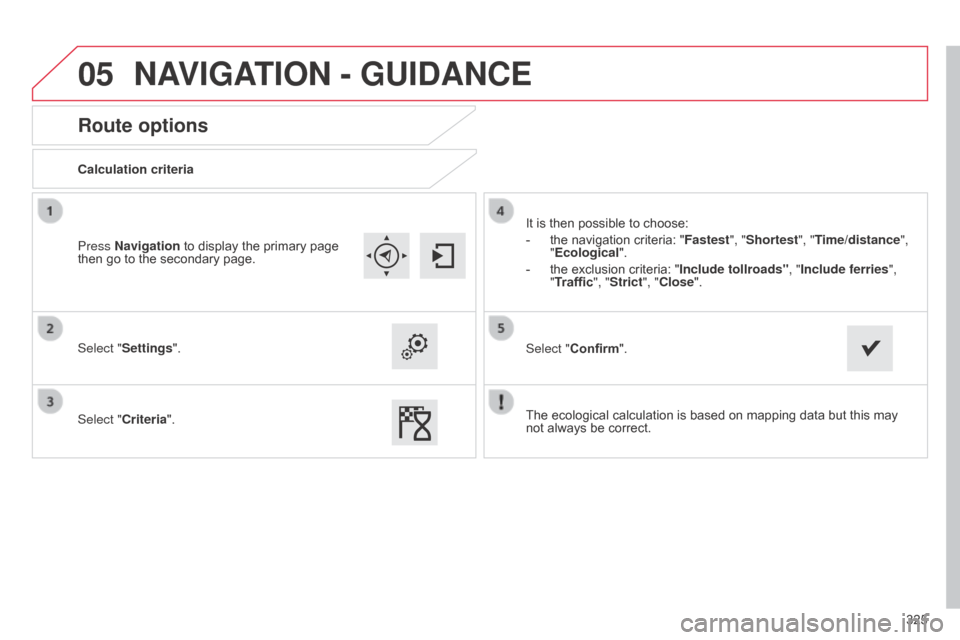

Route options
Calculation criteria
Select "Settings".
Select "Criteria".It
  is   then   possible   to   choose:
-

the
  navigation   criteria:   "Fastest", "Shortest", "Time/distance",
"Ecological ".
-

the
  exclusion   criteria:   "Include tollroads" , "Include ferries",
"Traffic", "Strict", "Close".
Select "Confirm".
Press Navigation
  to   display   the   primary   page
then

  go   to   the   secondary   page.
NAVIGATION - GUIDANCE
The ecological calculation is based on mapping data but this may not  always   be   correct.

05
326
C4-2_en_Chap13b_SMEGplus_ed01-2015
C4-2_en_Chap13b_SMEGplus_ed01-2015

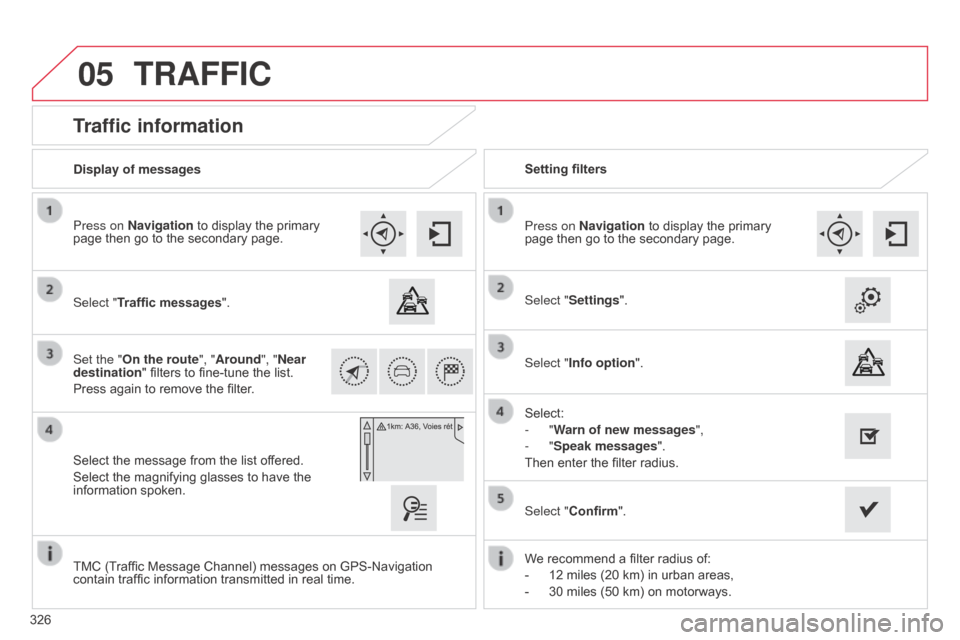

Traffic information
Select "Traffic messages".
Press on Navigation   to   display   the   primary
page

  then   go   to   the   secondary   page.
Select   the   message   from   the   list   offered.
Select
  the   magnifying   glasses   to   have   the
information

  spoken.
Set the "On the route
", "Around", "Near
destination "
  filters   to   fine-tune   the   list.
Press
  again   to   remove   the   filter. Select "Settings".
Select:
-
"Warn of new messages",
-
"Speak messages".
Then
  enter   the   filter   radius.
Press on Navigation
  to   display   the   primary
page

  then   go   to   the   secondary   page.
Display of messages
Setting filters
We
  recommend   a   filter   radius   of:
-

12
  miles   (20   km)   in   urban   areas,
-

30
  miles   (50   km)   on   motorways.
TMC
  (Traffic   Message   Channel)   messages   on   GPS-Navigation
contain

  traffic   information   transmitted   in   real   time.Select "Confirm".
TRAFFIC
Select "Info option
".

05
327
C4-2_en_Chap13b_SMEGplus_ed01-2015
C4-2_en_Chap13b_SMEGplus_ed01-2015

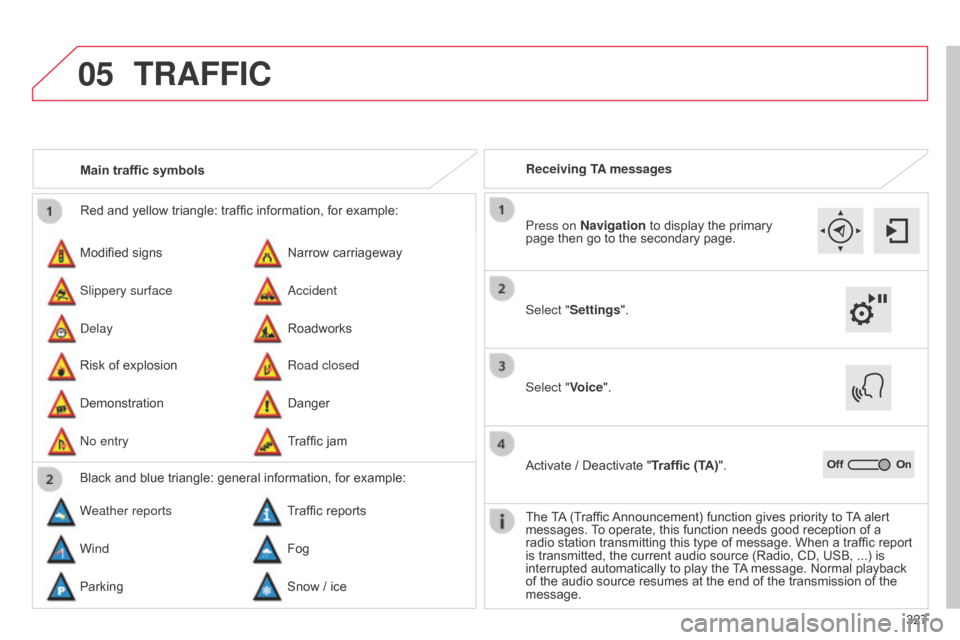

Red and yellow triangle: traffic information, for example:
Modified   signs
Risk
  of   explosion Narrow
  carriageway
Road closed
Slippery surface
Demonstration
a

ccident
Danger
d

elay
n

o entry Roadworks
Traffic
  jam
Main traffic symbols
Black   and   blue   triangle:   general   information,   for   example:
Weather reports Traffic
  reports
Wind Fog
Parking Snow
  /   iceReceiving TA messages
TRAFFIC
Select "Settings". Press on Navigation
  to   display   the   primary
page

  then   go   to   the   secondary   page.
Select "Voice".
Activate
  /   Deactivate   "Traffic (TA)".
The

T
A

(Traffic
Announcement)
  function   gives   priority   to
T
A

alert
messages.


T
o   operate,   this   function   needs   good   reception   of   a
radio

  station   transmitting   this   type   of   message.   When   a   traffic   report
is

  transmitted,   the   current   audio   source   (Radio,   CD,   USB,   ...)   is
interrupted

  automatically   to   play   the
T
A

message.   Normal   playback
of

  the   audio   source   resumes   at   the   end   of   the   transmission   of   the
message.

05
C4-2_en_Chap13b_SMEGplus_ed01-2015
C4-2_en_Chap13b_SMEGplus_ed01-2015

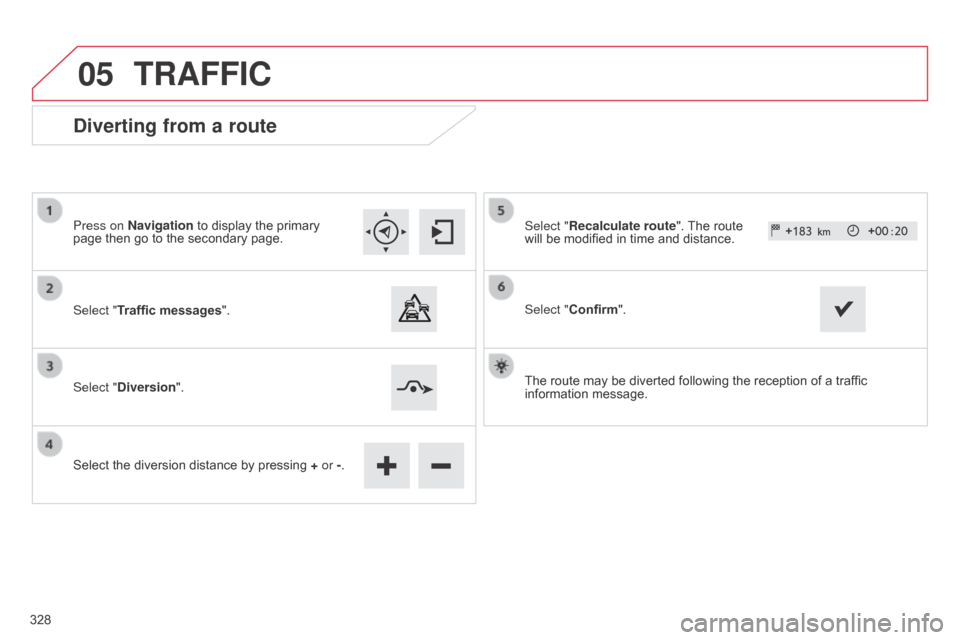

Diverting from a route
Press on Navigation to display the primary page  then   go   to   the   secondary   page.
Select "Traffic messages ".
Select "Diversion".
Select
  the   diversion   distance   by   pressing
+
or -.Select "Recalculate route".
 The   route  will
  be   modified   in   time   and   distance.
Select "Confirm".
The
  route   may   be   diverted   following   the   reception   of   a   traffic
information

  message.
TRAFFIC
328

05
329
C4-2_en_Chap13b_SMEGplus_ed01-2015
C4-2_en_Chap13b_SMEGplus_ed01-2015
Map settings
MAP
Map orientation
Select "Map settings".
Select "Orientation". Select:
-
"Flat view north heading"
  to   keep   the   map
always

n orth up,
-
"Flat view vehicle heading" to have the
map
  follow   the   direction   of   travel,
-
"Perspective view" to display a
perspective
  view.
Press on Navigation
  to   display   the   primary
page

  then   go   to   the   secondary   page.
Select "Confirm"
  to   save   the   modifications.

05
C4-2_en_Chap13b_SMEGplus_ed01-2015
C4-2_en_Chap13b_SMEGplus_ed01-2015
Street names are visible on the map from the 100 m scale.
Configure
Select "
Aspect". Select:
- ""Day" map colour"   to   have   the   map
always

  in   day   mode.
- ""Night" map colour
"   to   have   the   map
always

  in   night   mode.
- "Automatic day/night
" to have
the   brightness   of   the   map   adjusted
automatically

  according   to   the   ambient   light
level.
 This

  mode   makes   use   of   the   vehicle's
sunshine

  sensor   or   by   manual   operation   of
the

  vehicle's   lighting.
Select "Map settings". Press on Navigation

to

display

the

primary

page


then

go

to

the

secondary

page.
MAP
Then "Confirm" to save the modifications.
330

05
331
C4-2_en_Chap13b_SMEGplus_ed01-2015
C4-2_en_Chap13b_SMEGplus_ed01-2015
Navigation speech synthesis
Volume / Street names
Select "Settings".
Select "Voice".Select "Confirm"
  to   save   the   modifications.
Press on Navigation
  to   display   the   primary
page

  then   go   to   the   secondary   page.
SETTINGS
Select "Voice synthesis" and/or "Male voice"
and/or   "Female voice"   and/or   "Speak road
names".

333
C4-2_en_Chap13b_SMEGplus_ed01-2015
C4-2_en_Chap13b_SMEGplus_ed01-2015
Level 1Level 2 Level 3 Comments
Configuration
Audio settings Ambience
Choose the sound ambience.
BalanceSet the position of the sound in the vehicle using the Arkamys® system.
Sound effectsSet the volume or activate the link to vehicle speed.
RingtonesSet the telephone ringtone and volume.
VoiceSet the volume and voice for speaking street names.
ConfirmSave the settings.
Configuration
Turn off screenTurn off the display (black screen). A  press   on   the   black  screen
  restores   the   display.

06
334
C4-2_en_Chap13b_SMEGplus_ed01-2015
C4-2_en_Chap13b_SMEGplus_ed01-2015
CONFIGURATION
Level 1Level 2
Units
Display screen
Configuration
Adjust date and time
"Configuration"
Secondary page
Factory settings

335
C4-2_en_Chap13b_SMEGplus_ed01-2015
C4-2_en_Chap13b_SMEGplus_ed01-2015
Level 1Level 2 Comments
Configuration
Secondary page
System Settings Units
Set the units used to display distance, fuel consumption and temperature.
Delete dataSelect the desired data in the list then press Delete.
Factory settingsReturn to factory settings.
ConfirmSave the settings.
Configuration
Secondary page Time/Date Confirm
Set the date and time then confirm.
Configuration
Secondary page Screen settings Automatic text scrolling
Make the setting then confirm.Deactivate animations
Confirm
