Citroen C4 2015 2.G Owner's Manual

Audio and Telematics
48
C4-2-add_en_Chap13b_SMEGplus_ed01-2015

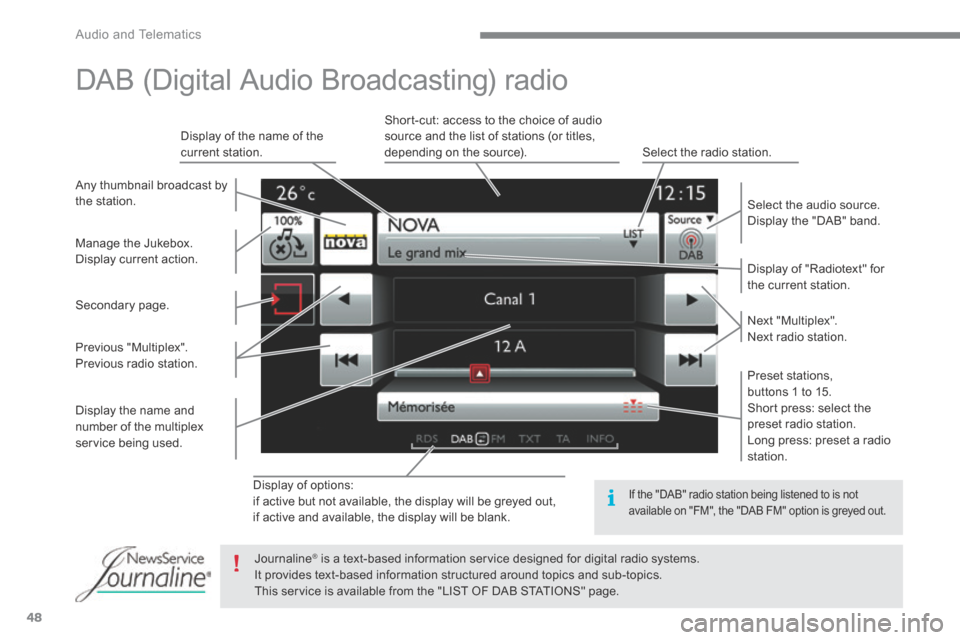

Display of options: if active but not available, the display will be greyed out, if active and available, the display will be blank.
Display of "Radiotext" for the current station.
Manage the Jukebox. Display current action.
Select the audio source. Display the "DAB" band.
Display of the name of the current station.
Short-cut: access to the choice of audio source and the list of stations (or titles, depending on the source). Select the radio station.
Any thumbnail broadcast by the station.
Preset stations, buttons 1 to 15. Short press: select the preset radio station. Long press: preset a radio station.
Next "Multiplex". Next radio station.
Secondary page.
Display the name and number of the multiplex service being used.
Previous "Multiplex". Previous radio station.
DAB (Digital Audio Broadcasting) radio
If the "DAB" radio station being listened to is not available on "FM", the "DAB FM" option is greyed out.
Journaline ® is a text-based information service designed for digital radio systems. ® is a text-based information service designed for digital radio systems. ®
It provides text-based information structured around topics and sub-topics. This service is available from the "LIST OF DAB STATIONS" page.

.
Audio and Telematics 49
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
Select change of source.
Press on Radio Media to display the primary page.
Select " DAB Radio ".
Select " List " in the primary page.
Select the radio station from the list offered.
Press on Radio Media to display the primary page.
Press on the secondary page.
Select " Settings ".
Select " RADIO ".
Select " Digital/FM auto tracking " then " Confirm ".

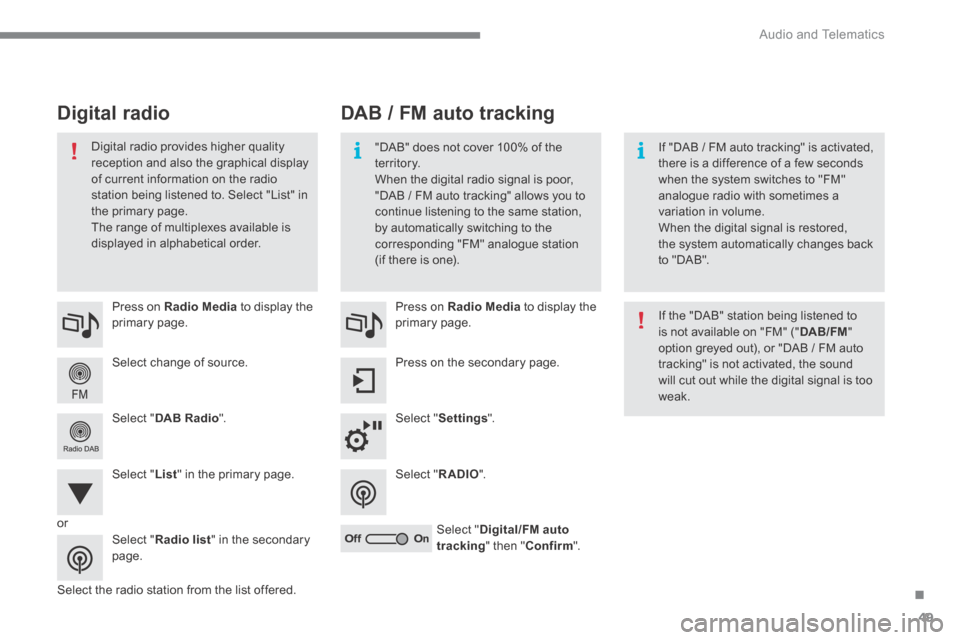

DAB / FM auto tracking Digital radio
"DAB" does not cover 100% of the te r r i to r y. When the digital radio signal is poor, "DAB / FM auto tracking" allows you to continue listening to the same station,
by automatically switching to the corresponding "FM" analogue station (if there is one).
If "DAB / FM auto tracking" is activated, there is a difference of a few seconds when the system switches to "FM" analogue radio with sometimes a variation in volume.
When the digital signal is restored, the system automatically changes back to "DAB".
Digital radio provides higher quality reception and also the graphical display of current information on the radio station being listened to. Select "List" in the primary page.
The range of multiplexes available is displayed in alphabetical order.
If the "DAB" station being listened to is not available on "FM" (" DAB/FM " option greyed out), or "DAB / FM auto tracking" is not activated, the sound will cut out while the digital signal is too weak.
or
Select " Radio list " in the secondary page.

Audio and Telematics
50
C4-2-add_en_Chap13b_SMEGplus_ed01-2015

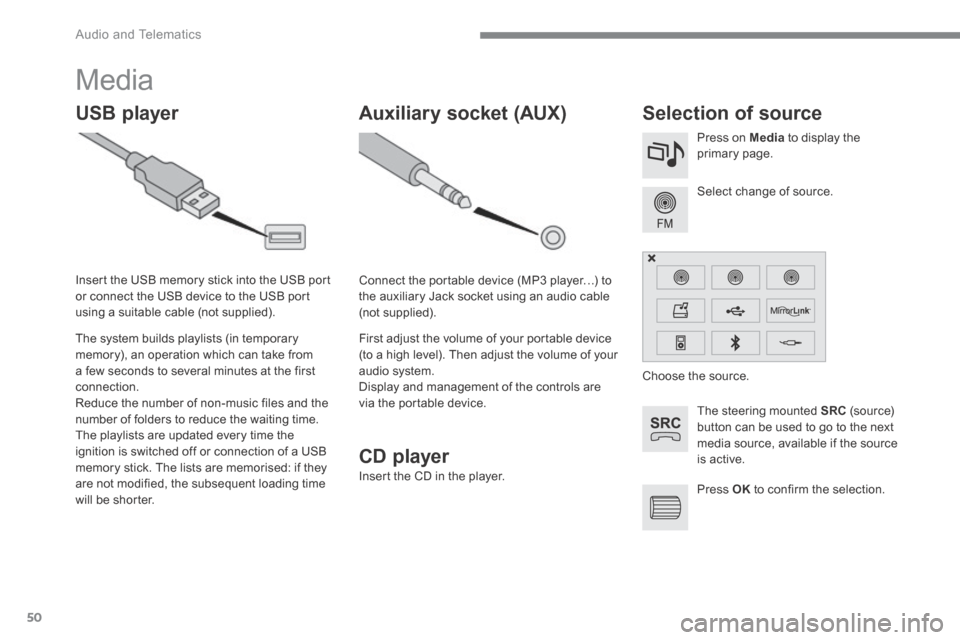

Media
USB player Selection of source
The steering mounted SRC (s o u r c e) button can be used to go to the next media source, available if the source is active.
Select change of source.
Press on Media to display the primary page.
The system builds playlists (in temporary memory), an operation which can take from a few seconds to several minutes at the first connection. Reduce the number of non-music files and the number of folders to reduce the waiting time. The playlists are updated every time the ignition is switched off or connection of a USB memory stick. The lists are memorised: if they are not modified, the subsequent loading time will be shorter.
Insert the USB memory stick into the USB port or connect the USB device to the USB port using a suitable cable (not supplied).
Auxiliary socket (AUX)
Connect the portable device (MP3 player…) to the auxiliary Jack socket using an audio cable (not supplied).
First adjust the volume of your portable device (to a high level). Then adjust the volume of your audio system. Display and management of the controls are via the portable device.
Choose the source.
Press OK to confirm the selection.
CD player
Insert the CD in the player.

.
Audio and Telematics 51
C4-2-add_en_Chap13b_SMEGplus_ed01-2015

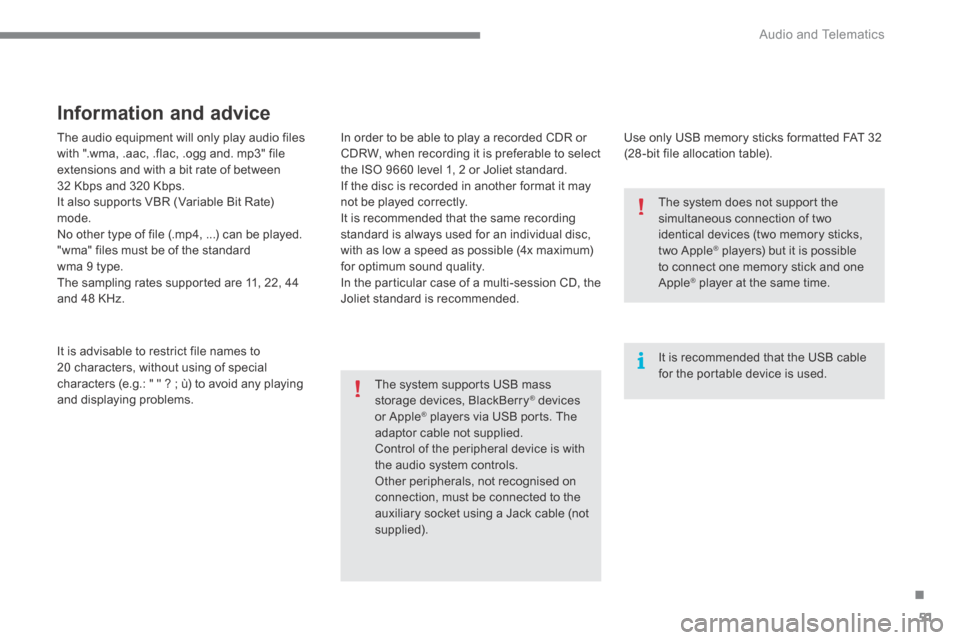

The audio equipment will only play audio files with ".wma, .aac, .flac, .ogg and. mp3" file extensions and with a bit rate of between 32 Kbps and 320 Kbps. It also supports VBR (Variable Bit Rate) mode. No other type of file (.mp4, ...) can be played. "wma" files must be of the standard wma 9 type. The sampling rates supported are 11, 22, 44 and 48 KHz.
It is advisable to restrict file names to 20 characters, without using of special characters (e.g.: " " ? ; ù) to avoid any playing and displaying problems.
Information and advice
Use only USB memory sticks formatted FAT 32 (28 -bit file allocation table).
The system supports USB mass storage devices, BlackBerry ® devices ® devices ®
or Apple ® players via USB ports. The ® players via USB ports. The ®
adaptor cable not supplied. Control of the peripheral device is with the audio system controls. Other peripherals, not recognised on connection, must be connected to the auxiliary socket using a Jack cable (not supplied).
It is recommended that the USB cable for the portable device is used.
The system does not support the simultaneous connection of two
identical devices (two memory sticks, two Apple ® players) but it is possible ® players) but it is possible ®
to connect one memory stick and one Apple ® player at the same time. ® player at the same time. ®
In order to be able to play a recorded CDR or CDRW, when recording it is preferable to select the ISO 9660 level 1, 2 or Joliet standard. If the disc is recorded in another format it may not be played correctly. It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality. In the particular case of a multi-session CD, the Joliet standard is recommended.

Audio and Telematics
52
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
Bluetooth ® Bluetooth ® Bluetooth audio streaming ® audio streaming ®
Streaming allows audio files on your telephone to be played through the vehicle's speakers.
Connect the telephone: see the " Telephone " section, then " Bluetooth ". Choose the " Audio " or " All " profile.
If play does not start automatically, it may be necessary to start the audio playback from the telephone. Control is from the peripheral device or by using the audio system buttons.
Once connected in streaming mode, the telephone is considered to be a media source. It is recommended that you activate " Repeat " on the Bluetooth peripheral.
Connecting Apple ® Connecting Apple ® Connecting Apple players ® players ®
Connect the Apple ® player to the USB port ® player to the USB port ®
using a suitable cable (not supplied). Play starts automatically.
Control is via the audio system.
The classifications available are those of the portable device connected (artists / albums / genres / playlists / audiobooks / podcasts). The default classification used is by
artist. To modify the classification used, return to the first level of the menu then select the desired classification (playlists for example) and confirm to go down through the menu to the desired track.
The version of software in the audio system may not be compatible with the generation of your Apple ® player. ® player. ®

.
Audio and Telematics 53
C4-2-add_en_Chap13b_SMEGplus_ed01-2015

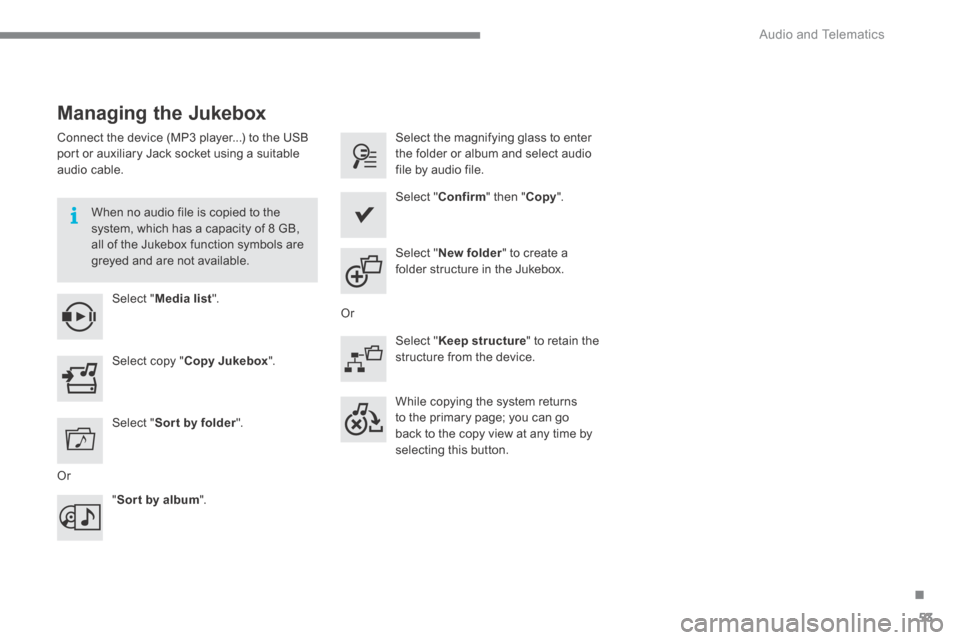

Managing the Jukebox
Connect the device (MP3 player...) to the USB port or auxiliary Jack socket using a suitable audio cable.
When no audio file is copied to the system, which has a capacity of 8 GB, all of the Jukebox function symbols are greyed and are not available.
Select " Media list ".
Select the magnifying glass to enter the folder or album and select audio file by audio file.
Select copy " Copy Jukebox ".
Select " Confirm " then " Copy ".
Select " Sor t by folder ".
Select " New folder " to create a folder structure in the Jukebox.
" Sor t by album ".
Select " Keep structure " to retain the structure from the device.
While copying the system returns to the primary page; you can go
back to the copy view at any time by selecting this button.
Or
Or

Audio and Telematics
54
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
Level 1
Settings
Level 2Level 3
Audio settings
Audio settings
Audio settings

.
Audio and Telematics 55
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
Level 1Level 2Level 3Comments
Settings
Audio settings
Ambience Choose the sound ambience.
Balance Sound distribution using the Arkamys ® system. ® system. ®
Sound effects Set the volume or activate the link to vehicle speed.
Ringtones Set the telephone ringtone and volume.
Voice Set the volume and voice for speaking street names .
Confirm Save your settings.
Settings
Turn off screen
Function that turns off the display. Pressing the screen reactivates it.

Audio and Telematics
56
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
Units
Display screen
ConfigurationConfigurationAdjust date and time
Factory settings
Level 1Level 2

.
Audio and Telematics 57
C4-2-add_en_Chap13b_SMEGplus_ed01-2015

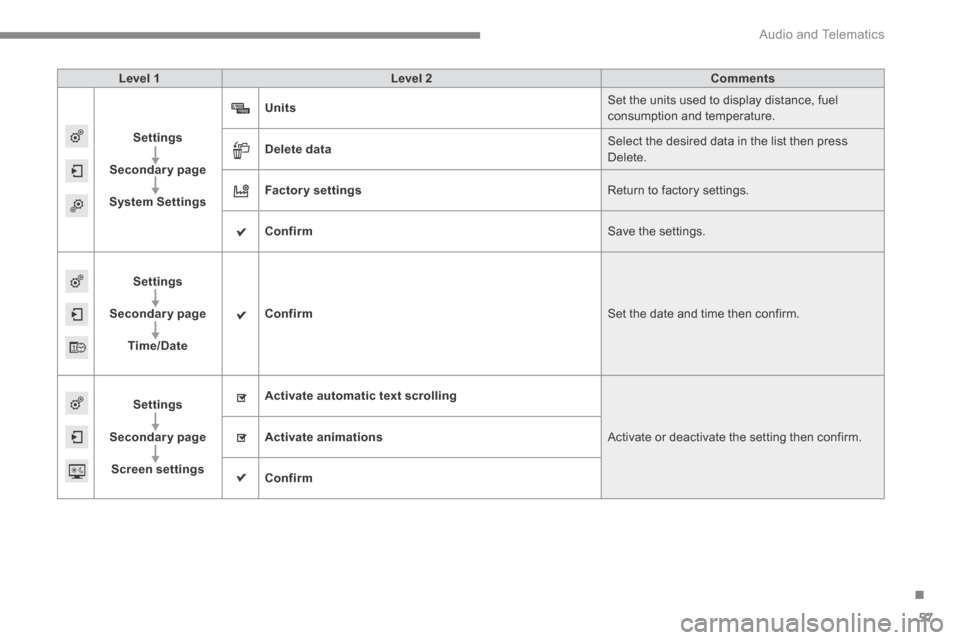

Level 1Level 2Comments
Settings
Secondary page
System Settings
Units Set the units used to display distance, fuel consumption and temperature.
Delete data Select the desired data in the list then press Delete.
Factory settings Return to factory settings.
Confirm Save the settings.
Settings
Secondary page
Time/Date
Confirm Set the date and time then confirm.
Settings
Secondary page
Screen settings
Activate automatic text scrolling
Activate or deactivate the setting then confirm. Activate animations
Confirm
