Citroen C4 2015 2.G Owner's Manual

10
Checks17
C4-2-add_en_Chap10_verifi cation_ed01-2015

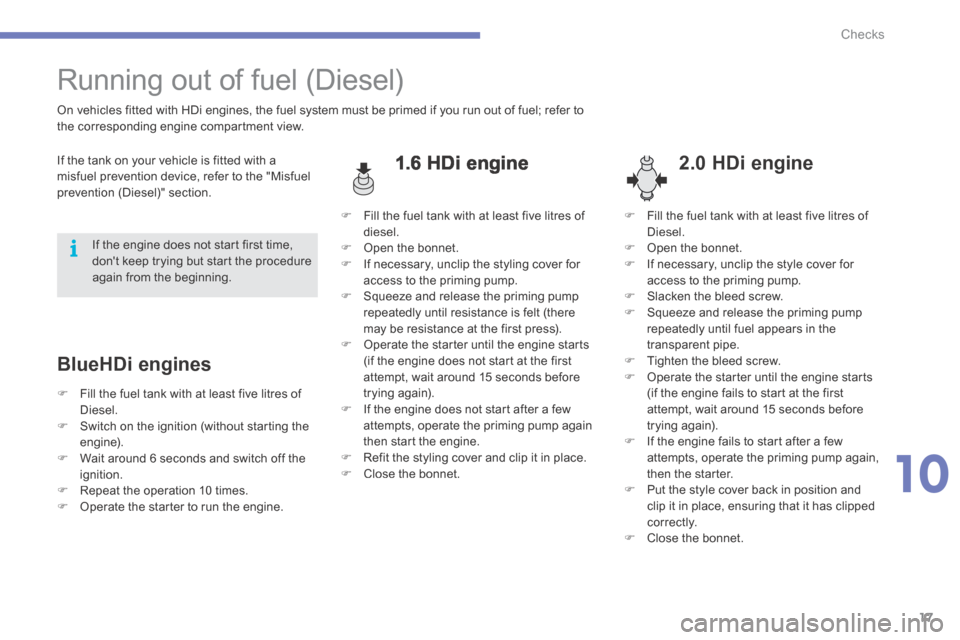

Running out of fuel (Diesel)
1.6 HDi engine 2.0 HDi engine
On vehicles fitted with HDi engines, the fuel system must be primed if you run out of fuel; refer to the corresponding engine compartment view.
If the tank on your vehicle is fitted with a misfuel prevention device, refer to the "Misfuel prevention (Diesel)" section.
BlueHDi engines
If the engine does not start first time, don't keep trying but start the procedure again from the beginning.
 Fill the fuel tank with at least five litres of diesel.  Open the bonnet.  If necessary, unclip the styling cover for access to the priming pump.  Squeeze and release the priming pump repeatedly until resistance is felt (there may be resistance at the first press).  Operate the starter until the engine starts (if the engine does not start at the first attempt, wait around 15 seconds before trying again).  If the engine does not start after a few attempts, operate the priming pump again
then start the engine.  Refit the styling cover and clip it in place.  Close the bonnet.
 Fill the fuel tank with at least five litres of Diesel.  Open the bonnet.  If necessary, unclip the style cover for access to the priming pump.  Slacken the bleed screw.  Squeeze and release the priming pump repeatedly until fuel appears in the transparent pipe.  Tighten the bleed screw.  Operate the starter until the engine starts (if the engine fails to start at the first attempt, wait around 15 seconds before trying again).
 If the engine fails to start after a few attempts, operate the priming pump again, then the starter.  Put the style cover back in position and clip it in place, ensuring that it has clipped c o r r e c t l y.  Close the bonnet.
 Fill the fuel tank with at least five litres of Diesel.  Switch on the ignition (without starting the engine).  Wait around 6 seconds and switch off the ignition.  Repeat the operation 10 times.  Operate the starter to run the engine.

Audio and Telematics
18
C4-2-add_en_Chap13a_BTA_ed01-2015

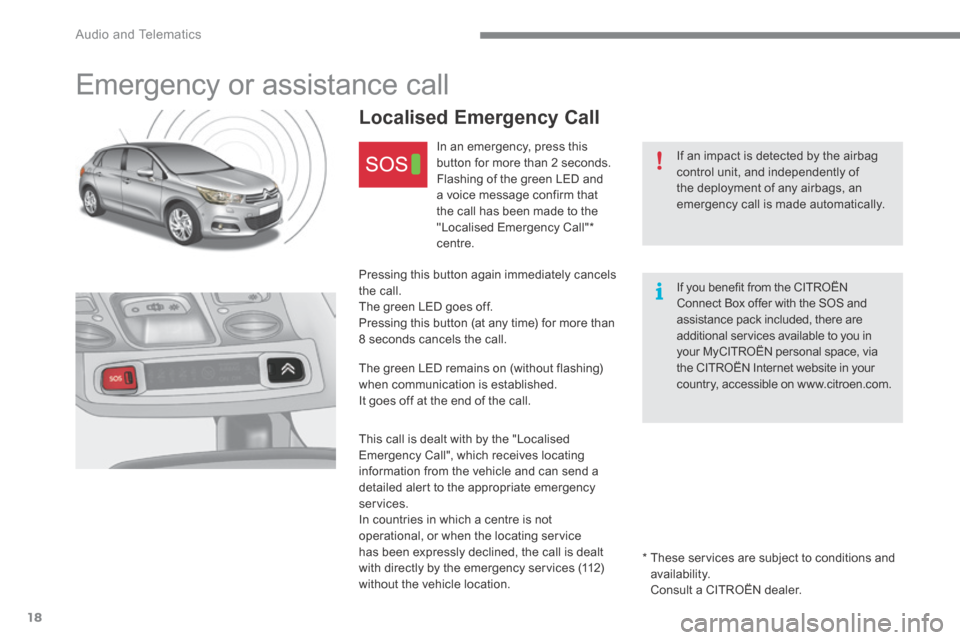

Emergency or assistance call
If an impact is detected by the airbag control unit, and independently of the deployment of any airbags, an emergency call is made automatically.
Localised Emergency Call
In an emergency, press this button for more than 2 seconds. Flashing of the green LED and a voice message confirm that the call has been made to the
"Localised Emergency Call" * centre.
Pressing this button again immediately cancels the call. The green LED goes off. Pressing this button (at any time) for more than 8 seconds cancels the call.
The green LED remains on (without flashing) when communication is established. It goes off at the end of the call.
This call is dealt with by the "Localised Emergency Call", which receives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in which a centre is not operational, or when the locating service has been expressly declined, the call is dealt with directly by the emergency services (112) without the vehicle location.
* These services are subject to conditions and availability. Consult a CITROËN dealer.
If you benefit from the CITROËNConnect Box offer with the SOS and assistance pack included, there are additional services available to you in your MyCITROËN personal space, via the CITROËN Internet website in your country, accessible on www.citroen.com.

.
Audio and Telematics 19
C4-2-add_en_Chap13a_BTA_ed01-2015
Localised Assistance Call
If you purchased your vehicle outside the CITROËN dealer network, we invite you to have a dealer check the configuration of these services and, if desired, modified to suit your wishes. In a multi-lingual country, configuration is possible in the official national language of your choice.
For technical reasons, particularly to improve the quality of Telematic services to customers, the manufacturer reserves the right to carry out updates
to the vehicle's on-board telematic system.

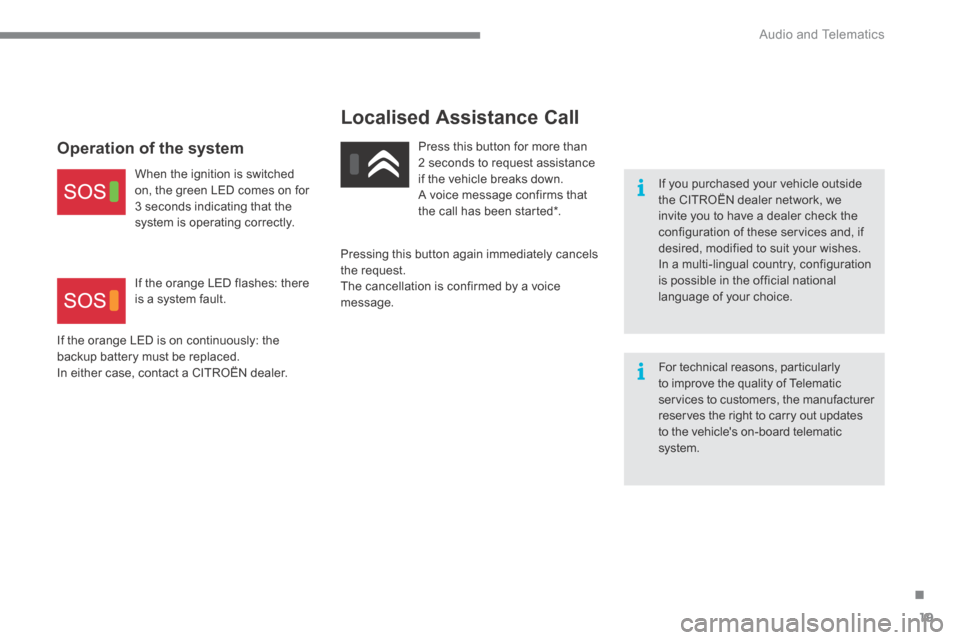

Press this button for more than 2 seconds to request assistance if the vehicle breaks down. A voice message confirms that the call has been started * .
Pressing this button again immediately cancels the request. The cancellation is confirmed by a voice message.
Operation of the system
When the ignition is switched on, the green LED comes on for 3 seconds indicating that the system is operating correctly.
If the orange LED is on continuously: the backup battery must be replaced. In either case, contact a CITROËN dealer.
If the orange LED flashes: there is a system fault.

.
Audio and Telematics 21
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
7-inch touch screen tablet
GPS satellite navigation - Multimedia audio - Bluetooth ® GPS satellite navigation - Multimedia audio - Bluetooth ® GPS satellite navigation - Multimedia audio - Bluetooth telephone ® telephone ®
Contents First steps 22
Steering mounted controls 24
Menus 25
Navigation 26
Navigation - Guidance 34
T r a f fi c 3 8
Radio Media 40
Radio 46
DAB (Digital Audio Broadcasting) radio 48
Media 50
Settings 54
Internet 62
Internet browser 63
MirrorLinkTM 66
Telephone 68
Frequently asked questions 76
The system is protected in such a way that it will only operate in your vehicle.
As a safety measure, the driver should only carry out operations which require prolonged attention while the vehicle is stationary. The display of the energy economy mode message signals that the system is about to go into standby. Refer to the Energy economy (mode) section.

Audio and Telematics
22
C4-2-add_en_Chap13b_SMEGplus_ed01-2015

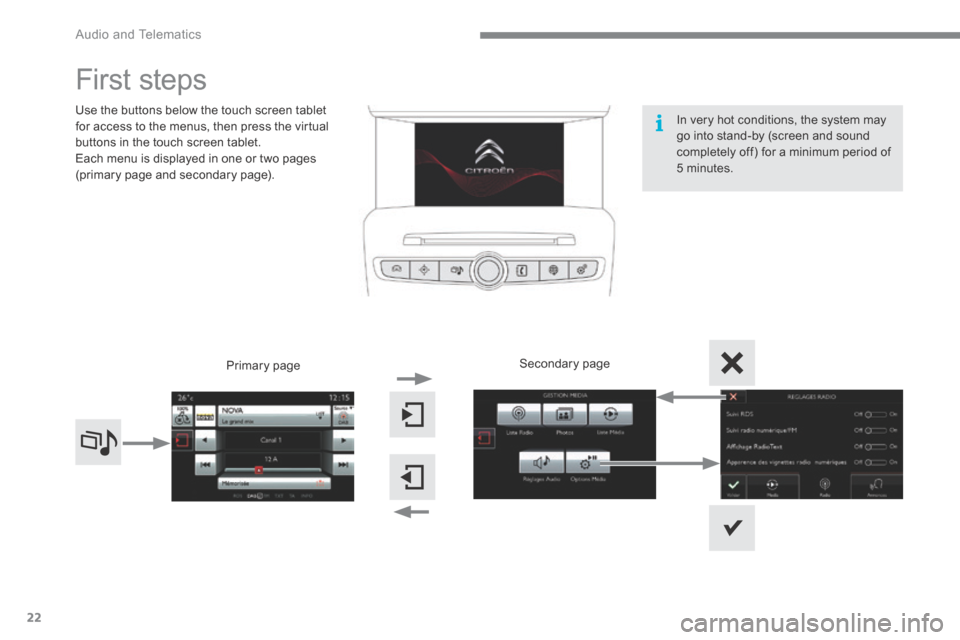

First steps
Use the buttons below the touch screen tablet for access to the menus, then press the virtual buttons in the touch screen tablet. Each menu is displayed in one or two pages (primary page and secondary page).
Secondary page Primary page
In very hot conditions, the system may go into stand-by (screen and sound completely off) for a minimum period of 5 minutes.

.
Audio and Telematics 23
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
With the engine running, press to mute the sound. With the ignition off, press to switch the system on.
Volume adjustment (each source is independent, including traffic announcements (TA) and navigation instructions).
Selecting the audio source (depending on version): - "FM" / "AM" / "DAB" * stations. - "USB" memory stick. - CD player (located in front panel). - Jukebox * , after first copying audio files to
the internal memory of the system. - Telephone connected by Bluetooth * and using Bluetooth * audio streaming. - Media player connected to the auxiliary socket (jack, cable not supplied).
* Depending on equipment.
Short-cuts: using the virtual buttons in the upper band of the touch screen tablet, it is possible to go directly to the selection of audio source, the list of stations (or titles, depending on the source).
The screen is of the "resistive" type, it is necessary to press firmly, particularly for "flick" gestures (scrolling through a list, moving the map...). A simple wipe will not be enough. Pressing with more than one finger is not recognised. The screen can be used when wearing gloves. This technology allows use at all temperatures.
In very hot conditions, the volume may be limited to protect the system. The return to normal takes place when the temperature in the passenger compartment drops.
To clean the screen, use a soft non-abrasive cloth (spectacles cloth) without any additional product. Do not use pointed objects on the screen. Do not touch the screen with wet
hands.

Audio and Telematics
24
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
Steering mounted controls
Media: change the multimedia source. Telephone: start a call. Call in progress: access to the telephone menu (End call, Secret mode, Hands-free mode). Telephone, press and hold: reject an incoming call, end a call in progress; other than a call in progress, access to the telephone menu. Decrease volume.
Radio, turn: automatic search for the previous / next station. Media, turn: previous / next track. Press: confirm a selection.
Radio: display the list of stations. Media: display the list of tracks. Radio, press and hold: update the list of stations received.
Increase volume.

.
Audio and Telematics 25
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
Menus
Settings Radio Media Navigation
Driving Internet Telephone
Set the sounds and brightness for the instruments and controls. Select radio, the different music sources and view photos. Enter navigation settings and choose a destination.
Access the trip computer, activate, deactivate or enter settings for certain vehicle functions. Activate, deactivate or enter settings for certain vehicle functions.
Connect using the "Internet browser". Operate certain applications on your smartphone via "MirrorLink TM ".
Connect a telephone by Bluetooth ® .
(Depending on equipment)
(Depending on equipment)

Audio and Telematics
26
C4-2-add_en_Chap13b_SMEGplus_ed01-2015

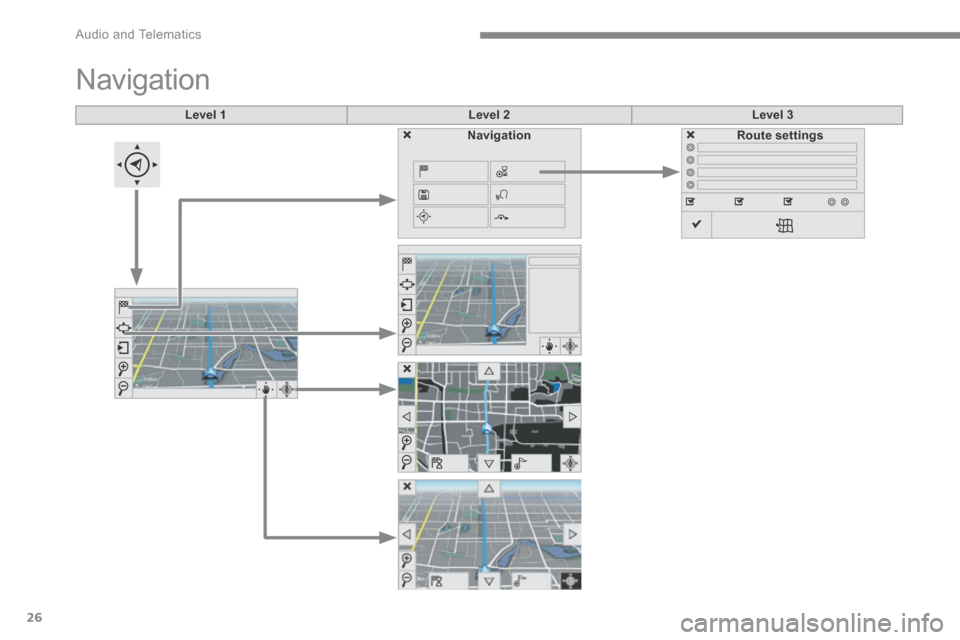

Level 1Level 2Level 3
Navigation
NavigationRoute settings

.
Audio and Telematics 27
C4-2-add_en_Chap13b_SMEGplus_ed01-2015

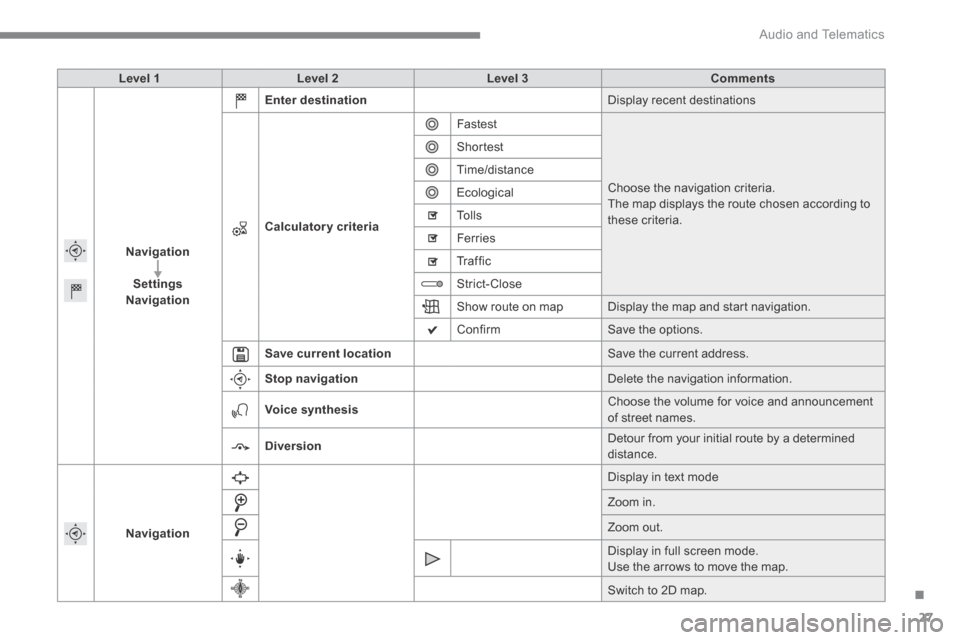

Level 1Level 2Level 3Comments
Navigation
SettingsNavigation
Enter destination Display recent destinations
Calculatory criteria
Fastest
Choose the navigation criteria. The map displays the route chosen according to these criteria.
Shortest
Time/distance
Ecological
To l l s
Ferries
Tr a f f i c
Strict-Close
Show route on map Display the map and start navigation.
Confirm Save the options.
Save current location Save the current address.
Stop navigation Delete the navigation information.
Voice synthesis Choose the volume for voice and announcement of street names.
Diversion Detour from your initial route by a determined distance.
Navigation
Display in text mode
Zoom in.
Zoom out.
Display in full screen mode. Use the arrows to move the map.
Switch to 2D map.
