Citroen C4 2015 2.G Owner's Manual

Audio and Telematics
58
C4-2-add_en_Chap13b_SMEGplus_ed01-2015

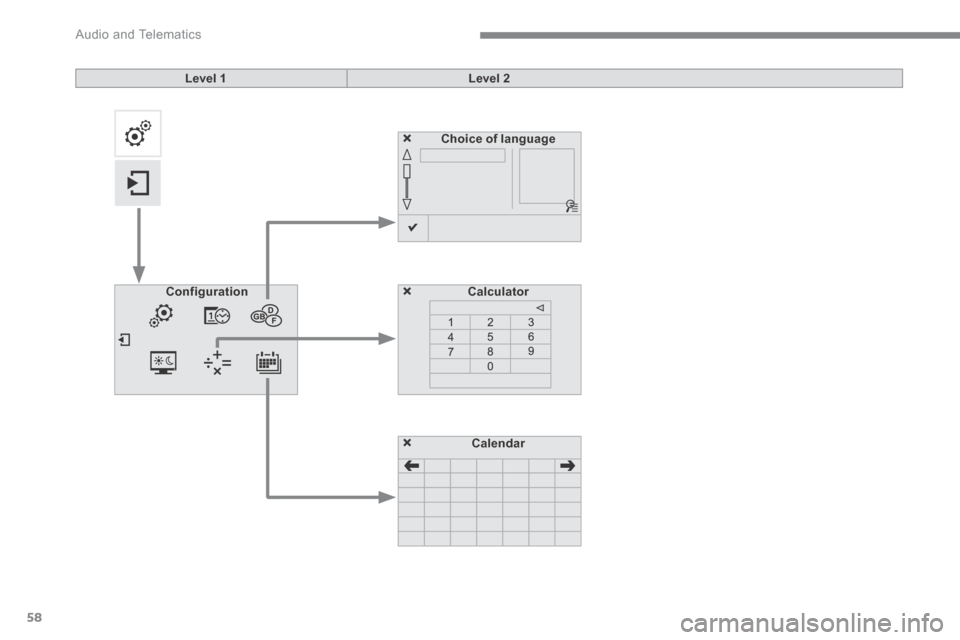

Choice of language
CalculatorConfiguration
Calendar
Level 1Level 2

.
Audio and Telematics 59
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
Level 1Level 2Comments
Settings
Secondary page
Languages
Confirm Select the language then confirm.
Settings
Secondary page
Calculator
Select the calculator.
Settings
Secondary page
Calendar
Select the calendar.

Audio and Telematics
60
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
Audio settings
Press Settings to display the primary page.
Select " Audio settings ".
Select " Ambience "
Or
" Balance "
Or
" Sound effects "
Or
" Ringtones "
Or
" Voice ".
On-board audio: Arkamys © Sound © Sound ©
Staging optimises sound distribution in the the passenger compartment.
The distribution (or spatialisation using the Arkamys ® system) of sound is an ® system) of sound is an ®
audio process that allows the audio quality to be adapted to the number of passengers in the vehicle.
Available only with the 6 -speaker configuration.
The audio settings ( Ambience , Bass , Tr e b l e and Loudness ) are different and independent for each sound source. The settings for F-R balance and L- R balance are common to all sources.
- " Ambience " (choice of 6 musical ambiences) - " Bass " - " Tr e b l e " - " Loudness " (Activate/Deactivate) - " Balance " (" Driver ", " All passengers ", " Front only " ) - " Audible response from touch screen " - " Volume linked to vehicle speed: " (Activate/Deactivate)

.
Audio and Telematics 61
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
Press on Settings to display the primary page. Press on "Settings" to display the primary page. Press on Settings to display the primary page.
Press on the secondary page. Press on the secondary page. Press on the secondary page.
Select " System Settings ". Select " Time/Date " to change the time zone, synchronisation with GPS, the time and its format, then the date.
Select " Screen settings ".
Select " Units " to change the units of distance, fuel consumption and temperature. Select " Languages " to change language.
Activate or deactivate " Activate automatic text scrolling " and " Activate animations "
Select " Delete data " to delete the list of recent destinations, personal
points of interest, contacts in the list. Select " Calculator " to display
a calculator.
Choose the item then select " Delete ". Select " Calendar " to display a calendar.
Select " Factory settings " to return to the original settings.
Modifying system settings

Audio and Telematics
62
C4-2-add_en_Chap13b_SMEGplus_ed01-2015

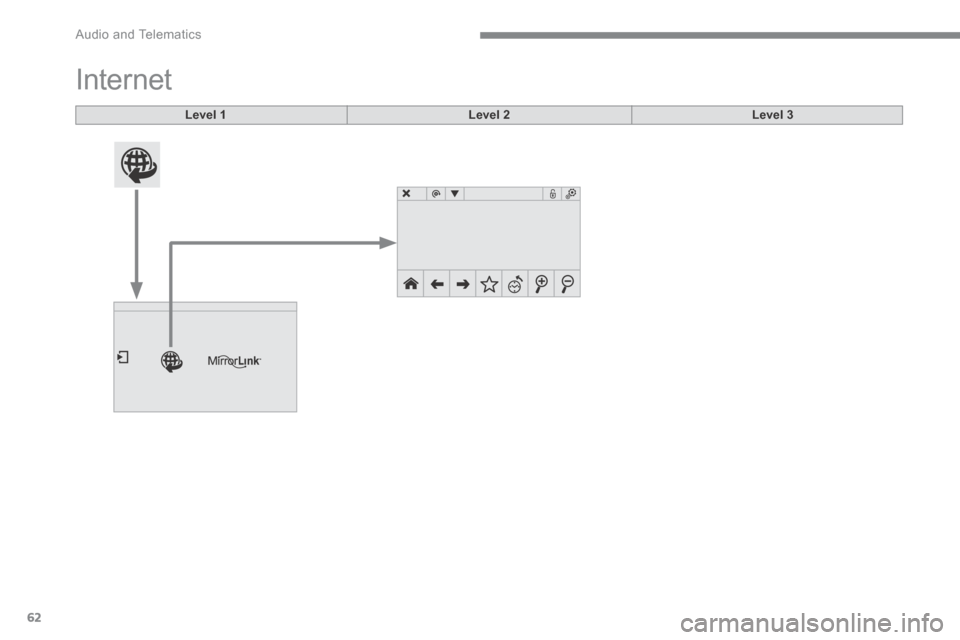

Internet
Level 1Level 2Level 3

.
Audio and Telematics 63
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
Internet browser
Authentication for Internet browsing via a smartphone is done using the Dial-Up Networking (DUN) standard.
Press on " Internet browser " to displays the browser's home page; first connect your smartphone by Bluetooth, option "Internet", see the " Telephone " section.
Some smartphones of the latest generation do not support this standard.
Press on Internet to display the primary page.

Audio and Telematics
64
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
Level 1Level 2Level 3
Usage monitorInternet
Wi-Fi network connection
Bluetooth (devices)

.
Audio and Telematics 65
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
Level 1Level 2Level 3Comments
Internet
Secondary page
Bluetooth Connection
Search Start the search for a device to connect.
Connect / Disconnect Start or end the Bluetooth connection to the selected device.
Update Import contacts from the selected telephone to save them in the audio system.
Delete Delete the selected telephone.
Confirm Save the settings.
Internet
Secondary page
Transfer rate
Reset
Reset the usage monitor, them confirm.
Confirm
Internet
Secondary page
WiFi connection
All Display all Wi-Fi networks.
Secure Display secure Wi-Fi networks.
Stored Memorise the selected Wi-Fi network(s).
Add Add a new Wi-Fi network.
Activate / Deactivate Activate or deactivate a Wi-Fi network.
Connect Select a Wi-Fi network found by the system and
connect to it.

Audio and Telematics
66
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
MirrorLink
TM

.
Audio and Telematics 67
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
As a safety measure and because it requires sustained attention by the driver, using a smartphone when driving is prohibited. All operations must be done with the vehicle stationary . vehicle stationary . vehicle stationary
The synchronisation of a personal smartphone allows applications on a smartphone that are adapted to the MirrorLinkTM technology to be displayed in the vehicle's screen. The principles and standards are constantly evolving; for information on supported smartphones, go to the CITROËN website for your country.
Select MyCITROËN if present.
Please note: - if your mobile is supported, to make it "MirrorLink TM " compatible, some phone manufacturers nevertheless invite you to first download a dedicated application. - iPhone ® is not supported yet; an ® is not supported yet; an ®
Apple ® application, "CarPlay ® application, "CarPlay ®® ", is being developed.
When connecting a smartphone to
the system, it is recommended that Bluetooth ® be started on the smartphone ® be started on the smartphone ®
Start the application on the smartphone.
Go to the home page to return to the " MirrorLinkTM " display.
During the procedure, a page showing the conditions for use is displayed. Accept to start and end the connection.
a USB cable is connected. The smartphone charges when connected by a USB cable.
Press " MirrorLinkTM " to start the application in the system.
The " Audio source " and " Telephone " functions remain available in the margin of the MirrorLinkTM display.
MirrorLink TM smartphone
connection
Press the end of the lighting control stalk to start voice recognition of your smartphone via the system.
Voice recognition requires a compatible telephone connected to the vehicle by Bluetooth.
Voice recognition
As a safety measure, applications can only be viewed with the vehicle stationary; display is interrupted once the vehicle is moving.
and
From the system, press " Internet " to display the primary page.
