bluetooth Citroen C4 2015 2.G Service Manual

Audio and Telematics
70
C4-2-add_en_Chap13b_SMEGplus_ed01-2015

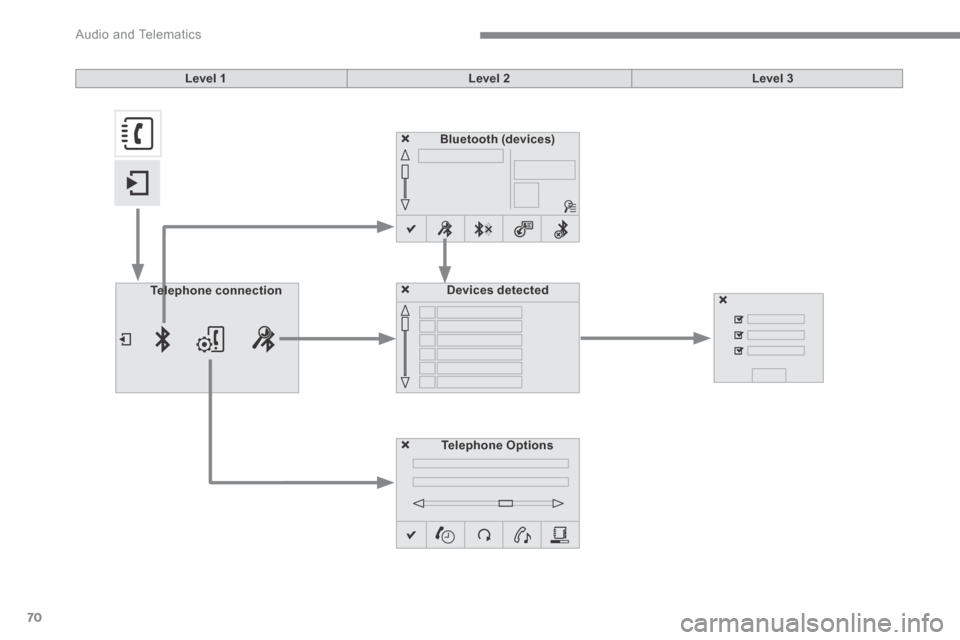

Bluetooth (devices)
Telephone Options
Devices detectedTelephoneTelephone connection
Level 1Level 2Level 3

.
Audio and Telematics 71
C4-2-add_en_Chap13b_SMEGplus_ed01-2015
Level 1Level 2Level 3Comments
Telephone connection
Secondary page
Bluetooth Connection
Search Start the search for another peripheral device to connect.
Connect/Disconnect Start or stop the Bluetooth connection to the selected peripheral device.
Update Import the contacts from the selected telephone to store them in the audio system.
Delete Delete the selected telephone.
Confirm Save the settings.
Telephoneconnection
Secondary page
Search for devices
Devices detected
Telephone
Start the search for peripheral devices. Audio streaming
Internet
Telephone connection
Secondary page
Telephone options
Put on hold Cut the microphone temporarily so that the contact cannot hear your conversation with a passenger.
Update Import the contacts from the selected telephone to save then in the audio system.
Ringtones Choose the telephone ringtone and volume.
Memory info.
Contact records used and free, percentage of
storage space used by internal contacts and Bluetooth contacts.
Confirm Save the settings.

Audio and Telematics
72
C4-2-add_en_Chap13b_SMEGplus_ed01-2015

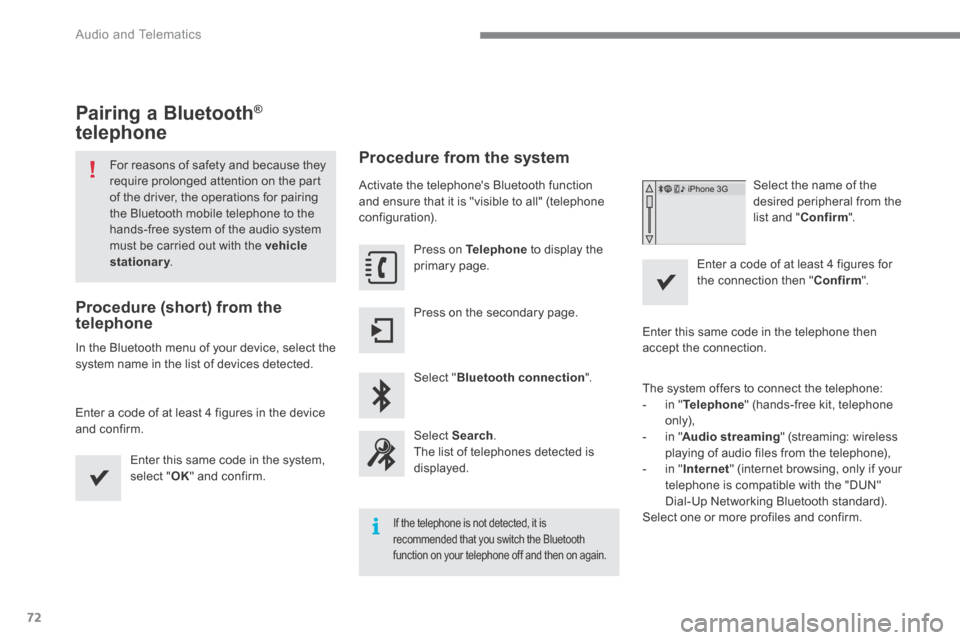

Pairing a Bluetooth ® Pairing a Bluetooth ® Pairing a Bluetooth
telephone
For reasons of safety and because they require prolonged attention on the part of the driver, the operations for pairing the Bluetooth mobile telephone to the hands-free system of the audio system must be carried out with the vehicle stationary . stationary . stationary
Procedure (short) from the telephone
In the Bluetooth menu of your device, select the system name in the list of devices detected.
Enter a code of at least 4 figures in the device and confirm.
Enter this same code in the system, select " OK " and confirm.
Procedure from the system
Activate the telephone's Bluetooth function and ensure that it is "visible to all" (telephone configuration).
Press on Telephone to display the primary page.
Press on the secondary page.
Select " Bluetooth connection ".
Select Search . The list of telephones detected is displayed.
If the telephone is not detected, it is recommended that you switch the Bluetooth function on your telephone off and then on again.
Select the name of the desired peripheral from the list and " Confirm ".
Enter a code of at least 4 figures for the connection then " Confirm ".
Enter this same code in the telephone then accept the connection.
The system offers to connect the telephone: - in " Telephone " (hands-free kit, telephone only),
- in " Audio streaming " (streaming: wireless playing of audio files from the telephone), - in " Internet " (internet browsing, only if your telephone is compatible with the "DUN" Dial-Up Networking Bluetooth standard). Select one or more profiles and confirm.

.
Audio and Telematics 73
C4-2-add_en_Chap13b_SMEGplus_ed01-2015

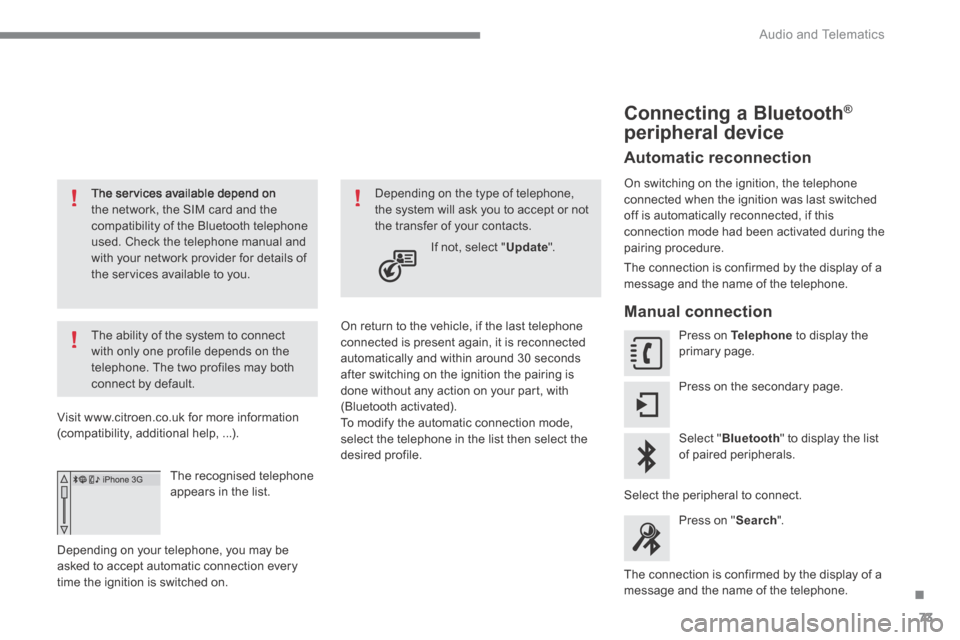

The services available depend on the network, the SIM card and the compatibility of the Bluetooth telephone used. Check the telephone manual and with your network provider for details of the services available to you.
The ability of the system to connect with only one profile depends on the telephone. The two profiles may both connect by default.
Visit www.citroen.co.uk for more information (compatibility, additional help, ...).
The recognised telephone appears in the list.
Depending on your telephone, you may be asked to accept automatic connection every time the ignition is switched on.
On return to the vehicle, if the last telephone connected is present again, it is reconnected automatically and within around 30 seconds after switching on the ignition the pairing is done without any action on your part, with (Bluetooth activated). To modify the automatic connection mode, select the telephone in the list then select the desired profile.
Depending on the type of telephone, the system will ask you to accept or not the transfer of your contacts.
If not, select " Update ".
Connecting a Bluetooth ® Connecting a Bluetooth ® Connecting a Bluetooth
peripheral device
Automatic reconnection
On switching on the ignition, the telephone connected when the ignition was last switched off is automatically reconnected, if this connection mode had been activated during the pairing procedure.
The connection is confirmed by the display of a message and the name of the telephone.
Manual connection
Press on Telephone to display the primary page.
Press on the secondary page.
Select " Bluetooth " to display the list of paired peripherals.
Select the peripheral to connect.
Press on " Search ".
The connection is confirmed by the display of a message and the name of the telephone.

Audio and Telematics
74
C4-2-add_en_Chap13b_SMEGplus_ed01-2015

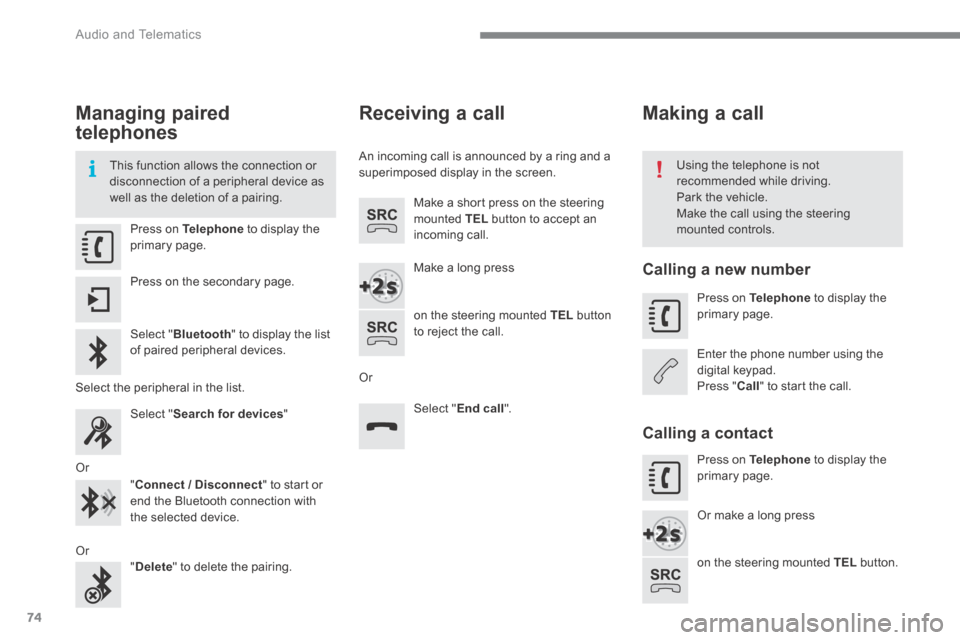

Managing paired
telephones
This function allows the connection or disconnection of a peripheral device as well as the deletion of a pairing.
Using the telephone is not recommended while driving. Park the vehicle. Make the call using the steering mounted controls. Press on Telephone to display the primary page.
Press on the secondary page.
Select " Bluetooth " to display the list of paired peripheral devices.
Select the peripheral in the list.
Select " Search for devices "
Or
" Connect / Disconnect " to start or end the Bluetooth connection with the selected device.
Or " Delete " to delete the pairing.
Receiving a call
An incoming call is announced by a ring and a superimposed display in the screen.
Make a short press on the steering mounted TEL button to accept an incoming call.
Make a long press
on the steering mounted TEL button to reject the call.
Or
Select " End call ".
Making a call
Calling a new number
Press on Telephone to display the primary page.
Enter the phone number using the digital keypad. Press " Call " to start the call.
Calling a contact
Press on Telephone to display the primary page.
Or make a long press
on the steering mounted TEL button.

Audio and Telematics
80
C4-2-add_en_Chap13b_SMEGplus_ed01-2015

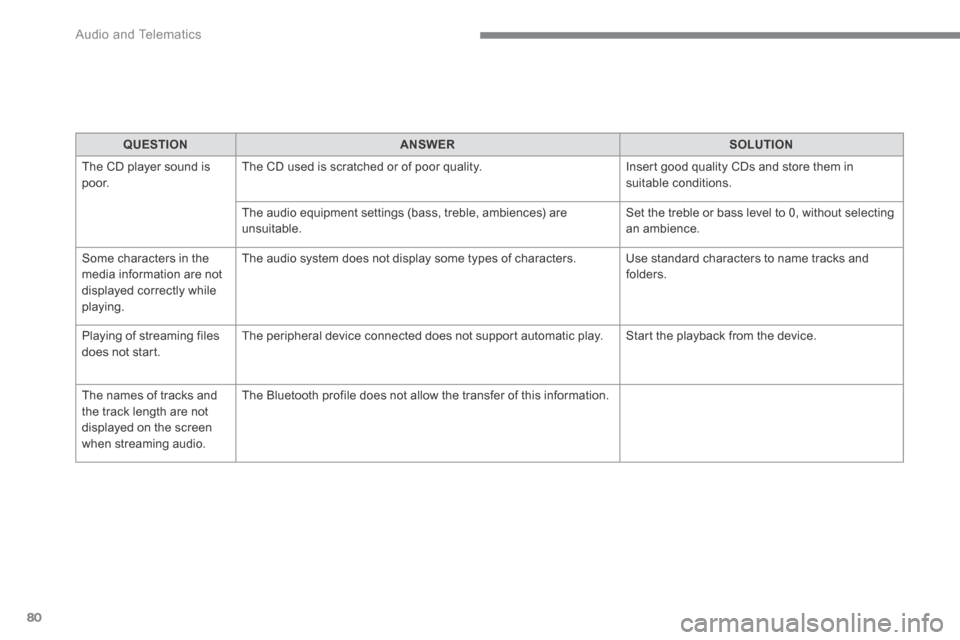

QUESTIONANSWERSOLUTION
The CD player sound is p o o r. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selecting an ambience.
Some characters in the media information are not displayed correctly while playing.
The audio system does not display some types of characters. Use standard characters to name tracks and folders.
Playing of streaming files does not start. The peripheral device connected does not support automatic play. Start the playback from the device.
The names of tracks and the track length are not displayed on the screen when streaming audio.
The Bluetooth profile does not allow the transfer of this information.

.
Audio and Telematics 83
C4-2-add_en_Chap13b_SMEGplus_ed01-2015

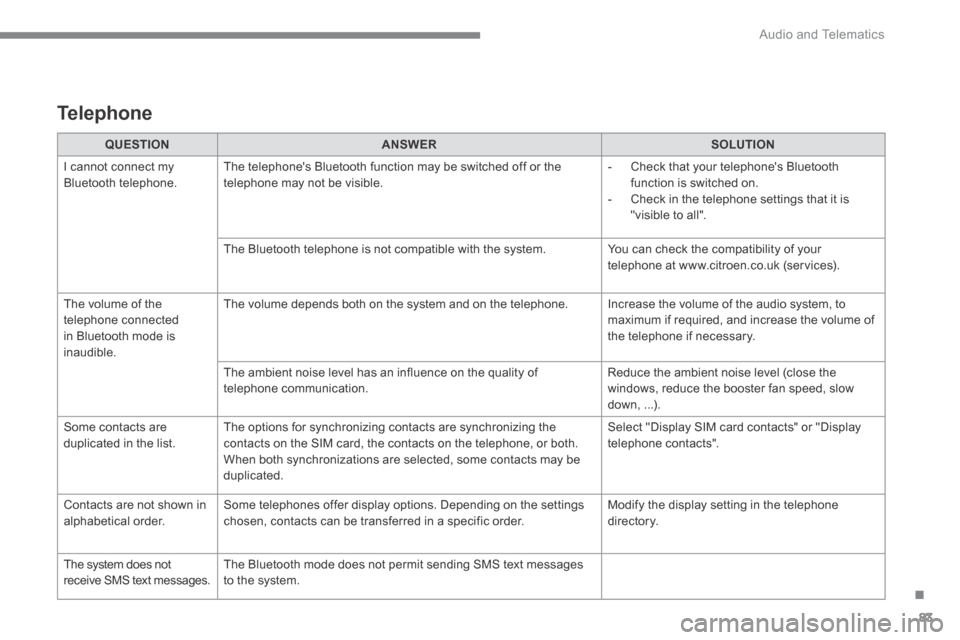

Telephone
QUESTIONANSWERSOLUTION
I cannot connect my Bluetooth telephone. The telephone's Bluetooth function may be switched off or the telephone may not be visible. - Check that your telephone's Bluetooth function is switched on. - Check in the telephone settings that it is "visible to all".
The Bluetooth telephone is not compatible with the system. You can check the compatibility of your telephone at www.citroen.co.uk (services).
The volume of the telephone connected in Bluetooth mode is inaudible.
The volume depends both on the system and on the telephone. Increase the volume of the audio system, to maximum if required, and increase the volume of the telephone if necessary.
The ambient noise level has an influence on the quality of telephone communication. Reduce the ambient noise level (close the windows, reduce the booster fan speed, slow down, ...).
Some contacts are duplicated in the list. The options for synchronizing contacts are synchronizing the contacts on the SIM card, the contacts on the telephone, or both. When both synchronizations are selected, some contacts may be duplicated.
Select "Display SIM card contacts" or "Display telephone contacts".
Contacts are not shown in alphabetical order. Some telephones offer display options. Depending on the settings chosen, contacts can be transferred in a specific order. Modify the display setting in the telephone di r e c to r y.
The system does not receive SMS text messages. The Bluetooth mode does not permit sending SMS text messages to the system.

.
Audio and Telematics
3

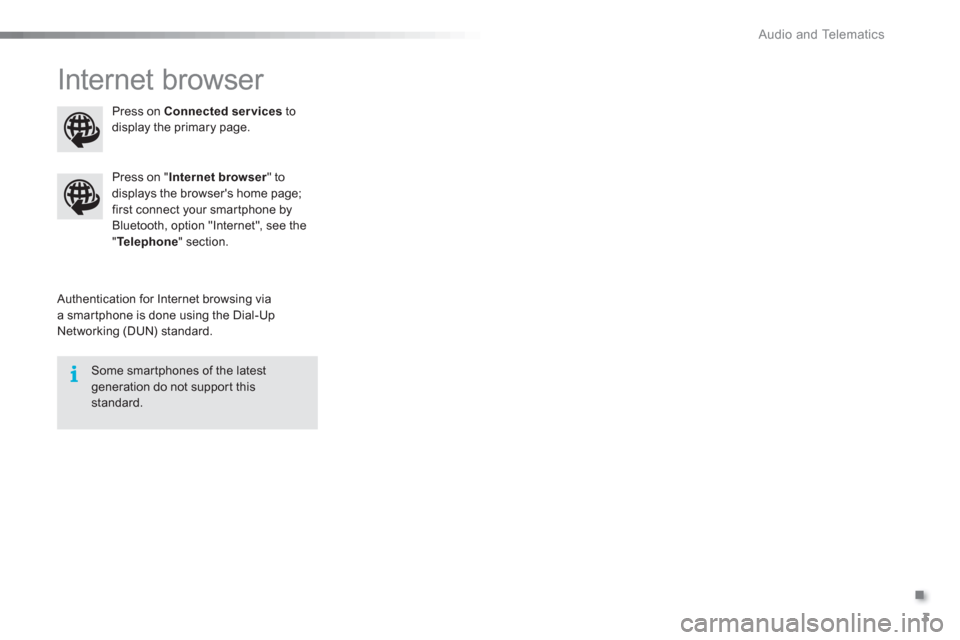

Internet browser


Authentication for Internet browsing via
a smartphone is done using the Dial-Up
Networking (DUN) standard.
Press on " Internet browser
" to
displays the browser's home page;
first connect your smartphone by
Bluetooth, option "Internet", see the
" Te l e p h o n e
" section.

Some smartphones of the latest
generation do not support this
standard.







Press on Connected services
to
display the primary page.

Audio and Telematics
4














Level 1



Level 2




Usage monitor




Internet connection settings




Wi- Fi network connection



Bluetooth
(devices)

.
Audio and Telematics
5

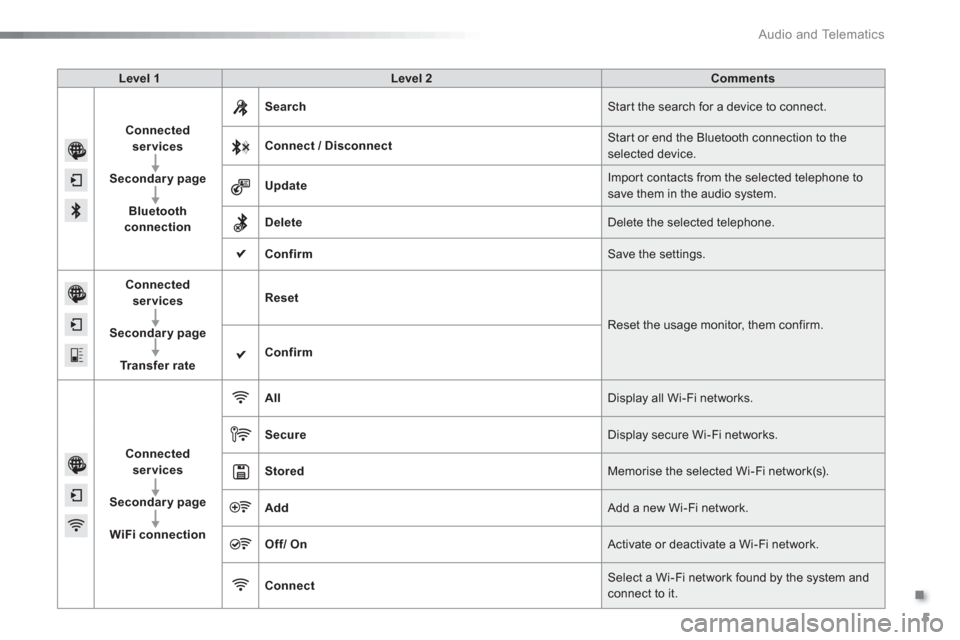

Level 1

Level 2

Comments


Connected
services



Secondary page



Bluetooth
connection

Search
Start the search for a device to connect.

Connect / Disconnect
Start or end the Bluetooth connection to the
selected device.

Update
Import contacts from the selected telephone to
save them in the audio system.

Delete
Delete the selected telephone.

Confirm
Save the settings.

Connected
services



Secondary page



Tr a n s f e r r a t e

Reset

Reset the usage monitor, them confirm.

Confirm


Connected
services



Secondary page



WiFi connection

All
Display all Wi-Fi networks.

Secure
Display secure Wi-Fi networks.

Stored
Memorise the selected Wi-Fi network(s).

Add
Add a new Wi-Fi network.

Off/
On
Activate or deactivate a Wi-Fi network.

Connect
Select a Wi-Fi network found by the system and
connect to it.
