CITROEN C4 2018 Owner's Guide

29
C4-cactus_en_Chap01_Instruments-de-bord_ed01-2016
Navigation
(Depending on e quipment)
Enter   navigation   settings   and   choose
a d

estination.
Telephone
Connect a telephone by Bluetooth®.

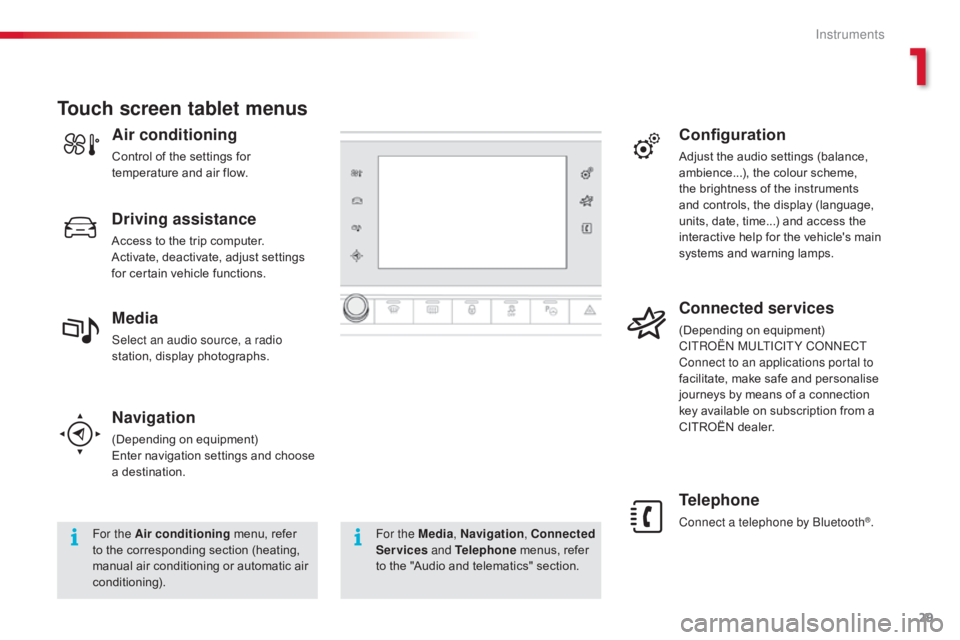

Touch screen tablet menus
For the Air conditioning  menu,   refer  t
o   the   corresponding   section   (heating,
m

anual   air   conditioning   or   automatic   air
c

onditioning). For the Media
, Navigation, Connected
Services and Telephone
menus,   refer
t

o   the   "Audio   and   telematics"   section.
Driving assistance
Access to the trip computer.
A ctivate,   deactivate,   adjust   settings
f

or   certain   vehicle   functions.
Configuration
Adjust the audio settings (balance, ambience...),   the   colour   scheme,
t

he   brightness   of   the   instruments
a

nd   controls,   the   display   (language,
u

nits,   date,   time...)   and   access   the
i

nteractive   help   for   the   vehicle's   main
s

ystems   and   warning   lamps.
Connected services
(Depending on e quipment)
CITROËN MULTICITY CONNECT
Connect to an applications portal to
facilitate,
  make   safe   and   personalise
j

ourneys   by   means   of   a   connection
k

ey   available   on   subscription   from   a
C

ITROËN   dealer.Media
Select an audio source, a radio
station,  display   photographs.
Air conditioning
Control of the settings for temperature   and   air   flow.
1
Instruments

30
C4-cactus_en_Chap01_Instruments-de-bord_ed01-2016

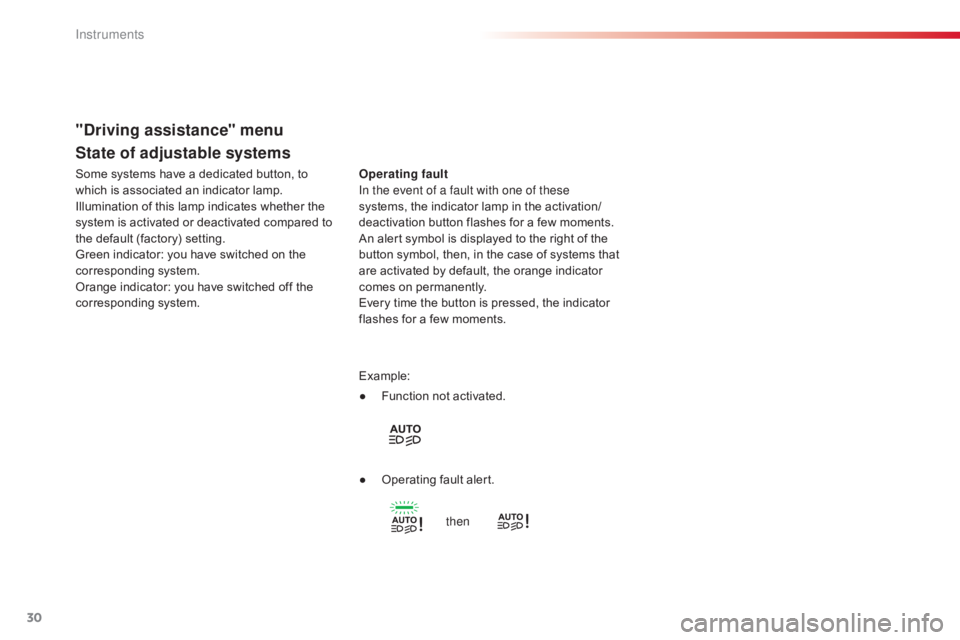

State of adjustable systems
Operating fault
In the event of a fault with one of these
systems,  the   indicator   lamp   in   the   activation/
deactivation
  button   flashes   for   a   few   moments.
An
  alert   symbol   is   displayed   to   the   right   of   the
b

utton   symbol,   then,   in   the   case   of   systems   that
a

re   activated   by   default,   the   orange   indicator
c

omes   on   permanently.
Every
  time   the   button   is   pressed,   the   indicator
f

lashes   for   a   few   moments.
Example:
●

F
unction   not   activated.
●

O
perating   fault   alert.
then
"Driving assistance" menu
Some systems have a dedicated button, to w hich   is   associated   an   indicator   lamp.
Illumination
  of   this   lamp   indicates   whether   the
s

ystem   is   activated   or   deactivated   compared   to
t

he   default   (factory)   setting.
Green
  indicator:   you   have   switched   on   the
c

orresponding   system.
Orange
  indicator:   you   have   switched   off   the
c

orresponding   system.
Instruments

31
C4-cactus_en_Chap01_Instruments-de-bord_ed01-2016
The functions with settings that can be adjusted are detailed in the following table.
Bu tton Corresponding function CommentsActivated Deactivated
Park Assist Activation
  /   Deactivation   of   the   function.
Stop & Star t Activation
  /   Deactivation   of   the   function.
Parking sensors Activation
  /   Deactivation   of   the   function.
Speed settings Memorisation
  of   speeds   for   use   with   the   speed
l

imiter   or   cruise   control.
Under-inflation initialisation Reinitialisation of the under-inflation detection
system.
1
Instruments

32
C4-cactus_en_Chap01_Instruments-de-bord_ed01-2016

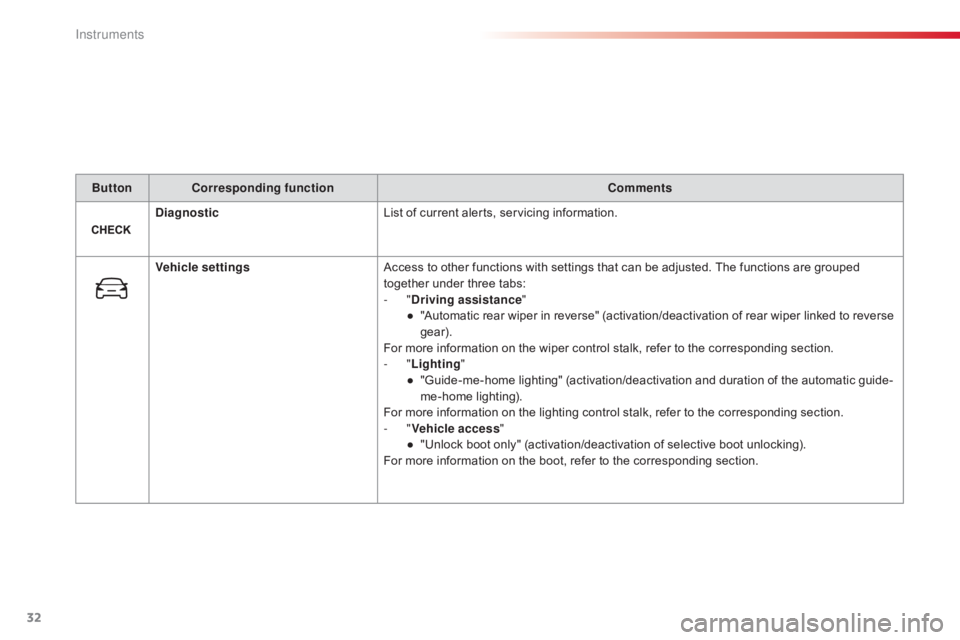

ButtonCorresponding function Comments
Diagnostic List
  of   current   alerts,   servicing   information.
Vehicle settings Access
  to   other   functions   with   settings   that   can   be   adjusted.   The   functions   are   grouped
t

ogether   under   three   tabs:
-
"Driving assistance "
●

"
Automatic   rear   wiper   in   reverse"   (activation/deactivation   of   rear   wiper   linked   to   reverse
g

ear).
For
  more   information   on   the   wiper   control   stalk,   refer   to   the   corresponding   section.
-
"Lighting "
●

"
Guide-me-home   lighting"   (activation/deactivation   and   duration   of   the   automatic   guide-
me-home
 l

ighting).
For
  more   information   on   the   lighting   control   stalk,   refer   to   the   corresponding   section.
-
"Vehicle access "
●

"
Unlock   boot   only"   (activation/deactivation   of   selective   boot   unlocking).
For
  more   information   on   the   boot,   refer   to   the   corresponding   section.
Instruments

33
C4-cactus_en_Chap01_Instruments-de-bord_ed01-2016

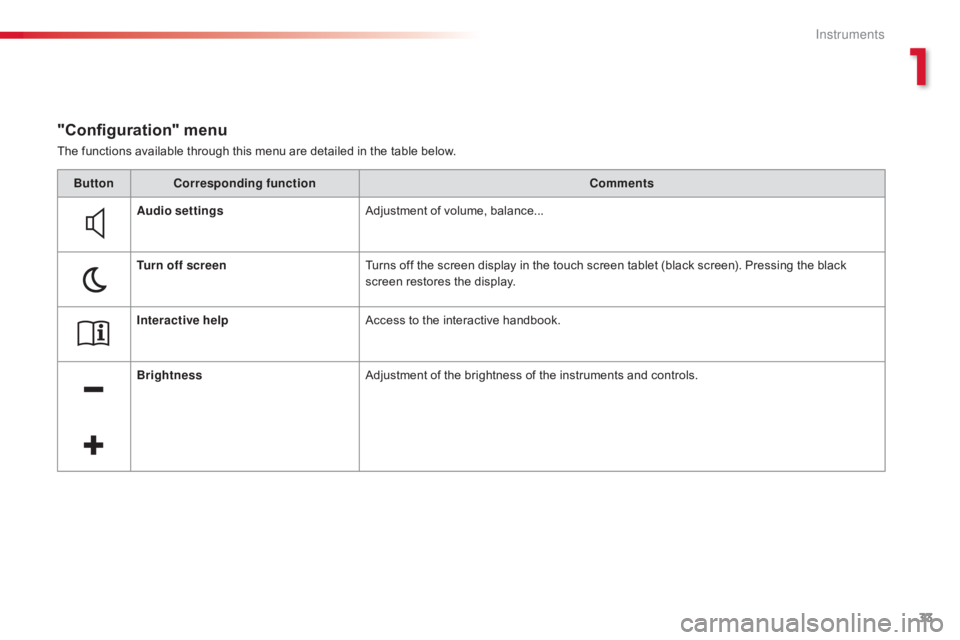

The functions available through this menu are detailed in the table below.
"Configuration" menu
ButtonCorresponding function Comments
Audio settings Adjustment
  of   volume,   balance...
Turn off screen Turns
  off   the   screen   display   in   the   touch   screen   tablet   (black   screen).   Pressing   the   black
s

creen   restores   the   display.
Interactive help Access
  to   the   interactive   handbook.
Brightness Adjustment
  of   the   brightness   of   the   instruments   and   controls.
1
Instruments

34
C4-cactus_en_Chap01_Instruments-de-bord_ed01-2016

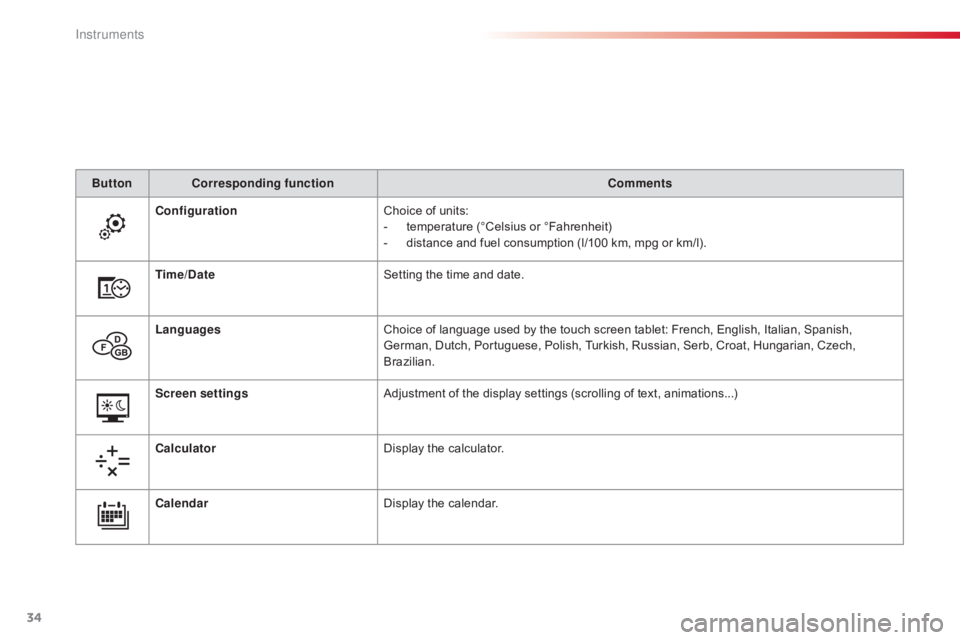

ButtonCorresponding function Comments
Configuration Choice
  of   units:
-

t
emperature   (°Celsius   or   °Fahrenheit)
-

d
istance   and   fuel   consumption   (l/100   km,   mpg   or   km/l).
Time/Date Setting
  the   time   and   date.
Languages Choice
  of   language   used   by   the   touch   screen   tablet:   French,   English,   Italian,   Spanish,
G

erman,   Dutch,   Portuguese,   Polish,   Turkish,   Russian,   Serb,   Croat,   Hungarian,   Czech,
B

razilian.
Screen settings Adjustment
  of   the   display   settings   (scrolling   of   text,   animations...)
Calculator Display
  the   calculator.
Calendar Display
  the   calendar.
Instruments

35
C4-cactus_en_Chap01_Instruments-de-bord_ed01-2016

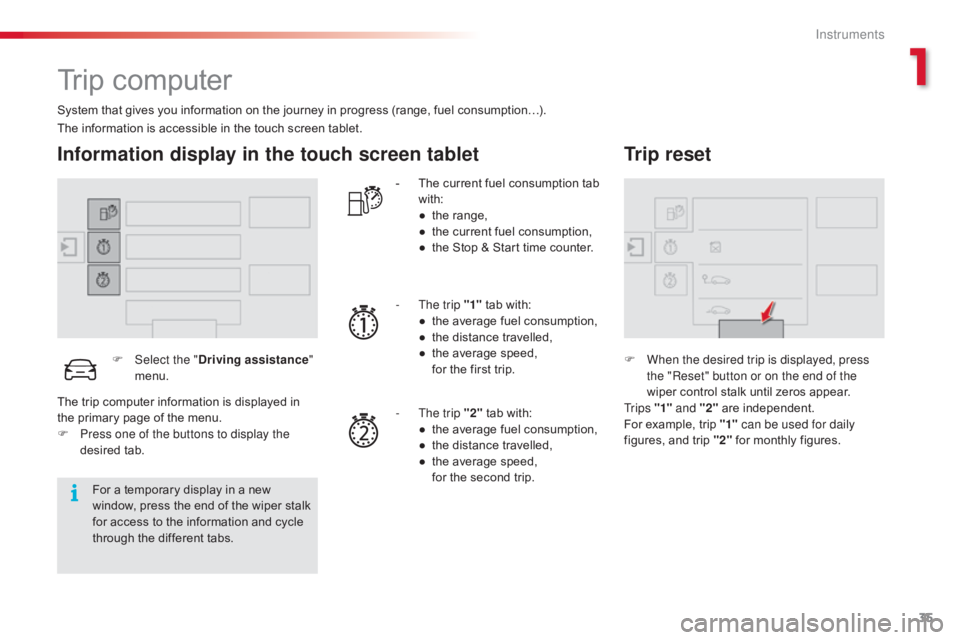

Trip computer
System that gives you information on the journey in progress (range, fuel consumption…).
Information display in the touch screen tablet
F Select the "Driving assistance "
menu. -

T
he   current   fuel   consumption   tab
w

ith:
●
t
he   range,
●
t
he   current   fuel   consumption,
●
t
he   Stop   &   Start   time   counter.
-
T
he trip "1"

tab   with:
●
t
he   average   fuel   consumption,
●
t
he   distance   travelled,
●  t he   average   speed,
 f or   the   first   trip.
-

T
he trip "2"

tab   with:
●

t
he   average   fuel   consumption,
●

t
he   distance   travelled,
●

t
he   average   speed,

f

or   the   second   trip.
Trip reset
F When the desired trip is displayed, press the "Reset" button or on the end of the
wiper
  control   stalk   until   zeros   appear.
Tr i p s "1" and "2"
 a

re
 i
ndependent.
For
  example,   trip   "1" can be used for daily
figures,
  and   trip   "2"

for   monthly   figures.
The

information

is

accessible

in

the

touch

screen

tablet.
For

a

temporary

display

in

a

new

w

indow,

press

the

end

of

the

wiper

stalk

f

or

access

to

the

information

and

cycle

t

hrough

the

different

tabs.
The

trip

computer

information

is

displayed

in

t

he

primary

page

of

the

menu.
F

P

ress one of the buttons to display the
desired
 t

ab.
1
Instruments

36
C4-cactus_en_Chap01_Instruments-de-bord_ed01-2016

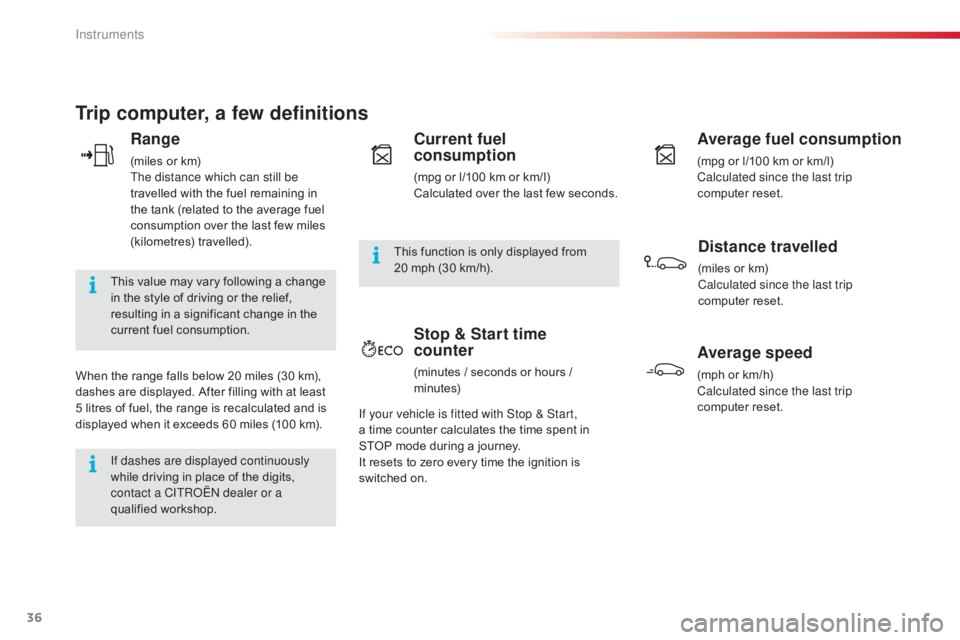

Trip computer, a few definitions
Range
(miles or km)
T he distance which can still be
travelled
  with   the   fuel   remaining   in
t

he   tank   (related   to   the   average   fuel
c

onsumption   over   the   last   few   miles
(

kilometres)
 t
ravelled).
This
  value   may   vary   following   a   change
i

n

the   style   of   driving   or   the   relief,
r

esulting   in   a   significant   change   in   the
c

urrent   fuel   consumption.
When

the
  range   falls   below   20   miles   (30   km),
d

ashes

are   displayed.   After   filling   with   at   least
5


litres

of

fuel,   the   range   is   recalculated   and   is
d

isplayed
  when   it   exceeds   60   miles   (100   km).
If dashes are displayed continuously
while
  driving   in   place   of   the   digits,
c

ontact a CITROËN dealer or a
qualified
 w

orkshop. This
  function   is   only   displayed   from
20
  mph   (30   km/h).
Current fuel
consumption
(mpg or l/100 km or km/l)
C alculated   over   the   last   few   seconds.
Average fuel consumption
(mpg or l/100 km or km/l)
C alculated since the last trip
computer
 re

set.
Distance travelled
(miles or km)
C alculated since the last trip
computer
 re

set.
Average speed
(mph or km/h)
C alculated since the last trip
computer
 re

set.
Stop & Start time
counter
(minutes / seconds or hours / minutes)
If your vehicle is fitted with Stop & Start,
a time

counter   calculates   the   time   spent   in
S

TOP mode   during   a   journey.
It

resets

to   zero   every   time   the   ignition   is
s

witched

on.
Instruments

37
C4-cactus_en_Chap01_Instruments-de-bord_ed01-2016

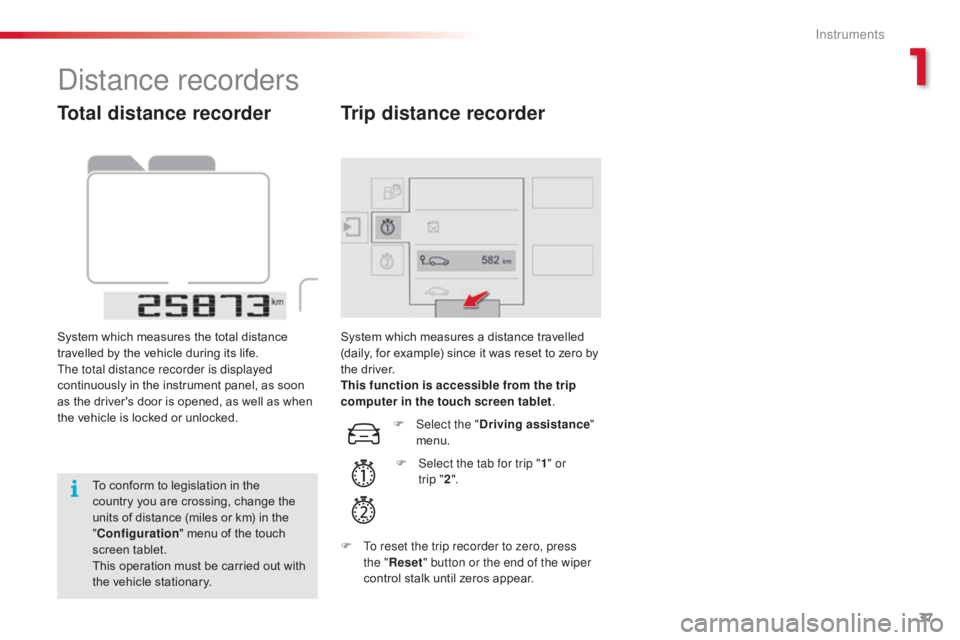

Total distance recorder
System which measures the total distance travelled   by   the   vehicle   during   its   life.
The total distance recorder is displayed
continuously
  in   the   instrument   panel,   as   soon
a

s   the   driver's   door   is   opened,   as   well   as   when
t

he   vehicle   is   locked   or   unlocked.
To
  conform   to   legislation   in   the
c

ountry   you   are   crossing,   change   the
u

nits   of   distance   (miles   or   km)   in   the
"C

onfiguration "
  menu   of   the   touch
s

creen
 t
ablet.
This
  operation   must   be   carried   out   with
t

he   vehicle   stationary. System
  which   measures   a   distance   travelled  (
daily,   for   example)   since   it   was   reset   to   zero   by
t

he
 d
river.
This function is accessible from the trip
computer in the touch screen tablet .
Trip distance recorder
F Select the "Driving assistance "
menu.
F

S
elect the tab for trip " 1" or
trip
"2 ".
F

T

o reset the trip recorder to zero, press
the " Reset " button or the end of the wiper
control
  stalk   until   zeros   appear.
Distance recorders
1
Instruments

38
C4-cactus_en_Chap01_Instruments-de-bord_ed01-2016

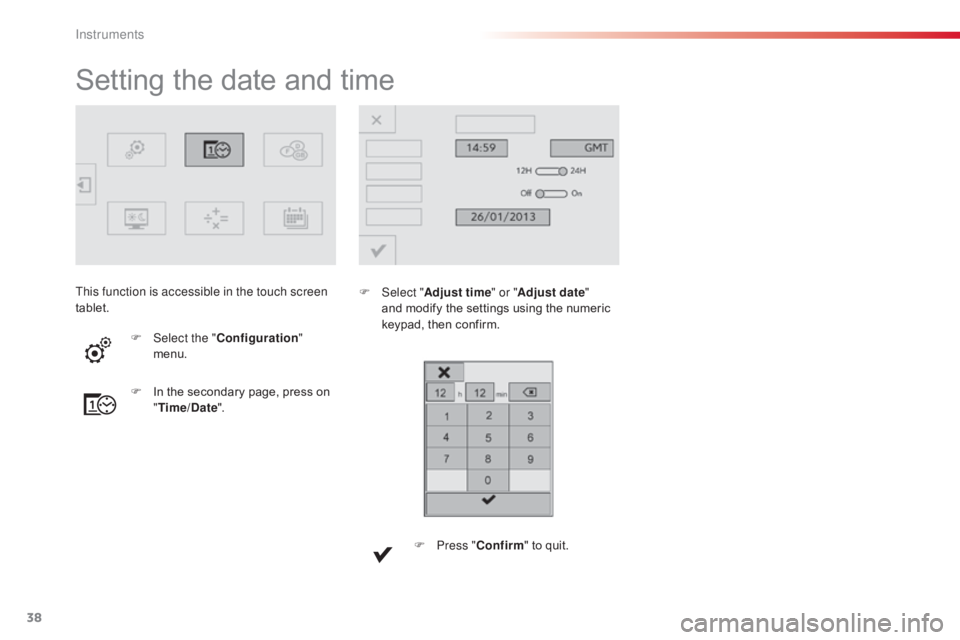

Setting the date and time
F Select "Adjust time " or "Adjust date"
and   modify   the   settings   using   the   numeric
k

eypad,   then   confirm.
F

I

n

the

secondary

page,

press

on

" T

ime/Date ".
F

Sel

ect the " Configuration "
menu.
F

P
ress "Confirm "
  to   quit.
This function is accessible in the touch screen
tablet.
