CITROEN C4 2018 Workshop Manual

49
C4-cactus_en_Chap03_Ergonomie-et-confort_ed01-2016

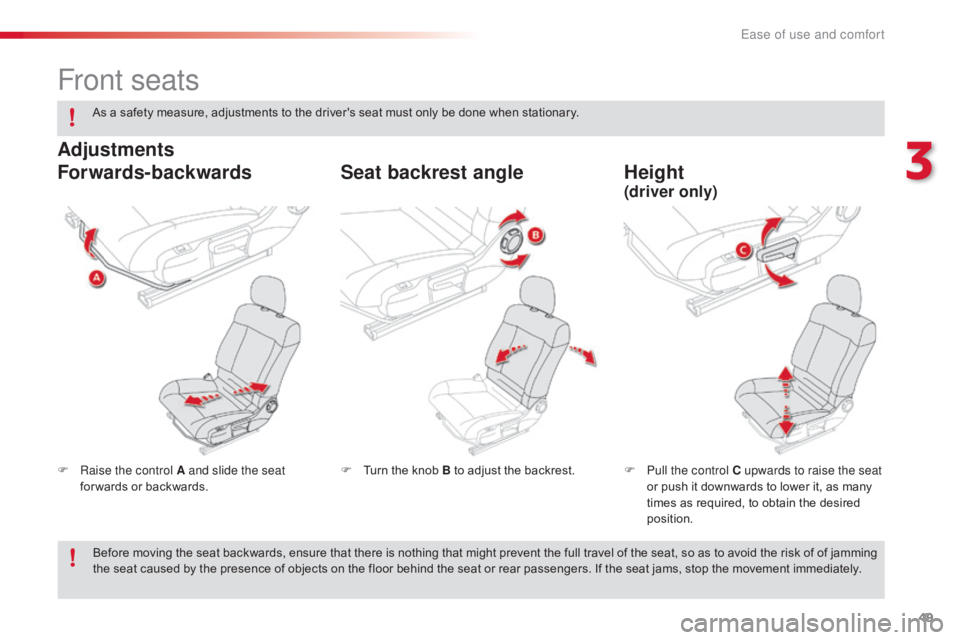

Front seats
F Raise the control A and slide the seat for wards   or   backwards. F
P ull the control C upwards to raise the seat
or   push   it   downwards   to   lower   it,   as   many
t

imes   as   required,   to   obtain   the   desired
p

osition.
F
 T urn   the   knob   B   to   adjust   the   backrest.
Forwards-backwards
Height
Seat backrest angle
Adjustments
(driver only)
As a safety measure, adjustments to the driver's seat must only be done when stationary.
B efore   moving   the   seat   backwards,   ensure   that   there   is   nothing   that   might   prevent   the   full   travel   of   the   seat,   so   as   to   avoid   the   risk   of   of   jamming
t

he   seat   caused   by   the   presence   of   objects   on   the   floor   behind   the   seat   or   rear   passengers.   If   the   seat   jams,   stop   the   movement   immediately.
3
Ease of use and comfort

50
C4-cactus_en_Chap03_Ergonomie-et-confort_ed01-2016

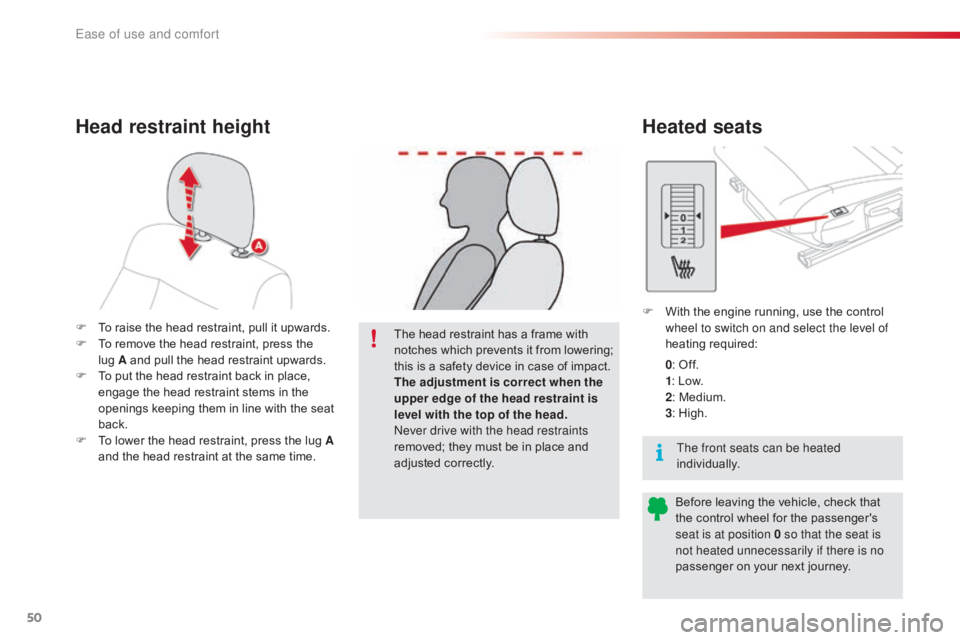

F To  raise   the   head   restraint,   pull   it   upwards.
F  T o   remove   the   head   restraint,   press   the
lug
  A   and   pull   the   head   restraint   upwards.
F

T
o   put   the   head   restraint   back   in   place,
e

ngage   the   head   restraint   stems   in   the
o

penings   keeping   them   in   line   with   the   seat
b

ack.
F

T
o   lower   the   head   restraint,   press   the   lug   A
and
  the   head   restraint   at   the   same   time.The
  head   restraint   has   a   frame   with
n

otches

which

prevents

it

from

lowering;
 t

his   is   a   safety   device   in   case   of   impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed;
  they   must   be   in   place   and
adj

usted
 c
orrectly.
Head restraint heightHeated seats
F With  the   engine   running,   use   the   control  w
heel to switch on and select the level of
heating
 r

equired:
0 :
  Off.
1 :
  Low.
2 :
  Medium.
3 :
  High.
Before
  leaving   the   vehicle,   check   that
t

he   control   wheel   for   the   passenger's
s

eat is at position 0 so that the seat is
not heated unnecessarily if there is no
passenger
  on   your   next   journey.
The front seats can be heated
individually.
Ease of use and comfort

51
C4-cactus_en_Chap03_Ergonomie-et-confort_ed01-2016

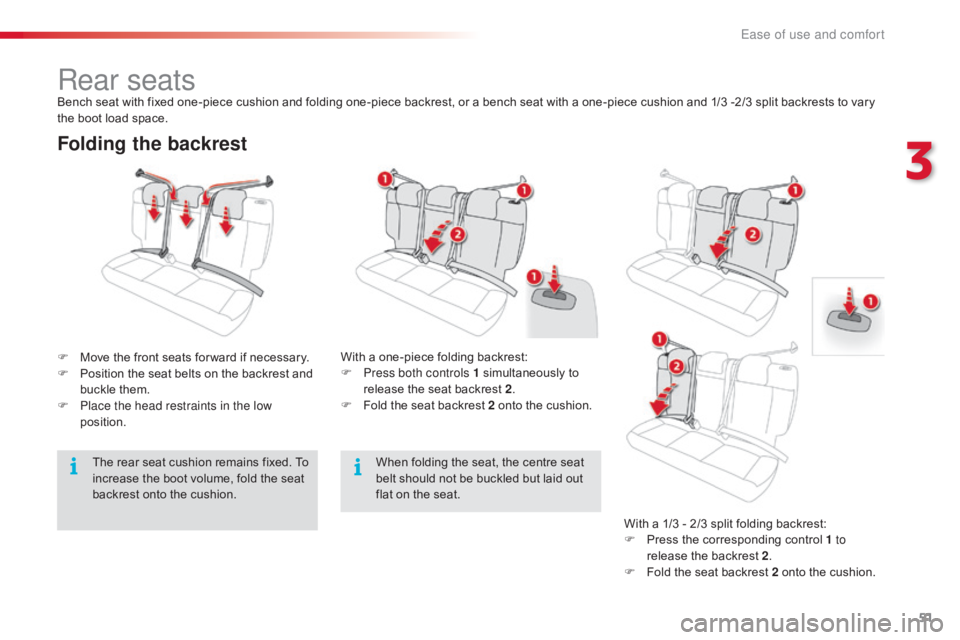

Folding the backrest
F Move  the   front   seats   for ward   if   necessary.
F  P osition   the   seat   belts   on   the   backrest   and
b

uckle   them.
F

P
lace the head restraints in the low
position. With
  a   one-piece   folding   backrest:
F P ress both controls 1   simultaneously   to
r

elease   the   seat   backrest   2.
F

F
old   the   seat   backrest   2   onto   the   cushion.
Rear seatsBench seat with fixed one-piece cushion and folding one-piece backrest, or a bench seat with a one-piece cushion and 1/3 -2/3 split backrests to vary the   boot   load   space.
When
  folding   the   seat,   the   centre   seat
b

elt   should   not   be   buckled   but   laid   out
f

lat   on   the   seat.With
  a   1/3   -   2/3   split   folding   backrest:
F

P
ress   the   corresponding   control   1 to
release
  the   backrest   2.
F

F
old   the   seat   backrest   2   onto   the   cushion.
The
  rear   seat   cushion   remains   fixed.   To
i

ncrease   the   boot   volume,   fold   the   seat
b

ackrest   onto   the   cushion.
3
Ease of use and comfort

52
C4-cactus_en_Chap03_Ergonomie-et-confort_ed01-2016

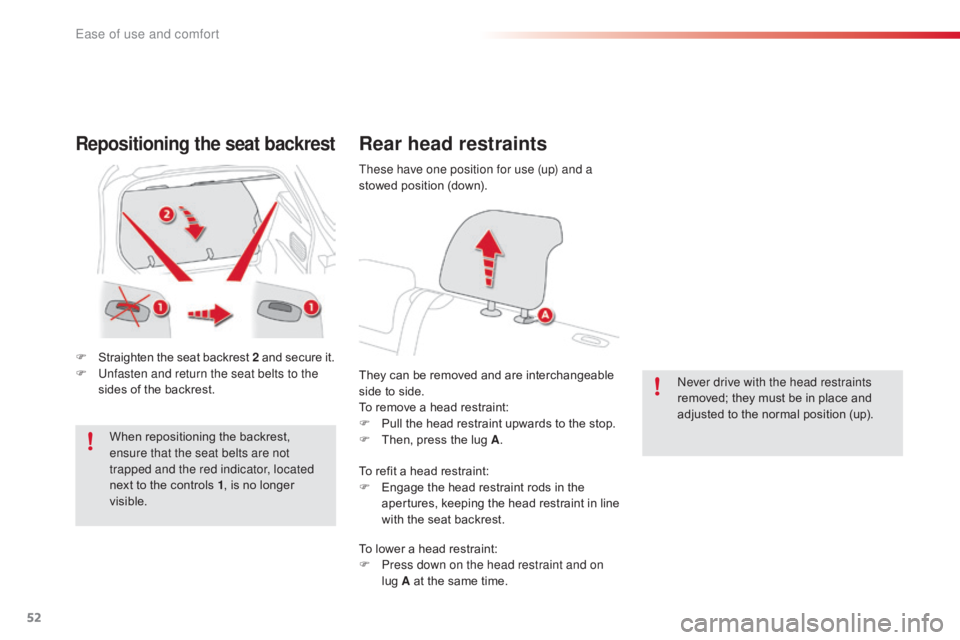

Repositioning the seat backrest
F Straighten  the   seat   backrest   2  and   secure   it.
F U nfasten and return the seat belts to the
sides
  of   the   backrest.
When
  repositioning   the   backrest,
e

nsure that the seat belts are not
trapped and the red indicator, located
next
  to   the   controls   1,
  is   no   longer
vis

ible.
Rear head restraints
They can be removed and are interchangeable side   to   side.
To
  remove   a   head   restraint:
F

P
ull   the   head   restraint   upwards   to   the   stop.
F

T
hen,   press   the   lug   A. Never drive with the head restraints
removed;
  they   must   be   in   place   and
a

djusted   to   the   normal   position   (up).
These have one position for use (up) and a
stowed
  position   (down).
To   refit   a   head   restraint:
F

E
ngage   the   head   restraint   rods   in   the
a

pertures,
k
eeping
t
he
h
ead
r
estraint
i
n
l
ine
w

ith   the   seat   backrest.
To
  lower   a   head   restraint:
F

P
ress down on the head restraint and on
lug
  A   at   the   same   time.
Ease of use and comfort

53
C4-cactus_en_Chap03_Ergonomie-et-confort_ed01-2016

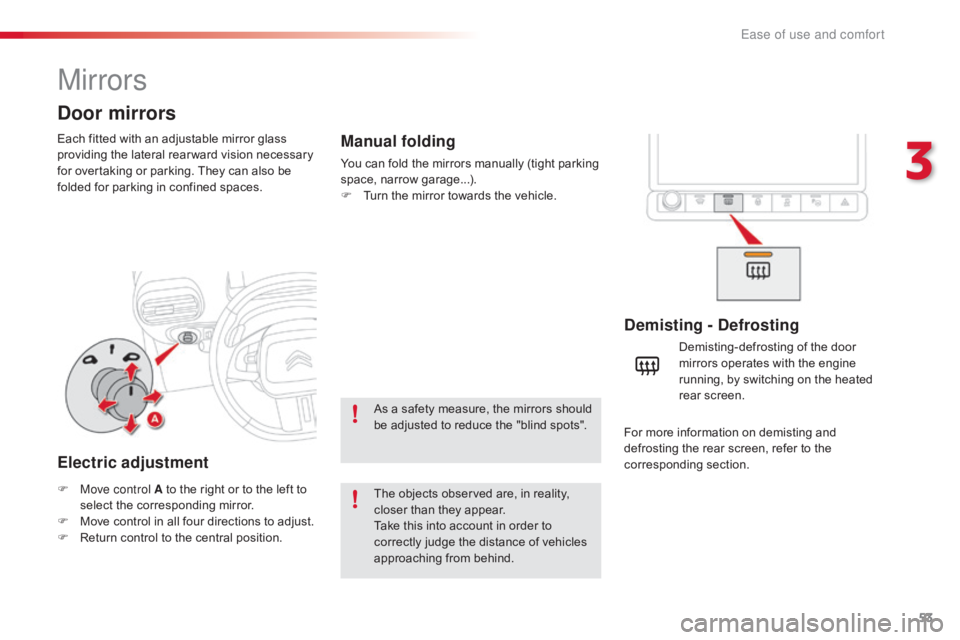

Mirrors
Each fitted with an adjustable mirror glass providing   the   lateral   rear ward   vision   necessary
f

or   overtaking   or   parking.   They   can   also   be
f

olded   for   parking   in   confined   spaces.
Door mirrors
Demisting - Defrosting
F Move control A  to   the   right   or   to   the   left   to  s
elect   the   corresponding   mirror.
F

M
ove   control   in   all   four   directions   to   adjust.
F

R
eturn   control   to   the   central   position. Demisting-defrosting
  of   the   door
m

irrors   operates   with   the   engine
r

unning,   by   switching   on   the   heated
re

ar
 sc
reen.
Electric adjustment
The objects observed are, in reality, c
loser   than   they   appear.
Take
  this   into   account   in   order   to
c

orrectly   judge   the   distance   of   vehicles
a

pproaching   from   behind.
Manual folding
You can fold the mirrors manually (tight parking space, nar row g arage...).
F

T
urn   the   mirror   towards   the   vehicle.
As
  a   safety   measure,   the   mirrors   should
b

e   adjusted   to   reduce   the   "blind   spots".For
  more   information   on   demisting   and
d

efrosting   the   rear   screen,   refer   to   the
c

orresponding
 s
ection.
3
Ease of use and comfort

54
C4-cactus_en_Chap03_Ergonomie-et-confort_ed01-2016

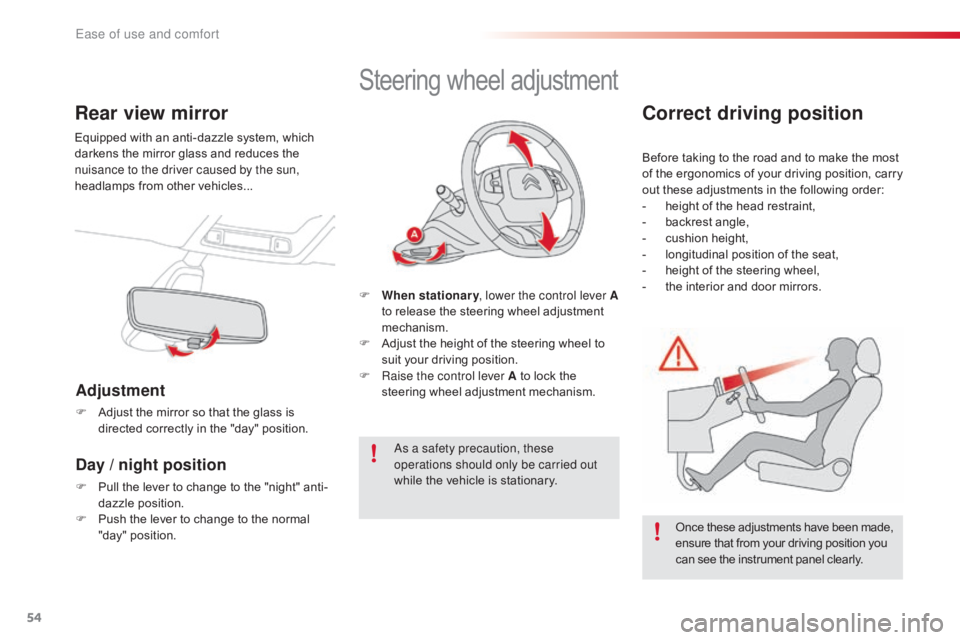

Rear view mirror
Equipped with an anti-dazzle system, which darkens   the   mirror   glass   and   reduces   the
n

uisance to the driver caused by the sun,
headlamps
  from   other   vehicles...
Adjustment
F Adjust  the   mirror   so   that   the   glass   is  d
irected   correctly   in   the   "day"   position.
Day / night position
F Pull  the   lever   to   change   to   the   "night"   anti-
dazzle   position.
F

P
ush   the   lever   to   change   to   the   normal
"

day"   position.
Steering wheel ad justment
F When stationary , lower the control lever A
to   release   the   steering   wheel   adjustment
m

echanism.
F

A
djust   the   height   of   the   steering   wheel   to
s

uit   your   driving   position.
F

Ra
ise the control lever A   to   lock   the
s

teering   wheel   adjustment   mechanism.
As a safety precaution, these
operations should only be carried out
while
  the   vehicle   is   stationary.
Correct driving position
Before taking to the road and to make the most of  t he  e rgonomics  o f  y our  d riving  p osition,  c arry
o

ut   these   adjustments   in   the   following   order:
-

h
eight   of   the   head   restraint,
-

b
ackrest   angle,
-

c
ushion   height,
-

l
ongitudinal   position   of   the   seat,
-

h
eight   of   the   steering   wheel,
-

t
he   interior   and   door   mirrors.
Once
  these   adjustments   have   been   made,
 e

nsure   that   from   your   driving   position   you
 c

an   see   the   instrument   panel   clearly.
Ease of use and comfort

55
C4-cactus_en_Chap03_Ergonomie-et-confort_ed01-2016

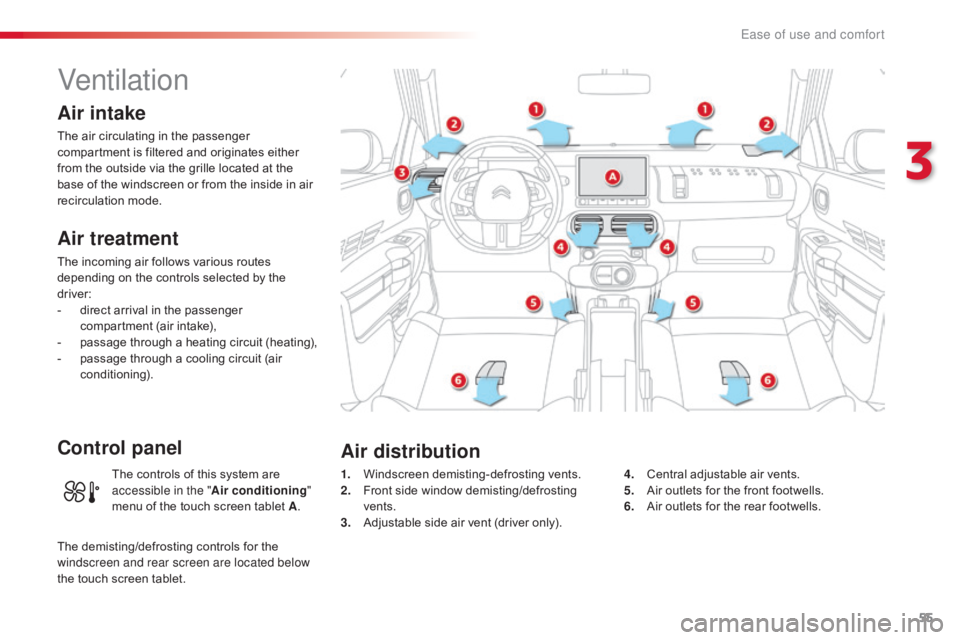

Ventilation
Air intake
The air circulating in the passenger compartment   is   filtered   and   originates   either
f

rom   the   outside   via   the   grille   located   at   the
b

ase   of   the   windscreen   or   from   the   inside   in   air
re

circulation
 m
ode.
Air treatment
The incoming air follows various routes depending   on   the   controls   selected   by   the
d

river:
-

d
irect   arrival   in   the   passenger
c

ompartment   (air   intake),
-

p
assage   through   a   heating   circuit   (heating),
-

p
assage   through   a   cooling   circuit   (air
c

onditioning).
Control panel
1. Windscreen d emisting-defrosting v ents.
2. F ront   side   window   demisting/defrosting
ve

nts.
3.
 A

djustable   side   air   vent   (driver   only).4. C
entral   adjustable   air   vents.
5. A ir   outlets   for   the   front   footwells.
6.
 A

ir   outlets   for   the   rear   footwells.
Air distribution
The controls of this system are accessible in the " Air conditioning "
menu
  of   the   touch   screen   tablet   A.
The

demisting/defrosting   controls   for   the
w

indscreen and rear screen are located below
the

touch

screen   tablet.
3
Ease of use and comfort

56
C4-cactus_en_Chap03_Ergonomie-et-confort_ed01-2016
In order for these systems to be fully effective, follow the operation and maintenance guidelines belo w:
F

T
o   obtain   an   even   air   distribution,   take   care   not   to   obstruct   the   exterior   air   intake   grilles
l

ocated at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as
  the   air   extractor   located   in   the   boot.
F

D
o   not   cover   the   sunshine   sensor,   located   on   the   dashboard;   this   is   used   for   regulation
o

f   the   air   conditioning   system.
F

O
perate   the   air   conditioning   system   for   at   least   5   to   10   minutes,   once   or   twice   a   month
t

o   keep   it   in   per fect   working   order.
F

E
nsure   that   the   passenger   compartment   filter   is   in   good   condition   and   have   the   filter
e

lements   replaced   regularly.
  W

e   recommend   the   use   of   a   combined   passenger   compartment   filter.   Thanks   to   its
s

pecial active additive, it contributes to the purification of the air breathed by the
occupants
  and   the   cleanliness   of   the   passenger   compartment   (reduction   of   allergic
s

ymptoms,   bad   odours   and   greasy   deposits).
F

T
o   ensure   correct   operation   of   the   air   conditioning   system,   you   are   also   advised   to   have
i

t   checked   regularly   as   recommended   in   the   maintenance   and   warranty   guide.
F

I
f   the   system   does   not   produce   cold   air,   switch   it   off   and   contact   a   CITROËN   dealer   or   a
q

ualified
 w
orkshop.
Recommendations for ventilation and air conditioning
If after an extended stop in sunshine, the  i nterior  t emperature  i s  v ery  h igh,  f irst
v

entilate   the   passenger   compartment   for
a

  few   moments.
Put
  the   air   flow   control   at   a   setting   high
e

nough   to   quickly   change   the   air   in   the
p

assenger
 c
ompartment.
The
  air   conditioning   system   does   not
c

ontain chlorine and does not present
any
  danger   to   the   ozone   layer.
The condensation created by the air
conditioning
  results   in   a   discharge
o

f water under the vehicle which is
per fectly
  normal.
When

towing

the

maximum

load

on

a

steep

gradient

in

high

temperatures,

switching

off

the

a

ir

conditioning

increases

the

available

engine

power

and

so

improves

the

towing

ability.
Stop & Start
The heating and air conditioning s ystems   only   work   when   the   engine   is
r

unning.
To
  maintain   a   comfortable   temperature
i

n   the   passenger   compartment,   you   can
t

emporarily   deactivate   the   Stop   &   Start
s

ystem.
For
  more   information   on   Stop   &   Start,
r

efer   to   the   corresponding   section.
Ease of use and comfort

57
C4-cactus_en_Chap03_Ergonomie-et-confort_ed01-2016

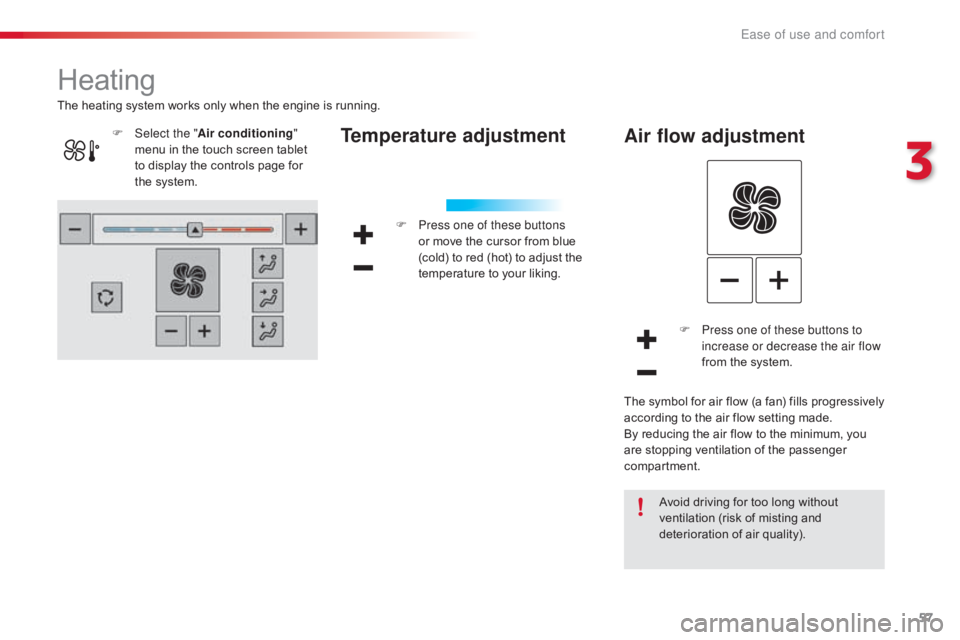

Heating
Temperature adjustment
F Press one of these buttons or   move   the   cursor   from   blue
(

cold)   to   red   (hot)   to   adjust   the
t

emperature   to   your   liking.
Air flow adjustment
F Press one of these buttons to increase or decrease the air flow
from
  the   system.
Avoid
  driving   for   too   long   without
v

entilation   (risk   of   misting   and
d

eterioration   of   air   quality).
The

heating

system

works

only

when

the

engine

is

running.
The

symbol   for   air   flow   (a   fan)   fills   progressively
a

ccording
  to   the   air   flow   setting   made.
By

reducing   the   air   flow   to   the   minimum,   you
a

re

stopping   ventilation   of   the   passenger
c

ompartment.
F

Sel

ect the "
Air conditioning "
menu

in

the

touch

screen

tablet

t

o

display

the

controls

page

for

t

he

system.
3
Ease of use and comfort

58
C4-cactus_en_Chap03_Ergonomie-et-confort_ed01-2016

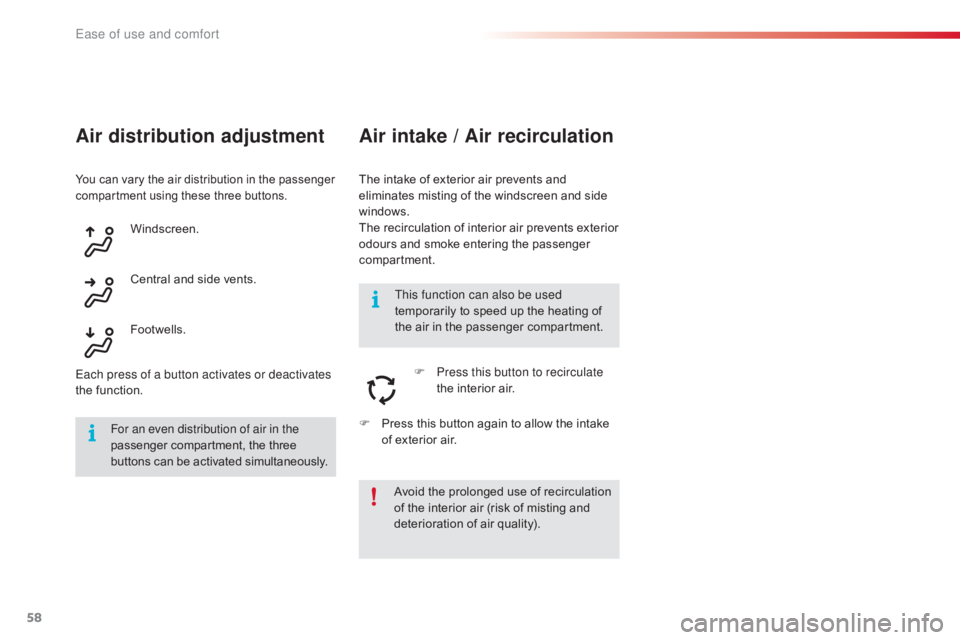

Air distribution adjustment
The intake of exterior air prevents and eliminates   misting   of   the   windscreen   and   side
w

indows.
The
  recirculation   of   interior   air   prevents   exterior
o

dours   and   smoke   entering   the   passenger
c

ompartment.
Windscreen.
Central

and

side

vents.
Footwells.
Each press of a button activates or deactivates
the

function.
Air intake / Air recirculation
F Press this button to recirculate the   interior   air.
F

P

ress
  this   button   again   to   allow   the   intake
o

f

exterior   air.
This function can also be used
temporarily
  to   speed   up   the   heating   of
t

he
  air   in   the   passenger   compartment.
Avoid   the   prolonged   use   of   recirculation
o

f

the   interior   air   (risk   of   misting   and
d

eterioration   of   air   quality).
You can vary the air distribution in the passenger compartment   using   these   three   buttons.
For an even distribution of air in the
passenger  compartment,   the   three b

uttons   can   be   activated   simultaneously.
Ease of use and comfort
