159
6
Safety
In the event of a minor impact or bump
on the side of the vehicle or if the
vehicle rolls over, the airbag may not be
deployed.
In the event of a rear or front collision,
the airbag is not deployed. System which protects the driver and
passengers (with the exception of the
rear centre passenger) in the event of
a serious side impact in order to limit the risk of
injury to the head.
Each curtain airbag is fitted in the pillars
and the upper section of the passenger
compartment.

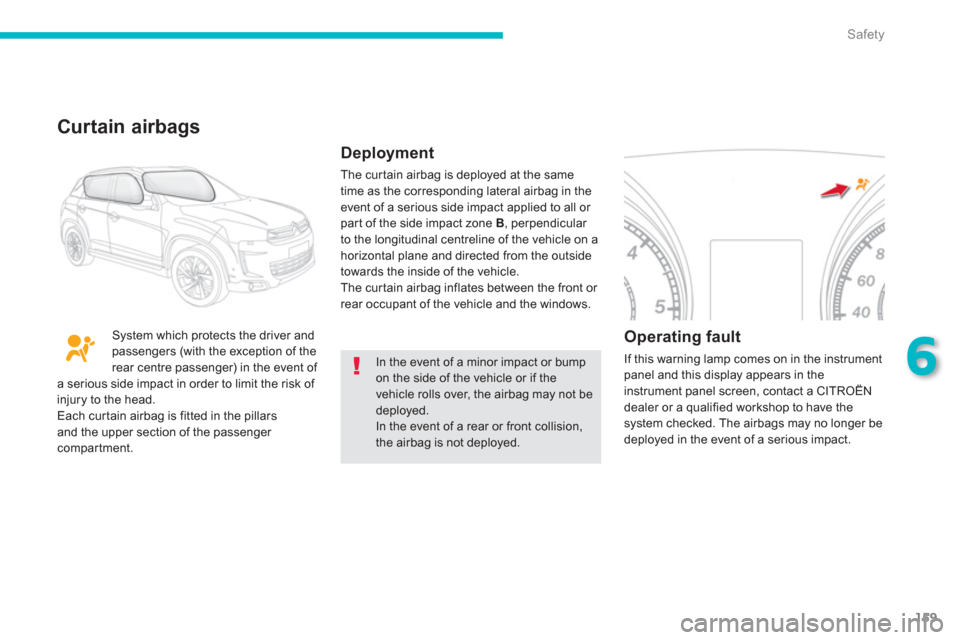

Curtain airbags


Deployment

The curtain airbag is deployed at the same
time as the corresponding lateral airbag in the
event of a serious side impact applied to all or
part of the side impact zone B
, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The curtain airbag inflates between the front or
rear occupant of the vehicle and the windows.

Operating fault

If this warning lamp comes on in the instrument
panel and this display appears in the
instrument panel screen, contact a CITROËN
dealer or a qualified workshop to have the
system checked. The airbags may no longer be
deployed in the event of a serious impact.

160
Safety
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...). This could hamper the operation of
the airbags or injure the occupants.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag system must be
carried out by a CITROËN dealer or a
qualified workshop.
Even if all of the precautions mentioned
are obser ved, a risk of injury or of minor
burns to the head, chest or arms when an
airbag is deployed cannot be ruled out. The
bag inflates almost instantly (within a few
milliseconds) then deflates within the same
time discharging the hot gas via openings
provided for this purpose.








Knee airbag *

Do not sit with your knees any nearer to the
steering wheel than necessary.



Front airbags

Do not drive holding the steering wheel by its
spokes or resting your hands on the centre
part of the wheel.
Passengers must not place their feet on the
dashboard.
If possible, do not smoke as deployment of
the airbags can cause burns or the risk of
injury from a cigarette or pipe.
Never remove or pierce the steering wheel or
hit it violently.















For the airbags to be fully effective, observe the following safety rules:


Lateral airbags

Use only approved covers on the seats,
compatible with the deployment the lateral
airbags. For information on the range of seat
covers suitable for your vehicle, you can
contact a CITROËN dealer.
Refer to the "Accessories" section.
Do not fix or attach anything to the seat
backs (clothing...). This could cause injury
to the chest or arms if the lateral airbag is
deployed.
Do not sit with the upper part of the body any
nearer to the door than necessary.


* According to country.



Curtain airbags

Do not fix or attach anything to the roof. This
could cause injury to the head if the curtain
airbag is deployed.
If fitted on your vehicle, do not remove the
grab handles installed on the roof, they play
a part in securing the curtain airbags.


Avoid attaching a heavy object to the key as
it could become a dangerous projectile if the
airbag were deployed.

161
6
Safety








General points relating to child seats


For maximum safety, please obser ve the
following recommendations:


- in accordance with European regulations,
all children under the age of 12 or less
than one and a half metres tall must
travel in approved child seats suited to
their weight
, on seats fitted with a seat
belt or ISOFIX mountings * ,

- statistically, the safest seats in your
vehicle for carr ying children are the
rear seats,


- a child weighing less than 9 kg must
travel in the "rear wards-facing"
position both in the front and in the
rear.



















CITROËN recommends
that children
should travel on the rear seats
of your
vehicle:


- "rearward-facing"
up to the age of 3,

- "forward-facing"
over the age of 3.


Although one of CITROËN main criteria when designing your vehicle, the safety of your children
also depends on you.

*
The rules for carrying children are specific to
each country. Refer to the legislation in force
in your country.

162
Safety

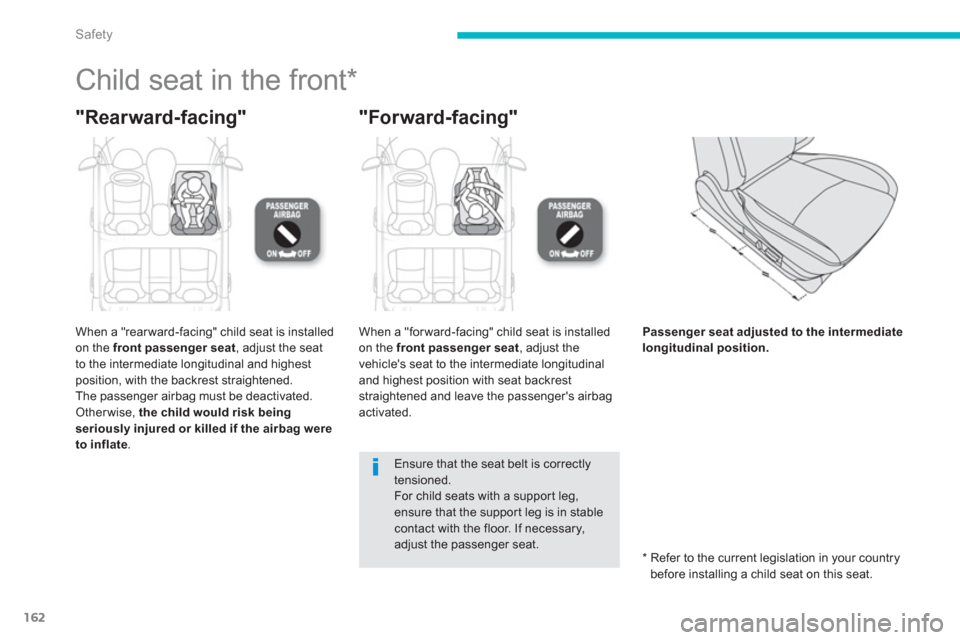

Child seat in the front *


"Rearward-facing"
"Forward-facing"


When a "rear ward-facing" child seat is installed
on the front passenger seat
, adjust the seat
to the intermediate longitudinal and highest
position, with the backrest straightened.
The passenger airbag must be deactivated.
Otherwise, the child would risk being
seriously injured or killed if the airbag were
to inflate
.

When a "for ward-facing" child seat is installed
on the front passenger seat
, adjust the
vehicle's seat to the intermediate longitudinal
and highest position with seat backrest
straightened and leave the passenger's airbag
activated.

*
Refer to the current legislation in your country
before installing a child seat on this seat.













Passenger seat adjusted to the intermediate
longitudinal position.




Ensure that the seat belt is correctly
tensioned.
For child seats with a suppor t leg,
ensure that the support leg is in stable
contact with the floor. If necessary,
adjust the passenger seat.

163
6
Safety

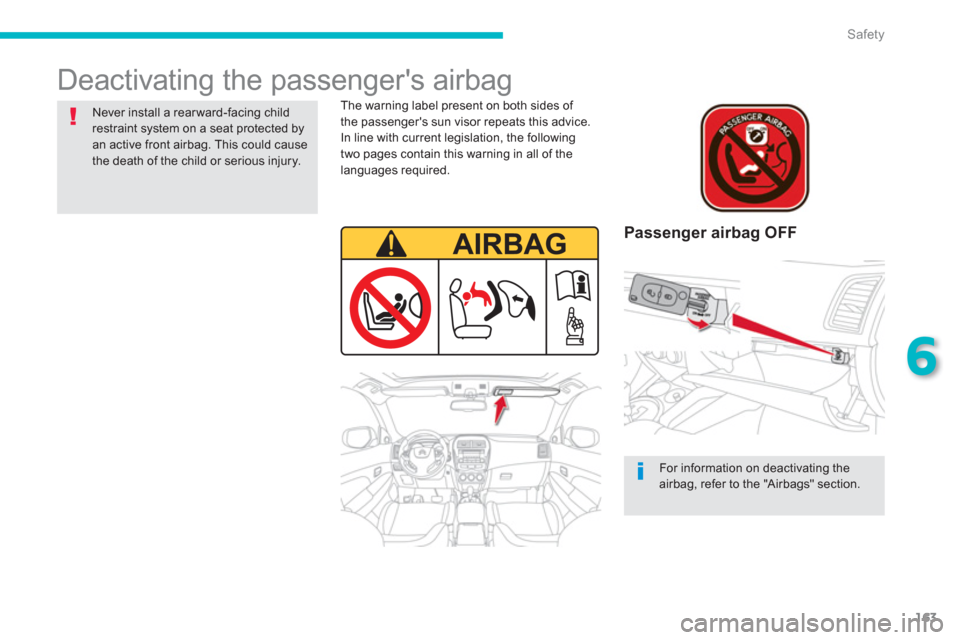

Deactivating the passenger's airbag


Passenger airbag OFF


The warning label present on both sides of
the passenger's sun visor repeats this advice.
In line with current legislation, the following
two pages contain this warning in all of the
languages required.
Never install a rear ward-facing child
restraint system on a seat protected by
an active front airbag. This could cause
the death of the child or serious injury.

For information on deactivating the
airbag, refer to the "Airbags" section.

164

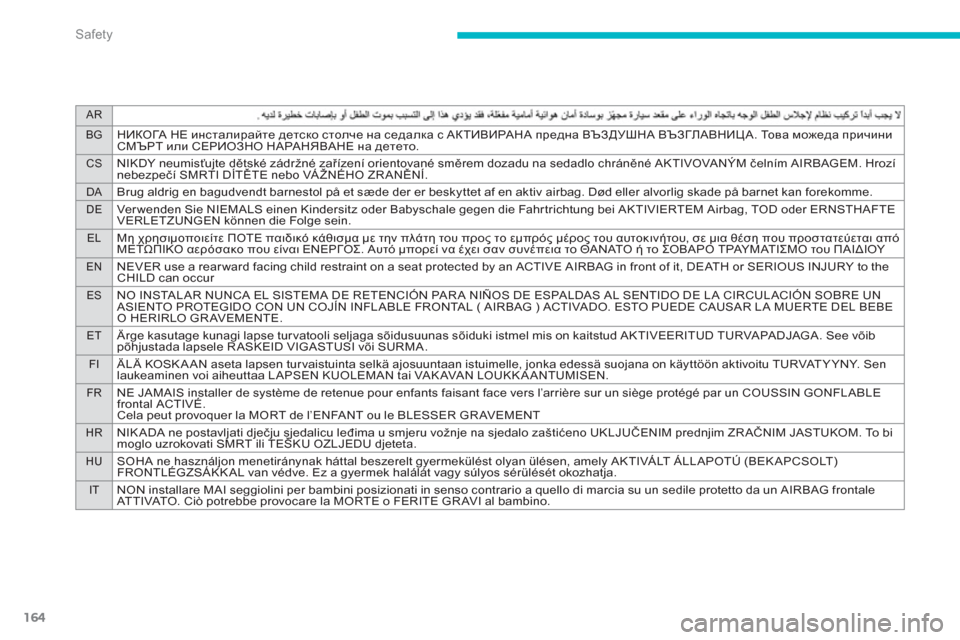

AR
BG
НИКОГА НЕ инсталирайте детско столче на седалка с АКТИВИРАНА предна ВЪЗДУШНА ВЪЗГЛАВНИЦА. То в а можеда причини
СМЪРТ или СЕРИОЗНО НАРАНЯВАНЕ на детето.
CSNIKDY neumisťujte dětské zádržné zařízení orientované směrem dozadu na sedadlo chráněné AKTIVOVANÝM čelním AIRBAGEM. Hrozí
nebezpečí SMRTI DÍTĚTE nebo VÁ ŽNÉHO ZR ANĚNÍ.
DABrug aldrig en bagudvendt barnestol på et sæde der er beskyttet af en aktiv airbag. Død eller alvorlig skade på barnet kan forekomme.
DEVer wenden Sie NIEMALS einen Kindersitz oder Babyschale gegen die Fahr trichtung bei AKTIVIERTEM Airbag, TOD oder ERNSTHAFTE
VERLETZUNGEN können die Folge sein.
ELΜη χρησιμοποιείτε ΠΟΤΕ παιδικό κάθισμα με την πλάτη του προς το εμπρός μέρος του αυτοκινήτου, σε μια θέση που προστατεύεται από
ΜΕΤΩΠΙΚΟ αερόσακο που είναι ΕΝΕΡΓΟΣ. Αυτό μπορεί να έχει σαν συνέπεια το ΘΑΝΑΤΟ ή το ΣΟΒΑΡΟ ΤΡΑΥΜΑΤΙΣΜΟ του ΠΑΙΔΙΟΥ
ENNEVER use a rear ward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the
CHILD can occur
ESNO INSTAL AR NUNCA EL SISTEMA DE RETENCIÓN PAR A NIÑOS DE ESPALDAS AL SENTIDO DE L A CIRCUL ACIÓN SOBRE UN
ASIENTO PROTEGIDO CON UN COJÍN INFL ABLE FRONTAL ( AIRBAG ) ACTIVADO. ESTO PUEDE CAUSAR L A MUERTE DEL BEBE
O HERIRLO GR AVEMENTE.
ETÄrge kasutage kunagi lapse tur vatooli seljaga sõidusuunas sõiduki istmel mis on kaitstud AKTIVEERITUD TURVAPADJAGA. See võib
põhjustada lapsele R ASKEID VIGASTUSI või SURMA.
FIÄLÄ KOSK A AN aseta lapsen tur vaistuinta selkä ajosuuntaan istuimelle, jonka edessä suojana on käyttöön aktivoitu TURVAT Y YNY. Sen
laukeaminen voi aiheuttaa LAPSEN KUOLEMAN tai VAK AVAN LOUKK A ANTUMISEN.
FRNE JAMAIS installer de système de retenue pour enfants faisant face vers l’arrière sur un siège protégé par un COUSSIN GONFLABLE
frontal ACTIVÉ.
Cela peut provoquer la MORT de l’ENFANT ou le BLESSER GR AVEMENT
HRNIK ADA ne postavljati dječju sjedalicu leđima u smjeru vožnje na sjedalo zaštićeno UKLJUČENIM prednjim ZR AČNIM JASTUKOM. To bi
moglo uzrokovati SMRT ili TEŠKU OZLJEDU djeteta.
HUSOHA ne használjon menetiránynak háttal beszerelt gyermekülést olyan ülésen, amely AKTIVÁLT ÁLL APOTÚ (BEK APCSOLT)
FRONTLÉGZSÁKK AL van védve. Ez a gyermek halálát vagy súlyos sérülését okozhatja.
ITNON installare MAI seggiolini per bambini posizionati in senso contrario a quello di marcia su un sedile protetto da un AIRBAG frontale
ATTIVATO. Ciò potrebbe provocare la MORTE o FERITE GR AVI al bambino.
Safety

165
6

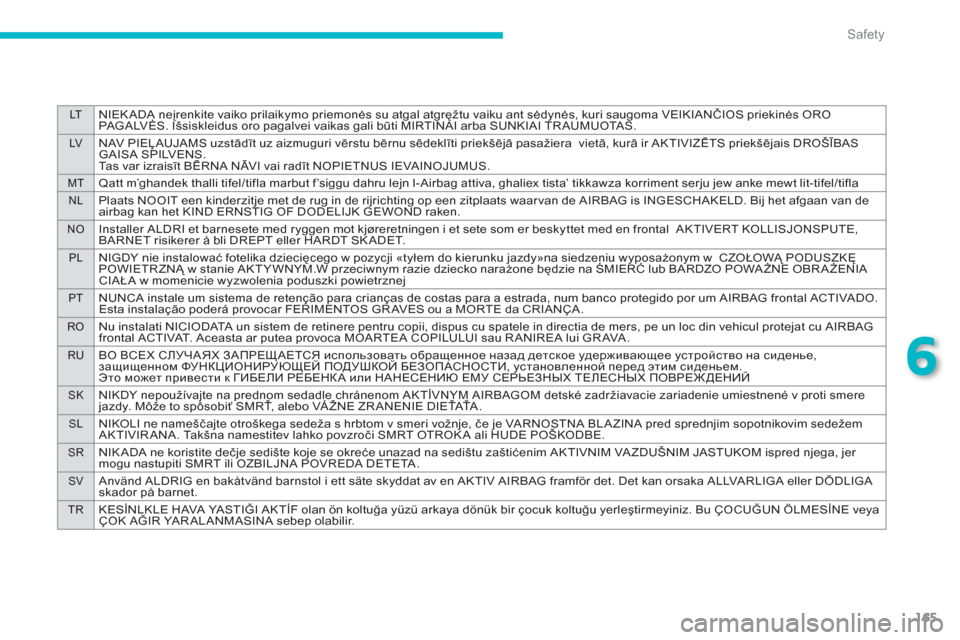

LTNIEKADA neįrenkite vaiko prilaikymo priemonės su atgal atgręžtu vaiku ant sėdynės, kuri saugoma VEIKIANČIOS priekinės ORO
PAG A LVĖS. Išsiskleidus oro pagalvei vaikas gali būti MIRTINAI arba SUNKIAI TR AUMUOTAS.
LVNAV PIEĻAUJAMS uzstādīt uz aizmuguri vērstu bērnu sēdeklīti priekšējā pasažiera vietā, kurā ir AKTIVIZĒTS priekšējais DROŠĪBAS
GAISA SPILVENS.
Tas var izraisīt BĒRNA NĀVI vai radīt NOPIETNUS IEVAINOJUMUS.
MTQatt m’ghandek thalli tifel/tifla marbut f’siggu dahru lejn l-Airbag attiva, ghaliex tista’ tikkawza korriment serju jew anke mewt lit-tifel/tifla
NLPlaats NOOIT een kinderzitje met de rug in de rijrichting op een zitplaats waar van de AIRBAG is INGESCHAKELD. Bij het afgaan van de
airbag kan het KIND ERNSTIG OF DODELIJK GEWOND raken.
NOInstaller ALDRI et barnesete med r yggen mot kjøreretningen i et sete som er beskyttet med en frontal AKTIVERT KOLLISJONSPUTE,
BARNET risikerer å bli DREPT eller HARDT SK ADET.
PLNIGDY nie instalować fotelika dziecięcego w pozycji «tyłem do kierunku jazdy»na siedzeniu wyposażonym w CZOŁOWĄ PODUSZKĘ
POWIETRZNĄ w stanie AKT Y WNYM.W przeciwnym razie dziecko narażone będzie na ŚMIERĆ lub BARDZO POWAŻNE OBRAŻENIA
CIAŁA w momenicie wyzwolenia poduszki powietrznej
PTNUNCA instale um sistema de retenção para crianças de costas para a estrada, num banco protegido por um AIRBAG frontal ACTIVADO.
Esta instalação poderá provocar FERIMENTOS GR AVES ou a MORTE da CRIANÇA.
RONu instalati NICIODATA un sistem de retinere pentru copii, dispus cu spatele in directia de mers, pe un loc din vehicul protejat cu AIRBAG
frontal ACTIVAT. Aceasta ar putea provoca MOARTEA COPILULUI sau R ANIREA lui GR AVA.
RUВО ВСЕХ СЛУЧА ЯХ ЗАПРЕЩАЕТСЯ использовать обращенное назад детское удерживающее устройство на сиденье,
защищенном ФУНКЦИОНИРУЮЩЕЙ ПОДУШКОЙ БЕЗОПАСНОСТИ, установленной перед этим сиденьем.
Это может привести к ГИБЕЛИ РЕБЕНК А или НАНЕСЕНИЮ ЕМУ СЕРЬЕЗНЫХ ТЕЛЕСНЫХ ПОВРЕЖДЕНИЙ
SKNIKDY nepoužívajte na prednom sedadle chránenom AKTÍVNYM AIRBAGOM detské zadržiavacie zariadenie umiestnené v proti smere
jazdy. Môže to spôsobiť SMRŤ, alebo VÁ ŽNE ZR ANENIE DIEŤAŤA.
SLNIKOLI ne nameščajte otroškega sedeža s hrbtom v smeri vožnje, če je VARNOSTNA BLA ZINA pred sprednjim sopotnikovim sedežem
AKTIVIRANA. Takšna namestitev lahko povzroči SMRT OTROK A ali HUDE POŠKODBE.
SRNIK ADA ne koristite dečje sedište koje se okreće unazad na sedištu zaštićenim AKTIVNIM VA ZDUŠNIM JASTUKOM ispred njega, jer
mogu nastupiti SMRT ili OZBILJNA POVREDA DETETA.
SVAnvänd ALDRIG en bakåtvänd barnstol i ett säte skyddat av en AKTIV AIRBAG framför det. Det kan orsaka ALLVARLIGA eller DÖDLIGA
skador på barnet.
TRKESİNLKLE HAVA YASTIĞI AKTİF olan ön koltuğa yüzü arkaya dönük bir çocuk koltuğu yerleştirmeyiniz. Bu ÇOCUĞUN ÖLMESİNE veya
ÇOK AĞIR YAR AL ANMASINA sebep olabilir.
Safety

166
Safety











Child seat at the rear


"Rearward facing"


When a "rear ward facing" child seat is installed
on a rear passenger seat
, move the vehicle's
front seat for wards and straighten the backrest
so that the "rear ward facing" child seat does
not touch the vehicle's front seat.



"Forward facing"


When a "for ward facing" child seat is installed
on a rear passenger seat
, move the vehicle's
front seat for wards and straighten the backrest
so that the legs of the child in the "for ward
facing" child seat do not touch the vehicle's
front seat.



Centre rear seat


A child seat with a support leg must never be
installed on the centre rear passenger seat
.


Ensure that the seat belt is correctly
tightened. For child seats with a support
leg, ensure that the support leg is in
stable contact with the floor.

167
6
Safety




Child seats recommended by CITROËN



Group 0+: from bir th to 13 kg






L1

"RÖMER Baby-Safe Plus"
Installed in the rear wards-facing position.


Group 1: from 9 to 18 kg






L2

"FAIR G 0/1 S ISOFIX"
Installed for wards-facing, without the ISOFIX base.
6 positions of inclination of the shell.




L3

"RÖMER Duo Plus ISOFIX"
Installed forwards-facing.
Can be secured with the seat belt.
3 positions of inclination of the shell. CITROËN offers a range of recommended child seats which are secured using a three point seat
belt
:
These seats can also be installed using
the ISOFIX mountings (see following
pages).

Follow the instructions for fitting
the child seat given in the seat
manufacturer's installation guide.

168
Safety










Locations for child seats secured using the seat belt
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a)
in relation to the weight of the child and the seat in the vehicle.


Seat



Weight of the child and indicative age




Less than 13 kg

(groups 0 (b) and 0+)
Up to ≈ 1 year

From 9 to 18 kg

(group 1)
From 1 to ≈ 3 years

From 15 to 25 kg

(group 2)
From 3 to ≈ 6 years

From
22 to 36 kg

(group 3)
From 6 to ≈ 10 years
Front passenger seat (c) with
passenger airbag activated

X



X



X



X


Front passenger seat (c) with
passenger airbag deactivated

L1



L2, L3



X



X


Outer rear seats
(row 2) (d)

U



U



U



U


Centre rear seat
(row 2) (d)

L1



L2, L3



X



X
