9
Familiarisation
Instruments and controls
1.
Door mirror controls.
Electric window controls.
2.
Bonnet release.
3.
Fusebox.
4.
Manual headlamp height adjustment.
Side switch panel.
5.
Side adjustable air vent.
6.
Instrument panel.
7.
Lighting and direction indicator control
stalk.
8.
Steering wheel adjustment control.
9.
Controls for Bluetooth system or telephone.
10.
Controls for Audio-CD, touch screen
audio- CD and touch screen Audio-
telematic systems.
11.
Driver's airbag.
Horn.
12 .
Cruise control switches.
13.
Parking brake.
Page 12 of 368
10
Familiarisation
Instruments and controls

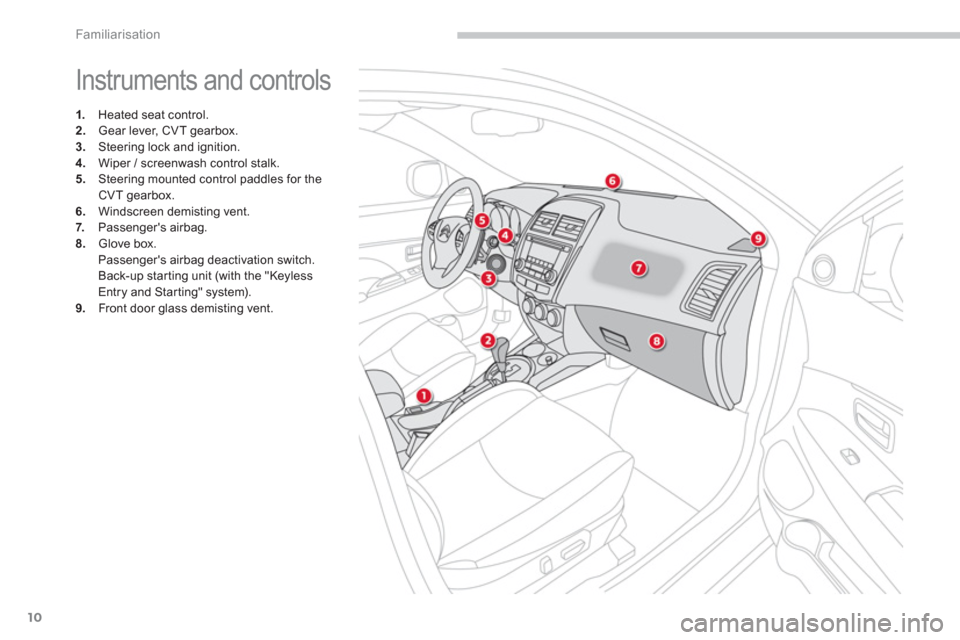

1.
Heated seat control.
2.
Gear lever, CVT gearbox.
3.
Steering lock and ignition.
4.
Wiper / screenwash control stalk.
5.
Steering mounted control paddles for the
CVT gearbox.
6.
Windscreen demisting vent.
7.
Passenger's airbag.
8.
Glove box.
Passenger's airbag deactivation switch.
Back-up star ting unit (with the "Keyless
Entry and Starting" system).
9.
Front door glass demisting vent.
Page 13 of 368
.
11
Familiarisation
Centre console

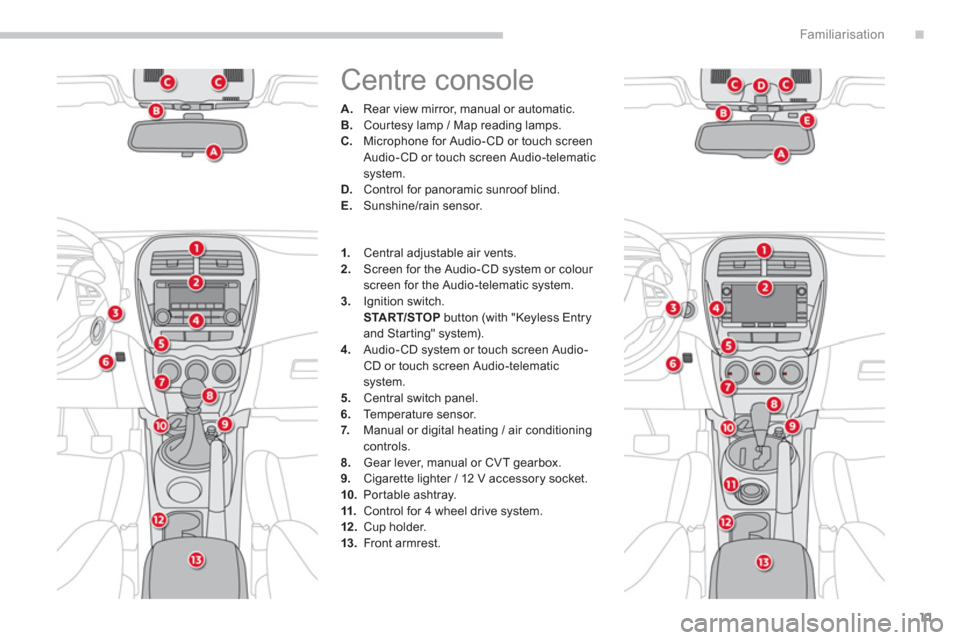

A.
Rear view mirror, manual or automatic.
B.
Courtesy lamp / Map reading lamps.
C.
Microphone for Audio- CD or touch screen
Audio- CD or touch screen Audio-telematic
system.
D.
Control for panoramic sunroof blind.
E.
Sunshine/rain sensor.
1.
Central adjustable air vents.
2.
Screen for the Audio- CD system or colour
screen for the Audio-telematic system.
3.
Ignition switch.
START/STOP
button (with "Keyless Entry
and Starting" system).
4.
Audio- CD system or touch screen Audio-
CD or touch screen Audio-telematic
system.
5.
Central switch panel.
6.
Temperature sensor.
7.
Manual or digital heating / air conditioning
controls.
8.
Gear lever, manual or CVT gearbox.
9.
Cigarette lighter / 12 V accessory socket.
10.
Portable ashtray.
11.
Control for 4 wheel drive system.
12 .
Cup holder.
13.
Front armrest.
Page 14 of 368
12
Familiarisation
Sitting comfortably
Front seat
Manual adjustments
1.
Seat forwards-backwards adjustment.
2.
Driver's seat cushion height adjustment.
3.
Seat backrest angle adjustment.
4.
Head restraint adjustment.
Electric adjustments
1.
Seat forwards-backwards adjustment.
2.
Driver's seat cushion height and angle
adjustment.
3.
Seat backrest angle adjustment.
81
82
Page 15 of 368
.
13
Familiarisation
Sitting comfortably

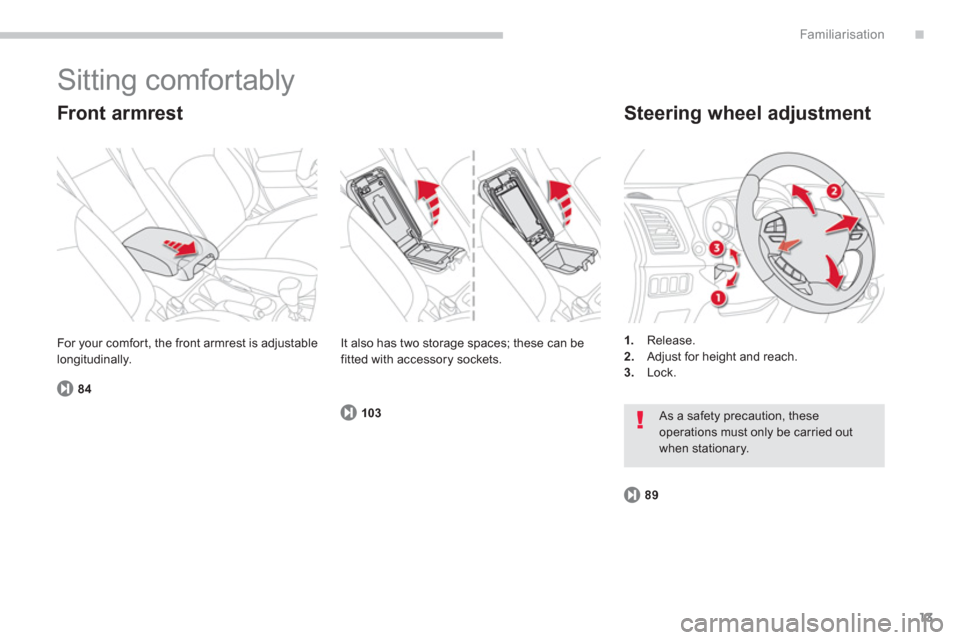

Front armrest
Steering wheel adjustment
1.
Release.
2.
Adjust for height and reach.
3.
Lock. For your comfor t, the front armrest is adjustable
longitudinally. It also has two storage spaces; these can be
fitted with accessory sockets.
As a safety precaution, these
operations must only be carried out
when stationary. 84
103
89
Page 16 of 368
14
Familiarisation
Sitting comfortably

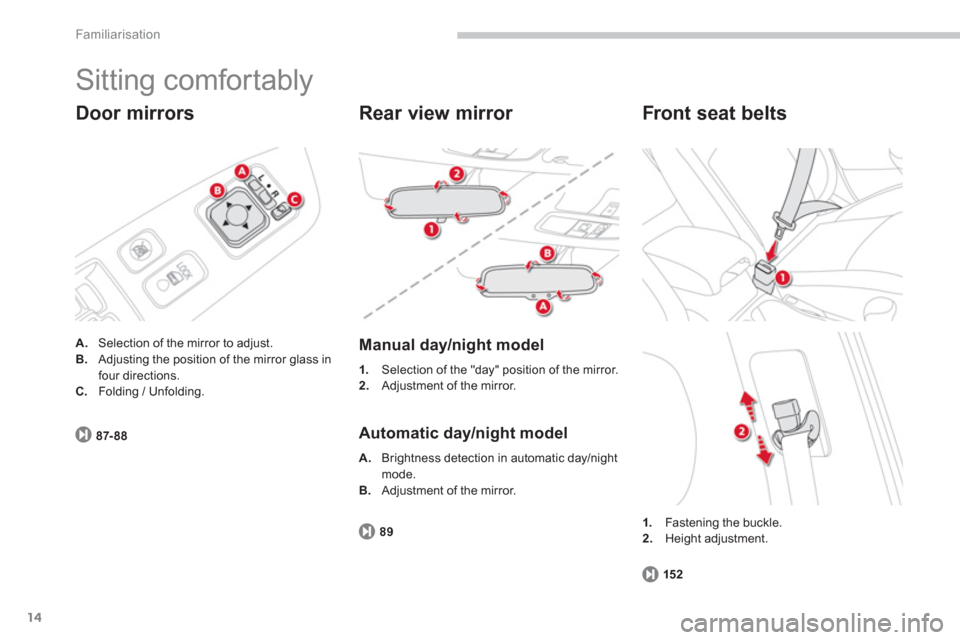

Door mirrors
A.
Selection of the mirror to adjust.
B.
Adjusting the position of the mirror glass in
four directions.
C.
Folding / Unfolding.
Rear view mirror
Manual day/night model
1.
Selection of the "day" position of the mirror.
2.
Adjustment of the mirror.
Automatic day/night model
A.
Brightness detection in automatic day/night
mode.
B.
Adjustment of the mirror.
1.
Fastening the buckle.
2.
Height adjustment.
Front seat belts
87- 88
89
152
Page 17 of 368
.
15
Familiarisation
Seeing clearly
Lighting
Ring A
Ring B
Wipers
Control A: windscreen wipers
Control B: rear wiper
Dipped / main beam headlamps.
Sidelamps.
Automatic illumination of headlamps.
Lighting off.
Front and rear foglamps.
Wash-wipe.
Intermittent wipe.
Park.
Switching On / Off "AUTO"
)
Push the stalk downwards and release it.
13314 0
142 14 3
Page 18 of 368
16
Familiarisation
Vent ilat i on
Automatic air conditioning:
we recommend use of automatic operation by pressing the "AUTO "
button.
Recommended interior settings
I require...
Manual Air Conditioning
Air distribution
Air flow
Air recirculation /
Intake of outside air
Te m p e r a t u r e
Manual A /C
HOT
COLD
DEMISTING
DEFROSTING
Page 19 of 368
.
17
Familiarisation
Monitoring
A.
Speedometer dial.
B.
Instrument panel screen.
C.
Rev counter dial.
D.
Lighting dimmer.
E.
INFO button.
Used to cycle through the different
information in the instrument panel screen.
Instrument panel
A.
Passenger's airbag deactivation warning
lamp.
Central switch panel
1.
With the ignition on, the orange and red
warning lamps come on.
2.
With the engine running, these warning
lamps should go off.
If warning lamps remain on, refer to the page
concerned.
Warning lamps
B.
Hazard warning lamps.
C.
Front passenger's seat belt not fastened or
unfastened.
2425157
147
15 3
Page 20 of 368
18
Familiarisation
Monitoring

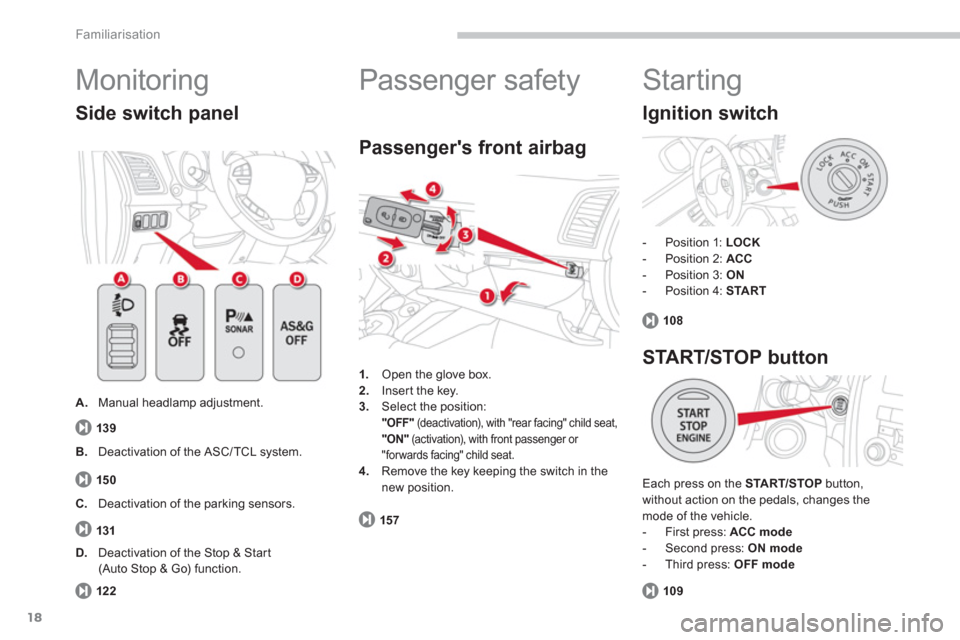

A.
Manual headlamp adjustment.
Side switch panel
1.
Open the glove box.
2.
Insert the key.
3.
Select the position:
"OFF"
(deactivation), with "rear facing" child seat,
"ON"
(activation), with front passenger or
"for wards facing" child seat.
4.
Remove the key keeping the switch in the
new position.
Passenger's front airbag
B.
Deactivation of the ASC/ TCL system.
C.
Deactivation of the parking sensors.
Passenger safety
D.
Deactivation of the Stop & Start
(Auto Stop & Go) function.
Starting
- Position 1: LOCK
- Position 2: ACC
- Position 3: ON
- Position 4: START
Each press on the START/STOP
button,
without action on the pedals, changes the
mode of the vehicle.
- First press: ACC mode
- Second press: ON
mode
- Third press: OFF mode
Ignition switch
START/STOP button
139
15 0
131
122157108
109
