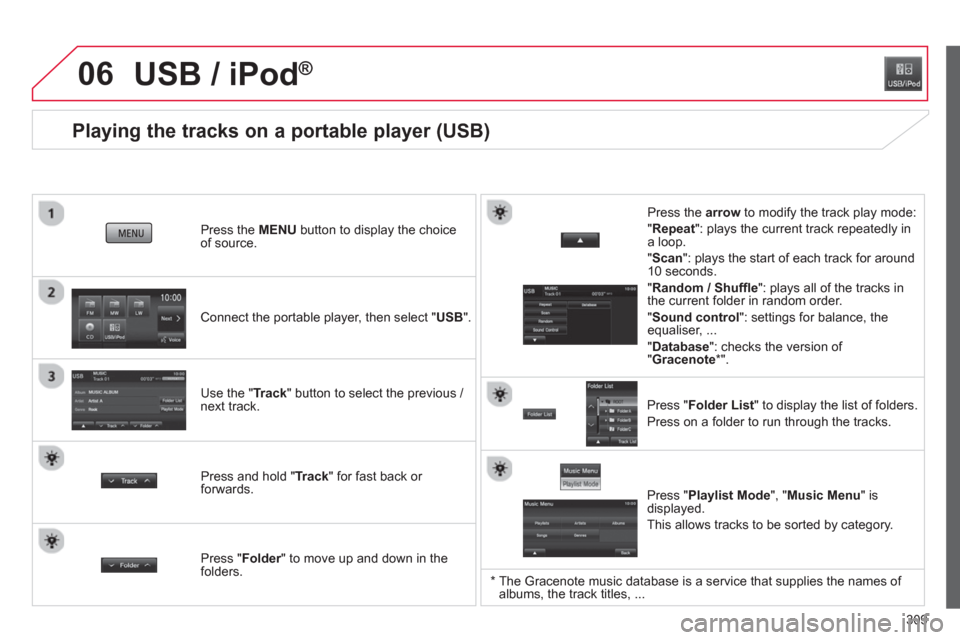

Page 311 of 368
309
06
Playing the tracks on a portable player (USB)
Connect the portable player, then select " USB
".
Press the MENU
button to display the choice
of source.
Use the " Track
" button to select the previous /
next track.
USB / iPod ®
Press and hold " Track
" for fast back or
forwards.
Press the arrow
to modify the track play mode:
" Repeat
": plays the current track repeatedly in
a loop.
" Scan
": plays the start of each track for around
10 seconds.
" Random / Shuffl e
": plays all of the tracks in
the current folder in random order.
" Sound control
": settings for balance, the
equaliser, ...
" Database
": checks the version of
" Gracenote
* ".
Press " Folder List
" to display the list of folders.
Press on a folder to run through the tracks.
Press " Folder
" to move up and down in the
folders.
Press " Playlist Mode
", " Music Menu
" is
displayed.
This allows tracks to be sorted by category.
*
The Gracenote music database is a service that supplies the names of
albums, the track titles, ...

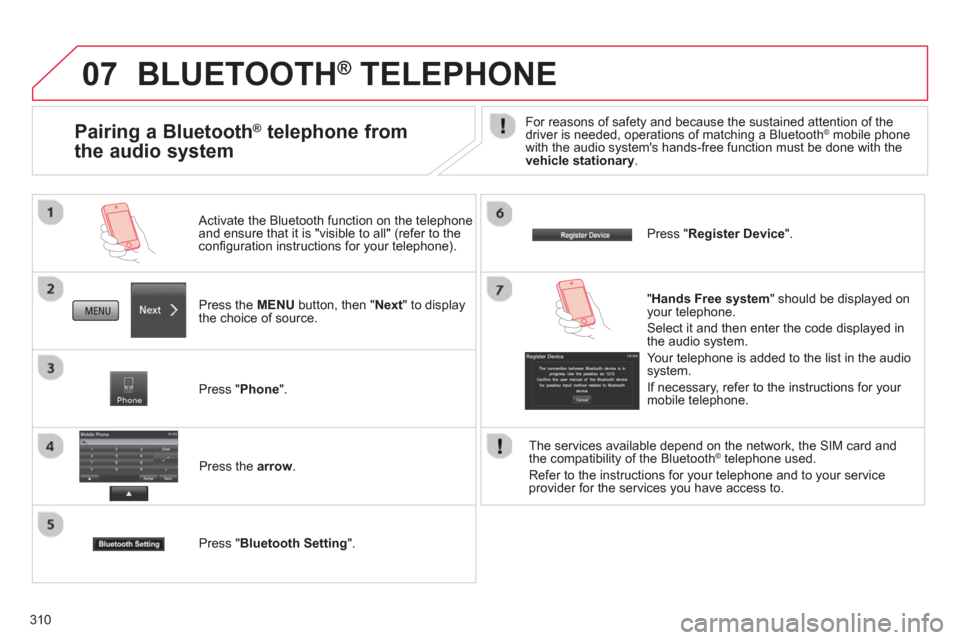

Page 312 of 368
310
07 BLUETOOTH ®
TELEPHONE
Press the MENU
button, then " Next
" to display
the choice of source.
Activate the Bluetooth function on the telephone
and ensure that it is "visible to all" (refer to the
confi guration instructions for your telephone).
Press " Phone
".
Press the arrow
.
Press " Bluetooth Setting
".
Press " Register Device
".
Pairing a Bluetooth ®
telephone from
the audio system
For reasons of safety and because the sustained attention of the
driver is needed, operations of matching a Bluetooth ® mobile phone
with the audio system's hands-free function must be done with the
vehicle stationary
.
" Hands Free system
" should be displayed on
your telephone.
Select it and then enter the code displayed in
the audio system.
Your telephone is added to the list in the audio
system.
If necessary, refer to the instructions for your
mobile telephone.
The services available depend on the network, the SIM card and
the compatibility of the Bluetooth
® telephone used.
Refer to the instructions for your telephone and to your service
provider for the services you have access to.

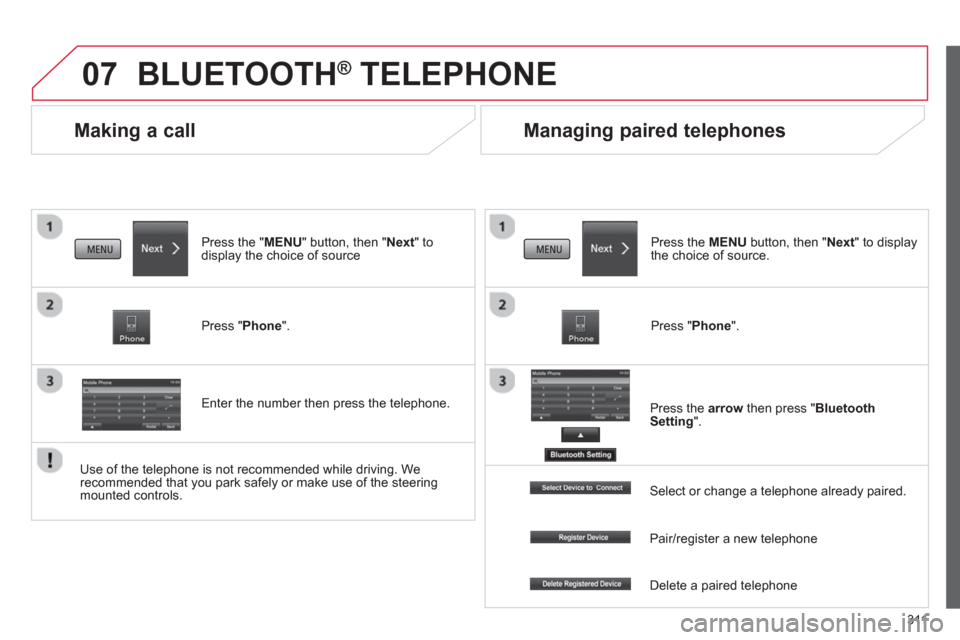

Page 313 of 368
311
07
Making a call
BLUETOOTH ®
TELEPHONE
Press the " MENU
" button, then " Next
" to
display the choice of source
Press " Phone
".
Enter the number then press the telephone.
Managing paired telephones
Press the MENU
button, then " Next
" to display
the choice of source.
Press " Phone
".
Press the arrow
then press " Bluetooth
Setting
".
Use of the telephone is not recommended while driving. We
recommended that you park safely or make use of the steering
mounted controls.
Select or change a telephone already paired.
Pair/register a new telephone
Delete a paired telephone
Page 314 of 368
312
Page 315 of 368
313
AUDIO-CD system
The system is protected in such a way that it will only
operate in your vehicle.
01 First steps - Control panel
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.
CONTENTS
02 Steering mounted controls
03 General operation
04 Radio
05 Music media players
06 USB player
07 BLUETOOTH
®
streaming
Error messages p.
p.
p.
p.
p.
p.
p.
p. 314
316
317
319
325
330
332
334
Page 316 of 368
314
01
Display the track.
Scroll through tracks.
Symbols:
i: iPod
®
.
U: USB.
B: Bluetooth
®
.
Random play in the current
folder.
Switch from audio CD
mode to USB / iPod
® and
Bluetooth modes * .
Press and hold to change to
AUX mode.
Repeat the current track.
FIRST STEPS
Audio system on / off.
Volume adjustment.
Select radio source.
Select waveband (FW, MW,
LW).
*
Available according to version.
Eject CD.
Preset stations, buttons 1 to 6.
Short press: select preset radio
station.
Long press: preset a radio station.
Page 317 of 368
315
01 FIRST STEPS
Fast back / forwards.
PTY On / Off.
Play the fi rst 10 seconds
of each track in the current
folder.
Selection:
- automatically of the next
radio frequency down /
up.
- of the previous / next
track.
Select previous / next folder (or track).
Adjust audio settings.
Manual search up and down for a radio station / PTY.
Function setting mode (AF, REG, TP, SCV, ...).
Press: select folder (or track).
Search for TP traffi c
information.
Play / pause the current track.
Abandon the current
operation, up one level.
Change to MENU
mode.
Page 318 of 368
316
02 STEERING MOUNTED CONTROLS
Increase / reduce audio volume.
Search for a higher / lower radio frequency.
Next / previous CD track.
CD fast forwards / backwards.
Long press: audio system on / off.
Short press: selection of the source in the
following order: FM1 / FM2 / FM3 / MW /
LW / CD.
Page 319 of 368
317
03 GENERAL OPERATION
Press the PWR/VOL
button.
The last source selected before
switching off resumes operation.
The audio system functions can be
used when the ignition switch is in the
"ON" or "ACC" position.
To switch off, press the PWR/VOL
button again.
Adjusting the volume
Turn the PWR/VOL
knob to the left to
decrease the volume or to the right to
increase it. Press the SEL
knob repeatedly; the
audio mode changes in the following
order: BASS / TREBLE / FADER /
BALANCE / SCV and cancel.
Setting the audio modes
Switching on / off
The audio adjustment mode is deactivated, during operation of the
radio or a CD or after around 10 seconds with no action.
Adjusting the audio modes
Turn the SEL
knob to the left or right
to adjust the audio setting.
Page 320 of 368
318
03
"BASS" setting
Turn the SEL
knob to set the required
bass value.
GENERAL OPERATION
Turn the SEL
knob to set the required
treble value.
"FADER" front/rear sound distribution setting
"BALANCE" left/right sound distribution setting
Turn the SEL
knob to set the balance
of the volume of the right and left
speakers.
Turn the SEL
knob to set the balance
of the volume of the front and rear
speakers.
"SCV" automatic volume adjustment
"TREBLE" setting
This allows automatic adjustment of the settings in relation to the
vehicle speed.
Turn the SEL
knob for access to the
settings (OFF, LOW, MID, HIGH).
Press the SEL
knob repeatedly to
select "SCV" mode.
