Page 321 of 368
319

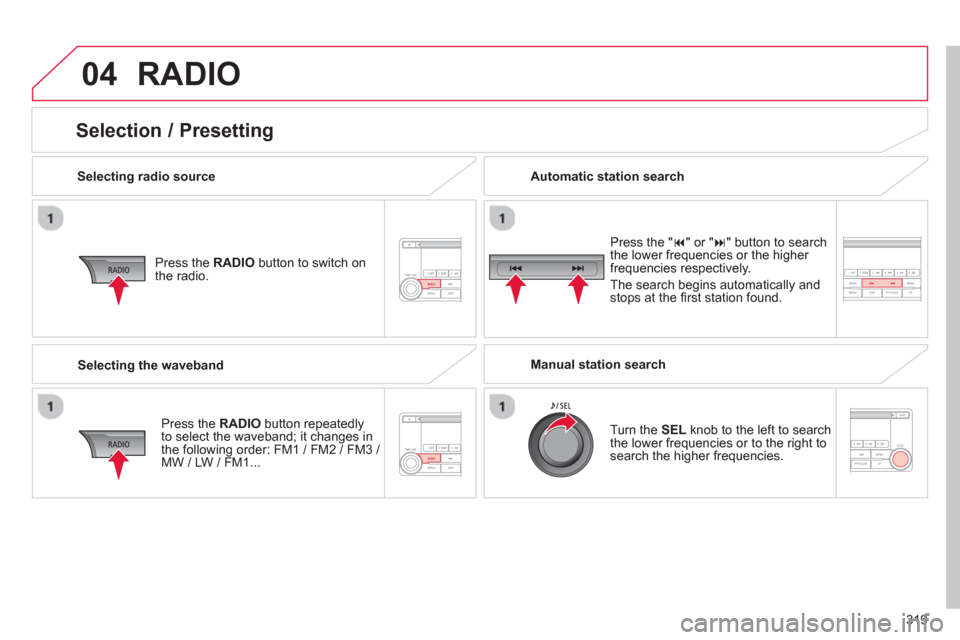

04 RADIO
Selecting radio source
Press the RADIO
button to switch on
the radio.
Press the RADIO
button repeatedly
to select the waveband; it changes in
the following order: FM1 / FM2 / FM3 /
MW / LW / FM1...
Automatic station search
Manual station search
Turn the SEL
knob to the left to search
the lower frequencies or to the right to
search the higher frequencies.
Press the "
" or "
" button to search
the lower frequencies or the higher
frequencies respectively.
The search begins automatically and
stops at the fi rst station found.
Selecting the waveband
Selection / Presetting
Page 322 of 368
320
04
Press one of the six buttons "1" to "6" until an
audible signal is heard.
The sound cuts out then becomes audible again
when the station has been preset.
The number of the button and the associated radio
frequency appear in the screen.

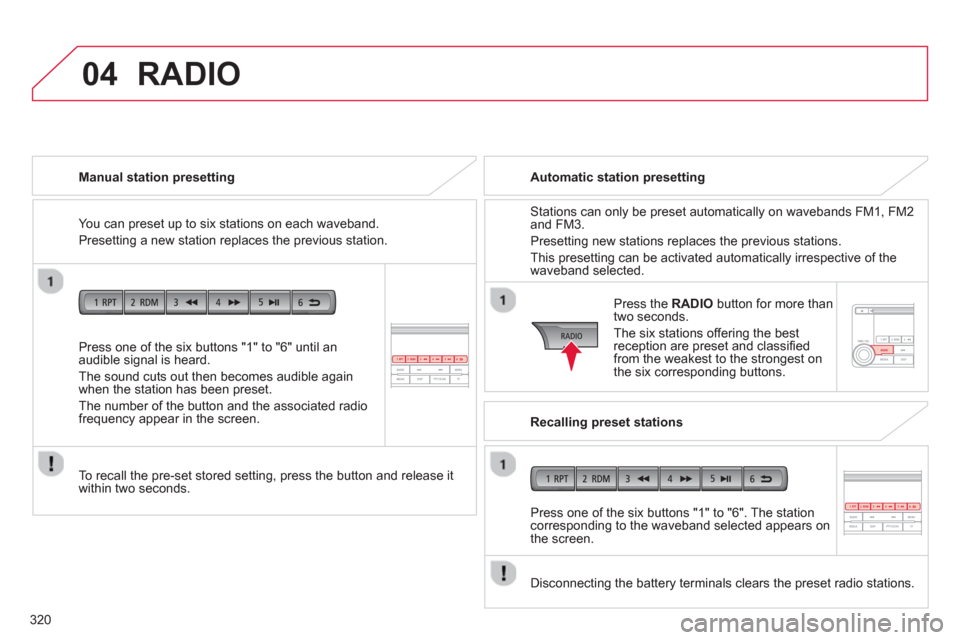

Manual station presetting
To recall the pre-set stored setting, press the button and release it
within two seconds.
RADIO
You can preset up to six stations on each waveband.
Presetting a new station replaces the previous station.
Automatic station presetting
Disconnecting the battery terminals clears the preset radio stations.
Stations can only be preset automatically on wavebands FM1, FM2
and FM3.
Presetting new stations replaces the previous stations.
This presetting can be activated automatically irrespective of the
waveband selected.
Press the RADIO
button for more than
two seconds.
The six stations offering the best
reception are preset and classifi ed
from the weakest to the strongest on
the six corresponding buttons.
Recalling preset stations
Press one of the six buttons "1" to "6". The station
corresponding to the waveband selected appears on
the screen.
Page 323 of 368
321
04 RADIO

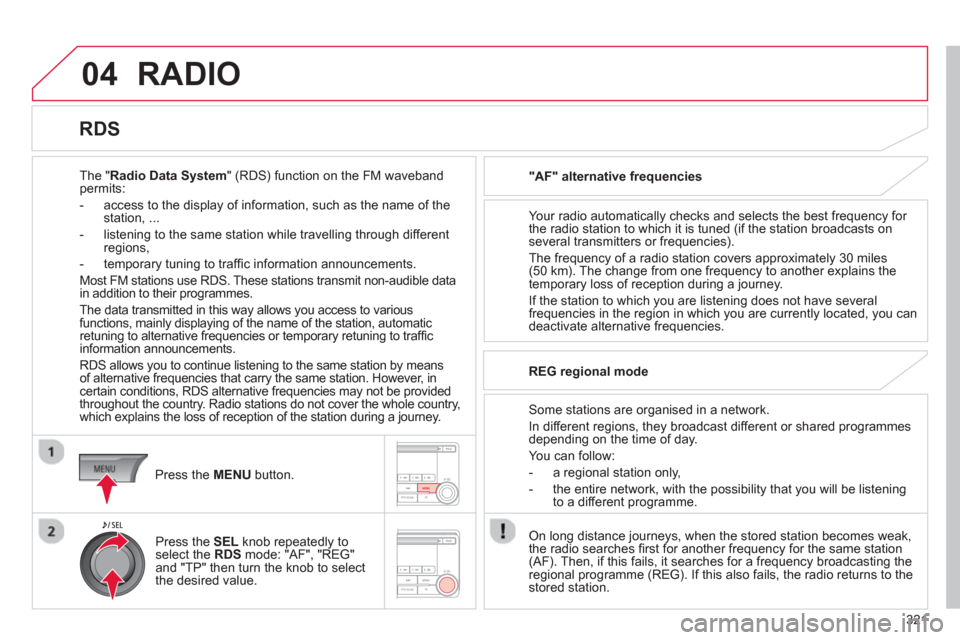

The "Radio Data System" (RDS) function on the FM waveband
permits:
- access to the display of information, such as the name of the
station, ...
- listening to the same station while travelling through different
regions,
- temporary tuning to traffi c information announcements.
Most FM stations use RDS. These stations transmit non-audible data
in addition to their programmes.
The data transmitted in this way allows you access to various
functions, mainly displaying of the name of the station, automatic
retuning to alternative frequencies or temporary retuning to traffi c
information announcements.
RDS allows you to continue listening to the same station by means
of alternative frequencies that carry the same station. However, in
certain conditions, RDS alternative frequencies may not be provided
throughout the country. Radio stations do not cover the whole country,
which explains the loss of reception of the station during a journey.
"AF" alternative frequencies
Your radio automatically checks and selects the best frequency for
the radio station to which it is tuned (if the station broadcasts on
several transmitters or frequencies).
The frequency of a radio station covers approximately 30 miles
(50 km). The change from one frequency to another explains the
temporary loss of reception during a journey.
If the station to which you are listening does not have several
frequencies in the region in which you are currently located, you can
deactivate alternative frequencies.
Some stations are organised in a network.
In different regions, they broadcast different or shared programmes
depending on the time of day.
You can follow:
- a regional station only,
- the entire network, with the possibility that you will be listening
to a different programme.
REG regional mode
On long distance journeys, when the stored station becomes weak,
the radio searches fi rst for another frequency for the same station
(AF). Then, if this fails, it searches for a frequency broadcasting the
regional programme (REG). If this also fails, the radio returns to the
stored station.
RDS
Press the MENU
button.
Press the SEL
knob repeatedly to
select the RDS mode: "AF", "REG"
and "TP" then turn the knob to select
the desired value.
Page 324 of 368
322
04 RADIO

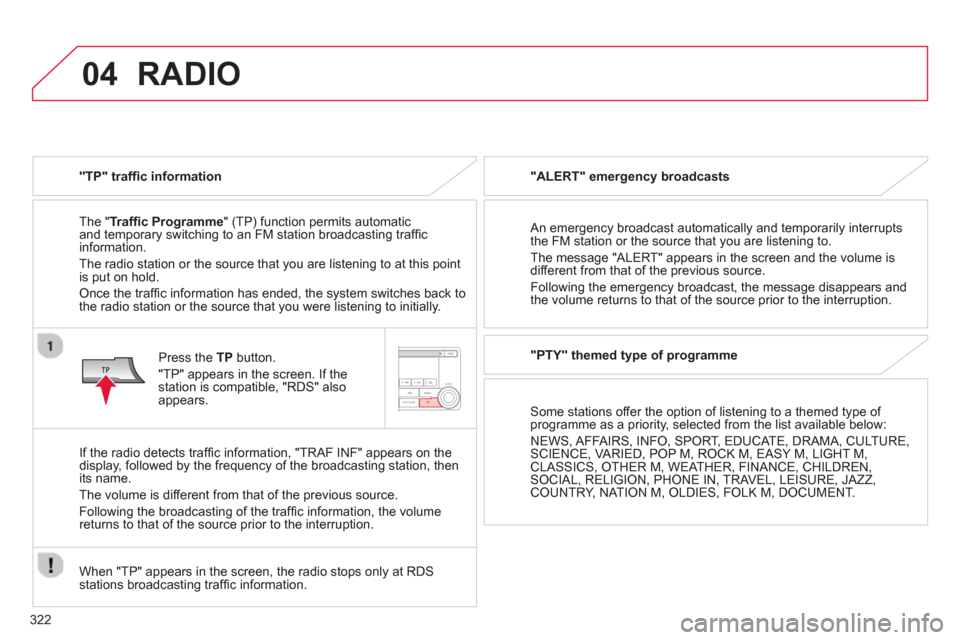

"TP" traffi c information
The " Traffi c Programme
" (TP) function permits automatic
and temporary switching to an FM station broadcasting traffi c
information.
The radio station or the source that you are listening to at this point
is put on hold.
Once the traffi c information has ended, the system switches back to
the radio station or the source that you were listening to initially.
Press the TP
button.
"TP" appears in the screen. If the
station is compatible, "RDS" also
appears.
If the radio detects traffi c information, "TRAF INF" appears on the
display, followed by the frequency of the broadcasting station, then
its name.
The volume is different from that of the previous source.
Following the broadcasting of the traffi c information, the volume
returns to that of the source prior to the interruption.
When "TP" appears in the screen, the radio stops only at RDS
stations broadcasting traffi c information.
"ALERT" emergency broadcasts
An emergency broadcast automatically and temporarily interrupts
the FM station or the source that you are listening to.
The message "ALERT" appears in the screen and the volume is
different from that of the previous source.
Following the emergency broadcast, the message disappears and
the volume returns to that of the source prior to the interruption.
"PTY" themed type of programme
Some stations offer the option of listening to a themed type of
programme as a priority, selected from the list available below:
NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE,
SCIENCE, VARIED, POP M, ROCK M, EASY M, LIGHT M,
CLASSICS, OTHER M, WEATHER, FINANCE, CHILDREN,
SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ,
COUNTRY, NATION M, OLDIES, FOLK M, DOCUMENT.
Page 325 of 368
323
04 RADIO

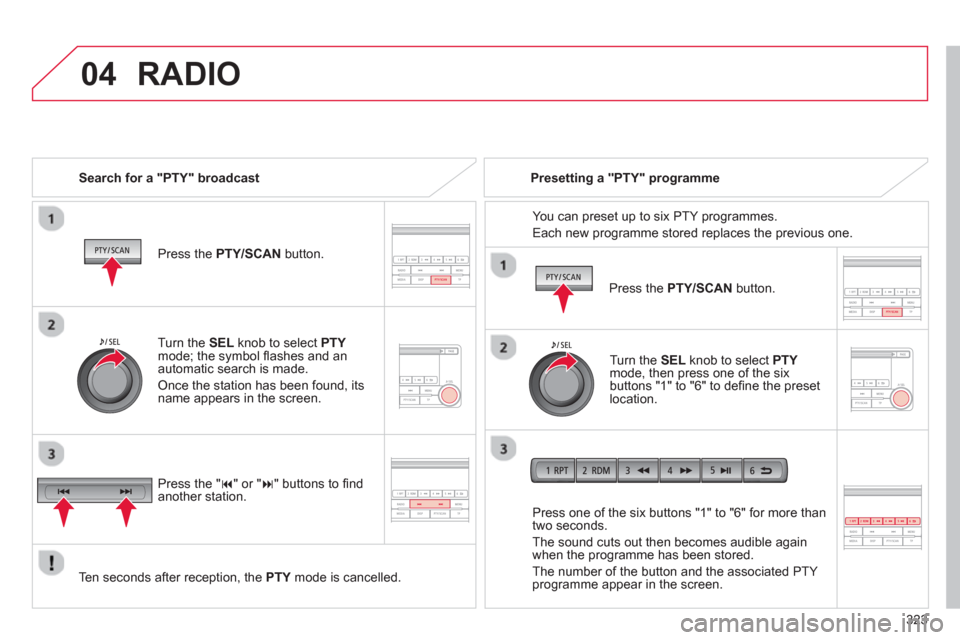

Search for a "PTY" broadcast
Press the PTY/SCAN
button.
Ten seconds after reception, the PTY
mode is cancelled.
Press one of the six buttons "1" to "6" for more than
two seconds.
The sound cuts out then becomes audible again
when the programme has been stored.
The number of the button and the associated PTY
programme appear in the screen.
Presetting a "PTY" programme
You can preset up to six PTY programmes.
Each new programme stored replaces the previous one.
Turn the SEL
knob to select PTY
mode; the symbol fl ashes and an
automatic search is made.
Once the station has been found, its
name appears in the screen.
Press the "
" or "
" buttons to fi nd
another station.
Press the PTY/SCAN
button.
Turn the SEL
knob to select PTY
mode, then press one of the six
buttons "1" to "6" to defi ne the preset
location.
Page 326 of 368
324
04 RADIO
Changing the display language of the "PTY" programme
Functions setting mode
This permits activation or deactivation
of the functions below.
Press the SEL
knob repeatedly; the
setting mode for the functions changes
in the following order : GRACENOTE
DB / AF / REG / TP-S / PI-S / PTY
(languages) / PH setting / CT / OFF.
The functions setting mode is deactivated after approximately
10 seconds without any action.
Press the MENU
button.
Press the SEL
knob repeatedly to
select the PTY lang
mode.
Turn the SEL
knob to select the
language (ENGLISH, FRANCAIS,
DEUTSCH, SVENSK, ESPAGNOL,
ITALIANO).
Press then MENU
button.
Turn the SEL
knob to the left to
deactivate the function ("OFF") or to
the right to activate it ("ON").
Page 327 of 368
325

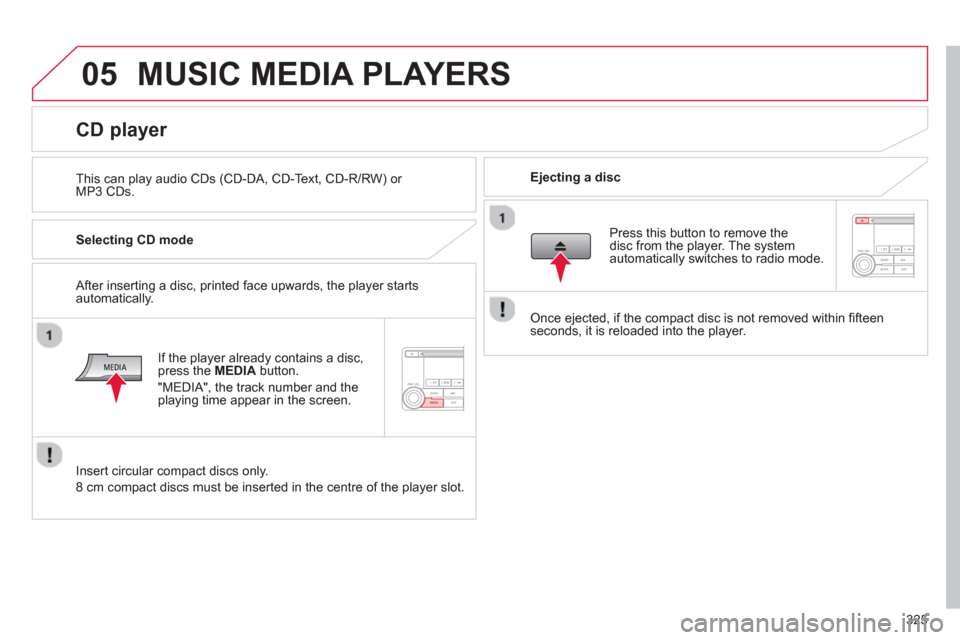

05 MUSIC MEDIA PLAYERS
This can play audio CDs (CD-DA, CD-Text, CD-R/RW) or
MP3 CDs.
Ejecting a disc
CD player
Selecting CD mode
If the player already contains a disc,
press the MEDIA
button.
"MEDIA", the track number and the
playing time appear in the screen.
Insert circular compact discs only.
8 cm compact discs must be inserted in the centre of the player slot.
After inserting a disc, printed face upwards, the player starts
automatically.
Press this button to remove the
disc from the player. The system
automatically switches to radio mode.
Once ejected, if the compact disc is not removed within fi fteen
seconds, it is reloaded into the player.
Page 328 of 368
326
05 MUSIC MEDIA PLAYERS
Random playing of a disc
Press the RDM
button to start random
play of the tracks on the disc. "RDM"
appears in the screen.
To exit this mode, press this button
again.
Audio CD
Press and hold the "
" or "
" button
to carry out a fast backwards or
forwards search respectively.
Play begins when the button is
released.
Fast search
Press the "
" or "
" button to select
the previous or next track respectively.
Selecting a track
Press the RPT
button to repeat
the play of the current track. "RPT"
appears in the screen.
To exit this mode, press this button
again.
Repeating a track
Playing the beginning of each track
Press the PTY/SCAN
button to start
playback of the fi rst ten seconds
of each track on the disc. "SCAN"
appears in the screen and the
corresponding track number fl ashes.
To exit this mode, press this button
again.
On CD-R/RWs, the quality of the playback sound depends on the
encoding software, the burning device and the burning speed used.
Page 329 of 368
327
05
CD-TEXT display
Press the DISP
button repeatedly; the
CD-Text information appears in the
following order:
DISC NAME / TRACK NAME /
NORMAL DISPLAY MODE.
The CD player is compatible with the display of CD-Text
information.
In the case of compact discs containing both CD-DA and MP3 fi les,
play automatically begins with the CD-DA fi les.
To switch play between the two types of fi le, press the CD
button for
more than two seconds until an audible signal is heard.
While using these compact discs, the "Repeat", "Random play" and
"Playing of the beginning of the tracks" functions are only applied to
fi les of the same format.
If the information exceeds
12 characters, press the PAGE
button
to see the rest.
In the absence of CD-Text information
to be displayed, "NOTITLE" appears
on the screen.
MP3 / ID3 Tag CD
Selecting an MP3 folder
Turn the SEL
knob to the right to
select a folder in ascending order or to
the left to select a folder in descending
order.
The CD player and the CD changer are compatible with the playing
of MP3 fi les.
These must be recorded in ISO-8859 Level 1 / Level 2, Joliet or
Romeo format on CD ROMs, CD-Rs or CD-RWs. The CDs can
contain a maximum of 255 fi les and 100 folders on 16 levels.
The ID3 version 1.0, 1.1, 2.2, 2.3 and 2.4 Tag can be displayed
while playing MP3 fi les.
MUSIC MEDIA PLAYERS
Page 330 of 368
328
05 MUSIC MEDIA PLAYERS
Repeating the tracks in a folder
Press the RPT
button for more than
two seconds to repeat the playing of
the tracks contained in the current
folder. "D-RPT" appears in the screen.
To exit this mode, press this button
again.
Press the RDM
button to start random
playing of the tracks in the current
folder. "RDM" appears in the screen.
To exit this mode, press this button
again.
Playing the beginning of each track
MP3 / ID3 Tag display
Press the DISP
button repeatedly;
the MP3 information appears in the
following order:
FOLDER NAME / TRACK NAME /
NORMAL DISPLAY MODE.
Press the PTY/SCAN
button to start
playing the fi rst ten seconds of each
track in all of the folders. "SCAN"
appears in the screen and the
corresponding track number fl ashes.
To exit this mode, press this button
again.
Random playing of a folder
Random playing of a disc
Press the RDM
button for more than
two seconds to start random playing of
the tracks in all of the folders. "D-RDM"
appears in the screen.
To exit this mode, press this button
again.
When play begins, "READING" appears in the screen then
disappears to make way for the folder number, the track number,
the playing time and "MP3".
