Page 27 of 330
28
I
I N S T R U M E N T S a n d C O N T R O L S
"Foot on brake" T h e fl a s h i n g o f t h i s w a r n i n g
lamp on the display informs
you that you need to press
the brake pedal in order to be
able to start the engine on a vehicle
with the (6-speed) Electronic Gearbox
System, or to quit position P in the
case of an automatic gearbox.
This warning lamp comes on if
you attempt to release the electric
parking brake without pressing the
brake pedal.
In the case of the Electronic Gearbox
S y s t e m , t h i s w a r n i n g l a m p fl a s h e s
to indicate overheating of the clutch
if you excessively use the accelera-
tor to hold the vehicle on an uphill
slope. Use the brake pedal or the
electric parking brake.
Parking space available
This warning lamp comes
on when the parking space
function is selected.
I t fl a s h e s w h i l e t h e s p a c e i s
being measured. Electric child lock
If lit, the child lock is activat-
ed. This warning light is dis-
played a few seconds after
the function is activated.
Deactivation warning lights
If one of the following warning lights
c o m e s o n , t h i s c o n fi r m s t h a t t h e
corresponding system has been
switched off intentionally.
Passenger's air bag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation The ESP/ASR system is put
into service automatically
when the vehicle is started. Warning lights
Diesel engine pre-heating
Wait until this is switched off before
operating the starter.
The passenger's air bag
system is put into service
automatically when the ve-
hicle is started.
A s p e c i fi c c o n t r o l , l o c a t e d i n t h e g l o v e
box, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning light on the
instrument panel or a message on
the NaviDrive multifunction screen. A s p e c i fi c b u t t o n , l o c a t e d i n t h e c e n -
tre of the fascia, permits deactiva-
t i o n o f t h e s y s t e m . T h i s i s c o n fi r m e d
by continuous lighting of this warn-
ing light and of the indicator light on
the button.
From approximately 30 mph (50km/h),
the system is reactivated automatically.
When the engine is running or the
vehicle is moving, the lighting of one of
the following warning lights indicates
the occurrence of a fault requiring inter-
vention on the part of the driver.
Any fault resulting in the display-
ing of a warning light must be the
subject of further diagnostics by
reading the associated message
on the multifunction display.
Should you encounter any prob-
lems, do not hesitate to contact a
CITROËN dealer.
Page 28 of 330
29
I
I N S T R U M E N T S a n d C O N T R O L S
Lighting is associated
with the displaying of
another warning light:
Service If this comes on, it indi-
cates the occurrence of
a problem in one of the
systems which does
n o t h a v e a s p e c i fi c
warning light.
In order to identify it, consult the mes-
sage on the multifunction display.
The warning light only comes on
temporarily in the case of the follow-
ing minor faults:
- incorrect closing of the doors, boot, rear screen and bonnet,
- fl a t r e m o t e c o n t r o l b a t t e r y ,
- incorrect tyre pressure,
- the end of saturation of the particle e m i s s i o n fi l t e r ( D i e s e l ) .
In the case of major faults, the
warning light remains on until the
o p e r a t i n g f a u l t i s r e c t i fi e d , c o n t a c t a
CITROËN dealer as soon as possible. Braking
If this comes on, it indicates
the occurrence of a fault in
one of the braking systems:
- s i g n i fi c a n t d r o p i n t h e l e v e l i n t h e circuit,
- electronic brake force distribu- tion (EBFD) faulty (simultaneous
lighting of the ABS warning light),
stop the vehicle immediately and as
safely as possible.
Consult a CITROËN dealer.
Application/Release of the
automatic electronic parking
brake
If this warning lamp comes
o n p e r m a n e n t l y , i t i s c o n fi r m -
ing that the parking brake is
applied.
I f i t fl a s h e s , i t i s i n d i c a t i n g a n a p -
plication or release fault. Urgently
contact a CITROËN dealer (see sec-
tion "Driving - § Electronic parking
brake"). Automatic electronic parking
brake fault
This warning lamp comes
on if there is a malfunction
in the automatic electronic
parking brake.
Deactivation of the automatic
functions of the automatic
electronic parking brake
This comes on if the "auto-
matic application" and "au-
tomatic release" functions
when you switch off the
engine are deactivated or
faulty.
Dynamic stability control
(ESP/ASR) The ESP/ASR system is put
into service automatically
when the vehicle is started.
Unless the system has been deactivat-
ed, if this warning light and the indicator
light on the button come on continu-
ously, this indicates the occurrence of
a fault in the ESP/ASR system or in the
hill start assistance.
Engine autodiagnostics system
If this comes on, it indicates
the occurrence of a fault in
the engine management
system.
I f i t fl a s h e s , i t i n d i c a t e s t h e o c c u r r e n c e
of a fault in the emission control sys-
tem.
Central alert
- punctured wheel,
- braking,
- coolant temperature,
stop the vehicle immediately and as
safely as possible.
Consult a CITROËN dealer.
Anti-lock braking system (ABS) If this comes on, it indicates
the occurrence of a fault in
the anti-lock braking system.
However, this does not prevent op-
eration of the vehicle's assisted
braking.
Page 30 of 330
31
I
I N S T R U M E N T S a n d C O N T R O L S
Maintenance indicator
System which informs the driver
when the next service is due, in ac-
cordance with the manufacturer's
servicing schedule.
The point at which the service is due
is calculated from the last indicator
zero reset. It is determined by two
parameters:
- the distance travelled,
- the time elapsed since the last service. 5 seconds after the ignition is switched
on,
the spanner is switched off ; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances.
Less than 620 miles (1 000 km)
remain before the next service is
due
Example: 560 miles (900 km) re-
main before the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates: Service overdue
For 5 seconds after the ignition is
switched on,
t h e s p a n n e r fl a s h e s
to indicate that the service must be
carried out as soon as possible.
Example: the service is overdue by
300 miles/km.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is
switched on, the distance recorder
resumes its normal operation. The
spanner remains on to indicate that
a service must be carried out soon. 5 seconds after the ignition is
switched on, the distance recorder
resumes its normal operation.
The
spanner remains lit
.
More than 620 miles (1 000 km)
remain before the next service is
due
For 5 seconds after the ignition is
switched on, the spanner symbolis-
ing the service operations comes
on. The distance recorder display
line indicates the distance remaining
before the next service is due.
Example: 4 800 miles/km remain
before the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
The distance remaining may be
weighted by the time factor, depending
on the driver's driving habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
Page 31 of 330
32
I
I N S T R U M E N T S a n d C O N T R O L S
Maintenance indicator zero reset Engine oil level indicator
After each service, the maintenance
indicator must be reset to zero.
To do this, carry out the following
procedure:
switch off the ignition,
press and hold the trip distance
recorder zero reset button,
switch on the ignition; the dis-
tance recorder display begins a
countdown,
when the display indicates "=0" ,
release the button; the spanner
disappears. System which informs the driver of
the validity or invalidity of the engine
oil level.
This information is indicated for a
few seconds when the ignition is
switched on, after the service infor-
mation.
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Oil level correct
Lack of oil
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL" , accompanied by an audible
signal and a message on the multi-
function display.
I f t h e l a c k o f o i l i s c o n fi r m e d b y a
check using the dipstick, it is essen-
tial that the level is topped up to pre-
vent damage to the engine. Oil level gauge fault
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL --" . Consult a CITROËN dealer.
Dipstick
Refer to the "Checks" section to lo-
c a t e t h e d i p s t i c k a n d t h e o i l fi l l e r c a p
on your engine. There are 2 marks on
the dipstick:
- A = max; never ex-
ceed this level,
- B = min; top up the
l e v e l v i a t h e o i l fi l l e r
cap, using the type
of oil suited to your
engine.
Following this operation, if you wish
to disconnect the battery, lock the
v e h i c l e a n d w a i t a t l e a s t fi v e m i n u t e s
for the zero reset to be taken into
account.
Page 32 of 330
32
I
I N S T R U M E N T S a n d C O N T R O L S
Maintenance indicator zero reset Engine oil level indicator
After each service, the maintenance
indicator must be reset to zero.
To do this, carry out the following
procedure:
switch off the ignition,
press and hold the trip distance
recorder zero reset button,
switch on the ignition; the dis-
tance recorder display begins a
countdown,
when the display indicates "=0" ,
release the button; the spanner
disappears. System which informs the driver of
the validity or invalidity of the engine
oil level.
This information is indicated for a
few seconds when the ignition is
switched on, after the service infor-
mation.
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Oil level correct
Lack of oil
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL" , accompanied by an audible
signal and a message on the multi-
function display.
I f t h e l a c k o f o i l i s c o n fi r m e d b y a
check using the dipstick, it is essen-
tial that the level is topped up to pre-
vent damage to the engine. Oil level gauge fault
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL --" . Consult a CITROËN dealer.
Dipstick
Refer to the "Checks" section to lo-
c a t e t h e d i p s t i c k a n d t h e o i l fi l l e r c a p
on your engine. There are 2 marks on
the dipstick:
- A = max; never ex-
ceed this level,
- B = min; top up the
l e v e l v i a t h e o i l fi l l e r
cap, using the type
of oil suited to your
engine.
Following this operation, if you wish
to disconnect the battery, lock the
v e h i c l e a n d w a i t a t l e a s t fi v e m i n u t e s
for the zero reset to be taken into
account.
Page 34 of 330
34
II
M U L T I F U N C T I O N D I S P L A Y S

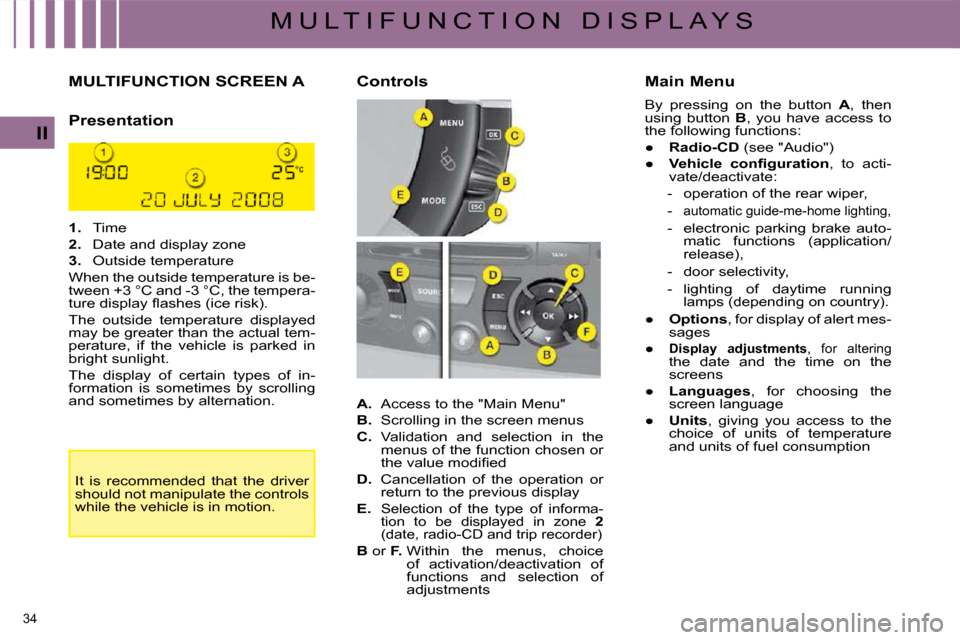

MULTIFUNCTION SCREEN A
Presentation
1. Time
2. Date and display zone
3. Outside temperature
When the outside temperature is be-
tween +3 °C and -3 °C, the tempera-
t u r e d i s p l a y fl a s h e s ( i c e r i s k ) .
The outside temperature displayed
m a y b e g r e a t e r t h a n t h e a c t u a l t e m -
p e r a t u r e , i f t h e v e h i c l e i s p a r k e d i n
b r i g h t s u n l i g h t .
T h e d i s p l a y o f c e r t a i n t y p e s o f i n -
f o r m a t i o n i s s o m e t i m e s b y s c r o l l i n g
a n d s o m e t i m e s b y a l t e r n a t i o n .
A. A c c e s s t o t h e " M a i n M e n u "
B. S c r o l l i n g i n t h e s c r e e n m e n u s
C. V a l i d a t i o n a n d s e l e c t i o n i n t h e
m e n u s o f t h e f u n c t i o n c h o s e n o r
t h e v a l u e m o d i fi e d
D. C a n c e l l a t i o n o f t h e o p e r a t i o n o r
return to the previous display
E.
S e l e c t i o n o f t h e t y p e o f i n f o r m a -
tion to be displayed in zone 2
( d a t e , r a d i o - C D a n d t r i p r e c o r d e r )
B or F. W i t h i n t h e m e n u s , c h o i c e
o f a c t i v a t i o n / d e a c t i v a t i o n o f
f u n c t i o n s a n d s e l e c t i o n o f
adjustments By pressing on the button
A , then
using button B , y o u h a v e a c c e s s t o
t h e f o l l o w i n g f u n c t i o n s :
Page 36 of 330
36
II
M U L T I F U N C T I O N D I S P L A Y S

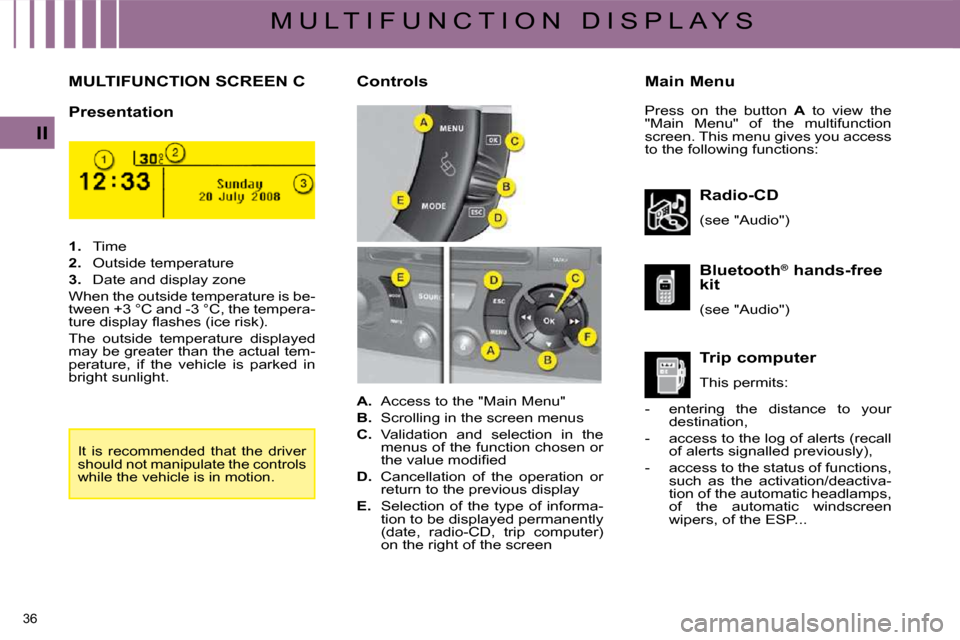

MULTIFUNCTION SCREEN C M a i n M e n u
Presentation
Radio-CD
( s e e " A u d i o " )
T r i p c o m p u t e r
T h i s p e r m i t s :
B l u e t o o t h
®
h a n d s - f r e e
kit
( s e e " A u d i o " )
Controls
1. Time
2. Outside temperature
3. Date and display zone
When the outside temperature is be-
tween +3 °C and -3 °C, the tempera-
t u r e d i s p l a y fl a s h e s ( i c e r i s k ) .
The outside temperature displayed
m a y b e g r e a t e r t h a n t h e a c t u a l t e m -
p e r a t u r e , i f t h e v e h i c l e i s p a r k e d i n
b r i g h t s u n l i g h t .
I t i s r e c o m m e n d e d t h a t t h e d r i v e r
s h o u l d n o t m a n i p u l a t e t h e c o n t r o l s
w h i l e t h e v e h i c l e i s i n m o t i o n .
A. A c c e s s t o t h e " M a i n M e n u "
B. S c r o l l i n g i n t h e s c r e e n m e n u s
C. V a l i d a t i o n a n d s e l e c t i o n i n t h e
m e n u s o f t h e f u n c t i o n c h o s e n o r
t h e v a l u e m o d i fi e d
D. C a n c e l l a t i o n o f t h e o p e r a t i o n o r
return to the previous display
E. S e l e c t i o n o f t h e t y p e o f i n f o r m a -
tion to be displayed permanently
( d a t e , r a d i o - C D , t r i p c o m p u t e r )
o n t h e r i g h t o f t h e s c r e e n Press on the button
A to view the
" M a i n M e n u " o f t h e m u l t i f u n c t i o n
s c r e e n . T h i s m e n u g i v e s y o u a c c e s s
t o t h e f o l l o w i n g f u n c t i o n s :
- e n t e r i n g t h e d i s t a n c e t o y o u r destination,
- a c c e s s t o t h e l o g o f a l e r t s ( r e c a l l o f a l e r t s s i g n a l l e d p r e v i o u s l y ) ,
- a c c e s s t o t h e s t a t u s o f f u n c t i o n s , s u c h a s t h e a c t i v a t i o n / d e a c t i v a -
t i o n o f t h e a u t o m a t i c h e a d l a m p s ,
o f t h e a u t o m a t i c w i n d s c r e e n
w i p e r s , o f t h e E S P . . .
Page 40 of 330
40
II
M U L T I F U N C T I O N D I S P L A Y S

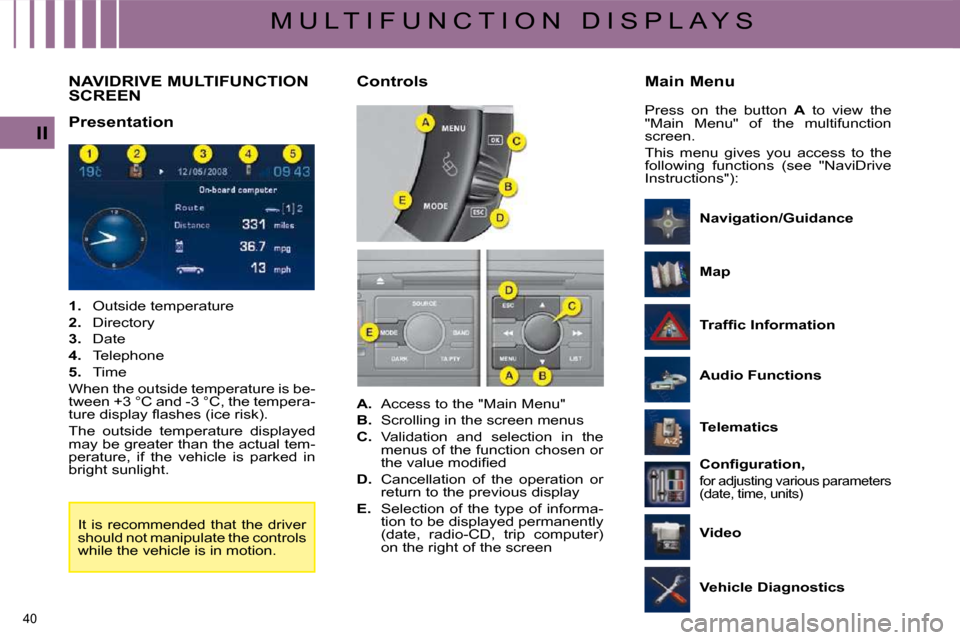

NAVIDRIVE MULTIFUNCTION SCREEN
Presentation
1. Outside temperature
2. D i r e c t o r y
3. Date
4. Telephone
5. Time
When the outside temperature is be-
tween +3 °C and -3 °C, the tempera-
t u r e d i s p l a y fl a s h e s ( i c e r i s k ) .
The outside temperature displayed
m a y b e g r e a t e r t h a n t h e a c t u a l t e m -
p e r a t u r e , i f t h e v e h i c l e i s p a r k e d i n
b r i g h t s u n l i g h t .
I t i s r e c o m m e n d e d t h a t t h e d r i v e r
s h o u l d n o t m a n i p u l a t e t h e c o n t r o l s
w h i l e t h e v e h i c l e i s i n m o t i o n .
Controls M a i n M e n u
T r a f fi c I n f o r m a t i o n
N a v i g a t i o n / G u i d a n c e
Map
A u d i o F u n c t i o n s
T e l e m a t i c s
C o n fi g u r a t i o n ,
for adjusting various parameters
( d a t e , t i m e , u n i t s )
Video
V e h i c l e D i a g n o s t i c s
A. A c c e s s t o t h e " M a i n M e n u "
B. S c r o l l i n g i n t h e s c r e e n m e n u s
C. V a l i d a t i o n a n d s e l e c t i o n i n t h e
m e n u s o f t h e f u n c t i o n c h o s e n o r
t h e v a l u e m o d i fi e d
D. C a n c e l l a t i o n o f t h e o p e r a t i o n o r
return to the previous display
E. S e l e c t i o n o f t h e t y p e o f i n f o r m a -
tion to be displayed permanently
( d a t e , r a d i o - C D , t r i p c o m p u t e r )
o n t h e r i g h t o f t h e s c r e e n Press on the button
A to view the
" M a i n M e n u " o f t h e m u l t i f u n c t i o n
s c r e e n .
T h i s m e n u g i v e s y o u a c c e s s t o t h e
f o l l o w i n g f u n c t i o n s ( s e e " N a v i D r i v e
I n s t r u c t i o n s " ) :
Page 41 of 330
41
II
M U L T I F U N C T I O N D I S P L A Y S
TRIP COMPUTER
S y s t e m w h i c h p r o v i d e s c u r r e n t i n f o r -
m a t i o n c o n c e r n i n g t h e r o u t e t r a v e l l e d
( r a n g e , c o n s u m p t i o n . . . ) .
M o n o c h r o m e d i s p l a y A Data displays
P r e s s t h e c o n t r o l f o r m o r e t h a n
t w o s e c o n d s t o r e s e t t h e d i s t a n c e
t r a v e l l e d , t h e a v e r a g e c o n s u m p -
tion and the average speed to
z e r o .
Zero reset
T h e t r i p c o m p u t e r d a t a i s t h e f o l l o w i n g :
- the range,
- t h e c u r r e n t c o n s u m p t i o n ,
- t h e d i s t a n c e t r a v e l l e d ,
- t h e a v e r a g e c o n s u m p t i o n ,
- t h e a v e r a g e s p e e d .
The next press then returns you
t o t h e n o r m a l d i s p l a y .
P r e s s t h e b u t t o n , l o c a t e d a t t h e
end of the wipers stalk , to dis-
play the various items of trip
c o m p u t e r d a t a i n s u c c e s s i o n .
Page 42 of 330
42
II
M U L T I F U N C T I O N D I S P L A Y S
TRIP COMPUTER
S y s t e m w h i c h p r o v i d e s c u r r e n t i n f o r -
m a t i o n c o n c e r n i n g t h e r o u t e t r a v e l l e d
( r a n g e , c o n s u m p t i o n , … ) .
M o n o c h r o m e d i s p l a y C
N a v i D r i v e c o l o u r d i s p l a y Data displays
R o u t e z e r o r e s e t
P r e s s t h e b u t t o n , l o c a t e d a t t h e
end of the wipers stalk , to dis-
p l a y t h e v a r i o u s t r i p c o m p u t e r
t a b s i n s u c c e s s i o n :
- t h e c u r r e n t i n f o r m a t i o n t a b w i t h :
