Page 182 of 337
147
IX
D R I V I N G
Reactivation
By recall of the memorised
speed
After a disengagement, press on button 3 . Your vehicle automati-
cally returns to the memorised
cruise speed which is displayed
in zone A .
If the memorised cruise speed is higher than the current speed,
the vehicle will accelerate to
reach the former.
By selection of the current
speed
Press on button 2 or 4 once the
desired speed has been reached.
The information "OFF" will then
disappear from the instrument
panel display.
Overriding the programmed
speed
During the operation of cruise con-
trol, it is always possible to use the
accelerator to go faster than the
cruise speed (for example to over-
take another vehicle). The speed
displayed in zone A fl a s h e s .
You have only to release the accel-
erator pedal to return to the cruise
speed. If during the operation of cruise
control, the system is unable to
keep within the memorised speed
(for example on a steep descent),
t h e n t h e s p e e d fl a s h e s . A d a p t y o u r
speed as necessary.
Return to normal driving Operating fault
If there is a malfunction, a mes-
sage will display accompanied by
an audible signal and lighting of the
service warning lamp.
Have it checked by a CITROËN
dealer.
Cruise control should only
be used when the driving
conditions allow you to drive
at a constant speed.
D o n o t u s e i t i n h e a v y t r a f fi c , o r o n
dangerous or slippery roads.
The driver must remain attentive
and in full control of his vehicle.
You are recommended to keep your
feet within range of the pedals.
To avoid any risk of interfering with
t h e p e d a l s :
- c h e c k t h a t t h e fl o o r m a t i s c o r - rectly positioned,
- n e v e r u s e m o r e t h a n o n e fl o o r mat.
By an action on the control 1 from
position "REG" to position 0 .
By the engine stopping.
The cruise speed previously chosen is no longer memorised.
Page 189 of 337
154
IX
D R I V I N G
Loading/unloading
assistance
Grand
C4 Picasso
C4 Picasso
The pneumatic suspension has an
additional function associated with
i t : t h e p o s s i b i l i t y t o r a i s e o r l o w e r
the height of the rear of the vehicle
when stationary, in order to facilitate
loading/unloading of the boot. Increasing the height of the boot
fl o o r
Press continuously at the top of
the control A , which is located in
the boot, on the left-hand side.
This action will be accompanied by
an audible signal. You can stop the
movement at any time by releasing
the control.
3 b e e p s w i l l c o n fi r m t h a t t h e m o v e -
ment has gone as far as it can.
Returning to the
normal
height
P r e s s b r i e fl y t w i c e a t t h e b o t t o m
of the control A .
Decreasing the height of the boot
fl o o r
Press continuously at the bottom
of the control A .
This action will be accompanied by
a sound signal. You can stop the
movement at any time by releasing
the control.
3 b e e p s w i l l c o n fi r m t h a t t h e m o v e -
ment has gone as far as it can.
Returning to the
normal
height
P r e s s b r i e fl y t w i c e a t t h e t o p o f
the control A .
Driving with the boot in a
low position may damage
the components located un-
der the bodyshell.
Special features
- If you start the vehicle without having returned it to the normal
height, automatic correction will
activate as soon as the vehicle
starts to move. During the cor-
rection, the service warning lamp
lights up and a message on the
screen reminds you not to ex-
ceed 10 km/h (6 mph).
- The loading assistance does not f u n c t i o n i n t h e f o l l o w i n g i n s t a n c e s :
- If the button B is lit up,
- in power economy mode,
- w h e n y o u fi r s t u s e t h e f u n c t i o n , press for two seconds on the
control A to initialise the system.
All subsequent actions will be
followed immediately by the de-
sired results.
Page 190 of 337
156
X
C H E C K S
BONNET
Protects the components of the
engine and provides access for
checking levels.
Opening
Push the exterior control B to the
left and raise the bonnet.
Unclip the strut C from its housing.
Fix the strut in the notch to hold
the bonnet open. Closing
Take the strut out of the support
notch.
Clip the strut in its housing.
Lower the bonnet then slam it
fi r m l y a t t h e e n d o f i t s t r a v e l .
Pull on the bonnet to check that
it is secured correctly.
The location of the interior control
prevents opening of the bonnet
while the driver's door is closed.
This operation must only be carried
out when the vehicle is stationary.
Avoid opening the bonnet in strong
winds.
Open the driver's door.
Pull the interior control A , located
at the bottom of the door frame.
Page 195 of 337
161
C H E C K S
CHECKING LEVELS
Check all of these levels regularly
and top them up if necessary, unless
otherwise indicated.
I f a l e v e l d r o p s s i g n i fi c a n t l y , h a v e t h e
corresponding system checked by a
CITROËN dealer.
Oil level
Oil change
Refer to the Maintenance and
Warranty Guide for details of the in-
terval for this operation. O i l s p e c i fi c a t i o n
The oil must correspond to your en-
gine and conform to the manufactur-
er's recommendations.
Brake fluid level
Fluid change
Refer to the Maintenance and
Warranty Guide for details of the in-
terval for this operation.
T h i s fl u i d m u s t b e c h a n g e d r e g u -
larly. Fluid which has been used for
too long may cause a loss of braking
e f fi c i e n c y .
F l u i d s p e c i fi c a t i o n
T h e b r a k e fl u i d m u s t c o n f o r m t o t h e
manufacturer's recommendations
a n d f u l fi l t h e D O T 4 s t a n d a r d s .
Coolant level
Draining the system
The coolant does not have to be
changed.
F l u i d s p e c i fi c a t i o n
The coolant must conform to the
manufacturer's recommendations.
The reading will only be
correct if the vehicle is on
level ground and the engine
has been off for more than
15 minutes.
The check is carried out either when
the ignition is switched on using the
oil level indicator on the instrument
panel, or using the dipstick.
Between two oil changes, the con-
sumption should not exceed 0.5 litre
per 600 miles (approx. 1 000 km).
Check this level also between each
scheduled service and before long
journeys. T h e b r a k e fl u i d l e v e l s h o u l d
be close to the "MAX" mark.
If it is not, check the brake
pad wear.
The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm,
the temperature of the coolant is
regulated by the fan. This can oper-
ate with the ignition off.
O n v e h i c l e s w h i c h a r e fi t t e d w i t h
a p a r t i c l e e m i s s i o n fi l t e r , t h e f a n
may operate after the vehicle has
b e e n s w i t c h e d o f f , e v e n i f t h e e n -
gine is cold.
In addition, as the cooling system is
pressurised, wait at least one hour
after switching off the engine before
carrying out any work.
To avoid any risk of scalding, un-
screw the cap by two turns to al-
low the pressure to drop. When the
pressure has dropped, remove the
cap and top up the level.
In order to maintain the re-
liability of the engine and
emission control system,
the use of additives in the engine
oil is prohibited.
Page 268 of 337
230
11
2 2
3 3
5 5
6 6
4 4
0 6 MAKING TELEPHONE CALLS
CALLING A CONTACT
Turn the dial and select the DIAL function.
Press the PICK UP button to display the telephone short-cut menu.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Dial the telephone number of your c o n t a c t u s i n g t h e a l p h a n u m e r i c keypad.
Press the PICK UP button to call the number dialled.
Press the HANG UP button to end the call.
ACCEPTING OR REFUSING A CALL
Press the PICK UP button to accept a call.
Press the HANG UP button to refuse a call.
Y o u c a n a l s o p r e s s a n d h o l d t h e s t e e r i n g w h e e l control TEL button to access the telephone menu: c a l l s l o g , d i r e c t o r y , v o i c e m a i l b o x .
To select the telephone used, press MENU, then select TELEMATICS, then BLUETOOTH FUNCTIONS, then BLUETOOTH ACTIVATION MODE. Then sel ect: - DEACTIVATED: to use the internal telephone, - ACTIVATED AND VISIBLE: to use the bluetooth telephone, visible to all telephones, - ACTIVATED AND NOT VISIBLE: to use the bluetoo th telephone, not visible to other telephones, it is not possible to match a new telephone.
Select CALL LIST or PHONE BOOK and press OK. Selec t the n u m b e r r e q u i r e d a n d c o n fi r m t o m a k e t h e c a l l .
DIAL
Page 272 of 337
234
4
1
2 3
51
2 3
4
51
2
3
4
STEERING WHEEL CONTROLS
STEERING WHEEL CONTROLS
1 . Volume increase.
2 . Volume decrease.
3 . Mute.
4 . RADIO: selection of the previous or next stored station. MP3/JUKEBOX: selection of the previous or next directory. CD CHANGER: selection of the previous or next CD.
5 . R A D I O : a u t o m a t i c s e a r c h f o r a h i g h e r f r e q u e n c y . CD/MP3/JUKEBOX/CD CHANGER: selection of the next track. CD/MP3/CD CHANGER: continuous press: fast forwards play.
1 . Displays the main screen.
2 . S e l e c t i o n o f t h e m o d e d i s p l a y e d ( T R I P , T E L , N A V o r A U D I O ) .
3 . A b a n d o n t h e o p e r a t i o n i n p r o g r e s s and return to the previous display.
4 . N a v i g a t i o n t h r o u g h t h e m e n u s .
5 . C o n fi r m a t i o n o f t h e f u n c t i o n s e l e c t e d .
1 . Short press: A c t i v a t i o n o f t h e v o i c e r e c o g n i t i o n .
2 . WHEN THE TELEPHONE IS NOT IN USE: L o n g p r e s s : a c c e s s t o t h e t e l e p h o n e m e n u ( p h o n e b o o k , c a l l l i s t , . . . ) . INCOMING CALL: Short press to accept. L o n g p r e s s t o r e j e c t t h e c a l l . CALL IN PROGRESS: S h o r t p r e s s t o h a n g u p . L o n g p r e s s t o a c c e s s t h e t e l e p h o n e m e n u .
3 . Personalisation: S h o r t p r e s s : c o n fi r m a t i o n o f t h e s e l e c t i o n m a d e u s i n g t h e d i a l .
4 . Rotation: Move around the phone book, the call list. Selection of personalisation.
Page 322 of 337
287
11
22
11
11
22
33
22
YES
RECEIVING A CALL
A n i n c o m i n g c a l l i s a n n o u n c e d b y a r i n g a n d a s u p e r i m p o s e d d i s p l a y on the multifunction screen. I n i t i a t e t h e p a i r i n g b e t w e e n t h e t e l e p h o n e a n d t h e v e h i c l e . T h i s p a i r i n g c a n b e i n i t i a t e d f r o m the vehicle's telephone function menu or via the t e l e p h o n e ' s k e y p a d . S e e s t e p s 1 t o 1 0 o n t h e p r e v i o u s p a g e s . D u r i n g t h e p a i r i n g p h a s e , t h e v e h i c l e m u s t b e s t a t i o n a r y w i t h t h e k e y i n t h e i g n i t i o n .
Select the telephone to be connected from the telephone function menu. The audio system connects to a newly paired telephone automatically.
S e l e c t t h e Y E S t a b o n t h e d i s p l a y u s i n g t h e b u t t o n s a n d c o n fi r m b y p r e s s i n g O K .
P r e s s t h e s t e e r i n g w h e e l c o n t r o l O K t o a c c e p t t h e call.
F r o m t h e B l u e t o o t h t e l e p h o n e f u n c t i o n A u d i o m e n u , s e l e c t M a n a g e the telephone call then call, call list or directory.
P r e s s t h e T E L s t e e r i n g w h e e l c o n t r o l f o r a c c e s s t o your directory. Or T o d i a l a n u m b e r , u s e y o u r t e l e p h o n e ' s k e y p a d , w i t h the vehicle stationary.
MAKING A CALL
BLUETOOTH AUDIO STREAMING
(AVAILABLE DURING THE YEAR)
W i r e l e s s t r a n s m i s s i o n o f t h e t e l e p h o n e ' s m u s i c fi l e s v i a t h e a u d i o e q u i p m e n t . T h e t e l e p h o n e m u s t b e a b l e t o m a n a g e t h e a p p r o p r i a t e b l u e t o o t h p r o fi l e s ( P r o fi l e s A 2 D P / A V R C P ) .
* I n c e r t a i n c a s e s , p l a y i n g o f t h e A u d i o fi l e s m u s t b e i n i t i a t e d f r o m t h e k e y p a d . ** If the telephone supports the function.
A c t i v a t e t h e s t r e a m i n g s o u r c e b y p r e s s i n g t h e S O U R C E b u t t o n * . T h e t r a c k s t o b e p l a y e d c a n b e c o n t r o l l e d as usual via the buttons on the Radio c o n t r o l p a n e l a n d t h e s t e e r i n g w h e e l controls ** . The contextual information can be displayed on the screen.
Page 323 of 337
288
06
4
1
23
51
23
4
5
2
1
STEERING WHEEL CONTROLS
1. Volume increase.
2. Volume decrease.
3. Mute.
4. RADIO: selection of the previous or next stored station. C D / M P 3 / U S B : selection of the previous or next directory. CD CHANGER: selection of the previous or next CD.
5. R A D I O : a u t o m a t i c s e a r c h f o r a h i g h e r f r e q u e n c y . C D / M P 3 / C D C H A N G E R / U S B : s e l e c t i o n o f t h e n e x t t r a c k . CD/MP3/CD CHANGER: continuous press: fast forwards play.
1. Displays the main screen.
2. S e l e c t i o n o f t h e t y p e o f i n f o r m a t i o n d i s p l a y e d o n t h e r i g h t -hand side of the screen for the monochrome screen A .
3. A b a n d o n t h e o p e r a t i o n i n p r o g r e s s and return to the previous display.
4. N a v i g a t i o n t h r o u g h t h e m e n u s .
5. C o n fi r m a t i o n o f t h e f u n c t i o n s e l e c t e d . I f y o u r v e h i c l e i s fi t t e d w i t h t h e B l u e t o o t h s y s t e m : p i c k u p a n i n c o m i n g c a l l o r h a n g u p a c a l l w h i c h i s i n p r o g r e s s .
I f y o u r v e h i c l e i s fi t t e d w i t h t h e B l u e t o o t h s y s t e m :
1. P r e s s : a c t i v a t i o n o f t e l e p h o n e v o i c e r e c o g n i t i o n (if the telephone offers this function).
2. P r e s s : d i s p l a y o f t h e p h o n e b o o k , o f t h e c a l l l i s t .

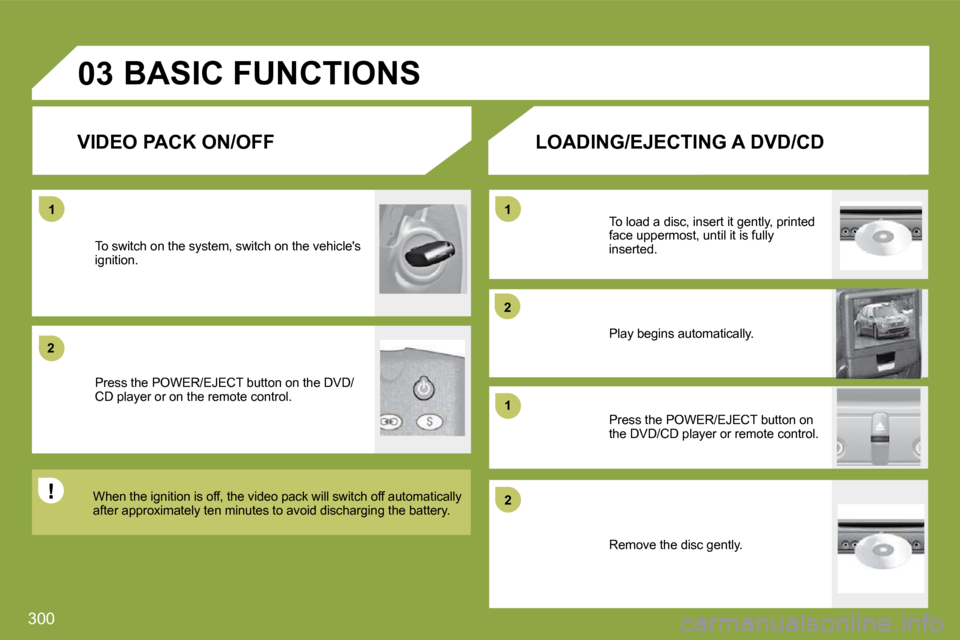

Page 335 of 337
300
1 1
2 2
1 1
2 2
1 1
2 2
0 3
V I D E O P A C K O N / O F F
B A S I C F U N C T I O N S
To switch on the system, switch on the vehicle's ignition.
Press the POWER/EJECT button on the DVD/CD player or on the remote control.
Play begins automatically.
To load a disc, insert it gently, printed face uppermost, until it is fully inserted.
Press the POWER/EJECT button on the DVD/CD player or remote control.
Remove the disc gently.
L O A D I N G / E J E C T I N G A D V D / C D
When the ignition is off, the video pack will switch off automatically after approximately ten minutes to avoid dischargin g the battery.
Page 337 of 337
302
0 5
The table below groups together the answers to the most frequently asked questions concerning the vi deo pack.
F R E Q U E N T L Y A S K E D Q U E S T I O N S
QUESTION SOLUTION
The player does not start. - Check the vehicle's fuses.
The player does not react to pressing of the remote control buttons. - T h e r e m o t e c o n t r o l b a t t e r i e s a r e fl a t . R e p l a c e t h e m . - The remote control sensor is hampered by objec ts or is dirty. Remove all objects on the remote control receiver or clean the surface using a damp cloth. - The video pack has overheated. Let it cool for a few minutes.
Image or sound interference while playing a DVD. The image remains frozen during play. The player cannot read the disc. The disc may be d amaged or dirty.
The player does not play the disc inserted. - T h e f o r m a t o f t h e d i s c d o e s n o t c o r r e s p o n d t o t h e s p e c i fi c a t i o n s o f t h e p l a y e r . - If it is cold, condensation may have formed on the laser. Wait approximately 5 minutes to allow t he humidity to evaporate.
When a DVD/VCD/SVCD is played, the image is of poor quality. - Remove the disc. - Using the SETUP button , adjust the brightness and insert the disc again.
No image is displayed on the monitor. - Press the SOURCE button until the image appea rs. - Press the SCREEN ON/OFF button.
There is no sound in the audio headphones. - Increase the volume using the VOLUME +/- buttons on the remote control or using the dial on the headphones. - Check that the correct channel is selected on the headphones. - Press the SOURCE button until the sound arrive s. - Replace the headphone batteries.
The start-up screen does not appear following ejection of the disc. - Insert another disc. - Switch the system off and then on again.
