Page 102 of 337
87
V I S I B I L I T Y
V
Linking with the automatic
"Guide-me-home" lighting
Association with the automatic light-
ing provides the "guide-me-home"
lighting with the following additional
options:
- selection of the lighting duration for 15, 30 or 60 seconds in the
vehicle parameters on the mul-
t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu (in the case of the mono-
chrome screen A, the duration is
fi x e d ) ,
- automatic activation of "guide- me-home" lighting when auto-
matic lighting is in operation.
Operating fault
In the event of a malfunction of
the brightness sensor, the lighting
comes on, a message appears on
the multifunction screen, accompa-
nied by an audible signal.
Consult a CITROËN dealer. In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the interior mirror;
the associated functions would no
longer be controlled.
EXTERIOR SIDE SPOTLAMPS
These illuminate:
- the zones facing the driver’s and passenger’s doors,
- the zones forward of the door mirrors and rearward of the front
doors.
Switching on
The side spotlamps come on:
- when you unlock the vehicle or press on the lighting button on
the remote control,
- when you remove the key from the ignition,
- when you open a door,
- when you use the remote control.
Switching off
They are timed to go out automati-
cally.
THE HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle. To do this,
turn the control, located below the
fascia to the right of the driver, to the
appropriate position:
0. 1 or 2 people in the front seats.
-. 3 people.
1. 4 to 7 people.
-. Intermediate setting.
2. 4 to 7 people + maximum author-
ised loads.
-. Intermediate setting.
3.
Driver + maximum authorised loads.
Initial setting is position "0".
Page 105 of 337
89
V I S I B I L I T Y
V
WIPER CONTROLS
System for selection and control of
the various front and rear wiping
modes for the elimination of rain and
cleaning.
The vehicle's front and rear wipers
are designed to improve the driver's
visibility progressively according to
the climatic conditions.
Programming
Various automatic wiper control
modes are also available according
to the following options:
- automatic wiping for the wind-screen wipers,
- rear wiping on engaging reverse gear. Manual controls
The wiper commands are issued di-
rectly by the driver by means of the
stalk
A and the ring B . Rear wiper
B. rear wiper selection ring:
park,
intermittent wipe,
w a s h - w i p e ( s e t d u r a t i o n ) .
f a s t ( h e a v y r a i n ) ,
n o r m a l ( m o d e r a t e r a i n ) ,
intermittent (proportional to
t h e s p e e d o f t h e v e h i c l e ) ,
automatic, then
single wipe (see
n e x t p a g e ) .
park,
s i n g l e w i p e ( p r e s s d o w n w a r d s ) ,
Windscreen wipers
A. wiping speed selection stalk:
or I f a s i g n i fi c a n t a c c u m u l a t i o n o f
snow or ice is present, or when us-
ing a tailgate bicycle carrier, deac-
tivate the automatic rear wiper via
t h e m u l t i f u n c t i o n s c r e e n c o n fi g u r a -
tion menu.
Page 106 of 337
90
V I S I B I L I T Y
V
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if
the windscreen wipers are operating.
Programming
The function is activat-
ed or deactivated via
the multifunction screen
c o n fi g u r a t i o n m e n u .
This function is activat-
ed by default.
Windscreen and headlamp wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen
w i p e r s o p e r a t e f o r a fi x e d p e r i o d .
If the dipped headlamps are on
,
the headlamp washers operate at
the same time. Automatic windscreen wiping
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e i n t e r i o r m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
This is controlled manually by the
driver by pushing stalk
A to the
"AUTO" position.
It is accompanied by a message on
the multifunction screen. The automatic wiping must be re-
activated if the ignition has been off
for more than one minute, by push-
ing stalk
A downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer.
Do not cover the rain sensor, linked
with the brightness sensor and
located in the centre of the wind-
screen behind the interior mirror.
Switch off the automatic wip-
ing when using an automatic car
wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping.
Activation
Switching off
This is controlled manually by the
driver by moving stalk
A upwards
and returning it to position "0" .
It is accompanied by a message on
the multifunction screen.
Page 107 of 337
91
V I S I B I L I T Y
V

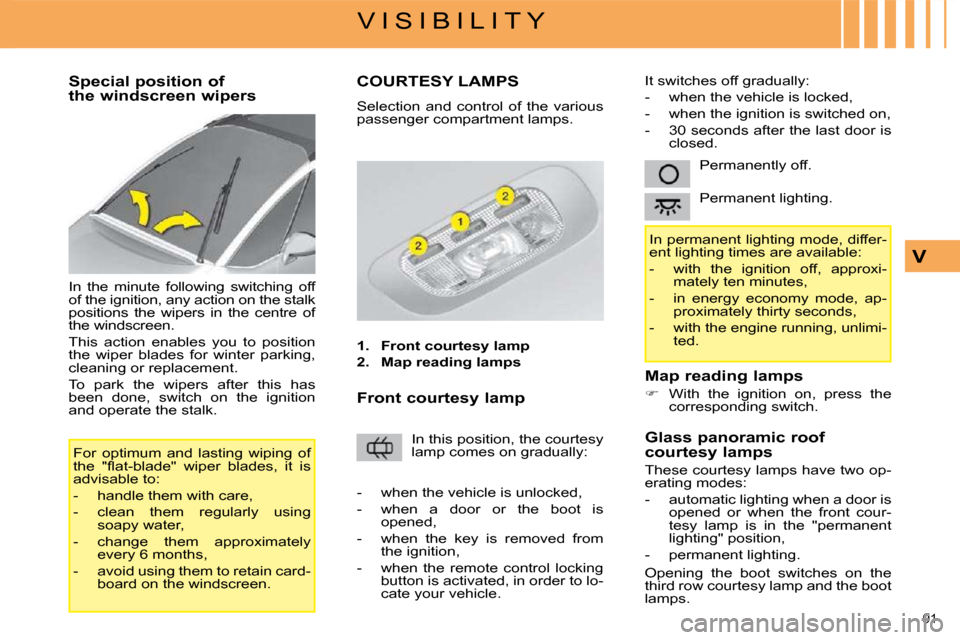

Special position of
the windscreen wipers
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of
the windscreen.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement.
To park the wipers after this has
been done, switch on the ignition
and operate the stalk. For optimum and lasting wiping of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain card- board on the windscreen. COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.
1. Front courtesy
lamp
2. Map reading
lamps
Front courtesy lamp
In this position, the courtesy
lamp comes on gradually: Permanently off.
Permanent lighting.
In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi- mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- with the engine running, unlimi- ted.
- when the vehicle is unlocked,
- when a door or the boot is opened,
- when the key is removed from the ignition,
- when the remote control locking button is activated, in order to lo-
cate your vehicle. It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Map reading lamps
With the ignition on, press the
corresponding switch.
Glass panoramic roof
courtesy lamps
These courtesy lamps have two op-
erating modes:
- automatic lighting when a door is opened or when the front cour-
tesy lamp is in the "permanent
lighting" position,
- permanent lighting.
Opening the boot switches on the
third row courtesy lamp and the boot
lamps.
Page 108 of 337
90
V I S I B I L I T Y
V
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if
the windscreen wipers are operating.
Programming
The function is activat-
ed or deactivated via
the multifunction screen
c o n fi g u r a t i o n m e n u .
This function is activat-
ed by default.
Windscreen and headlamp wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen
w i p e r s o p e r a t e f o r a fi x e d p e r i o d .
If the dipped headlamps are on
,
the headlamp washers operate at
the same time. Automatic windscreen wiping
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e i n t e r i o r m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
This is controlled manually by the
driver by pushing stalk
A to the
"AUTO" position.
It is accompanied by a message on
the multifunction screen. The automatic wiping must be re-
activated if the ignition has been off
for more than one minute, by push-
ing stalk
A downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer.
Do not cover the rain sensor, linked
with the brightness sensor and
located in the centre of the wind-
screen behind the interior mirror.
Switch off the automatic wip-
ing when using an automatic car
wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping.
Activation
Switching off
This is controlled manually by the
driver by moving stalk
A upwards
and returning it to position "0" .
It is accompanied by a message on
the multifunction screen.
Page 109 of 337
91
V I S I B I L I T Y
V
Special position of
the windscreen wipers
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of
the windscreen.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement.
To park the wipers after this has
been done, switch on the ignition
and operate the stalk. For optimum and lasting wiping of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain card- board on the windscreen. COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.
1. Front courtesy
lamp
2. Map reading
lamps
Front courtesy lamp
In this position, the courtesy
lamp comes on gradually: Permanently off.
Permanent lighting.
In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi- mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- with the engine running, unlimi- ted.
- when the vehicle is unlocked,
- when a door or the boot is opened,
- when the key is removed from the ignition,
- when the remote control locking button is activated, in order to lo-
cate your vehicle. It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Map reading lamps
With the ignition on, press the
corresponding switch.
Glass panoramic roof
courtesy lamps
These courtesy lamps have two op-
erating modes:
- automatic lighting when a door is opened or when the front cour-
tesy lamp is in the "permanent
lighting" position,
- permanent lighting.
Opening the boot switches on the
third row courtesy lamp and the boot
lamps.
Page 110 of 337
92
V I S I B I L I T Y
V
AMBIANCE LIGHTING PACK
Ambiance lighting
You can adjust the lighting by pressing
on the control A .
This activates the light sources
which are located as follows:
- on the sides of the front and rear doors,
- on the front and rear interior door handles,
- on the dashboard,
- at the roof. Operation
The control
A :
-
activates/deactivates the ambiance
lighting,
- selects the lighting intensity.
The adjustment is memorised.
To increase the lighting intensity:
Press a few times on the right
of the control A to obtain your
brightness preference.
To decrease the lighting intensity:
Press a few times on the left
of the control A to obtain your
brightness preference.
Courtesy lighting
The automatic courtesy lighting
consists of the footwell lamps, the
interior lamps and the ambiance
light sources. Front door pockets with
automatic lighting
The lighting for the door pockets
comes on automatically when you
place a hand inside one of the com-
partments.
It goes off after a few seconds when
you take your hand away.
Reading lamps on front seat
backrests
There are spotlamps incorporated
in the backrests of the front seats,
behind the rear tables. They are
only accessible when the table is
lowered.
Press the "On/Off" button to
switch the reading lamp on or off.
System providing warm and convivial
lighting which casts a gentle orange-
tinted light.
This lighting is available at night or
in conditions of poor daylight.
Page 114 of 337
96
VI
L A Y O U T
MATS
Removable component which pro-
tects the carpet against exterior dirt.
Fitting
W h e n fi t t i n g t h e m a t f o r t h e fi r s t t i m e ,
o n t h e d r i v e r ' s s i d e , u s e o n l y t h e fi x i n g s
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
move the seat as far back as possible,
u n c l i p t h e fi x i n g s ,
remove the mat.
Refitting
T o r e fi t t h e m a t o n t h e d r i v e r ' s s i d e :
position the mat correctly,
r e fi t t h e fi x i n g s b y p r e s s i n g ,
check that the mat is secured
correctly. To avoid any risk of jamming of the
pedals:
- only use mats which are suited
t o t h e fi x i n g s a l r e a d y p r e s e n t i n
the vehicle; it is imperative that
these are used,
- n e v e r fi t o n e m a t o n t o p o f a n - other.
Front door
The front door pockets can hold objects
equivalent in volume to a 1.5 litre bottle.
They may have their own lighting,
coming on automatically when your
hand approaches.
This lighting goes out automatically
after a few moments when your
hand is taken away.
Rear door
The rear door pockets can hold objects
equivalent in volume to a 0.5 litre bottle.
USB BOX
This connection box, consisting of
a JACK socket and a USB port, is
located on the centre console.
It permits the connection of portable
equipment, such as a digital audio
player of the iPod ®
or USB stick type.
I t r e a d s t h e a u d i o fi l e f o r m a t s w h i c h
are transmitted to your audio equip-
ment and played via the vehicle's
speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g
the steering wheel controls or the
audio equipment control panel and
display them on the multifunction
screen.
When it is in use, the portable equip-
ment charges automatically.
For further details concerning the
use of this equipment, refer to the
"Audio and Telematics" section.
Page 120 of 337
96
VI
L A Y O U T
MATS
Removable component which pro-
tects the carpet against exterior dirt.
Fitting
W h e n fi t t i n g t h e m a t f o r t h e fi r s t t i m e ,
o n t h e d r i v e r ' s s i d e , u s e o n l y t h e fi x i n g s
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
move the seat as far back as possible,
u n c l i p t h e fi x i n g s ,
remove the mat.
Refitting
T o r e fi t t h e m a t o n t h e d r i v e r ' s s i d e :
position the mat correctly,
r e fi t t h e fi x i n g s b y p r e s s i n g ,
check that the mat is secured
correctly. To avoid any risk of jamming of the
pedals:
- only use mats which are suited
t o t h e fi x i n g s a l r e a d y p r e s e n t i n
the vehicle; it is imperative that
these are used,
- n e v e r fi t o n e m a t o n t o p o f a n - other.
Front door
The front door pockets can hold objects
equivalent in volume to a 1.5 litre bottle.
They may have their own lighting,
coming on automatically when your
hand approaches.
This lighting goes out automatically
after a few moments when your
hand is taken away.
Rear door
The rear door pockets can hold objects
equivalent in volume to a 0.5 litre bottle.
USB BOX
This connection box, consisting of
a JACK socket and a USB port, is
located on the centre console.
It permits the connection of portable
equipment, such as a digital audio
player of the iPod ®
or USB stick type.
I t r e a d s t h e a u d i o fi l e f o r m a t s w h i c h
are transmitted to your audio equip-
ment and played via the vehicle's
speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g
the steering wheel controls or the
audio equipment control panel and
display them on the multifunction
screen.
When it is in use, the portable equip-
ment charges automatically.
For further details concerning the
use of this equipment, refer to the
"Audio and Telematics" section.
Page 144 of 337
112
VII
C H I L D S A F E T Y
MANUAL CHILD LOCK
Locking
Turn the red control one eighth
o f a t u r n t o t h e l e f t u s i n g t h e i g n i -
t i o n k e y .
Unlocking
Turn the red control one eighth
of a turn to the right using the
i g n i t i o n k e y .
ELECTRIC CHILD LOCK
M e c h a n i c a l s y s t e m t o p r e v e n t o p e -
ning of the rear door using its interior
c o n t r o l .
The control is located on the edge of
e a c h r e a r d o o r . R e m o t e c o n t r o l s y s t e m t o p r e v e n t
opening of the rear doors using their
interior controls and use of the rear
e l e c t r i c w i n d o w s .
Activation
P r e s s t h e b u t t o n A .
T h e i n d i c a t o r l a m p o n t h e b u t t o n
c o m e s o n , a c c o m p a n i e d b y a m e s -
s a g e o n t h e m u l t i f u n c t i o n s c r e e n .
T h i s i n d i c a t o r l a m p r e m a i n s o n u n t i l
t h e c h i l d l o c k i s d e a c t i v a t e d . Deactivation
P r e s s t h e b u t t o n A a g a i n .
T h e i n d i c a t o r l a m p o n t h e b u t t o n
s w i t c h e s o f f , a c c o m p a n i e d b y a m e s -
s a g e o n t h e m u l t i f u n c t i o n s c r e e n .
T h i s i n d i c a t o r l a m p r e m a i n s o f f u n t i l
t h e c h i l d l o c k i s a c t i v a t e d .
T h i s s y s t e m i s i n d e p e n d e n t a n d i n
n o c i r c u m s t a n c e s d o e s i t t a k e t h e
p l a c e o f t h e c e n t r a l l o c k i n g c o n t r o l .
C h e c k t h e s t a t u s o f t h e c h i l d l o c k
e a c h t i m e y o u s w i t c h o n t h e i g n i t i o n .
A l w a y s r e m o v e t h e k e y f r o m t h e
i g n i t i o n w h e n l e a v i n g t h e v e h i c l e ,
e v e n f o r a s h o r t t i m e .
I n t h e e v e n t o f a s e r i o u s i m p a c t ,
t h e e l e c t r i c c h i l d l o c k i s d e a c t i v a t e d
a u t o m a t i c a l l y t o p e r m i t t h e e x i t o f
t h e r e a r p a s s e n g e r s . T h i s w a r n i n g l a m p c o m e s
o n t e m p o r a r i l y o n t h e i n s t r u -
m e n t p a n e l w h e n t h e c h i l d
l o c k i s a c t i v a t e d .
I t a l s o c o m e s o n w h e n t h e i g n i t i o n
i s s w i t c h e d o n , t h e n s w i t c h e s o f f
a p p r o x i m a t e l y t e n s e c o n d s a f t e r t h e
e n g i n e i s s t a r t e d .
T h e c o n t r o l i s l o c a t e d o n t h e d r i v e r ' s
d o o r , w i t h t h e e l e c t r i c w i n d o w c o n t r o l s . A n y o t h e r s t a t u s o f t h e i n d i c a t o r
l a m p i n d i c a t e s a m a l f u n c t i o n o f t h e
e l e c t r i c c h i l d l o c k . H a v e i t c h e c k e d
b y a C I T R O Ë N d e a l e r .
